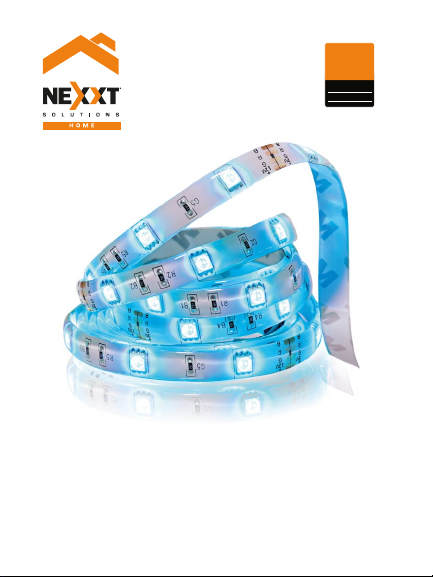

Nexxt NHB-S610 User manual

Smart Wi-Fi LED
light strip starter kit
WARRANTY
nexxtsolutions.com/warranty
YEAR
2

User guide
Thank you for purchasing the Smart Wi-Fi LED light strip
from Nexxt Solutions. We are excited to be part of making
your life easier, safer and bringing peace of mind into your
homes.
Product overview

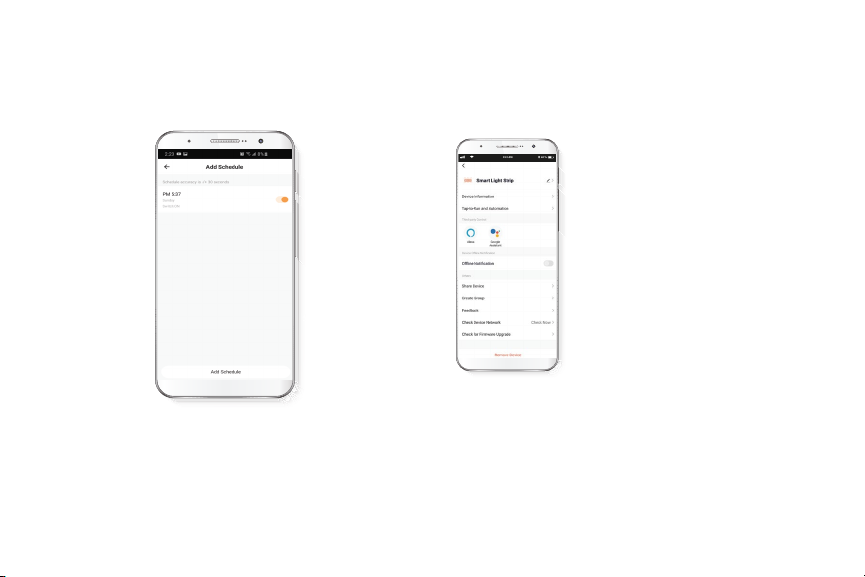

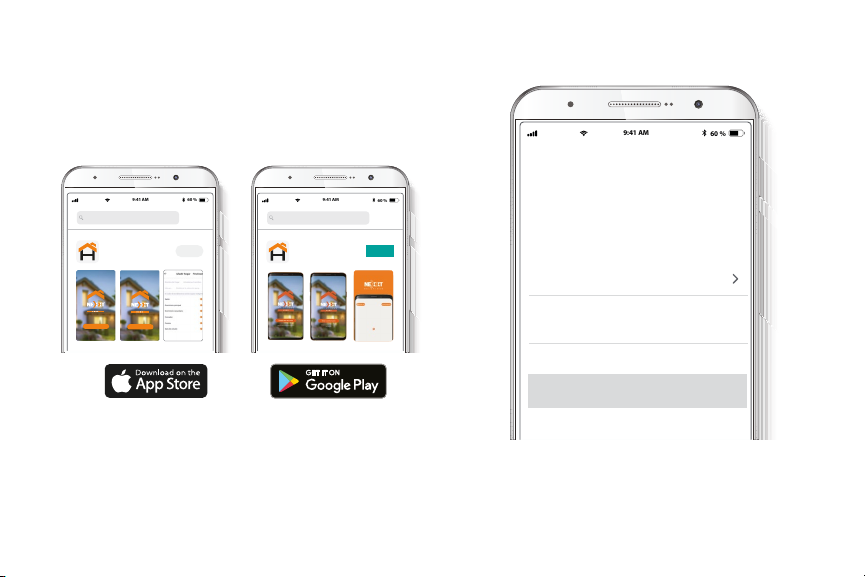

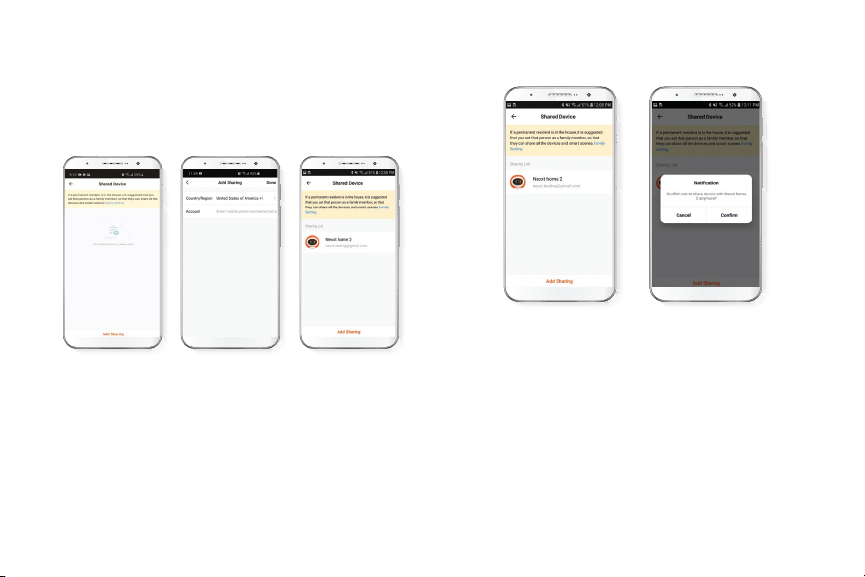

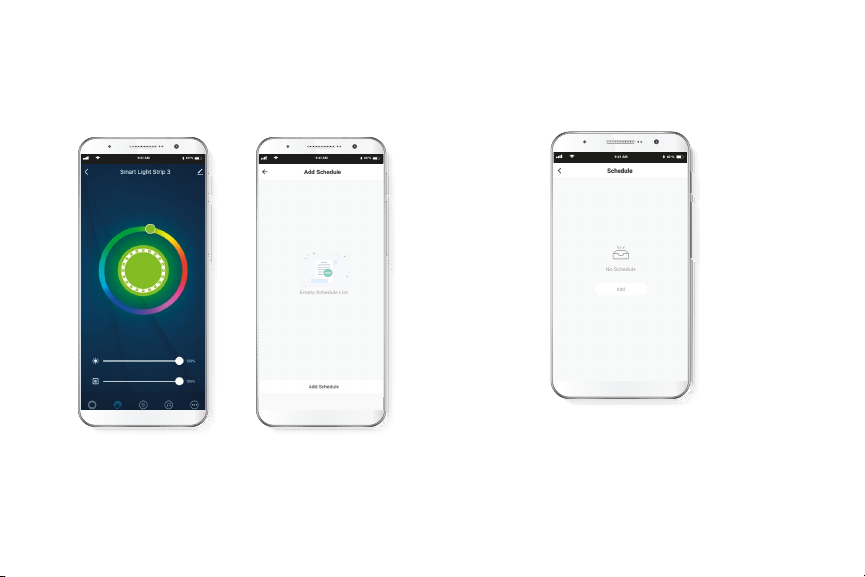

1. LED light strip: Displays various lighting colors
according to your preferred settings through the
application
2. Data cable
3. Controller
4. Power cable
5. AC adapter
Package content
• 3.3ft LED light strip (3)
• 4-pin male header connector (4)
•4-pin termination connector (4)
•4-pin header locking fastener (optional) (2)
• Quick start guide (1)
* The starter kit comes with the controller and power adapter
pre-installed.
Preliminary steps
A. For predetermined 3.3ft strip lengths
1. First you will need to determine the mounting location
of the strip lights and the total length required.
2. For continuous, extended runs, use the supplied 4-pin
male header connectors to attach the additional strips
needed to complete the desired length. To do this, follow
the steps below:
2.1. Connect the 4-pin header male connector to one end
of the female header on the rst light strip.
2.2. Connect the second light strip female connector to
the 4-pin male header of the rst strip.
2.3. Connect the third light strip female connector to the
4-pin male header of the second strip.
English
1 2 3 4 5

12V
G
R
B
+
12V
G
R
B
+
Maximum run length: 16.4ft.
4-PIN male connectors
Termination connector
Light stripConnector
Note: Make sure that markings on the strip match
pin-to-pin on both sides of the connection (+to +, G to G, R
to R, B to B).
Use the optional locking fastener for connection reliability.
3. Clean the installation surface. Peel o the adhesive tape
and apply. Make sure the area is dry and smooth for
long-lasting results.
Note: For indoor use only.
4. Plug the strip into a standard wall outlet.

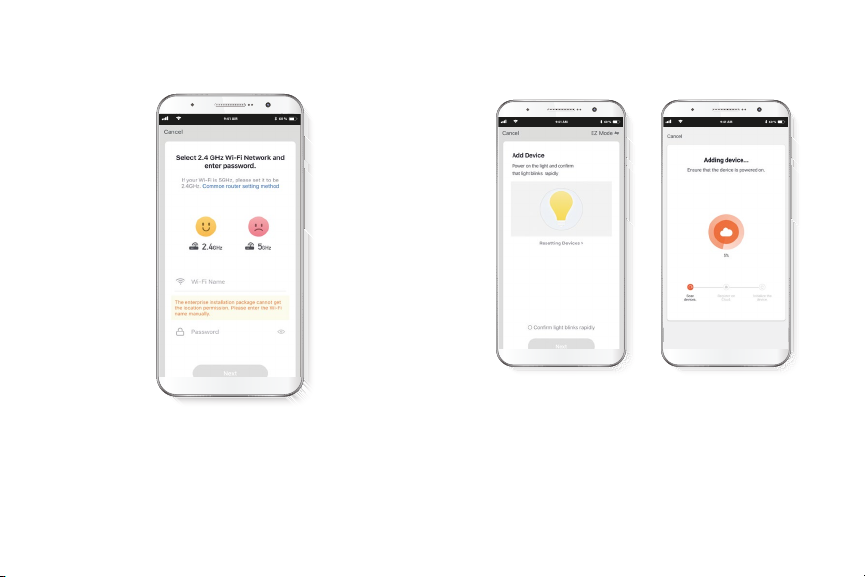

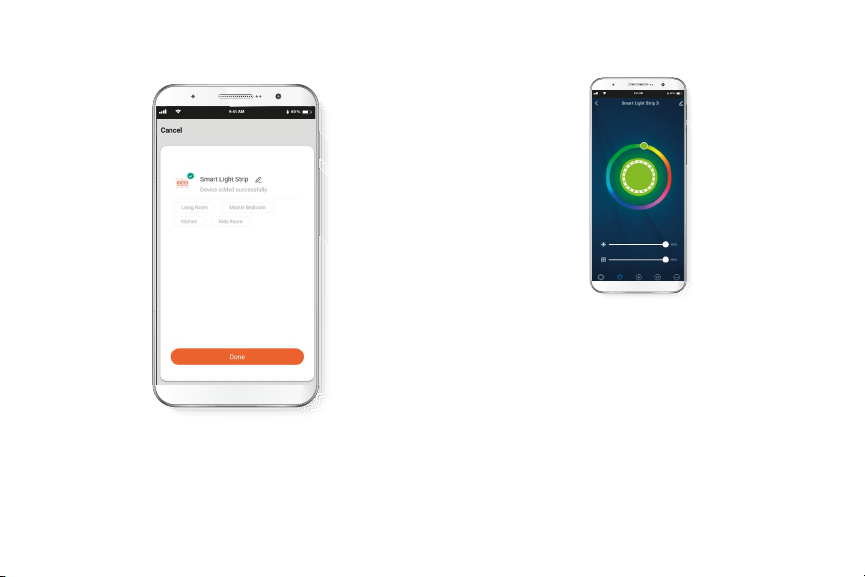

5. The LED strip will automatically turn on and enter into
the pairing mode (blinking LEDs). Otherwise, press the
power button on the controller to turn on the device. Press
it once more to enable the pairing mode manually.
B. For customized strip lengths
1. First you will need to determine the mounting location of
the strip lights and the total length required.
2. Cut the light strip to the required size using the
designated lines on the strip to preserve functionality.
12V
G
R
B
+
12V
G
R
B
+
12V
G
R
B
+12V
G
R
B
+
12V
G
R
B
+

6. Clean the installation surface. Peel o the adhesive tape
and apply. Make sure the area is dry and smooth for
long-lasting results.
7. Proceed to connect and power on the unit. Make sure
that all LED strips light up uniformly. If not, repeat steps 4
through 6.
Factory reset: Press and hold the controller button for
about 5 seconds until the red LED starts blinking. Then
release the button, as it indicates that the strip has been
successfully restored to its factory default values.
3. Use the supplied 4-pin termination connector (must be
fully open) to attach the additional length needed to
complete the desired run.
4. Verify that all four pins are properly aligned (+12V to
+12V, G to G, R to R, B to B) prior to locking the connector.
Note: If pins are not positioned correctly, the strip will not
turn on.
5. Press rmly to secure both ends of the connector until it
clicks in place.
Note: The light strip has to be fully inserted into the
termination connector to ensure a good connection.
12V
G
R
B
12V
G
R
B
+ +
12V
G
R
B
+

Accent lighting solution
Lightweight and exible, the LED lights can be installed
under bars, entertainment consoles, ceilings, cabinets or
even behind your TV, with the included adhesive tape.
