Pro Ears PRO EARS series GOLG User manual

FIVE YEAR LIMITED WARRANTY
RidgeLine, Inc. warrants our PRO EARS series hearing protectors against
any defects in manufacturing for a period of FIVE years from the date of
purchase. Items covered include (Where applicable), circuit board,
microphone and switches.
NOTE: For Warranty to be valid you must fill out and return Warranty
Card within 30 days of purchase. You may also register Warranty at:
www.pro-ears.com
For service under this Warranty please return complete set of PRO EARS,
postpaid. For the first 90 days after purchase we will repair or replace at
no charge. For the remaining 4 years, 9 months please return item with
$29.95 check or money order made out to RidgeLine, Inc to cover
handling, processing, packaging and shipping. Please include a copy of your
dated sales receipt showing the dealer's name, product and purchase
price. We reserve the right to repair or replace the item and then will
return postpaid. Prior to returning unit please call for a Return
Authorization number.
This Warranty is limited to the original purchaser only and does not cover
damage caused by abuse, misuse or accident. RidgeLine, Inc. is not
responsible for any indirect or consequential damages arising from the use
or inability to use its products. This disclaimer may not apply in your state.
While this Warranty gives you specific legal rights, you may also have
other rights which vary from state to state.
In most cases, the product will be repaired or replaced and shipped back
to you within five working days.
For
Warranty Questions call: 1-8800-8891-33660
For
all Warranty Repairs ship postpaid to: RidgeLine, Inc.
101 RidgeLine Dr.
Westcliffe, CO 81252
1-800-891-3660 • 1-719-783-4161 • 1-719-783-4162 (fax)
[email protected]
Please check our web site at: www.Pro-Ears.com for current shipping information.
101 RidgeLine Dr. • Westcliffe, CO 81252
PRO-MAG™
SPORTING
CLAYS™
The World's Most Advanced Electronic
Hearing Protection/Amplification Products.
For all Dimension GOLD &
Predator Series Models:
Owner’s Manual
DIMENSION
GOLD

CONGRATULATIONS, you have just purchased the finest, most advanced
electronic hearing protection/enhancement system available today. Your PRO
EARS were manufactured from the highest quality materials utilizing cutting
edge technology. Each unit is designed to provide you with years of exceptional
service with a minimum of maintenance. Unlike other electronic hearing
protection units PRO EARS offer you all the following special features:
DIMENSION GOLD 1:
• Exclusive 8-Bit Micro-Processor instantly performs a Complete
Systems Diagnostic.
• Fully enclosed, Military Grade Circuit Boards for protection against
the elements.
•Gold Connectors for the highest audiophile sound quality ever.
•LED indicator on Circuit Board shows you working order.
• Programmed Auto-Shut Off. We forget sometimes but no longer. Your
unit will automatically shut it self off at 4 hours of operation.
•Low Battery Indicator. Let's you know when battery is getting low.
• World's Only DLSC™ Technology protects hearing while letting you hear
softer sounds.
•Fastest 'Attack Time' - reacts/recovers in less than 1.5 milliseconds.
The fastest in the industry.
•Programmable/Automatic Gain Control (AGC™). Available in all GOLD
models only.
•Stereo for true directional sound detection. Multi-directional mics
provide 360 degrees of hearing.
•Independent Volume Controls. No connecting wires between cups to
snag or break.
• Special Replaceable, ProForm Leather™ Ear Seals for the ultimate in
comfort and conformity for the tightest noise elimination seal. No
plastic, no vinyl, no sweat.
• Comfortable, adjustable, ProForm Leather™ Padded Headband.
•Modular Design for easy carry/storage.
•Dielectric Construction. Will not conduct electricity.
• Slim Line, Chop Side and Mag designs to fit your need.
• 200 hours minimum battery life. Common 'N' Size Alkaline.
•BATTERIES INCLUDED
• Improved Battery Retention
• Industry's only '5' Year Warranty.
• Proudly MADE IN THE USA.
DIMENSION GOLD 2: Everything found in Dimension 1 plus…
• Receiver/Input capabilities for: AM/FM Radio, CD or MP3 Player, many
FRS radios or other electronic Communication/Entertainment Devices
using a 3.5 'mini jack'. Audio cord supplied.
TROUBLE SHOOTING
1. One or both sides do not work. First,
ensure the batteries are new, fully
charged and installed properly in each
ear cup, plus to plus as shown in this
illustration. If a side does not work, if
the headset 'clicks' On and Off when
turned up or if a 'motor boat' type
sound is heard, replace the batteries.
[ [ x - ] ]
1-800-891-3660
[ [ - x ] ]
2. We recommend removing the batteries for replacement by placing an
object (knife, screw driver, etc) under the lip at the end of the battery
and carefully applying enough pressure to ease the battery up and out
of the compartment.
3. If, after doing all the above steps, one or both sides of the unit still do
not work, it may be necessary to return the unit to the factory for
repair. See back for return procedure.
4. On the Dimension 2 models if the Input or Output feature does not
work, First check to ensure the outside unit, radio, CD Player, Tape
Player etc, is working properly. If there is still a problem, check to make
sure the connecting wires and the connection it self are correct. If the
unit is still not working properly it may be necessary to return the unit
to the factory. See back for return procedure.
5. All circuit boards are sealed against moisture during the manufacturing
process however, this is an electrical device and all effort should be
made to protect against exposure to excessive moisture from rain,
snow, etc. Should the unit be exposed to moisture it will be necessary
to allow the unit to dry overnight, naturally. If this is done, the unit
should work normally once fully dried. CAUTION: NEVER DRY YOUR PRO-
EARS UNIT WITH AN ELECTRONIC HAIR DRYER OR OTHER ARTIFICIAL
MEANS. THIS COULD RESULT IN DAMAGE TO THE UNIT!
6. While we use the highest quality materials available, after an extended
period of use the Sealing Rings should be replaced. Simply call PRO-
EARS to order the appropriate 'Maintenance Kit'.
7. It is recommended that your model PRO-EARS be placed in a protective
bag for storage and travel to protect its appearance. Suitable carrying
bags are available by calling 1-800-891-3660.

HOW PRO EARS WORK
Our patented system has been designed to provide two main functions. First, they are
the most advanced systems made today for protection against high decibel noise
vibrations that can damage hearing. Secondly, they are used to enhance hearing both in
sound clarity and range.
Along with our standard features the 'GOLD' Series also offers some new advanced
features such as:
•8-Bit Micro Processor performs an instant and complete diagnostic of all electronic
components in your unit. It performs up to 10,000 per second when you turn the
cup's volume control knob on. An Interactive LED (light emitting diode) in the cup will
also light during the Micro Processor's diagnostic. If the test finds all electronics in
proper working order the LED will automatically extinguish and your unit will go to
the ON stage. Test time is approximately 5 seconds. If there is a diagnostic failure
the LED will shut off and the unit will not be activated.
•Audible Battery Life Indicator. When your batteries reach 50% remaining life the
unit will emit a series of 10 audible beeps. This will let you know you have
approximately 40 hours of continuous use remaining. When 10% battery life remains
you will hear another series of 10 beeps. The unit will continue to beep once every
minute thereafter until batteries are replaced.
•Auto Shut-Off feature that will shut the unit off every four hours. The timer is
activated when the unit is turned on. If wearing the unit during shut off; simply turn
off, wait 2 to 3 seconds and turn back on. Doing this will allow you to continue to
use the unit and reset the automatic shut-off. If you have stored the unit without
turning it off and the Auto Shut-Off feature will activate.
• All PRO EARS models use an advanced high-speed compression and limiting circuit
coupled with an ultra, low noise amplification system. This incredible 'DLSC'™
Technology (Dynamic Level Sound Compression) with FSS™ (Full Spectrum Sound)
circuitry instantly reacts in less than 1.5 milliseconds to high impulse noise by
'compressing' loud noise impulses starting at a safe 70 dB. Unlike other makes that
react to loud noise impulses by 'shutting off' the amplification system, leaving gaps or
dead spots in hearing, or reducing the volume input level which reduces all sounds,
the PRO EARS user hears every sound safely, without interruption while being full
protected against damaging noise levels. PRO EARS also use advanced, electronic
condenser microphone technology to improve proximity of sound even in high noise
environments.
• PRO EARS feature the latest Surface Mount Design and Active Sound Control
technology with the highest available “Audiophile” (stereo) quality, to provide the
best in acoustic protection. The GOLD Series also incorporates Gold Connectors
proven to be the best metal for conducting purposes. This adds to the incredible
sound quality for a natural, clear sound experience. PRO EARS also feature 'DSR'™
(Dynamic Sound Range) that lets you hear every sound, crisp, clear and distortion
free, close and far away.
The combination of these technologies provide you with a safety and clarity quality
unattainable with any other make, at any price.

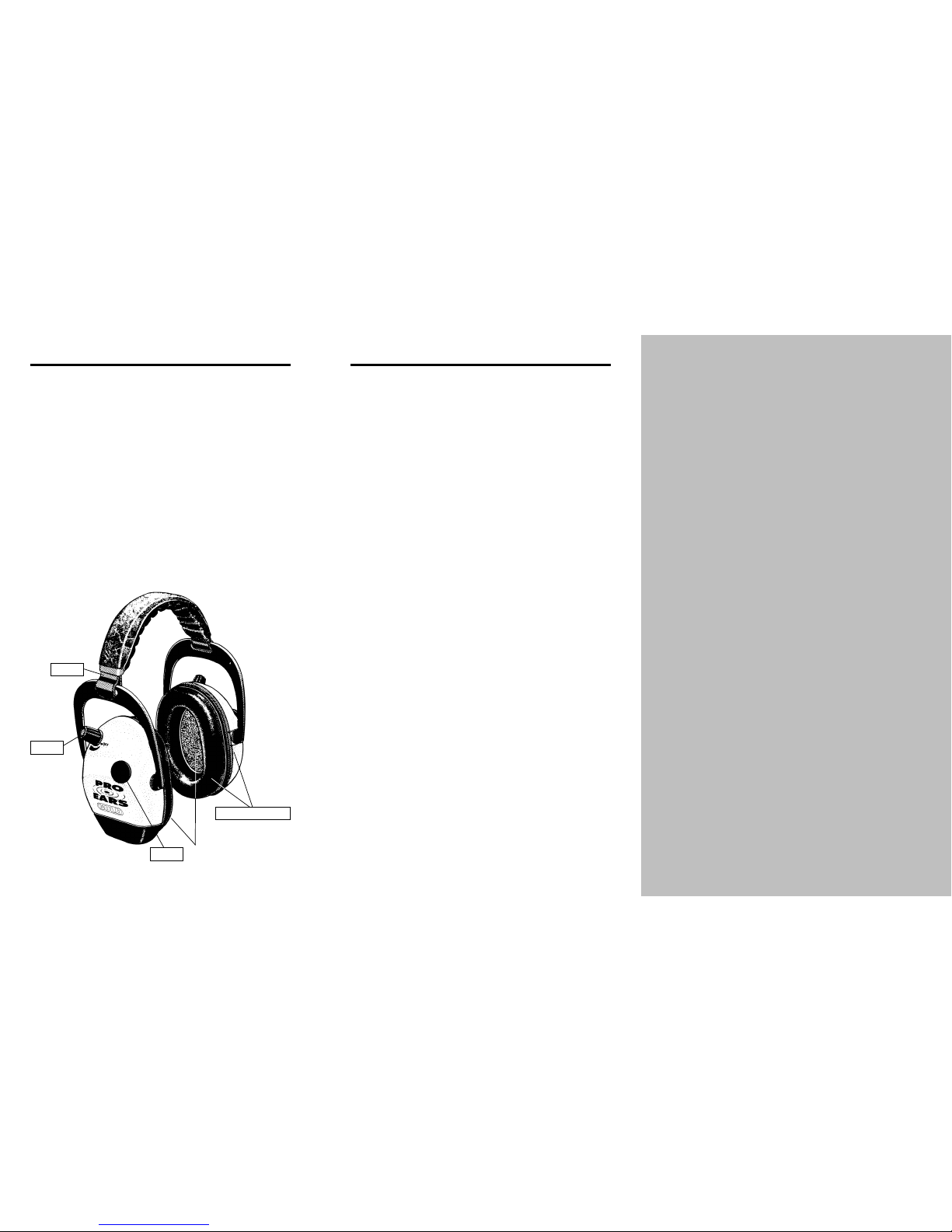

PARTS LIST
HB1 Head Band
CN1 Control Knob
MC2 Microphone Cover
HY6 Maintenance Kit for; PRO-MAG & PRO-SLIM Series
HY7 Maintenance Kit for; PREDATOR GOLD & PLUS Series
HY8 Maintenance Kit for; STALKER & CLAYS Series
Maintenance Kit Includes: (2) ProForm Leather™ Sealing Rings, plus
(2) New Interior Foam and (2) foam Mic Covers.
Batteries are replaced
by lifting Foam Flap.
HB1
CN1
MC2
HY6/HY7/HY8
SPORTING
CLAYS™

IMPORTANT
1). PRO EARS GOLD SERIES are extremely durable however it is not
advisable to expose them to extreme heat or cold.
2). Check to ensure batteries are in good condition. Even though PRO
EARS GOLD SERIES use extremely long life batteries it is advisable
to always carry a spare set.
TO USE
A) All PRO EARS electronic models come equipped with four 'N' size 1.5 volt
batteries, two for each cup. These are superior batteries available where
batteries are sold. Alkaline batteries provide the best service. To install,
turn the volume controls to the 'Off' position. Carefully pull the inner
surface foam down to reveal the battery holder. Remove the old
batteries, replace with new batteries into the holder with the negative to
negative and positive to positive side. The correct polarity is marked on
the holders. Once installed, carefully replace foam. Even though your PRO
EARS model has the longest life batteries
available, it is recommended that the volume
controls be turned to the 'Off' position when
not in use. Our Auto Shut-Off feature will help
save battery life.
B) Headband may be adjusted to ensure cups fit correctly around the ears
comfortably by sliding headband apart. Place the headband directly in the
middle of the head with the cups over the ears. Place the thumb of each
hand against each ear cup and press gently inward while simultaneously
using your fingers to tighten the headband firmly against the top of your
head. The special, replaceable ProForm Leather™ Sealing Rings are made
for maximum comfort and noise protection and will contour snugly around
ears even when wearing eyeglasses.
C) To adjust volume; Turn the volume knobs to the 'Off' position. Turn on and
adjust as needed for comfort. Both sides should be adjusted equally
depending on individual hearing ability and purpose.
D) Your Dimension Series model also features a special, internal set of
connector pins (jumpers) that are used to alter the circuit board
sensitivity and gain setting.
The Sensitivity setting is independent of the exterior volume controls and
is set at the factory in the LOW position. This setting is preferred under
certain consistent, high noise level situations such as industrial
machinery, aviation, engine noise such as auto racing, or when unusually
high (110 dB to 130 dB) levels are encountered, it is recommended that
the circuit board sensitivity be set at the lower level. The LOW setting will
further dampen the high background noise levels and increase the ability
to hear lower level sounds such as conversation. (The DSTL model Gain
settings however are factory set on HIGH)
Gain setting controls the distance at which sound is received by the
electronics and sounds from a greater distance (up to 100 yards
depending on conditions). Gain is also factory set in the LOW setting with
the exception of the DSTL model which comes set in HIGH. This will
enable you to increase hearing/range up to 8x normal hearing the unit's
highest amplification setting. These programmable jumpers setting are
independent of each other so you may change Sensitivity jumpers and the
Gain jumper to different settings depending on your specific needs.
For example: Setting the Mic Gain on high and leaving the Speaker Level
on low is good for hearing distant sounds for those who do not require
amplification due to hearing loss while maintaining a safe 70dB sound
level.
Or:
Setting the Speaker Level on high and leaving the Mic Gain on low is good
for those who need amplification due to hearing loss but do not want to
hear distant sounds. Again while maintaining a safe 70dB sound level.
To change the circuit board sensitivity setting, (See diagram) gently pull
back the foam cover inside each cup. You will see that there are two
easy-to-grab posts attached to the jumpers. To change the unit settings,
first turn the cup side you wish to make the change off. Then carefully pull
the jumper posts straight up with your fingers, a set of tweezers or small
pair of needle nose pliers. Move the jumper to the desired pins and push
straight down. Be careful not to apply too much pressure and stop when
jumper is fully seated.
The left set of pins is for Mic Gain (as shown). When the black jumper is
covering the left two pins the Gain is on low. This is how the Gain will be
set from the factory, (except DSTL models).
The 2nd set of pins is for Speaker Level
(as shown). When the jumper is covering
the left two pins the Speaker Level is
also on low, set at the factory.
NOTE: Changing the Jumper Settings is a
delicate operation. Ridgeline is not
responsible for damage caused as a
result of this procedure.*
Illustration Purposes only
Exact Configuration of circuit
board may vary over time
