Pro-Form 785 S User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. PFEL60440
Serial No. _
Serial Number
Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Patent Pending
USER’S MANUAL

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual before
using the elliptical exerciser.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
in-home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
4. Place the elliptical exerciser on a level sur-
face, with a mat beneath it to protect the
floor or carpet. Keep the elliptical exerciser
indoors, away from moisture and dust.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothing when
using the elliptical exerciser. Always wear
athletic shoes for foot protection.
9. Always hold the handlebars or the upper
body arms when mounting, dismounting, or
using the elliptical exerciser.
10. Keep your back straight when using the ellip-
tical exerciser; do not arch your back.
11. If you feel pain or dizziness while exercis-
ing, stop immediately and cool down.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
13. When you stop exercising, allow the pedals
to slowly come to a complete stop. The ellip-
tical exerciser does not have a free wheel;
the pedals will continue to move until the
flywheel stops.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
PROFORM is a registered trademark of ICON IP, Inc.

3
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM®
785 S elliptical exerciser. The PROFORM 785 S is an
incredibly smooth exerciser that moves your feet in a
natural elliptical path, minimizing the impact on your
knees and ankles. And the unique PROFORM 785 S
offers an impressive array of features to help you
achieve your fitness goals in the convenience of your
home. Welcome to a whole new world of natural, ellip-
tical-motion exercise from PROFORM.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please call our
Customer Service Department toll-free at 1-888-533-
1333, Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time (excluding holidays). To help us assist
you, please note the product model number and serial
number before calling. The model number is
PFEL60440. The serial number can be found on a
decal attached to the elliptical exerciser (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Water Bottle Holder*
*No water bottle is included
Handlebar
Handgrip Pulse Sensor
FRONT
BACK
Wheel
Pedal
Fan
Upper Body Arm
Console
Upright
Book Rack
Leveling Foot
Pedal Leg

4
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included allen wrenches and your own phillips screwdriver and
rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.
The number in parentheses below each drawing is the key number of the part, from the PART LIST on page 21.
The number following the parentheses is the quantity used in assembly. Note: Some small parts may have
been preassembled. If a part is not in the parts bag, check to see if it is preassembled.
M10 Split
Washer (73)–6
M4 x 16mm
Screw (94)–8
Bolt Set (65)–2
M10 Nylon
Locknut (89)–2
M8 Jam Nut
(97)–6
M8 x 44mm Button
Screw (84)–4 M10 x 55mm
Carriage Bolt (83)–2
M8 x 41mm Button
Bolt (98)–6
M10 x 90mm Carriage
Bolt (96)–2
M10 x 20mm Button
Screw (49)–6
M4 x 16mm
Round Head
Screw (69)–1 M10 Washer
(20)–2
1. Identify the Front Stabilizer (8). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M10 x 90mm Carriage
Bolts (96) and two M10 Nylon Locknuts (89).
1
8
89
1
96

5
3. Have another person hold the Upright (2) in the posi-
tion shown.
Connect the Upper Wire Harness (30) to the Lower
Wire Harness (42). Insert the connectors on the Wire
Harnesses up into the Upright (2). Carefully pull the
upper end of the Upper Wire Harness to remove
the slack from the Wire Harnesses.
Slide the Upright (2) onto the Frame (1). Be careful to
avoid pinching the Wire Harnesses (30, 42). Attach
the Upright with six M10 x 20mm Button Screws (49)
and six M10 Split Washers (73). Be careful to avoid
damaging the Wire Harnesses with the Button
Screws. Do not tighten the Button Screws yet.
73
73
73
49
49
49
30
42
3
4
21
31
Grease
2
98
3
22
29
25
26
69
98
97
29
4. Apply a generous amount of the included grease to
the Pivot Axle (25). Next, insert the Pivot Axle into the
Upright (2) and center it. Reapply grease to both ends
of the Pivot Axle.
Slide an Upper Body Arm Cover (26) onto the indicat-
ed tube on an Upper Body Arm (29). Next, slide the
Upper Body Arm and the Upper Body Arm Cover onto
the left end of the Pivot Axle (25).
Have another person hold the Left Handlebar (21)
near the Upright (2). Slide a Handlebar Cover (31)
onto the lower end of the Left Handlebar.
Slide the upper end of the Left Handlebar (21) into the
tube on the front of the Upright (2), while sliding the
lower end of the Left Handlebar onto the Pivot Axle
(25). Attach the upper end of the Left Handlebar with
two M8 x 41mm Button Bolts (98) and two M8 Jam
Nuts (97); Make sure that the Jam Nuts are resting
in the hexagonal holes in the Left Handlebar.
Attach the lower end of the Left Handlebar with an M8
x 41mm Button Bolt (98) and an M8 Jam Nut (97).
Then, press the tabs on the Handlebar Cover (31) into
the Upper Body Arm Cover (26).
Repeat this step with the other Upper Body Arm
(29) and the Right Handlebar (22).
Hold the halves of the Upright Cover (3) around the
tube on the front of the Upright (2). Attach the Upright
Cover with an M4 x 16mm Round Head Screw (69).
Do not pinch the
wire harnesses
during this step.
1
2
97
2. Identify the Rear Stabilizer (6). While another person
lifts the back of the Frame (1), attach the Rear
Stabilizer to the Frame with the Support Plate (64) and
four M8 x 44mm Button Screws (84).
2
6
64
1
84
84
Tube

6
6. Apply grease to the long side of a Bolt Set (65). Have
a second person hold the lower end of the left Upper
Body Arm (29) inside of the bracket on the Left Pedal
Leg (4). Attach the left Upper Body Arm to the Left
Pedal Leg with the Bolt Set.
Identify the Left Pedal (10). Attach the Left Pedal to
the Left Pedal Leg (4) with an M10 x 55mm Carriage
Bolt (83), an M10 Washer (20), and an Adjustment
Knob (72). Note: The slot in the Left Pedal Leg allows
the Left Pedal to be positioned as desired.
Repeat this step on the right side of the elliptical exer-
ciser. Regularly tighten both Adjustment Knobs (72).
See step 3. Tighten the six M10 x 20mm Button
Screws (49).
4
10
72
20
83
65
6
65
29
7. The Console (17) requires four “D” batteries (not
included); alkaline batteries are recommended.
Remove the two battery covers from the Console.
Next, insert four batteries into the battery compart-
ment. Make sure that the batteries are oriented as
shown by the diagrams inside of the battery com-
partments. Then, reattach the battery covers to the
Console.
Attach the Book Rack (99) to the Console (17) with
two M4 x 16mm Screws (94) as shown.
7
17
94
99
Batteries
Battery
Covers
Grease
5. Attach the Water Bottle Holder (70) to the Upright (2)
with two M4 x 16mm Screws (94). 5
2
70
94

7
EXERCISING ON THE ELLIPTICAL EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Next, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. The elliptical exercis-
er does not have a free wheel; the pedals will
continue to move until the flywheel stops. When
the pedals are stationary, step off the highest pedal
first. Then, step off the lowest pedal.
HOW TO USE THE ELLIPTICAL EXERCISER
Pedals
Handlebars
9. Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the
elliptical exerciser to protect the floor from damage. Note: Some extra hardware may be included.
8. Have another person hold the Console (17) near the
Upright (2). Connect the Upper Wire Harness (30) to
the wire harness on the Console.
Carefully insert all excess wiring down into the Upright
(2). Attach the Console (17) to the Upright with four M4
x 16mm Screws (94). (Note: The Screws may be
found in the console box.) Be careful to avoid pinch-
ing the wires.
17
2
94
94
94
Do not pinch
the wires
during this step.
8
30

8

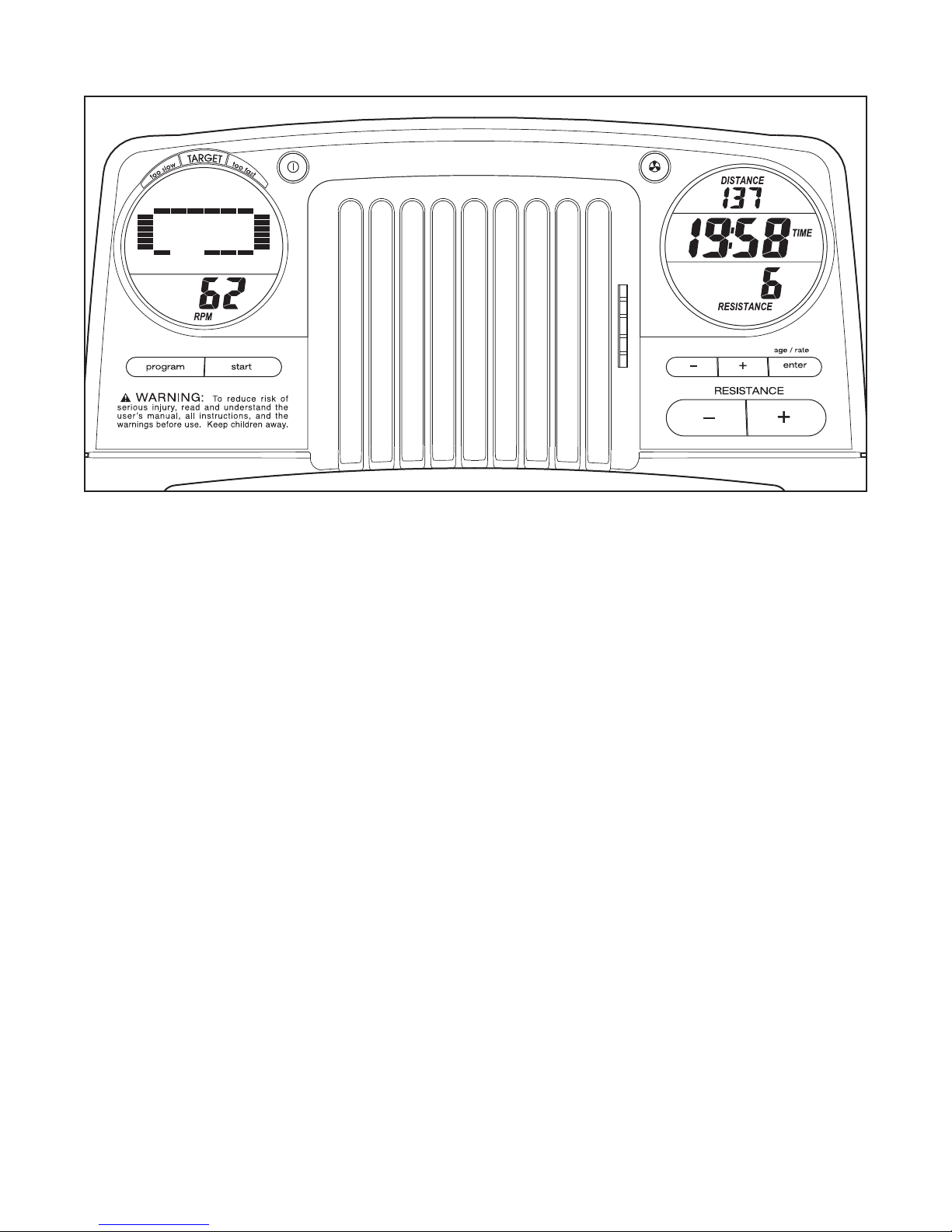

FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button. As you pedal, the console
will provide continuous exercise feedback. You can
even measure your heart rate using the built-in hand-
grip pulse sensor.
In addition, the console offers eight preset programs.
Each program automatically changes the resistance of
the pedals and prompts you to increase or decrease
your pace as it guides you through an effective workout.
The console also features two pulse control programs
that automatically change the resistance of the pedals
to keep your heart rate near a target heart rate as you
exercise.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com interactive technology is like hav-

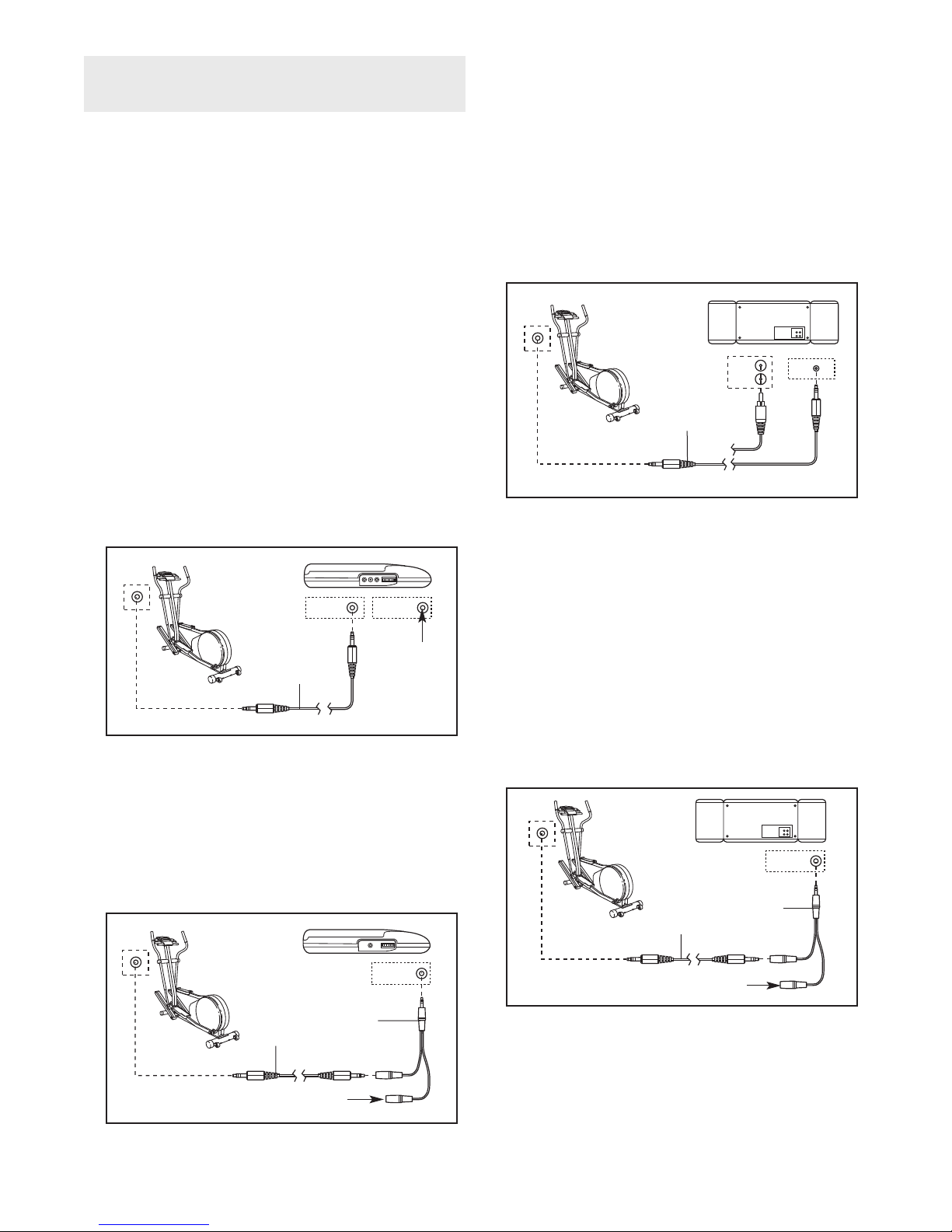

ing a personal trainer in your home. Using a stereo
audio cable (available at electronics stores), you can
connect the elliptical exerciser to your home stereo,
portable stereo, computer, or VCR and play special
iFIT.com CD and video programs (iFIT.com CDs and
videocassettes are available separately). iFIT.com CD
and video programs automatically control the resis-
tance of the pedals and prompt you to vary your pace
as a personal trainer coaches you through every step
of your workout. High-energy music provides added
motivation. To purchase iFIT.com CDs and video-
cassettes, call toll-free 1-888-533-1333.
With the elliptical exerciser connected to your comput-
er, you can also go to our Web site at www.iFIT.com
and access programs directly from the internet.
Explore www.iFIT.com for more information.
To use the manual mode of the console, see page
9. To use a preset program, see page 11. To use a
pulse control program, see page 12. To use an
iFIT.com CD or video program, see page 17. To use
a program directly from our Web site, see page 18.
CONSOLE DIAGRAM

9

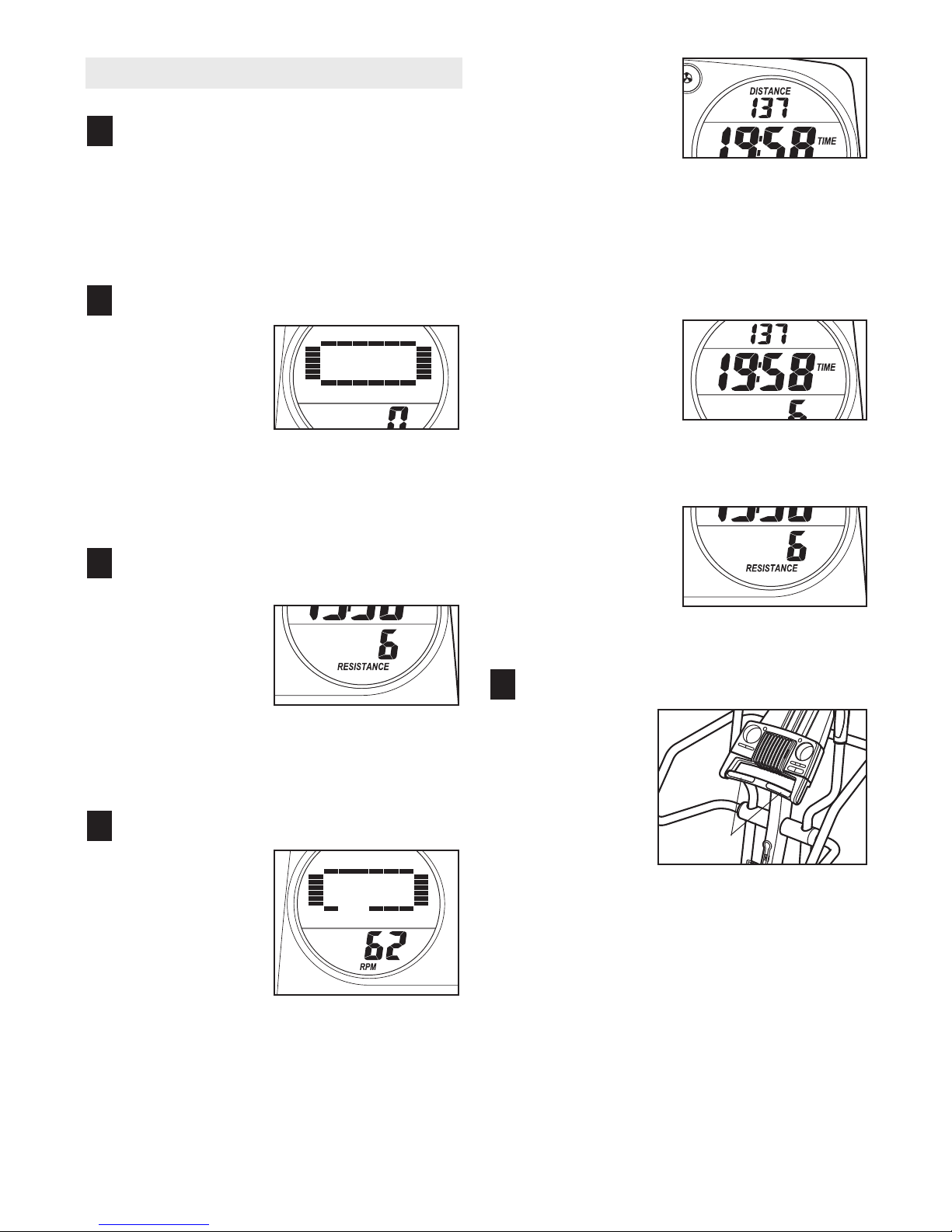

HOW TO USE THE MANUAL MODE
Turn on the console.
To turn on the console, press the On/Reset button
or begin pedaling. (The On/Reset button is near
the top of the left display.)
Note: If there are sheets of clear plastic on the
face of the console, remove the plastic.
Select the manual mode.
When the power is
turned on, the
manual mode will
be selected. If you
have selected a
program or the
iFIT.com mode,
reselect the manual mode by pressing the
Program button repeatedly until a track appears
in the left display. Make sure that the letters “iFIT”
do not appear in the display.
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal,
change the resis-
tance of the ped-
als by pressing the
Resistance but-
tons. There are
ten resistance lev-
els—level 10 is the most challenging. Note: After
the buttons are pressed, it will take a moment for
the pedals to reach the selected resistance level.
Monitor your progress with the two displays.
The left display—
A track represent-
ing 1/4 mile will
appear in the
upper part of the
left display. As you
exercise, the indi-
cators around the
track will light in
succession until the entire track is lit. The track
will then disappear and the indicators will again
begin to light in succession.The lower part of the
left display will show your pedaling pace, in revo-
lutions per minute (RPM).
The right
display—The
upper part of the
right display will
show the distance
(total number of
revolutions) you
have pedaled and the approximate number of
calories you have burned. The display will change
from one number to the other every few seconds.
The upper part of the display will also show your
heart rate when you use the handgrip pulse sen-
sor (see step 5 below).
The center of the
right display will
show the elapsed
time. Note: When a
program is selected
(except for pulse
control program 2),
the display will show the time remaining in the
program instead of the elapsed time.
The lower part of
the right display will
show the resis-
tance level of the
pedals.
To reset the displays, press the On/Reset button.
Measure your heart rate if desired.
If there are
thin sheets of
plastic on the
metal con-
tacts on the
handgrip
pulse sensor,
peel off the
plastic. Place
your hands on
the handgrip pulse sensor, with your palms on the
upper contacts and your fingers touching the
lower contacts. Avoid moving your hands.
When your pulse is detected, the heart-shaped
indicator in the upper part of the right display will
begin to flash each time your heart beats. After a
moment, one or two dashes will appear and then
your heart rate will be shown.
5
4
3
2
1
Contacts

10
For the most accurate heart rate reading, continue
to hold the handgrips for about 30 seconds.
Note: If you continue to hold the handgrip pulse
sensor, the lower display will show your heart
rate for up to 30 seconds. The display will then
show your heart rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal performance,
periodically clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemicals.
Turn on the fan if desired.
To turn on the
fan at low
speed, press
the fan button
near the top of
the right display.
To turn on the
fan at high
speed, press
the button a
second time. To turn off the fan, press the button
a third time. Note: If the fan is turned on but the
pedals are not moved for thirty seconds, the fan
will automatically turn off.
Rotate the thumb wheel on the right side of the
fan to adjust the angle of the fan.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds, a
series of tones will sound, the center of the right
display will begin to flash, and the console will
pause.
If the pedals are not moved for a few minutes, the
console will turn off and the displays will be reset.
7
6
Fan
Button
Thumb Wheel

11
HOW TO USE A PRESET PROGRAM
Turn on the console.
See step 1 on page 9.
Select one of the preset programs.
To select one of
the eight preset
programs, press
the Program but-
ton repeatedly
until the word
“PROGRAM” and
the number 1, 2, 3, 4, 5, 6, 7, or 8 appear in the
left display.
When a preset program is selected, a matrix in
the left display will show the first eight resistance
settings of the program (see the drawing above).
The right display will show how long the program
will last.
Press the Start button or begin pedaling to
start the program.
Each program is divided into either 20 or 30 one-
minute segments. One resistance setting is pro-
grammed for each segment. Note: The same
resistance setting may be programmed for two or
more consecutive segments.
The resistance
setting for the first
segment will be
shown in the flash-
ing Current
Segment column
of the matrix in the
left display. The
resistance settings for the next seven segments
will be shown in the columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and the time will flash
in the right display. When the first segment ends,
all resistance settings will move one column to
the left. The resistance setting for the second
segment will then be shown in the flashing
Current Segment column and the resistance of
the pedals will automatically change to the resis-
tance setting for the second segment.
The program will continue until the resistance set-
ting for the last segment is shown in the Current
Segment column and no time remains in the right
display.
Note: During the program, you can override the
resistance setting for the current segment by
pressing the Resistance buttons. However, when
the next segment begins, the resistance will auto-
matically change if a different resistance setting is
programmed for the next segment. If you stop
pedaling for several seconds, a tone will sound
and the program will pause. To restart the pro-
gram, simply resume pedaling.
Use the pace guide to pace your exercise.
Throughout the
program, the pace
guide in the upper
part of the left dis-
play will prompt
you to increase or
decrease your ped-
aling pace. When
one of the arrows
on the left side of
the pace guide
lights, increase
your pace; when
one of the arrows on the right side lights,
decrease your pace. When the center arrow
lights, maintain your current pace. Important:
The pace guide is intended only to provide a
goal. Make sure to pedal at a pace that is
comfortable for you.
Monitor your progress with the two displays.
See step 4 on page 9.
Measure your heart rate if desired.
See step 5 on page 9.
Turn on the fan if desired.
See step 6 on page 10.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 10.
8
7
6
5
4
3
2
1
Current Segment
Matrix

12

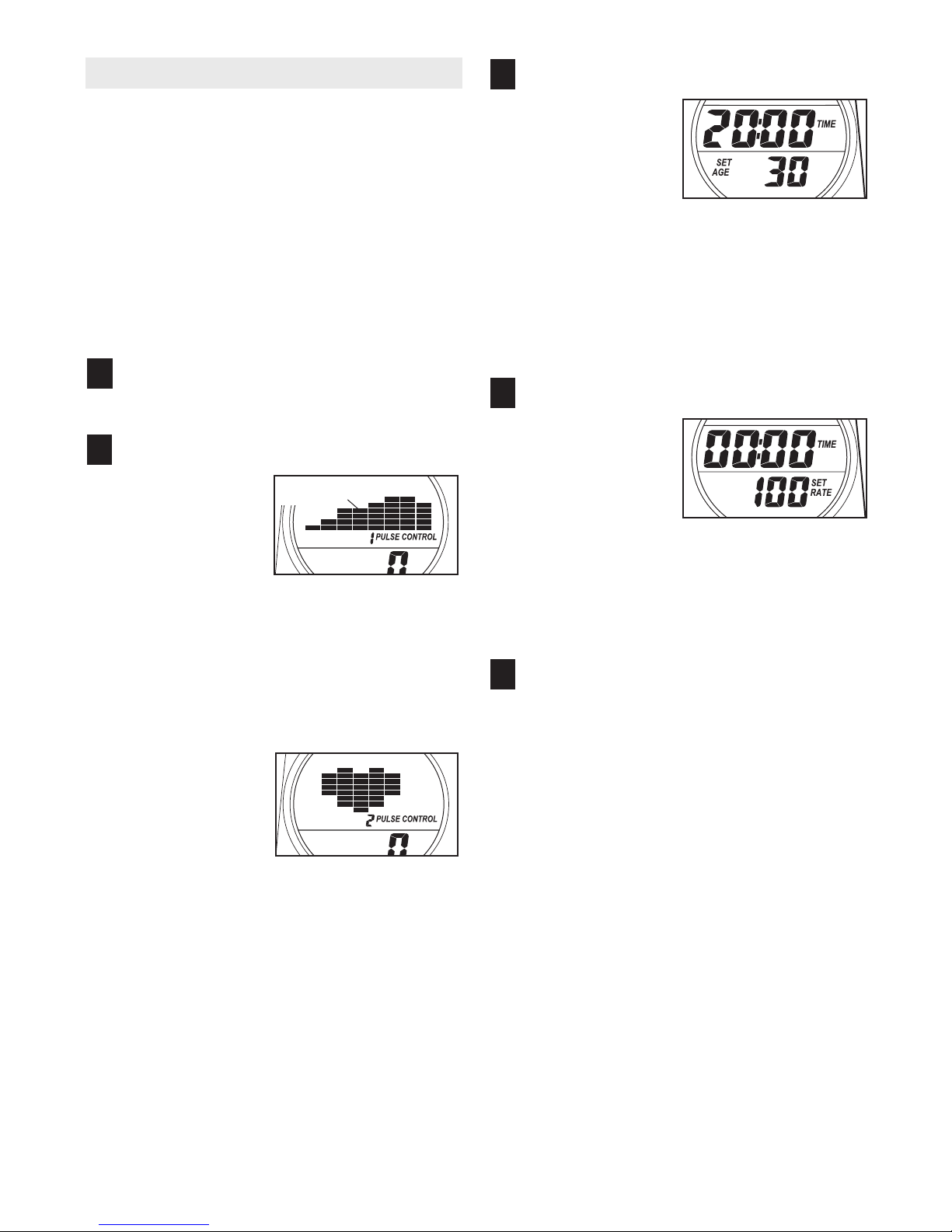

HOW TO USE A PULSE CONTROL PROGRAM
Pulse control program 1 is designed to keep your
heart rate between 60% and 85% of your estimated
maximum heart rate while you exercise. Note: Your
maximum heart rate is estimated by subtracting your
age from 220. For example, if you are 30 years old,
your estimated maximum heart rate is 190 (220 – 30
= 190).
Pulse control program 2 will keep your heart rate near
a target heart rate that you select.
Follow the steps below to use a pulse control program.
Turn on the console.
See step 1 on page 9.
Select one of the pulse control programs.
To select a pulse
control program,
press the Program
button repeatedly
until the words
“PULSE CON-
TROL” and the
number 1 or 2 appear in the left display.
If you selected pulse control program 1, a matrix
in the left display will show the first eight target
heart rate settings of the program (see the draw-
ing above). The right display will show how long
the program will last.
If you selected
pulse control pro-
gram 2, a heart
symbol will appear
in the left display.
If you selected pulse control program 1, go to
step 3. If you selected pulse control program
2, go to step 4.
Enter your age.
When pulse control
program 1 is
selected, the words
“SET AGE” will
flash in the lower
part of the right dis-
play. You must
enter your age to use this program. If you have
already entered your age, press the Enter button
and go to step 5. If you have not entered your
age, press the + or – button beside the Enter but-
ton to enter your age, and then press the Enter
button. Note: Once you have entered your age, it
will be saved in memory.
Enter a target heart rate.
When pulse control
program 2 is
selected, the words
“SET RATE” will
flash in the lower
part of the right dis-
play. You must
enter a target heart rate to use this program.
(See the heart rate chart on page 20 for heart
rate guidelines.) To enter a target heart rate,
press the + or – button beside the Enter button,
and then press the Enter button.
Hold the handgrip pulse sensor.
To use a pulse control program, you must hold
the handgrip pulse sensor. It is not necessary to
hold the pulse sensor continuously during the pro-
gram; however, you should hold the pulse sensor
frequently for the program to operate properly.
Each time you hold the pulse sensor, keep
your hands on the metal contacts for at least
30 seconds. Note: When you are not holding the
pulse sensor, the letters “PLS” will appear in the
upper part of the right display instead of your
heart rate.
5
4
3
2
1
Matrix

13
Press the Start button or begin pedaling to
start the program.
Pulse control program 1—This program is
divided into 20 one-minute segments. One target
heart rate is programmed for each segment.
Note: The same target heart rate may be pro-
grammed for two or more consecutive segments.
The target heart
rate setting for the
first segment will
be shown in the
flashing Current
Segment column
of the matrix in
the left display.
The target heart rate settings for the next seven
segments will be shown in the columns to the
right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and the time will flash
in the right display. When the first segment ends,
all target heart rate settings will move one col-
umn to the left. The target heart rate setting for
the second segment will then be shown in the
flashing Current Segment column.
As you pedal, the console will regularly compare
your heart rate to the target heart rate. If your
heart rate is too far below or above the target
heart rate, the resistance of the pedals will auto-
matically increase or decrease to bring your heart
rate closer to the target heart rate.
The program will continue until the target heart
rate setting for the last segment is shown in the
Current Segment column and no time remains in
the right display.
Note: During the program, you can manually
change the resistance setting, if desired, by
pressing the Resistance buttons. However, when
the console compares your heart rate to the tar-
get heart rate, the resistance may automatically
change. If you stop pedaling for several seconds,
a tone will sound and the program will pause. To
restart the program, simply resume pedaling.
Pulse control program 2—This program is
divided into 60 one-minute segments. The same
target heart rate is programmed for all segments.
Note: For a shorter workout, stop exercising or
select a different program before the program
ends.
Because the same target heart rate is pro-
grammed for all segments, the matrix will not
appear in the left display during the program.
When only three seconds remain in the first seg-
ment of the program, a series of tones will sound
and the time will flash in the right display.
As you pedal, the console will regularly compare
your heart rate to the target heart rate. If your
heart rate is too far below or above the target
heart rate, the resistance of the pedals will auto-
matically increase or decrease to bring your heart
rate closer to the target heart rate.
The program will continue until no time remains
in the right display. Note: For a shorter workout,
stop exercising or select a different program
before the program ends.
Note: During the program, you can manually
change the resistance setting, if desired, by
pressing the Resistance buttons. However, when
the console compares your heart rate to the tar-
get heart rate, the resistance may automatically
change. If you stop pedaling for several seconds,
a tone will sound and the program will pause. To
restart the program, simply resume pedaling.
Monitor your progress with the two displays.
See step 4 on page 9.
Turn on the fan if desired.
See step 6 on page 10.
When you are finished exercising, the con-
sole will automatically turn off.
See step 7 on page 10.
9
8
7
6
Current Segment

14
To use iFIT.com CDs, the elliptical exerciser must be
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages 14
and 15 for connecting instructions. To use iFIT.com
videocassettes, the elliptical exerciser must be connect-
ed to your VCR. See page 16 for connecting instruc-
tions. To use iFIT.com programs directly from our
Web site, the elliptical exerciser must be connected to
your computer. See page 15.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the cable
into the AUDIO OUT jack on your stereo.
B. See the drawing above. Plug one end of a 1/8” to
1/8” stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable
Head-
phones
A
PHONES
PHONES
Audio
Cable
1/8”
Y-adapter
Headphones
B
AUDIO OUT
RIGHT
LEFT
LINE OUT
Audio
Cable
A/B
PHONES
Audio
Cable
C
1/8”
Y-adapter
Headphones

15
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath
the console. Plug the other end of the cable into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the wire
into the unused side of the Y-adapter. Plug the Y-
adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
CD
VCR
Amp
LINE OUT
LINE OUT
Audio
Cable
A
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
LINE OUT
Audio
Cable
A
PHONES
Audio
Cable
B
1/8”
Y-adapter
Headphones/Speakers

16
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your VCR.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into an RCA Y-adapter (available at electron-
ics stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR
and plug the wire into the unused side of the Y-
adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio
Cable
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
A
Audio Cable
B
Wire removed from
AUDIO OUT jack
RCA
Y-adapter

17
To use iFIT.com CDs or videocassettes, the elliptical
exerciser must be connected to your portable CD play-
er, portable stereo, home stereo, computer with CD
player, or VCR. See HOW TO CONNECT YOUR CD
PLAYER, VCR, OR COMPUTER on pages 14 to 16.
To purchase iFIT.com CDs and videocassettes, call
toll-free 1-877-994-4999.
Follow the steps below to use an iFIT.com CD or
video program.
Turn on the console.
See step 1 on page 9.
Select the iFIT.com mode.
To select the
iFIT.com mode,
press the Program
button repeatedly
until the letters
“iFIT” appear in
the left display.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
A moment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a preset program (see steps 3 and 4 on page
11). However, an electronic “chirping” sound will
alert you when the resistance of the pedals and/or
the pace guide is about to change.
Note: If the resistance of the pedals and/or the
pace guide does not change when a “chirp” is
heard:
• Make sure that the letters “iFIT” appear in
the left display.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Monitor your progress with the two displays.
See step 4 on page 9.
Measure your heart rate if desired.
See step 5 on page 9.
Turn on the fan if desired.
See step 6 on page 10.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 10.
8
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS

18
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
Our Web site at www.iFIT.com allows you to play
iFIT.com programs directly from the internet. To use
programs from our Web site, the elliptical exerciser
must be connected to your home computer. See HOW
TO CONNECT YOUR COMPUTER on page 15. In
addition, you must have an internet connection and an
internet service provider. A list of specific system
requirements is found on our Web site.
Follow the steps below to use a program from our
Web site.
Turn on the console.
See step 1 on page 9.
Select the iFIT.com mode.
To select the
iFIT.com mode,
press the
Program button
repeatedly until
the letters “iFIT”
appear in the left
display.
Go to your computer and start an internet
connection.
Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
select a program.
Read and follow the on-line instructions for using
a program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the elliptical exerciser and begin
pedaling.
When the on-screen countdown ends, the pro-
gram will begin. The program will function in
almost the same way as a preset program (see
steps 3 and 4 on page 11). However, an electronic
“chirping” sound will alert you when the resistance
of the pedals and/or the pace guide is about to
change.
Monitor your progress with the two displays.
See step 4 on page 9.
Measure your heart rate if desired.
See step 5 on page 9.
Turn on the fan if desired.
See step 6 on page 10.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 10.
11
10
9
8
7
6
5
4
3
2
1

19
Inspect and properly tighten all parts of the elliptical
exerciser regularly. Replace any worn parts immedi-
ately.
PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function proper-
ly, see step 5 on page 9.
CONSOLE TROUBLESHOOTING
If turning on the fan resets the console displays, or if
the displays becomes dim, the batteries should be
replaced. Most console problems are the result of low
batteries. See assembly step 7 on page 6 for replace-
ment instructions.

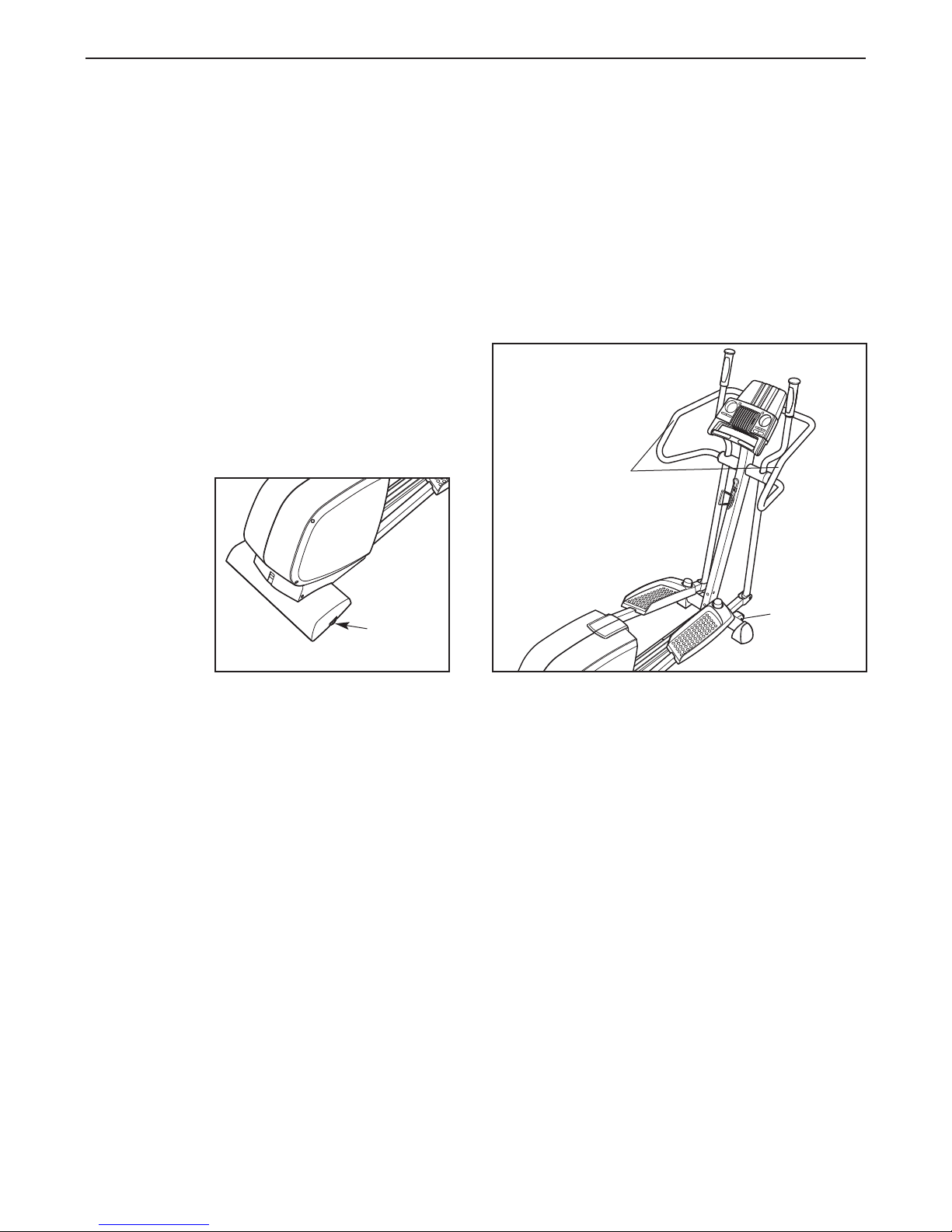

HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical
exerciser rocks
during use,
turn one or
both of the lev-
eling feet
under the rear
stabilizer until
the rocking
motion is elimi-
nated.
HOW TO MOVE THE ELLIPTICAL EXERCISER
Stand in front of the elliptical exerciser, hold the han-
dlebars firmly, and place one foot against one of the
wheels. Pull the handlebars until the elliptical exercis-
er can be moved on the wheels, and carefully move
the elliptical exerciser to the desired location. Then,
place one foot against a wheel, and lower the elliptical
exerciser. Due to the size and weight of the ellipti-
cal exerciser, use extreme caution while moving
and lowering it.
MAINTENANCE AND TROUBLESHOOTING
Leveling
Foot
Handlebars
Wheel

20
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.” The lower two numbers are recommended
heart rates for fat burning; the highest number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle num-
ber in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be “aerobic.” Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. Aproper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise
program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
WARNING:
Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
