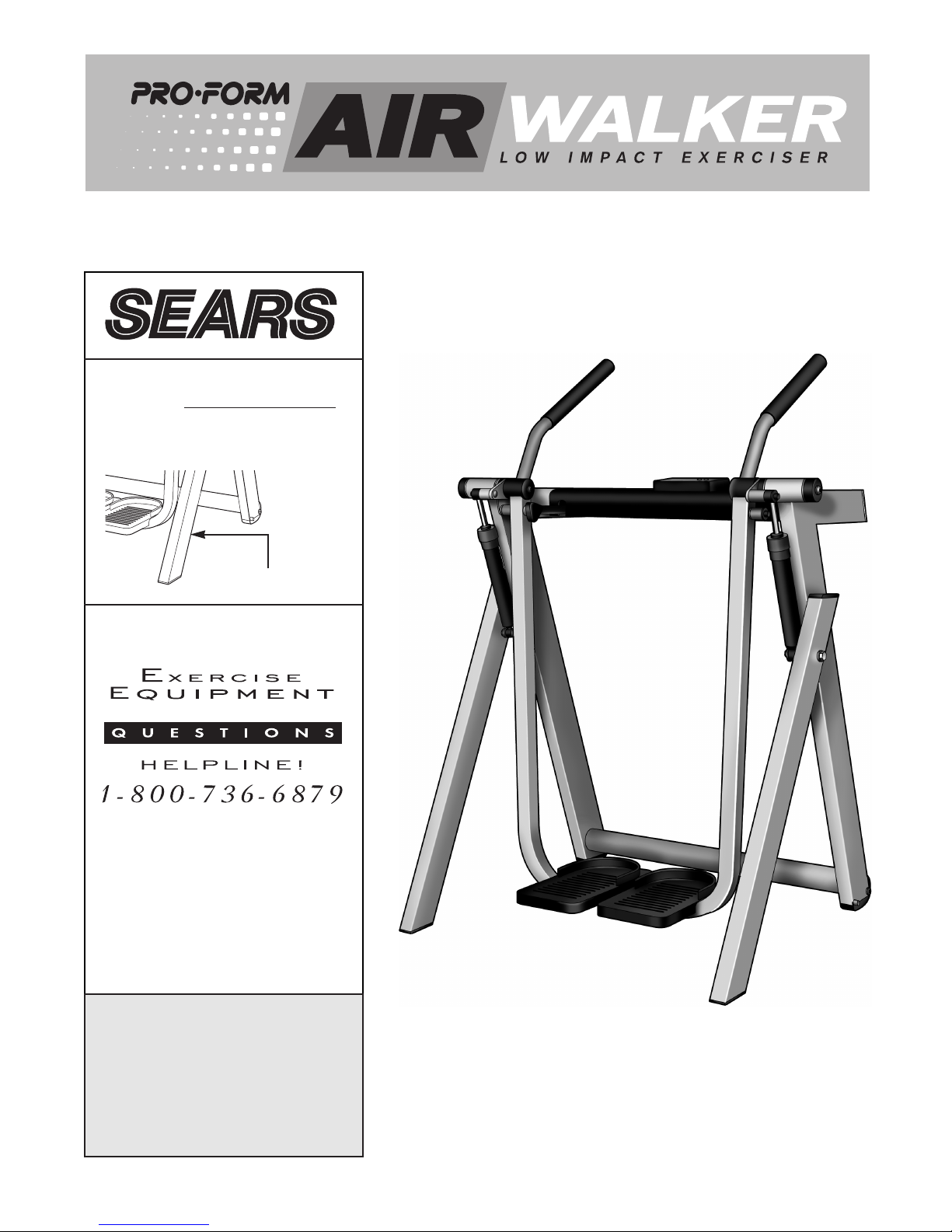

Pro-Form 831.290840 User manual

CAUTION
Read all precautions and in-
structions in this manual before
using this equipment. Save this
manual for future reference. USER'S MANUAL
Write the serial number in the space
above for future reference.
Model No. 831.290840
Serial No.
Serial Number Decal
Patent Pending
ª
¨
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE AIR WALKER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
STORAGE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
1. Read all instructions in this manual before
using the AIR WALKER.
2. It is the responsibility of the owner to ensure
that all users of the AIR WALKER are
adequately informed of all warnings and
precautions.
3. Use the AIR WALKER only as described in
this manual.
4. Place the AIR WALKER on a level surface.
Cover the floor beneath the AIR WALKER to
protect the floor or carpet.
5. Be sure that there are no persons or obsta-
cles in front of or behind the AIR WALKER.
6. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
7. Keep children and pets away from the AIR
WALKER at all times.
8. The AIR WALKER should not be used by per-
sons weighing more than 250 pounds.
9. Keep hands and feet away from moving parts.
10. Do not wear loose clothing that could
become caught on the AIR WALKER.
11. Always wear athletic shoes for foot protec-
tion when exercising on the AIR WALKER.
12. When mounting and dismounting the AIR
WALKER, adjust the resistance to a high set-
ting, hold the handles firmly, and be sure that
your body weight is centered directly over the
pedals.
13. The resistance cylinders become very hot dur-
ing use. Allow the resistance cylinders to cool
before touching them. When adjusting the
resistance, touch only the resistance dials.
14. If you feel faint, dizzy, or short of breath while
exercising, stop immediately and begin cool-
ing down.
15. The AIR WALKER is intended for home use
only. Do not use the AIR WALKER in any
commercial, rental, or institutional setting.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the AIR WALKER.
WARNING: Before beginning this or any exercise program, consult your physician. This is especially
important for persons over the age of 35 or persons with pre-existing health problems. Read all
instructions before using. SEARS assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.

3
BEFORE YOU BEGIN
Handle
Resistance Dial
Leg
Electronic Monitor
Crossbar Cover
Pedal
Resistance Cylinder
Upright
Wheel
Lock Knob
Round Tube
Frame
Thank you for selecting the innovative PROFORM¨
AIR WALKER. The AIR WALKER blends advanced
engineering with contemporary styling to provide you
with a no-impact, total body workout in the conve-
nience and privacy of your own home.
For your benefit, read this manual carefully before
using the AIR WALKER. If you have additional
questions, please call our toll-free HELPLINE at
1-800-736-6879, Monday through Saturday, 7 a.m.
until 7 p.m. Central Time (excluding holidays). To help
us assist you, please note the product model number
and serial number before calling. The model number is
831.290840. The serial number can be found on a
decal attached to the AIR WALKER (see the front
cover of this manual for the location of the decal).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

Place all parts of the AIR WALKER in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed. Read through all assembly steps before you begin.
Assembly requires the included allen wrench and your own phillips screwdriver
and adjustable wrench .
4
ASSEMBLY
2. Slide a Lock Washer (16) onto the Lock Knob (32).
Insert the Lock Knob into the hole near the top of
the Left Leg (2). Tighten the Lock Knob into the
Link Plate (7).
3. The Electronic Monitor (9) requires two ÒAAÓ
batteries (not included). Alkaline batteries are
recommended. Press the tab on the battery cover
and remove the battery cover from the Monitor.
Insert two batteries into the Monitor. Make sure
that the negative (Ð) ends of the batteries are
touching the springs in the Console. Close the
battery cover.

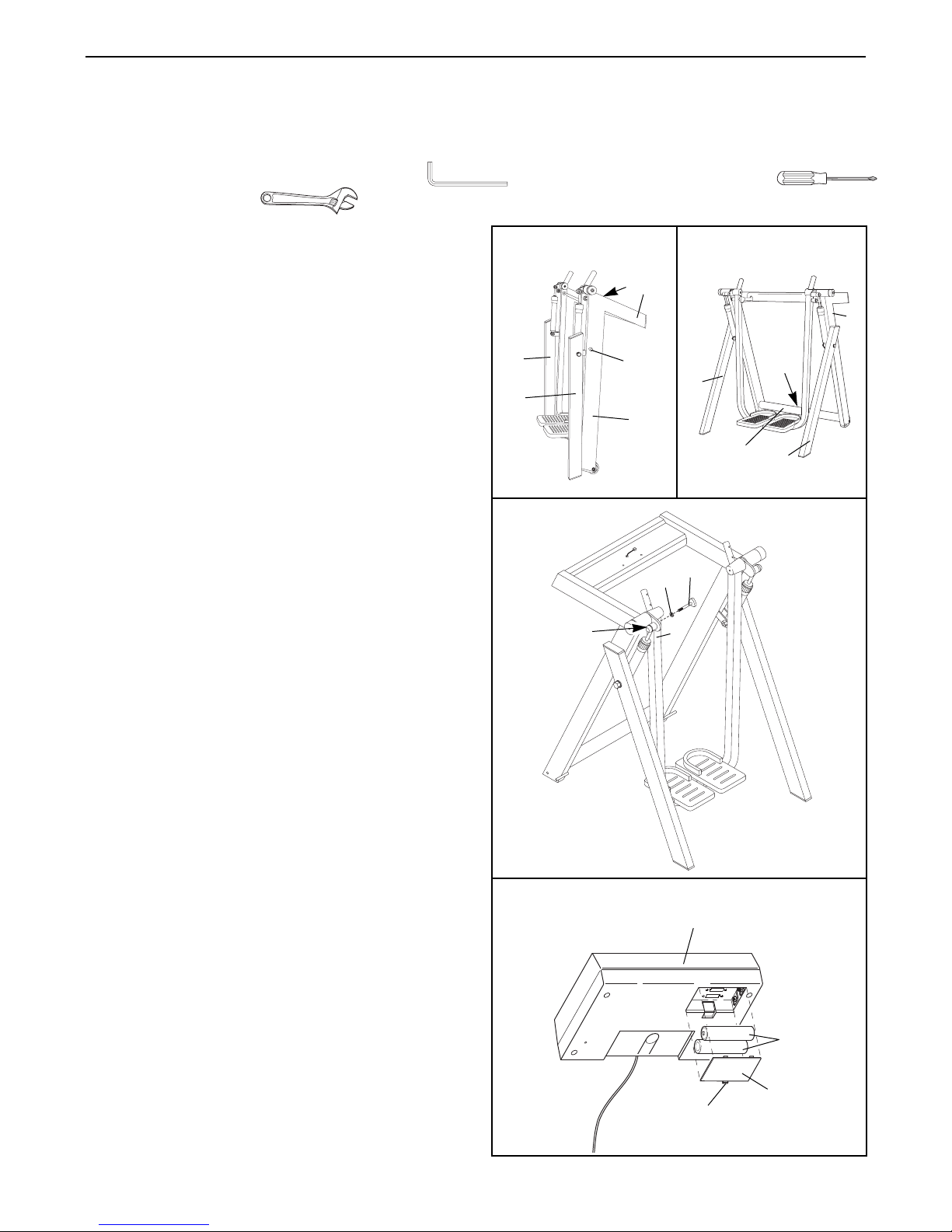

1. Refer to figure 1a. Stand at the front of the AIR
WALKER, hold the Frame (1) in the indicated
locations, and raise the AIR WALKER to the
position shown. Refer to figure 1b. Put your foot
on the round tube. Using your foot, pull the round
tube toward yourself until the Uprights (5, 6) are
fully extended. Before you proceed with
assembly, make sure that the Uprights are fully
extended and are resting against the stops
(see figure 1a).
Fig. 2
Fig. 3
9
Tab
Battery
Cover
Batteries
32
16
2
7
Fig. 1a
Foot
Round
Tube
Fig. 1b
6
6
5
5
Stop
1
1
Back Front
Hold
Here

5
8
8
2
3
50
23
Holes

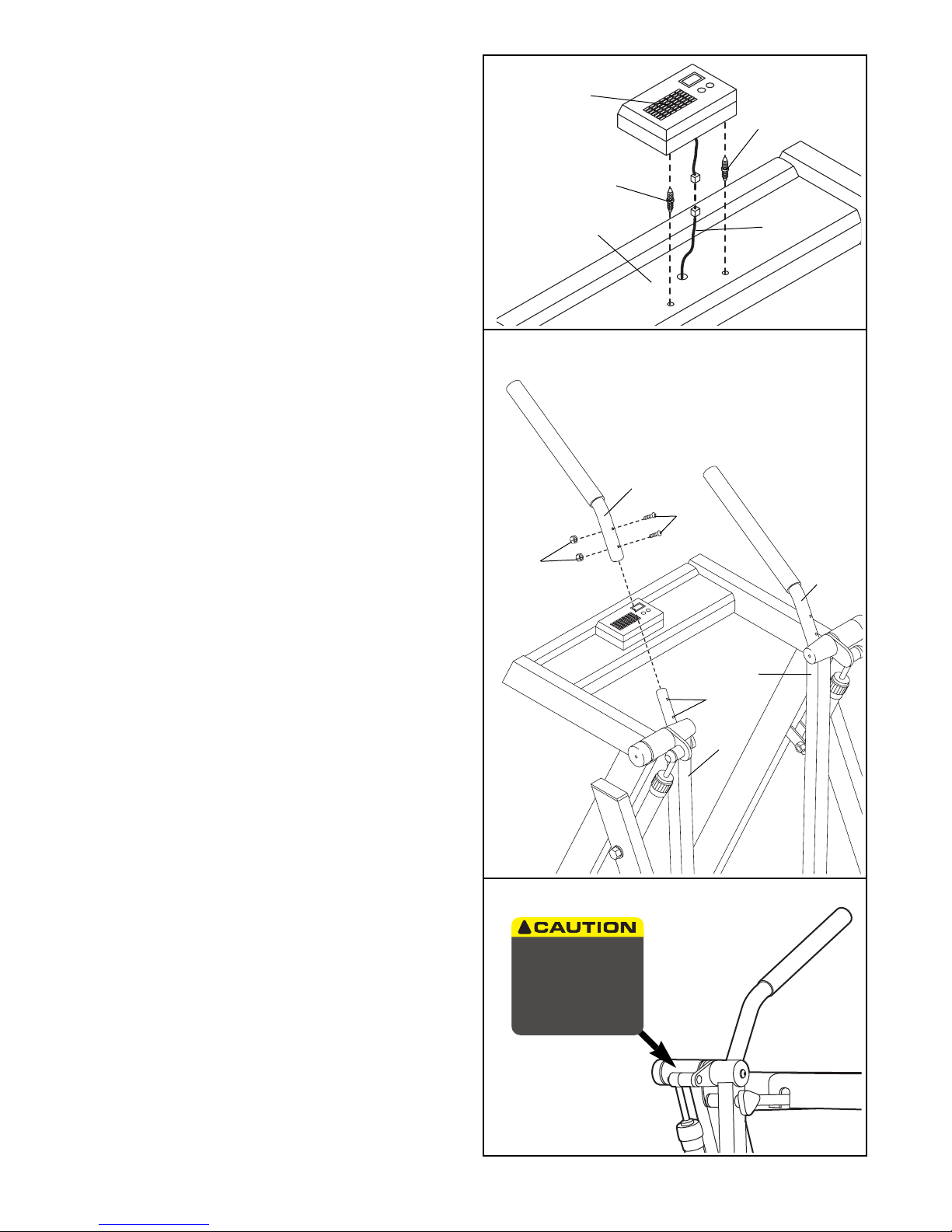

5. Slide one of the Handles (8) onto the Left Leg (2).
Attach the Handle with two Button Head Screws
(50) and two 1/4Ó Locknuts (23). Tighten the
Locknuts until the Handle cannot move. The
Handle will be deformed slightly when the
Locknuts are properly tightened.
Attach the other Handle (8) to the Right Leg (3) in
the same manner.
6. The decal shown at the right is found in the
indicated location on the AIR WALKER. If the
decal is missing, or if it is not legible, call our
Customer Service Department, toll-free, to
order a free replacement decal (see
ORDERING REPLACEMENT PARTS on the back
of this manual). Apply the decal in the location
shown.
Fig. 5
Make sure that all parts are properly tightened before
you use the AIR WALKER.
4. Connect the Reed Switch Wire (12) to the wire on
the Electronic Monitor (9). Feed any excess wire
into the Crossbar Cover (19). Press the Monitor
onto the Crossbar Cover so the Fasteners (48) on
the Monitor snap into the holes in the Crossbar
Cover.
Fig. 4
9
48
19
48
12
Do not allow children on or
around machine.
Keep hands and feet away
from moving parts and contact
points.
Read owner's manual and
follow instructions.
!
Fig. 6

6
HOW TO USE THE AIR WALKER
EXERCISING ON THE AIR WALKER
Make sure that the lock knob is tightened into the left
leg and link plate (see assembly step 2 on page 4).
Adjust the resistance to a high setting, hold the
handles, and step onto the pedals. The proper form
for exercising on the AIR WALKER is similar to the
motion of walkingÑmove one leg forward as you
move the other leg back.
For a full body workout, hold the handles as you walk
and move your arms and legs in motion with the
handles and pedals. To vary the effect of the exercise
on your muscles, bend your legs slightly instead of
keeping them straight.
For a lower body workout, rest your hands on the
crossbar cover for balance as you move the pedals.
RESISTANCE ADJUSTMENT
To vary the intensity of your workout, the resistance of
the AIR WALKER can be adjusted. To change the
resistance, turn the resistance dials on the resistance
cylinders. There are twelve different resistance levels.
Arrows on the resistance cylinders will show which
resistance level is selected. Select the same resis-
tance level on both cylinders.
CAUTION: The resistance cylinders become very
hot during use. Allow the resistance cylinders to
cool before touching them. When adjusting the
resistance, touch only the resistance dials.
ELECTRONIC MONITOR MODES
The simple-to-operate electronic monitor offers
five different modes to provide instant exercise
feedback. The five modes are described below:
SpeedÑDisplays the number of repetitions you are
performing per minute.
TimeÑDisplays the length of time you have exer-
cised. Note: If you stop exercising for ten seconds or
longer, the time mode will pause until you resume.
DistanceÑDisplays the total number of repetitions
you have completed, up to Ò999.Ó The display will then
reset to Ò0Ó and continue counting.
CaloriesÑDisplays the approximate number of
Calories you have burned. Note: If the resistance is
near the highest or lowest setting, the actual number
of Calories you have burned will be slightly higher or
lower than the number displayed.
ScanÑDisplays the speed, time, distance, and calo-
ries modes, for approximately 5 seconds each,
in a repeating cycle.

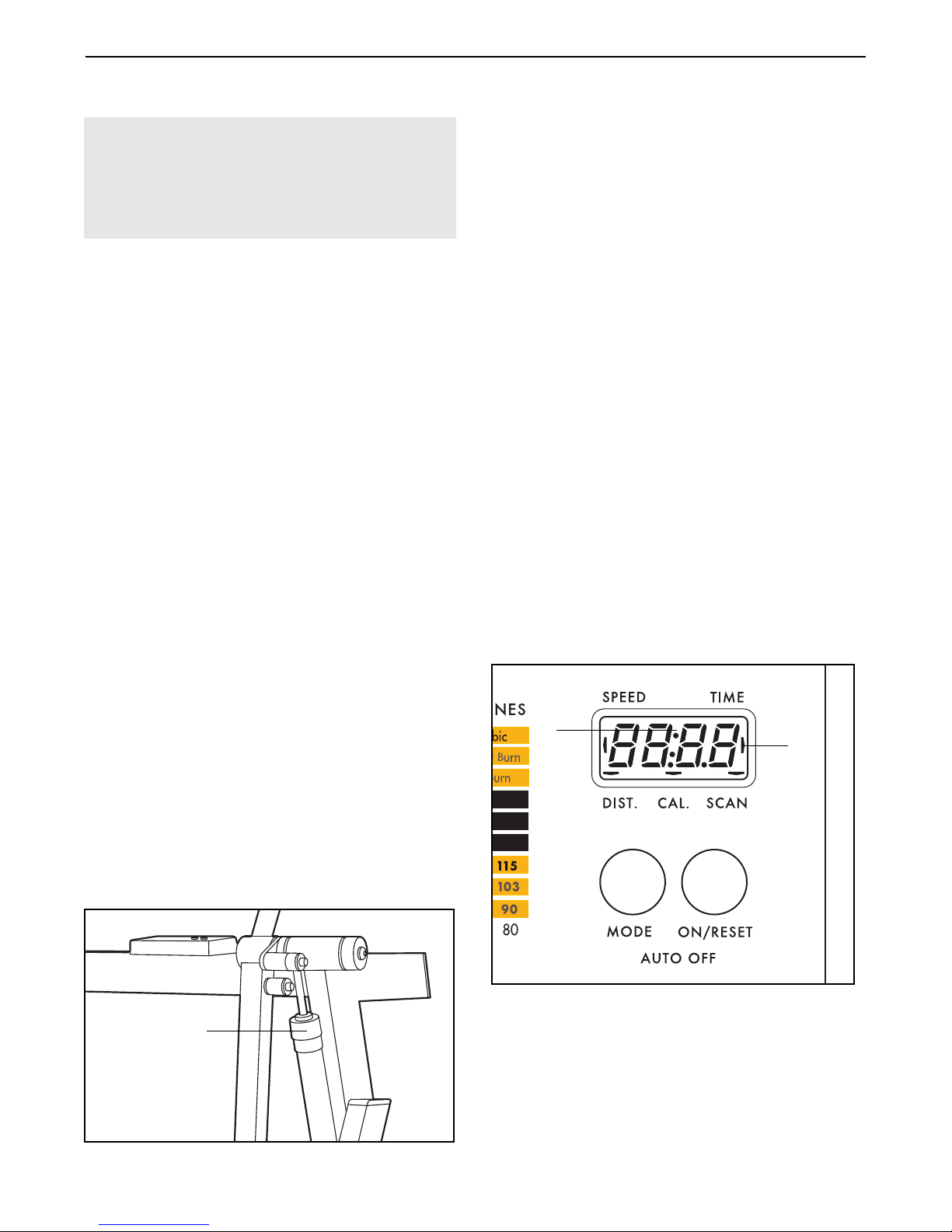

DIAGRAM OF THE ELECTRONIC MONITOR
1. LCD displayÑDisplays all modes.
2. Mode indicatorsÑShow which mode is selected.
3. Mode buttonÑSelects all modes.
4. On/Reset buttonÑTurns the power on and resets
all modes.
Resistance
Dial
CAUTION: When mounting and dismounting
the AIR WALKER, adjust the resistance to a
high setting, hold the handles firmly, and be
sure that your body weight is centered direct-
ly over the pedals.
1
2
34

7
BATTERY INSTALLATION
Before the electronic monitor can be operated, two
ÒAAÓ batteries must be installed. If you have not
installed batteries, see assembly step 3 on page 4.
OPERATING THE ELECTRONIC MONITOR
1. To turn on the power, press the on/reset button or
simply begin exercising on the AIR WALKER. The
entire display will appear for two seconds. The
electronic monitor will then be ready for operation.
2. Select one of the five modes:

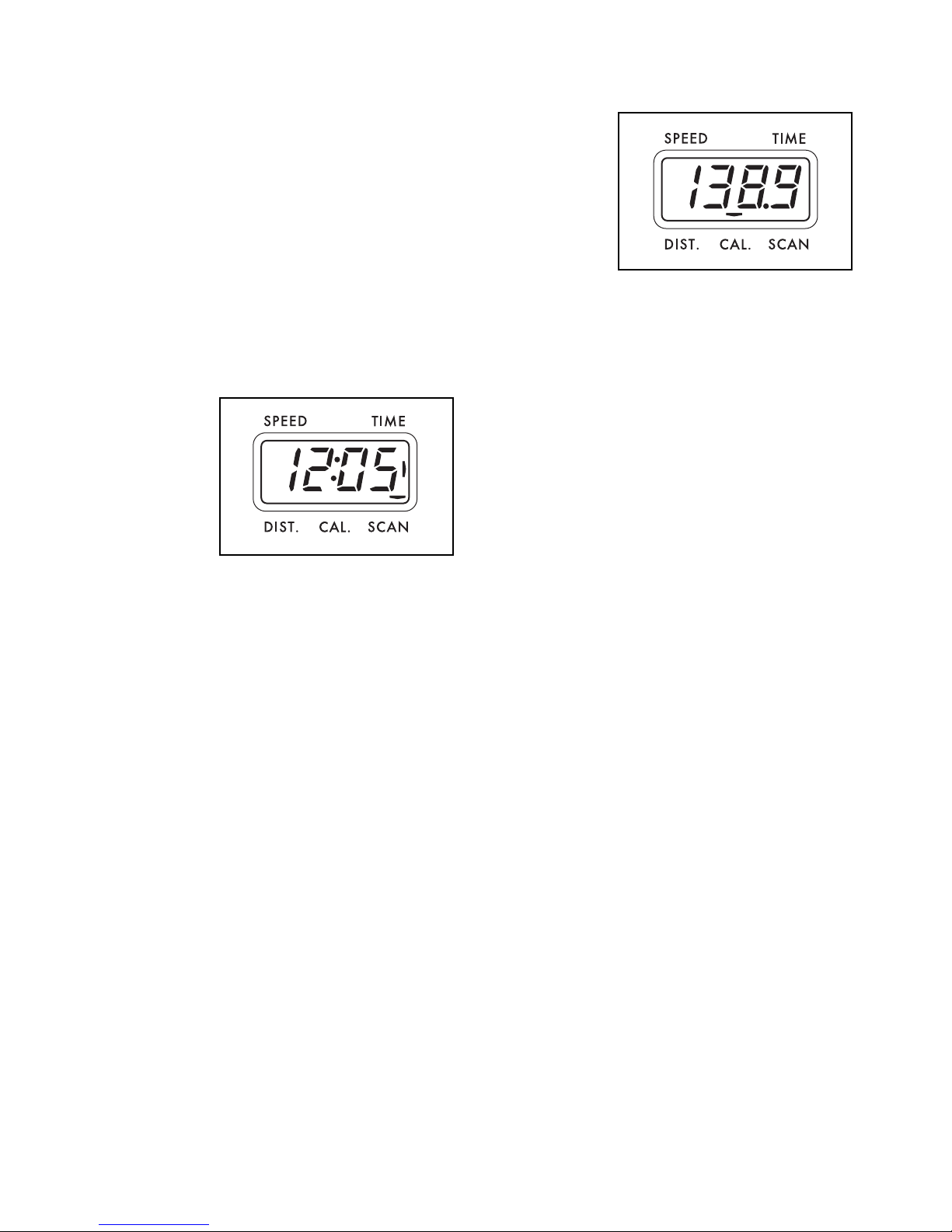

Scan modeÑWhen the power is turned on, the
scan mode will be selected automatically. The
scan mode
can also be
selected by
repeatedly
pressing the
mode but-
ton. One
mode indi-
cator will
show that
the scan
mode has been selected, and a second mode indi-
cator will show which mode is currently displayed.
Speed, time, distance, or calories modeÑ
These modes can be individually selected by
repeatedly
pressing
the mode
button. The
mode indi-
cators will
show which
mode has
been
selected.
(Make sure
that the scan mode is not selected.) The modes
will be selected in the following order: speed, time,
distance, calories, scan.
3. The monitor has an auto-off feature to turn off
the power. If the pedals are not moved and the
monitor buttons are not pressed for four minutes,
the power will turn off automatically in order to
conserve the batteries.
To reset the LCD display, press the on/reset button.

Inspect and tighten all parts of the AIR WALKER reg-
ularly. Replace any worn parts immediately.
The AIR WALKER can be cleaned with a soft, damp
cloth. Keep liquids away from the electronic monitor.
Keep the monitor out of direct sunlight or the display
may be damaged. Remove the batteries when storing
the AIR WALKER.
REPLACING THE BATTERIES
If the display of the electronic monitor becomes dim,
or if the monitor does not function properly, the batter-
ies should be replaced. To replace the batteries, first
lift the monitor from the crossbar cover (see assembly
step 4 on page 5). Make sure that the reed switch
wire is fully connected to the wire on the monitor. To
replace the batteries, refer to assembly step 3 on
page 4.
HOW TO FOLD THE AIR WALKER FOR STORAGE
When the AIR WALKER is not in use, it can be folded
for storage. To fold the AIR WALKER, first remove the
lock knob from the left leg. Next, move to the front of
the AIR WALKER and place one foot on the round
tube. Firmly grasp the frame with your hands in the
locations indicated below. While holding the round
tube stationary with your foot, pull the top of the AIR
WALKER toward you until the uprights fold against
the frame. Place the AIR WALKER in a location
where it cannot fall.
8
STORAGE AND TROUBLE-SHOOTING
Frame
Round
Tube
Front
Hand
Back
Upright
Lock
Knob

9
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition and
adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat burn-
ing, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, look above your age and
find the three numbers in light grey boxes. The three
numbers are your Òtraining zone.Ó The lowest number
is the recommended heart rate for fat burning; the
middle number is the recommended heart rate for
maximum fat burning; the highest number is the rec-
ommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy. If
your goal is to burn fat, adjust your pace until your
heart rate is near the lowest number in your training
zone as you exercise. It may also be helpful to set the
dials on the resistance cylinders at level 1, 2, 3, or 4.
For maximum fat burning, adjust your pace until your
heart rate is near the middle number in your training
zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust your pace until your heart rate is near the high-
est number in your training zone. It may also be help-
ful to set the dials on the resistance cylinders at level
5, 6, 7, or 8.
Strength Training
To strengthen and tone your muscles, you must exer-
cise your muscles at a moderate to high percentage of
their capacity. Set the dials on the resistance cylinders
at level 9, 10, 11, or 12.
HOW TO MEASURE YOUR HEART RATE
To measure your heart rate, first exercise for at least
four minutes.
Then, stop
exercising and
place two fin-
gers on your
wrist as
shown. Take a
six-second
heartbeat
count, and
multiply the
result by 10 to
find your heart
rate. For example, if your six-second heartbeat count
is 14, your heart rate is 140 beats per minute. (A six-
second count is used because your heart rate will
drop rapidly when you stop exercising.)
Adjust the intensity of your exercise until your heart
rate is at the desired level. You can adjust the intensity
of your exercise by adjusting the resistance or by
changing your pace.
WARNING: Before beginning this or any
exercise program, consult your physician.
This is especially important for persons over
the age of 35 or persons with pre-existing
health problems.

10
PART LISTÑModel No. 831.290840 R0397B
Note: Ò#Ó refers to a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, lasting 5 to 10 minutes. Begin with slow,
controlled stretches, and progress to more rhythmic
stretches to increase the body temperature, heart rate,
and circulation in preparation for strenuous exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone.
A cool-down, with 5 to 10 minutes of stretching.
Thorough stretching helps to offset problems caused
when you stop exercising suddenly. Stretching for
increased flexibility is also most effective after exercis-
ing. A proper cool-down should leave you relaxed and
comfortably tired.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired.
Remember, the key to success is make exercise a
regular and enjoyable part of your everyday life.
Key Part
No. Qty. No. Description
1 1 NSP Frame
2 1 136816 Left Leg
3 1 136818 Right Leg
4 1 137686 Rocker Arm
5 1 137827 Left Upright
6 1 136822 Right Upright
7 1 136829 Link Plate
8 2 136830 Handle
9 1 130165 Electronic Monitor
10 1 016028 Adhesive Tool Clip
11 1 107094 Magnet
12 1 131101 Reed Switch Wire
13 2 137683 Link Arm
14 2 137685 Link Arm Joint
15 4 136597 Small Bronze Bushing
16 1 110468 Lock Washer
17 4 136598 Large Bronze Bushing
18 1 131833 ÒDÓ Bushing
19 1 136599 Crossbar Cover
20 1 136601 Left Leg Cover
21 1 136602 Right Leg Cover
22 2 136603 Axle Cover
23 4 012139 1/4Ó Locknut
24 1 136605 Left Axle Spacer
25 1 136606 Right Axle Spacer
26 2 129110 Rocker Arm Spacer
Key Part
No. Qty. No. Description
27 1 136612 Right Pedal Cover
28 1 136600 Left Pedal Cover
29 6 013300 #8 x 3/4Ó Screw
30 2 130953 Resistance Cylinder
31 2 133072 Tree Fastener
32 1 136861 Lock Knob
33 2 119994 Button Head Screw
34 6 123116 Frame Endcap
35 1 127896 Rocker Arm Bolt
36 2 103903 Small Axle Cap
37 2 013359 Hex Head Screw
38 3 100553 1/2Ó Nylon Locknut
39 2 014080 1/2Ó Flat Washer
40 2 013601 Wheel Screw
41 2 012149 3/8Ó Nylon Locknut
42 2 052014 Wheel
43 2 014132 3/8Ó Flat Washer
44 1 100151 Large Axle Cap
45 2 126650 Rubber Foot
46 8 013162 #8 x 1/2Ó Screw
47 2 136837 Handle Grip
48 2 127597 Double Tree Fastener
49 1 136967 Star Washer
50 4 122794 Button Head Screw
51 2 105496 3/8Ó Push Nut
# 1 137741 UserÕs Manual

8
50
37
39
36
17
22
34
33
47
948
19
35
26
18
4
26
38
34
12
10
34
29
17
29
50
17
22
33
8
47
36 38
30
30
40 14
13
25
15
44
6
34
15
3
21
31
32
28
20
42
29
41 43
45
24
15
43
14
42
40
37
39
34
2
13
15
7
5
34
46
46
27
1
45
11
49
23
23
16
51
51

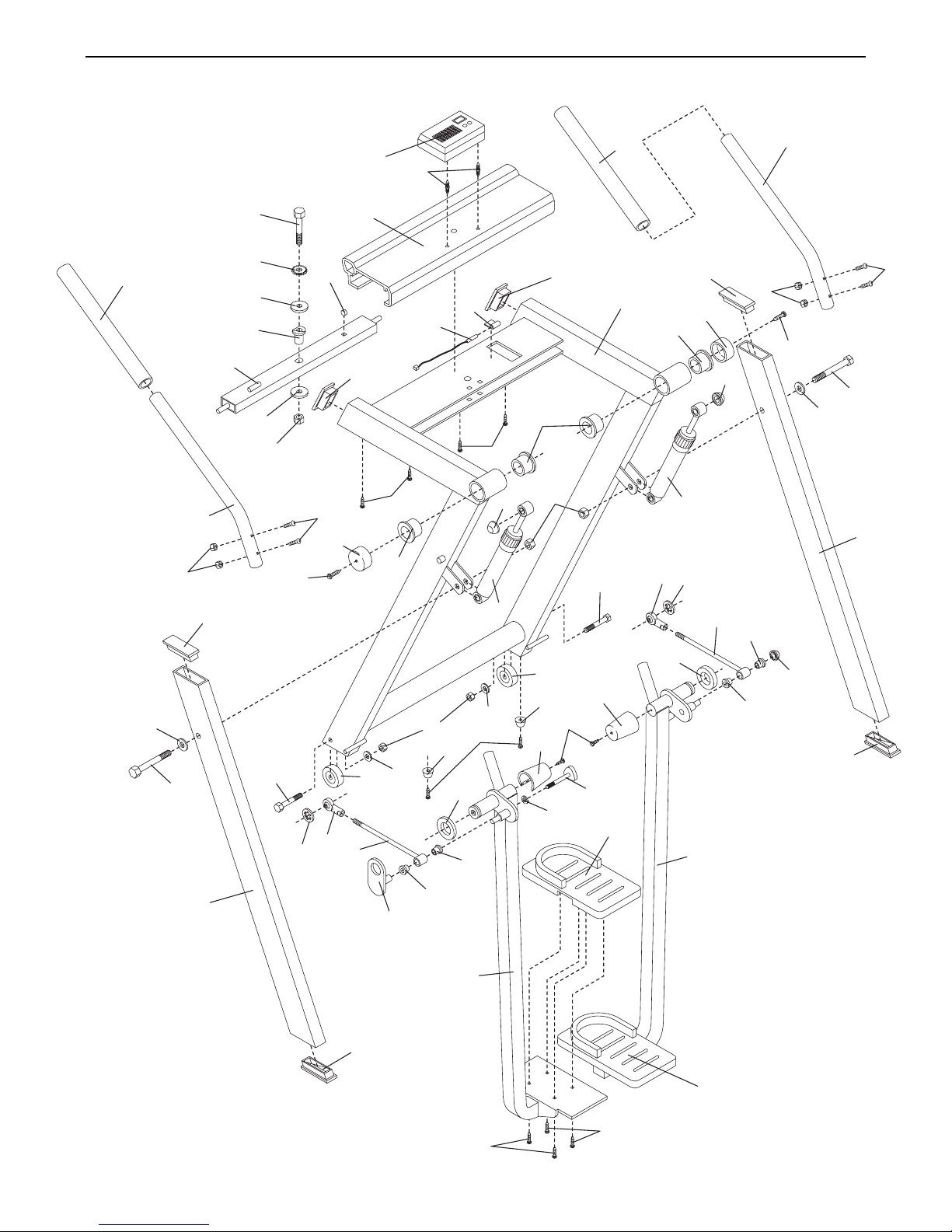

EXPLODED DRAWINGÑModel No. 831.290840 R0397B
11

Part No. 137741 G00907AC R0397B Printed in USA © 1997 Sears, Roebuck and Co.
QUESTIONS?
If you find that:
¥ you need help assembling or
operating the PROFORM¨AIR
WALKER
¥ a part is missing
¥ or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
MondayÐSaturday, 7 amÐ7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need to
be replaced, call the following
toll-free number
1-800-FON-PART
(1-800-366-7278)
The model number and serial number of your PROFORM¨AIR
WALKER are listed on a decal attached to the frame. See the front
cover of this manual to find the location of the decal.
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center.
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.
When requesting help or service, or ordering parts, please be pre-
pared to provide the following information:
¥ The NAME OF THE PRODUCT (PROFORM¨AIR WALKER)
¥ The MODEL NUMBER OF THE PRODUCT (831.290840)
¥ The PART NUMBER OF THE PART (see page 10 of this manual)
¥ The DESCRIPTION OF THE PART (see page 10 of this manual)
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
AIR WALKER EXERCISER, contact the nearest SEARS Service Center throughout the United States
and SEARS will repair or replace the AIR WALKER EXERCISER, free of charge.
This warranty does not apply when the AIR WALKER EXERCISER is used commercially or for rental pur-
poses.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
Model No. 831.290840
