Pro-Lift G5ZELT User manual






ThankyouforpurchasingaPro‐LIFTG5ZELT.ThePro‐LIFTproductlineisdesignedtoenhanceyour
interactivewhiteboardsandprojectorsorLCD.Pleasefollowallassemblyinstructionscorrectlyto
provideoptimaluse.
OnlyaqualifiedcontractorshouldinstallthePro‐LIFTG5ZELT.Ifyoudonotunderstandanyofthe
assemblyinstructions,pleasecontactyourlocalre‐sellerorvisitwww.proliftstand.com.
IMPROPERINSTALLATIONCANCAUSEDAMAGETOYOURPro‐LIFTANDLEADTOSERIOUSPHYSICAL
INJURY.JOROManufacturingcannottakeanyresponsibilityfordamageorinjuryresultingfrom
improperinstallation.
DonotoperatePro‐LIFTG5ZELTifthereareanyobstructionsbeloworabove
theboard.Doingsomaycauseunitmalfunctionorleadtoseriousphysical
injury.
ThesuppliedmountinghardwareisforuseonthePro‐LIFTstandsonly.Ifyouencounteranyproblems
orinsufficienthardwareduringinstallation,pleasecontactyourlocalre‐seller.













ProLift G5ZELT ASSY Instructions : 0.005
Pan Head Phillips Machine Screw - M6x35
2x 4x
M6 x 55mm Partial Thread Socket Cap Screw
24x
M6 x 14mm Socket Cap Screw
4x
Tube1020 End Cap
Thread-Cutting Screw (8-32 x 3/8" Lg.)
4x 4x
1/4" Washer
LCD TV Kit
G5ZELT Main Frame Kit
1x
3/16" Allen (Hex) Key
1x
4x
Cable Tie Mount
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com

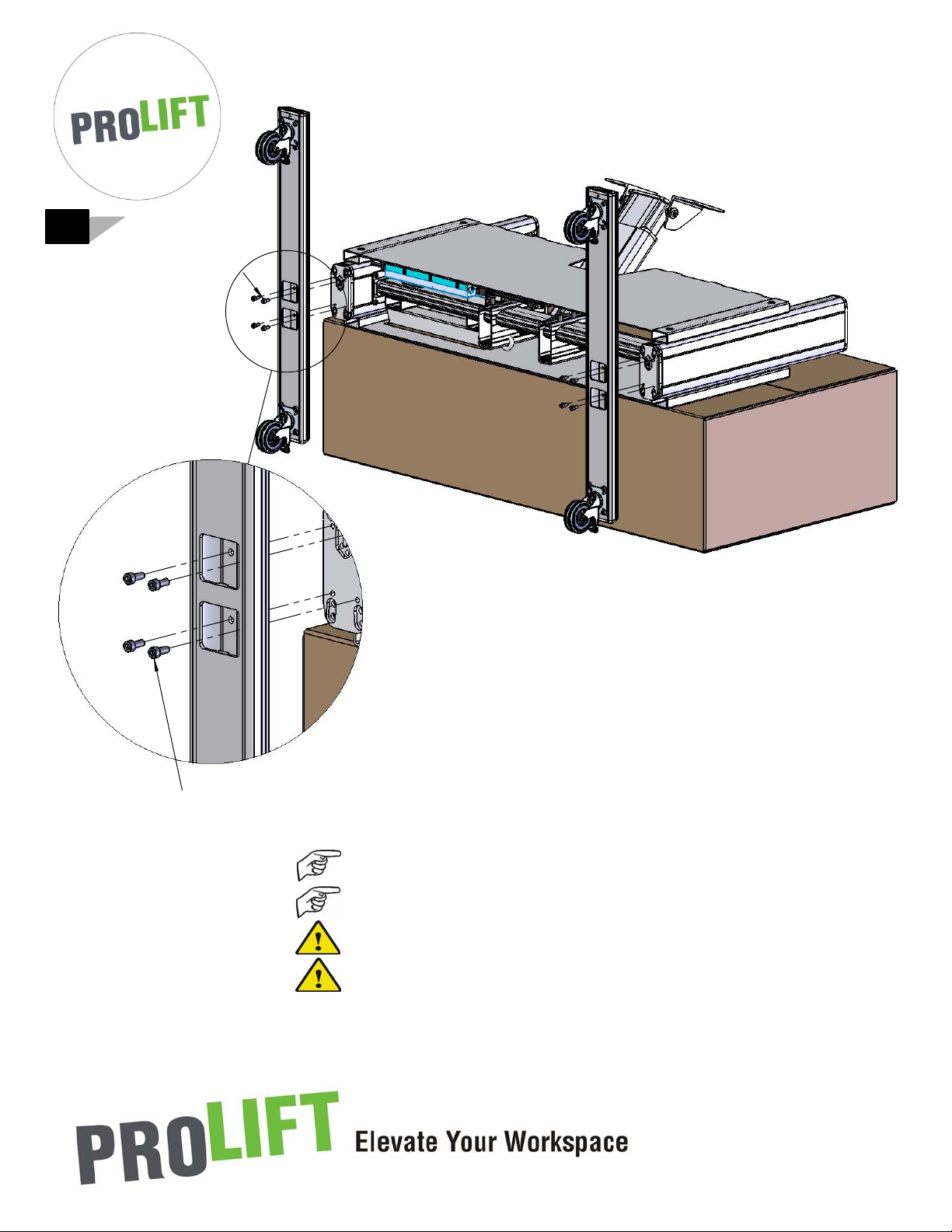

Mount the Pro-LIFT G5ZELT feet
For ease of installation, do this step while the Pro-LIFT G5ZELT is laying down
DO NOT over tighten
M6 x 14mm Socket Cap Screw
Use the M6 x 14mm Socket Cap Screws provided
M6 x 14mm Socket Cap Screw
ProLift G5ZELT ASSY Instructions : 0.005
1
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com

600 VESA 800 VESA 600 VESA 400 VESA 300 VESA 300 VESA 400 VESA 800 VESA
ProLift G5ZELT ASSY Instructions : 0.005
Use the appropriate mounting holes for
your LCD as shown above
Thread-Cutting Screw (8-32 x 3/8" Lg.)
Cable Tie Mount

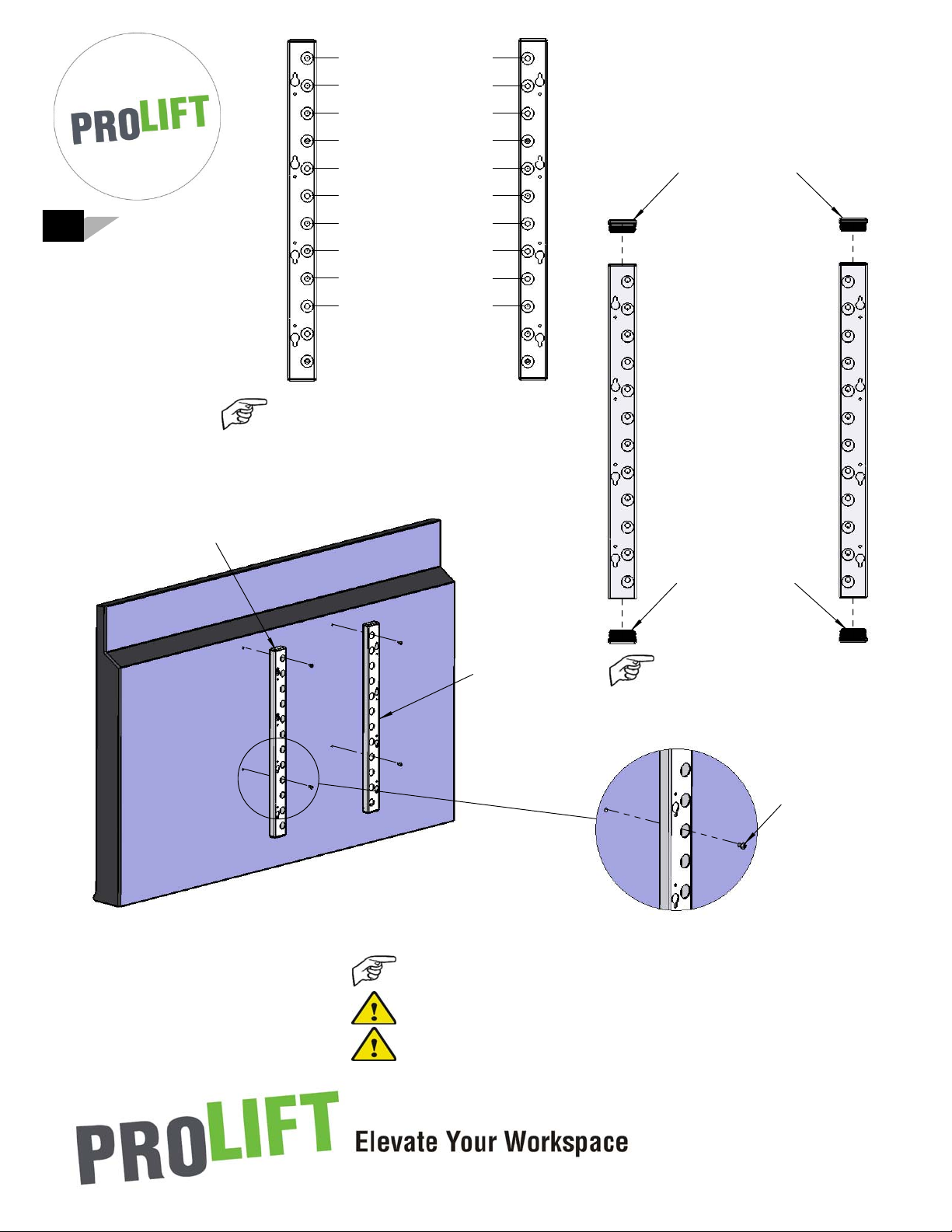

Fasten the LCD Hanging Bolts
Use the Pan Head Phillips Machine Screw - M6x35 provided
Screw the Pan Head Phillips Machine Screw - M6x35 until they bottom out
DO NOT over tighten
DO NOT over tighten
When fastened, end
result should resemble
this
Fasten the Cable Tie Mounts
Use the Thread-Cutting Screw (8-32 x 3/8" Lg.) provided
Pan Head Phillips Machine Screw - M6x35
2
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com

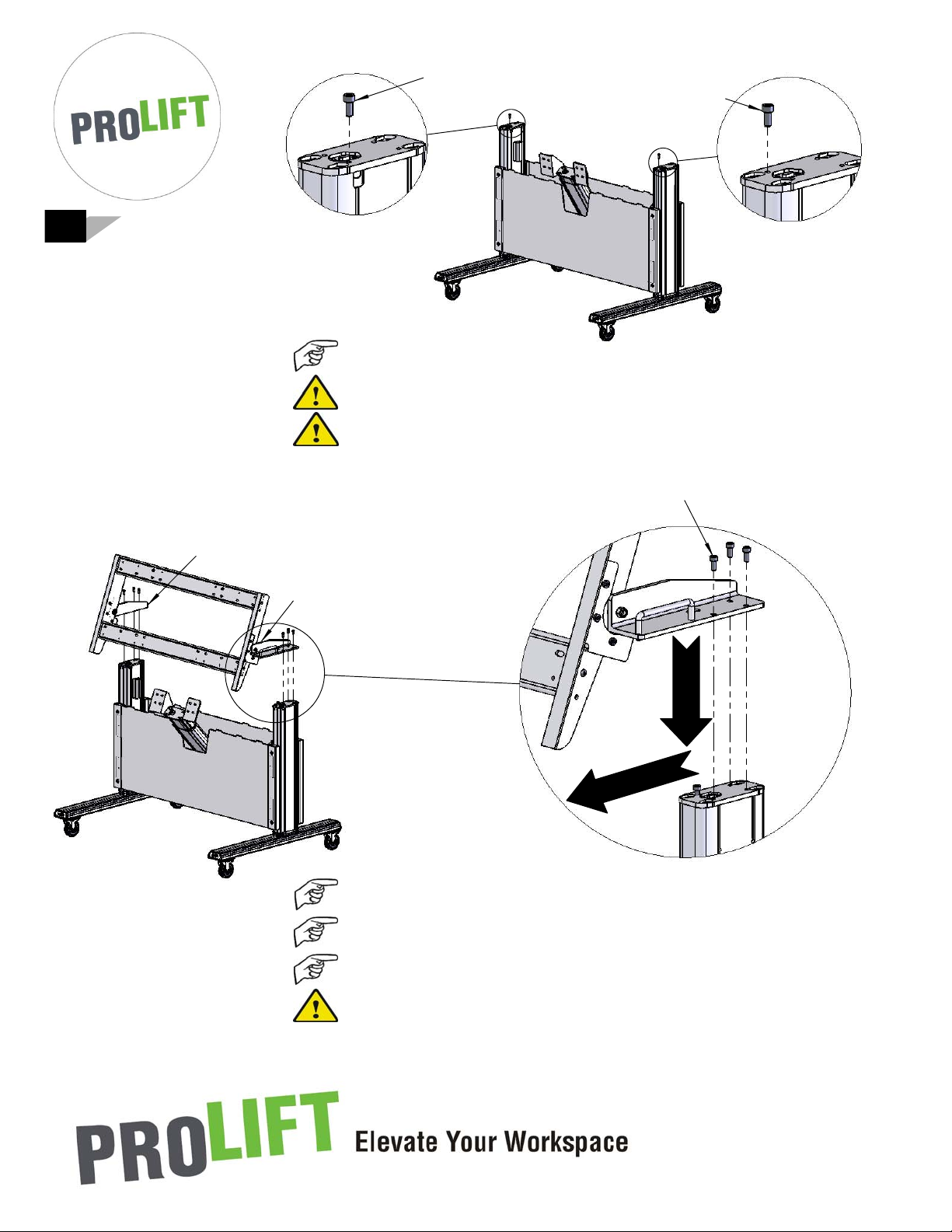

Fasten the keyhole positioning screws
Leave a space to slide tilting bracket keyhole into position
Mount the tilting mechanism
Position the tilting brackets keyholes over the positioning screws
and slide into place
DO NOT over tighten
Tilting Bracket
Tilting Bracket
Fasten the remaining M6 x 14mm Socket Cap Screws
M6 x 14mm Socket Cap Screw
ProLift G5ZELT ASSY Instructions : 0.005
M6 x 14mm Socket Cap Screw
Use the M6 x 14mm Socket Cap Screw provided
FOR STEPS 3 and 4 ATTACH ALL FASTENERS BEFORE TIGHTENING
M6 x 14mm Socket Cap Screw
3
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com

ProLift G5ZELT ASSY Instructions : 0.005

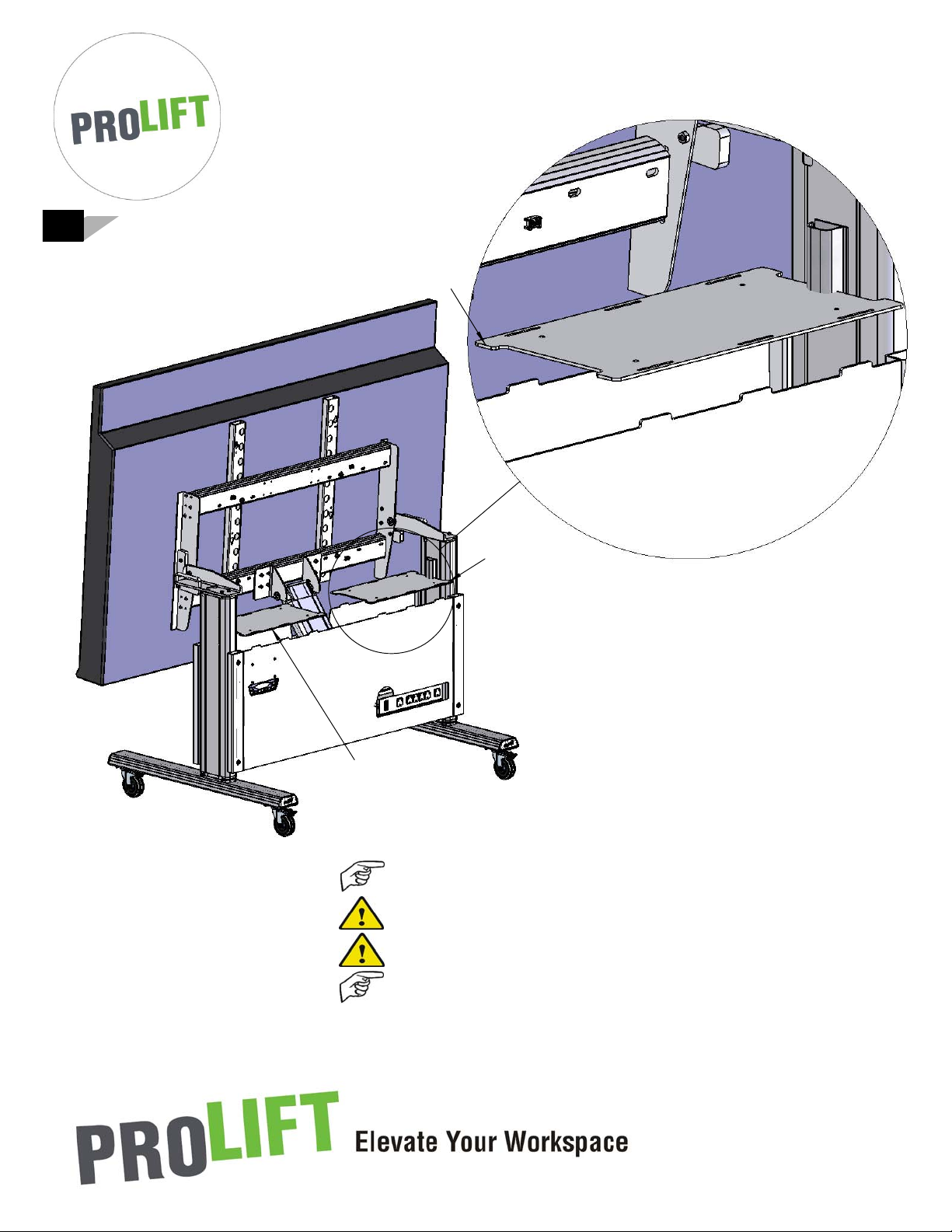

Top Pusher Brackets
M6 x 14mm Socket Cap Screw
M6 x 14mm Socket Cap Screw
Top Pusher Bracket
Top Pusher Bracket
Use the M6 x 14mm Socket Cap Screws provided
Fasten the top pusher bracket
DO NOT over tighten
ATTACH ALL FASTENERS IN STEPS 3 and 4
BEFORE TIGHTENING
4
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com

400, 300, 200, 100 VESA
400, 300, 200, 100 VESA
400, 300, 200, 100 VESA
400, 300, 200, 100 VESA
300, 200, 100 VESA
300, 200, 100 VESA
200, 100 VESA
200, 100 VESA
100 VESA
100 VESA
Use the appropriate mounting holes for
your LCD (not included) as shown above
Mount the LCD Tubes to your LCD (not included) using the
fasteners from the LCD TV Kit
Use the appropriate fasteners as specified in the
LCD owners manual
DO NOT over tighten
Use a rubber mallet to knock the
TUBE1020 End Caps into place
Tube1020 End Cap
Tube1020 End Cap
LCD Tube
LCD Tube
ProLift G5ZELT ASSY Instructions : 0.005
LCD Fastener from
LCD TV Kit provided
5
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com

ProLift G5ZELT ASSY Instructions : 0.005
Pan Head Phillips Machine Screw - M6x35
M6 x 55mm Partial Thread Socket Cap Screw
1/4" Washer
Secure the LCD Assembly to tilting mechanism
Hang the LCD Assembly
Be sure to NOT over tighten
M6 x 55mm Partial Thread Socket Cap Screw
1/4" Washer
Hang the LCD Tube keyholes on the LCD Hanging
Bolts already fastened
Use the M6 x 55mm Partial Thread Socket Cap Screws
and 1/4" washers supplied
**Hooks onto the LCD Tube
keyhole that is fastened
on the back of
the LCD (not Included)
6
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com

Position top covers
Wire manage before placing top covers
Place top cover over all tabs and press firmly
Repeat for other side
Top Cover
ProLift G5ZELT ASSY Instructions : 0.005
Top Cover
Top Cover
7
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com



























