Vibe Interactive Collaboration Board User manual

Vibe interactive collaboration board
User Manual
Vibe interactive collaboration board
Designed by Vibe Inc in Seattle US Made in China
Vibe Inc
[e-mail]
[phone]
https://vibe.us
10400 NE 4th Street, STE 500 Bellevue, WA 98004
Q41G55M111101A
(Please Read this manual before operation)

iii
Safety Instructions
Safety precautions and maintenance
WARNING: Use of controls, adjustments or procedures other than those specied in this documentation
may result in exposure to shock, electrical hazards and/or mechanical hazards.
Read and follow these instructions when connecting and using your display:
Operation:
• Keep the display out of direct sunlight and away from stoves or any other heat sources.
• Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics.
• Do not block the ventilation holes on the body ofVibe.
• When positioning the display, make sure the power plug and outlet are easily accessible.
• When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for
normal operation.
• Ensure the use of an approved power cord at all times. If your power cord is missing, please contact your local
service center.
• Do not subject the display to strong vibration or high impact during operation.
• Avoid Dropping the display during operation or transportation.
Maintenance:
• To protect your display from possible damage, do not put excessive pressure on the LCD panel.When moving your
display, hold the frame to lift; do not lift the display by placing your hand or ngers on the LCD panel.
• Unplug the display if you are not going to use it for an extensive period of time.
• Unplug the display if you need to clean it with a slightly damp cloth.The screen may be wiped with a dry cloth
when the power is off. However, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean your
display.
• To avoid the risk of shock or permanent damage to the hardware, do not expose the display to dust, rain, water or
an excessively moist environment.
• If your display becomes wet, wipe it with dry cloth as soon as possible.
• If a foreign substance or water gets in your display, turn the power off immediately and disconnect the power cord.
Then remove the foreign substance or water, and send the unit to the maintenance center.
• Do not store or use the display in locations exposed to heat, direct sunlight or extreme cold.
• In order to maintain the best performance of your display and ensure a longer lifetime, we strongly recommend
using the display in a location within the following temperature and humidity ranges.
-Temperature: 0-40°C 32-104°F
-Humidity: 20-80% RH
IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate
a periodic screen refresh application if the unit will display unchanging static content. Uninterrupted display of still or
static images over an extended period may cause “burn in”, also known as “after-imaging” or “ghost imaging”, on your
screen.This is a well-known phenomenon in LCD panel technology. In most cases, the “burned in” or “after-imaging” or
“ghost imaging” will disappear gradually over a period of time after the power has been switched off.
WARNING: Severe “burn-in” or “after-image” or “ghost image” symptoms will not disappear and cannot be repaired.
This is also not covered under the terms of your warranty.

iv
Service:
• The casing cover should be opened only by qualied service personnel.
• If there is any need for repair or integration, please contact your local service center.
If your display does not operate normally, having followed the instructions in this document, please
contact a technician or your local service center.
Read and follow these instructions when connecting and using your display:
• Consult a service technician if the display does not operate normally when you have followed the
instructions in this manual.
• The back cover should be opened only by qualied service personnel.
• Keep the display out of direct sunlight and away from stoves or any other heat sources.
• Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics.
• Do not block the ventilation holes on the cabinet.
• Keep the display dry.To avoid electric shock, do not expose it to rain or excessive moisture.
• When turning off the display by detaching the power cable or DC power cord, wait for 6 seconds
before re-attaching the power cable or DC power cord for normal operation.
• To avoid the risk of shock or permanent damage to the set do not expose the display to rain or
excessive moisture.
• When positioning the display, make sure the power plug and outlet are easily accessible.
• This product’s power cord is equipped with a three-wire grounded plug. The plug only ts in a
grounded power outlet. Make sure the power outlet is properly grounded before inserting the power
cord plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for
details.
• IMPORTANT: Always activate a screen saver program during your application. If a still image in
high contrast remains on the screen for an extended period of time, it may leave an ‘after-image’ or
‘ghost image’ on the front of the screen.This is a well-known phenomenon that is caused by the
shortcomings inherent in LCD technology. In most cases the afterimage will disappear gradually over a
period of time after the power has been switched off. Be aware that the after-image symptom cannot
be repaired and is not covered under warranty.

v
Federal Communications Commission (FCC) Notice (U.S. Only)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Use only an RF shielded cable that was supplied with the display when connecting this display to a computer device.
To prevent damage which may result in re or shock hazard, do not expose this appliance to rain or excessive moisture.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
End-of-Life Disposal
Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can
recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.
Please nd out about the local regulations on how to dispose of your old display from your local dealer.
(For customers in Canada and U.S.A.)
This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For
additional information on recycling contact www.eia.org (Consumer Education Initiative)
Waste Electrical and Electronic Equipment-WEEE
Attention users in United States:
Please dispose of according to all Local, State and Federal Laws. For the disposal or recycling information, contact: www.
mygreenelectronics.com or www.eiae.org.
End of Life Directives-Recycling
Your new Public Information Display contains several materials that can be recycled for new users.
Please dispose of according to all Local, State, and Federal laws.

vi
Table Of Contents
1. UnpackingandInstallation..................................................................................................... 1
1.1. Unpacking .....................................................................................................................................................1
1.2. Package Contents.....................................................................................................................................1
1.3. Installation Notes......................................................................................................................................1
2. StandInstallation(Optional).................................................................................................2
2.1. Vibe Assembly notes ..............................................................................................................................2
2.2. Installing the Stand ...................................................................................................................................3
3. PartsandFunctions.................................................................................................................7
3.1. Input/Output...............................................................................................................................................7
4. TouchControl.......................................................................................................................... 8
4.1. Draw&Erase with Vibe stylus.............................................................................................................8
4.2. Canvas Operation by ngertips.......................................................................................................8
4.3. Other Operations....................................................................................................................................8
5. PixelDefectPolicy................................................................................................................... 9
5.1. Pixels and Subpixels ................................................................................................................................9
5.2. Types of Pixel Defects + Dot Denition ...................................................................................9
5.3. Dark Dot Defects ...................................................................................................................................9
5.4. Proximity of Pixel Defects ..................................................................................................................9
5.5. Pixel Defect Tolerances ...................................................................................................................... 10
5.6. MURA .........................................................................................................................................................10
6. CleaningandTroubleshooting.............................................................................................11
6.1. Cleaning ......................................................................................................................................................11
6.2. Troubleshooting......................................................................................................................................11
7. TechnicalSpecications........................................................................................................12

1
The user interface is subject to change, Please refer to the actual machine for user interactions.
1. Unpacking and Installation
1.1. Unpacking
• This product is packed with the standard accessories.
• Any other optional accessories will be packed separately.
• Due to the size and weight of this display, it is recommended for two people to move it.
• After opening the box, please verify that all parts mentioned below are included and in good condition.

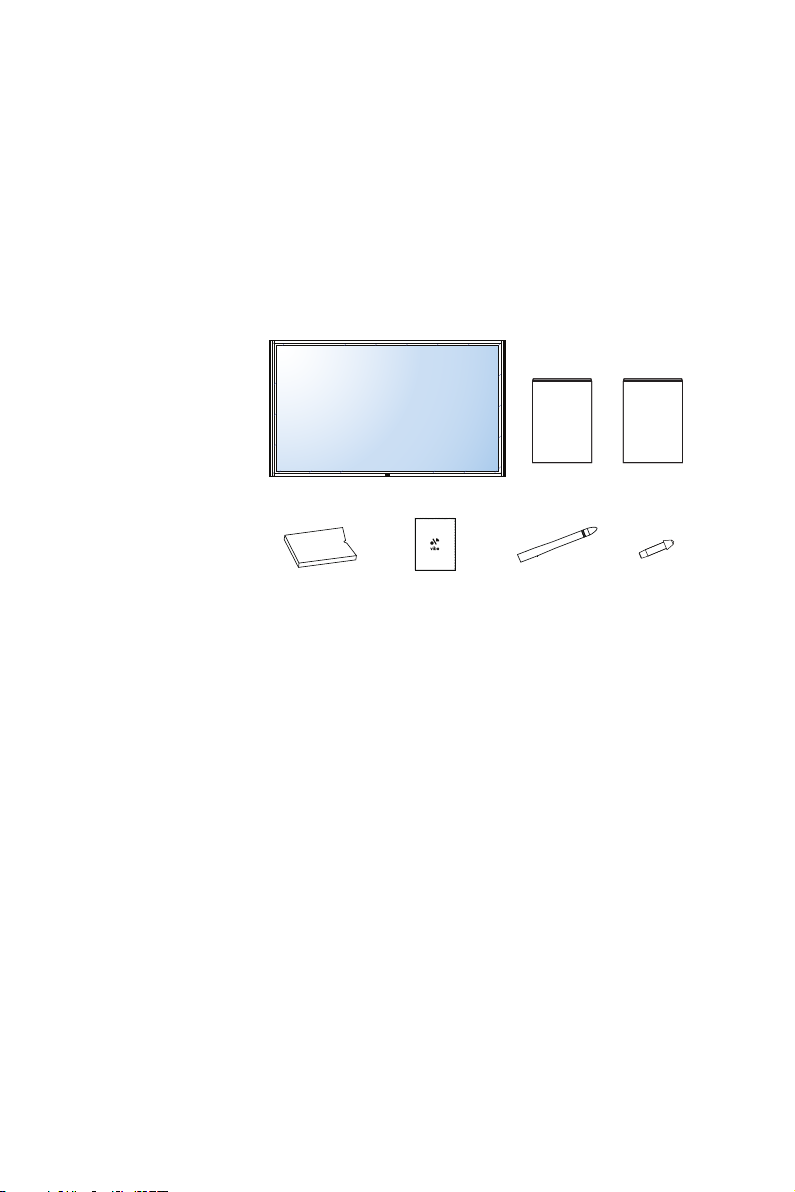

1.2. Package Contents
Please verify that you received the following items with your package:
• LCD display
• Power cord
• Stylus (2 pcs)
• Pen Point (4pcs)
• Wiping Cloth
• Accessory Box
• User manual
• Warranty card * The supplied power cord varies depending on destination.
Power Cord
Stylus (2pcs)
User manual Warranty card
Accessory Box Wiping Cloth Pen Point (4pcs)
NOTES:
• For all other regions, apply a power cord that conforms to the AC voltage of the power outlet that complies with
the safety regulations of the particular country.
1.3. Installation Notes
• Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is
required, please consult your service agent.
• The product should be installed on a at surface to avoid tipping. The distance between the back of the product
and the wall should be maintained for proper ventilation.Avoid installing the product in the kitchen, bathroom or
any other places with high humidity to avoid shortening the service life of the electronic components.
• The product can normally operate only under 5000m in altitude.

2
2. Stand Installation (Optional)
2.1. Vibe Assembly notes
1. Caution:TheVibe board, and stand are heavy and require a minimum of two people to install. Use caution when
lifting them.
2. If screws are found missing or loose, please contact professional repair services or contact Vibe customer service.
3. Caution: If you choose a third-party wall mount,The wall mount chosen should be able to support 120 lbs plus the
self weight of the mount.
4. Avoid high temperature, explosive gas and strong electromagnetic interference during installation.
5. Keep the product away from direct sunlight.
6. To reduce the risk of re or electrical shock, do not expose this product to rain, moisture or other liquids. Do not
touch the board with wet hands. Do not install this product near ammable objects such as gasoline or candles, or
expose the board to direct air conditioning.
7. Make sure all screws are secured properly to avoid board falling down.
8. Please carefully read the installation manual, and follow the instructions.Vibe is not liable to injuries caused by
improperly following the manual.
9. Please contact us directly if you have any questions when reading the manual.

3

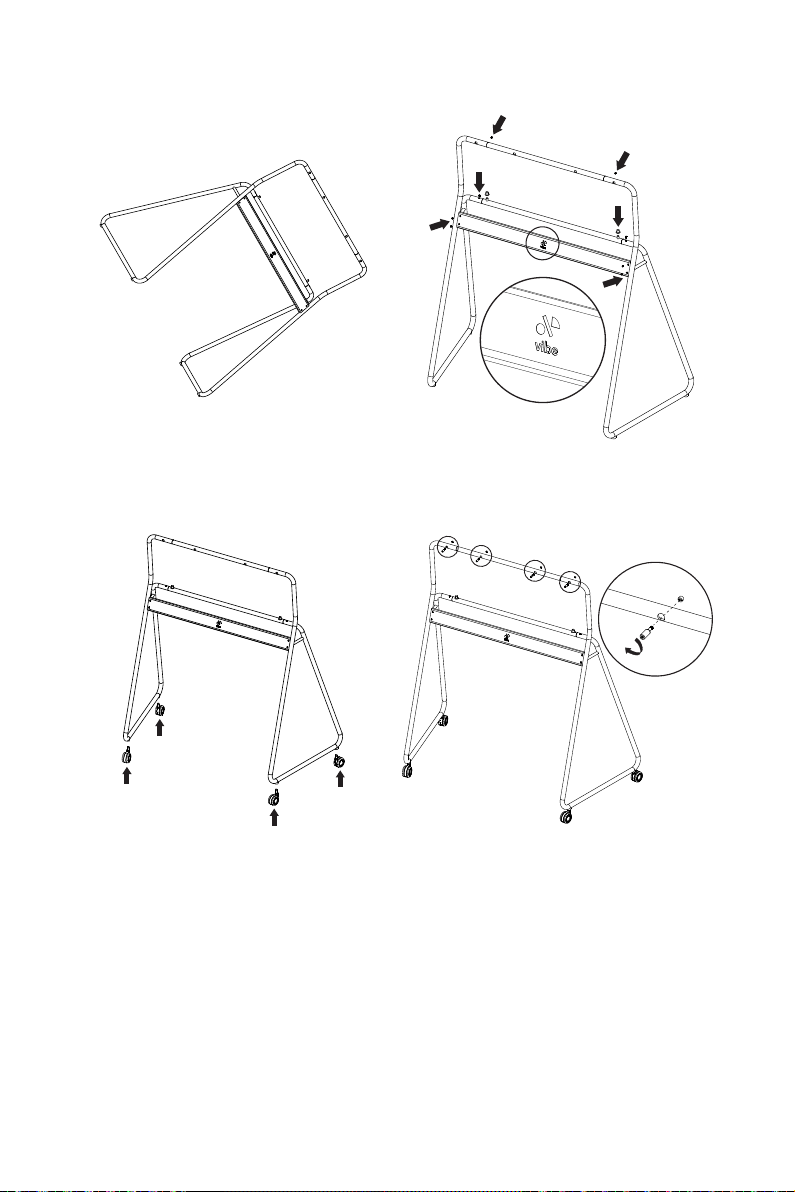

2.2. Installing the Stand
Step1
1. Open the stand package. 2. Spread the protective sheet in the package on the at
ground and put on the stand..
12
3
3. Install the three parts in the middle.
Note: Pay attention to the direction of the logo.
4. Install the stand on the other side refer to graphic
order.
Note: Pay attention to the installation order.

4
Step2
1. Make the stand standing.
Note: Ensure to hold the both sides to prevent apart.
2. Ensure the direction and position of logo are
consistent with gure above. Rotate the tube to expose
the screw holes then install the screws and plastic caps.
3. Insert the four wheels. 4.Thread the screws through the stand and plastic
sleeve.

5

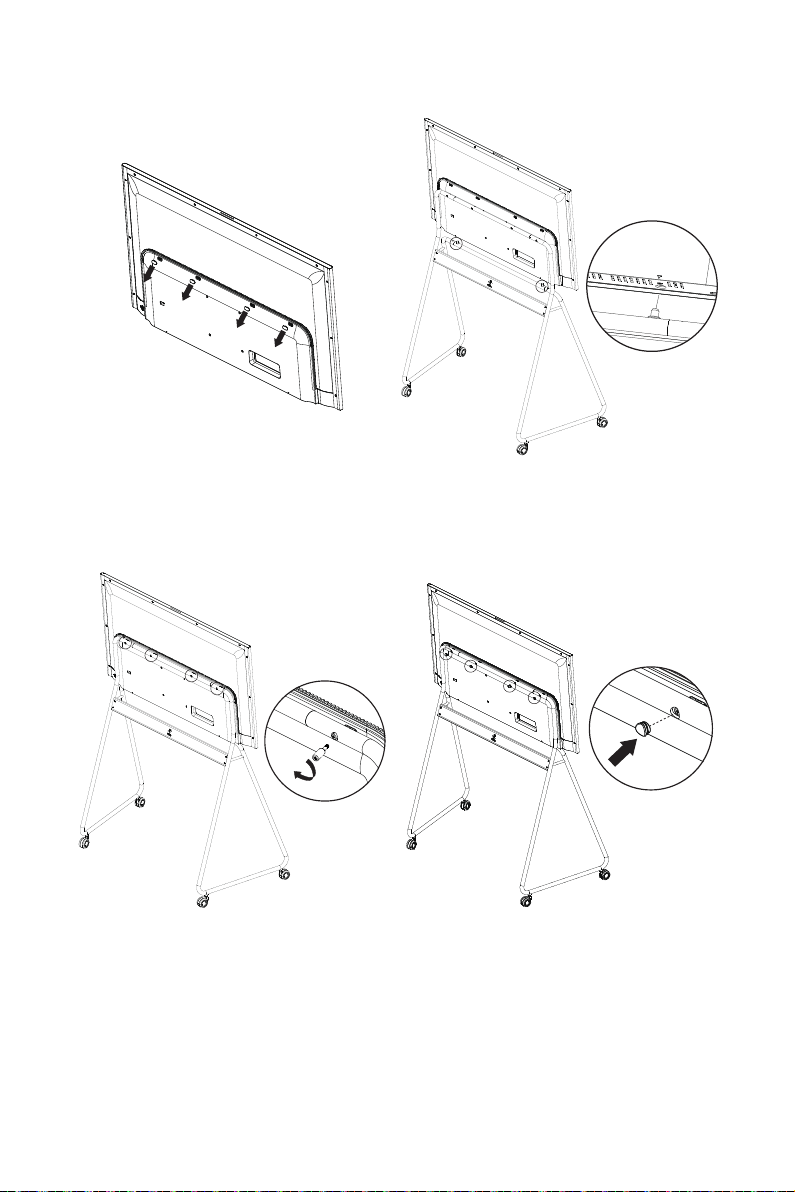

Step3
1. Remove the rubber plug from the back cover. 2. Insert the side hole of the display into the stand
positioning column.
Note:User can refer to the triangle symbol on the back
cover for the position of the hole.
3. Insert the four wheels. 4.Thread the screws through the stand and plastic
sleeve.

6
Step4
Connect the camera.
Note:The camera needs to be inserted into the slot.

7
3. Parts and Functions
3.1. Input/Output
1
3 4 5 6 7 8
2
1
9
ETHERNET
USB 3.0
5V/0.9A
USB 2.0
5V/0.5A
1MAIN POWER SWITCH
Switch the main power on/off.
2AC IN
AC power input from the wall outlet.
3HDMI OUT
HDMI video/audio output.
4HDMI IN
HDMI video/audio intput.
5AUDIO
Audio output
6USB 3.0
Connect your USB storage device.
7USB 2.0
Connect your USB storage device.
8ETHERNET
Connect the ethernet.
9Webcam
Connect the webcam. (Buy optional)

8
4. Touch Control
Vibe is equipped with an infrared touch display and can be operated by ngetips or Vibe stylus. The following
descriptions illustrate typical operations. More Vibe software manuals and guides can be found at htts://vibe.us/guide.
4.1. Draw&Erase with Vibe stylus
Writeordraw
Select a pen tool and use the stylus to write of draw.
Erase
Select the eraser tool and use the stylus to erase
markers on screen.
4.2. Canvas Operation by fingertips
Panthecanvas
Use one ngetip and touch the blank area on the screen
without losing direct contact to move the canvas.
PinchtoZoom
Move one’s nger and thumb apat or bring them
together on (a touchscreen) in order to zoom into or
out of canvas..
4.3. Other Operations
The following operations can be done either with ngetip or Vibe stylus.
Chooseatoolorselectanoption
Touch the target on the screen for one quick tap then release.
Selectanobject
Touch and hold the target (e.g., an image or a Post-it) on the screen for a while to make the target on selection.
Moveanobject
Touch the selected target and move across the target without losing direct contact, then release when reaching a new
location.
Note: Avoid scratching with sharp object on the touch-display. Only ngetips and Vibe stylus are following for touch
control.

9
5. Pixel Defect Policy
We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing
processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used
in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from
pixel defects, but guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired
during the warranty period in line with your local warranty.
This notice explains the different types of pixel defects and denes the acceptable defect level for the LCD screen. In
order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the
reference table. If the LCD screen is within specication a warranty exchange / claim back will be refused.
5.1. Pixels and Subpixels
A pixel, or picture element, is composed of three sub-pixels in the primary colors of red,
green and blue. Many pixels together form an image.When all sub-pixels of a pixel are lit, the
three colored sub-pixels together appear as a single white pixel.When all are dark, the three
colored sub-pixels together appear as a single black pixel. Other combinations of lit and dark
sub-pixels appear as single pixels of other colors.
5.2. Types of Pixel Defects + Dot Definition
Pixel and sub-pixel defects appear on the screen in different ways.There are three categories of pixel defects and
several types of sub-pixel defects within each category.
Dot denition = What is a defective “Dot”?
One or more defective, adjacent sub-pixel are dened
as one “dot”.The number of defective sub-pixels are
not relevant to dene a defective dot. This means
that a defective dot can consist of one, two or three
defective sub-pixels which can be dark or lit.
One dot = One Pixel; consists of
three sub-pixels of Red, Green, and
Blue.
5.3. Dark Dot Defects
Black dot defects appear as pixels or sub-pixels that are always dark or “off.”These are the examples of black dot
defects:
One dark dot Two adjacent dark dots =
1 pair of dark dots
Two dark dots,
specifcations defnes the
minimum distance
between dark dots
5.4. Proximity of Pixel Defects
Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, species
tolerances for the proximity of pixel defects. In the table below you can nd specications about:
• Allowed amount of adjacent dark dots = (adjacent dark dots = 1 pair of dark dots)
• Minimum distance between dark dots
• Total number of all defective dots

10
5.5. Pixel Defect Tolerances
In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Plasma / LCD-
display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table.
BRIGHT DOT EFFECT ACCEPTABLE LEVEL
1 lit sub pixel 2
BLACK DOT EFFECT ACCEPTABLE LEVEL
1 dark sub pixel 10
TOTAL DOT DEFECTS 12
5.6. MURA
Dark spots or patches may occasionally appear on some liquid crystal display (LCD) panels.This is known within the
industry as Mura, which is a Japanese term for “unevenness.” It is used to describe an irregular pattern or area in which
uneven screen uniformity appears under certain conditions. Mura is a result of the deterioration of the liquid crystal
alignment layer and is most commonly caused by long-term operation under high ambient temperatures. It is an
industry- wide phenomenon and Mura is not repairable. It is also not covered by our warranty terms. Mura has been
around since the introduction of LCD technology and with screens getting bigger and in operation 24/7, many displays
are running in low light conditions.This all adds to the possibility of Mura affecting displays.
HOWTO SPOT MURA
There are many symptoms of Mura and also multiple causes. Several of these are listed below:
• Impurities or foreign particles in the crystal matrix
• Uneven distribution of LCD matrix during manufacturing
• Non-uniform luminance distribution of the backlight
• Panel assembly induced stress
• Flaws within the LCD cells
• Thermal induced stress - high temperature operation over long periods of time
HOW TO AVOID MURA
Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can
be minimized by these methods:
• Lower the backlight brightness
• Use a screen saver
• Reduce the ambient temperature around the unit

11
6. Cleaning and Troubleshooting
6.1. Cleaning
Caution When Using the Display
• Do not bring your hands, face or objects close to the ventilation holes of the display.The top of the display is
usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns
or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the
display could also result in heat related damage to the object as well as the display itself.
• Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may
damage the cables and thus cause re or electric shock.
• Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning
or maintenance procedure.
Front Panel Cleaning Instructions
• The front of the display has been specially treated.Wipe the surface gently using only a cleaning cloth or a soft,
lint-free cloth.
• If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution.Wring the cloth to remove
excess liquid.Wipe the surface of the display to remove dirt.Then use a dry cloth of the same type to dry.
• Do not scratch or hit the surface of the panel with ngers or hard objects of any kind.
• Do not use volatile substances such as insert sprays, solvents and thinners.
Back Panel Cleaning Instructions
• If the cabinet becomes dirty, wipe the cabinet with a soft, dry cloth.
• If the cabinet is extremely dirty, soak a lint-free cloth in a mild detergent solution.Wring the cloth to remove as
much moisture as possible.Wipe the cabinet. Use another dry cloth to wipe over until the surface is dry.
• Do not allow any water or detergent to come into contact with the surface of the display. If water or moisture
gets inside the unit, operating problems, electrical and shock hazards may result.
• Do not scratch or hit the cabinet with ngers or hard objects of any kind.
• Do not use corrosive substances such as insert sprays, solvents and thinners on the cabinet.
• Do not place anything made from rubber or PVC near the cabinet for extended periods of time.
6.2. Troubleshooting
Symptom Possible Cause Remedy
No picture is displayed. 1. The power cord is disconnected
2. The power switch is not switched
on
3. The display is in standby mode
1. Plug in the power cord
2. Make sure the power switch is on
3. Touch the display to exit standby
Interference on the display or
audible noise.
Caused by surrounding electrical
appliances or uorescent lights.
Move the display to another location
to see if the interference is reduced.
No sound is heard. 1. Volume is turned all the way
down
2. Mute is turned on.
1. Press [+] or [-] button to hear
sound.
2. Switch MUTE off
After-images can still be seen on the
display after the display is turned off.
A still picture is displayed for an over
extended period of time.
Do not allow a still image to be
displayed for an extended period of
time as this can cause a permanent
after-image to remain on the display.

12
7. Technical Specifications
Picture and Display Specications
Diagonal screen size 55 inch
Optimum resolution 3840 (H) x 2160 (V) @ 60 Hz
Optimum frame rate 60 Hz
Brightness (typical) 300 cd/m²
Contrast ratio (typical) 1200 : 1
Pixel pitch 0.315 mm x 0.315mm
Aspect ratio 16 : 9
Color depth 16.7 M
Viewing angle 178 (H) / 178 (V)
General Specications
System on Chip Rockchip 3399
CPU Dual-core Cortex-A72 up to 1.8 GHz
Quad-core Cortex-A53 up to 1.4 GHz
GPU Mali-T860 GPU
RAM 4GB DDR3
Storage 32GB EMMC
Operating System Android 7.1(Nougat)
Mains power AC 100~240V, 50/60 Hz
Consumption (Typical) ≤ 170 W
Connectivity Specications
HDMI out (1080p) USB 2.0
HDMI In (1080p & 720p) USB 3.0
Ethernet (RJ 45) WIFI
Operating conditions Specications
Temperature Operational 0oC - 40oC
Storage -20oC - 60oC
Humidity Operational 20% - 80%
Storage 10% - 90%
Altitude Operational 0 - 3,000 m
Storage 0 - 9,000 m
Package Specications
Product size 1285.7(W) x 739.4(H) x 73.6(D) mm
Package size 1440(W) x 940(H) x 223(D) mm
Net weight 24.5 kg
Gross weight 30.85 kg
VESA mount 200 mm x 200 mm

Vibe interactive collaboration board
User Manual
Vibe interactive collaboration board
Designed by Vibe Inc in Seattle US Made in China
Vibe Inc
[e-mail]
[phone]
https://vibe.us
10400 NE 4th Street, STE 500 Bellevue, WA 98004
Q41G55M111101A
(Please Read this manual before operation)
