PRO SMOKE PSMKOFFSET User manual

PRO SMOKE
OFFSET SMOKER
Owner’s Manual
ASSEMBLY, CARE & SAFETY INSTRUCTIONS
Code: PSMKOFFSET

3
READ ALL INSTRUCTIONS, WARNINGS & SAFEGUARDS PRIOR TO ASSEMBLY & OPERATION.
FAILURE TO DO SO MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.
DANGER DANGER
- The Pro Smoke Offset Smoker is for OUTDOOR
USE ONLY.
- Never operate the smoker unattended.
- The use of alcohol, prescription or non
prescription drugs may impair your ability to
properly assemble or safely operate the smoker.
- Never operate this smoker within 7.5 metres (25
feet) of any flammable liquids.
- Keep the area clear of all flammable liquids,
combustible material including but not limited
to wood, dry plants and including grass, brush,
paper and canvas.
- Use this smoker only on a level, stable non-
combustible surface like brick, concrete or dirt.
Do not use smoker on or around any surface that
will burn or melt, such as on wooden decks, dry
grass, wood rails, vinyl or plastic.
- Never use inside an enclosed area such as screen
patios, garages, buildings and tents. Keep a
minimum clearance of 3 metres (10 feet) from all
sides of the smoker to all overhead construction
and 1 metre (3 feet) from any walls or rails.
- Never operate this smoker under any overhead
roof covering, awning or overhang.
- Keep your hands, hair and face away from any
naked flame. Do not lean over or into the firebox
or grill when lighting or operating the smoker. This
smoker has an open flame. Be careful of loose
clothing and hair that could catch fire during
operation.
- Use caution since flames can flare-up when fresh
air comes into contact with fire. Take caution
opening lids.
- Use caution when opening lids. Make sure the
lid is pushed all the way open and resting on the
back stop. If not fully open it could fall back to
closed position and cause an injury.
- Always wear shoes and protective clothing during
operation of this smoker.
- Never use this smoker as a heater.
- The smoker is HOT while in use and after use.
Always wear protective gloves or mitts when
operating the smoker. Avoid touching hot
surfaces at all times.
- Keep CHILDREN AND PETS away from the
smoker at all times. Do not allow anyone to
conduct activities around the smoker during or
following its use until the unit has cooled.
- Never move the smoker when it is in use. Allow
the smoker to cool before moving or storing it.
- Never leave hot coals or ashes in the smoker
unattended. Always wait for the grill to cool
before removing hot coals or ashes and dispose
of them in a non-combustible metal container
and then dose with water to extinguish fully. Wear
protective gloves to do this.
- Never use in or on recreational vehicles and/or
boats.
- Never use this product for anything other than its
intended purposes. This smoker is not intended
for commercial use.
- Accessories and cookware not supplied by
BBQ Galore are not recommended. Never use
glassware, plastic or ceramic cookware in the
smoker.
- Do not modify the Pro Smoke Offset Smoker. Any
changes to the smoker will void the warranty.
- Do not use in windy conditions or days of a Total
Fire Ban.
- Do not exceed a temperature of 260 ºC (500 ºF).
Do not allow charcoal and or wood to rest on the
walls of the firebox or cooking chamber. Doing so
will greatly reduce the life of the metal finish.
- Only build the fire on top of the wire charcoal
grates.
- The smoker is extremely heavy. Use caution when
moving or lifting to prevent strains or injuries.
- Always ensure the bucket is in place under the
grease hole. Empty or replace regularly.
OUTDOOR USE ONLY
SAVE AND FILE THESE INSTRUCTIONS FOR FUTURE REFERENCE

4
A. PARTS LIST
NO. Name
1 Cooking Grates (3)
2Bafe A
3 Warming Rack
4 Firebox Cooking Grills (2)
5 Firebox Charcoal Grate
6 Firebox Lid Stop
7 Firebox Lid Handle
8 Firebox Lid
9Firebox Top
10 Firebox Base
11 Ash Tray Bracket
12 Damper
NO. Name
13 Ash Tray
14 Firebox Support
15 Wheels (2)
16 Short Legs (2)
17 Wheel Axle
18 Bottom Shelf
19 Long Legs (2)
20 Grease Bucket
21 Holder for Grease Bucket
22 Front Shelf
23 Main Cooking Chamber
NO. Name
24 Side Handle
25 Smoke Stack Gasket
26 Smoke Stack
27 Cooking Chamber Lid
28 Temperature Guage
29 Charcoal Tray (3)
30 Charcoal Grates (3)
31 Smoke Stack Damper
32 Bafe B (4)
33 Hole Cover (2)
34 Warming Rack Support

5
B. HARDWARE PACK
Name QTY
M6*12mm
55PCS
M12 LOCK NUT
2PCS
M6 HEX FLANGE NUT
29PCS
M6 LOCK NUT
2PCS
TOOLS REQUIRED: 1 x Phillips Head Screwdriver
2 x Adjustable Spanners

6
C. ASSEMBLY INSTRUCTIONS
Choose a good, cleared assembly area and get a friend to help you put your smoker together.
Lay card board down to protect the exterior finish. Before assembling your new smoker, unpack
all parts from the box. Carefully remove all packing material and lay out all the parts for easy
access and identification. Do not discard the carton or packaging until your smoker is fully
assembled and operating to your satisfaction.
STEP 1
—Remove hinge locking screw from the left and right hand hinge of main cooking chamber lid
(27) and slide lid off the hinge pins.
STEP 2
—Fit the warming rack support (34) at the back of the inside of the main cooking chamber (23)
with 3 x M6*12mm bolts.
STEP 3
—Fit one long leg (19) and one short leg (16) to the main cooking chamber using 8 x M6*12mm
bolts and M6 flange nuts.
g. 1
g. 2
g. 3

7
STEP 4
—Align the bottom shelf (18) by inserting the location pins into the holes on the legs. With the
bottom wire rack in place, bolt the other two legs to the main cooking chamber (23) using 8 x
M6*12mm bolts and M6 flange nuts.
Please note the short legs should be on the end with the opening for the firebox.
STEP 5
—Insert the wheel axle (17) through the holes in the short legs (16) and fit the wheels (15) onto
the wheel axle and secure with 2 x M6 lock nuts.
STEP 6
—Fit the firebox support (14) to the short legs (26) using 2 x M6*12mm bolts.
g. 4
g. 5
g. 6
Short legs next to
the firebox opening

8
STEP 7

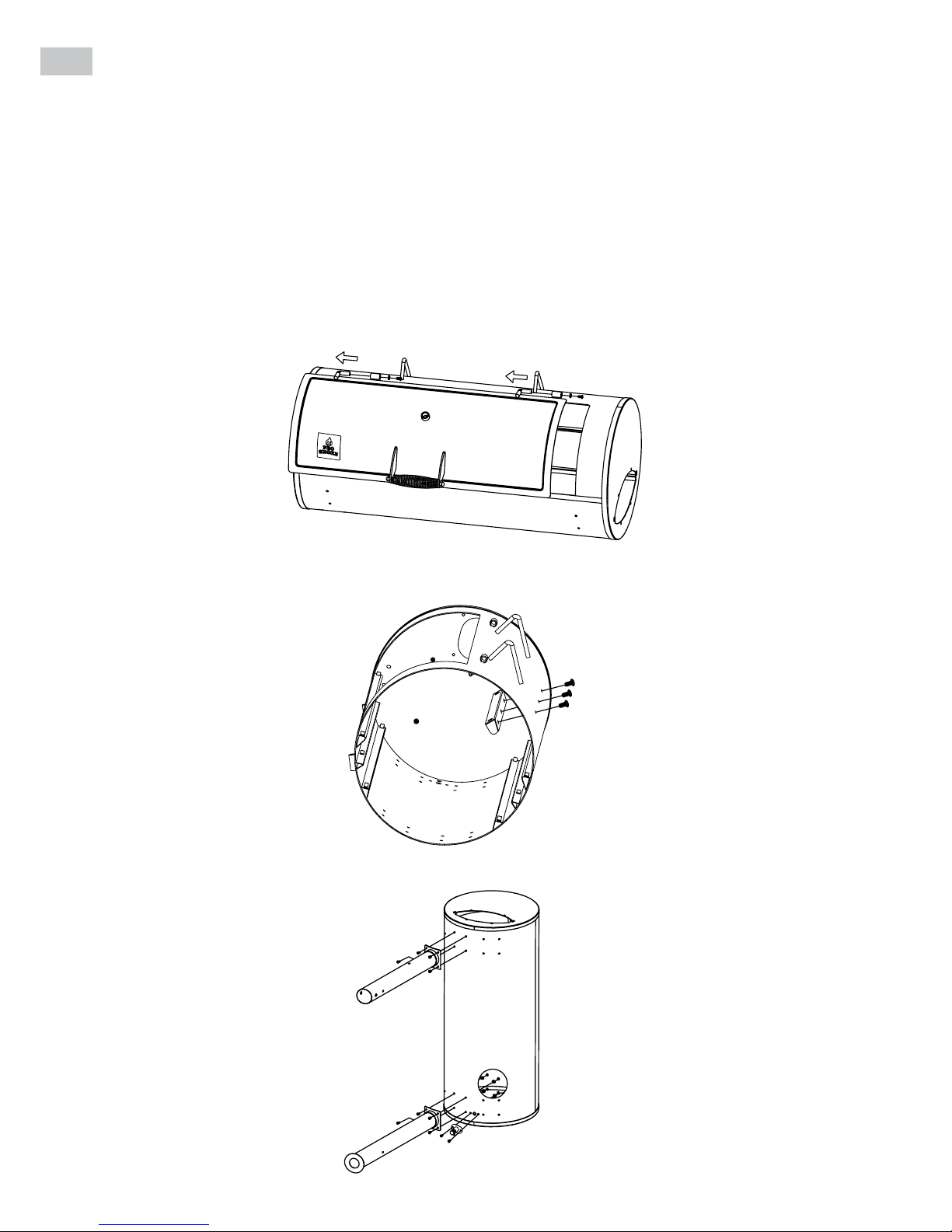

—On the firebox top (9) fit the firebox lid stop (6) into the slot near the opening and bolt to lid
using 1 x M6*12mm bolt & 1 x M6 flange nut.
STEP 8
—To the firebox base (10) fit the ash tray bracket (11) using 6 x M6*12mm bolts.
STEP 9
—Fit the air damper (12) to the end of the firebox base (10) using 1 x M6*12mm bolt and 2 x
M6 lock nuts. Tighten the first nut until the damper fits firmly but still turns easily. Hold the
first nut still with one spanner and tighten the second nut hard against the first nut with
another spanner.
g. 7
g. 8
g. 9

9
STEP 10
—Turn the firebox top (9) upside down and fit the firebox base (10) to it using 6 x M6*12mm
bolts.
STEP 11
—Screw 2 x M6*12mm bolts halfway into the holes at the side of the elliptical cut out leaving a
space of 5mm.
STEP 12
—Attach firebox assembly to main cooking chamber (23) by aligning the slots on the main
cooking chamber to the two M6*12mm bolts and slide into place as shown.
—Secure using 4 x M6*12mm bolts into the main cooking chamber (23) and 2 x M6*12mm bolts
into the firebox support (14).
g. 10
g. 11
g. 12 g. 13 g. 14

10
STEP 13
—Fit the side handle (24) to the main cooking chamber (23) end using 4 x M6*12mm bolts and
4 x M6 flange nuts.
STEP 14

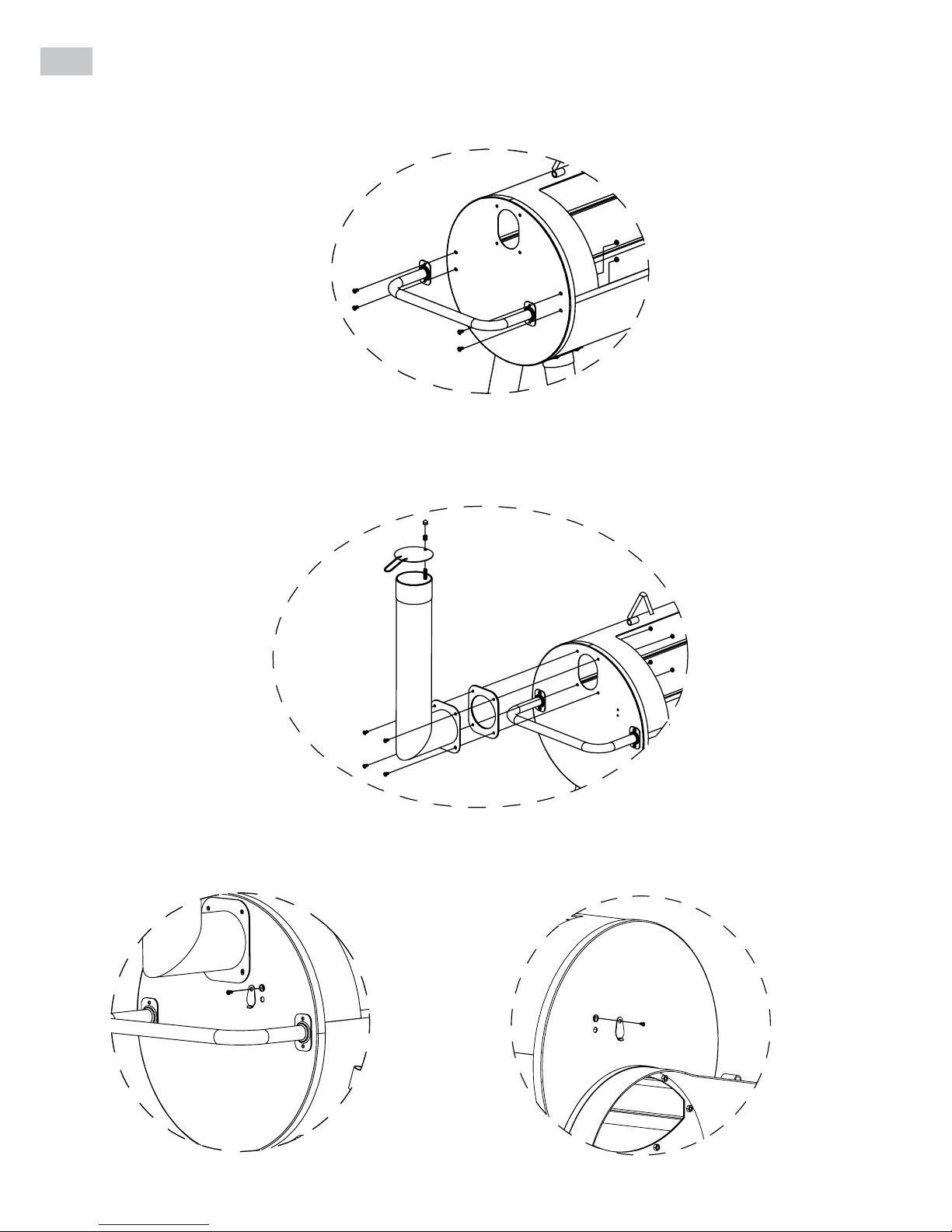

—Attach the smoke stack (26) to the end of the main cooking chamber (23) by fitting the sealing
gasket (25) and using 4 x M6*12mm bolts and 4 x M6 flange nuts.
—Attach the smoke stack damper (31) to the smoke stack (26) using the dome nut and spring
supplied.
STEP 15
—Fit both the hole covers (33) to the ends of the main cooking chamber using 2 x M6*12mm
bolts. These are access holes for thermometer probes.
g. 15
g. 16
g. 17 g. 18

11
STEP 16
—Slide the ash drawer (13) into the firebox ash drawer bracket (11).
STEP 17
—Fit the firebox lid handle (7) to firebox lid (8) using 2 x M6*12mm bolts and 2 x M6 flange Nuts.
—Fit the firebox lid (8) to the firebox top (9) and secure with the hinge locking screws.
g. 19
g. 21
g. 20

12
STEP 18
—Fit the 3 charcoal trays (29) into the bottom of the main cooking chamber (23).
— Fit the 3 charcoal grates (30) into the bottom of the main cooking chamber (23).
— Fit one baffle A (2) and four baffles B (32) onto the ledge above the charcoal grates (30) in the
main cooking chamber (23).
— Fit 3 cooking grates (1) into the main cooking chamber (23) onto the next ledge above the
baffles.
— Fit the warming rack (3) into warming rack bracket (34).
— Fit the firebox charcoal grate (5) into the bottom of the firebox unit (10).
— Fit the 2 firebox cooking grills (4) above the firebox charcoal grates (5).
STEP 19
—Fit the front shelf onto the body of the main cooking chamber by inserting pegs into tube
supports.
g. 23
g. 22
g. 24
1
32
2
30 29
4
5

13
STEP 20
—Fit the cooking chamber lid (27) to the main cooking chamber (23) and secure with the hinge
locking screws.

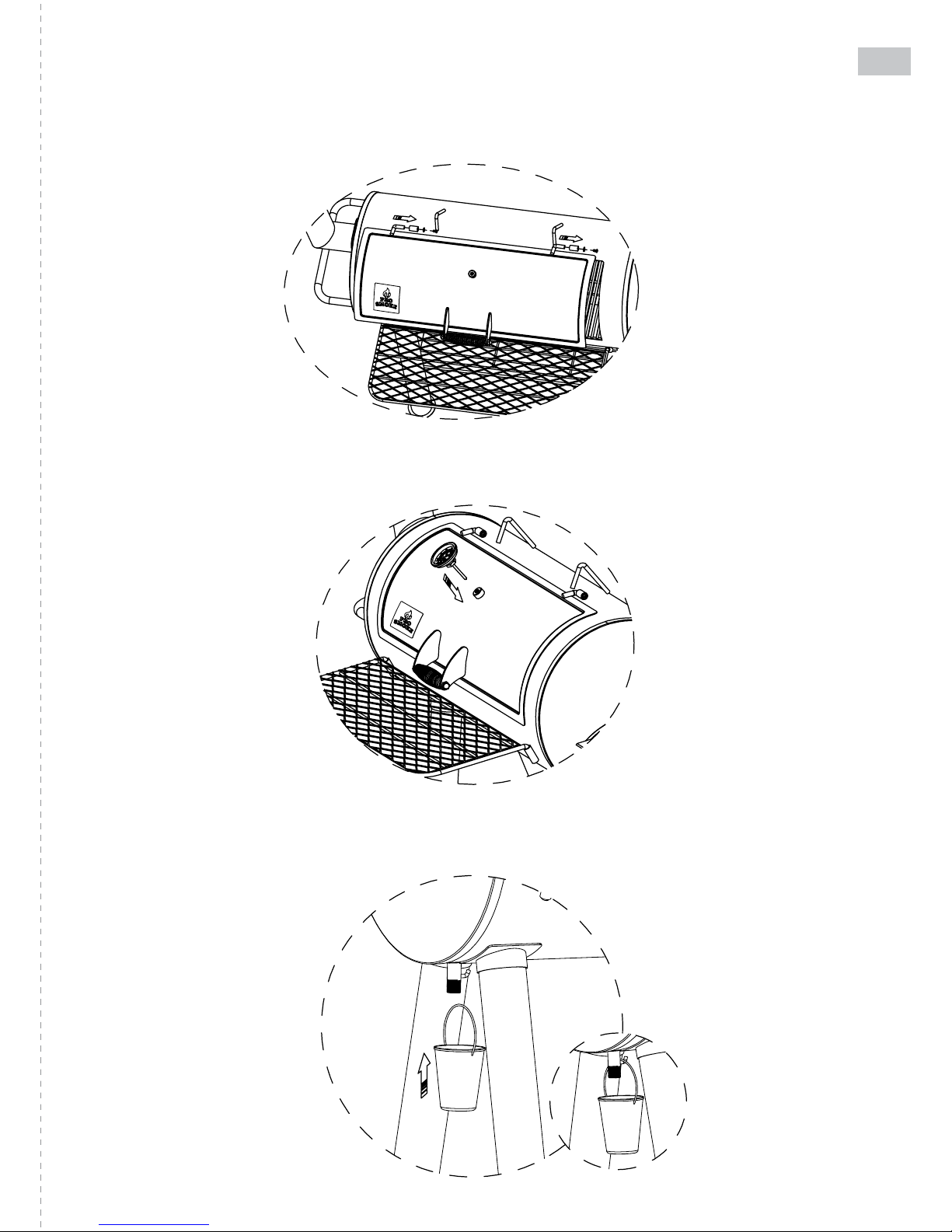

STEP 21
—Fit the thermometer (28) into the main cooking chamber lid (27) Secure with the nut provided
inside the lid.
STEP 22
—Attach the grease bucket holder (21) into the bottom of the main cooking chamber. Hang the
grease bucket (20) onto the holder.
g. 25
g. 26
g. 27

14
Assembly of your Pro Smoker Oset Smoker is now complete.

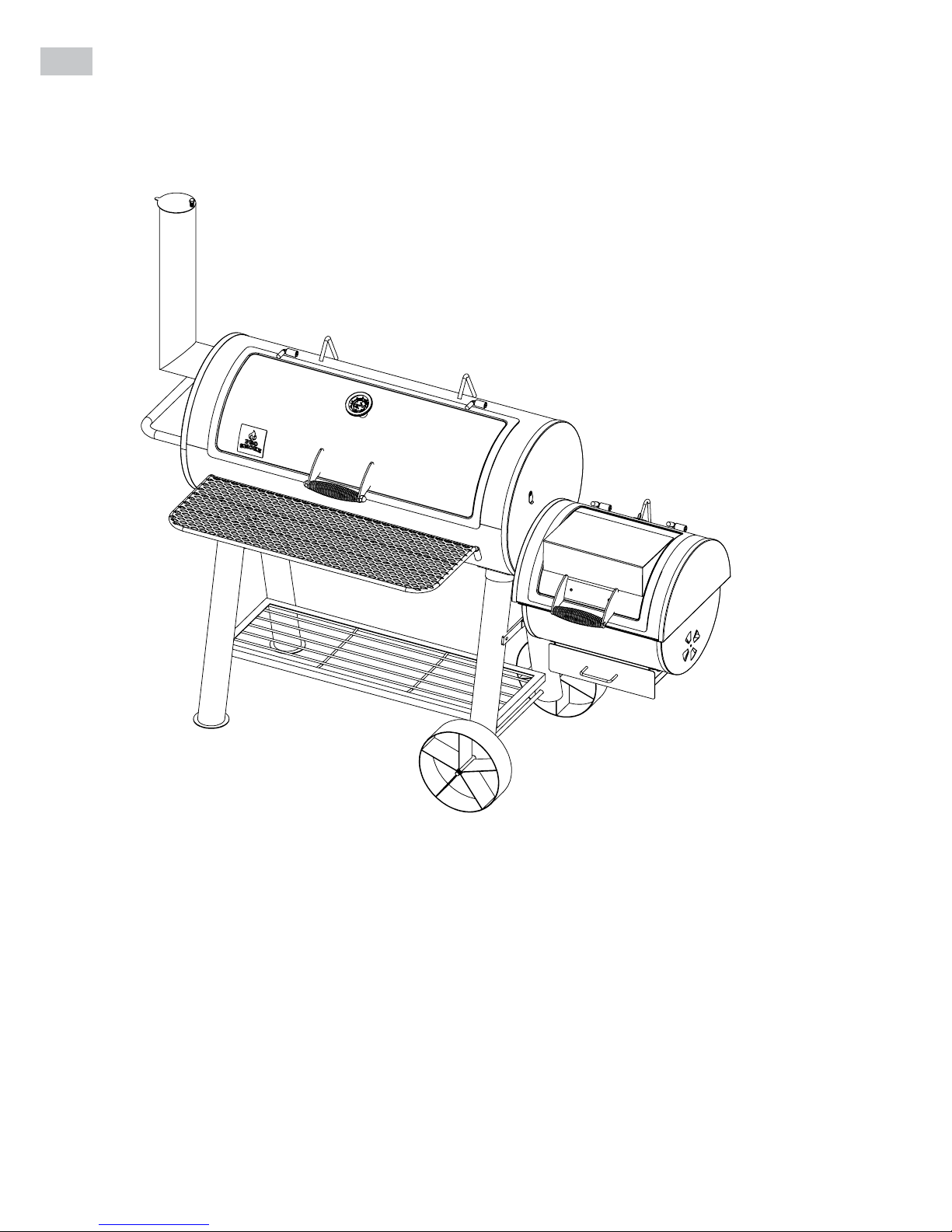

g. 28 below shows how the assembled unit should look.
g. 28

15
D. PREPARING PRO SMOKE OFFSET
SMOKER FOR USE
Before cooking, the following steps should be followed to both cure the finish and season the
interior steel. Failure to follow these steps may damage the finish.
Coat all the interior of the firebox and main cooking chamber with vegetable oil (do not coat the
cooking grills). The oil may be any vegetable type and can be applied with a towel, rag or basting
brush. An aerosol spray can is ideal and will be the easiest and fastest way to coat the interior.
NOTE: DO NOT APPLY OIL TO THE PAINTED SURFACE OUTSIDE THE SMOKER.
—Build a small fire in the firebox (refer to Lighting Your Fire section). The Smoke Stack (26)
and Damper (12) should be ½ open. Allow the temperature to gradually rise to no more than
150ºC.
—Close all lids and burn for at least two hours. The longer and the more gradually the
temperature rises, the better.
—Care should be taken not to scrape or rub any surface during the curing process.
—After you have burned your fire for 2 hours or more, you will notice a shiny black coating
developing on the inside of your smoker. This is a protective resin that comes from the
burning wood. This resin will help seal the inside of the smoker for many fantastic cooks
ahead.
—It is advisable to repeat this process on a yearly basis to help prolong the life of your smoker.
—Ensure that you have the Grease Bucket (20) in place under the main cooking chamber
(STEP 22). The bucket must be placed under the grease hole at all times and will need to be
checked regularly to ensure it is not full. Always wait until the smoker has fully cooled before
emptying or replacing the bucket.
—Your Pro Smoke Offset Smoker is now ready for use.
WARNING
DO NOT APPLY OIL TO THE EXTERNAL PAINTED SURFACE OF THE SMOKER.
DO NOT APPLY OIL TO THE CHARCOAL GRATES, COOKING GRILLS OR ASH
TRAY.

16
ECARE OF YOUR PRO SMOKE OFFSET
SMOKER
ASH AND RUSTING
The Pro Smoke Offset Smoker heavy duty steel construction will help extend the smoker’s life
span.
The inside of the smoker should be treated like a cast iron skillet by applying cooking oil to any
rust should it appear (there is no need to coat the porcelain finished cooking grills). Remove ash
after each use and oil interior as required by the frequency of use.
Most rusting is caused after cooking with a fire that’s too hot. Inadequate maintenance and
protection from the weather also causes unnecessary rusting. What some people describe as
burnt out damage is really rust-out. The primary cause of rust damage is the failure to remove
ash after each use. Letting ash sit on the lower charcoal grates and in the bottom of the Pro
Smoke Offset Smoker, will eventually cause rust as it will get wet and hold moisture over time.
Ash contains corrosive elements that will rust through any thickness of steel.
It is advised that you clean out any ash or coal remains after every cook. Always allow the smoker
and the ash to thoroughly cool before cleaning and never dispose of hot ashes in a rubbish bin.
Use a protective grill cover to prolong life and store your Pro Smoke Offset Smoker in a covered
area. Use a couple of sponges under the cover to promote ventilation and minimise mould.
GENERAL CLEANING
Only when fully cooled should you commence cleaning the smoker. Clean the porcelain coated
steel cooking grills after each use by removing them from the smoker and cleaning them with
warm, soapy water and a non-abrasive scourer (brass brush is ideal).
To prevent rusting from developing inside the smoker, re-season the interior surfaces with
vegetable oil on a regular basis (excluding the cooking grill).
It is also important to regularly check the grease bucket under the grease hole to check if it needs
to be emptied or replaced. Keeping the bucket lightly oiled will also extend its life.
WARNING
NEVER USE THE SMOKER WITHOUT A BUCKET POSITIONED UNDER THE
GREASE HOLE.
WARNING
NEVER HOSE OUT THE SMOKER WITH WATER.

17
F. LIGHTING YOUR FIRE
Lighting your re directly on the charcoal grates
—Remember, patience is a virtue! Cooking with charcoal and wood is more complicated than
using gas but you will get a much better result. Always allow plenty of time to prepare the fire
prior to cooking.
—Allow 30-45 minutes for the fire to start properly before cooking. To start a charcoal fire using
lump charcoal or briquettes, place two or three firelighters on the charcoal grates where you
plan to build your fire. Then pile the charcoal on top in a pyramid formation.
—Light the firelighters and let the charcoal burn. Once the coals have a light coating of grey
ash, you are ready to cook. Do not disturb the coals in this initial lighting process. They will
not look like they are lighting but you need to wait at least 45 minutes for this to occur.
—Have the firebox and/or cooking chamber door open when you are lighting the fire to allow as
much air in as possible.
—If using wood to start your fire, start off with small pieces that are no longer than 30cm in
length. Make sure they are dry and able to burn. Light using firelighters or paper and as the
fire burns add larger pieces of wood to increase the fire.
—Always wear protective BBQ mitts when lighting your fire.
Lighting your re using a charcoal starter
—Fill the charcoal starter with charcoal or briquettes.
—Place three firelighters on your charcoal grate where you plan to build your fire.
—Light the firelighters and then place the charcoal starter over the fire.
—Have the firebox or cooking chamber door open when you are lighting the fire to allow as
much air in as possible.
—Once the coals have a light coating of grey ash you are ready to cook. Do not disturb the coals
in this initial lighting process.
—Always wear protective BBQ mitts when lighting your fire.
WARNING
DO NOT USE SMOKER WITHOUT THE ASH TRAY IN PLACE.
DO NOT REMOVE THE ASH TRAY WHILE IT CONTAINS HOT COALS OR HOT ASH.

18
G. DIFFERENT TYPES OF COOKING METHODS
Direct Grilling
—Direct cooking is a high heat method and is best used for searing steaks, hamburgers,
sausages, chicken fillets, fish and vegetables.
—You may use either the Firebox or the main cooking chamber to grill your food. Both of these
areas have charcoal grates and cooking grills. This will give you great capacity if you need to
cater for large crowds of people.
—Part 29 are charcoal trays. For direct grilling these must be positioned under the charcoal
grates in the main cooking chamber to protect the base of the unit from hot ash or coals.
—To set your Pro Smoke Offset Smoker for direct grilling, spread the charcoal across the bottom
of the charcoal grate, then place the cooking grills on top so that you are able to place the
food directly above the coals.
—To spread the coals you will need a small shovel or some long handled tongs and should use a
BBQ mitt to avoid any burns. Be careful, the coals will be extremely hot.
—You can get better heat control if you spread your coals into three temperature zones on the
charcoal grate.
a. Hot Zone – Double layer of coals. Used for initially searing the food to seal in all the juices.
b. Medium Zone – Single layer of coals. Used for cooking the food.
c. Cool Zone – No Coals. Used for warming or resting the food if it starts to burn.
Smoking or Slow Cooking
For smoking or slow cooking the fire is built in the Firebox and the food is cooked slowly in the
main cooking chamber. The smoke and heat will pass indirectly through the opening between the
Firebox and the main cooking chamber and will smoke-cook the food. This process adds great
flavour to food and although takes longer, is well worth the wait.
Temperatures for smoke-cooking range between 100ºC – 125ºC.
When smoking foods, always build the fire in the Firebox on top of the charcoal grate. When using
wood, seasoned hardwoods are recommended, such as Mesquite, Pecan, Hickory, Oak and any
of the fruit woods. Almost any wood can be used but never use pine or use treated, painted or
stained wood in your smoker. These woods will give off toxic fumes and taint your food. Any bark
should be removed or burned off prior to adding food as it contains a high acid content and can
impart an acrid flavour. Avoid burning pine cones too as they are highly flammable.
BBQ Galore recommends the use of 100% natural wood chips and wood chunks.
WARNING
REMOVE ALL FAT FROM THE BOTTOM OF THE MAIN COOKING CHAMBER BEFORE
DIRECT GRILLING.

19
H. HEAT CONTROL
Temperatures in offset BBQ smokers like the Pro Smoke Offset Smoker, are controlled through a
combination of fuel load, fuel type and air intake in the firebox.
Note: The Smoke Stack (26) is simply a rain cap. It should never be used for temperature control.
Always have the Smoke Stack (26) fully or at least half open when using the Pro Smoke Offset
Smoker, particularly when establishing your fire.
The firebox damper is your primary tool for controlling cooking temperatures. Start with the
damper wide open until the main cooking chamber is close to reaching the desired cooking
temperature. Then half close the damper until the temperature stabilises on the hotter side of your
target temperature.
Once you are up and running, you will need plenty of air to keep the fire burning clean. Hence the
damper should be at least one third to half way open. As the damper opens wider, increased air
will make the fire burn hotter and faster. The hotter the fire, the cleaner it will burn (ie less smoke).
This clean, hot fire is perfectly suited to Direct Grilling.
During the smoking process try and avoid opening the lid on the main cooking chamber to check
food.Opening the lid allows heat and smoke to escape which will extend the cooking time needed.
When the damper is closed down (not completely), the fire becomes starved of oxygen, making
the fire smoulder and increasing the amount of smoke produced. This is ideally suited to smoking
or slow cooking.
Food closest to the firebox will cook and brown faster. It is advisable to rotate your food midway
through the cooking process to ensure an even cook.
We have also provided heat management baffle plates that can be used in the smoker. These
are parts 2 and 32. These are placed on the ledge above the charcoal grates and can be moved
to adjust the heat and flow of smoke inside the main cooking chamber to eliminate hot spots or
create different heat zones as the user requires. The purpose is to dampen and reduce the heat on
the cooking grates that are closest to the firebox side. You can experiment using these baffles to
regulate the temperature as desired.
If your Pro Smoke Offset Smoker ever becomes too hot, simply close down the damper to the fire.
Alternatively, you can open the main cooking chamber lid to allow excess heat to escape.
You will note there are access holes on each end side of the main cooking chamber. These can
be used to feed thermometer probes into the unit which can then monitor the main cooking
chamber temperature and also measure the internal temperature of the food you are cooking. We
recommend the MAVERICK brand of thermometers which can be purchased as an optional extra.

Made in China
Imported by:
Barbeques Galore (Aust) Pty Ltd
Building A2, Campus Business Park
350-374 Parramatta Road
Homebush, NSW, 2140
Call 1300 301 392 for your nearest store and for
after sales service and support.
• FOR OUTDOOR USE ONLY
REPLACEMENT PARTS
This appliance must not be modied in any way and only authorised spare parts are to be used.
This will protect your warranty coverage for parts replaced under warranty.
AFTER SALES SERVICE
Servicing must be carried out by Barbeques Galores’ authorised personnel.
For all enquiries regarding servicing or spare parts, please call 1300 301 392.
If you believe that your Smoker is not performing properly, please call our customer support line
on 1300 301 392 for any queries.
YEAR
WARRANTY
After Sales Support
Distributed by Barbeques Galore
Call 1300 301 392 for your nearest store
and for after sales service and support.
www.barbequesgalore.com.au
