Dyna-Glo DGU505BAE User manual

1
Vertical Electric
Analog Smoker
MODEL #DGU505BAE / DGU505BAE-D
Français p. 28
Español p. 55
ATTACH YOUR RECEIPT HERE
Serial Number ________________________________ Purchase Date _________________________________
70-10-560 Rev. 4/20/16
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST,
Monday – Friday or e-mail us at [email protected].
UL 1026 - sixth edition, 2012
Electric Household
Cooking and Food
Serving Appliances
CSA C22.2 No. 64-10
(reafrmed 2014)
Household Cooking and
Liquid-Heating Appliances
FOR OUTDOOR
USE ONLY
Use only with Class A GFI
(Ground Fault Interrupter)

2
STOP!
DYNA-GLO®VERTICAL GAS SMOKER
DYNA-GLO® VERTICAL ELECTRIC ANALOG SMOKER

3
TABLE OF CONTENTS
Safety Information ...........................................................................................................................3
Package Contents ...........................................................................................................................8
Hardware Contents .........................................................................................................................9
Preparation Before Assembly ..........................................................................................................9
Assembly Instructions ..................................................................................................................10
Operating Instructions ...................................................................................................................17
Tips On Smoking ...........................................................................................................................21
Care and Maintenance ..................................................................................................................23
Troubleshooting ...........................................................................................................................24
Replacement Parts List ................................................................................................................26
Warranty ......................................................................................................................................27
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, call our customer service department at
1-877-447-4768, 8:30 a.m.- 4:30 p.m. CST, Monday - Friday.
SAFETY INFORMATION
CAUTION
• When using electrical appliances, basic precautions should always be followed to
reduce the risk of re, electrical shock, and injury to persons.
DANGER
• Failure to follow these instructions could result in re or burn hazard which could
cause property damage, personal injury or death.
Assembler/Installer: This instruction manual contains important information necessary for the
proper assembly and safe use of this appliance. Read and follow all warnings and instructions
before assembling and using this appliance. Leave these instructions with the consumer.
Consumer/User: Follow all warnings and instructions when using this appliance.
SAVE THESE INSTRUCTIONS

4
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS, PRIOR TO USING THIS SMOKER
• DO NOT use this product for anything other than its intended purpose. It is NOT intended for
commercial use. It is NOT intended to be installed or used in or on a recreational vehicle and/or boat.
• DO NOT operate this smoker with a damaged cord or plug or after the smoker malfunctions, has
been dropped, or is damaged in any manner.
• DO NOT use smoker within 10 feet (3 m) of a swimming pool, puddle, pond or other body of water.
• Keep smoker and electric controller dry and out of rain at all times.
• A minimum clearance of 36 in. (92 cm) to combustible material is required on the front, sides and
back. It is very important to always maintain
proper clearances to combustibles.
• When using avoring wood, add a sufcient
amount at the start of the cooking process, in
order to avoid re-adding wood during the cooking
process. Adding wood while operating may
splash hot water and cause serious injury.
• Check the water level at least every 2 hours. A
sizzling sound may indicate a low water level.
Follow instructions in this manual for adding
water while operating (see Page 17).
• DO NOT use the appliance during an
electrical storm.
• Connect to properly grounded outlets only.
• Use only with a Class A GFI (Ground Fault Interrupter) protected circuit.
• Arrange the power cord away from trafc areas to ensure that it is not tripped over.
• To disconnect the smoker, turn the smoker off by turning the control dial to O (OFF),
and removing the plug from the outlet.
• DO NOT obstruct the ow of ventilated air for the appliance.
• DO NOT use metal foil on the cooking grates. Doing so may result in damage to the smoker.
• DO NOT use this appliance as a heater.
• DO NOT use charcoal with this appliance. This appliance is not designed for use with charcoal
and a re will result if charcoal is used during operation. The re will create an unsafe condition
and damage the smoker.
• Use caution when opening the door of the smoker while in operation. Keep hands, face and body
safe from hot steam or are-ups. DO NOT inhale smoke.
• If you must dispose of ashes in less time than it takes for the ashes to completely cool down, then
remove the ashes from the appliance using insulated oven mitts or gloves and completely soak the
ashes with water before disposing of them in a noncombustible container.
• DO NOT wear loose clothing while operating the smoker. Tie back long hair while operating the smoker.
• ALWAYS wear shoes that fully cover your feet while operating the smoker.
SAFETY INFORMATION
36 in.
36 in.
92 cm 92 cm

5
• DO NOT touch hot surfaces. Use handles or knobs.
• To protect against electrical shock do not immerse cord, plugs, or thermostat control assembly in
water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking
off parts.
•DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions or
has been damaged in any manner. Return appliance to the nearest authorized service facility for
examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may
cause injuries.
•DO NOT use indoors.
• DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance rst, then plug cord into the wall outlet. To disconnect, turn the
control dial to O (OFF), then remove plug from wall outlet.
• DO NOT use appliance for other than intended use.
• Use extreme caution when removing trays or disposing of hot grease.
•DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts,
creating a risk of electric shock.
• Fuel, such as charcoal briquettes, is not to be used with appliance.
• Use only on properly grounded outlet.
• Be sure that handles are assembled and fastened properly. See instructions regarding handles on
Page 11.
• SAVE THESE INSTRUCTIONS.
SAFETY INFORMATION
WARNING
• DO NOT use 16 or 18 gauge extension cords. Damage to household wiring and/or
re could result.
THE USE OF AN EXTENSION CORD IS NOT RECOMMENDED.
READ ALL INSTRUCTIONS, PRIOR TO USING AN EXTENSION CORD WITH THIS SMOKER
• Use only OUTDOOR type with 3 prong grounding plug, rated for 15 amperes or more, approved by
UL, marked with a W-A and a tag stating “Suitable for Use with Outdoor Appliance”.
• Use the shortest length extension cord required. Do not connect 2 or more extension cords
together.
• Do not let cord hang over edge of table top or other items where it can be pulled by children or
tripped over.

6
SAFETY INFORMATION
Ground Fault Interrupter
• Since 1971 the National Electric Code (NEC) has required Ground Fault Interrupter
devices on all outdoor circuits.
• If your residence was built before 1971, check with a qualied electrician to determine if
a Ground Fault Interrupter protector exists.
• Do not use this appliance if the circuit does not have Class A GFI protection.
• Do not plug this appliance into an indoor circuit.
GENERAL SAFETY
READ ALL INSTRUCTIONS, PRIOR TO USING THIS SMOKER
• This appliance is for outdoor use only in well-ventilated areas. DO NOT operate it under a roof, in a
building, garage or any other enclosed area, or under overhead construction.
• Before each use check that no dead leaves or debris are under the appliance.
• Keep a re extinguisher near this product at all times.
• Always unplug the smoker when not in use.
• Allow the smoker and its components to cool completely before conducting any routine cleaning
or maintenance.
• DO NOT use water or other liquid spray to clean the smoker without rst unplugging the unit.
• Allow the smoker to cool to 115°F (45°C) before moving or storing. Use caution when lifting and
moving the appliance to avoid back strain or back injury.
• DO NOT move the appliance while it is in use.
• When not in use, the smoker should be kept out of the elements or protected with a cover. Allow
the smoker to completely cool before placing the cover. Store this appliance in a dry, protected
location when possible.
• Use of accessory attachments not recommended by the appliance manufacturer may lead to injury
or property damage.

7
SAFETY INFORMATION
WARNING
To Avoid Serious Injury:
• While cooking, the smoker must be on a level, stable, noncombustible surface in an area
clear of combustible material, including long or dry grass.
• The use of alcohol, prescription or nonprescription drugs may impair the user’s ability to
properly assemble and safely operate this appliance.
• DO NOT move the appliance while it is in use.
• DO NOT store and use this appliance near gasoline or other combustible liquids or where
other combustible vapors may be present.
• The smoker should only be used in well ventilated areas.
• DO NOT use this appliance as a heater.
• DO NOT leave the appliance unattended while in use. Keep children and pets away from
the appliance at all times.
• This appliance will be hot during and after use. Use insulated oven mitts or gloves for
protection from hot surfaces or splatter from cooking liquids.
WARNING
CALIFORNIA PROPOSITION 65
1. Combustible by-products produced when using this product contains chemicals
known to the State of California to cause cancer, birth defects, or other
reproductive harm.
2. This product contains chemicals, including lead and lead compounds, known to
the State of California to cause cancer, birth defects or other reproductive harm.
Wash your hands after handling this product.
DANGER
In case of re, unplug smoker from outlet and allow re to burn out. Do not use
water to put out a re in this or another electrical appliance.
To avoid electrical shock disconnect electric cord before cleaning smoker. Never
immerse electric controller or heating element in any liquid.
To avoid the possibility of burns make sure the smoker is completely cooled before
removing and/or cleaning electric controller and heating element.
DO NOT use steel wool or wire brushes to clean the inside of the appliance. Pieces
can break off and touch electrical parts creating a risk of electric shock.

8
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Smoker cabinet assembly 1
B Side handle 2
C Door assembly 1
D Door handle assembly 1
E Wood chip access
door handle 1
F Cooking grate 3
G Water bowl 1
H Wood chip box 1
I Wood chip box support 1
J Grease cup 1
K Heating element assembly 1
L Thermostat control
assembly 1
M Temperature gauge 1
N Leg 4
O Door latch 1
P Door latch bracket 1
Q Air outlet 1
R Thermostat Shield 1
A
A
C
E
B
D
H
G
J
I
F
M
L
P
O
K
Q
N
R

9
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do
not attempt to assemble the product. Please read and understand this entire manual before
attempting to assemble, operate or install the product. If you have any questions regarding
the product, call our customer service department at 1-877-447-4768, 8:30 a.m.- 4:30 p.m.
CST, Monday - Friday.
Estimated Assembly Time: 15 minutes
Tools Required for Assembly (not included): Phillips Screwdriver
PREPARATION BEFORE ASSEMBLY

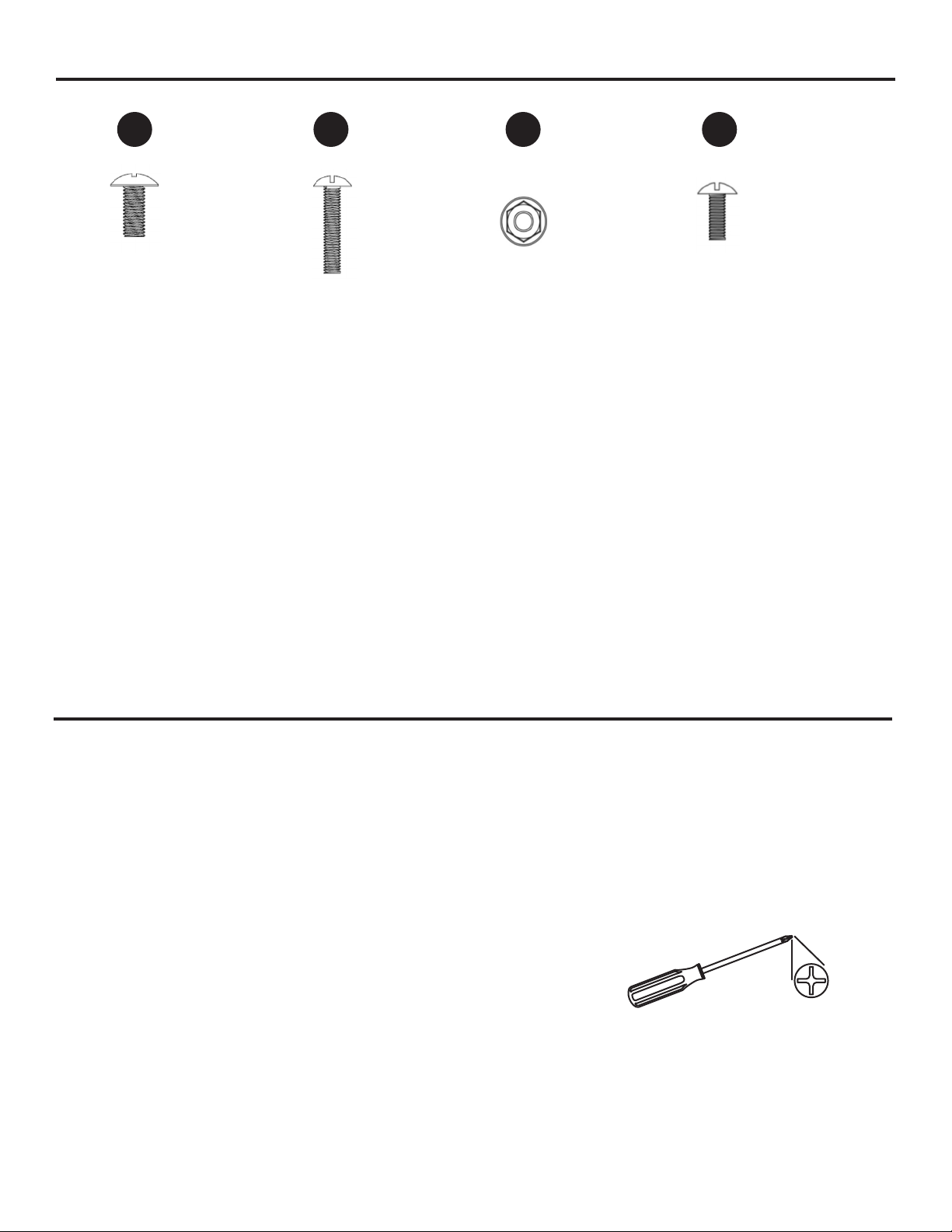

HARDWARE CONTENTS
AA BB
¼”-20 x ½”
Screw
Qty. 16
#10-24 x 1”
Screw
Qty. 2
CC DD
#10-24
Screw
Qty. 4
#10-24 x ½”
Screw
Qty. 9

10

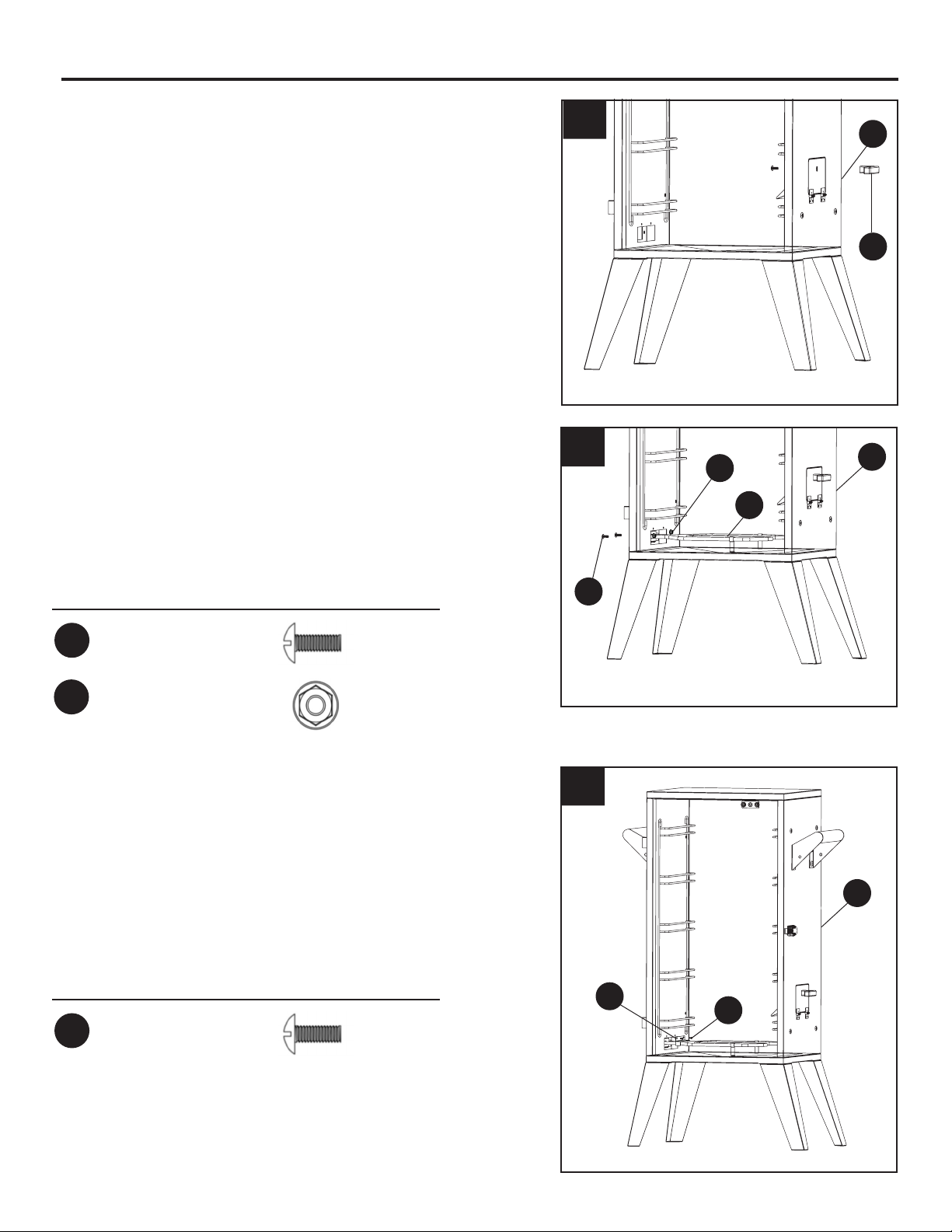

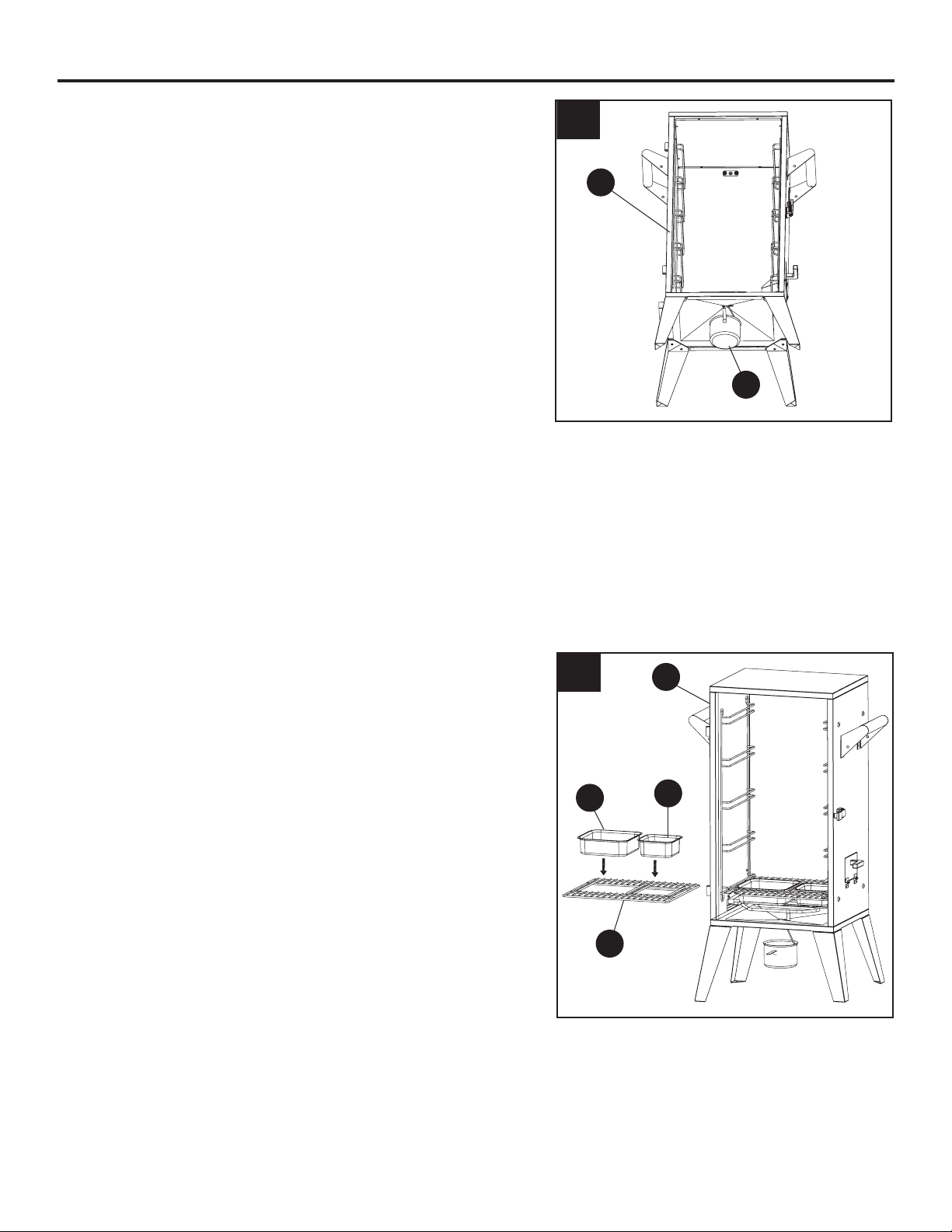

ASSEMBLY INSTRUCTIONS
1. CAUTION: This unit is HEAVY! Do not attempt
the rst 2 steps without assistance! Remove
the door assembly (C) by opening and sliding
the doors up and off the hinges.
With the assistance of a helper, turn the smoker
cabinet assembly (A) upside down. Align the legs
(N) on the front corners of the smoker cabinet
assembly (A). Secure with 8 ¼”-20 x ½” screws
(AA). Tighten all bolts.
2. With the assistance of a helper, stand the unit up
right on its legs on a rm and level surface. Insert
the tube of the air outlet (Q) through the inside of
smoker cabinet assembly (A) and attach using 2
#10-24 x 1” screws (BB) and 2 #10-24 nuts (CC).
1
A
2
QBB
C
A
Hardware Used
BB #10-24 x 1”
Screw x 2
Hardware Used
AA ¼”-20 x ½”
Screw x 8 AA N
CC #10-24 Nut x 2
CC

11
ASSEMBLY INSTRUCTIONS

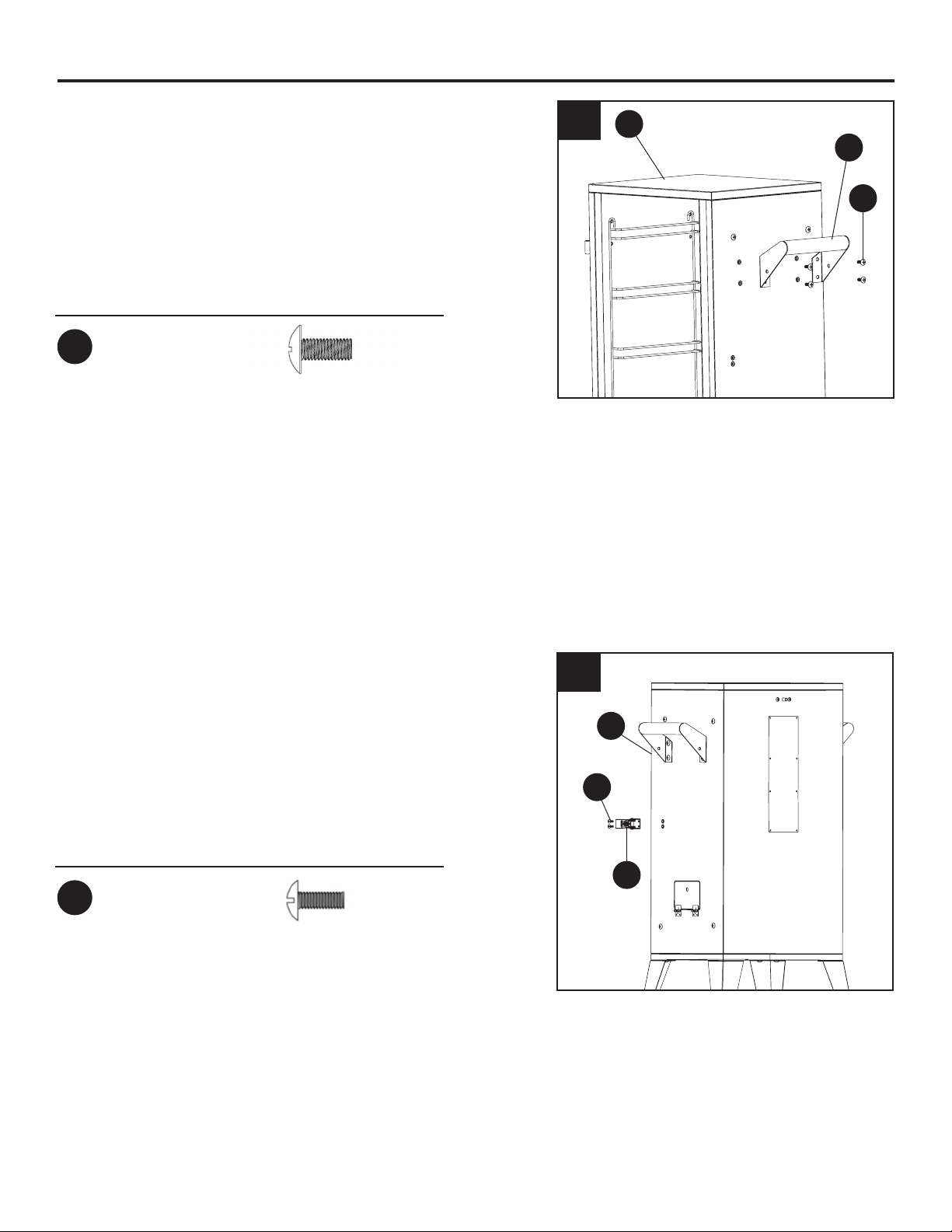

3. Attach each of the side handles (B) to the smoker
cabinet assembly (A) using 4 ¼”-20 x ½” screws
(AA) per side.
4. Attach the door latch (O) to the smoker cabinet
assembly (A) using 2 #10-24 x ½” screws (DD).
A
O
AA
B
3
4
A
Hardware Used
AA ¼”-20 x ½”
Screw x 8
Hardware Used
DD #10-24 x ½”
Screw x 2
DD

12
DD
ASSEMBLY INSTRUCTIONS
5. Remove the pre-assembled screw from the wood
chip access door handle (E) and install the handle
(E) on the side access door of the smoker
cabinet (A).
6. Attach the heating element assembly (K) to
the smoker cabinet assembly (A) using 2
#10-24 x ½” screws (DD) and 2 #10-24
Nuts (CC).
6
E
A
5
Hardware Used
CC #10-24 Nut x 2
DD #10-24 x ½”
Screw x 2
A
CC
K
7. Attach the thermostat shield (R) to the smoker
cabinet assembly (A) using 2 10#-24*1/2''
screws (DD) .
7
A
DD
R
Hardware Used
DD #10-24 x ½”
Screw x 2

13
8. Hang the grease cup (J) to the bottom of the
smoker cabinet assembly (A). 8
J
A
ASSEMBLY INSTRUCTIONS
9. Place water bowl (G) and wood chip box (H) on
the wood chip box support (I). Slide the wood chip
box support (I) onto the bottom rails of the pre-
installed wire supports.
A
H
9
G
I

14
ASSEMBLY INSTRUCTIONS
10. Insert cooking grates (F) on pre-installed wire
supports inside the smoker cabinet assembly (A).
11. Firmly insert the thermostat control assembly (L)
into the external housing of the heating
element assembly (K).
11
F
A
10
L
K

15
ASSEMBLY INSTRUCTIONS

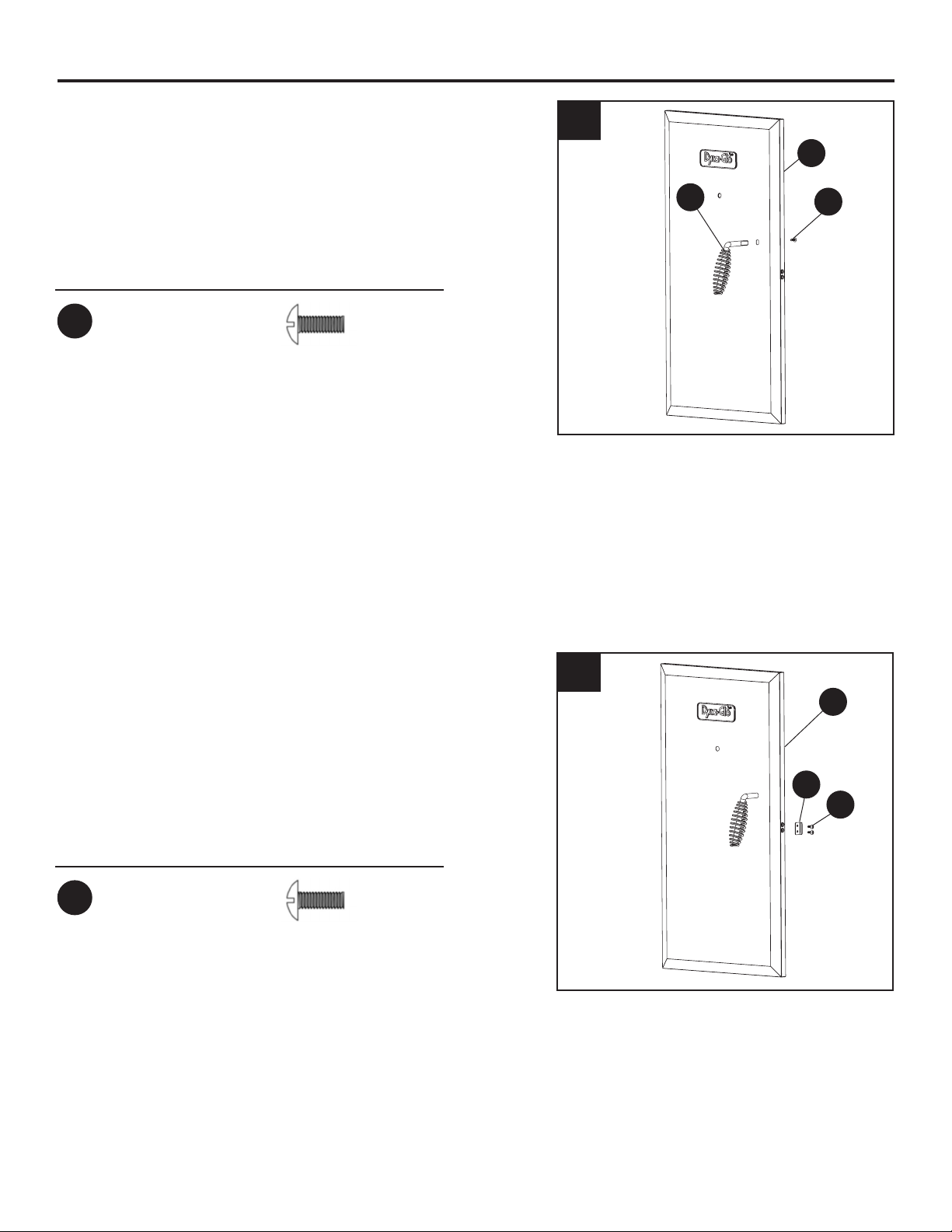

12. Attach the door handle assembly (D) to the door
assembly (C) using 1 #10-24 x ½” screw (DD).
13. Attach the door latch bracket (P) to the door
assembly (C) using 2 #10-24 x ½” screws (DD). C
P
DD
C
12
13
D
Hardware Used
DD #10-24 x ½”
Screw x 2
DD
Hardware Used
DD #10-24 x ½”
Screw x 1

16
ASSEMBLY INSTRUCTIONS
14. Remove the pre-installed washer and nut from the
temperature gauge (M) and insert the probe
through the middle hole of the door assembly (C).
Secure with pre-assembled washer and nut.
15. Attach the door assembly (C) to the smoker
cabinet assembly (A). 15
C
M
14
A
C

26
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. - 4:30 p.m.
CST, Monday - Friday or e-mail us at [email protected].
70-01-560 Printed in China
PART DESCRIPTION PART #
1 Smoker Cabinet
Assembly 70 - 01 - 375
2 Door Assembly with
Logo (No Temp Gauge) 70 - 01 - 370
3 Side Handle (L/R) 70 - 01 - 373
4 Temp Gauge
Assembly* 70 - 01 - 372
5 Cooking Grates 70 - 01 - 374
6 Door Handle
Assembly 70 - 01 - 371
7 Door Latch Bracket 70 - 01 - 352
8 Door Latch Handle
(without Sleeve) 70 - 01 - 353
9 Door Latch Handle
Sleeve 70 - 01 - 356
10 Leg 70 - 01 - 379
PART DESCRIPTION PART #
11 Air Outlet Tube
Assembly 70 - 01 - 381
12 Wood Chip Access
Door Handle*
13 Water Bowl
14 Wood Chip Box
70 - 01 - 383
70 - 01 - 427
70 - 01 - 428
15 Water Bowl & Wood
Chip Box Support 70 - 01 - 376
16 Cooking Grate Support 70 - 01 - 382
17 Grease Cup Assembly 70 - 01 - 380
18 Heating Element
Assembly 70 - 01 - 377
19 Thermostat Control
Assembly 70 - 01 - 378
20 Thermostat Shield 70 - 01 - 424
n/a Hardware Pack 70 - 09 - 506
n/a Instruction Manual 70 - 10 - 560
5
31
64
2
7
10
8
9
A
15
13
17
14
16
18
19
11
12
20

28
Fumoir Numérique
Électrique Vertical
MODÈLE #DGU505BAE / DGU505BAE-D
70-10-560 Rev. 2/25/16
UL 1026 - sixième édition,
2012 Appareils ménagers
pour cuisson et appareils de
service alimentaire
CSA C22.2 No. 64-10
(Réafrmé 2014) Appareils
ménagers pour cuisson et
appareils à cuisson liquide
POUR USAGE
EXTÉRIEUR SEULEMENT
Utiliser seulement avec un
interrupteur GFI - Classe A
CIDT (Circuit Interrupteur
de terre)
JOIGNEZ VOTRE REÇU ICI
Numéro de série_____________________________ Date d’achat _____________________
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article
au détaillant, appelez notre service à la clientèle au 1-877-447-4768, 08:30-16 heures 30,
HNC, du lundi - vendredi ou par e-mail à [email protected].

29
DYNA-GLO® FUMOIR NUMÉRIQUE ÉLECTRIQUE VERTICAL
ARRÊT!
NUL BESOIN DE REVENIR AU MAGASIN
Questions sur l’assemblage?
Besoin d’information sur des pièces?
Le produit est couvert par la garantie des fabricants?
Composez le numéro sans frais : 1 877 447-4768
du lundi au vendredi de 8 h 30 h à 16 h 30, HNC
Conservez ce Manuel du propriétaire et votre preuve d’achat en cas de besoin
Pour nous permettre de vous aider
Fournissez les renseignements ci-après :
Numéro de modèleDate d’achat N° de série du produit
LE NUMÉRO DE MODÈLE ET LE NUMÉRO DE SÉRIE DU PRODUIT FIGURENT SUR
L’ÉTIQUETTE INDIQUANT LE DÉBIT CALORIFIQUE DE VOTRE PRODUIT.
Lieu d’achat

30
TABLE DES MATIÈRES
Consignes de sécurité ...................................................................................................................30
Contenu de l’emballage .................................................................................................................35
Quincaillerie incluse ......................................................................................................................36
Préparation avant l’assemblage.....................................................................................................36
Instructions pour l’assemblage ....................................................................................................37
Mode d’emploi ..............................................................................................................................44
Conseils sur le tabagisme ..............................................................................................................48
Entretien .......................................................................................................................................50
Dépannage ..................................................................................................................................51
Liste des pièces de rechange .......................................................................................................53
Garantie ........................................................................................................................................55
Assurez-vous de lire et de comprendre l’intégralité de ce manuel avant de tenter d’assembler,
d’utiliser ou d’installer le produit. Si vous avez des questions concernant ce produit, veuillez téléphoner
au service à la clientèle au 1-877-447-4768, 08:30-16 heures 30, HNC, du lundi - vendredi.
CONSIGNES DE SÉCURITÉ
• Lors de l'utilisation d'appareils électrique, des précautions de base devraient
toujours étre observées an de réduire des risques de feu, choc électrique et blessures.
AVERTISSEMENT
DANGER
• Le refus suirve ces instructions pourrait causer un feu ou risqué de bruleur qui pourrait
causer l'endommagement de propriété, blessures personnes ou danger de mort.
Assembleur / installateur: Ce manuel d'instructions contient des informations importantes
nécessaires à l'assemblage correct et l'utilisation sécuritaire de cet appareil. Lisez et suivez tous
les avertissements et les instructions avant d'assembler et d'utiliser cet appareil. Laissez ces
instructions au consommateur.
Consommateur / utilisateur: Suivez tous les avertissements et les instructions pour
l'utilisation de cet appareil.
CONSERVER CES INSTRUCTIONS
