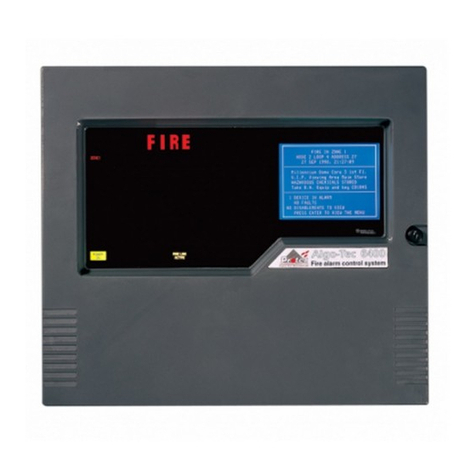

PROTEC 6400 FIRE ALARM PANEL
In the event of a fire activation occurring the panel’s audible buzzer will commence
piping. The FIRE lamp will illuminate constantly and the ZONE location lamp will
illuminate.
The panel will also display the location details on the LCD display as follows:-
Comparing the zone number displayed on the
panel to the building zone plan will assist you
in identifying the location of the room/area in
detection to investigate
DETECTOR, CIRC A.0.100
ZONE 10
This part of the panel display is telling you that
a detector has activated in circulation area of
the building A.0.100 in zone 10
This part of the panel display is telling you that
only 1 device is in alarm
There are no faults
No parts of the alarm system are disabled
Pressing the enter button on the control panel
will allow you to view further information should
there be moor than I device in alarm
FIRE IN ZONE 10
SCHOFIELD LOOP 1 OP – HT
29 JULY 2008 12: 20:15
1 DEVICE IN ALARM
NO FAULTS
NO DISABLEMENTS TO VIEW
PRESS ENTER TO VIEW THE MENU

SILENCING FIRE EVENTS
After establishing the cause of the fire event confirming a false alarm
Using your panel key open the front cover to expose the function buttons
Press the ‘SILENCE’ key.
This will cause the ‘ALARMS SILENCED’ lamp to illuminate and the alarms to silence.

RESETTING FIRE EVENTS AFTER SILENCING THE ALARMS
Press the ‘RESET’ button.
Any fire indications will be extinguished.
Note
The fire condition will re-start if an automatic detector or manual call point remain active.

DEVICES LED LIGHT CONFIRMING THAT THEY HAVE BEEN ACTIVATED
SMOKE / HEAT SENSOR
Manual Call Point (MCP)
If the Red LED (Light) is illuminated constantly
on the smoke/heat sensor, it means that this
device has activated.
If the Red LED (Light) is illuminated on the
manual call point, the glass is most likely
to have been broken.
