Ziton ZP787-3 Assembly instructions

© 2016 UTC Fire & Security. All rights reserved. 1 / 4 P/N 20-8030-501-2103-05 • ISS 12JUL16
D 1073-1
ZP787-3 Addressable Outdoor Manual Call Point
Installation Sheet
1
2
3
4

2 / 4 P/N 20-8030-501-2103-05 • ISS 12JUL16
D 1073-1
5
Description
The ZP787-3 Addressable Outdoor Manual Call Point (MCP) is
used to manually initiate a fire alarm. It is designed for outdoor
use and features an IP67 enclosure.
Available models are shown in the table below.
Table 1: Available models
Number
Description
ZP787
-3 Addressable Outdoor Manual Call Point (MCP), Ziton
ZP787
-3S30 Addressable Outdoor Manual Call Point (MCP)
, Chubb
The MCP is shipped with a four-way connector, a test key, and
an EN 54 universal glass.
A red LED on the front of the unit displays its status:
• Off = normal
• Flashing = active
Figures
Figure
1: Product illustration
Figure
2: Wiring diagram
(1) Loop + IN
(2)
Loop − IN
(3) Loop + OUT
(4) Loop − OUT
(5)
Shield
Figure
3: Installing the front housing
(1) Front housing assembly
(2) Backbox
Figure
4: Removing the front housing
Figure
5: Test-reset and glass or resettable element replacement
(1) Test and reset procedure
(2) Replacing the glass or resettable element
Installation
Caution: This product must be installed by qualified personnel
adhering to the CEN/TS 54-14 standard and any applicable
local regulations or ordinances.
This product is designed for surface mounting and cannot be
flush mounted.

P/N 20-8030-501-2103-05 • ISS 12JUL16 3 / 4
D 1073-1
To install the MCP, follow these general steps.
1. Set the device address
2. Install the backbox
3. Wire the MCP
4. Install the MCP
Setting the device address
Use the seven-segment DIP switch (SW1) to assign the device
address. Each switch segment represents the value shown
below. The address is the sum of all the switch segments in
the ON position. The switch is used to set the device address
in binary code. The switch may be set to represent any
address from 1 to 127.

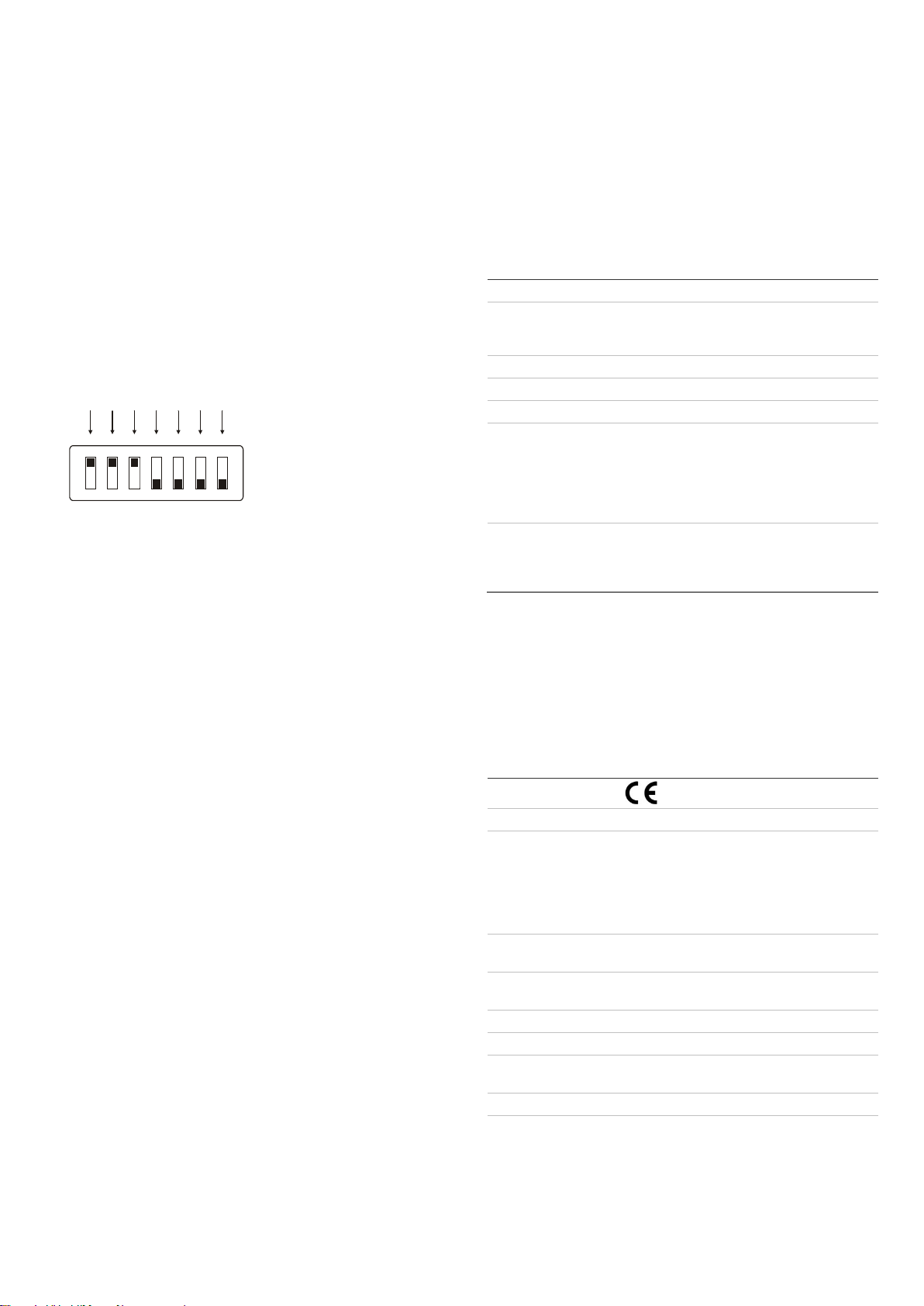

For example, to select a device address of 007, set SW1-1,
SW1-2, and SW1-3 to the ON position and the remaining
switch segments to the OFF position.
Installing the backbox
The MCP is designed for surface mounting only. The unit is
comprised of a front housing and a backbox, as shown in
Figure 3.
1. Install the backbox using the screws provided.
2. Bring the field wiring into the backbox.
3. Use the plugs provided to cover unused holes in the
backbox.
Wiring
Make the wiring connections shown in Figure 2.
Installing the front housing
1. Slide the front housing onto the backbox, and then press
to snap them together as shown in Figure 3.
2. For additional security, the front housing can be secured
at the top and bottom using the four screws provided.
3. Test the MCP for proper operation using the test key
shown in Figure 5, item 1.
Removing the front housing
1. If the front housing is secured to the backbox using
screws, remove the four screws (two at the top and two at
the bottom).
2. Insert a screwdriver into the slot as shown in Figure 4, and
then twist the screwdriver to separate the housing from the
backbox.
Maintenance
Figure 5, item 1 illustrates how to perform a test and reset for
the device. Use the supplied test key to perform routine testing
without breaking the glass element. Insert the key to simulate
breaking the glass element; remove the key to reset the call
point automatically.
Figure 5, item 2 shows how to replace the glass or resettable
element.
Specifications
Operating voltage
19.5 to 20.5 VDC pulsed
Current consumption
Standby
Alarm
0.400 mA
0.450 mA
Addressing method
Seven segment DIP switch
Mounting
Surface
Wiring
Two-core loop
Construction
Material
IP rating
Colour
Weight
Dimensions (H x W x D)
Moulded ABS
IP67
Red
187 g
97.5 × 93 × 27.5 mm
Operating environment
Temperature
Storage temperature
Relative humidity
−25°C to +70°C
−20 to +70°C
10 to 95% noncondensing
Regulatory information
This section provides a summary on the declared performance
according to the Construction Products Regulation
(EU) 305/2011 and Delegated Regulations (EU) 157/2014 and
(EU) 574/2014.
For detailed information, see the product Declaration of
Performance (available at http://utcfssecurityproducts.eu/).
EU compliance
Certification body
0832
Manufacturer
KAC Alarm Company Limited
KAC House, Thornhill Road, North Moons
Moat, Redditch, B98 9ND, UK
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands
Year of first CE
marking
16
Declaration of
Performance number
360-4211-0799
EN 54
EN 54-11
Product type
Type A: for outdoor use
Product identification
See model number on product identification
label
Intended use
See the product Declaration of Performance
Declared
performance/s
See the product Declaration of Performance
ON
1 2 3 4 5 6 7
SW1
1 2 4 8 16 32 64

4 / 4 P/N 20-8030-501-2103-05 • ISS 12JUL16
D 1073-1
2012/19/EU (WEEE Directive): Products
marked with this symbol cannot be disposed
of as unsorted municipal waste in the
European Union. For proper recycling, return
this product to your local supplier upon the
purchase of equivalent new equipment, or
dispose of it at designated collection points.
For more information see:
http://www.recyclethis.info.
Contact information
For contact information, visit http://utcfssecurityproducts.eu/.
