Probrite FSXD30-PC-4K-BZ Setup guide

Before returning to the store, call, text, or email PROBRITE
Customer Care 9am-5pm EST Monday to Friday.
1-844-507-5651
[email protected]om
PROBRITE.COM
Questions? / Missing Parts? / Need Accessories?
Visit us online anytime or call us to get information on our product range, download
detailed spec & photometric files, find product and mounting accessories, view
installation tutorials and videos, and learn about our DLC® rebate eligible products.
INSTALLATION,
USAGE, & CARE GUIDE
STELLAR
LED TWIN HEAD FLOOD LIGHT
Model No. FSXD30-PC-4K-BZ
FSXD30-PC-4K-WH

2
Visit www.probrite.com/install for installation video tutorials and product support
Table of Contents.......................... 2
Safety Information........................ 2
Pre-Installation.............................. 3
Planning Installation......................... 3
Specifications.................................... 3
Tools Required................................... 3
Package Contents............................ 4
Hardware Included............................ 4
Installation...................................... 5
Operation ....................................... 9
Care & Cleaning............................ 11
Troubleshooting........................... 11
Warranty......................................... 12
TABLE OF CONTENTS
SAFETY INFORMATION
IMPORTANT
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
NATIONAL ELECTRICAL CODE AND LOCAL BUILDING CODES BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED.
PRECAUTIONS
☐Please read and understand this entire
manual before attempting to assemble,
install, or operate this light fixture.
☐This light fixture requires a 120 Volt AC
power source.
☐Some codes require installation by a
qualified electrician.
☐This light fixture must be properly
grounded.
☐Make sure connections are secure using
wire nuts, crimp-on lugs or other approved
connecting devices
☐This light fixture should be installed
outdoors to a wall or eave.
WARNING:
breaker or fuse. Place tape over the circuit
light fixture.
WARNING: Risk of fire. Keep the fixture at
least 3 in. (76mm) from combustible materials.
CAUTION: Burn hazard. Allow the light fixture
to cool before touching.
NOTICE: Do not connect this fixture to a
dimmer switch.
INFORMATION: The device is tested and found to comply with Part 15 of the FCC Rules. Operation is subject
to two conditions: (1) This device may not cause harmful interference and, (2) this device must accept any
interference received, including any interference that may cause undesired operation.
These limits are designed to provide reasonable protections against harmful interference when the
equipment is operated in a commercial environment.

3PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
PREINSTALLATION
PLANNING INSTALLATION
Before installing the light fixture, ensure that all parts are present. Compare parts with the
Hardware Included and Package Contents sections. If any part is missing or damaged, do
not attempt to assemble, install, or operate this light fixture.
Lumens (Light Output)
Watts (Power Consumption)
3000 Lumens
23 Watts LED
Replaces 75W Halogen Bulb
Lumens/Watts (Efficacy) 130 Lumens per watt
Power Requirements (Input Voltage) 120V
Light Color (CCT) 4000 Kelvin (Bright White)
Dimmable Non-Dimming (Do not wire to dimming switch)
Operating Modes Dusk-to-Dawn:
Automatically turns light fixture ON during night
and OFF during day.
Switch-Controlled:
Flip switch to turn light fixture ON and OFF.
SPECIFICATIONS
TOOLS REQUIRED
Phillips
screwdriver
Wire strippers/
cutters
Circuit tester
Safety
goggles
Work
gloves
Silicone
sealant
Ladder

4
Visit www.probrite.com/install for installation video tutorials and product support
PREINSTALLATION CONTINUED

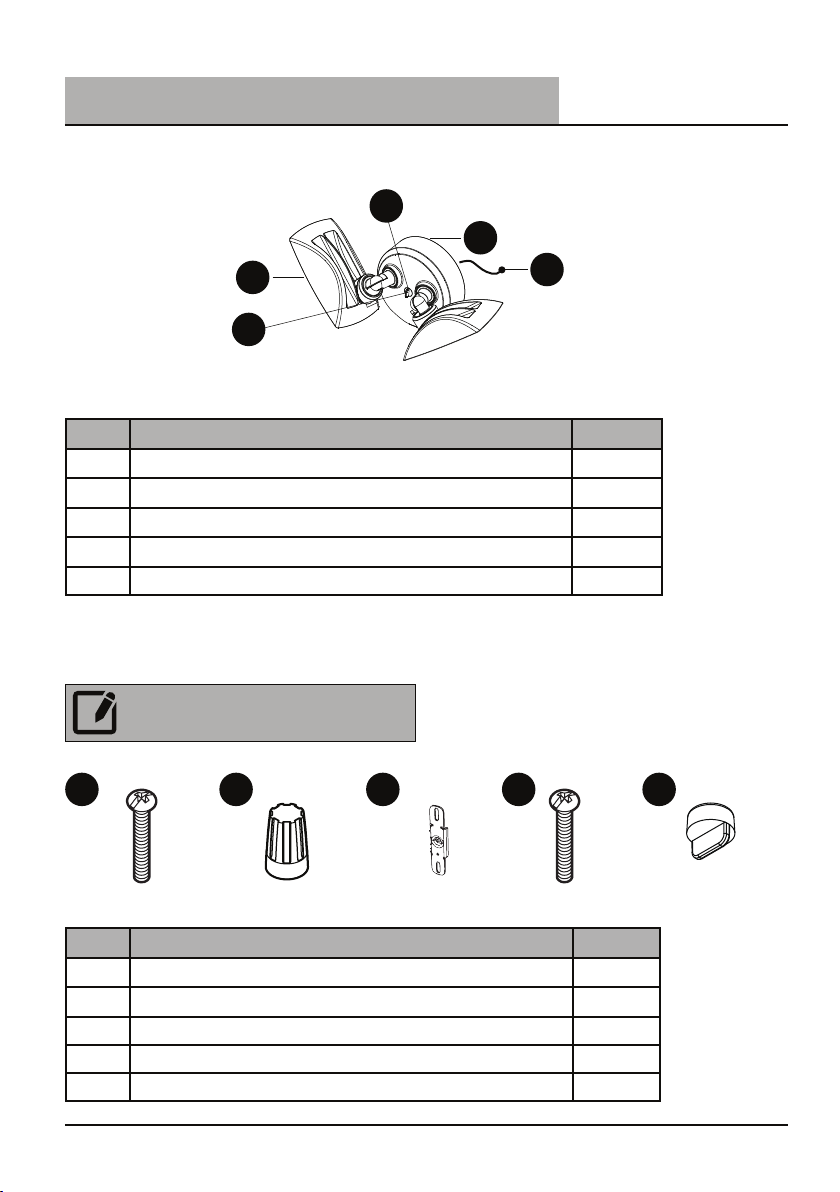

PACKAGE CONTENTS
Part Description Quantity
ALight fixture 2
BMounting plate set screw (pre-installed) 1
CMounting plate with gasket (pre-installed) 1
D1
A
E
D
C
B
Hanger wire for hands-free installation (pre-installed)
E1Mounting screw cover plug
HARDWARE KIT
NOTE: Hardware not shown to actual size.
AA BB CC DD EE
Part Description Quantity
AA #8-32 x 3/4" Philips head screw 2
BB Wire nut 3
CC Mounting plate with ground wire 1
DD 10-24 x 5/4 Philips head screw 1
EE Mounting screw cover plug 1

Wall Mount Eave Mount
5PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
INSTALLATION
1FOR BEST RESULTS
☐Install light 8-15 feet above the ground.
☐Do not mount fixture close to reflective
surfaces such as windows, white walls,
white surfaces and water.
☐Do NOT wire to dimming switch.
☐When mounting to a wall, make sure
the fixture is 7 in. on center away from
eave and 13 inches on center away from
inside corner of the exterior wall (fig 3).
1-1/2" 1-1/2"
Round Octagonal
NOTE: Mounting plate (D) mounts to standard
recessed junction boxes. Junction box must be
at least 1-1/2 inch deep for proper surface mount
installation (fig 2).
(fig 4).
2SHUT OFF ELECTRIC POWER OFF
☐Verify wall switch is in OFF position (fig 5).
☐
the circuit breaker that supplies power
At the main electrical panel, turn off
to the junction box you are working on
(fig 6).
☐For screw-in type fuses, unscrew the
fuse that supplies power to the
junction box you are working on (fig 7). (fig 5). (fig 6). (fig 7).
(fig 3).
(fig 1). (fig 2).
13 in. 13 in
7 in

C
6
Visit www.probrite.com/install for installation video tutorials and product support
INSTALLATION CONTINUED

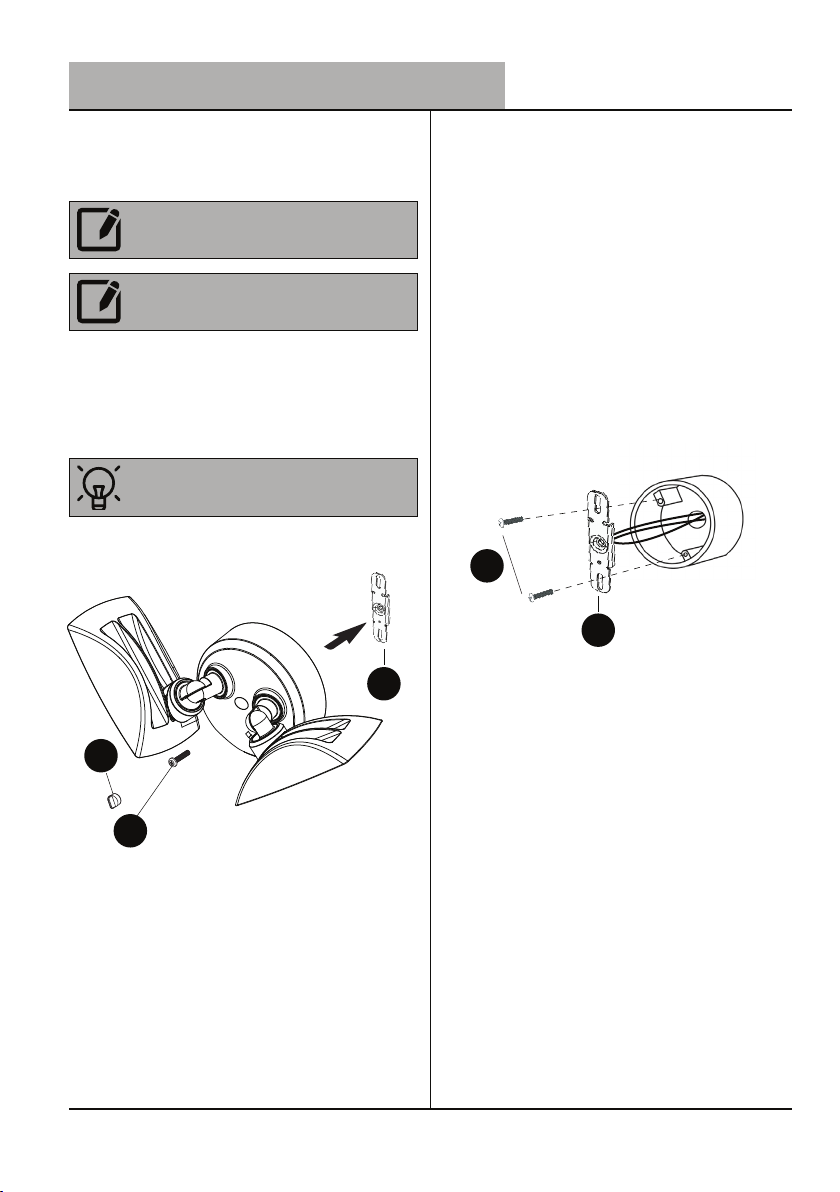

3REMOVE THE
MOUNTING PLATE
NOTE: The mounting plate (C) come
pre-assembled on the light fixture (A) for shipping.
NOTE: The mounting plate set screw (B)
comes pre-installed on the light fixture.
☐
4INSTALL THE
MOUNTING PLATE
☐Route the junction box wires through
the large center hole in the mounting
plate bracket (C).
☐Align the holes on the mounting plate
bracket (C) with the holes of the
junction box. Use two #8 screws (AA) to
attach the mounting plate bracket (C) to
the junction box
TIP: Only unscrew the tightening screw (B) far
enough to remove the mounting plate bracket (C).
Do not fully remove the set screw (B).
(fig 8).
Remove the mounting plate bracket (C)
from the back of the fixture by removing
the mounting screw cover plug (E) and
then loosening the mounting screw (B)
using a philips head screwdriver.
AA
C(fig 9).
B
E

7PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
INSTALLATION CONTINUED
☐
☐

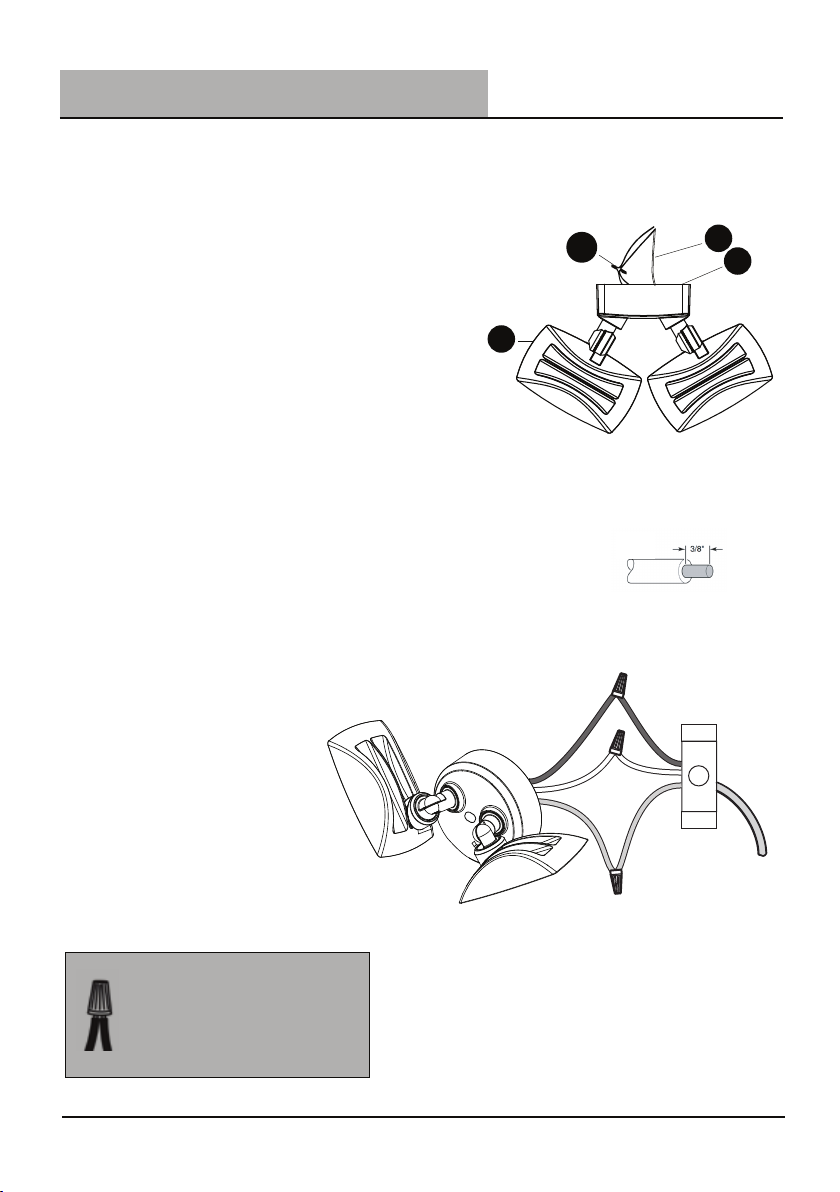

5MAKE THE ELECTRICAL
CONNECTIONS
TIP:
Hold stripped ends near each other and
align any frayed strands (do not twist wires).
Push the wires into wire nut (BB) and use
your fingers to twist the wire nut clockwise
until tight. Check for tightness by pulling
wires.
(fig 10).
BB D
C
A
Black (Line)
White (Common)
Green (Ground)
Junction Box
If necessary, strip 3/8" of insulation
from junction box and lighting fixture
wires (fig 10). Connect wires by twisting
the exposed wires together and using
the wire nuts (BB). Ensure no loose
wires.
Connect lighting fixture black wire to
junction box black wire, (line), lighting
fixture white wire to junction box white
wire (common), the junction box ground
wire to the green lighting fixture ground
wire, which is attached to the mounting
plate.
Non-Dimming Wiring Diagram

C
8
Visit www.probrite.com/install for installation video tutorials and product support
INSTALLATION CONTINUED
6MOUNT THE LIGHT
FIXTURE
☐Once wiring is complete, align the
mounting screw hole in the center of the
fixture with the mounting screw hole in
mounting plate bracket (C).
☐Insert the mounting plate set screw (B) back
through the hole in the center of the fixture
and tighten until fixture is firmly secured
against the wall or eave.
8CAULK AROUND THE
LIGHT FIXTURE
☐Caulk around the light fixture (A) and
surface with silicone sealant (not
included).
7AIM THE LAMP HEADS
☐After fixture is securely mounted, loosen
screws on the lamp head arms with a
philips screwdriver.
☐Aim each lamp head (A) toward desired
direction.
☐Use a philips screwdriver to tighten the
lamp head arm screws, locking lamp heads
in desired position.
☐From the breaker and switch, turn power
back ON to the light fixture to verify it illuminates.
A
NOTICE: Failure to properly caulk around the
surface and light fixture (A) could lead
to water damage and is not covered under
warranty.
NOTE: When attaching this fixture (A) to a surface
mount junction box, caulk between the light fixture
and junction box.
AA
CAUTION: Keep lamp heads 30° below
horizontal to prevent water damage and
electrical shock.
DD
(fig 11). (fig 13).
(fig 12).
B
E

11 PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
CARE AND CLEANING
☐
appearance, clean the light fixture with clear water and a soft, damp cloth only.
Extreme hot or cold weather could affect the performance of the built-in sensors that detect
body heat. Certain winter clothing can shield a person’s body heat from the sensor during
extreme cold weather. During extreme hot weather, the sensor may not be able to distinguish
the difference between normal body temperatures and the surrounding high temperatures.
The sensor will begin working normally once weather conditions return to normal.
☐Do not use abrasive cleaners or cleaners that contain alcohol. Do not apply paints,
solvents, or any other chemicals on this light fixture. They could cause a premature
deterioration of the finish and may void the warranty.
☐Do not spray the light fixture with a hose or power washer.
TROUBLESHOOTING
Security light comes on
during the day.
1. Wiring inside electrical box came loose.
2. Dusk-to-Dawn sensor is in shaded area and is fooled
into thinking it is nighttime.
1. Shine a flashlight onto the light sensor. If the security light
turns off then the fixture is mounted in an area that does not
allow enough light to enter the sensor. Relocate security light.
2. If under warranty, contact Customer Service.
Security light cycles ON
and OFF continuously.
1. Dusk-to-Dawn sensor is sensing reflected light from
the security light.
1. Change the position of the light head, aim light away from the
reflecting surfaces.
2. Put a small piece of black electrical tape over the
Dusk-to-Dawn sensor.
3. Relocate the security light to a different location where it no
longer causes reflected light.

12
5-Year Limited Warranty
This is a limited warranty offered by Probrite for a period of five years from the date of purchase
to its customers. Probrite warrants to customers that the products will be free from defects in
material and workmanship. The obligation of Probrite under this warranty is limited to the
provision of replacement of products and is extended to the original purchaser of the product on
presenting valid purchase receipt or other proof of date of original purchase acceptable to
Probrite. The receipt is required for rendering the warranty performance. Any warranty claims
without original proof of purchase would not be accepted.
It should be noted that the warranty does not apply to Probrite products that have been altered
or repaired by unauthorized personnel, have been subjected to neglect, abuse, misuse or
accident or damages caused during shipping. Any other products not manufactured by Probrite
which have been supplied, installed and/or used in conjunction with Probrite products are not
covered under this warranty. Any damages caused by replacements bulbs, LEDs or corrosion or
discoloration of brass components are also not covered by this warranty.
Limitation of Liability:
In no event Probrite shall be liable for indirect, consequential, incidental or special damages, or
lost profits. Probrite is not liable for any claims or damage arising out of or connected with the
manufacture, sale, delivery, use, maintenance and repair or modification of Probrite products, or
supply of any replacement parts that, exceed the purchase price of Probrite products giving rise
to a claim. Labor charges to remove or install the fixtures will not be accepted.
To Claim:
Please contact PROBRITE customer service at 1-844-507-5651 or email
[e-mail] and include your name, address and contact number, along with a copy
of the purchase receipt and a brief description of the problem.
Visit www.probrite.com/install for installation video tutorials and product support

RETAIN THIS MANUAL FOR FUTURE USE
Para las translaciones en español,
visit www.probrite.com/install
Before returning to the store, call or email our
Lighting Specialists 9am-5pm EST Monday to Friday.
1-844-507-5651
[email protected]om
www.probrite.com
Questions? / Missing Parts? / Need Accessories?
