Probrite PWRW50-PC-4K-WH Setup guide

Before returning to the store, call or email PROBRITE
Customer Service 9am-5pm EST Monday to Friday.
1-844-507-5651
[email protected]om
PROBRITE.COM
Questions? / Missing Parts? / Need Accessories?
Visit us online anytime or call us to get information on our product range, download
detailed spec & photometric files, find product and mounting accessories, view
installation tutorials and videos, and learn about our DLC® rebate eligible products.
INSTALLATION,
USAGE,& CARE GUIDE
POWERWALL LED
WALLPACK
Model No.
Mfr. SKU
PWRW50-PC-4K-WH
103-01100005-1

3PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
2
Visit www.probrite.com/install for installation video tutorials and product support
Table of Contents......................... 2
Safety Information....................... 2
Pre-Installation..............................3
Planning Installation......................3
Specifications..................................3
Tools Required.................................3
Hardware Included.........................4
Package Contents......................... 4
Installation.................................... 5
Operation...................................... 9
Care & Cleaning.......................... 10
Troubleshooting..........................10
Warranty....................................... 11
Table of Contents

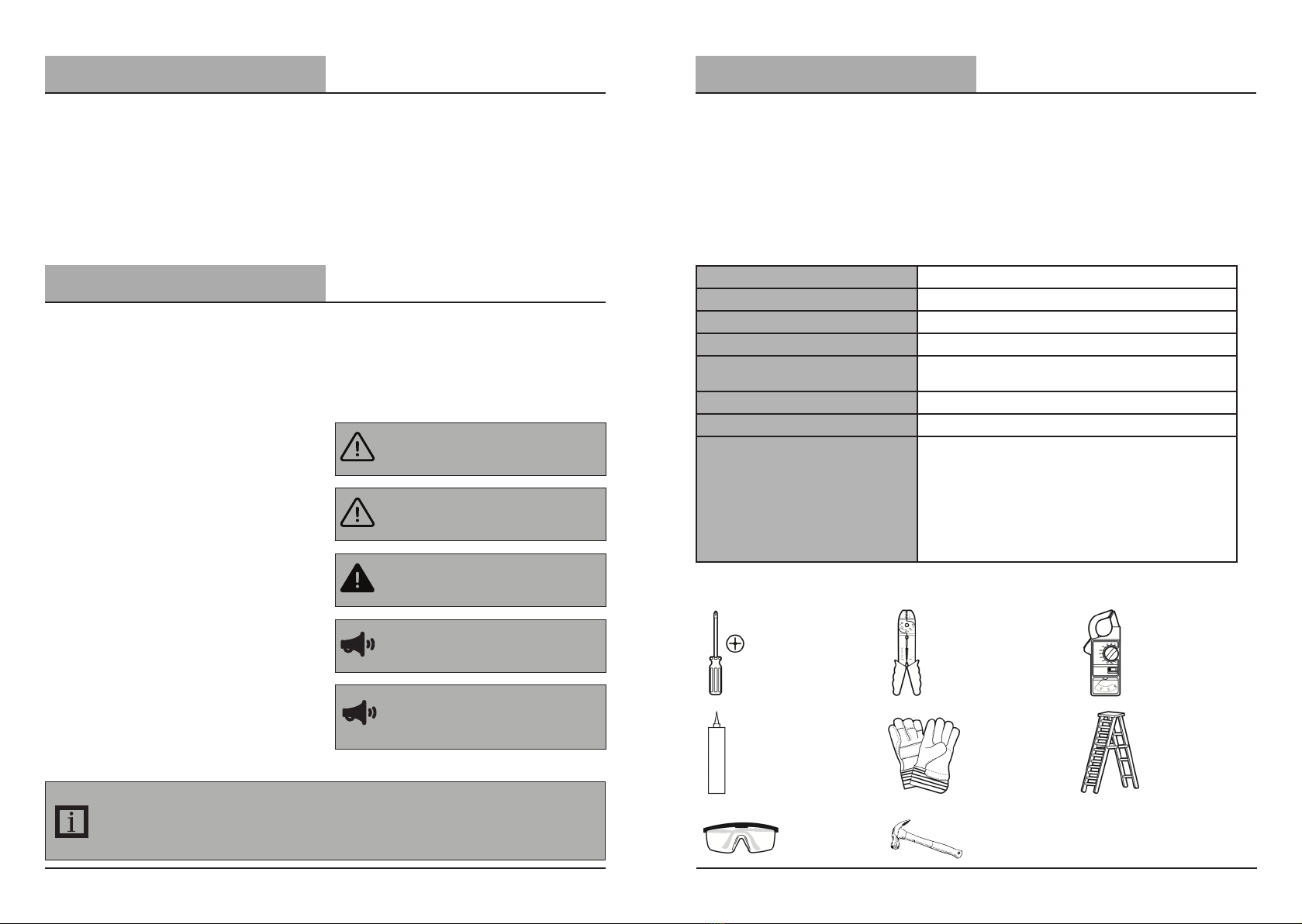

Safety Information
IMPORTANT
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
NATIONAL ELECTRICAL CODE AND LOCAL BUILDING CODES BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED.
PRECAUTIONS
☐Please read and understand this entire
manual before attempting to assemble,
install, or operate this light fixture.
☐This light fixture requires a 120-277
Volt AC power source.
☐Some codes require installation by a
qualified electrician.
☐This light fixture must be properly
grounded.
☐Make sure connections are secure
using wire nuts, crimp-on lugs or other
approved connecting devices
☐This light fixture should be installed
outdoors to the wall.
☐This product may contain chemicals
known to be hazardous. Thoroughly
wash hands after installing, handling,
cleaning or otherwise touching the
product.
WARNING: Turn the power o at the circuit
breaker or fuse. Place tape over the circuit
breaker switch and verify power is o at the
light fixture.
WARNING: Risk of fire. Keep the lamp heads
at least 3 in. (76mm) from combustible
materials.
CAUTION: Burn hazard. Allow the light fixture
to cool before touching.
NOTICE: For dimming use a 0-10V dimming
switch
Pre-Installation
PLANNING INSTALLATION
Before installing the light fixture, ensure that all parts are present. Compare parts with the
Hardware Included and Package Contents sections. If any part is missing or damaged, do
not attempt to assemble, install, or operate this light fixture.
Estimated installation time: 20 minutes
Lumens (Light Output) 6800 Lumens
Watts (Power Consumption) 50 Watts LED
Replaces 175 Watt Metal Halide
Lumens/Watts (Efficacy) 136
Power Requirements
(Input Voltage)
120-277VAC
Light Color (CCT) 4000 Kelvins (Bright White)
Dimmable Dimming (Use with 0-10V dimming switch)
Operating Modes Dusk-to-Dawn:
Automatically turns light fixture ON during night
and OFF during day.
Switch-Controlled:
Flip switch to turn light fixture ON and OFF. Use
included light sensor cap on fixture's light sensor
to utilize this mode setting.
SPECIFICATIONS
NOTICE: FCC Regulations state that any
unauthorized changes or modifications
to this equipment not expressly approved
by the manufacturer could void the user’s
authorization to operate this equipment.
TOOLS REQUIRED
Phillips
Screwdriver
Wire strippers/
cutters
Circuit tester
Safety
goggles
Work
gloves
Silicone
Sealant
Ladder
Flat head
hammer
INFORMATION: The device is tested and found to comply with Part 15 of the FCC Rules. Operation is subject
to two conditions: (1) This device may not cause harmful interference and, (2) this device must accept any
interference received, including any interference that may cause undesired operation.
These limits are designed to provide reasonable protections against harmful interference when the equip-
ment is operated in a commercial environment.

5PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
4
Visit www.probrite.com/install for installation video tutorials and product support
Pre-Installation (continued)
HARDWARE KIT
NOTE: Hardware not shown to actual size.
AA BB
Part Description Quantity
AA #8-32 x 3/4" philips mounting bracket screw 2
BB Wire nut 3
CC Photocell clear cap cover 1
PACKAGE CONTENTS
Part Description Quantity
ALight fixture 1
BConduit entry plug 5
CMounting base tightening screw (pre-installed) 2
DMounting base 1
EPhotocell opaque cap cover 1
FPhotocell black opaque cap cover 1
Installation
1For best results
Wall Mount
1-1/2" 1-1/2"
Round Octagonal/Square
NOTE: Mounting base (D) mounts to recessed
mounted standard junction boxes or to the sur-
face directly. Junction box must be at least 1-1/2
inch in depth for proper installation for recessed
mount application (fig 1).
(fig 1).
2Shut electric power off
☐At wall switch verify it is in the o
position (fig 1).
☐At the main electrical panel turn o
the circuit breaker that supplies power
to the outlet box you are working on
(fig 2).
☐For screw-in type fuses unscrew the
fuse that supplies power to the outlet
box you are working on (fig 3).
(fig 1). (fig 2).
(fig 3).
☐The fixture can be mounted in the
following two ways:
☐Junction Box Mount: Use a junction
box to mount the fixture.
☐Surface Conduit Mount: The fixture
can also be mounted directly on the
wall surface using conduit entry.
☐When mounting fixture, for Dusk
to Dawn operation, make sure the
photocell orientation is at the top for
wall mount, in an area that receives
daylight and not too close to reflective
surfaces.
☐When installing two fixtures on one
switch, make sure the switch is rated
for at least a 1A inductive load.
☐If dimming, use with 0-10V dimming
switch.
CC
E
C
D
B
A
F

7PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
6
Visit www.probrite.com/install for installation video tutorials and product support
Installation (continued)

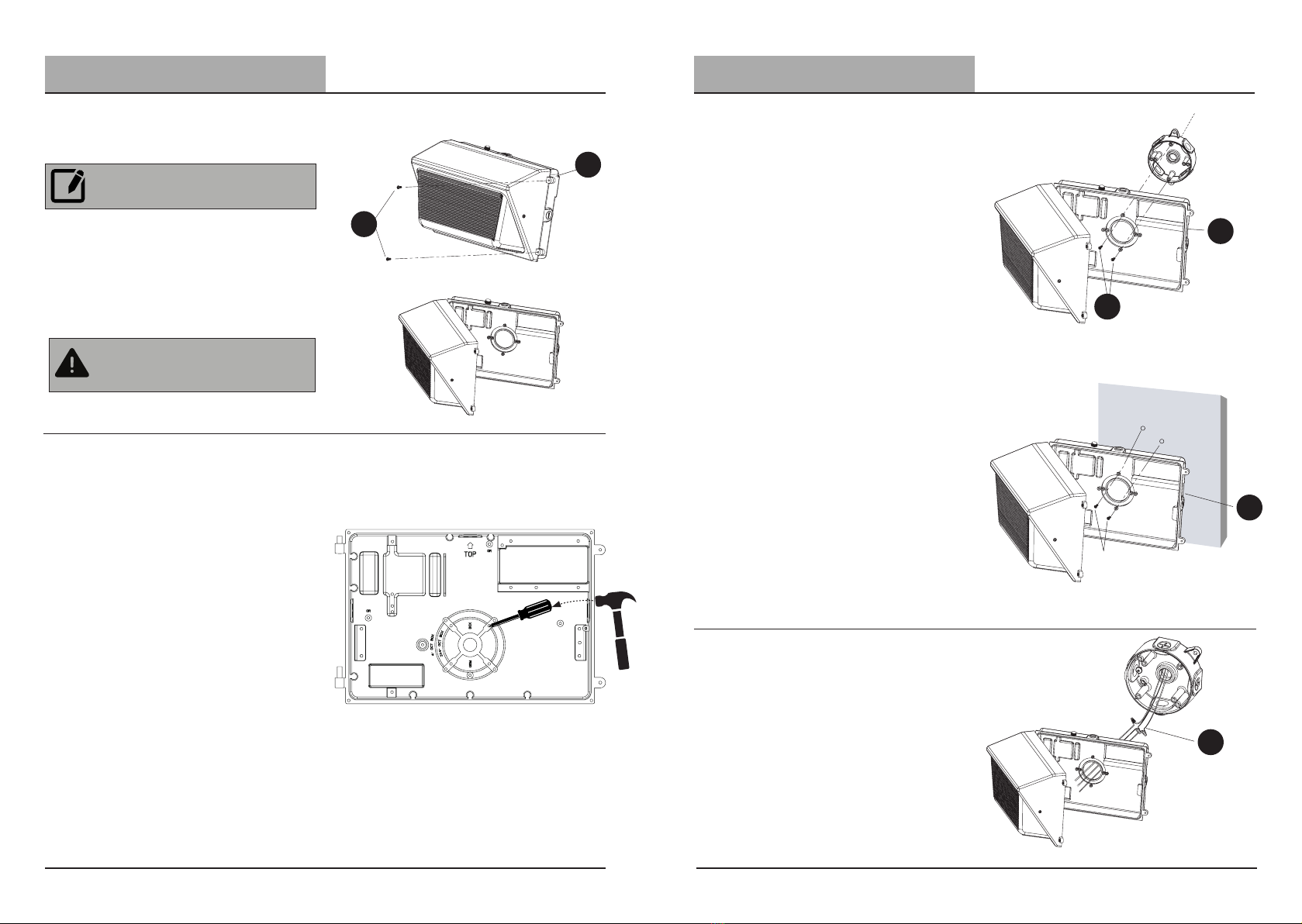

3Remove the
mounting base plate
D
C
NOTE: The mounting plate tightening screws
(C) comes pre-installed on the light fixture.
☐Loosen the two mounting base
tightening screws (C) using a philips
screwdriver to open the fixture. (Fig. 1)
☐The fixture will side open and stay
connected on the hinge.( Fig. 2)
4
5
Knock out holes on
mounting base
Installing the mounting base
Installation (continued)
6Making the electrical
connections
(fig 1)
(fig 1).
(fig 2).
(fig 1).
(fig 1).
(fig 2).
Junction Box
Junction Box
Surface Conduit Mount
☐Route the junction box wires through
the large center hole in the mounting
base (D).
☐Align the holes on the mounting
base (D) with the holes on your
junction box. Use two #8 screws (AA),
depending on the size of the holes in
your junction box, attach the mounting
base (D) to your junction box. (Fig. 1)
☐Follow the wiring instructions given
below to make the electrical connec-
tions. (Fig. 1)
☐Mark and drill two to four holes on the
wall surface as per the desired location
for fixing the mounting plate (D).
☐Use two or more suitable screws
(provided by others) applicable to
the surface of mounting and fix the
mounting plate (D) on the surface.
(Fig. 2)
☐For junction box mount: Measure the
size of your junction box and refer to
the guide in Fig. 1 to select the holes
to knock out.
☐For 31/4" junction box- Knock out
two holes in the inner ring.
☐For 4" junction box- Knock out two
holes on the outer ring.
☐For surface mount: Measure the
distance between two holes, pre-
drill holes into the mounting surface,
and knock holes on the desired ring
accordingly.
☐Use a flat head hammer and screw
driver to knock out the two holes.
CAUTION: DO NOT touch the LED and
Photocell lens (E) inside the fixture. DO NOT
damage or soil the reflector.
AA
D
D
BB
Junction Box
Screws (Provided by others)

9PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
8
Visit www.probrite.com/install for installation video tutorials and product support
D
C
Installation (continued) Installation (continued)
7Securing the light fixture on the mounting
base and caulking
NOTICE: Failure to properly caulk around the
surface and mounting plate (D) could lead
to water damage and is not covered under
warranty.
NOTE: When attaching this fixture (A) to an
external surface mount junction box, caulk the
inside of the light fixture before attaching to the
mounting plate (D).
(fig 3).
BB
D
(fig 2). (fig 1).
Surface Conduit Mount
☐Remove desired conduit plug from one
of the fixture's sides from the where
conduit will enter. (Fig. 2)
☐Make wiring connections inside the
fixture as per the instructions given
below.
☐If necessary, strip 3/8" of insulation
from junction box or fixture (A) wires
(fig 1).

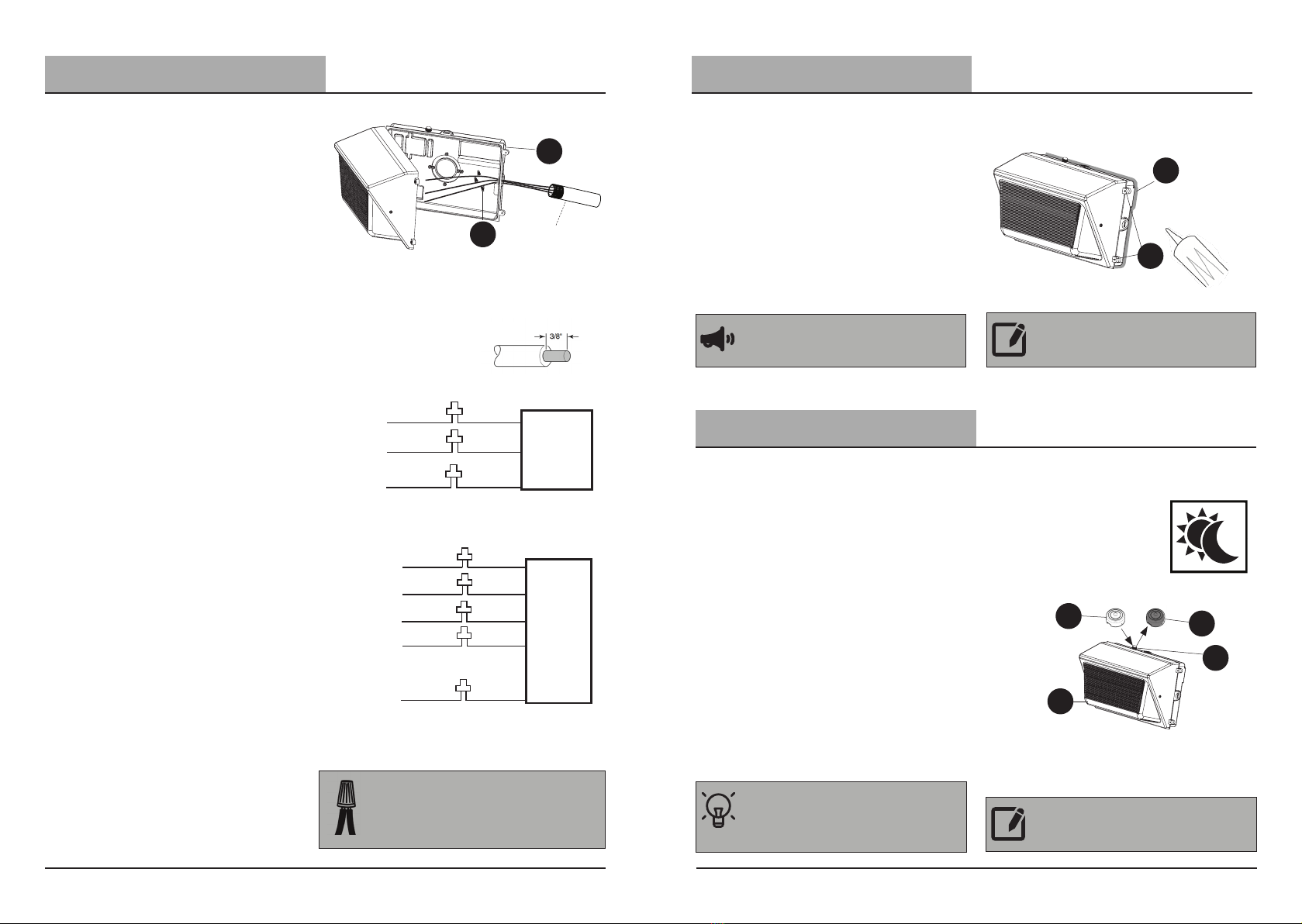

ON/OFF Wiring (Non Dimming) Method:
☐Connect fixture black wire to house
black wire, the (+) line, and fixture
white wire to house white wire, the (-)
common by twisting the exposed wires
together and using the wire nuts (BB).
Ensure no loose wires.
☐Connect house ground wire to the
green fixture ground wire, by twisting
the exposed wires together and using
the wire nuts (BB).
Conduit
☐To enable dusk-to-dawn remove the
black opaque cap cover (F) installed
on the fixture and replace it with
clear cap cover (CC). Also ensure the
photocell (E) is unobstructed.
☐Ensure the switch powering the outlet
connected to the light fixture is turned
to the ON position and leave it ON
at all times to enable dusk-to-dawn
functionality to operate automatically.
NOTE: If photocell (E ) is located in an area
under heavy shade the photocell may not
detect enough light and may turn the light
fixture on.
TIP: To test if the light fixture (A) and pho-
tocell (E) works properly run power to the
fixture and cover the photocell to turn fixture
ON. Shine a light into the photocell to see if
fixture turns OFF.
A
F
(Clear cap cover on photocell for
Dusk-to-Dawn Operation)
Operation
1Selecting Dusk-to-Dawn or
Switch-Controlled
OPTION 1: DUSK-TO-DAWN OPERATION
Dusk-to-dawn operation enables the light fixture to automatically turn
ON when dark outside and turn OFF when the sun rises, thus saving you
energy.
☐Close the fixture by tightening the two
mounting base tightening screws (C),
using a philips screwdriver, which were
removed earlier in Step 1. (Fig. 1)
☐Caulk around the mounting plate (D)
and surface with silicone sealant (not
included).(Fig. 1)
LIGHTING
FIXTURE
(+) LINE
(-) COMMON
GROUND
BLACK
WHITE
GREEN
0-10V Dimmable Wiring Method:
☐Connect fixture black wire to house
black wire, the (+) line, and fixture
white wire to house white wire, the (-)
common by twisting the exposed wires
together and using the wire nuts (BB).
Ensure no loose wires.
☐Connect house ground wire to the
green fixture ground wire, by twisting
the exposed wires together and using
the wire nuts (BB).
☐Connect the purple wire to the (V+)
DIM wire and the gray wire with (V-)
DIM wire by twisting the exposed wire
together and using the wire nuts (BB).
LIGHTING
FIXTURE
(+) LINE
(-) COMMON
(+)DIM V+
BLACK
WHITE
PURPLE
GROUND
GRAY
GREEN
(-)DIM V-
(Non-Dimming Wiring Diagram)
(0-10V Dimming Wiring Diagram)
AUTOMATIC
NIGHTTIME ON
DAYTIME OFF
TIP: Hold stripped ends near each other and
align any frayed strands (do not twist wires).
Push the wires into wire nut (BB) and use your
fingers to twist the wire nut clockwise until tight.
Check for tightness by pulling wires.
Swap
CC
E
