Proctor 700TVL Installation instructions

700TVL

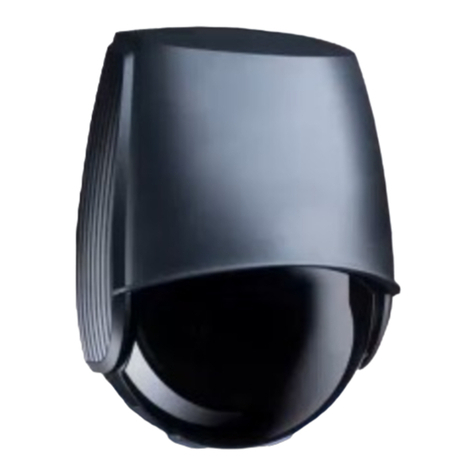

Outdoor High Speed Dome Camera
MADE IN KOREA
INSTALLATION / OPERATING MANUAL
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use
Wall In-Ceiling Ceiling
TVL
PTZ CAMERAS
ZOOM CAMERA SERIES
BOX CAMERAS
WEATHER PROOF SERIES
DOME SERIES
IP CAMERAS
DIGITIAL VIDEO RECORDER
HD- SERIES

02
Outdoor Speed PTZ Dome Camera System Use's Guide
03
Outdoor Speed PTZ Dome Camera System Use's Guide
1. 1 Important Safety Instruction
• Read these instructions.
• Pay attention on all the warnings.
• Follow all instructions.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not dissemble or insert foreign objects.
• Do not install near any heat sources such as radiation, beat registers, stoves, or other apparatus.
(Including amplifiers) that produce heat.
• Do not aim the camera at the sun or any other strong light source.
• Do not install the camera in intermittent lighting environments.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• Installation should be done only by qualified personnel and conform to all local codes.
• Installation should be done in a place strong enough to hold it.
• Use only installation methods and materials capable of supporting four times the maximum specified load.
• To prevent damage from water leakage when installing a mount outdoors on a roof or wall,
apply sealant around the bolt holes between the mount and mounting surface.
• These instructions are for use by qualified service personnel only. To reduce the risk of electric shock
do not perform any servicing other that contained in the operating instructions unless you are qualified
to do so.
• Only use replacement parts recommended by manufacturer.
1. PRECAUTIONSTABLE OF CONTENTS
3p.
4p.
4p.
5p.
6p.
7p.
8p.
10p.
12p.
12p.
13p.
13p.
14p.
14p.
16p.
18p.
19p.
19p.
30p.
31p.
32p.
36p.
36p.
37p.
37p.
38p.
39p.
40p.
1. PRECAUTIONS
1. 1 Important Safety Instruction ...................................................................................
2. GETTING STARTED
2. 1 Descriptions ..........................................................................................................
2. 2 Unpacking ..............................................................................................................
2. 3 Selection Flow ........................................................................................................
2. 4 Outdoor Speed PTZ Dome Camera Module .............................................................
2. 5 Accessories Selection (Sold Separately) ..................................................................
2. 6 DIP Switch Setting ..................................................................................................
2. 7 Cable Connection ...................................................................................................
3. INSTALLATION (Indoor / Wall / Ceiling)
3. 1 Before Installation ..................................................................................................
3. 2 Indoor (In-Ceiling) ..................................................................................................
3. 3 Wall Mounting ........................................................................................................
3. 4 Ceiling Mounting ....................................................................................................
4. ON-SCREEN DISPLAY PROGRAM MENU
4. 1 Powering ON ..........................................................................................................
4. 2 Establishing Camera Control ...................................................................................
4. 3 Motion Menu ..........................................................................................................
4. 4 Dome Menu ...........................................................................................................
4. 5 Camera Menu ........................................................................................................
4. 5. 1 Camera Setting ..............................................................................................
4. 5. 2 Clear Menu ....................................................................................................
5. SPECIFICATION
5. 1 Mechanism Specification .......................................................................................
5. 2 Camera Specification..............................................................................................
6. DIMENSION
6. 1 Camera ................................................................................................................
6. 2 Wall and Ceiling Bracket ........................................................................................
6. 3 Parapet Mount Bracket ..........................................................................................
6. 4 Corner Mount / Pole Mount ...................................................................................
7. CONFIGURATION
7. 1 Control from Keyboard or DVR ...............................................................................
7. 2 Connecting to Keyboard with DVR ..........................................................................
7. 3 Connecting to Keyboard with DVR ..........................................................................

04
Outdoor Speed PTZ Dome Camera System Use's Guide
05
Outdoor Speed PTZ Dome Camera System Use's Guide
2. 3 Selection Flow2. 1 Descriptions
This camera is an outdoor speed PTZ dome system designed for IP66 applications, especially, whether it is
raining, snowing or sunny day, this Camera delivers superior performance.
It includes a high resolution color camera; video output capability through coaxial cable; pan/tilt control using
Pelco D or P protocol with on-screen programming.
2. 2 Unpacking
The following parts are supplied with an outdoor speed PTZ dome camera.
1. Dome drive
2. Dome body (housing)
3. Dome cover (bubble with trim ring)
4. Wall-mount bracket or Ceiling-mount bracket (one of two)
5. Interface cable with two wired wiper on one end and BNC female on the other end(In-ceiling only)
6. User’s Guide
7. Self-tapping screws
2. GETTING STARTED
2. 3. 1 Indoor
2. 3. 2 Outdoor
Outdoor Corner & Pole Mount
Model Select Mount Type
Model Select Mount Type
Indoor Wall mount
Outdoor Parapet mount
Model Select Mount Type
Model Select Mount Type
Indoor ceiling mount
Model Select
In-ceiling mount
Mount Type
<Figure 1. package Components>
Dome Drive
Bracket (Wall or Ceiling) Cable & Wire(In-Ceiling only) User’s Guide Screws
Dome Body (Housing) Dome Cover Connectors

06
Outdoor Speed PTZ Dome Camera System User’s Guide
07
Outdoor Speed PTZ Dome Camera System User’s Guide
2. 5 Accessories Selection (Sold Separately)2. 4 Outdoor Speed PTZ dome camera Module
2. 4. 1 Outdoor Speed PTZ dome camera Models
1/4" Sony Super HAD II (Double Scan )CCD, Optical 36x with WDR
1/4" Sony Super HAD II (Double Scan )CCD, Optical 33x with WDR
1/4" Sony Super HAD II (Double Scan )CCD, Optical 28x with WDR
1/4" Sony Super HAD II (Double Scan )CCD, Optical 22x with WDR
IMPORTANT> When placing order, please make sure of which the below optional selection for the default
camera package is proper for your application.
- Optional 1: PAL type / NTSC type
- Optional 2: Including Wall-mount bracket or including Ceiling-mount bracket
IMPORTANT> Smoke dome cover let others be unaware of where the camera is shooting.
The camera performance is likely to be the same using either smoke or transparent clear
cover orslightly darker with smoke cover. If you don't want others know where you are
shooting, then choose the smoke cover.
- In case the camera contains
Wall-mount bracket as standard
- Aluminum body
- Unit: 1Kg
- Cool gray color
noitpircseDegamIMETI
- Stainless steel(SUS) body
- Unit : 5.2Kg
- Silver color
- Maximum load : 20Kg
- Dimensions : 890x650 (Arm)
- 250 x 350 (Mount plate)
- Steel body
- Unit : 0.4Kg
- Cool gray color
- In case the camera contains
Wall-mount bracket as standard
- Steel body
- Unit : 1.6Kg
- Cool gray color
- Steel body
- Unit : 1.3Kg
- Cool gray color
- Steel body
- Unit : 0.7Kg
- Cool gray color
- Aluminum body
- Unit : 5Kg
- Silver color
- In case the camera contains
Wall-mount bracket as standard
- Aluminum body
- Unit: 3.1Kg
- Cool gray color
In-ceiling mount
housing
Wall Bracke
Wall Plate
Pipe Adaptor
Ceiling Plate
Pipe Adaptor
Parapet mount
bracket
Corner Mounting
Adaptor
Pole mounting
Adaptor
Installation Box

08
Outdoor Speed PTZ Dome Camera System User’s Guide
09
Outdoor Speed PTZ Dome Camera System User’s Guide
(SW201, SW202, SW203)
(SW204, SW205, SW206)
2. 6. 2 Set the termination On/Off
(SW601)
2. 6 DIP Switch Setting
2. 6. 1 Dip Switch Setting
Before start up thedome camera, set theprotocol and camera address and termination set with
dip-switches and click-switches as shown in thebelow diagram.
Termination Switch
(SW601)
Setting Switch
(SW204, SW205, SW206)
Address Switch
(SW201, SW202, SW203)
SW201 SW202 SW203
SW204 SW205 SW206
SW601
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2
The device which is connected at the end of the linemust have the cable communication
terminated. Without proper termination, there ispotential for control signal errors. The camera has
the cable communication terminated by setting the appropriate dip switch as below.
1: On 2: On ' Terminated
2: Off 3: Off 'Not terminated
2. 6. 3 Set the camera address (ID)
2. 6. 4 Set the details fo the dome
S201: 100-digit number of address (ID)
S202 : 10-digit number of address (ID)
S203 : 1-digit number of address (ID)
Ex) IfSW203=8, SW202=2,SW201=1,
theID number is128
S204 #1~#3 : Protocol setup
S204 #4,S205 #1,2 : Communication speed setup
S205 #3,#4 : Parity setup
S206 #1,#2 : Camera Setup
S206 #3 : NTSC, PAL Setup
S206 #4 : Communication(RS-422/485)
SW204
1 2 3
off off off
off off on
off on off
off on on
on off off
on off on
on on off
on on on
WTX
Pelco-D v.1.0
WPP
ADP
nc
Pelco-D v.5.0
nc
nc
Protocol SW204, SW205
4 1 2
off off off
off off on
off on off
off on on
on off off
on off on
on on off
on on on
2400
4800
9600
19200
38400
57600
115200
230400
Baudrate(bps)
SW205
3 4
off off
off on
on off
on on
none
even
odd
nc
Parity
SW206
1 2
off off
off on
on off
on on
SDM
nc
EM
FCB
Cam type
SW206
3
off
on
NTSC
PAL
NTSC/PAL
SW206
4
off
on
422
485
RS-422/485
x100
SW201
x10
SW202
x1
SW203
ADDRESS

10
Outdoor Speed PTZ Dome Camera System User’s Guide
11
Outdoor Speed PTZ Dome Camera System User’s Guide
2. 7 Cable connection
COM A
N.C A
N.O A
GND
ALARM4
ALARM3
ALARM2
ALARM1
AC 24V
AC 24V
COM B
N.C B
N.O B
GND
ALARM8
ALARM7
ALARM6
ALARM5
ALARM PORT_A ALARM PORT_B
R(T)X A
R(T)X B
TX A
TX B
GND
AC 24V
AC 24V
F GND
CAM POWER RS485 / RS422
HEATER
2. 7. 2 RS-485/RS-422 Connection
2. 7. 1 Power/Data communication cable connection
2. 7. 4 Alarm connection
RS-422/485 connection
The camera can be remotely controlled by an external device or control system, such as a control
keyboard or DVR, using RS-485 half-duplex, RS-422 duplex or simplex serial communication signals.
Connect marked RX+, RX- to TX+ and TX- of the RS-485 control system.
If control system is RS-422, connect TX+,TX- of controller to RX+ and RX- of the Camera. And
also connect the TX+, TX- of the Camera to RX+, RX- of the control device respectively. Total length of
the cable for communication should not exceed 1.2Km.
2. 7. 3 Video Output connection
Connect the video out (BNC) connector to the monitor or video input of DVR. Video cable and
RS-485/422 communication cable are not provided in this product's package.
Power connection
- Connect the power of AC 24V, 1000mA to this dome camera.
- Use certified / Listed Class 2 power supply transformer only.
- Please be sure for AC input for camera and AC input for Fan & Heater.
- Power Terminal: 3PIN
- Com Terminal: 5PIN
(Controller)
(PTZ)
2. 7. 5 Power Connection
* Both Power Connector and Heater Connector must be connected for heaters to operate.
This is a port for Fan&Heater board.
Please, supply 24V 1A or more.
This is a port for PTZ camera.
Please, supply 24V 1A.

12
Outdoor Speed PTZ Dome Camera System User’s Guide
13
Outdoor Speed PTZ Dome Camera System User’s Guide
3.Installation (Indoor / Wall / Ceiling)
3. 2 Indoor (In-Ceiling)
3. 1 Before Installation
① ② ③ ④
① ② ③ ④
① ② ③ ④
- The following steps of installation and connection work should be done by qualified service personnel
or system installers and should conform to all local codes.
- Be sure to switch the camera off before installation is completed.
- Do not install the camera near the air outlet of an air conditioner.
- Before installation, set the dome system with Dip switch on the back side of the mechanism part, and
assemble the mechanism and housing according to the below instruction
The 2 clamp wires were used to fix mechanism to prevent
any damages in shipping.
When this camera is being installed, the clamp wires have to be
Removed from PTZ SET.
①Unpack the dome package and take out the dome drive, dome body (housing), dome cover
(bubble with trim ring) and other components. Insert the dome drive to the dome body and
connect the cables as shown in the above diagram.
②Assemble the dome cover to the dome body by pressing the cover gently downward to the
dome body with two hands on the side of the cover. Do not press the cover with strong pressure.
This might cause damage to the dome body.Screw the dome cover and body together.
③Need for additional in-ceiling mount housing, Refer to the page of 2.3 Products sold separately
for the detail. Make a hole in the ceiling to install the camera and prepare for the wire with
connector. For easy installation, screw the three safety screws slightly.
For the safety reason, turn off the main power during the installation.
Connect the wire to the in-ceiling mount housing assembled dome system.
Put the dome system into the ceiling hole.
④Fasten the safety wire to the ceiling
Do not press the dome cover with too strong pressure while putting the dome system into
the ceiling hole. It can cause serious damage onto the surface of the dome cover bubble
3. 3 Wall Mounting
①Insert the dome drive to the dome body and connect the cables as shown in the above diagram.
②Assemble the dome cover to the dome body by pressing the cover gently downward to the
dome body with two hands on the side of the cover. Do not press the cover with strong pressure.
This might cause damage to the dome body.Screw the dome cover and body together.
③Install the bracket on to the wall to install the camera and prepare for the wire with connector.
For easy installation, screw the three safety screws slightly. For the safety reason, turn off the
main power during the installation. Connect the cable with the assembled dome system.
④Put the dome system into the bracket. Fasten the 3 installation screws as shown in the above
diagram.
3. 4 Ceiling Mounting
①Insert the dome drive to the dome body and connect the cables as shown in the above diagram.
②Assemble the dome cover to the dome body by pressing the cover gently downward to the
dome body with two hands on the side of the cover. Do not press the cover with strong pressure. this
might cause damage to the dome body. Screw the dome cover and body together.
③Make a hole in the ceiling to install the camera and prepare for the wire with connector.
For easy installation, screw the three safety screws slightly.For the safety reason, turn off the
main power during the installation. Connect the cable with the assembled dome system.
④Put the dome system into the bracket.
Fasten the 3 installation screws as shown in the above diagram.

14
Outdoor Speed PTZ Dome Camera System User’s Guide
15
Outdoor Speed PTZ Dome Camera System User’s Guide
4. 1 Powering On
When turning the camera power on, there isaten (10) second pause before the camera starts
itshoming phase. During thehoming phase the camera pans left and right and tilts up and down. It also
adjusts the lens focus.
4. 2 Establishing Camera Control
The most common way to interface with the camera is using a keyboard and on-screen display (OSD)
menu. This method is the most common and is covered in this manual.
4. 2. 1 Basic Keyboard Operation
The following tables summarizethebasic operations for a standard keyboard and the functions available
to control the camera.
Table 1.1 Typical Keyboard Functions
Table 2. 1 Typical Keyboard Controls for the speed PTZ dome camera system
4. ON-SCREEN DISPLAY PROGRAM MENU
Typical Keyboard Features Usage
Function Keys
Number Keys
Camera Key
Enter Key
Focus Key (Or Near Key)
Iris Key
Key LEDs
LCD
Joystick
Selects a specific control setting
Inputs a number from 0 to 9.
Selects a camera number
Inputs a selection
Sets the lens focus or make a menu selection in OSD menu.
Sets the lens iris setting or makes a menu selection in OSD mode.
Indicates an active key
Displays the current status
Controls a pan/tilt/zoom (PTZ)
Dome Operation How to Control
To Pan Side to Side
To Tilt Up and Down
To Zoom In
To Zoom Out
Move the joystick left or right.
Move the joystick forward and back.
Twist the joystick clockwise.
Twist the joystick counterclockwise.
This camera isprogrammed through the on-screen display (OSD)menus.
To access the OSD menus, you must open the main Setup Menu.
4. 2. 3 Setup Program OSD Menu From Keyboard.
The main Setup Menu provides access to all programmable Camera settings.
4. 2. 2 Keyboard Commands
- Keyboard control commands are composed of a sequence of two (2) inputs with the following
convention: 1) a Command number key(s) + 2) a Function key.
- Command numbers range from 1 to 999.
- Refer to the keyboard manual for the key naming conventions in detail.
4. 2. 4 Go into the camera setup 0SD Menu
Press key “1” and keep pressing the“MENU” key for approximately 3 seconds, or press key “95” and
press “Preset” key togointothe set-up menu.Setup menus are shown in thediagram below. You can
adapt the camera to your requirements by setting up the respective items in these menus.
4. 2. 5 OSD Menu tree
→
→
→
→

16
Outdoor Speed PTZ Dome Camera System User’s Guide
17
Outdoor Speed PTZ Dome Camera System User’s Guide
4. 3 Motion Menu
4. 3. 1 PRESET
- Function : Max. 255 positions can be stored as Preset position. The preset number can be assigned
from 1 to 255, but 95 is reserved for starting OSD menu. Camera characteristics
(i.e. WhiteBalance, AutoExposure) except for Focus can be set up independently for each
preset. Label can be freely set to the each Preset position. All characteristic can be set up
in OSD menu.
- Preset No. : Max. 255 positions can be stored and the each position can be assigned as a defined
Preset No.
- Label : Each Preset can have its own label name.
- Position : It displays the coordinates to position the assigned Preset.
- Focus : It enables to set the camera focus for each Preset position. (Default Auto)
4. 3. 2 TOUR
- Function :
By using Tour function, you can make camera to move among Max. 15 Preset positions
repeatedly. When Tour function runs, camera moves from thepreset assigned as the1st
point to the preset assigned as the last point in sequence. The camera will stay to the each
point for the time set to the dwell time in Tour Edit and move to the next point.
- Tour No. :
Max. 8 Tours can be stored and the each tour can have Max. 15 Preset positions with defined
Tour No.
- Label : Each Tour can have its own label name.
- Tour Edit : The Preset position, Speed and Dwell time can be assigned to the each Tour. The Speed
can be set up from 1°/sec to 63°/sec and the Dwell time can be set up from 1sec to 99sec.
4. 3. 3 SCAN
- Function :
By using Scan function, the camera moves between 2 positions ifthere isno PTZ command
after passing the assigned Dwell time. When there isno camera movement, theScan function
runs and the camera moves from the position assigned as the start point to the position
assigned as the end point in CW(Clockwise) direction.
- Scan No. : Max. 8 Scans can be stored.
- Label : The each Tour can have its own label name.
- Start position : Assign the coordinate of the Scan starting position.
- End position : Assign the coordinate of the Scan ending position.
- Speed : It enables to set the running speed in the each coordinate.(1~63sec)
- Dwell : The Scan function runs after the Dwell time without any camera movement.(1~60 min)
- Focus : It enables to set the camera Focus. (Default is Auto)
4. 3. 4 PATTERN
- Function :
Pattern function isthat a camera memorizes thepath (mostly curve path)byjoystick of
controller for assigned time and revives the path exactly as it memorized.
- Pattern No. : 4 Patterns can be stored in Keyboard menu. But if by chance your Keyboard does not
have
this menu, then the Pattern might not be performed correctly.
- Labe l: The each Pattern can have its own label name.
- Record :
Movement by joystick and preset movement can be memorized in a pattern. To save the recording,
press NEAR key. It records Max. 60seconds. If by chance your Keyboard is not set to WCY
model, then this Record menu might not be performed.
- Play : To revive the Pattern during the recorded time.
4. 3. 5 AREA
- Function :
By using Area function, you can make camera tomove between 2 pan positions repeatedly.
When Area functions runs, camera moves from the pan position assigned as the start pan
position to the position assigned as the stop pan position. In case that the position assigned
as the start point is same as the position assigned as the end position, camera turns on its
axis by 360° in CW direction and then it turns on its axis by 360° in CCW direction.
- Area No. : Max. 16 Area can be stored.
- Label : The each Area can have its own label name.
- Start Pan Position : Assign the coordinate of Area starting position.
- Stop Pan Position : Assign the coordinate of Area stopping position.
4. 3. 6 ALARM
- Function :
Alarm function enables the camera move to the programmed Preset position when there is
Alarm trigger.
- Alarm No. : Max. 8 Alarms can be stored.
- Label : The each Alarm can have its own label name.
- Preset No. : Assign the Preset No. to run when alarm is triggered.
4. 3. 7 PRIVACY
- Function : To protect privacy, Max. 8 Privacy can be created on the arbitrary position to hide objects
such as windows, shops or private house. With spherical coordinates system, powerful
Privacy zone masking function is possible.
- Privacy No. : Max. 8 Privacy zone can be stored.
- Position : Assign the coordinate to hide with Privacy.

18
Outdoor Speed PTZ Dome Camera System User’s Guide
19
Outdoor Speed PTZ Dome Camera System User’s Guide
4. 4 Dome Menu 4. 5 Camera Menu
D-ZOOM (Digital Zoom)
- Magnification of the Digital Zoom can be switched On and Off.
- It is recommended that the Digital Zoom should be set up before the preset operation.
- As the digital zoom magnification increases, the image quality is lowered.
ZOOM MENU
ZOOM SPD : 7
D-ZOOM : OFF
BACK
< NEAR / RIGHT ZOOM SPEED>
ZOOM MENU
ZOOM SPD : 7
D-ZOOM : OFF
BACK
< NEAR / RIGHT D-ZOOM >
select : or Set ON :
Set OFF :
NEAR
NEAR
select : or Set ON :
Set OFF :
NEAR
NEAR
ZOOM SPD : Select from 0 Step to 7 steps
Decide using of digital zoom function.
D-ZOOM: ON/ OFF
①ZOOM MODE
Zoom speed can be set and decide using of digital
zoom function.
4. 5. 1 CAMERA SETTING
4. 4. 1 TITLE
- Function : Set the camera title to display on screen
- To store the Title, press TELE button on the Keyboard. To delete, press WIDE.
4. 4. 2 POWER UP ACTION
- Function :
This function enables to resume the last action executed before power down. Most of actions
such as Preset, Tour, Pattern, and Scan are available for this function but Jog actions are not
available to resume.
- To activate this function, set this function to ON.
4. 4. 3 PARK ACTION
- Function :
This function enables to locate the camera to specific position automatically if operator doesn’t
operate the controller for a while.
- Time<Min> : The Park time can be assigned from 5min to 60min.
- Function : Can select one of the motion functions, Preset, Tour, Pattern and Scan.
- Number : The number of selected motion function.
4. 4. 4 DISPLAY ON/OFF
- Function : It enables to turn on or off for the menu On-screen display.
-
TITLE, ALARM, ZOOM, POSITION, PRESET, ACTION, TOUR, SCAN, PATTERN, PRIVACY, and AREA menu
On-screen display On/Off
- To turn on the display, press TELE button from the Keyboard. To turn off, press WIDE.
4. 4. 5 DOME SUB MENU
- TILT LIMIT : Set tilt stop angle. : off ~15°
- SPEED BY ZOOM : Pan and Tilt speed can be changed depending on zoom magnification. ON will slow down
the speed of Pan/Tilt and OFF will increase the Pan/Tilt speed.
- AUTO FLIP : In case that tilt angle arrives at the top of tilt orbit (90°), zoom module camera keep moving
to opposite tilt direction (180°) to keep tracing targets. As soon as zoom module camera passes through the top
of tilt direction (90°), images should be reversed automatically and appears in screen. If this function is set to OFF,
tilt movement range is 0~90°
- PRESET FREEZE :Video out for start & stop points only and during camera movement the screen is shown paused
image.
4. 4. 6 FACTORY SET
- Function : It makes to restore all of setting value to the factory default.
- Please be careful that all of existing value would be erased by this Factory Set ON.

20
Outdoor Speed PTZ Dome Camera System User’s Guide
21
Outdoor Speed PTZ Dome Camera System User’s Guide
②FOCUS
In Focus menu, you can set up the focus mode among Auto, One Push or Manual.
CAMERA MENU
ZOOM MODE
FOCUS MODE
AE MODE
WB MODE
ICR MODE
SPECIAL
CAM RESET

SAVE BACK EXIT
< NEAR / RIGHT FOCUS SET >
select : or Set ON :
Set OFF :
NEAR
NEAR
AUTO: The camera adjusts the focus automatically while
monitoring the screen continuously in the auto mode.
In the auto focusing mode, zoom key operation is not
recognized as the input of the focus key.
One Push: It will be focused in about 5 seconds after zooming,
panning, and return to MANUAL mode automatically.
This is for focusing accurately after zooming.
Manual: In the manual mode, users can adjust the camera
focus manually.
Infinity: infinity focus is the state where a lens forms an image
of an object an infinite distance away.
This corresponds to the point of focus for parallel rays.
Set the speed for camera focusing.(0~7)
FOCUS MENU
FOCUS MODE : AUTO
FOCUS SPD : 5
NEAR LIMIT : 10CM
AF MODE : NORMAL
SENSITIVITY : NORMAL
BACK
< NEAR / RIGHT FOCUS MODE >
FOCUS MENU
FOCUS MODE : MANUAL
FOCUS SPD : 5
NEAR LIMIT : 10CM
AF MODE : NORMAL
SENSITIVITY : NORMAL
BACK
< NEAR / RIGHT FOCUS SPD >
CAMERA MENU
ZOOM MODE
FOCUS MODE
AE MODE
WB MODE
ICR MODE
SPECIAL
CAM RESET

SAVE BACK EXIT
< NEAR / RIGHT AE SET >
③AUTO EXPOSURE
AUTO EXPO.MENU
AE MODE : AUTO
SHUTTER SPD : AUTO
SLOWSHUTTER : OFF
IRIS LEVEL : AUTO
GAIN LEVEL : AUTO
AGC MODE : ON
EXPO. MODE : ON
EXPO. LEVEL : 0dB
BACK
< NEAR / RIGHT AE MODE >
AE setting is a function adjusting shutter speed acoording to subject’s brightness to get standard
amount of exposed light.
AF MODE: Set the auto focuse mode
select : or Set ON :
Set OFF :
NEAR
NEAR
select : or Set ON :
Set OFF :
NEAR
NEAR
SENSITIVITY: Set the sensitivity of focus
select : or Set ON :
Set OFF :
NEAR
NEAR
select : or Set ON :
Set OFF :
NEAR
NEAR
Set the focus distance.
Select AUTO,MANUAL,SHUTTER or IRIS.
FOCUS MENU
FOCUS MODE : AUTO
FOCUS SPD : XXXX
NEAR LIMIT : 10CM
AF MODE : NORMAL
SENSITIVITY : NORMAL
BACK
< NEAR / RIGHT NEAR LIMIT >
FOCUS MENU
FOCUS MODE : AUTO
FOCUS SPD : XXXX
NEAR LIMIT : 10CM
AF MODE : NORMAL
SENSITIVITY : NORMAL
BACK
< NEAR / RIGHT AF MODE >
FOCUS MENU
FOCUS MODE : AUTO
FOCUS SPD : XXXX
NEAR LIMIT : 10CM
AF MODE : NORMAL
SENSITIVITY : NORMAL
BACK
< NEAR / RIGHT SENSITIVITY >

22
Outdoor Speed PTZ Dome Camera System User’s Guide
23
Outdoor Speed PTZ Dome Camera System User’s Guide
AE MODE : AUTO
SHUTTER SPD : AUTO
SLOWSHUTTER : OFF
IRIS LEVEL : AUTO
GAIN LEVEL : AUTO
AGC MODE : ON
EXPO. MODE : ON
EXPO. LEVEL : 0dB
BACK
< NEAR / RIGHT SHUTTER SPD >
AE MODE : AUTO
SHUTTER SPD : AUTO
SLOWSHUTTER : OFF
IRIS LEVEL : AUTO
GAIN LEVEL : AUTO
AGC MODE : ON
EXPO. MODE : ON
EXPO. LEVEL : 0dB
BACK
< NEAR / RIGHT SLOW SHT >
AE MODE : AUTO
SHUTTER SPD : AUTO
SLOWSHUTTER : OFF
IRIS LEVEL : AUTO
GAIN LEVEL : AUTO
AGC MODE : ON
EXPO. MODE : ON
EXPO. LEVEL : 0dB
BACK
< NEAR / RIGHT IRIS LEVEL >
AE MODE : AUTO
SHUTTER SPD : AUTO
SLOWSHUTTER : OFF
IRIS LEVEL : AUTO
GAIN LEVEL : AUTO
AGC MODE : ON
EXPO. MODE : ON
EXPO. LEVEL : 0dB
BACK
< NEAR / RIGHT GAIN LEVEL >
select : or Set ON :
Set OFF :
NEAR
NEAR
Select ON/ OFF.
select : or Set ON :
Set OFF :
NEAR
NEAR
If you set SHUTTER in the AE MODE, you can control image
brightness by adjusting shutter speed.
Set from x512, x128, x64, x32, x16, x8, 1/15, 1/30, 1/60 ,
1/90 , 1/100, 1/180, 1/250, 1/500, 1/1000, 1/1500, 1/2000,
1/5000, 1/10000, 1/20000, 1/50000, 1/100000
select : or Set ON :
Set OFF :
NEAR
NEAR
If you set IRIS in the AE MODE, you can set the IRIS level
from 00 to 17 .
select : or Set ON :
Set OFF :
NEAR
NEAR
If you set MANUAL, IRIS and SHUTTER in the AE MODE, you can
set the GAIN for brighter image from 0~30dB. (Changable by 2dB)
AUTO EXPO.MENU
AUTO EXPO.MENU
AUTO EXPO.MENU
AUTO EXPO.MENU
AE EXPO.MENU
AE MODE : AUTO
SHUTTER SPD : AUTO
SLOWSHUTTER : OFF
IRIS LEVEL : AUTO
GAIN LEVEL : AUTO
AGC MODE : ON
EXPO. MODE : ON
EXPO. LEVEL : 0dB
BACK
< NEAR / RIGHT AGC MODE >
AE EXPO.MENU
AE MODE : AUTO
SHUTTER SPD : AUTO
SLOWSHUTTER : OFF
IRIS LEVEL : AUTO
GAIN LEVEL : AUTO
AGC MODE : ON
EXPO. MODE : ON
EXPO. LEVEL : 0dB
BACK
< NEAR / RIGHT EXPO. MODE >
AE EXPO.MENU
AE MODE : AUTO
SHUTTER SPD : AUTO
SLOWSHUTTER : OFF
IRIS LEVEL : AUTO
GAIN LEVEL : AUTO
AGC MODE : ON
EXPO. MODE : ON
EXPO. LEVEL : 0dB
BACK
< NEAR / RIGHT EXPO. LEVEL >
select : or Set ON :
Set OFF :
NEAR
NEAR
select : or Set ON :
Set OFF :
NEAR
NEAR
Select ON/ OFF in AGC MODE.
select : or Set ON :
Set OFF :
NEAR
NEAR
Select AUTO or Manual.
If you set ON in the EXPO MODE, you can control this level.
( "0" is standard (±10.5 selectable), changed bt 1.5dB)

24
Outdoor Speed PTZ Dome Camera System User’s Guide
25
Outdoor Speed PTZ Dome Camera System User’s Guide
CAMERA MENU
ZOOM MODE
FOCUS MODE
AE MODE
WB MODE
ICR MODE
SPECIAL
CAM RESET

SAVE BACK EXIT
< NEAR / RIGHT WB SET >
select : or Set ON :
Set OFF :
NEAR
NEAR
select : or Set ON :
Set OFF :
NEAR
NEAR
④WHITE BALANCE
Set the white balance of camera.
WHITE BALANCE MENU
WB MODE : ATW
RED GAIN : xxx
BLUE GAIN: xxx
BACK
< NEAR / RIGHT WB MODE SEL >
WHITE BALANCE MENU
WB MODE : MANUAL
RED GAIN : 208
BLUE GAIN: 162
BACK
< NEAR / RIGHT R GAIN SEL >
White balance setting is a function revising color temperature
to resolve the problem that screen’s colors change by the color
temperature’s difference according to time.
WB MODE: Set the color depend on white balacne.
Select AUTO, INDOOR, OUTDOOR, ONEPUSHWB,
ATW or MANUAL.
RED GAIN: Adjust red color level from 0~255.
(Standard level is 025)
BLUE GAIN: Adjust blue color level from 0~255.
(Standard level is 025)
CAMERA MENU
ZOOM MODE
FOCUS MODE
AE MODE
WB MODE
ICR MODE
SPECIAL
CAMERA RESET

SAVE BACK EXIT
< NEAR / RIGHT ICR SET >
ICR MENU
ICR MODE : AUTO
ICR THRESHOLD :11
BACK
< NEAR / RIGHT ICR MODE >
⑤ICR MODE
Set the LED operating depend on ICR mode.
Select AUTO, DAY ,NIGHT, EXT and SENSE IN mode and the LED will be operated depend on this mode.
ICR MENU
ICR MODE : AUTO
ICR THRESHOLD :11
BACK
< NEAR / RIGHT ICR THRESHOLD >
select : or Set ON :
Set OFF :
NEAR
NEAR
Set the ICR THRESHOLD from 00 to 28 .

26
Outdoor Speed PTZ Dome Camera System User’s Guide
27
Outdoor Speed PTZ Dome Camera System User’s Guide
MAIN MENU
< NEAR / RIGHT SPECIAL SET >
MOTION
DOME
CAMERA
CLEAR
CAM RESET
SPECIAL 
SAVE BACK EXIT
⑥SPECIAL
In the Special menu, it’s available to set APERTURE GAIN, BACK LIGHT, DAY&NIGHT MODE,
DAY&NIGHT LEVEL and WDR.
SUB SP MODE : In the Special menu, it’s available
to set special function of the camera
SPECIAL MENU
BACK
< NEAR / RIGHT ON/OFF>
STABILIZER : OFF
BLC MODE : OFF
HLC MODE : OFF
HLC CLIP LEVEL : XX
HLC LEVEL : XX
STABILIZER: Select ON or OFF.
SPECIAL MENU
BACK
< NEAR / RIGHT ON/OFF>
STABILIZER : OFF
BLC MODE : OFF
HLC MODE : ON
HLC CLIP LEVEL : XX
HLC LEVEL : XX
BLC MODE : Select ON or OFF.
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR
SPECIAL MENU
BACK
< NEAR / RIGHT SUB MENU >
SUB SP MODE 
APERTUREGAIN : 07
FLICKERLESS : OFF
BACK LIGHT : OFF
LINE LOCK : OFF
V PHASE : XXX
DNR LEVEL : AUTO
WDR MODE : OFF
SPECIAL MENU
BACK
< NEAR / RIGHT ON/OFF>
STABILIZER : OFF
BLC MODE : OFF
HLC MODE : ON
HLC CLIP LEVEL : XX
HLC LEVEL : XX
HLC MODE : Select ON or OFF.
SPECIAL MENU
BACK
< NEAR / RIGHT LEVEL>
STABILIZER : OFF
BLC MODE : OFF
HLC MODE : ON
HLC CLIP LEVEL : 03
HLC LEVEL : XX
HLC CLIP LEVEL : Select HLC function ON and set the HLC
CLIP LEVEL.
SPECIAL MENU
BACK
< NEAR / RIGHT LEVEL>
STABILIZER : OFF
BLC MODE : OFF
HLC MODE : ON
HLC CLIP LEVEL : 03
HLC LEVEL : 02
HLC LEVEL : Set the HLC LEVEL.
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR

MAIN MENU
< NEAR / RIGHT RESET >
MOTION
DOME
CAMERA
CLEAR
CAM RESET 
SPECIAL
SAVE BACK EXIT
Make initialize the setting value which is set in CAMERA MENU.
⑦CAMERA RESET
Move : Select : NEAR
28
Outdoor Speed PTZ Dome Camera System User’s Guide
29
Outdoor Speed PTZ Dome Camera System User’s Guide
Set the APERTUREGAIN value .
Select ON/OFF in the FLICKERLESS function.
Select ON/OFF in the BACK LIGHT function.
SPECIAL MENU
BACK
< NEAR / RIGHT APERTURE >
SUB SP MODE
APERTUREGAIN : 07
FLICKERLESS : OFF
BACK LIGHT : OFF
LINE LOCK : OFF
V PHASE : XXX
DNR LEVEL : AUTO
WDR MODE : OFF
SPECIAL MENU
BACK
< NEAR / RIGHT FLICKERLESS >
SUB SP MODE
APERTUREGAIN : 07
FLICKERLESS : OFF
BACK LIGHT : OFF
LINE LOCK : OFF
V PHASE : XXX
DNR LEVEL : AUTO
WDR MODE : OFF
SPECIAL MENU
BACK
< NEAR / RIGHT BACK LIGHT >
SUB SP MODE
APERTUREGAIN : 07
FLICKERLESS : OFF
BACK LIGHT : OFF
LINE LOCK : OFF
V PHASE : XXX
DNR LEVEL : AUTO
WDR MODE : OFF
SPECIAL MENU
BACK
< NEAR / RIGHT LINE LOCK >
SUB SP MODE
APERTUREGAIN : 07
FLICKERLESS : OFF
BACK LIGHT : OFF
LINE LOCK : OFF
V PHASE : XXX
DNR LEVEL : AUTO
WDR MODE : OFF
If you set ON in the LINE LOCK menu, you can set
the V PHASE.
Set the DNR LEVEL from AUTO, OFF and 1 ~ 10.
Set the WDR MODE from OFF, LEV1 ~LEV7.
SPECIAL MENU
SUB SP MODE
APERTUREGAIN : 07
FLICKERLESS : OFF
BACK LIGHT : OFF
LINE LOCK : OFF
V PHASE : XXX
DNR LEVEL : AUTO
WDR MODE : OFF
BACK
< NEAR / RIGHT V PHASE >
SPECIAL MENU
SUB SP MODE
APERTUREGAIN : 07
FLICKERLESS : OFF
BACK LIGHT : OFF
LINE LOCK : OFF
V PHASE : XXX
DNR LEVEL : AUTO
WDR MODE : OFF
BACK
< NEAR / RIGHT DNR LEVEL >
SPECIAL MENU
SUB SP MODE
APERTUREGAIN : 07
FLICKERLESS : OFF
BACK LIGHT : OFF
LINE LOCK : OFF
V PHASE : XXX
DNR LEVEL : AUTO
WDR MODE : OFF
BACK
< NEAR / RIGHT WDR MODE >
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR
Select : or Set ON :
Set OFF :
NEAR
NEAR

30
Outdoor Speed PTZ Dome Camera System User’s Guide
31
Outdoor Speed PTZ Dome Camera System User’s Guide
Here you can clear programmed Preset, Tour, Scan, Pattern, Area, Alarm
and Privacy.
1 Preset
Clear up all of memorized Preset data
2 Tour
Clear up all of memorized Tour data
3 Scan
Clear up all of memorized Scan data
4 Pattern
Clear up all of memorized Pattern data
5 Area
Clear up all of memorized Area data
6 Alarm
Clear up all of memorized Alarm data
7 Privacy
Clear up all of memorized Privacy data
4. 5. 2 CLEAR MENU 5. 1 Mechanism Specification
5. 1. 1 MECHANICAL
5. 1. 2 ENVIRONMENTAL
5. 1. 3 FUNCTIONS
5. 1. 4 ELECTRICAL
5. 1. 5 USER CONNECTIONS
5. 1. 6 CERTIFICATIONS
5. SPECIFICATION
- Pan : 360° Continuous Pan, 0.1º to 160º/sec. (64 steps proportional to zoom)
- Pan Preset Speed : 330°/sec, ± 0.1° Accuracy
- Tilt : 0.1º to 140º/sec. (proportional to zoom)
- Tilt Preset Speed : 250°/sec, ± 0.05° Accuracy
- Weight : Approx. 4.4Kg (10.8 lbs) / Packing : 4.9Kg
- Dimensions : 236(Ø) x 319(D) mm – 166(Ø) dome
- Construction : Aluminum
- Ingress Protection : IP66 (Outdoor Housing)
- Color : Cool gray
- Operating Temp : Indoor : 0°C to 50°C (32° F to 122° F)
Outdoor : -10°C to 50°C (14° F to 122° F)/ with 33W Heater(Optional 62.7W)
- Storage Temp : -20°C to 60°C (-4° F to 140° F)
- Humidity : 0% to 90% (non-condensing)
- Fan operate : 45°C on , 35°C off
- Heater operate : 5°C on , 15°C off
- Preset : 255 points, less than 0.1° accuracy
- Tour : 8 programmable
- Pattern : 4 patterns for 240 second.
- Auto Flip : Auto / Off (Rotate 90° at bottom of tilt)
- Scan : 8 (programmable speed and diagonal scan)
- Privacy Zone : 8 block with title (Mask)
- ID Address : Up to 255 selectable ID (Rotary switch)
- Data Communication Control : RS-485 / RS-422
- Protocol : Multiple protocol (PELCO-D/P, WONWOO)
- Baud rate : 2400, 4800, 9600, 19200, 38400, 57600 bps selectable
- Alarm In : 8 alarm
- Alarm Out : 2 relay out
- Display : 16 Area title
- Power : AC21~26V 60Hz / 50Hz(Power adaptor not included)
: DC10~14V 60Hz / 50Hz(Power adaptor not included)
- Camera Power Consumption : 18.0W
- Heater Power Consumption : 33W
- RS-422, 485 : Dip Switch setting
- Power(Camera) : AC24V, 50/60Hz (Max)15W
: DC12V, 50/60Hz (Max)20W
- Power(Heater) : AC24V, 50/60Hz (Max)35W
: DC12V, 50/60Hz (Max)54W (Max 5A)
- Data communication connection : RS-422, 485 + / - Optional Control Data
- Video connection : BNC
- Alarm Inputs : 8 Programmable
- Relay Out : 2 Dry Contact Output Rating: 2A @30VAC
- CE EMC , FCC CLASS A, RoHS

32
Outdoor Speed PTZ Dome Camera System User’s Guide
33
Outdoor Speed PTZ Dome Camera System User’s Guide
- Image Sensor
- Total Pixels
- Scanning system
- Scanning Frequency
- Sync. System
- Resolution
- Min. illumination
- Video Output
- S/N Ratio
- Lens type
- Zoom Ratio
- Focal Length
- Aperture Ratio
- Focus
- Focus Distance
- E. Zoom
- Exposure
- Gain Control
- Shutter Speed
- Digital Shutter Speed
- Flickerless
- Brightness
- WDR
- Day&Night
- White Balance
- Image DNR
- Sharpness
- Effect
- Freeze
- Intelligent
- Privacy Mask
- Motion Detection
- Object Detection
- Special
- Sync Mode
- Phase
- Digital Image Stabilizer
:1/4" SONY Super HADⅡ(Double Scan) CCD
:1028(H) × 508(V) , 1028(H) x 596(V)
: 2:1 Interlace
: 15.734KHz(H),59.94Hz(V) , 15.625KHz(H),50Hz(V)
: Internal / External (V-Lock)
: MAX 700 TV lines (COLOR) , 750 TV lines (BW)
: Color : 0.5 lux , BW : 0.2 lux , Color DSS : 0.001 lux
BW DSS : 0.0004 lux
: 1.0 Vp-p (75 ohm, composite)
: More than 50dB (AGC off)
: 36x Day & Night Zoom Lens
: Optical 36x, Digital 32x Zoom
: f = 3.4 mm ~ 122.4 mm
: F1.6 (wide) ~ F4.5 (tele)
: Auto / One Push / Manual
: 0.1 / 1.3 / 1.8 / 3.0 / 5.0 m
: Off / Max 2x~32x
: Auto / Shutter PRI / Iris PRI / Manual
: Off / On (Auo Max 30dB)
: 1/60 ~ 1/100,000 sec , 1/50 ~ 1/100,000 sec
: Off / Max 2x~512x
: Off / On
: 1 ~15 steps
: Off / WDR / BLC
: Day / Night / Auto / Ext
: ATW / One-Push / Indoor / Outdoor / Manual / Auto
: Off / Manual / Auto
: 1 ~ 16 steps
: Off / Negative / B&W
: Off / On
: Privacy / MD / OD
: Off / 8 positions
: Off / 3 positions
: Off / On
: Sync / Phase / Comm
: INT / LL
: 0 ~ 255 steps
: Off / On
5. 2 Camera Specification
Optical 36x with WDR
- Image Sensor
- Total Pixels
- Scanning system
- Scanning Frequency
- Sync. System
- Resolution
- Min. illumination
- Video Output
- S/N Ratio
- Lens type
- Zoom Ratio
- Focal Length
- Aperture Ratio
- Focus
- Focus Distance
- E. Zoom
- Exposure
- Gain Control
- Shutter Speed
- Digital Shutter Speed
- Flickerless
- Brightness
- WDR
- Day&Night
- White Balance
- Image DNR
- Sharpness
- Effect
- Freeze
- Intelligent
- Privacy Mask
- Motion Detection
- Object Detection
- Special
- Sync Mode
- Phase
- Digital Image Stabilizer
:1/4" SONY Super HADⅡ(Double Scan) CCD
:1028(H) × 508(V) , 1028(H) x 596(V)
: 2:1 Interlace
: 15.734KHz(H),59.94Hz(V) , 15.625KHz(H),50Hz(V)
: Internal / External (V-Lock)
: MAX 700 TV lines (COLOR) , 750 TV lines (BW)
: Color : 0.5 lux , BW : 0.2 lux , Color DSS : 0.001 lux
BW DSS : 0.0004 lux
: 1.0 Vp-p (75 ohm, composite)
: More than 50dB (AGC off)
: 33x Day & Night Zoom Lens
: Optical 33x, Digital 32x Zoom
: f = 3.4 mm ~ 115.5 mm
: F1.6 (wide) ~ F4.5 (tele)
: Auto / One Push / Manual
: 0.1 / 1.3 / 1.8 / 3.0 / 5.0 m
: Off / Max 2x~32x
: Auto / Shutter PRI / Iris PRI / Manual
: Off / On (Auo Max 30dB)
: 1/60 ~ 1/100,000 sec , 1/50 ~ 1/100,000 sec
: Off / Max 2x~512x
: Off / On
: 1 ~15 steps
: Off / WDR / BLC
: Day / Night / Auto / Ext
: ATW / One-Push / Indoor / Outdoor / Manual / Auto
: Off / Manual / Auto
: 1 ~ 16 steps
: Off / Negative / B&W
: Off / On
: Privacy / MD / OD
: Off / 8 positions
: Off / 3 positions
: Off / On
: Sync / Phase / Comm
: INT / LL
: 0 ~ 255 steps
: Off / On
Optical 33x with WDR

34
Outdoor Speed PTZ Dome Camera System User’s Guide
35
Outdoor Speed PTZ Dome Camera System User’s Guide
- Image Sensor
- Total Pixels
- Scanning system
- Scanning Frequency
- Sync. System
- Resolution
- Min. illumination
- Video Output
- S/N Ratio
- Lens type
- Zoom Ratio
- Focal Length
- Aperture Ratio
- Focus
- Focus Distance
- E. Zoom
- Exposure
- Gain Control
- Shutter Speed
- Digital Shutter Speed
- Flickerless
- Brightness
- WDR
- Day&Night
- White Balance
- Image DNR
- Sharpness
- Effect
- Freeze
- Intelligent
- Privacy Mask
- Motion Detection
- Object Detection
- Special
- Sync Mode
- Phase
- Digital Image Stabilizer
:1/4" SONY Super HADⅡ(Double Scan) CCD
:1028(H) × 508(V) , 1028(H) x 596(V)
: 2:1 Interlace
: 15.734KHz(H),59.94Hz(V) , 15.625KHz(H),50Hz(V)
: Internal / External (V-Lock)
: MAX 700 TV lines (COLOR) , 750 TV lines (BW)
: Color : 0.5 lux , BW : 0.2 lux , Color DSS : 0.001 lux
BW DSS : 0.0004 lux
: 1.0 Vp-p (75 ohm, composite)
: More than 50dB (AGC off)
: 28x Day & Night Zoom Lens
: Optical 28x, Digital 32x Zoom
: f = 3.4 mm ~ 97.9 mm
: F1.6 (wide) ~ F4.5 (tele)
: Auto / One Push / Manual
: 0.1 / 1.3 / 1.8 / 3.0 / 5.0 m
: Off / Max 2x~32x
: Auto / Shutter PRI / Iris PRI / Manual
: Off / On (Auo Max 30dB)
: 1/60 ~ 1/100,000 sec , 1/50 ~ 1/100,000 sec
: Off / Max 2x~512x
: Off / On
: 1 ~15 steps
: Off / WDR / BLC
: Day / Night / Auto / Ext
: ATW / One-Push / Indoor / Outdoor / Manual / Auto
: Off / Manual / Auto
: 1 ~ 16 steps
: Off / Negative / B&W
: Off / On
: Privacy / MD / OD
: Off / 8 positions
: Off / 3 positions
: Off / On
: Sync / Phase / Comm
: INT / LL
: 0 ~ 255 steps
: Off / On
Optical 28x with WDR
- Image Sensor
- Total Pixels
- Scanning system
- Scanning Frequency
- Sync. System
- Resolution
- Min. illumination
- Video Output
- S/N Ratio
- Lens type
- Zoom Ratio
- Focal Length
- Aperture Ratio
- Focus
- Focus Distance
- E. Zoom
- Exposure
- Gain Control
- Shutter Speed
- Digital Shutter Speed
- Flickerless
- Brightness
- WDR
- Day&Night
- White Balance
- Image DNR
- Sharpness
- Effect
- Freeze
- Intelligent
- Privacy Mask
- Motion Detection
- Object Detection
- Special
- Sync Mode
- Phase
- Digital Image Stabilizer
:1/4" SONY Super HADⅡ(Double Scan) CCD
:1028(H) × 508(V) , 1028(H) x 596(V)
: 2:1 Interlace
: 15.734KHz(H),59.94Hz(V) , 15.625KHz(H),50Hz(V)
: Internal / External (V-Lock)
: MAX 700 TV lines (COLOR) , 750 TV lines (BW)
: Color : 0.5 lux , BW : 0.2 lux , Color DSS : 0.001 lux
BW DSS : 0.0004 lux
: 1.0 Vp-p (75 ohm, composite)
: More than 50dB (AGC off)
: 22x Day & Night Zoom Lens
: Optical 22x, Digital 32x Zoom
: f = 3.9 mm ~ 85.8 mm
: F1.6 (wide) ~ F3.7 (tele)
: Auto / One Push / Manual
: 0.1 / 1.3 / 1.8 / 3.0 / 5.0 m
: Off / Max 2x~32x
: Auto / Shutter PRI / Iris PRI / Manual
: Off / On (Auo Max 30dB)
: 1/60 ~ 1/100,000 sec , 1/50 ~ 1/100,000 sec
: Off / Max 2x~512x
: Off / On
: 1 ~15 steps
: Off / WDR / BLC
: Day / Night / Auto / Ext
: ATW / One-Push / Indoor / Outdoor / Manual / Auto
: Off / Manual / Auto
: 1 ~ 16 steps
: Off / Negative / B&W
: Off / On
: Privacy / MD / OD
: Off / 8 positions
: Off / 3 positions
: Off / On
: Sync / Phase / Comm
: INT / LL
: 0 ~ 255 steps
: Off / On
Optical 22x with WDR

6. 3 Parapet Mount Bracket
6. 4 Corner Mount / Pole Mount
- Stainless steel(SUS) body
- Unit : 5.2Kg
- Silver color
- Maximum load : 20Kg
- Dimensions : 890x650 (Arm)
- 250 x 350 (Mount plate)
- 1.25 Inch to 1.5 Inch pipe adaptor
Corner Mount Adaptor
- Steel body
- Unit : 1.3Kg
- Cool gray color
Pole Mount Adaptor
- Steel body
- Unit : 0.7Kg
- Cool gray color
)mm(:tinU )mm(:tinU
)mm(:tinU )mm(:tinU
115
647.00
950.00
350.00
250.00
180
100 100 100
1.25 Inch
5.00
0 0.0 3Ø
155.00
0
0 .
5
8 1
5.00
0
0 .
00
1
0 0 . 0 4
90°
0 4 . 2 2 1
05.1=t
05. 1= t
05.8 6
155.00
0 0 . 03 Ø
00 . 0 2
0 0 . 581
80
36
Outdoor Speed PTZ Dome Camera System User’s Guide
37
Outdoor Speed PTZ Dome Camera System User’s Guide
6. DIMENSION
)mm(:tinU )mm(:tinU
6. 2 Wall and Ceiling Bracket
)mm(:tinU )mm(:tinU
Wall bracket
Ceiling bracket
(Ceiling pipe : 1.25 lnch)
6. 1 Camera

7. CONFIGURATION
7. 1 Control from Keyboard or DVR
38
Outdoor Speed PTZ Dome Camera System User’s Guide
39
Outdoor Speed PTZ Dome Camera System User’s Guide
7. 2 Connecting to Keyboard with DVR
WH
B L
S L
O
R
B R
B K
Y L
R D
G
R
