Profibus HD67D31-B2 User manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 1 of 27
User Manual
Revision 1.000
English
LoRaWAN / PROFIBUS Slave - Converter
(Order Code: HD67D31-B2-868MHz)
For Website information:
www.adfweb.com? roduct=HD67D31-B2
For rice information:
www.adfweb.com? rice=HD67D31-B2-868MHz
Benefits and Main Features:
Very easy to configure
ower Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others LoRaWAN products, see also the following links:
Converter LoRaWAN to
www.adfweb.com? roduct=HD67D01 Modbus Master)
www.adfweb.com? roduct=HD67D02 Modbus Slave)
www.adfweb.com? roduct=HD67D03 Modbus TCP Master)
www.adfweb.com? roduct=HD67D04 Modbus TCP Slave)
www.adfweb.com? roduct=HD67D05 Serial)
www.adfweb.com? roduct=HD67D15 M-Bus)
www.adfweb.com? roduct=HD67D16 BACnet Master)
www.adfweb.com? roduct=HD67D17 BACnet Slave)
www.adfweb.com? roduct=HD67D18 Ethernet)
www.adfweb.com? roduct=HD67D19 CAN)
www.adfweb.com? roduct=HD67D20 CANopen)
www.adfweb.com? roduct=HD67D21 DeviceNet Master)
www.adfweb.com? roduct=HD67D22 DeviceNet Slave)
www.adfweb.com? roduct=HD67D23 DMX)
www.adfweb.com? roduct=HD67D24 EtherNet/IP Master)
www.adfweb.com? roduct=HD67D25 EtherNet/IP Slave)
www.adfweb.com? roduct=HD67D26 J1939)
www.adfweb.com? roduct=HD67D27 KNX)
www.adfweb.com? roduct=HD67D28 NMEA 0183)
www.adfweb.com? roduct=HD67D29 NMEA 2000)
www.adfweb.com? roduct=HD67D30 PROFIBUS Master)
www.adfweb.com? roduct=HD67D32 PROFINET Master)
www.adfweb.com? roduct=HD67D33 PROFINET Slave)
www.adfweb.com? roduct=HD67D34 IEC61850 Client)
www.adfweb.com? roduct=HD67D35 IEC61850 Server)
www.adfweb.com? roduct=HD67D36 MQTT)
www.adfweb.com? roduct=HD67D37 OPC UA Client)
www.adfweb.com? roduct=HD67D38 OPC UA Server)
www.adfweb.com? roduct=HD67D39 S7comm)
www.adfweb.com? roduct=HD67D40 SNMP Manager)
www.adfweb.com? roduct=HD67D41 SNMP Agent)
User Manual

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 2 of 27
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
LORAWAN 10
ROFIBUS 10
ETHERNET 11
USE OF COM OSITOR SW67D31 12
NEW CONFIGURATION / O EN CONFIGURATION 13
SOFTWARE O TIONS 14
SET COMMUNICATION 16
LORAWAN ACCESS 18
GSD FILE 20
U DATE DEVICE 21
LORAWAN AYLOAD 23
MECHANICAL DIMENSIONS 24
ORDERING INFORMATIONS 25
ACCESSORIES 25
DISCLAIMER 26
OTHER REGULATIONS AND STANDARDS 26
WARRANTIES AND TECHNICAL SU ORT 27
RETURN OLICY 27
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision Date Author Chapter Description
1.000 04/12/2020 Ff All First release version

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 3 of 27
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 4 of 27

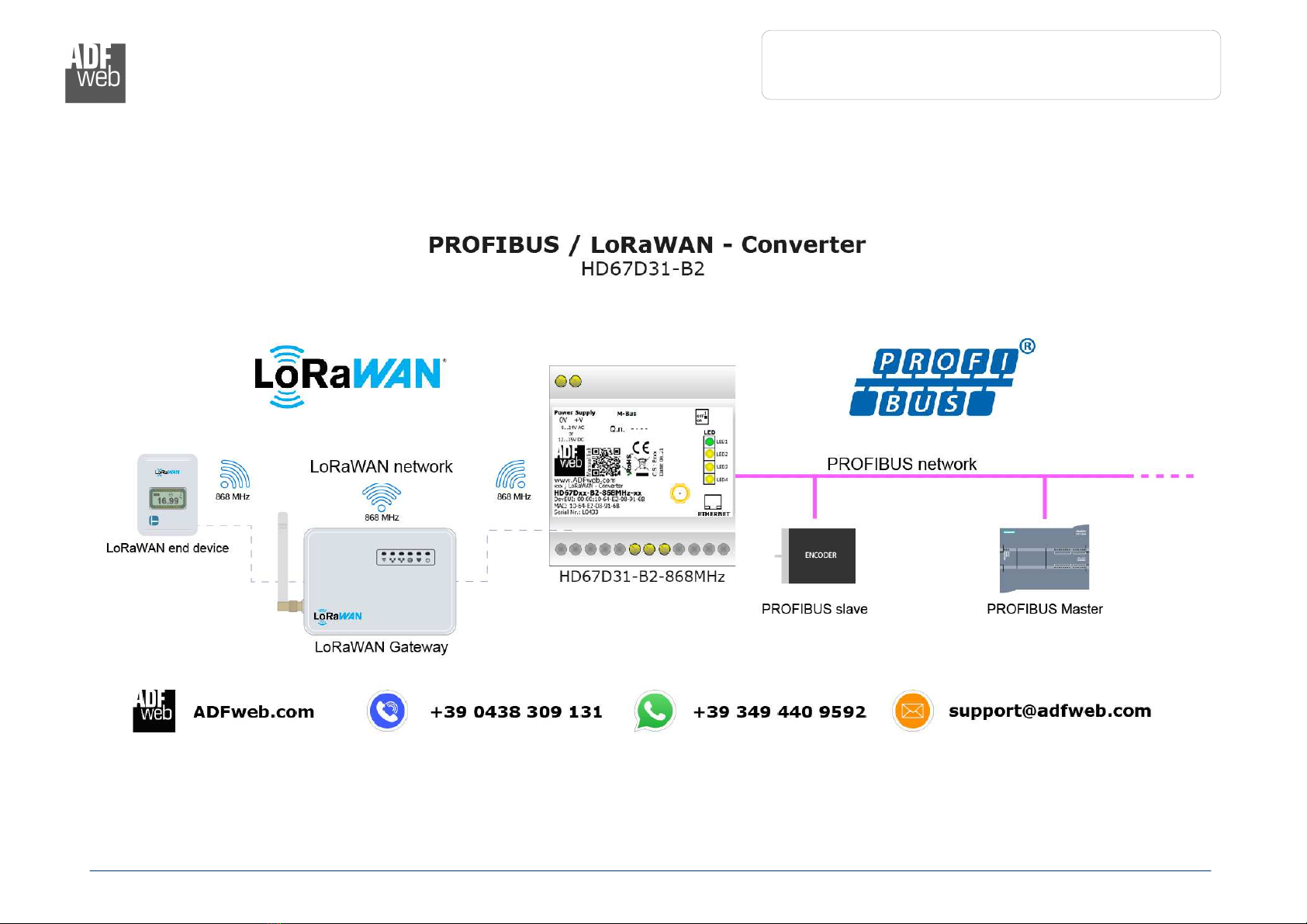

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 5 of 27
CONNECTION SCHEME:

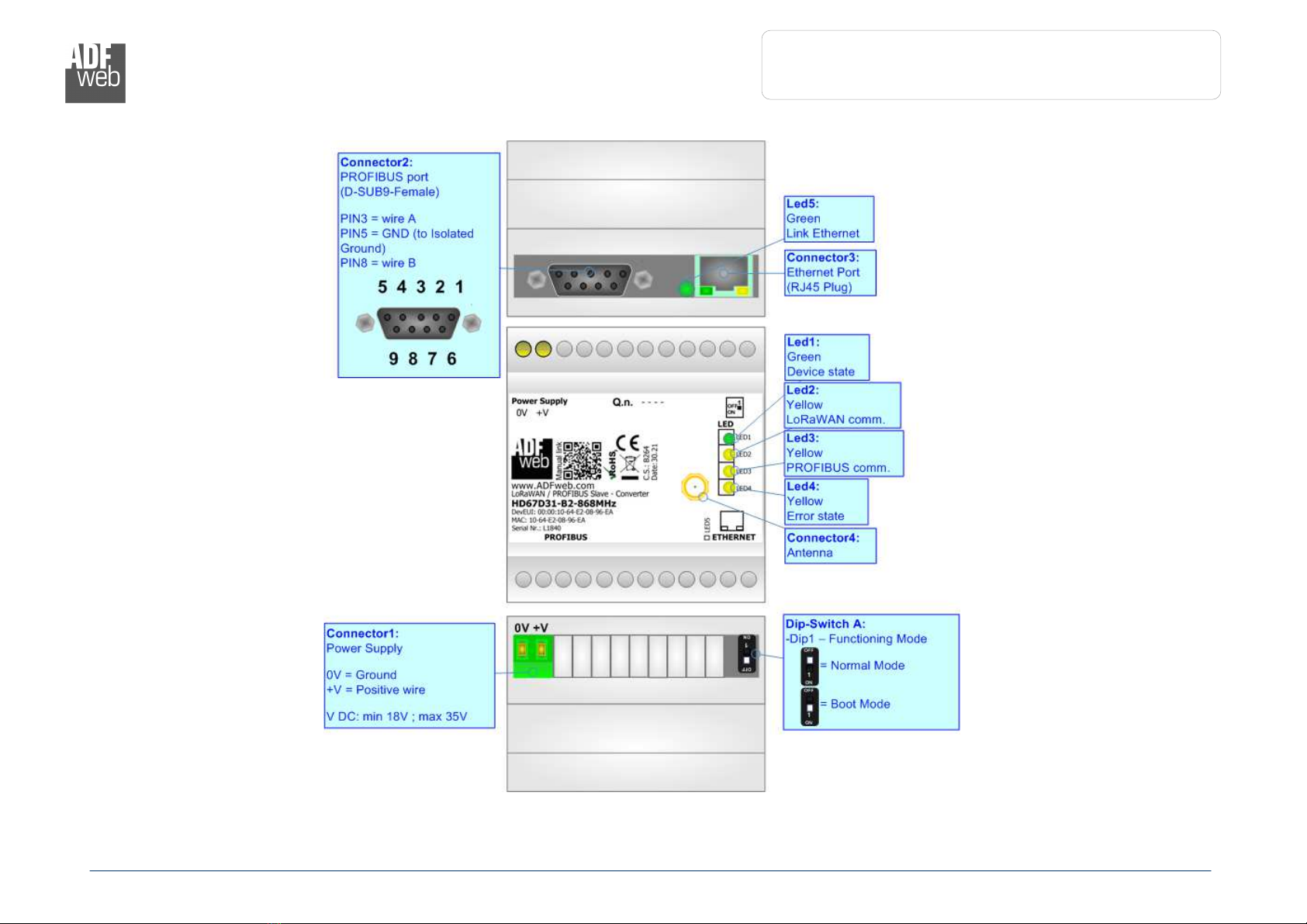

Figure 1: Connection scheme for HD67D31-B -xxxMHz

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 6 of 27
CHARACTERISTICS:
The HD67D31-B2 is a LoRaWAN / ROFIBUS Slave Converter.
It allows the following characteristics:
Electrical isolation between ROFIBUS and ower Supply;
Two-directional information between LoRaWAN bus and ROFIBUS bus;
Mountable on 35mm Rail DIN;
Wide power supply input range: 12…35V DC and 8…24V AC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67D31 software on your C in order to perform the following:
Define the parameter of ROFIBUS line;
Define the parameter of LoRaWAN line;
Define the list of LoRaWAN messages in uplink and downlink to the LoRaWAN gateway;
Generate the GSD file for ROFIBUS Master configuration;
Update the device.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 7 of 27

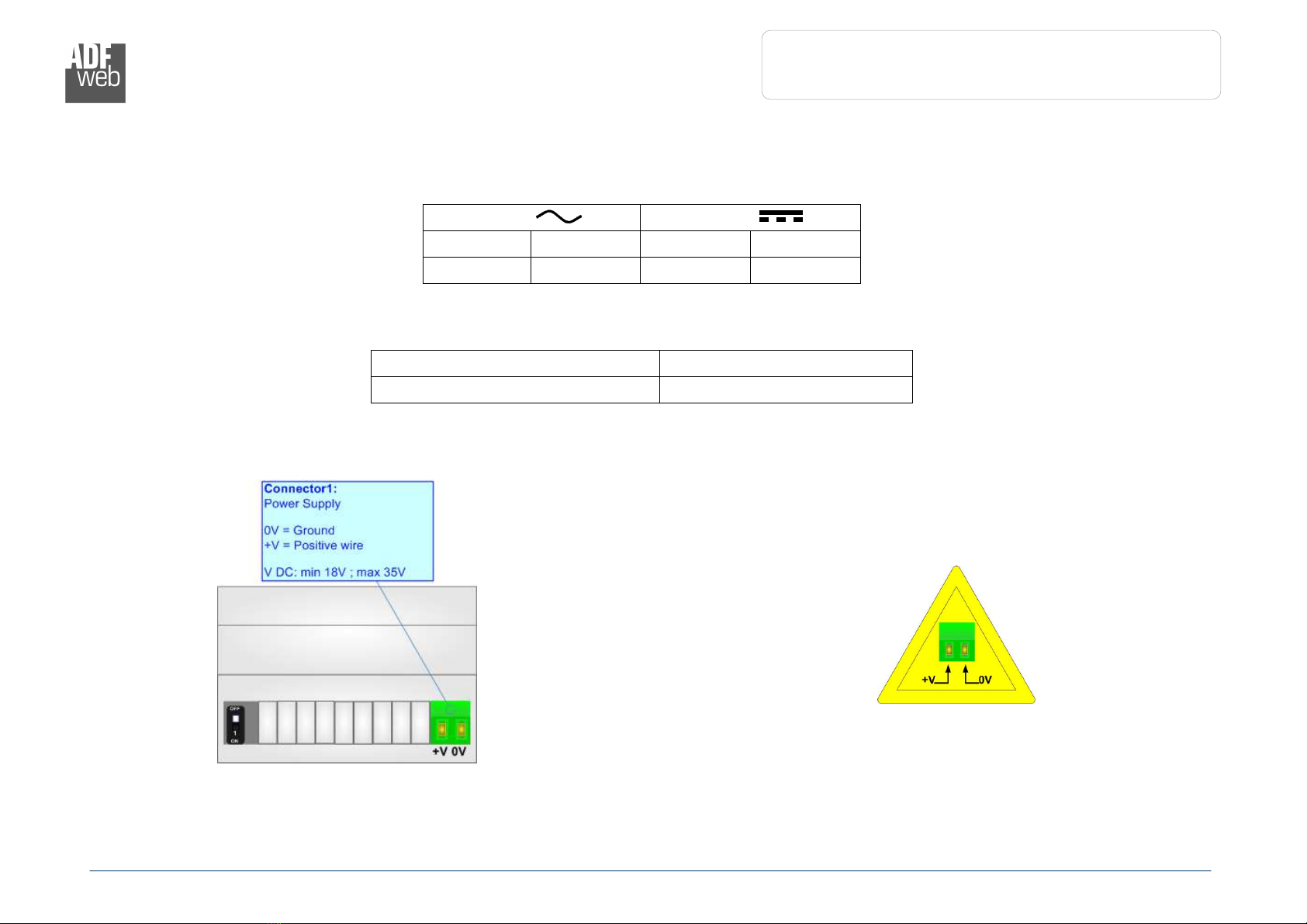

POWER SUPPLY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67D31-B2-xxxMHz 3.5
HD6
7D
3
1
-
B2
-
xxxMHz
Caution: Not reverse the polarity power

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 8 of 27
FUNCTION MODES:

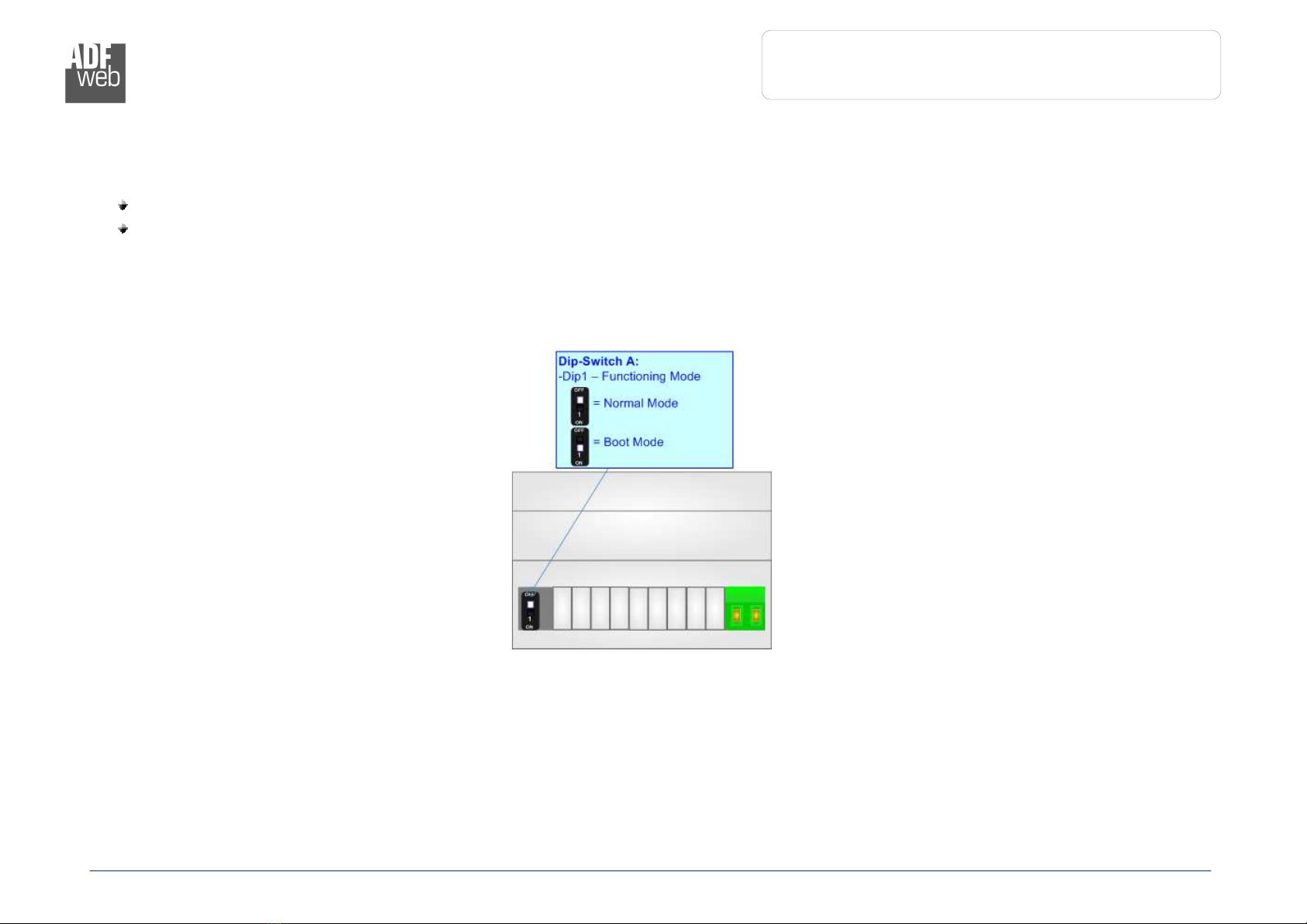

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the roject and/or Firmware.
For the operations to follow for the updating, see ‘U DATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 9 of 27
LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly ~0.5Hz): update in progress
2: LoRaWAN communication
(yellow) Blinks when LoRaWAN data is received Blinks quickly: Boot state
Blinks very slowly ~0.5Hz): update in progress
3: ROFIBUS communication
(yellow) Blinks when a ROFIBUS response is received Blinks quickly: Boot state
Blinks very slowly ~0.5Hz): update in progress
4: Error state (yellow) ON: An error in the communication busses occurs
OFF: No errors are present
Blinks quickly: Boot state
Blinks very slowly ~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 10 of 27
LORAWAN:
The LoRaWAN® specification is a Low ower, Wide Area (L WA) networking protocol
designed to wirelessly connect battery operated ‘things’ to the internet in regional, national
or global networks, and targets key Internet of Things (IoT) requirements such as bi-
directional communication, end-to-end security, mobility and localization services.
LoRaWAN® network architecture is deployed in a star-of-stars topology in which gateways
relay messages between end-devices and a central network server.
The wireless communication takes advantage of the Long Range characteristics of the LoRa
physical layer, allowing a single-hop link between the end-device and one or many
gateways. All modes are capable of bi-directional communication, and there is support for
multicast addressing groups to make efficient use of spectrum during tasks such as
Firmware Over-The-Air (FOTA) upgrades or other mass distribution messages.
Converters from HD67D31 serie act as end-devices and they can communicate with one or
more LoRwaWAN Gateways.
The converters support all the standard datarates and they work both on public and private
networks.
PROFIBUS:
The ROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in
the right figure .
Here some codes of cables:
Belden: p/n 183079A - Continuous Armor DataBus® ISA/S -50 ROFIBUS
Cable;

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 11 of 27

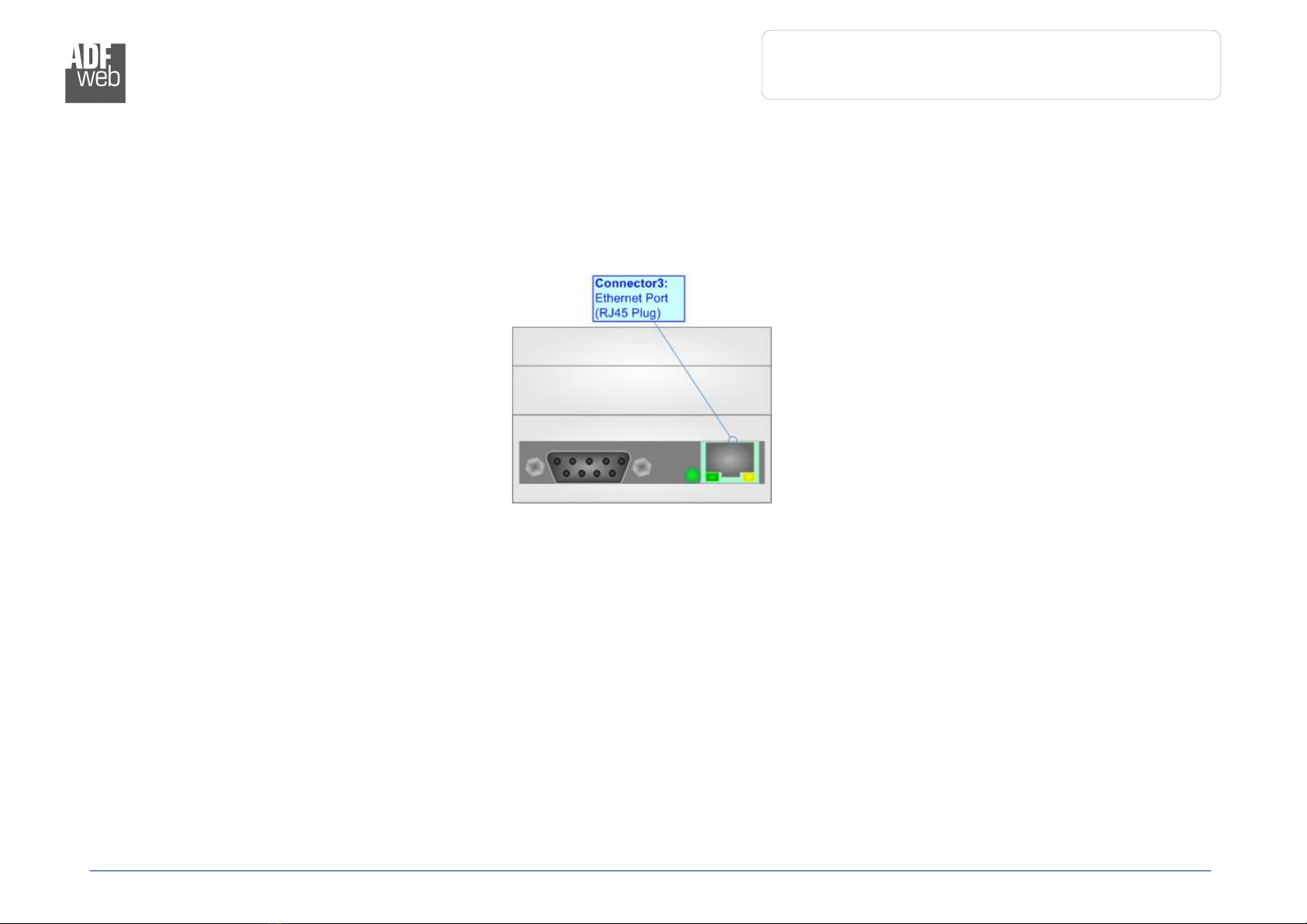

ETHERNET:
The Ethernet port is used for programming the device.
The Ethernet connection must be made using Connector2 of HD67D31-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C is recommended the use of a cross cable.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 12 of 27
USE OF COMPOSITOR SW67D31:
To configure the Converter, use the available software that runs with Windows called SW67D31. It is downloadable on the site
www.adfweb.com and its operation is described in this document. The software works with MS Windows (X , Vista, Seven, 8, 10; 32/64bit).

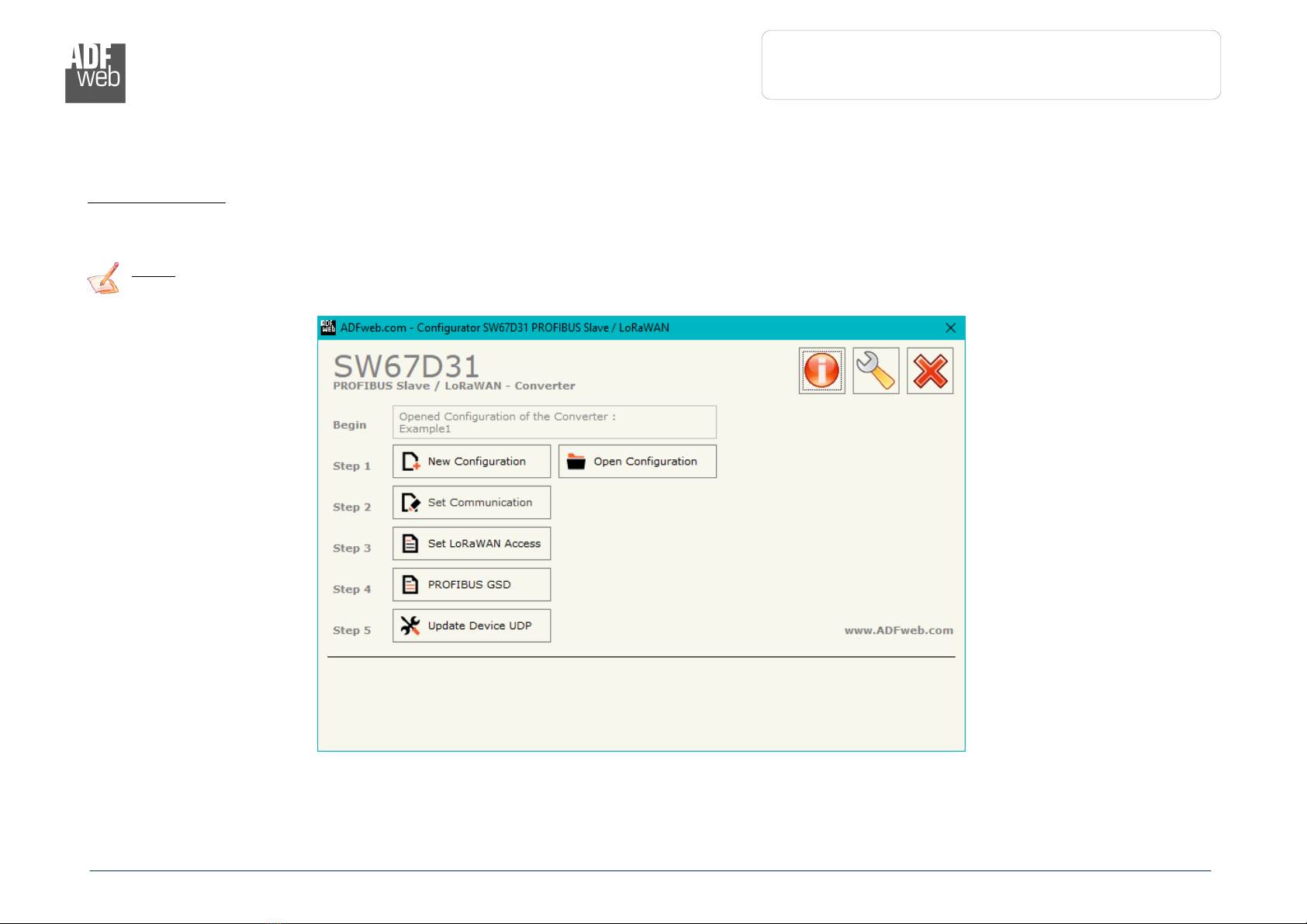

When launching the SW67D31, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure : Main window for SW67D
3
1

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 13 of 27
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a rogrammable “LoRaWAN / ROFIBUS Slave -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 14 of 27
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67D31 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 15 of 27
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 16 of 27
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, LoRaWAN
and ROFIBUS Slave.
By ressing the “Set Communication” button from the main window for SW67D31
(Fig. 2) the window “Set Communication” appears (Fig. 3).
The window is divided in different sections in order to define the different parameters of
the converter:
LoRaWAN
ROFIBUS
Ethernet
Figure
3
a
:
“Set Communication” window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 17 of 27
L O R A WAN:
This section is used to define the general parameters of LoRaWAN. The means of
the fields are:
In the field “RF Band” the wireless band used for LoRaWAN communication
is defined;
In the field “Network Type” the type of LoRaWAN network is defined;
If the field “Adaptive Data Rate” is checked, the converter will enable the
ADR functionalities to select the best data rate to be used in relation to the
environmental conditions;
In the field “Data Rate” the data rate for LoRaWAN communication is
defined;
In the field “Transmission Type” the type of LoRaWAN communication is
defined;
In the field “Max Payload Size” the maximum dimension of the LoRaWAN
messages is defined (fixed in relation to the data rate selected);
In the field “Activation Method” the method used to join into a LoRaWAN
network is defined;
In the field “Device Address” the device identifier (DevEUI) is defined (only
for AB method);
In the field “Application Identifier” the application identifier (AppEUI) is defined (only for AB method);
In the field “Network Session Key” the key used for the communication with the LoRaWAN gateway (NwkSKey) is defined (only for
AB method);
In the field “Application Session Key” the key for encryption and decryption of the payload (AppSKey) is defined (only for AB
method);
If OTAA method is selected, in the field “Application Key” the secret key for the dynamic activation of the converter in the LoRAWAN
network is defined.
Figure 3b: “Set Communication  LoRaWAN”
window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 18 of 27
PROFIBUS:

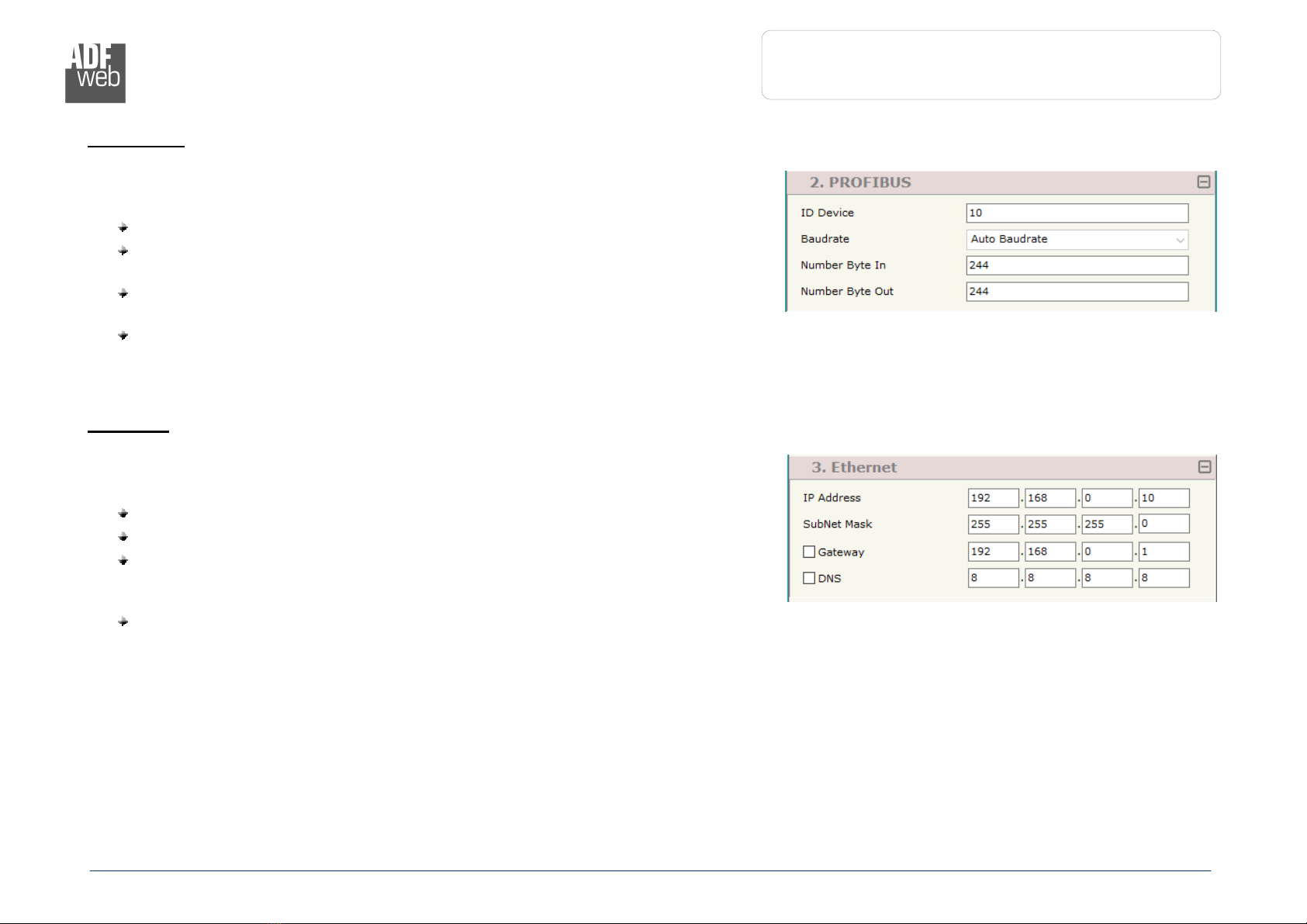

This section is used to define the general parameters of ROFIBUS . The means of the
fields are:
In the field “ID Device” the ID for the ROFIBUS side is defined;
In the field “Buadrate” the data rate of ROFIBUS is defined (fixed to “Auto
Baudrate”);
In the field “Number Byte In” the number of input byte of ROFIBUS is
defined;
In the field “Number Byte Out” the number of output byte of ROFIBUS is
defined.
E THERNET :
This section is used to define the general parameters of Ethernet . The means of the
fields are:
In the field “IP Address” the I address of the converter is defined;
In the field “SubNet Mask” the SubNet Mask of the converter is defined;
In the field “Gateway” the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field “DNS” the I Address of the DNS server is defined.
Figure 3c: “Set Communication  PROFIBUS”
window
Figure 3d: “Set Communication  Ethernet”
window

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 19 of 27
F
igure 4a: “LoRa
WAN Access

LoRaWAN Uplink” window
LORAWAN ACCESS:

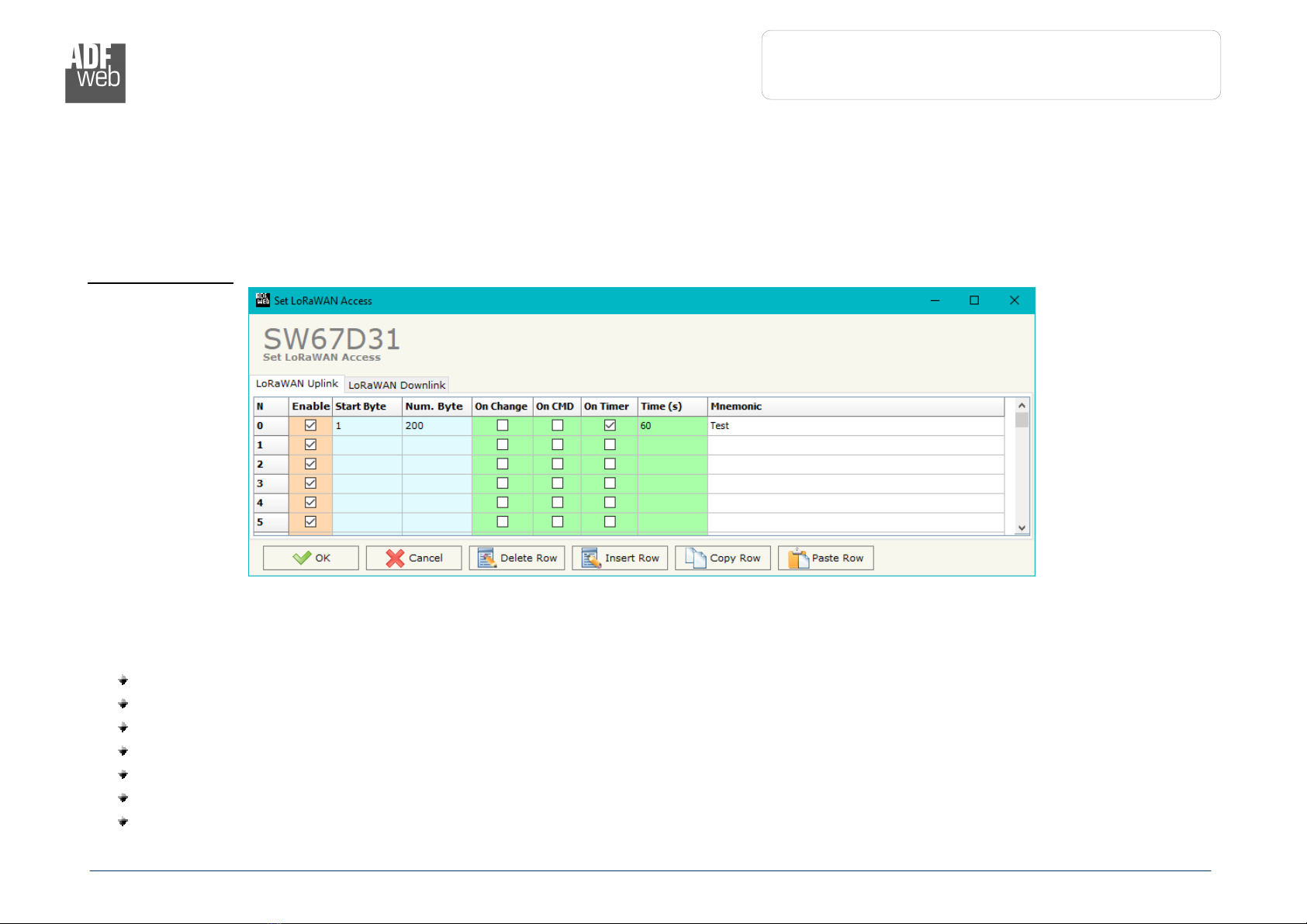

By ressing the “LoRaWAN Access” button from the main window for SW67D31 (Fig. 2) the window “Set LoRaWAN Access” appears (Fig.
4).
This section is used to define the LoRAWAN messages where the converter will place the data read from ROFIBUS (Uplink) and the
LoRAWAN messages that the converter will take (Downlink) for writing the data to ROFIBUS.
L O R A WAN U PLINK
The means of the fields are:
If the field “Enable” is checked, the LoRaWAN message is enabled;
In the field “Start Byte” the starting byte of the internal memory array where taking the data is defined;
In the field “Num. Byte” the number of consecutive bytes to take from the internal array starting from “Start Byte” is defined;
If the field “On Change” is checked, the LoRaWAN message is sent only when the data from ROFIBUS change;
If the field “On CMD” is checked, the LoRaWAN message is sent when a ROFIBUS request is received;
If the field “On Timer” is checked, the LoRaWAN message is sent cyclically with the delay defined in “Time s)” field;
In the field “Mnemonic” a description of the message is defined.

Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
LoRaWAN / PROFI
BUS
Slave
Document code: MN67D31_ENG Revision 1.000 age 20 of 27
Figure 4b: “LoRaWAN Access  LoRaWAN Downlink” window
L O R A WAN D OWNLINK
The means of the fields are:
If the field “Enable” is checked, the LoRaWAN message is enabled;
In the field “Start Byte” the starting byte of the internal memory array where placing the data is defined;
In the field “Num. Byte” the number of consecutive bytes to write to the internal array starting from “Start Byte” is defined;
In the field “Mnemonic” a description of the message is defined.
GSD FILE:
By pressing the “GSD File” button it is possible to save the GSD file for the ROFIBUS side.
With this feature you can save the configuration of the gateway of the ROFIBUS side.
Note:
When you import the .gsd file on your Master ROFIBUS you have to add all the modules that are present inside it.
