Progress Lighting AirPro P250074 User manual

®
P250074
93153466_A

Limited Lifetime Warranty
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
111017
P250074
Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical
defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and
metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from
the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/
or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for
ENERGY STAR® qualied products may apply.
Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal
conditions of use, are warranted to be free from defects in material and workmanship which cause the light
sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase
on the LED Light modules and electrical components for fans used in single family residences, and (ii) three
(3) years from the date of purchase on the LED Light modules and electrical components for fans used in
multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other
than manufacturer’s warranty. Non-LED bulbs carry no warranty.
With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the
rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)
678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall
be purchaser’s sole and exclusive remedy.
Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor
(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.
This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,
misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser
or a third party, including without limitation improper voltage supply or power surge, use of improper parts or
accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.
THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION
AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.
PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,
INCIDENTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF
BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations
of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specic rights and you may have other rights which vary from state to state.
785247260959
785247260942
785247261062

Safety Rules
Unpacking Your Fan
Installing Your Fan
Making the Electrical Connections
Operating Your Fan
Care of Your Fan
Troubleshooting
Specications
Table of Contents
1
2
3
6
11
12
12
13

1. To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes.
Electrical installation should be performed by a qualied
licensed electrician.
3. CAUTION: To reduce the risk of personal injury, use only the
screws provided with the electrical box.
4. The outlet box and support structure must be securely
mounted and capable of reliably supporting 35 lbs. (15.9 kg).
Use only cUL Listed outlet boxes marked “Acceptable for Fan
Support of 35 lbs. (15.9 kg) or less.”
5. CAUTION: The fan must be mounted with a minimum of 7
feet clearance from the trailing edge of the blades to the oor.
6. Do not wait for the fan to stop before pressing the reverse
button. The fan will not reverse direction if the fan is not
moving.
7. Avoid placing objects in path of the blades.
8. To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
10. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into electrical box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
electrical box and ungrounded conductor on the other side of
the electrical box.
11. Electrical diagrams are for reference only. Light kits that
are not packed with the fan must be UL Listed and marked
suitable for use with the model fan you are installing. Switches
must be UL General Use Switches. Refer to the instructions
packaged with the light kits and switches for proper assembly.
12. All set screws must be checked and retightened where
necessary before installation.
13. WARNING: To reduce the risk of re or electric shock,
this fan should only be used with fan speed control part
no. DP-51R, manufactured by DAWNSUN ELECTRONIC
TECHNOLOGY CO LTD ZHONGSHAN.
1. Safety Rules
READ AND SAVE THESE INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN
SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-
VIDED WITH THE OUTLET BOX.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED
WITH AN ISOLATION WALL CONTROL/SWITCH.

a. Blade attachment hardware
(19 screws)
b. Electrical hardware and balancing kit
(1 plastic wire connector, blade balancing kit)
7. Light Kit Pan
8. Light Kit Fitter Assembly
9. Light Shade
10. Transmitter and Receiver
11. Extension Lead Wires (4)
1. Mounting Bracket (inside canopy)
2. 6” Ball/Downrod Assembly (hanger pin
and locking pin pre-attached)
3. Canopy with Canopy Ring (attached)
4. Decorative Motor Collar Cover
5. Fan Motor Assembly
6. Blades (6)
2. Unpacking Your Fan
Unpack your fan and check the contents. You should have the following items:
ab
1
2
3
4
5
6
7
8
911
10
2h 4h 8h
R
34
25
16
OFF

3. Installing Your Fan
Tools Required
Phillips screw driver or straight slotted screw
driver, adjustable wrench, step ladder, and
wire cutters.
Mounting Options
If there isn’t an existing electrical box, then
read the following instructions. Disconnect
the power by removing fuses or turning off
circuit breakers.
Secure the electrical box directly to the building
structure. Use appropriate fasteners and
building materials. The electrical box and
its support must be able to fully support the
moving weight of the fan (at least 35 lbs.).
Do not use plastic electrical boxes.
Figures 1, 2, and 3 are examples of different
ways to mount the electrical box.
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum
angle allowable is 20˚. If the canopy touches
downrod, turn the canopy 180˚ before
attaching the canopy to the mounting plate.
To hang your fan where there is an existing
xture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED “ACCEPTABLE
FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR
LESS”, AND USE SCREWS PROVIDED WITH
THE OUTLET BOX. ELECTRICAL BOXES
COMMONLY USED FOR THE SUPPORT OF
LIGHTING FIXTURES MAY NOT BE ACCEPT-
ABLE FOR FAN SUPPORT AND MAY NEED TO
BE REPLACED. CONSULT A QUALIFIED ELEC-
TRICIAN IF IN DOUBT.
Figure 1
Figure 2
Figure 4
Figure 3

4.
Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This fan is recommended for
standard ceiling mount using the downrod
provided with this fan. When using standard
ceiling installation with the 6 inch downrod
provided, the distance from the ceiling
to the bottom of the fan blades will be
approximately 18 inches.
Standard Ceiling Mounting
1. Remove the canopy ring from the canopy
by turning the ring counter-clockwise
until it unlocks. (Figure 5)
2. Remove the mounting bracket from the
canopy by loosening the four screws on
the top of the canopy. Remove the two
non-slotted screws and loosen the slotted
screws. This will enable you to remove
the mounting bracket. (Figure 6)
3. Remove the hanger pin and locking pin
from downrod assembly.
4. Place downrod over canopy and canopy
ring, slide the motor collar cover onto the
downrod. Connect the extension lead wires
to the lead wires from motor. Make sure
the quick connectors are clasped rmly.
Route the wires through the ball/downrod
assembly. (Figure 7)
Remove
Loosen but Do Not Remove
Turn Canopy Ring to Remove
Figure 5
Figure 6
5. Loosen, but do not remove, the set screws
on the collar on the top of the motor
housing.
6. Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing. (Figure 7)
Carefully insert the hanger pin through the
holes in the collar and downrod. Be careful
not to jam the hanger pin against the wiring
inside the downrod. Insert the locking pin
through the hole near the end of the bolt
until it snaps into its locked position, as
noted in the circle inset of Figure 7.
7. Re-tighten the set screws on the collar on
top of the motor housing.
8. Make sure the grommet is properly installed
in the collar cover, then slide the collar cover
on the downrod until it rests on the motor
housing. Be sure that the canopy and the
collar cover are both oriented correctly.
9. Proceed to “Installing the Fan” section.
FAILURE TO PROPERLY INSTALL SET SCREWS
AS NOTED IN STEP 7 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Figure 7
Pin in locked
position
Motor wires
Ball/Downrod
assembly
Canopy
Canopy ring
Motor collar
cocer
Hanger pin Locking pin
Motor collar Tighten
screws

Standard mounting
5.
Installing Fan to
the Electrical Box
1. Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket
as shown in Figure 8.
2. Install the ceiling mounting bracket on the
electrical box by using the mounting screws
provided with the electrical box. Note that
the at side of the mounting bracket is
toward the electrical box. (Figure 8)
3. Tighten the two screws on the electrical box
securely.
4. Carefully lift the fan assembly up to the
ceiling mounting bracket. Make sure the tab
on the mounting bracket is properly seated
in the groove in the hanger ball. (Figure 9)
WHEN USING THE STANDARD BALL/DOWNROD
MOUNTING, THE TAB IN THE RING AT THE
BOTTOM OF THE MOUNTING BRACKET MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
Figure 9
Figure 8

Figure 10
6.
Figure 11
BLUE
BLUE
BLACK WHITE
WHITE
Remote
Receiver
WHITE
L N
BLACK
GREY
B
ROWN
BLUE
B
ROWN
GREY
GREEN
WHITE
WHITE
BLUE
BLUE
SUPPLY CIRCUIT
Installing the
Receiver into the
Mounting Bracket
1. Position the house supply wires to one side
of the slide-on mounting bracket; position
the fan wires to the opposite side.
2. Insert the narrow end of the receiver (as
shown, at side toward ceiling) into the
slide-on mounting bracket until it rests on
top of the ball/downrod assembly. (Figure
10)
Wiring the Fan to the
Receiver
1. If using the 6 in. ball downrod assembly
provided, wire the receiver to the fan wires
by connecting the molded adaptor plug
from this receiver with the molded adaptor
of the fan motor assembly together.
(Figure 11)
2. If you wish to use longer downrod, you
can use the extension lead wire (66 in.)
provided by connecting the molded
adaptors together.
Wiring the Receiver to
the Household Wiring
1. Connect the green wire to the household
ground wires using a wire connecting nut.
2. Connect the receiver black wire to
the household black wire using a wire
connecting nut.
3. Connect the receiver white wire to the
household white wire using a wire
connecting nut.

7.
Attaching the Fan
Blades
Figure 13
Finishing the Fan
Installation
STANDARD CEILING MOUNTING
1. Align the locking slots of the ceiling
canopy with the two screws in the
mounting plate. Push up to engage the
slots and turn clockwise to lock in place.
Immediately tighten the two mounting
screws rmly.
2. Install the remaining two mounting screws
into the holes in the canopy and tighten
rmly.
3. Install the decorative canopy ring by
aligning the ring’s slots with the screws in
the canopy. Rotate the ring clockwise to
lock in place.
4. You may now proceed to attaching the
fan blades.
WHEN USING THE STANDARD BALL/DOWNROD
MOUNTING, THE TAB IN THE RING AT THE
BOTTOM OF THE MOUNTING PLATE MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
1. Insert the blade through the slot
cut-off in the center ywheel, align
the three screw holes in the blade
with the screw holes in the ywheel
and secure with the screws provided.
(Figure 13)
2. Repeat for the remaining blades.
Screws
Motor Assembly
Blade
Figure 12

Figure 14

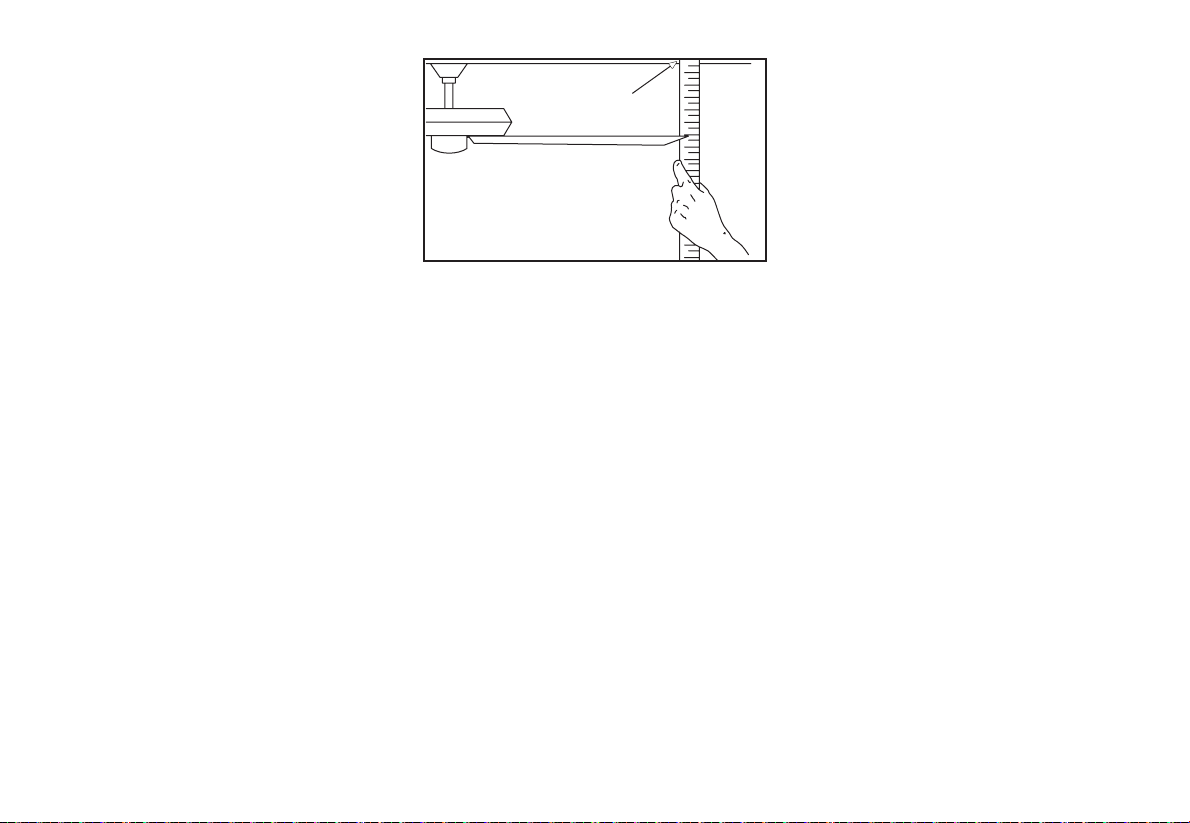

Blade Balancing
All blades are grouped by weight. Because
materials vary in density, the fan may wobble
even though the blades are weight matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
from a point on the center of each blade
to the point on the ceiling. Measure this
distance as shown in Figure 14. Rotate
the fan until the next blade is positioned
for measurement. Repeat for each blade.
Measurements deviation should be within
1/8”. Run the fan for 10 minutes.
3. Make sure that canopy is tightened securely
to ceiling mounting bracket and that the
ceiling mounting bracket is tightened
securely to the electrical box.
4. Interchanging two adjacent blades can
redistribute the weight and possibly result
in the smoother operation.
5. Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable.
Touching
Ceiling
8.

9.
Installing the Light Kit
Pan/Light Kit Fitter
Assembly
CAUTION - To reduce the risk of electrical
shock, disconnect the electrical supply circuit
to the fan before installing the light kit.
1. Loosen but do not remove two of three
mounting screws from the fan motor
assembly; Remove one mounting screw.
(Figure 15)
2. Push the light kit pan up to the fan motor
assembly so that the two loosened screw
heads t into the keyhole slots. Turn the
light kit pan clockwise, tightened the
screws. Re-install the screw that was
removed in step 1 and tighten rmly.
(Figure 15)
3. Remove one screw from the light kit pan
and loosen, but do not remove the other
two screws. Connect the wires from the
light kit tter assembly to the wires from
the fan motor assembly by connecting the
molded adaptor plugs together. Carefully
tuck all wires and splices into the switch
cap. (Figure 16)
4. Push the light kit tter assembly up so
that the two loosened screw heads t into
the keyhole slots. Turn the light kit tter
assembly clockwise, tighten the screws.
Re-install the screw that was removed in
step 3 and tighten rmly. (Figure 16)
5. Place the shade into the light kit pan,
aligning the three at areas on the top of
the shade with the three raised dimples in
the light kit pan. Turn the shade clockwise
until it stops. Make sure to twist the lens
in completely. Exert enough force to get
over the rst bump and twist completely in.
(Figure 17)
Screws
Light Kit
Pan
Motor
Assembly
Figure 15
Figure 16
PERIODICALLY CHECK THE GLASS SHADE IS
SEATED FULLY CLOCKWISE IN THE LIGHT KIT
PAN ASSEMBLY.
Figure 17
Shade
Flat
Area
Raised
Dimples
Light Kit Fitter
Assembly
Screws
Light Kit
Pan
White
Blue
Black

10. Remote Control
LEARN
CFL 0
D 1
LEARN
CFL 0
D 1
Figure 18

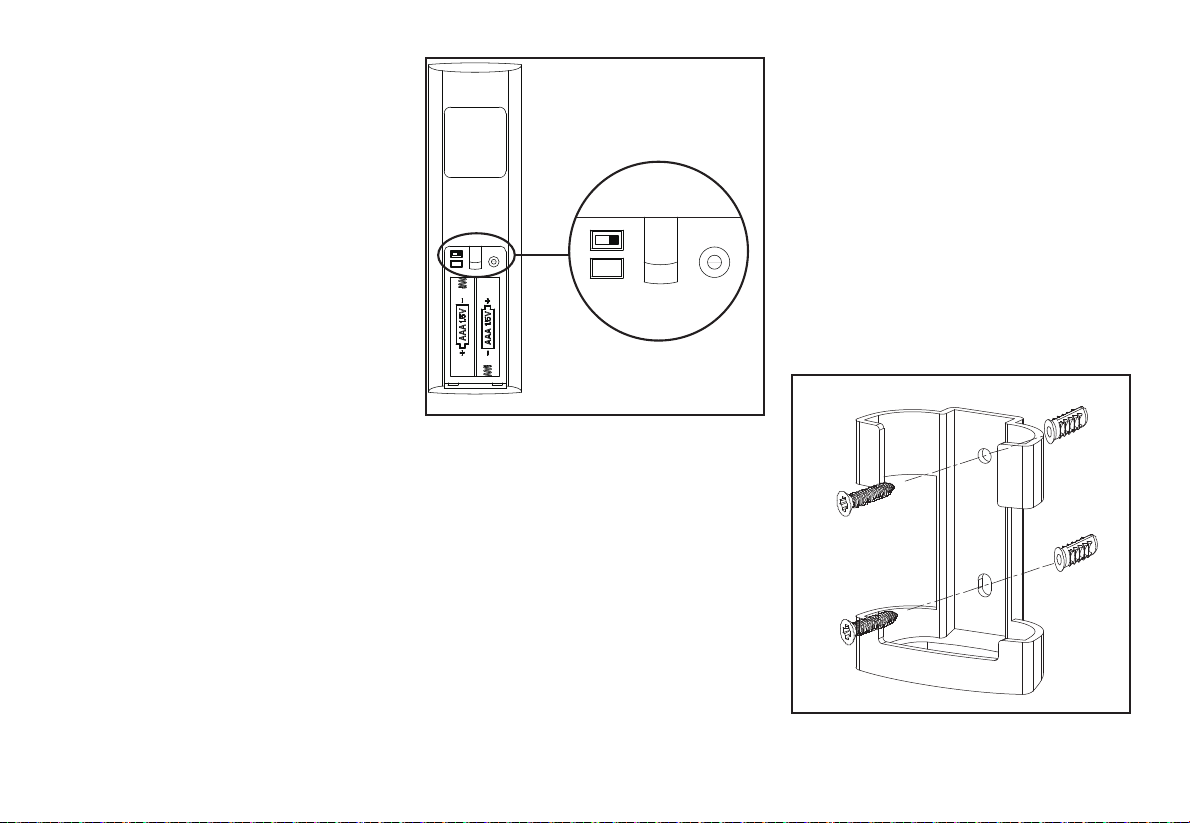

Preparing the Remote
Control
1. Remove the battery cover by pressing
rmly on the arrow and sliding the cover
off.
2. Install two 1.5V AAA batteries (included).
3. Slide the dip switch in the battery
compartment to the “1” setting.
4. Conrm that the power to the fan is off at
either the wall switch or breaker box.
5. Return power to the fan at the wall switch
or breaker box.
6. Press and release the “Learn” button
located in the remote’s battery
compartment within 30 seconds of turning
on the power.
7. If pairing is successful, the fan’s light kit
will ash and the blades will begin to spin.
8. Replace the battery cover on the remote
control.
NOTE: The remote control has already
been paired to the ceiling fan for your
convenience. If you have two of the
same model fans in your home , please
follow the steps below to control each fan
independently.
Mounting the remote
control holder
1. Position the wall cradle in the desired
position and attach it to the wall using the
included wall cradle screws.
NOTE: Screw wall anchors are included
for extra support. The included screws are
designed to screw easily into the wall. If you
would like a more permanent or secure hold,
install the wall anchors prior to attaching the
wall cradle to the wall.
Figure 19

Remote Control
Figure 21
Figure 22
Warm weather - (Forward) A downward air
ow creates a cooling effect as shown in Figure
21. This allows you to set your air conditioner
on a higher setting without affecting your
comfort.
Cool weather - (Reverse) An upward air ow
moves warm air off the ceiling are as shown in
Figure 22. This allows you to set your heating
unit on a lower setting without affecting your
comfort.
Figure 20
11.
Timer:
While the fan is on press 2h - turns on a 2 hour run timer.
While the fan is on press 4h - turns on a 4 hour run timer.
While the fan is on press 8h - turns on an 8 hour run
timer.
Forward/Reverse:
Changes direction of ceiling fan.
Breeze:
Press and release this button to enable the Breeze
function, this will change your fan speed randomly,
simulating a relaxing breeze.
Fan speed:
LEDs on the fan speed button will illuminate to the
corresponding speed.
Press and release 1: turns the fan speed to 1.
Press and release 2: turns the fan speed to 2.
Press and release 3: turns the fan speed to 3.
Press and release 4: turns the fan speed to 4.
Press and release 5: turns the fan speed to 5.
Press and release 6: turns the fan speed to 6.
Fan OFF:
Turns fan Off
Light ON/OFF
Press and release the light button to turn the light on.
Press and release the light button to turn the light off.
Dimmer:
Press and hold up dimmer button to increase the light
level
Press and hold the down dimmer button to decrease the
light level.
Timer
Light on
Increases the
light level
(Dimmer)
Forward/
Reverse Comfort
Breeze
Fan speed
Decreases the
light level
(Dimmer)
Light off
Fan off
2h 4h 8h
R
34
25
16
OFF

12. Care of Your Fan and Troubleshooting
Care of Your Fan
Here are some suggestions to help you
maintain your fan.
1. Because of the fan’s natural movement,
some connections may become loose.
Check the support connections, brackets,
and blade attachments twice a year. Make
sure they are secure. (It is not necessary to
remove fan from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Do
not use water when cleaning, this could
damage the motor, or possibly cause an
electrical shock. Use only a soft brush
or lint-free cloth to avoid scratching the
nish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing.
Warning - Make sure the power is off
before cleaning your fan.
3. You can apply a light coat of furniture polish
to the wood for additional protection and
enhanced beauty. Cover small scratches
with a light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
sealed ball bearings. MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT TO MAKE ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS.”
Fan will not start
Fan sounds noisy
1. Check main and branch circuit fuses or breakers
2. Check line wire connections to the fan and switch wire connections in
the switch housing. CAUTION: Make sure main power is off.
3. Check batteries in the transmitter. Does the red LED light come on?
Are you standing close enough to the fan? (Normal range is 10-20
feet.) Are the dip switch settings the same on the transmitter (hand unit)
and receiver? REMEMBER TO TURN OFF POWER SUPPLY
BEFORE CHECKING THE DIP SWITCH SETTINGS IN
RECEIVER.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub
are tight.
3. Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
CAUTION: Make sure power is off.
4. Allow a 24-hour “breaking in” period. Most noises associated with a
new fan disappear during this time.
5. If using the Ceiling Fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
6. Make sure the canopy is a short distance from the ceiling.
It should not touch the ceiling.
7. Make sure your electrical box is secure and rubber isolator pads were
used between the mounting bracket and electrical box.
Troubleshooting
Problem Solution

13. Specications
FAN
SIZE SPEED VOLTS
FAN POWER
CONSUMPTION
(WITHOUT LIGHTS)
WATTS
AIRFLOW
CFM
AIRFLOW
EFFICIENCY
(HIGHER IS BETTER)
CFM/WATT
NET
WEIGHT
GROSS
WEIGHT
CUBE
FEET
56”
Low
120
2.39 2380 995.82 18.08
Lbs
20.95
Lbs 1.83
High 35.7 6857 192.07
©2017 Progress Lighting, Inc.
701 Millennium Blvd.,
Greenville, SC 29607
All Rights Reserved
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

®
P250074
93153466_A
Manual de instalación de ventilador de techo

Garantía limitada de por vida
Fecha de compra
Tienda donde se
compró
Modelo UL Nº
Número de serie
Proveedor Nº
UPC
111017
P250074
Los motores de ventilador Progress Lighting se garantizan al comprador original como libres de defectos eléctricos
y/o mecánicos por el tiempo en que estén en su posesión como dueño. Los interruptores activados por cadena, los
interruptores de reversa, los capacitores y los acabados de metal se garantizan como libres de defectos materiales
o de fabricación por el plazo de 1 año desde la fecha de compra. Las deformaciones de las aspas de madera o
plástico no están cubiertas por esta garantía. Tampoco lo están la corrosión y/o deterioro del acabado de ventiladores
instalados a menos de diez millas de cualquier costa del mar. Pudieran aplicarse garantías extendidas para productos
ENERGY STAR® que caliquen.
Los ventiladores de techo Progress Lighting con fuentes de luz LED incorporadas, si han sido bien instalados y
bajo condiciones normales de uso, se garantizan como libres de defectos materiales y de fabricación que puedan
causar un fallo en el funcionamiento según las especicaciones de dichas fuentes de luz durante un periodo de (i)
cinco (5) años a partir de la fecha de compra para los módulos de luz LED y componentes eléctricos de ventiladores
usados en residencias unifamiliares y durante (ii) tres (3) años para ventiladores usados residencias multifamiliares
o en instalaciones comerciales. Las bombillas LED suministradas por Progress Lighting sólo poseen la garantía del
fabricante. Las bombillas que no sean LED no tienen garantía.
Con prueba de la compra, el comprador original puede devolver el ventilador defectuoso, para su reposición, al lugar
donde lo compró, dentro de los 30 días siguientes a la compra. Pasados 30 días, el comprador original TIENE que
contactar a Progress Lighting llamando al [phone] para reparación o reposición, según determine Progress
Lighting a su entera discreción, y este será el único y exclusivo remedio del comprador.
Se excluyen cargos por mano de obra y envío. Esta garantía no cubre ningún costo ni cargo asociado a la mano de
obra (incluyendo, pero sin limitarse a, los cargos del electricista) que se requiera para instalar, retirar o reponer un
ventilador o cualquiera de sus partes.
Esta garantía no cubre ninguna pérdida o daño resultante de (i) desgaste normal o alteración, mal uso, abuso o
negligencia, o (ii) instalación, operación, reparación o mantenimiento incorrectos por el comprador original o un
tercero, incluso sin limitación del suministro de tensión o sobrecarga de alimentación, uso de piezas o accesorios
inadecuados, reparación no autorizada (realizada o intentada) o falta de mantenimiento al ventilador.
LAS GARANTÍAS ANTERIORES ESTABLECEN LA OBLIGACIÓN DE GARANTÍA TOTAL DE PROGRESS
LIGHTING Y EL ÚNICO Y EXCLUSIVO REMEDIO DEL COMPRADOR ORIGINAL RELACIONADO CON
DICHOS PRODUCTOS. PROGRESS LIGHTING NO ES RESPONSABLE POR NINGÚN DAÑO (SEAN
INDIRECTOS, ESPECIALES, INCIDENTALES O CONSECUENTES) DEBIDO A FALLAS DEL PRODUCTO,
YA SEAN DERIVADAS DE INCUMPLIMIENTO DE LA GARANTÍA O DEL CONTRATO, O DE CUALQUIER
OTRA CAUSA. ESTA GARANTÍA SE OTORGA EN LUGAR DE TODAS LAS DEMÁS, YA SEAN EXPRESAS O
IMPLÍCITAS, INCLUIDAS LAS GARANTÍAS DE COMERCIABILIDAD, IDONEIDAD PARA UN PROPÓSITO EN
PARTICULAR O NO INFRACCIÓN.
Algunos estados no permiten limitaciones en la duración de una garantía implícita ni exclusión o limitaciones de
daños incidentales o consecuentes, así que las exclusiones o limitaciones anteriores pudieran no aplicarse a su caso.
Esta garantía le otorga derechos especícos y es posible que usted tenga otros, que varían de estado a estado.
785247260959
785247260942
785247261062

Normas de seguridad
Cómo desempacar el ventilador
Cómo instalar el ventilador
Cómo hacer las conexiones eléctricas
Cómo usar el ventilador
Cuidado del ventilador
Solución de problemas
Especicaciones
Tabla de contenido
1
2
3
6
11
12
12
13

1. Para disminuir el riesgo de descarga eléctrica, antes de comenzar
la instalación asegúrate de que la electricidad ha sido cortada en el
cortacircuitos o en la caja de fusibles.
2. Todo el cableado tiene que cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70-1999 y con los códigos locales de
electricidad. La instalación eléctrica debe hacerse por un electricista
calicado con licencia.
3. CUIDADO: Para reducir el riesgo de lesiones físicas, usa sólo los
tornillos suministrados con la caja de distribución.
4. La caja eléctrica y estructura de soporte tienen que montarse de forma
segura para poder sostener con conanza 35 lb. (15.9 kg). Usa solo
cajas eléctricas aprobadas por cUL y marcadas como “apropiadas para
sostener ventiladores de 35 lb (15.9 kg) o menos”.
5. CUIDADO: El ventilador tiene que montarse con al menos 7 pies
(2.13 m) de separación entre el borde trasero de las aspas y el piso.
6. No esperes a que el ventilador se detenga antes de presionar el botón
de reversa. Si el ventilador no está en movimiento, no cambiará de
dirección.
7. Evita colocar objetos en la trayectoria de las aspas.
8. Para evitar lesiones personales o daños al ventilador y otros artículos,
ten cuidado al limpiarlo o al trabajar cerca de él.
9. No usar agua ni detergentes para limpiar el ventilador o las aspas.
Para limpiar, casi siempre será adecuado un paño seco o ligeramente
humedecido con que quitar el polvo.
10. Después de concluir con las conexiones eléctricas, debes voltear los
conductores empalmados hacia arriba y empujarlos con cuidado hacia
dentro de la caja de distribución. Los cables deben estar separados, con
el cable y el conductor a tierra del equipo hacia uno de los lados de la
caja eléctrica y el conductor sin conexión a tierra hacia el lado opuesto.
11. Los diagramas eléctricos son sólo para referencia. Los kits de luces
no empaquetados con el ventilador tienen que estar aprobados por UL
y marcados como apropiados para usar con el modelo de ventilador
que estás instalando. Los interruptores tienen que estar clasicados de
uso general por UL. Para ensamblar bien, consulta las instrucciones
adjuntas a los kits de luces e interruptores.
12. Antes de la instalación, todos los tornillos de jación tienen que
comprobarse y reajustarse donde sea necesario.
13. ADVERTENCIA: Para reducir el riesgo de incendio o descarga
eléctrica, este ventilador solo debe usarse con el control de velocidad
de ventilador con número de pieza DP-51R, fabricado por DAWNSUN
ELECTRONIC TECHNOLOGY CO LTD ZHONGSHAN.
1. Normas de seguridad
ADVERTENCIA
ADVERTENCIA
LEE Y GUARDA ESTAS INSTRUCCIONES
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELÉCTRICA U
OTRAS LESIONES, INSTALA SÓLO EN UNA CAJA ELÉCTRICA CLASIFICADA
COMO “APROPIADA PARA SOSTENER VENTILADORES DE 35 LB (15.9
KG). O MENOS”, Y USA SÓLO LOS TORNILLOS INCLUIDOS CON LA CAJA
ELÉCTRICA.
PARA REDUCIR EL RIESGO DE LESIONES, NO DOBLES LOS BRAZOS DE LAS
ASPAS (TAMBIÉN LLAMADOS “REBORDES”) DURANTE NI DESPUÉS DE LA
INSTALACIÓN. NO COLOCAR OBJETOS EN LA TRAYECTORIA DE LAS ASPAS.
PARA EVITAR EL RIESGO DE DESCARGA ELÉCTRICA, ESTE VENTILADOR
DEBE SER INSTALADO CON UN CONTROL/INTERRUPTOR DE AISLAMIENTO
DE MONTAJE EN PARED.
ADVERTENCIA
