Progress Lighting AirPro P2542-3030K User manual

®
P2542
93080992_C

Limited Lifetime Warranty
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
111017
785247 211845
785247 211852
785247 211869
P2542
Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical
defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and
metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from
the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/
or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for
ENERGY STAR® qualied products may apply.
Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal
conditions of use, are warranted to be free from defects in material and workmanship which cause the light
sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase
on the LED Light modules and electrical components for fans used in single family residences, and (ii) three
(3) years from the date of purchase on the LED Light modules and electrical components for fans used in
multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other
than manufacturer’s warranty. Non-LED bulbs carry no warranty.
With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the
rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)
678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall
be purchaser’s sole and exclusive remedy.
Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor
(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.
This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,
misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser
or a third party, including without limitation improper voltage supply or power surge, use of improper parts or
accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.
THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION
AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.
PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,
INCIDENTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF
BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations
of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specic rights and you may have other rights which vary from state to state.

Safety Rules
Unpacking Your Fan
Installing Your Fan
Making the Electrical Connections
Operating Your Fan
Care of Your Fan
Troubleshooting
Specications
Table of Contents
1
2
3
6
9
10
10
11

1. To reduce the risk of electric shock, insure electricity
has been turned off at the circuit breaker or fuse box
before beginning.
2. All wiring must be in accordance with the National
Electrical Code ANSI/NFPA 70-1999 and local electrical codes.
Electrical installation should be performed by a
qualied licensed electrician.
3. CAUTION: To reduce the risk of personal injury, use only
the screws provided with the electrical box.
4. The outlet box and support structure must be securely
mounted and capable of reliably supporting 35 lbs. (15.9
kg). Use only UL Listed outlet boxes marked “Acceptable
for Fan Support of 35 lbs. (15.9 kg) or less.”
5. CAUTION: The fan must be mounted with a minimum of
7 feet clearance from the trailing edge of the blades to the
oor.
6. Do not operate reversing switch while fan blades are in
motion. Fan must be turned off and blades stopped before
reversing blade direction.
7. Avoid placing objects in path of the blades.
8. To avoid personal injury or damage to the fan and other
items, be cautious when working around or
cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
10. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
electrical box. The wires should be spread apart with the
grounded conductor and the equipment-grounding
conductor on one side of the electrical box and ungrounded
conductor on the other side of the electrical box.
11. Electrical diagrams are for reference only. Light kits that
are not packed with the fan must be UL Listed and marked
suitable for use with the model fan you are installing.
Switches must be UL General Use Switches. Refer to the
instructions packaged with the light kits and switches for
proper assembly.
12. All set screws must be checked and retightened where
necessary before installation.
13. WARNING: To reduce the risk of re or electric shock,
this fan should only be used with fan speed control part no.
UC7067RY, manufactured by Rhine Electronic Co., Ltd.
14. Suitable for use with solid-state speed controls.
1. Safety Rules
READ AND SAVE THESE INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN
SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-
VIDED WITH THE OUTLET BOX.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED
WITH AN ISOLATION CONTROL/SWITCH.

a. Blade attachment hardware
(13 Screws)
b. Electrical hardware and Balancing kit
(3 plastic wire connectors, blade
balancing kit)
5. Fan Motor Assembly
6. Blades (4)
7. Light Kit Pan
8. Light Kit Fitter Assembly
9. Shatter-resistant Shade
10. Transmitter and Receiver
1. Mounting Bracket (inside canopy)
2. 6” Ball/Downrod Assembly (hanger pin
and locking pin pre-attached)
3. Canopy with Bottom Cover (attached)
4. Decorative Motor Collar Cover
2. Unpacking Your Fan
Unpack your fan and check the contents. You should have the following items:
ab
3
2
15
4
6
78
9
OK
M
10

3. Installing Your Fan
Tools Required
Phillips screw driver or straight slotted screw
driver, adjustable wrench, step ladder, and
wire cutters.
Mounting Options
If there isn’t an existing electrical box, then
read the following instructions. Disconnect
the power by removing fuses or turning off
circuit breakers.
Secure the electrical box directly to the building
structure. Use appropriate fasteners and
building materials. The electrical box and
its support must be able to fully support the
moving weight of the fan (at least 35 lbs.).
Do not use plastic electrical boxes.
Figures 1, 2, and 3 are examples of different
ways to mount the electrical box.
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum angle
allowable is 20˚.
To hang your fan where there is an existing
xture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED “ACCEPTABLE
FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR
LESS”, AND USE SCREWS PROVIDED WITH
THE OUTLET BOX. ELECTRICAL BOXES
COMMONLY USED FOR THE SUPPORT OF
LIGHTING FIXTURES MAY NOT BE ACCEPT-
ABLE FOR FAN SUPPORT AND MAY NEED TO
BE REPLACED. CONSULT A QUALIFIED ELEC-
TRICIAN IF IN DOUBT.
Figure 1
Figure 2
Figure 4
Figure 3

4.
Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This fan is recommended for
standard ceiling mount using the downrod
provided with this fan. When using standard
ceiling installation with the 6 inch downrod
provided, the distance from the ceiling
to the bottom of the fan blades will be
approximately 13 inches.
Standard Ceiling Mounting
1. Remove the canopy bottom cover from
the canopy by turning the canopy bottom
cover counter-clockwise until it unlocks.
(Figure 5)
2. Remove the non-slotted screw and loosen
but do not remove the slotted screw. This
will enable you to remove the mounting
bracket from the canopy. (Figure 6)
3. Remove the hanger pin and locking pin
from downrod assembly.
4. Route the wires exiting the top of the fan
motor through the decorative motor collar
cover then the center of the canopy bottom
cover. Make sure the slot opening are on
top. Route the wires through the canopy and
then through the ball/downrod assembly.
(Figure 7)
Loosen but
do not remove
Remove
Canopy bottom cover
Canopy
Turn Canopy bottom cover to Remove
Figure 5
Figure 6
5. Loosen, but do not remove, the set screws on
the collar on the top of the motor housing.
6. Align the holes at the bottom of the downrod
with the holes in the collar on top of the
motor housing. (Figure 7) Carefully insert
the hanger pin through the holes in the
collar and downrod. Be careful not to jam
the hanger pin against the wiring inside the
downrod. Insert the locking pin through the
hole near the end of the bolt until it snaps
into its locked position, as noted in the circle
inset of Figure 7.
7. Re-tighten the set screws on the collar on
top of the motor housing.
8. Make sure the grommet is properly installed
in the collar cover, then slide the collar cover
on the downrod until it rests on the motor
housing. Be sure that the canopy and the
collar cover are both oriented correctly.
9. Proceed to “Installing the Fan” section.
FAILURE TO PROPERLY INSTALL SET SCREWS
AS NOTED IN STEP 7 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Figure 7
Pin in
position
locked
Motor wires
Ball/Downrod
assembly
Canopy
cover
Motor collar
Tighten scre
ws
Hanger pin
Locking
pin
Reverse
switch
Motor
collar
Canopy
bottom cover

5.
Installing Fan to
the Electrical Box
WHEN MOUNTING THE FAN ON A SLOPED
CEILING, THE STANDARD BALL/DOWNROD
MOUNTING METHOD MUST BE USED. THE
MOUNTING PLATE MUST BE MOUNTED SO
THAT THE SLOT OPENINGS ARE ON THE
LOWER SIDE BY SLIDING THE MOUNTING
PLATE FROM THE TOP DOWN.
1. Pass the 120-volt supply wires through the
center hole in the ceiling mounting plate as
shown in Figure 8.
2. Install the ceiling mounting bracket on the
electrical box by using the mounting screws
provided with the electrical box. Note that
the at side of the mounting plate is toward
the electrical box. (Figure 8)
3. Tighten the two screws on the electrical box
securely.
4. Carefully lift the fan assembly up to the
ceiling mounting plate. Make sure the tab
on the mounting plate is properly seated in
the groove in the hanger ball. (Figure 9)

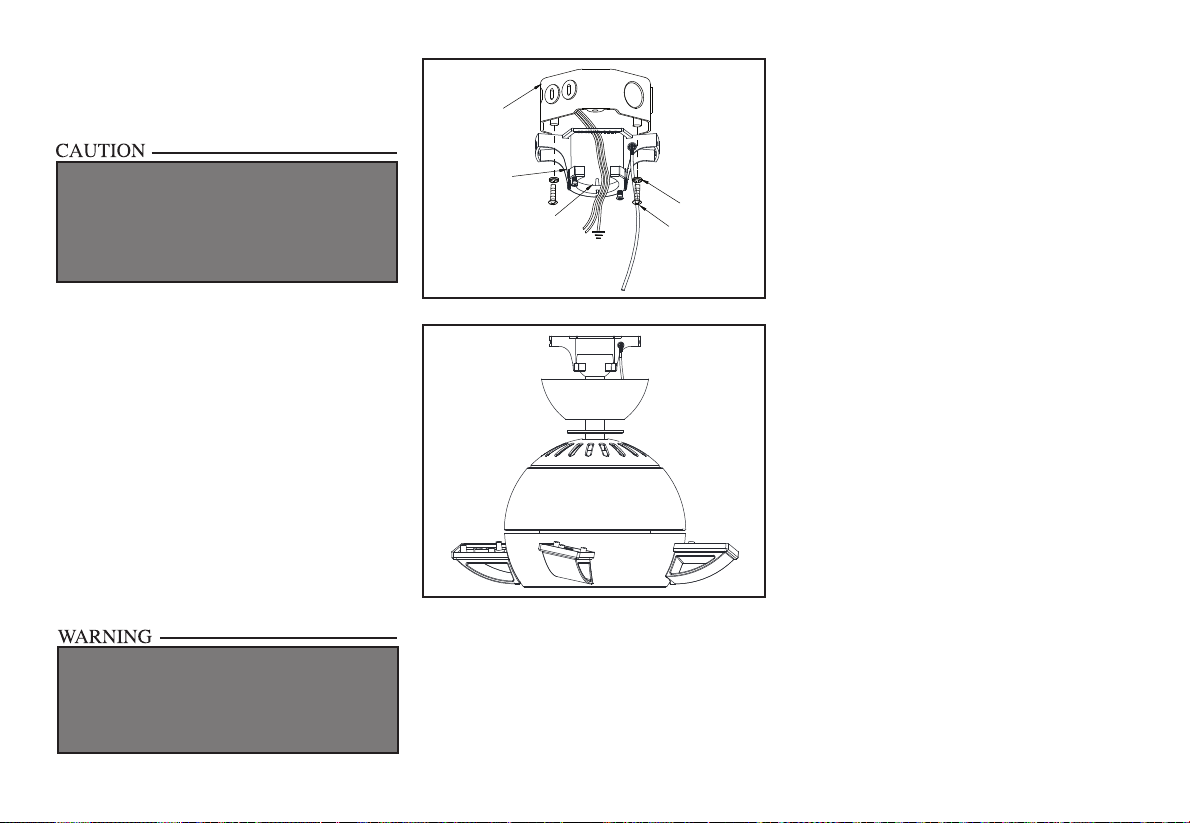

Figure 8
Washers
120V Wires
UL Listed
Electrical
Box
Ceiling
Mounting
Bracket
Hook
Mounting
screws
(supplied w
electrical box)
WHEN USING THE STANDARD BALL/DOWNROD
MOUNTING, THE TAB IN THE RING AT THE
BOTTOM OF THE MOUNTING BRACKET MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
Figure 9

EACH WIRE NUT (WIRE CONNECTOR) SUPPLIED
WITH THIS FAN IS DESIGNED TO ACCEPT UP TO
ONE 12 GAUGE HOUSE WIRE AND TWO WIRES
FROM THIS FAN. IF YOU HAVE LARGER THAN
12 GAUGE HOUSE WIRING OR MORE THAN
ONE HOUSE WIRE TO CONNECT TO THE FAN
WIRING, CONSULT AN ELECTRICIAN FOR THE
PROPER SIZE WIRE NUTS TO USE.
USE THE PLASTIC WIRE CONNECTORS
SUPPLIED WITH YOUR FAN. SECURE THE
CONNECTORS WITH ELECTRICAL TAPE AND
ENSURE THERE ARE NO LOOSE STRANDS OR
CONNECTIONS.
BLUE BLACK
WHITE
GREEN
BLUE
BLACK WHITE
WHITE
SUPPLY CIRCUIT
BLACK
WHITE
Grounding
Conductor
Green
Grounding
Lead
Remote
Receiver
Figure 10
Making the Electrical
Connections
REMEMBER to disconnect the power. If
you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts supplied with your fan and
supplied with remote control. Secure the
connectors with electrical tape. Make sure
there are no loose strands or
connections. (Figure 10)
1. Connect the ground conductor of the 120v
supply (this may be a bare wire or a wire
with green colored insulation) to the green
ground lead(s) of the fan (Figure 10).
2. Connect the fan motor white wire to the
receiver white wire using a wire nut (Figure
10).
3. Connect the fan motor black wire to the
receiver black wire using a wire nut (Figure
10).
4. Connect the fan motor blue wire to the
receiver blue wire using a wire nut (Figure
10).
6.
5. Connect the receiver black wire to the
supply black (hot) wire using a wire nut
(Figure 10).
6. Connect the receiver white wire to the
supply white (neutral) wire using a wire nut
(Figure 10).
7. After connecting the wires, spread them
apart so that the green and white wires are
one side of the electrical box and the black
wire is on the other side.
8. Turn the wire connecting nuts upward and
carefully push the wiring into the electrical
box.

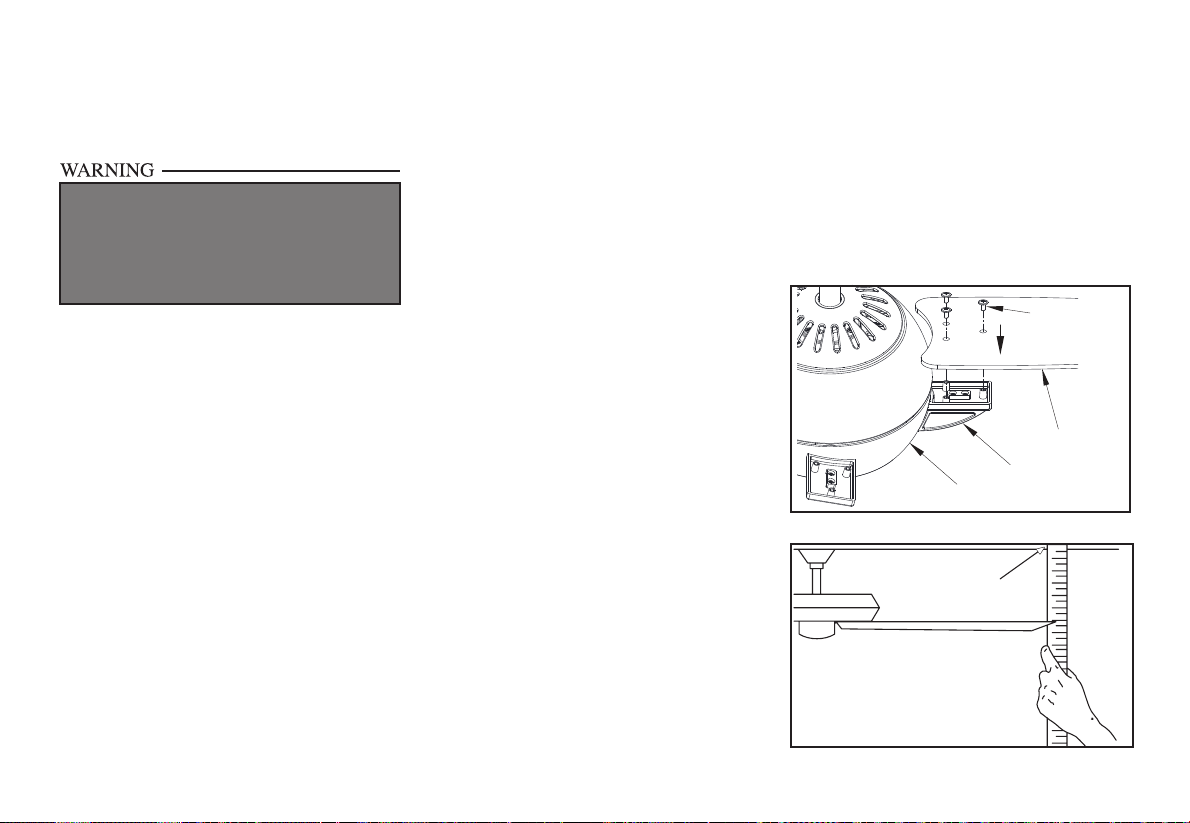

Attaching the Fan
Blades
1. Align the three screw holes in the blade
with the screw holes in the blade arm
and secure with the screws provided.
(Figure 11)
2. Repeat for the remaining blades.
Figure 11
Figure 12
Blade Balancing
All blades are grouped by weight. Because
natural woods vary in density, the fan may
wobble even though the blades are weight
matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
from a point on the center of each blade
to the point on the ceiling. Measure this
distance as shown in Figure 12. Rotate
the fan until the next blade is positioned
for measurement. Repeat for each blade.
Measurements deviation should be within
1/8”. Run the fan for 10 minutes.
Touching
Ceiling
Finishing the Fan
Installation
STANDARD CEILING MOUNTING
1. Align the locking slots of the ceiling canopy
with the screw in the mounting bracket. Push
up to engage the slots and turn clockwise
to lock in place. Immediately tighten the
mounting screw rmly.
2. Install the remaining mounting screw into
the canopy and tighten rmly.
3. Install the canopy bottom cover by aligning
the slots in canopy bottom cover with the
screws in the canopy. Rotate the canopy
bottom cover clockwise to lock in place.
4. You may now proceed to attaching the
fan blades.
WHEN USING THE STANDARD BALL/DOWNROD
MOUNTING, THE TAB IN THE RING AT THE
BOTTOM OF THE MOUNTING PLATE MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
3. Make sure that canopy is tightened securely
to ceiling mounting bracket and that the
ceiling mounting bracket is tightened
securely to the electrical box.
4. Interchanging two adjacent blades can
redistribute the weight and possibly result
in the smoother operation.
5. Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable.
7.
Blade arm
Blade
Screws
Flywheel

Light Kit Pan
Flat Area
Raised
Dimples
Installing the Light Kit
Pan/Light Kit Fitter
Assembly/ Shatter-
Resistant Bowl
CAUTION - To reduce the risk of electrical
shock, disconnect the electrical supply circuit
to the fan before installing the light kit.
1. Loosen but do not remove two of three
mounting screws from the fan motor
assembly; Remove one mounting screw.
(Figure 13)
2. Push the light kit pan up to the fan motor
assembly so that the two loosened screw
heads t into the keyhole slots. Turn the
light kit pan clockwise, tighten the screws.
Re-install the screw that was removed in
step 1 and tighten rmly. (Figure 13)
3. Remove one screw from the light kit pan
and loosen, but do not remove the other
two screws. Connect the wires from the
light kit tter assembly to the wires from
the fan motor assembly by connecting the
molded adaptor plugs together. Carefully
tuck all wires and splices into the switch
cap. (Figure 14)
4. Push the light kit tter assembly up so
that the two loosened screw heads t into
the keyhole slots. Turn the light kit tter
assembly clockwise, tighten the screws. Re-
install the screw that was removed in step 3
and tighten rmly. (Figure 14)
5. Place the shatter-resistant bowl into the
light kit pan, aligning the three at areas
on the top of the shatter-resistant bowl with
the three raised dimples in the light kit pan.
Turn the shatter-resistant bowl clockwise
until it stops. (Figure 15)
Light Kit
Pan
Mounting
screw (3)
Light Kit
Pan
Screw
Light kit
fitter assembly
Figure 13
Figure 14
8.
Figure 15
PERIODICALLY CHECK THE SHATTER-RESISTANT
BOWL IS SEATED FULLY CLOCKWISE IN THE LIGHT
KIT PAN

9. Operating Your Fan
Speed settings for warm or cool weather depend
on factors such as room size, ceiling height,
number of fans, and so on.
The fan shipped from the factory with the
reversing switch positioned to circulate air
downward. If airow is desired in the opposite
direction, turn your fan off and wait for the
blades to stop turning, then slide the reversing
switch (located at the top of the motor housing,
refer to gure 7 on page 4) to opposite position,
and turn fan on again. The fan blades will turn
in the opposite direction and reverse airow. Figure 16
Figure 17
Warm weather - (Forward) A downward air
ow creates a cooling effect as shown in Figure
16. This allows you to set your air conditioner
on a higher setting without affecting your
comfort.
Cool weather - (Reverse) An upward air ow
moves warm air off the ceiling are as shown in
Figure 17. This allows you to set your heating
unit on a lower setting without affecting your
comfort.

10. Care of Your Fan and Troubleshooting
Care of Your Fan
Here are some suggestions to help you
maintain your fan.
1. Because of the fan’s natural movement,
some connections may become loose.
Check the support connections, brackets,
and blade attachments twice a year. Make
sure they are secure. (It is not necessary to
remove fan from ceiling.)
2. Clean your fan periodically to help maintain
its new appearance over the years. Do not
use water when cleaning, this could damage
the motor, or the wood or possibly cause
an electrical shock. Use only a soft brush
or lint-free cloth to avoid scratching the
nish. The plating is sealed with a lacquer
to minimize discoloration or tarnishing.
Warning - Make sure the power is off
before cleaning your fan.
3. You can apply a light coat of furniture polish
to the wood for additional protection and
enhanced beauty. Cover small scratches
with a light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
sealed ball bearings. MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT TO MAKE ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS.”
Fan will not start
Fan sounds noisy
1. Check main and branch circuit fuses or breakers
2. Check line wire connections to the fan and switch wire connections in
the switch housing. CAUTION: Make sure main power is off.
3. Check batteries in the transmitter. Does the red LED light come on?
Are you standing close enough to the fan? (Normal range is 10-20
feet.) Are the dip switch settings the same on the transmitter (hand unit)
and receiver? REMEMBER TO TURN OFF POWER SUPPLY
BEFORE CHECKING THE DIP SWITCH SETTINGS IN
RECEIVER.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub
are tight.
3. Make sure wire nut connections are not rattling against each other or
the interior wall of the switch housing.
CAUTION: Make sure power is off.
4. Allow a 24-hour “breaking in” period. Most noises associated with a
new fan disappear during this time.
5. If using the Ceiling Fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
6. Make sure the canopy is a short distance from the ceiling.
It should not touch the ceiling.
7. Make sure your electrical box is secure and rubber isolator pads were
used between the mounting bracket and electrical box.
Troubleshooting
Problem Solution

11. Specications
FAN
SIZE SPEED VOLTS
FAN POWER
CONSUMPTION
(WITHOUT LIGHTS)
WATTS
AIRFLOW
CFM
AIRFLOW
EFFICIENCY
(HIGHER IS BETTER)
CFM/WATT
NET
WEIGHT
GROSS
WEIGHT
CUBE
FEET
54”
Low
120
11 1763 160 19.40
Lbs
22.27
Lbs 2.1
Med 25 2881 115
High 65 4814 74
©2017 Progress Lighting, Inc.
701 Millennium Blvd.,
Greenville, SC 29607
All Rights Reserved
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

®
Manual de instalación de ventilador de techo
P2542
93080992_C

Garantía limitada de por vida
Fecha de compra
Tienda de compra
Modelo de UL #
# de serie
Proveedor #
UPC
111017
785247 211845
785247 211852
785247 211869
P2542
Se garantiza al comprador original que los motores de los ventiladores de Progress Lighting no presentan defectos
mecánicos o eléctricos por el tiempo durante el cual el comprador original sea dueño del ventilador. Los interruptores de
cadena, interruptores de reversa, capacitores y acabados de metal cuentan con garantía libre de defectos de materiales o
mano de obra por 1 año a partir de la fecha de compra. La deformación de las aspas de plástico o madera no está cubierta
por esta garantía, así como tampoco la corrosión y/o el deterioro de los acabados en el caso de los ventiladores instalados
dentro de un radio de 10 millas (16 km) de la costa del mar. Pueden corresponder garantías extendidas para los productos
que cumplen con los requisitos de ENERGY STAR®.
Los ventiladores de techo Progress Lighting con fuentes de iluminación LED incorporadas, cuando se los instala
debidamente y bajo condiciones de uso normales, están garantizados como libres de defectos de materiales y mano de
obra que hacen que las fuentes de iluminación dejen de funcionar de acuerdo con las especicaciones durante (i) cinco
(5) años a partir de la fecha de compra para los módulos de luces LED y los componentes eléctricos para los ventiladores
utilizados en residencias unifamiliares, y (ii) tres (3) años a partir de la fecha de compra para los módulos de luces LED y
los componentes eléctricos para los ventiladores utilizados en aplicaciones comerciales o multifamiliares. Los focos LED
suministrados por Progress Lighting no cuentan con garantía más allá de la garantía del fabricante. Los focos que no son
LED no cuentan con garantía.
Con comprobante de compra, el comprador original podrá devolver el ventilador defectuoso al lugar de compra, durante
los primeros 30 días, para su reemplazo. Pasados los 30 días, el comprador original DEBE contactarse con Progress
Lighting al [phone] para la reparación o el reemplazo, que se determinará a criterio exclusivo de Progress Lighting
y será la compensación única y exclusiva del comprador.
Se excluye la mano de obra y el envío. Esta garantía no cubre los costos o cargos asociados con la mano de obra
(incluidos, entre otros, los honorarios del electricista) necesaria para instalar, quitar o reemplazar el ventilador o cualquiera
de sus partes.
Esta garantía no se aplicará a ninguna pérdida o daño que resulte del (i) uso y desgaste normales o de una alteración, uso
indebido o descuido, o de la (ii) instalación, operación, reparación o mantenimiento inadecuados por parte del comprador
original o de un tercero, incluidos, entre otros, suministro de voltaje inadecuado o sobrecarga eléctrica, uso de piezas
o accesorios inadecuados, reparación no autorizada (realizada o que se intentó realizar) o falta de mantenimiento al
ventilador.
LAS GARANTÍAS PRECEDENTES ESTABLECEN LA OBLIGACIÓN DE GARANTÍA COMPLETA DE PROGRESS
LIGHTING Y LA COMPENSACIÓN ÚNICAY EXCLUSIVA DEL COMPRADOR ORIGINAL EN RELACIÓN CON
DICHOS PRODUCTOS. PROGRESS LIGHTING NO ASUME RESPONSABILIDAD POR DAÑOS (INCLUIDOS
INDIRECTOS, ESPECIALES, INCIDENTALES O EMERGENTES), DEBIDO A FALLAS DEL PRODUCTO, YA
SEA QUE SURJAN DEL INCUMPLIMIENTO DE LA GARANTÍA, DEL INCUMPLIMIENTO CONTRACTUAL
O DE OTRO MODO. ESTA GARANTÍA REEMPLAZA CUALQUIER OTRA GARANTÍA, YA SEA EXPRESA O
IMPLÍCITA, INCLUSO AQUELLAS DE COMERCIABILIDAD, IDONEIDAD PARA UN FIN EN PARTICULAR O
NO INCUMPLIMIENTO.
Algunos estados no permiten limitaciones sobre la duración de una garantía implícita o la exclusión de limitaciones de
daños incidentales o emergentes, de modo que las limitaciones y exclusiones anteriores tal vez no se apliquen a su caso. La
presente garantía le otorga derechos especícos y es posible que usted tenga otros derechos que varían según el estado.

Normas de seguridad
Cómo desempacar el ventilador
Cómo instalar el ventilador
Cómo hacer las conexiones eléctricas
Cómo usar el ventilador
Cuidado del ventilador
Solución de problemas
Especicaciones
Tabla de contenido
1
2
3
6
9
10
10
11

1. Para disminuir el riesgo de descarga eléctrica, antes de comenzar
la instalación asegúrate de que la electricidad ha sido cortada en el
cortacircuitos o en la caja de fusibles.
2. Todo el cableado tiene que cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70-1999 y con los códigos locales de
electricidad. La instalación eléctrica debe hacerse por un electricista
calicado y con licencia.
3. PRECAUCIÓN: Para reducir el riesgo de lesiones físicas, usa sólo
los tornillos suministrados con la caja de distribución.
4. La caja eléctrica y estructura de soporte tienen que montarse de
forma segura para poder sostener con conanza 35 lb. Usa solo
cajas eléctricas aprobadas por UL y marcadas como “apropiadas
para sostener ventiladores de 35 lb (15.9 kg) o menos”.
5. PRECAUCIÓN: El ventilador tiene que montarse con al menos 7
pies (2.13 m) de separación entre el borde de salida de las aspas y
el piso.
6. No operar el interruptor de reversa mientras las aspas del ventilador
estén en movimiento. El ventilador tiene que estar apagado y las
aspas detenidas antes de invertir el sentido del movimiento.
7. Evita colocar objetos en la trayectoria de las aspas.
8. Para evitar lesiones personales o daños al ventilador y otros
artículos, ten cuidado al limpiarlo o al trabajar cerca de él.
9. No usar agua ni detergentes al limpiar el ventilador o las aspas.
Para limpiar casi siempre será adecuado un paño seco o ligeramente
humedecido con que quitar el polvo.
10. Después de hacer las conexiones eléctricas, los conductores
empalmados deben voltearse hacia arriba y empujarse con cuidado
dentro de la caja eléctrica. Los cables deben estar separados, con
el cable a tierra y el conductor a tierra del equipo hacia uno de los
lados de la caja eléctrica y el conductor sin conexión a tierra hacia
el lado opuesto.
11. Los diagramas eléctricos son sólo para referencia. Los kits de luces
no empaquetados con el ventilador tienen que estar aprobados
por UL y marcados como apropiados para usar con el modelo de
ventilador que estás instalando. Los interruptores tienen que estar
clasicados de uso general por UL. Para ensamblar bien, consulta
las instrucciones adjuntas a los kits de luces e interruptores.
12. Antes de la instalación, todos los tornillos de jación tienen que
comprobarse y reajustarse donde sea necesario.
13. ADVERTENCIA: Para reducir el riesgo de incendio o descarga
eléctrica este ventilador sólo debe usar la pieza # UC7067RY de
control de velocidad fabricada por Rhine Electric Co., Ltd.
14. Adecuado para uso con controles de velocidad de estado sólido.
1. Normas de seguridad
LEE Y GUARDA ESTAS INSTRUCCIONES
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELÉCTRICA U OTRAS
LESIONES, INSTALA SÓLO EN UNA CAJA ELÉCTRICA CLASIFICADA COMO
“APROPIADA PARA SOSTENER VENTILADORES DE 35L LB (15.9 KG). (15.9 KG) O
MENOS”, Y USA SÓLO LOS TORNILLOS INCLUIDOS CON LA CAJA ELÉCTRICA.
PARA REDUCIR EL RIESGO DE LESIONES PERSONALES, NO DOBLES LOS
BRAZOS DE LAS ASPAS (TAMBIÉN LLAMADOS “REBORDES”) NI DURANTE NI
DESPUÉS DE LA INSTALACIÓN. NO COLOCAR OBJETOS EN LA TRAYECTORIA
DE LAS ASPAS.
PARA REDUCIR EL RIESGO DE DESCARGA ELÉCTRICA, ESTE VENTILADOR
TIENE QUE INSTALARSE CON UN CONTROL/INTERRUPTOR DE AISLAMIENTO.
ADVERTENCIA
ADVERTENCIA
ADVERTENCIA

a. Herrajes de montaje de aspas
(13 tornillos)
b. Kit de compensación y componentes
eléctricos
(3 conectores plásticos de cable, kit de
compensación de aspas)
5. Conjunto del motor del ventilador
6. Aspas (4)
7. Carcasa del kit de luces
8. Conjunto de soporte del kit de luces
9. Pantalla resistente a impactos
10. Transmisor y Receptor
1. Soporte de montaje (dentro de la cubierta)
2. Conjunto de tubo bajante/bola de 15.24 cm
(Pasadores de soporte y de cierre prejados)
3. Cubierta con tapa inferior (jada)
4. Cubierta decorativa del collarín del motor
2. Cómo desempacar el ventilador
Desempaca tu ventilador y revisa el contenido. Debes tener los siguientes artículos:
ab
3
2
15
4
6
78
9
OK
M
10

3. Cómo instalar el ventilador
Herramientas necesarias
Destornillador Phillips o de punta plana, llave
ajustable, escalera de tijera y cortacables.
Opciones de montaje
Si no hay una caja eléctrica presente, lee las
siguientes instrucciones. Desconecta la energía
retirando los fusibles o apagando los
cortacircuitos.
Asegura la caja eléctrica directamente a la
estructura de la edicación. Usa sujetadores y
materiales de construcción apropiados. La caja
eléctrica y su soporte tienen que poder sostener
todo el peso en movimiento del ventilador (al
menos 35 libras).
No uses cajas eléctricas de plástico.
Las guras 1, 2 y 3 ejemplican diferentes
maneras de montar la caja eléctrica.
Caja eléctrica
Caja eléctrica
Provee un
soporte fuerte
Placa
de montaje
en techo
Caja
eléctrica
empotrada
Nota: Tal vez necesites un tubo bajante más
largo para mantener la altura mínima adecuada
de las aspas al instalar el ventilador en un techo
de inclinación pronunciada. El ángulo máximo
permitido es 20º.
Caja eléctrica
Para colgar el ventilador donde haya una
lámpara pero ninguna viga de techo, tal vez
necesites una barra colgante de instalación
como se muestra en la Figura 4.
PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA
ELÉCTRICA U OTRAS LESIONES, INSTALA SÓLO
EN UNA CAJA ELÉCTRICA CLASIFICADA COMO
“APROPIADA PARA SOSTENER VENTILADORES
DE 35L LB (15.9 KG). (15.9 KG) O MENOS”, Y
USA SÓLO LOS TORNILLOS INCLUIDOS CON
LA CAJA ELÉCTRICA. LAS CAJAS ELÉCTRICAS
COMÚNMENTE UTILIZADAS COMO SOPORTE PARA
INSTALACIONES FIJAS DE ILUMINACIÓN PUEDEN
NO SERVIR COMO SOPORTE DEL VENTILADOR Y
TAL VEZ DEBAN REEMPLAZARSE. CONSULTA A UN
ELECTRICISTA CALIFICADO SI TIENES DUDAS.
Figura 1
Figura 2
Figura 4
Figura 3
ADVERTENCIA
