Project Timber Evolution My Den Instruction Manual

8x8
Evolution My Den
Building Instructions
Cover Size:
Please read the instruction carefully
and retain for future reference
For Queries and Help please contact 01777 802300
Please note that all images are for illustration purpose only.
V1.1 12.05.21 INS0139

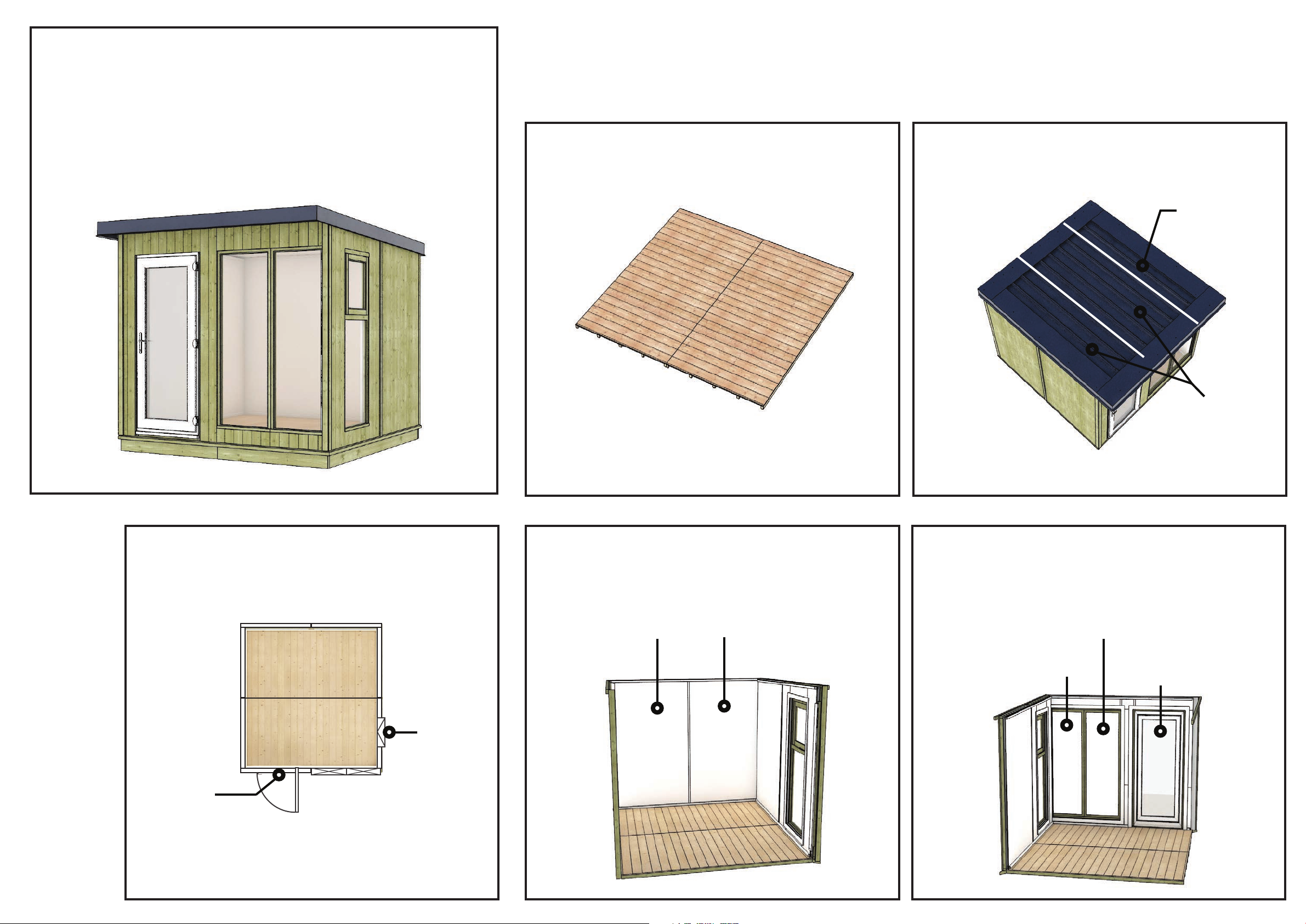

8x8 My Den - Metal Roof
Side Opening Window (RIGHT)
Building shown

8x8 Evolution My Den
Metal Roof
Side Window Opening (RIGHT)
shown Floor Assembly
2348mm x 1217mm (2)
Metal Roof
position 515mm
1000mm
1220mm 1220mm
Back Panels
position
Front Panels
position
610mm
Single
Door
Panel
610mm
1220mm1220mm
1220mm
(LOW)
1220mm
(LOW)
1220mm
(HIGH)
610mm
610mm
Side
Window
Opening
(RIGHT)
Door
Position
(LEFT)
8x8 Floor Plan
Front of Building

Door Position (LEFT)
Door Position (RIGHT)
Door and Front Windows position options
Single Door Panel
(LEFT)
Glazing Units
(610mm)
Single Door Panel
(RIGHT)
Glazing Units
(610mm)
To p
Panel
Bottom
Panel
To p
Panel
Bottom
Panel
IMPORTANT: Always check the internal lining corner gap of the panels
1220mm1220mm
1220mm
(LOW)
1220mm
(LOW)
1220mm
(HIGH)
610mm
610mm
Side
Window
Opening
position
(LEFT)
Door
Position
RIGHT
Floor Plan
Front of Building
2135mm
1220mm
Side Window
Opening Panel
(LEFT)
Diagram
ID: PT25521
Front
Left Side
Side Opening Window (LEFT)
position option

Drip Edge
Flashing
Barge Board
Flashing
Gable Panel
(LEFT - Low)
Gable Panel
(LEFT - High)
Back Corner
Trims
Front Corner
Trims
Base Module
A - LEFT Base Module
A - RIGHT
11mm Floor
Panels
8ft Gable
Plinth
8ft Plinth
Top Plain
Panel
Bottom Plain
Panel
Single Door
Panel / UPVC
Single Door
(LEFT SIDE)
Gable Panel (High)
with Window Opening
Gable Panel
(Right - Low)
Plain Panel
Back - RIGHT
(1220mm WIDTH)
Plain Panel
Back - LEFT
(1220mm WIDTH)
Window Panels
(610mm WIDTH)
Roof Section
1000mm Width Roof Section
515mm Width
Roof Section
1000mm Width
Rear Frame
Standoff
Gable Frame
Standoff
8ft Front Monopitch
Ridge Flashing
8ft Back Water
Deflector Flashing
Building Parts: 8x8 Evolution My Den
Metal Roof
Building Parts
Part ID
PT25544
PT25533
PT25535
PT20323
PT25548
21140
21149
21166
21169
21173
21177
15906
15606
PT18490
PT25522
PT25534
PT20330
19503
PT25385
PT25545
PT18173
PT21077
Wood Kit
1
1
1
1
1
2
1
1
1
1
2
2
2
2
1
1
1
1
2
1
2
QTYNo.
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2
20
22
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
22
22
22
22

Base Module Woodkits
1220mm
1220mm
Base Modules (For each end of the assebled base)
Gable Bearers
Fixing Kit
1. Base Module A - 1220mm x 2528mm (2)
2. Gable Bearers - 38mm x 2452mm (2)
Parts List required:
ID: PT25385
ID: PT25398
Base Module fixing
Side
Front
Module A x2
1220mm 1220mm
A
A
1
Side
1220mm
Module
Pilot drill
holes before
fixing
Base Module fixing
100mm
Screws
ID: PT25385
2
Side
Front
Back
Alternate sides
to screws together
the Base Module
Pilot drill holes
before fixing
Base Module fixing
70mm
Screws
3

Base Module Stages
Side
Front
Gable Bearers are fitted on each side of
fully assembled base. This gives extra
room for the floor sections. (see diagram)
Pilot drill holes
before fixing
Base Module fixing
70mm
Screws
ID: PT25398
Floor Joist
Floor Boards
Side of
Base Module
Plinth
Gable
Bearer
Base Module fixing
Side
Front
Back
Position the gable bearers each side to
the fully assembled base. Secure with
S70 screws
Base Module fixing
70mm
Screws
ID: PT25398
Check the base module can sit level to the
ground. Use spirit level when leveling all
corners of the base.
Base Module fixing
Side Front
Base Module fixing
Side
Front
Side
Front
Back
Ensure the ground must be flat and level,
before laying the base module assembly.
Base Module fixing
4
78 9
5 6

Floor Sections Stages
Plinth
Base Module
Position the plinth into the top of
assembled base module
Floor Stages
Floor Sections Diagram
Wall
Panel
Plinth
Gap Base Module
Floor Boards
Floor Joist
Side
Front
Back
Lay and fix the Plinth
lengths together at
the corner
Pilot drill holes
before fixing
Floor Stages
4 70mm
Screws
ID: 15906
ID: 15606
Fix the Floors together
Floor Stages
Side
Front
Back
11mm Floor
assembly shown
ID: PT18173
50mm
Screws
Floor Stages
Fix the Floors with
screws in angled
position
Back
Side
Pilot drill holes
before fixing
Fix and secure the
plinth and base
module together
Side
Front
Back
Floor Stages
Pilot drill holes
before fixing
70mm
Screws
10
13 14 15
11 12

Floor Section Stages
Wall Panels Section Stages
Panel Position Diagram
Front of Building
Rear
Side
(Left)
Side
(Right)
Side
(LEFT) Front
1. Door Panel - LEFT (1)
2. UPVC Single Door - LEFT (1)
3. Left Gable Panel - HIGH (1)
4. Left Gable Panel - LOW (1)
5. Gable Cloaking Strip (1)
60mmx16mmx2050mm
Parts List required:
16mm
2135mm
74mm1146mm
1220mm
Lining Flush
16mm
2135mm
1220mm
Lining Flush
Single Door Panel
Diagram Left Gable Panel (HIGH)
Diagram
ID: PT20330 / 19503 ID: PT25534
Floor Stages
Side
Front
Back
Place the floor assembly
inside the plinth and
base module.
16

Wall Panels Section Stages
2 50mm
Screws
Front
Side
(LEFT)
Pilot drill holes
before fixing
*Check the Side Opening
Window (LEFT) position
option floor plan for
guidelines.
Position and fix
the plain gable
panel (Left)
Left Gable (High) Panel Stages
ID: PT25534
50mm
Screws
Front
Side
Front
Side
(LEFT)
Pilot drill holes
before fixing
Align and fix the door
section to the left gable
panel (high) and plinth
Left Gable and Door Panel (LEFT) Position
Front
Side
Lining
Flush
Lining
Flush
Left Gable (High) Panel Stages
Front
Side
(LEFT)
Align and fit the UPVC Door Cill
to the door panel (LEFT)
UPVC Door fixing
ID: 19503
80mm
Screws
Front
Fix and secure the UPVC
Door Cill to the door panel
UPVC Door fixing
ID: 19503
50mm
Screws
Side
Front
Pilot drill holes
before fixing
Fit the Plain Gable
Panel and Door
Panel in this position
Gable and Door Panel Position
17
20 21 22
18 19

Wall Panels Section Stages
80mm
Screws
Front
Fix and secure the UPVC Door
section to the door panel
UPVC Door fixing
ID: 19503
50mm
Screws
Side
(LEFT)
Pilot drill holes
before fixing
Cloaking Strip is used to fix
the panels together
Position and fix
the gable
cloaking strip
LEFT - Gable Cloaking Strip (CS)
ID: PT21077
Front
Side
(LEFT)
Position and fit the UPVC Door
section to the door panel (LEFT)
UPVC Door fixing
ID: 19503
50mm
Screws
Side
(LEFT)
Front
Pilot drill holes
before fixing
Position and fix the Side
Gable (Low) Panel
Left Gable (Low) Panel Stages
ID: PT25533
23
26
24 25

REAR - Wall Panels Section Stages
Panel Position Diagram
Front of Building
Rear
Side
(Left)
Side
(Right)
Side
(RIGHT) Rear
1. Back Panel 1220mm
LEFT (1) and RIGHT (1)
2. Rear Cloaking Strip (1)
60mmx16mmx2012mm
Parts List required:
16mm
2055mm
74mm 1146mm
1220mm
Lining Flush
16mm
2055mm
74mm1146mm
1220mm
Lining Flush
Back Panel
LEFT (1220mm)
Diagram
Back Panel
RIGHT (1220mm)
Diagram
ID: PT25544 ID: PT25545
74mm
1220mm
Back Panel (LEFT)
1220mm
Back Panel (Right)
Back Panels Position
27
50mm
Screws
Back
Pilot drill holes
before fixing
Angle
screw
at top
Align and fix
the back plain
(LEFT) panel
Back Panel Stages
ID: PT25544
28
50mm
Screws
Back
Side
(RIGHT)
Pilot drill holes
before fixing
Position and fix the
Back Cloaking Strip (CS)
60mmx16mmx2012mm
Back Panel Stages
Gap for guttering
at top
ID: PT21077
29

REAR - Wall Panels Section Stages
RIGHT - Wall Panels Section Stages
Panel Position Diagram
Front of Building
Rear
Side
(Left)
Side
(Right)
Side
(RIGHT)
Back
Right Opening
Window (High)
Panel Right Gable
(Low) Panel
Cloaking Strip
1. Right Window Gable
Panel - HIGH (1)
2. Right Gable
Panel - LOW (1)
3. Gable Cloaking Strip (1)
60mmx16mmx2050mm
Parts List required:
16mm
16mm
2094mm
1220mm
Lining Flush
16mm
16mm
2135mm
1220mm
Lining Flush
Right Window Panel
(HIGH) Diagram
Right Gable Panel
(LOW) Diagram
ID: PT25535 ID: PT25522
Back
Position and fix
the back panel
(RIGHT) and
cloaking strip
Back Panel Stages
50mm
Screws
ID: PT25545
Pilot drill holes
before fixing
30

RIGHT - Wall Panels Section Stages
Door on the Left Panel Stages
Panel Position Diagram
Front of Building
Rear
Side
(Left)
Side
(Right)
Side
(RIGHT)
Front
Door
(LEFT)
1. Window Glazing Unit (W610mm) - (2) [ID: PT18490]
2. Plain Panel TOP (W1220mm) - (1) [ID: PT20323]
3. Plain Panel BOTTOM (W1220mm) - (1) [ID: PT25548]
Parts List required:
50mm
Screws
Back
Side
(RIGHT)
Position and fix the side
Plain Gable Panel (right)
Pilot drill holes
before fixing
Right Gable (Low) Panel Stages
ID: PT25535
31
50mm
Screws
Side
(RIGHT)
Pilot drill holes
before fixing
Position and fix
the right gable
cloaking strip
RIGHT - Gable Cloaking Strip (CS)
ID: PT21077
32
50mm
Screws
Front
Side
(RIGHT)
Position and fix the side
Window Panel (RIGHT)
Pilot drill holes
before fixing
Side Opening Window (RIGHT) fixing
ID: PT25522
33

Door on the Left Panel Stages
50mm
Screws
Front
Pilot drill holes
before fixing
Secure the Bottom Panel
Bottom Panel Stages
ID: PT25548 Front
Position and align
the Glazing Unit
Glazing Unit fixing
*Check the Front Window
Panels position option
(LEFT or RIGHT).
Front
Slide and fit the Bottom
Panel (LEFT) to the side
of door section and side
gable panels.
Check the corner
gap of panel
Bottom Panel Stages
*Check the Door Panel
and Front Window
Panels position options
(LEFT or RIGHT).
ID: PT25548
70mm
Screws
Front
Pilot drill holes
before fixing
Glazing Unit fixing
S70
S70
S70
S70
ID: PT18490
70mm
Screws
Front Pilot drill holes
before fixing
Glazing Unit
fixing
Glazing Unit fixing
S70
S70
S70
S70
ID: PT18490
Front
Secure the
Glazing
Unit.
Use 70mm
Screws
through
the back
rebate
Pilot drill holes
before fixing
Glazing Unit fixing
S70 S70
S70
S70
ID: PT18490
34
37 38 39
35 36

Door on the Left Panel Stages
50mm
Screws
Front
Pilot drill holes
before fixing
Fix and secure
the Top Panel
Top Panel Stages
ID: PT20323
70mm
Screws
Front
Pilot drill holes
before fixing
Top Panel fixing
Top Panel Stages
S70 S70
S70
S70
Front
Check the corner
gap of panel
Position the Top
Panel to the top
of glazing units
Top Panel Stages
ID: PT20323
BACK - Corner Trims (CT)
60mm x 16mm
x 2050mm
Corner Trim
80mm
Screws
Back
Side
Back
Side
ID: PT21077
Panel
Pins
40mm x 11mm
x 1740mm (1)
Window Frame Cloaking Strip (CS)
ID: PT21077
FRONT - Corner Trims (CT)
60mm x 16mm
x 2135mm
Corner Trim
80mm
Screws
Front
Side
Front
Side
ID: PT21077
40
43 44 45
41 42

50mm
Screws
Position and fix
the Gable Frame
44mm x 27mm
x 2590mm (2)
Side Back
Side
Front
Pilot drill holes
before fixing
GABLE - Roof Stand-Off Frame (SOF)
ID: PT21077
50mm
Screws
Back
Position and fix the
Drip Edge Flashing
Drip Edge Flashing Stages
Pilot drill holes
before fixing
ID: 21173
50mm
Screws
Back
Position and fix
the Rear Frame.
44mm x 27mm
x 2475mm (1)
Pilot drill holes
before fixing
REAR - Roof Stand-Off Frame (SOF)
ID: PT21077
Drip Edge Flashing Length Size
Building size
8x8 L2530mm x 1
Drip Edge Flashing Lengths
Back View
Side
Back
Drip Edge
Flashing
Gable
Frame
Drip Edge Flashing position
46
49 50
47 48

Roof Section Stages
Floor Plan
Front of Building
Rear
Side
(Left)
Side
(Right)
Side
(RIGHT)
Front
1. Metal Roof Section L2920mm x W515mm - (1) [ID: 21149]
2. 98mm Metal Roof Screws
Parts List required:
515mm
Wide
Roof Section Stages
Front
98mm Metal
Roof Screws
See
Cross-section
diagram
Screws must fix
throught the
top ridge Position the shortest
width of roof section
and insecure to fit
underneath to the
wall panels. Secure
with metal screws.
* Use Step ladder when
fixing the roof sections,
2 people are required.
ID: 21149
51
Roof section
position
Back
Side
(RIGHT)
Side
(RIGHT)
Front
Roof Section Stages
52
Roof Section Stages
Roof sections
overhang
13mm at the
rear.
13mm
Rear
Side
(RIGHT)
53

Roof Section Stages
Roof Section Stages
Floor Plan
Front of Building
Rear
Side
(Left)
Side
(Right)
Side
(LEFT) Front
1. Metal Roof Section L2920mm x W1000mm - (2) [ID: PT21140]
2. 98mm Metal Roof Screws
Parts List required:
1m
Wide
1m
Wide
Metal
Roof
Wall
Panels
98mm Metal
Roof Screw
Ensure the 98mm metal roof screws
fix through to the wall panels
Metal Roof Cross-Section Diagram
54
Roof Section Stages
98mm Metal
Roof Screws
Ensure the 98mm metal roof screws is align
and fix through to the wall panels below.
ID: 21149
55
Roof Section Stages
98mm Metal
Roof Screws
56

Roof Section Stages
Roof Section Stages
1m
Wide
Repeat previous roof
section fixing stages
98mm Metal
Roof Screws
* Use Step ladder when
fixing the roof sections,
2 people are required.
ID: 21140
Roof section
position
Back
Side
(LEFT)
Side
(LEFT) Front
Roof Section Stages
Roof Section Stages
1m Wide
Position the 1m wide roof
section and slot it into the
first roof section. Fix in
place with metal
roof screws
98mm Metal
Roof Screws
ID: 21140
Water Deflector Flashing Length Size
Building size
8x8 L2530mm x 1
Water Deflector Flashing Lengths
Back View
Barge Board Flashing Stages
Position the Barge Board
Flashing on both side of
roof sections. Fix the
flashing through the top
ridge of metal roof.
2927mm
ID: 21177
25mm Metal
Roof Screws
25mm Metal
Roof Screws
Back
Position and fix the
Water Deflector
Flashing through the
top ridge of metal
roof.
Water Deflector Flashing Stages
ID: 21169
57
60 61 62
58 59

Roof Section Stages
Fit and place the Foam
Closure Strips to the
top of the roof. Cut the
excess foam strips.
Foam Closure Strip fixing
ID: 21179 25mm Metal
Roof Screws
Front
Position and fix the
Monopitch Ridge Flashing
to the front of roof sections.
These are the same lenghts
of water deflector flashing
Monopitch Ridge Flashing Stages
ID: 21166
Back
Side
Side
Front
Barge Board Flashing Stages
Internal Cover Trims
Fit the top edge frame
above the window so that
the lip sits on the batten
below and fix in place with
Panel Pins
ID: 21083
Internal Cover Trims
Add the side and bottom
edging using Panel Pins
ID: 21083
Door Stop fixing
28mm x 28mm
x 250mm
Door Stop
50mm
Screws
Pilot drill holes
before fixing
ID: PT21077
63
66 67 68
64 65
