Projoy Electric PEEM-S100 User manual

Talent-MG3-MS
V1.0
- 1 -

Talent-MG3-MS
V1.0
- 2 -
Trademarks and Permissions
PROJOY and other PROJOY trademarks are trademarks of Projoy Electric Co., Ltd. All other
trademarks and trade names mentioned in this document are the property of their respective
holders.
Projoy Electric Co., Ltd makes no representations express or implied, concerning this
documentation or any of the equipment and/or software it may describe, including (with no
limitation) any implied warranties of utility, merchant ability, or fitness for any particular
purpose.
All such warranties are expressly disclaimed. Neither Projoy Electric nor its distributors or
dealers shall be liable for any indirect, incidental, or consequential damages under any
circumstances. (The exclusion of implied warranties may not apply in all cases under some
statutes, and thus the above exclusion may not apply.)
Specifications are subject to change without notice. Every attempt has been made to make this
document complete, accurate, and up-to-date. Readers are cautioned, however, that
Projoy Electric reserves the right to make changes without notice and shall not be responsible
for any damages, including indirect, incidental, or consequential damages, caused by reliance
on the material presented, including, but not limited to, omissions, typographical errors,
arithmetical errors or listing errors in the content material.
All trademarks are recognized even if these are not marked separately. Missing designations do
not mean product or brand is not a registered trademark. All trademarks are recognized as the
property of their respective owners.
Product information is subject to change without notice. User documentation is frequently
updated; please check www.projoy-electric.com for the latest information. To ensure optimal
reliability and meet warranty requirements, Projoy Electric products must be installed
according to the instructions in this manual. For warranty text refer to
www.projoy-electric.com.
© 2022 Projoy Electric Co., Ltd All rights reserved.
Audience
This manual is intended for use by professional installation and maintenance personnel.

Talent-MG3-MS
V1.0
- 3 -
Content
Trademarks and Permissions ............................................................................................................................................. - 2 -
Audience ............................................................................................................................................................................ - 2 -
Content ...............................................................................................................................................................................- 3 -
Read This First ...................................................................................................................................................................- 4 -
Important Safety Information..................................................................................................................................................................... - 4 -
Product Label ..............................................................................................................................................................................................- 4 -
System Introduction ...........................................................................................................................................................- 5 -
Product Description .................................................................................................................................................................................... - 6 -
Datasheet .....................................................................................................................................................................................................- 7 -
Installation ......................................................................................................................................................................... - 8 -
Pre-installation Check .................................................................................................................................................................................- 8 -
Installation Steps .........................................................................................................................................................................................- 8 -
Maintenance Guide ..........................................................................................................................................................- 12 -
Routine Maintenance................................................................................................................................................................................- 12 -
Storage and Dismantling ...........................................................................................................................................................................- 12 -
Recycling and Disposal ................................................................................................................................................... - 13 -
Warranty Service ............................................................................................................................................................. - 13 -
Exclusions .................................................................................................................................................................................................- 13 -
Distributor Responsibility .........................................................................................................................................................................- 14 -

Talent-MG3-MS
V1.0
- 4 -
Read This First
Dear customer, thank you for choosing Projoy products. We hope you will find our products
meet your needs for renewable energy. Meantime, we appreciate your feedback regarding our
products.
A DTU is a communication device for the Projoy microinverter system. DTU and
microinverters are all connected to the same WIFI network. DTU will collect the AC power
grid parameter by CT. If any power is exported to the power grid, DTU will send it to each
microinverter and control the output of the system.
This manual contains important instructions for PEEM-S100 DTU and must be read in its
entirety before installing or commissioning the equipment. For safety, only qualified
technicians, who have received training or have demonstrated skills can install and maintain
this DTU under the guide of this document.
Important Safety Information
During installation, testing, and inspection, adherence to all the handling and safety
instructions is mandatory. Failure to do so may result in injury or loss of life and damage to the
equipment.
Product Label
The symbols on the products are listed below and illustrated in detail.
Symbol
Description
This device fulfills the requirements of the Radio Equipment Directive.

Talent-MG3-MS
V1.0
- 5 -
System Introduction
The PEEM-S100 DTU is used in grid-tied applications which not allow electricity to be
transmitted to the public power grid, is comprised of three key elements:
 Projoy Microinverter.
 M-Cloud monitoring system.
 PEEM-S100 DTU.
The microinverter converts the DC electricity generated by solar panels into AC electricity
which is in accordance with the requirements of the public grid and sends the AC into the grid,
reducing the load pressure of the grid.
The microinverter is integrated with the Wi-Fi module and connects to the home Wi-Fi router
directly. Users can monitor the power generation of the system by M-Cloud monitoring App.
The PEEM-S100 DTU will detect the power to the public power grid. If there is an export to the
public power grid, DTU will communicate with the microinverter locally and reduce the
outpower of microinverters.
PEEM-S100

Talent-MG3-MS
V1.0
- 6 -
Product Description
A
Connector
D
Screen
B
Antenna Port
E
Buttons * 3
C
Status Light

Talent-MG3-MS
V1.0
- 7 -
Datasheet
Model
PEEM-S100
AC Input
Grid Type
Single phase
Input AC Voltage
230V
Input AC Frequency
50 / 60 Hz
Max. Current per phase
100A
Power Consumption per phase
＜1W
Communication
Wi-Fi Type
WIFI (802.11 b/g/n)
Wi-Fi Frequency Range
2400MHz-2483.5MHz
Maximum Distance to Router (Open Space)
100m
Bluetooth Type
BLE 5.0
Bluetooth Frequency Range
2400MHz-2483.5MHz
Maximum Distance to mobile phone (Open Space)
50m
Control
Connection Limit
28 Microinverters
Communicate to Server
300 s
Communicate to Microinverter
300 ms
Accessary
External Antenna
Yes
Cable length of antenna
2m
External CT
1
Cable length of CT
2m
CT Type
ɸ16mm
Mechanical Data
Dimension(mm)
36 * 90 * 90
Weight (g)
130
Ambient Temperature(°C)
-20~+55
Mounting System
Rail mounted (35mm)
Indicator Light
1 * LED
Altitude(m)
< 2000
Relative Humidity
0 - 95%, No condensation
Projoy Electric Co., Ltd declares that the radio equipment (DTU) is in complies with Directive
2014/53/EU.
OPERATING FREQUENCY (the maximum transmitted power)
2412MHz—2472MHz(EIRP ＜20dBm)
2402MHz—2480MHz(EIRP ＜10dBm)

Talent-MG3-MS
V1.0
- 8 -
Installation
Pre-installation Check

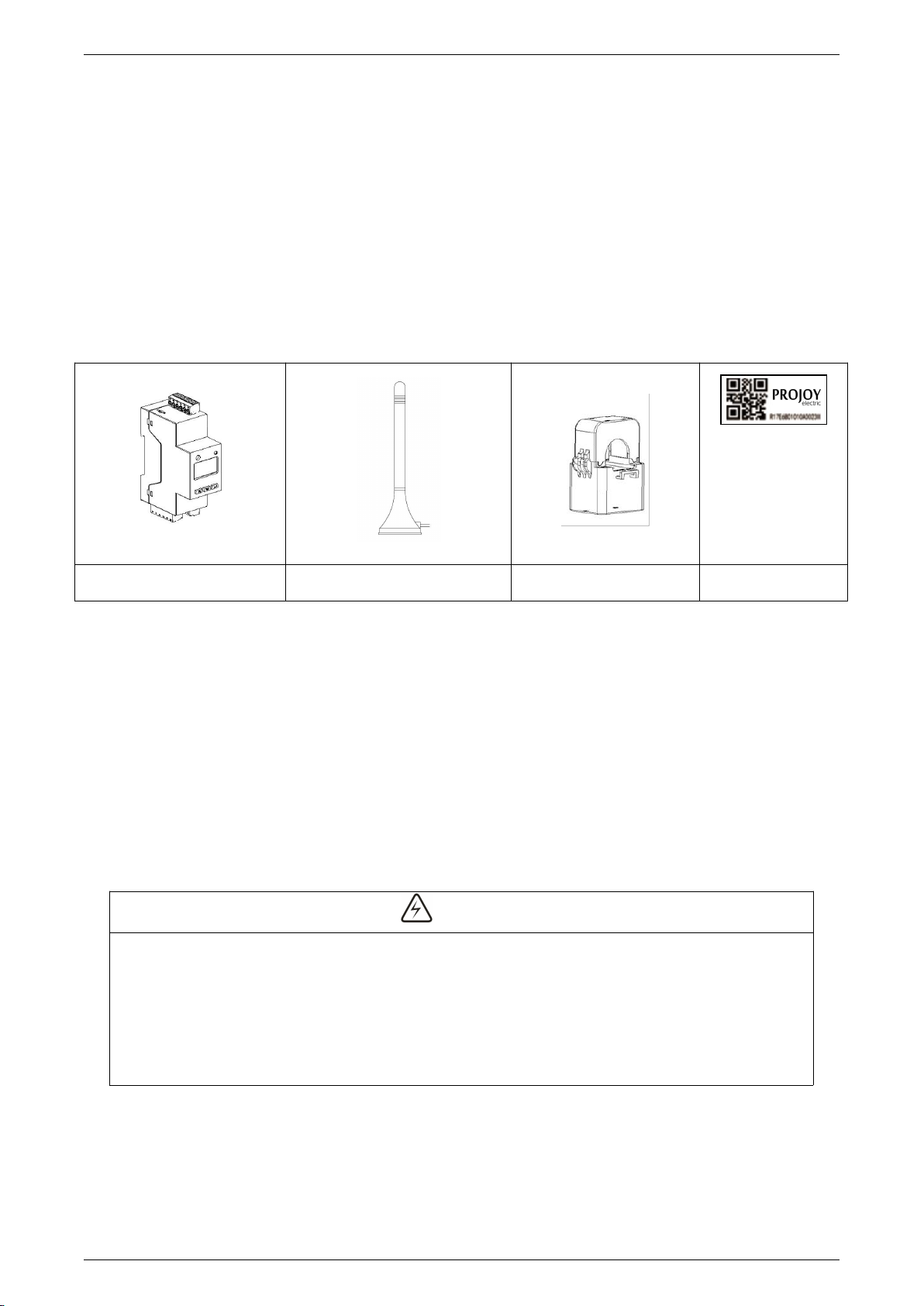

Check the Package
Although Projoy’s products have surpassed stringent testing and are checked before they leave the
factory, it is uncertain that the products may suffer damage during transportation. Please check the
package for any obvious signs of damage, and if such evidence is present, do not open the package
and contact your dealer as soon as possible.
Meter * 1
Antenna * 1
CT * 1
SN Label * 1
Check the Installation Environment and Position
When choosing the position of installation, comply with the following conditions:
Install the DTU near or in the home distribution box.
Avoid electromagnetic interference that can compromise the correct operation of electronic
equipment.
Use a mobile phone to check the Wi-Fi signal strength at the installation position. If the Wi-Fi
signal is bad, try to install the DTU in another position or move the Wi-Fi router.
Installation Steps
DANGER
·Only qualified personnel should install, troubleshoot, or replace DTU and accessories.
·Before installation, check the unit to ensure the absence of any transport or handling
damages.
·Unauthorized removal of necessary protections, improper use, incorrect installation, and
operation may lead to serious safety and shock hazards or equipment damage.
·Be aware that installation of this equipment includes the risk of electric shock.

Talent-MG3-MS
V1.0
- 9 -
Step 1. Install the DTU.
Fix the DTU onto the rails of AC distribution box. Connect the L and N cable to port 11 and port 14.
Then connect CT cable to port 4 and port 5.
Step 2. Connect CT
Install the CT into the L cable. The direction on the CT should be pointed to the grid side.

Talent-MG3-MS
V1.0
- 10 -
Step 3. Connect the Wi-Fi antenna
Connect the Wi-Fi antenna cable to the DTU. Put the antenna out of the distribution box to get a
good Wi-Fi signal.
Step 4. Add the DTU to M-Cloud Home
Open M-Cloud Home App.
Scan the SN label of DTU and add it to the device list.

Talent-MG3-MS
V1.0
- 11 -
Step 5. Set the power limit function
Click the setting button and enter the meter setting page.
Switch on the export limit button . Enter the limit power and choose the microinverter that
need to control.
Press “Confirm” button. Then the status and relationship will be shown on the device list.

Talent-MG3-MS
V1.0
- 12 -
Maintenance Guide
Routine Maintenance
Only authorized personnel are allowed to carry out the maintenance operations and are
responsible for reporting any anomalies.
Always use the personal protective equipment provided by the employer when carrying out
maintenance.
During normal operation, check that the environmental and logistic conditions are appropriate.
Make sure that the conditions have not changed over time and that the equipment is not exposed
to adverse weather conditions and has not been covered with foreign bodies.
DO NOT use the equipment if any problems are found and restore the normal conditions after
the fault has been corrected.
The firmware version can be checked by using the monitoring system.
Always de-energize the AC branch circuit before servicing.
Do not attempt to dismantle the DTU or make any internal repairs! To preserve the integrity of
safety and insulation, the DTU is not designed to allow internal repairs!
Avoid temporary repairs. All repairs should be carried out using only genuine spare parts.
Storage and Dismantling
If the equipment is not used immediately or is stored for long periods, check whether it is
correctly packed. The equipment must be stored in well-ventilated indoor areas that do not have
characteristics that might damage the components of the equipment.
Take a complete inspection when restarting after a long time or prolonged stop.
Please dispose of the equipment properly after scrapping, as component parts are potentially
harmful to the environment, following the regulations in force in the country of installation.

Talent-MG3-MS
V1.0
- 13 -
Recycling and Disposal
This device should not be disposed of as residential waste. A DTU that has reached the end of its life
is not required to be returned to the dealer. Users must find an approved collection and recycling
facility in the area.
Warranty Service
This Warranty is subject to the following conditions:
The products must have been installed and correctly commissioned by an authorized and
licensed installer. Proof may be required of correct commissioning of the Product (such as a
certificate of compliance). Claims for failures due to incorrect installation or commissioning are
not covered under this Warranty.
Where a Product or part thereof is replaced or repaired under this Warranty, the balance of the
original Warranty period will apply. The replacement product or part(s) do not carry a new
voluntary warranty.
The product must have its original serial number and rating labels intact and readable.
This Warranty does not extend to any product that has been completely or partially disassembled
or modified, except where such disassembly is carried out by Projoy.
The terms of this Warranty cannot be amended except in writing by one of our authorized
officers.
There must have been a commissioning report signed by the end user and the installer for
product commissioning and handling instructions.
Exclusions
(a) Projoy makes no warranties, either expressed or implied, orally, or in writing, concerning any
other warranty coverage except those expressly stated in this limited Factory Warranty.
(b) The Factory Warranty does not cover damages that occur due to:
Transport damage;
Installation or commissioning through any person who is not an Authorized, Certified Dealer;
Failure to observe the user manual, maintenance regulations, and intervals;
Modifications, changes, or attempted repairs, except as conducted by an Authorized Dealer;
Incorrect use or inappropriate operation;
Failure to observe the applicable safety regulations;
Force majeure.
(c) This factory warranty does not cover cosmetic defects which do not directly influence energy
production, or degrade form, fit, and function.
(d) Claims that go beyond the scope of this limited Factory Warranty, in particular claims for
compensation for direct or indirect damages arising from the defective device, for compensation for

Talent-MG3-MS
V1.0
- 14 -
costs arising from disassembly and installation, or loss of profits, are expressly NOT covered by this
Factory Warranty.
(e) In no event will Projoy Electric Co., Ltd be held responsible or liable for any personal injuries
resulting from the use of the system, or for any other damages, whether direct, indirect, incidental, or
consequential; even if Projoy Electric Co., Ltd has been advised of such damages.
Distributor Responsibility
In the event of an equipment failure or fault, it is the Distributor’s responsibility to work directly
with the Projoy Service Centre to limit the return of non-faulty equipment. Projoy Service Centre
will work with the Distributor to rectify the fault or fault message through telephone support or with
direct PC links. Note: To qualify for further compensation and a replacement unit, the
distributor/installer must first contact Projoy and fulfill the distributor’s /installer’s responsibilities
under instruction.
Within the warranty period of the DTU, the invoice and date of purchase are required for the service.
Besides, the trademark on the product should be visible, otherwise, a warranty is not available.
More information can be found in Projoy Warranty Policy.

Talent-MG3-MS
V1.0
- 15 -
