Proline IDW12PU User manual

0120504965B
Use and Maintenance Manual
IDW12P-U

1
Index
en
Safety information
Installation
Getting to know your dishwasher
How to fill the salt container
How to fill the rinse aid dispenser
How to fill the detergent dispenser
Not suitable for the dishwasher
Arranging crockery, glasses, etc. in the dishwasher
Programme overview
Washing dishes
Keep your dishwasher healthy
Care and maintenance
Fault finding
Technical data
Important information
2
4
7
8
10
11
12
13
15
17
19
20
21
25
25

2
Safety information
At time of delivery
Site the dishwasher and connect it up in accordance with the installation instructions.
The dishwasher must not be connected to the electricity supply while installation is being carried out.
Ensure that the domestic wiring is properly earthed.
The mains electricity supply must conform to the details shown on the dishwasher rating plate.
A carpet must not obstruct the openings (if the appliance is installed in a room with carpeting)
Built-under and built-in appliances should always be installed under a continuous work surface which
is attached to the adjacent cupboards, in order to ensure that the appliance is entirely stable.
After the appliance has been installed,the mains plug should still be easily accessible.
During installation, the power supply cord must not be excessively bent or flattened.
Check packaging and dishwasher immediately for signs of transport damage. If the appliance is
damaged, do not put it into use but contact your supplier or customer service without delay.
Please dispose of packaging materials properly.
During installation
The dishwasher must only be used by adults for the washing of household dishes and cooking utensils.
This appliance cannot be installed outdoors, not even if the area in which it is installed is covered by
a roof; it is also very dangerous to leave it exposed to rain.
Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
The water inside the dishwasher is not suitable for drinking.
Do not use solvents of any kind inside your dishwasher. They could cause an explosion danger.
Open the door very carefully if the dishwasher is operating. There is a risk of hot water and steam
being ejected..
During normal use
Do not touch the heating element during or after a wash cycle.
Fundamental rules to follow when using the appliance:
- Never touch the dishwasher when barefoot or with wet hands or feet;
- We discourage the use of extension cords and multiple sockets as they constitute a tripping
hazard.
- If the appliance is not operating properly or maintenance must be performed, disconnect the
appliance from the power supply.
- The door should not be left in the open position since this could present a tripping hazard;
en

3
If your family includes children
This appliance is not intended for use by persons (including children) with reduced physical,sensory
or mental capcabilities, or lack of experience and knowledge,unless they have been given supervi-
sion or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they to not play on or near the appliance and that they
do not sit or stand on the open door as the product may tip forward.
Do not place any heavy objects on the open door.
Keep detergents out of the reach of children, who must also be kept away from the dishwasher when
it is open.
If a fault occurs
If the appliance malfunctions, turn off water supply to the appliance and disconnect the plug from the
wall socket. Then, consult the section entitled, "Fault finding" .If you cannot solve the problem, con-
tact a service center.
Only specialised personnel are authorised to make repairs.
If the supply cord is damaged ,it must be replaced by the manufacture ,its service agent of similarly
qualified persons in order to avoid a hazard.
To maintain the EFFICIENCY and SAFETY of this appliance,we recommend:
- call only the Service Centers authorized by the manufacturer.
- always use original Spare Parts.
When disposing of old appliances
Appliances which are no longer being used must be made inoperable by cutting the power supply
cord and removing the door lock.
Take the appliance to a designated waste disposal center.
Warning
If you are discarding an old dish washer with a lock / catch fitted to the
door, ensure that it is in a disabled condition to avoid the entrapment of
children when playing.
Disconnect from the mains, remove the plug and cut the mains cable
off close to the appliance before disposal at your local recycling point.
Dangerous voltage
en

4
Cold water connection
Connect the water supply hose to a standard threaded water
outlet connector, making sure that it is fastened tightly in place
(see fig.1).
If the water pipes are new or have not been used for an ex-
tended period of time, let the water run to make sure that the
water is clear and free of impurities. If this precaution is not
taken, there is a risk that the water inlet can get blocked and
damage the appliance.
Positioning the appliance
Positioning the appliance in the desired location. The back should rest against the wall behind it, and the
sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain
hoses that can be positioned to the right or the left to facilitate proper installation.
fig.1
Levelling the appliance
Once the appliance is positioned, adjust the feet (screwing them
in or out) to adjust the dishwasher, making it level. In any case,
the appliance should not be inclined more than 2˚. If the appli-
ance is level, it will help ensure proper performance.
Installation
Warning
The appliance is to be connected to the water mains using new
hose-sets and that old hose-sets should not be reused.
en
NOTE:
The minimum water pressure is 0.03 Megapascals.
The maximum water pressure is0.6 Megapascals.

5
Drain hose connection
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making
sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend) with a connecting piece for
the drain hose (fig.2). The free end of the hose must be at a height between 40 and 100 cm and must not
be immersed in water.
fig.2
Attention:
The connecting piece for syphon trap (U-bend) must be solidly
fastened to the wall to prevent the drain hose from moving and
allowing water to spill outside the drain.
Electrical Connection
After making sure that the voltage and frequency values for the current in the home correspond to those
on the rating plate (located on the stainless steel inner door of the appliance) and that the electrical
system is correct for the maximum voltage on the rating plate, insert the plug into an electrical socket
which is earthed properly (the earthing of the appliance is a safety requirement mandated by law).
If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace
the whole cable, rather than using adaptors as they could cause overheating and risk of fire.
Caution:
The dishwasher plug must be accessible even when the appli-
ance is installed as a built-in unit so that maintenance can be
done safely.
en
40 cm
100 cm

The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin
socket, suitably earthed and should be protected by a 13 amp fuse in the plug or a 15 amp fuse in the
consumer unit.
The appliance is supplied with a moulded 13 amp 3 pin mains plug fitted with a 13 amp fuse. Should
the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.
The plug contains a removable fuse cover that must be refitted when the fuse is replaced. In the event
of the fuse cover being lost or damaged, the plug must not be used until a replacement cover has been
obtained.
If the moulded mains plug is unsuitable for the socket outlet in your home or is removed for any other
reason, then the fuse should be removed and the cut off plug disposed of safely to prevent the hazard
of electric shock.
There is a danger of electric shock if the cut off plug is inserted into any 13 amp socket outlet.

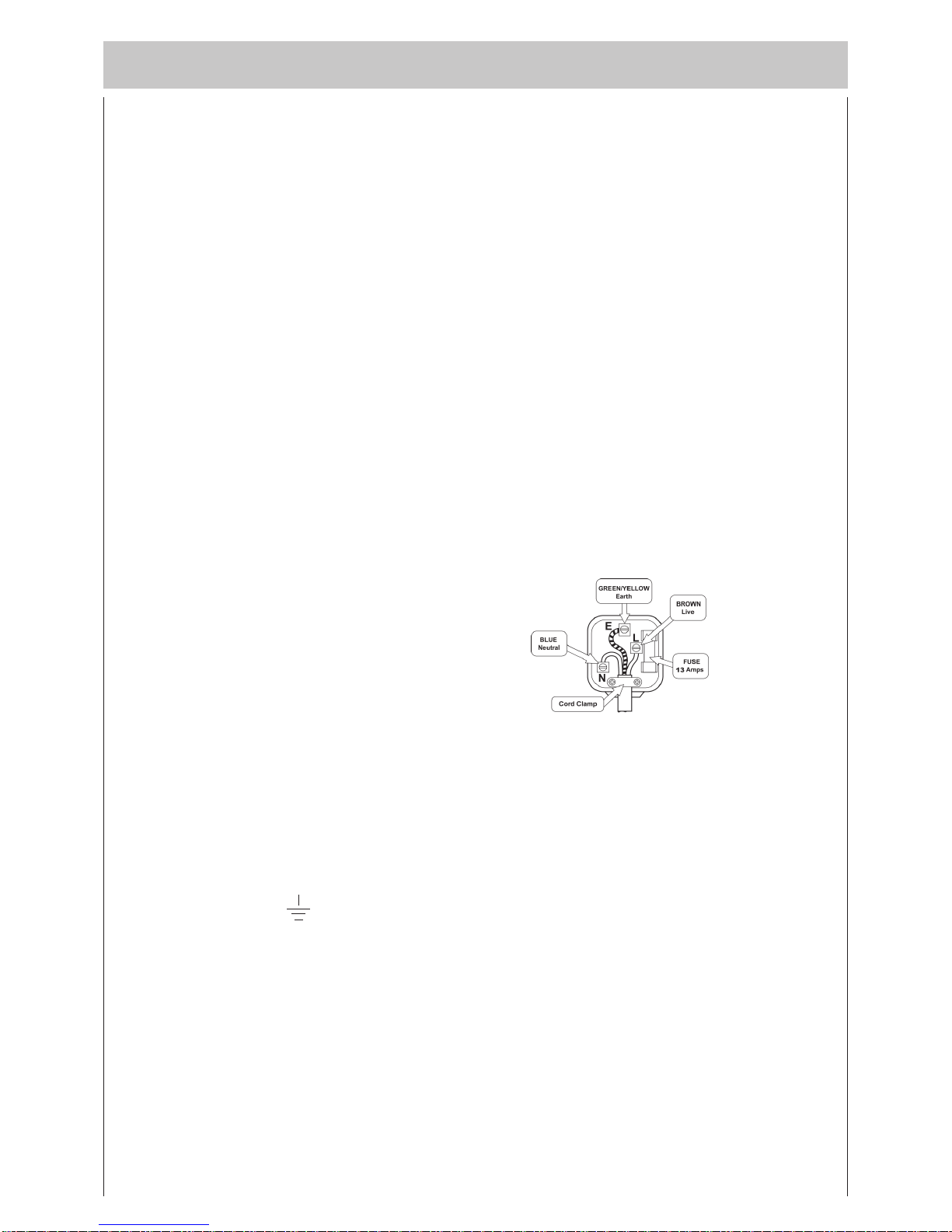

How to wire a 13 amp plug.
Important
The wires in the mains lead on this appliance are coloured in accordance with the following code:
Green and Yellow - Earth Blue – Neutral Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug proceed as
follows.
The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E
or with the earth symbol or coloured green and yellow.
The blue wire must be connected to the terminal marked N or coloured black.
The brown wire must be connected to the terminal marked L or coloured red.
You must make sure the mains cord is held securely under the cord clamp.
6
en
Electrical Connection (Uk Only)
For your safety please read the following information.
Warning: This appliance must be earthed.

7
A
BC DON-OFF Button
ON-OFF Indicator
Upper Rack
Detergent and Rinse Aid Dispenser
a
b
c
d
e
f
g
h
Salt Container Cap
Silverware Basket
Bottom Spray Arm
Top Spray Arm
Lower Rack
Washing Filter
a
de
fg
h
b
c
AB CD
Programme Indicator
Programme Button

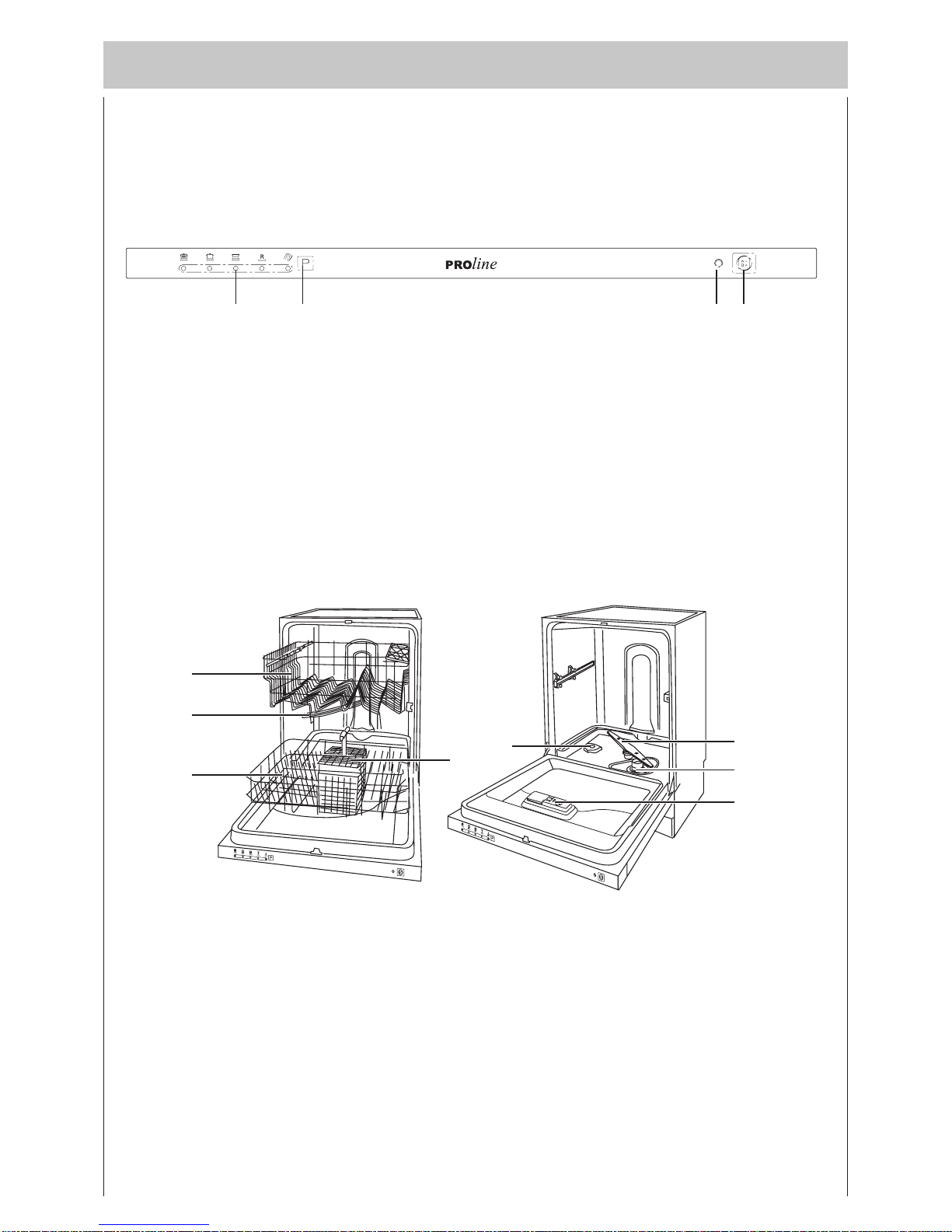

Getting to know your dishwasher

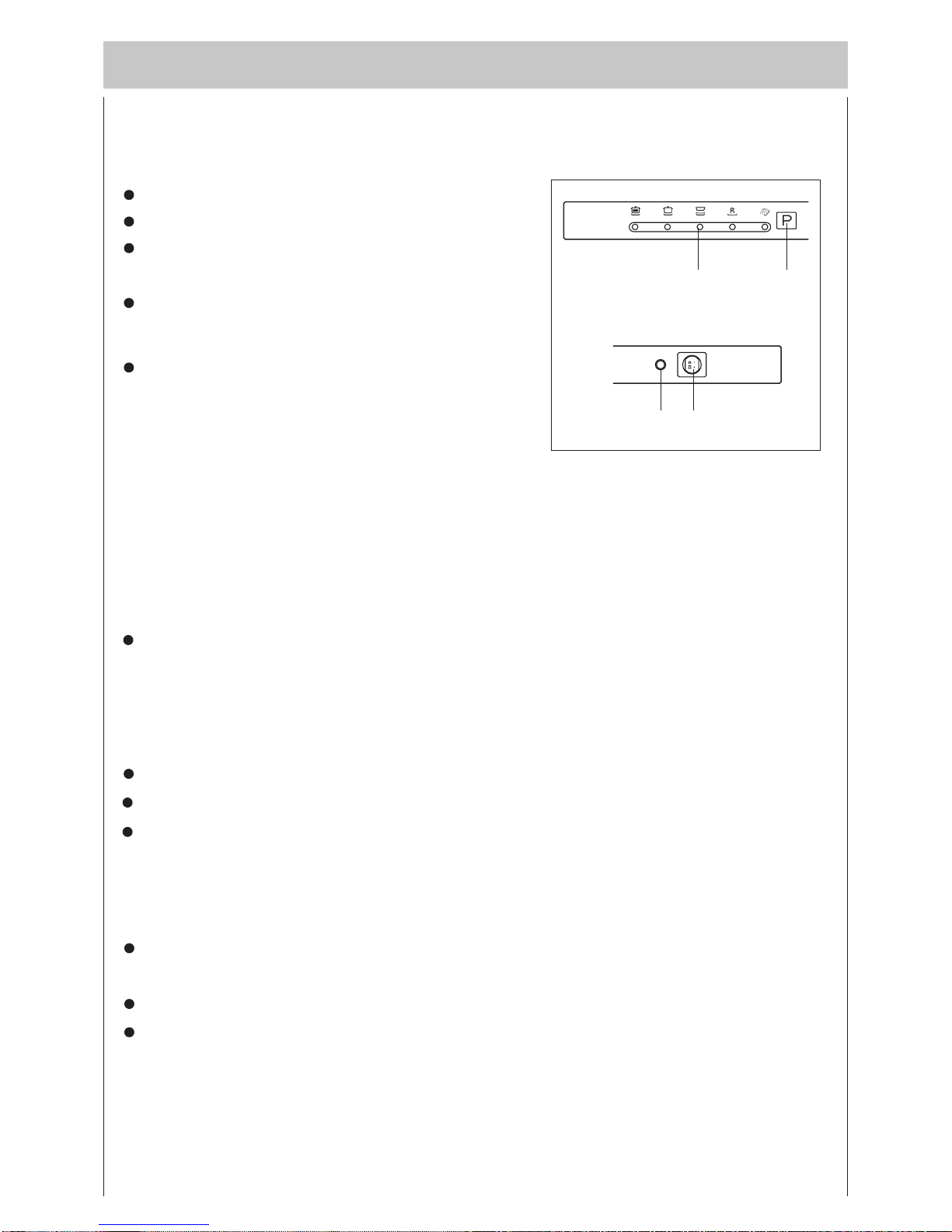

Close-up view (control panel)
en
Dishwasher interior

8
Salt
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits
will form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime
and minerals from the water.

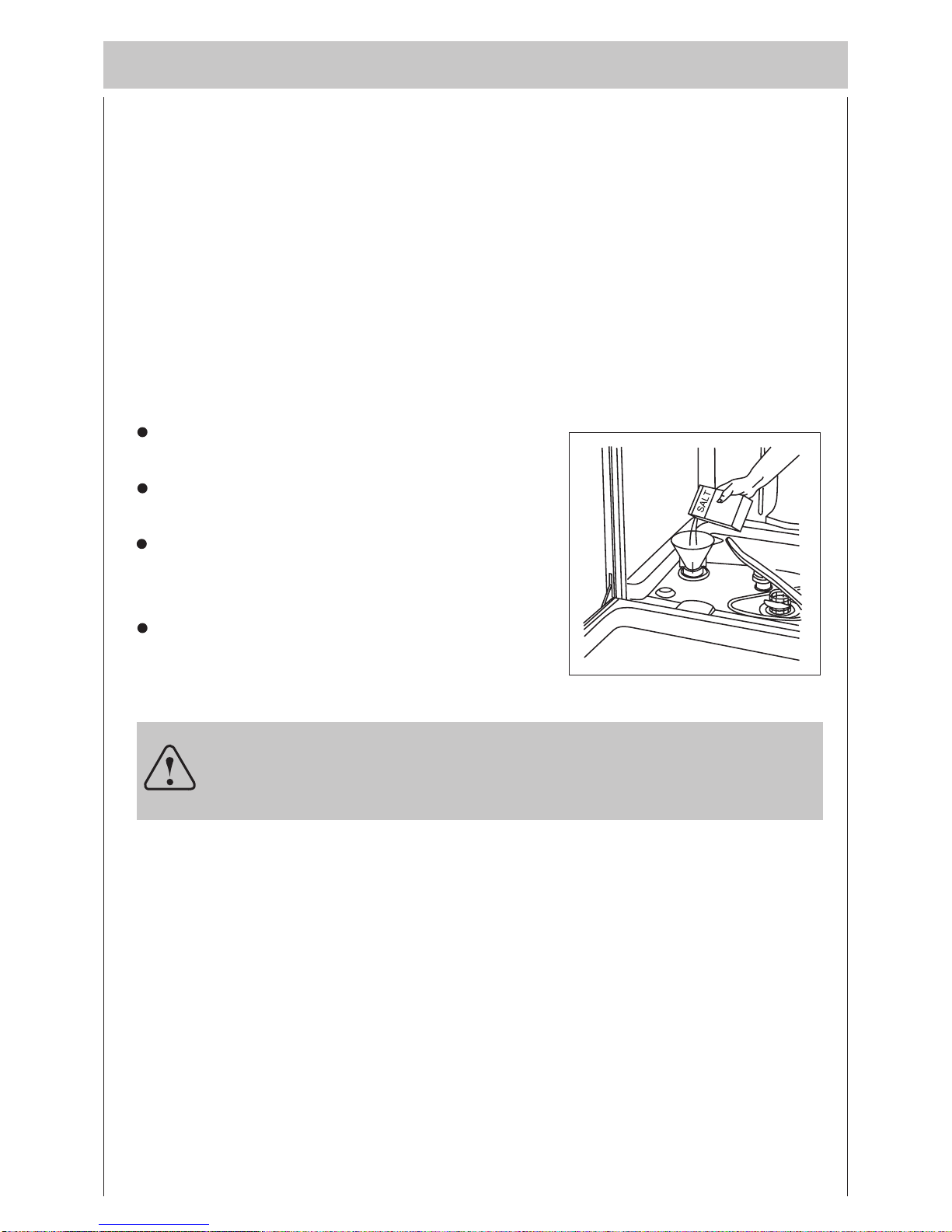

How to fill the salt container
Loading the salt into the container
Always use salt intended for use with dishwashers.
The salt container is located beneath the lower rack and should be filled as follows:
Remove the lower rack and then unscrew and remove
the cap from the salt container;
If you are filling the container for the first time, fill it with
water;
Place the end of the funnel (supplied) into the hole and
introduce about 2 kg of salt. It is normal for a small amount
of water to come out of the salt container.
Carefully screw the cap back on.
Important
To prevent the formation of rust, load the salt just before beginning a
wash cycle.
en

9
1
2
3
4
Adjusting salt consumption
The dishwasher is designed to allow for adjusting the amount
of salt consumed based on the hardness of the water used.
This is intended to optimize and customize the level of salt
consumption so that it remains at a minimum.
To adjust salt consumption, proceed as follows:
Unscrew the cap from the salt container;
There is a ring on the container with an arrow on it (see
figure to the side),
If necessary, rotate the ring in an anticlockwise direction
from the "-" setting towards the "+" sign, based on the
hardness of the water being used.
It is recommended that adjustments be made in accordance with the following table:
en

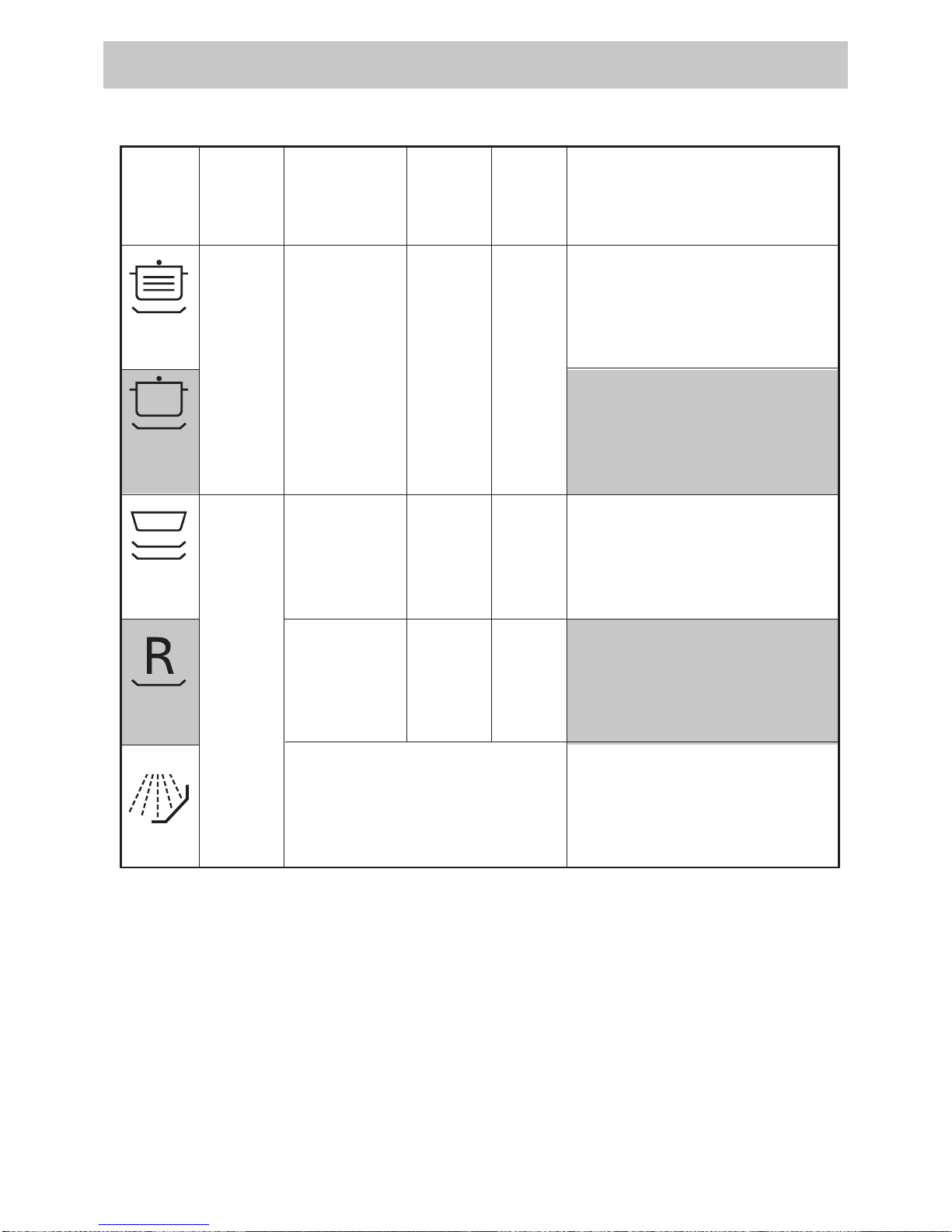

Water Hardness
Clarke
degrees ºdH mmol/l Selector
position
Salt
consumption
(Grams/cycle)
Autonomy
(cycles/2kg)
Level
0J14 MJNT MJNIT
NIUJQIQNUJQQNQJPS
PSJTN QRJUV QIRJUIV
[UV[TN [UIV
L
=?J?
ãáÇÇäÉ
LM
OM
QM
SM
?H?
SM
QM
OR

10
12
Rinse aid
This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on
the inside panel of the door .
Important
Proper dosage of the rinse aid improves drying.
If drops of water remain on the dishes or spotting occurs, the dosage adjuster
should be turned to a higher setting.
If the dishes have white streaks, turn the dosage adjuster to a lower setting.
Loading the rinse aid
Regardless of the type of detergent dispenser installed on
your appliance, you must proceed as indicated below when
loading the rinse aid.
To open the dispenser, turn the "1" cap in an anti-clockwise
direction and then pour in the rinse aid, making sure not to
overfill. The amount of rinse aid used for each cycle can be
regulated by turning the " 2" dose adjuster, located beneath
the "1" cap, with a screwdriver.
There are 6 different settings; the normal dosage setting is
3.
How to fill the rinse aid dispenser
en

5
6
4
3
11
en
Detergent
Detergent specifically intended for use with dishwashers
must be used. The dispenser must be refilled before the start
of each wash cycle following the instructions provided in the
"Programme overview". The detergent dispenser is located
on the inside panel of the door.
Loading the detergent
To open the " 3 " cover on the dispenser, press the " 4 "
button.
The detergent for the wash cycle should be poured into
the " 5 " compartment.
The detergent for the pre-wash cycle should be poured
into the “ 6 ” compartment.
After the detergent has been placed in the dispenser,
close the cover and press down until it clicks in place.
How to fill the detergent dispenser
Notice:
To facilitate closing the cover, remove any excess of detergent on
the edges of the dispenser.
Notice:
The usage of 3 in 1 or similar tablets is forbidden when Rapid Wash
and Soak programmes are selected.

12
Not suitable for the dishwasher
What you should not put into the dishwasher
Cutlery and tableware manufactured in whole or part from wood.They become faded and unsightly in
appearance.Furthermore,the adhesives that are used are not suitable for the temperature that occur
inside the dishwasher.Delicate decorative glassware and vases,special antique or irreplaceable china.
The decorative patterns on such items will not be dishwasher-proof.
Plastic objects that are not resistant to hot water, copper and pewter utensils are also not suitable.
Decorative patterns printed or painted onto the surface of crockery, glasses, etc.,aluminium and silver
items tend to become discoloured or faded if washed in the diswasher. Some types of glass can become
opaque in appearance after they have been washed many times in a dishwasher. Highly absorbent
materials, such as sponges and towels,should never be placed in the dishwasher.
Our recommendation
In future, only purchase table or kitchenware that has been confirmed as being dishwasher-proof.
Important
Dishes or cutlery that have been soiled by tobacco ash, wax,
Iubricating grease or paint, should not be put in the dishwasher.
Damage to glassware and other dishes
Possible causes
type of glass or manufacturing process
chemical composition of detergent
water temperature and duration of dishwasher programme.
Use glassware or porcelain dishes that have been marked ‘dishwasher-proof’ by the manufacturer.
Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information from
detergent manufacturers.
Select a programme with a low temperature and a short duration as possible.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the
programme has ended.
Suggested remedy
en

13
Normal daily load
fig.D











fig.E
Arranging crockery, glasses, etc. in the dishwasher
Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from be-
coming clogged, which results in reduced performance.
If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are
soaked before washed. This will eliminate the need for extra wash cycles.
Pull out the rack to load the dishwasher.
How to use the lower rack
We recommend that you place the most difficult to clean items
on the bottom rack: pots, pans, lids, serving dishes and bowls,
as shown in the figure to the right.
It is preferable to place serving dishes and lids on the sides of
the racks in order to avoid blocking the rotation of the top spray
arm.
Pots, serving bowls, etc. must always be placed face down
(see fig.D) .
Deep pots should be slanted to allow the water to flow out.
Warning
knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
The silverware basket can be doubled (see fig.E) so that
only one section may be used when the silverware load is
light. This also makes space for additional pots and pans
and it can also be placed in the upper rack.
en

14

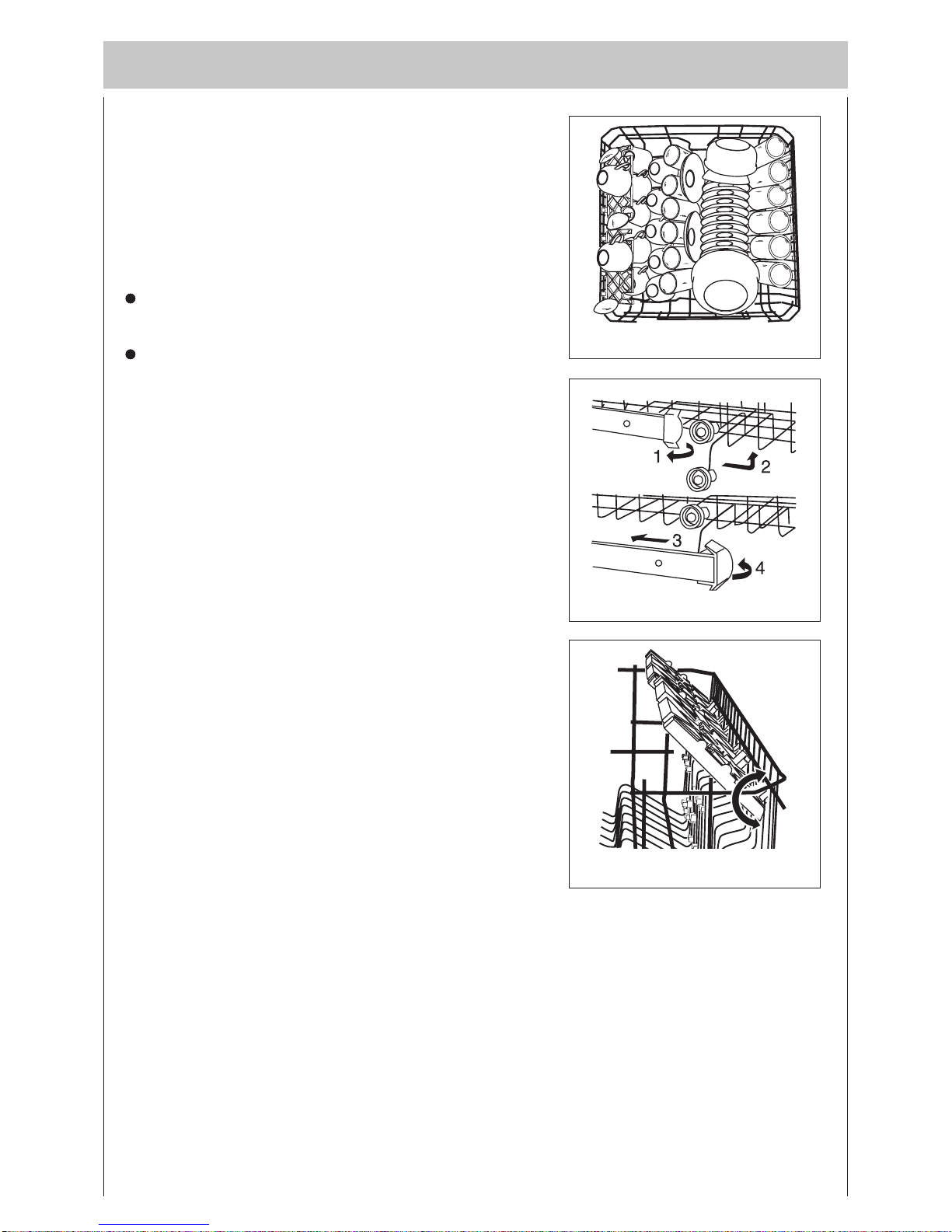

fig.H
fig.G
fig.F
Shelf
Lean tall glasses and those with long stems against the shelf-
not against other items to be washed.
Place glasses, cups and small bowls on the additional cup rack.
The additional cup rack can be swivelled in or out as required
(see fig.H).
The upper rack is designed to hold more delicate and lighter
dishware, such as glasses, cups and saucers, plates, small
bowls and shallow pans (as long as they are not too dirty)(see
fig.F).
How to use the upper rack
Adjust the upper basket to the higher level and you have
more space to accommodate those taller pans and trays in
the bottom basket.
Position the dishes and cookware so that they do not get
moved by the spray of water.
The upper rack can be adjusted for height by using the knobs
located on both sides of the rack itself (see fig.G).
en

15
en
Programme overview
Wash
programme
Type of
crokery e.g.
china, pots/
pans,
cutlery,
glasses, etc
Amount of
food
remains Description of cycle
Condi-
tion of
food
remains
Pre-wash with warm water.
Extended wash at 70°C.
Rinses with cold water.
Rinse with hot water.
Drying.
Pre-wash use cold water.
Extended wash at 55°C.
Rinse with cold water.
Rinse with hot water.
Drying.
Short wash at 40°C.
Cold rinse.
Short cold wash to pre-
vent food residue from
drying on the dishes .
Pre-wash use cold water.
Extended wash at 50°C.
Rinse with cold water.
Rinse with hot water.
Drying.
Soups,
casseroles,
sauces,
potatoes,
pasts, rice,
eggs, roast or
fried food.
a lot
a little
stuck
on hard
Soups,
potatoes,
pasta, rice,
eggs, roast or
fried food.
loosely
attached
Coffee,cakes,
milk, sausage,
cold drinks,
salads
Very little loosely
attached
Rinse off if the dishes have been
stacked for several days in the dish-
washer prior to washing.
Type of
food
remains
Non-
delicate
Mixed
Intensive
Wash
Normal
Wash
Light Wash
(EN50242)
Soak
Rapid wash

16
en
Delayed
Start
Detergent
Extended
Wash
Prewash Rinse Aid Duration in
minutes
Energy
consump-
tion in kWh
Water
consump-
tion in litres
Laboratory measured valve in accordance with European Standard EN50242
5g
5g
5g
25g
25g
25g
112
102
162
32
12
1.62
1.24
1.05
0.40
0.02
18
16
15
9
3
15g
*EN50242 test with rinse aid setting 5
(*)

17
Washing dishes
Programme selection
The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as
well as the amount and condition of food remains, with the details contained in the wash cycle table.The
corresponding programme sequence, and consumption details are shown in the right half of the overview.
For example:
Use the« normal» programme for dishes and utensils which have plenty of food remains stuck on
hard.
Earn savings
If only a small number of dishes have been loaded into the dishwasher,selecting a programme that
operates at the next lowest temperature will usually be sufficient.
en
Programme data
The stated programme data are based on standard operating conditions. The values can vary consider-
ably according to:
different amounts of dishes
temperature of mains water supply
pressure of mains water supply
ambient temperature
fluctuations in mains voltage
machine-related factors (e.g. temperature, water volume,...)

18
Switching the dishwasher ON
Turn on the tap.
Open the door.
Press programme button “B” , programme indicator “A”
lights.
Set ON-OFF button “D” to ON, the ON-OFF indica-
tor "C" lights.
Close the door, the programme indicator “A” becomes to
blink and the programme starts automatically.
Interrupting the programme
Open the door. Caution! There is a risk of water squirting out from inside the appliance. Do not open
the door fully until spray arm has stopped rotating.
When you open the door, the dishwasher will beep ten times every thirty seconds.
If the appliance has already heated up or the hot water was switched ON and then the appliance door
opened, leave the door ajar for several minutes and then close. Otherwise, the appliance door may
open due to expansion.
CD
AB
en
End of programme
Six beeps will indicate that the wash cycle has finished and all the indicators go out except the ON-
OFF indicator.
Switching the dishwasher OFF
Several minutes after the programme has ended:
Open the door.
Set ON-OFF button “D ” to OFF.
Remove dishes, etc. when they have cooled down.

19
en
Keep your dishwasher healthy
After Every Wash
After every wash, set the ON-OFF button to off and leave the door slightly ajar so that moisture and
odors are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.
No solvents or Abrasive Cleaning Products
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning
products. Rather, use only a cloth and warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little
while vinegar, or cleaning product made specifically for dishwashers.
Moving the Appliance
If the appliance must be moved, try to keep it in a vertical position. If absolutely necessary, it can be
positioned on its back.
Seals
One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this from occurring.
The door should not be left in the open position since this could present a tripping hazard.
When You Go on Holiday
When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and
then remove the plug from the socket, turn off the water supply and leave the door of the appliance
slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.
