Promate PM 15000 ES-R User manual

Gasoline Generator
PM 15000 ES-R

[CAUTION]
WARNING
Do not operate the generator before you have read and understood the instructions.
Failure to do so could result in personal Injury or equipment damage.
The generator is designed to give safe and dependable service If operated according
to instructions.
Indicates a strong possibility of severe personal injury, loss of life and equipment
damage if instructions are not followed.
Indicates a possibility of personal injury, or equipment damage if instructions are not
followed.
Gives helpful information.
If a problem should arise, or if you have any questions about the generator, consult an
dealer selling our generator.
Thank you for purchasing a power generator.
This manual covers operation and maintenance of your generators. All information in
this publication is based on the latest production information available at the time of
approval for printing.
Pay special attention to statements preceded by the following words:
WARNING
NOTE:

Check the accessories coming with yourgenerator
(1)Owner'smanual
(2)Wheel kits
(3)Servicing tools
(4)Battery
Be sure to replenish with engine oil.
(See page 09 for details)

INSTALL THE WHEELS:
a. Raise the generator,with hoist or with square bar .
b. Assemble 2 bottom cross bar
side) with screws②.
self-lock universal wheels① to ③(engine
①
②
①
③
②
④
②
③
c. Assemble 2 normal wheels④to bottom cross bar③(alternator side) with
screws②.
A. Installing 4wheel kits

B. Installing 2wheel kit(optional)
b.Raise the generator with hoist or square bar
c.Remove the nuts under the alternator and assemble the leg⑩ to
bottom crossbar with the nuts .
d.Assemble the wheel shaft totheframewith⑥ ④⑤⑦.
e.Assemble the wheels to the shaft by③ ⑥ ②①.
a.Assemble the rubber absorber⑧ to the leg⑩ by the nut⑨.
①
②③
④
⑤
⑥
⑦
⑧
⑨
⑩
11
12
15
13
16
14
11
11
f. Bend the clip to lock the wheel.

1.SAFETY PRECAUTIONS ............................................................................................01
2.SPECIFICATIONS.....................................................................................................05
3.COMPONENTS.......................................................................................................06
4.PRE-OPERATION CHECKS.......................................................................................08
5.OPERATING PROCEDURES......................................................................................14
6.WATTAGE INFORMATION.........................................................................................22
7.MAINTENANCE SCHEDULE......................................................................................24
8.“HOW-TO” MAINTENANCE.......................................................................................27
9.PREPARATION FOR STORAGE...................................................................................31
10.TROUBLE SHOOTING.............................................................................................32

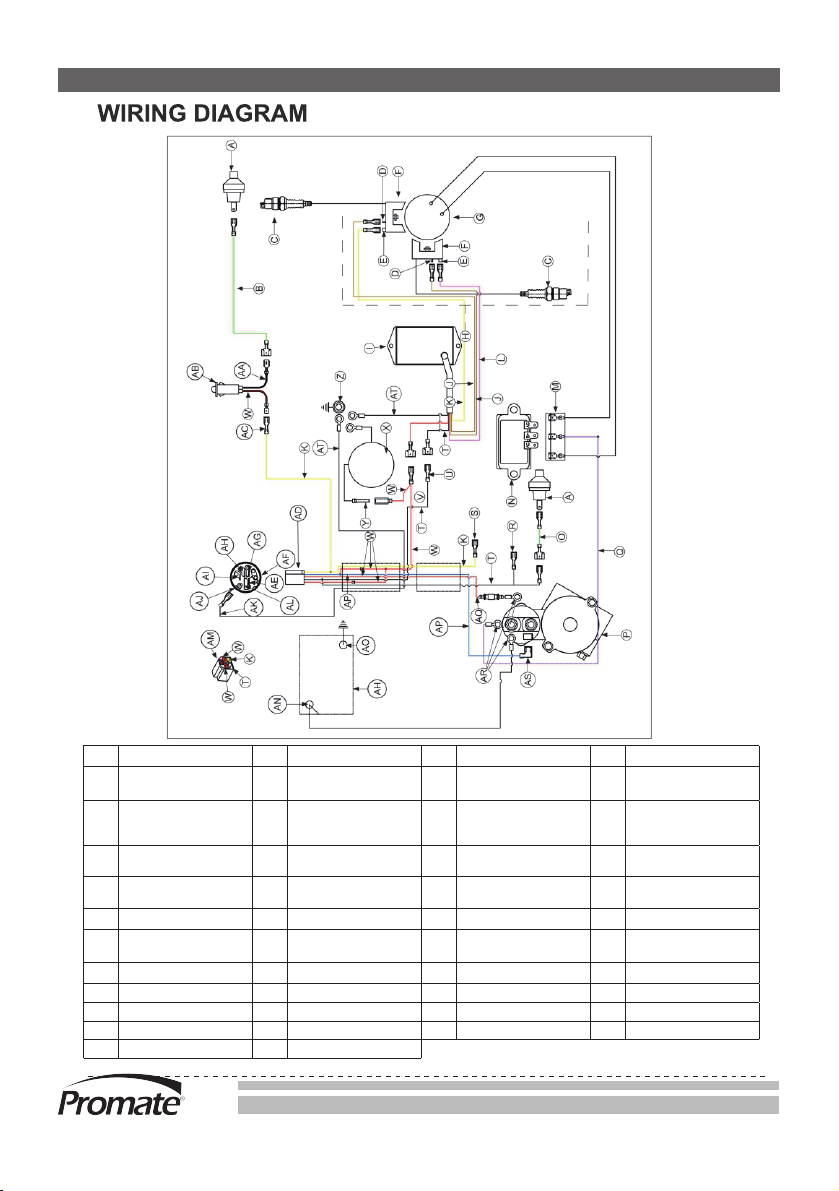

11.WIRING DIAGRAM................................................................................................34
Contents

1. SAFETY PRECAUTIONS
Do not place inflammables near the generator.
Be careful not to place fuel, matches, gunpowder, oily cloths, straw, trash, or any other
inflammables near the generator.
Do not operate the generator near gasoline or gaseous fuel because of the
potential danger of explosion or fire.
Do not fill the fuel tank with fuel while the engine is running.
Do not smoke or use open flame near the fuel tank. Be careful not to spill fuel
during refueling. If fuel is spilt, wipe it off and let dry before starting the engine.
Do not operate the generator inside a room, cave, tunnel, or other insufficiently
ventilated area. Always operate it in a well-ventilated area, otherwise the engine
may become overheated and the poisonous carbon monoxide gas contained in
the exhaust gases will endanger human lives. Keep the generator at least 2 meter
(6 feet) away from any structure or building during use.
If the generator must be used indoors, the area must be well-ventilated and
extreme caution must be taken regarding the discharge of exhaust gases.
Do not enclose the generator nor cover it with a box.
The generator has a built-in forced air cooling system, and may become overheated
if it is enclosed. If generator has been covered to protect it from the weather during
non use, be sure to remove it and keep it well away from the area during generator
use.
01

Operate the generator on a level surface.
it is not necessary to prepare a special foundation for the generator. However,
the generator will vibrate on an irregular surface, so choose a level place
without surface irregularities.
If the generator is tilted or moved during operation, fuel may spill and/or the
generator may tip over, causing a hazardous situation.
Proper lubrication cannot be expected if the generator is operated on a steep
incline or slope. In such a case, piston seizure may occur even if the oil is
above the upper level
Pay attention to the wiring or extension cords from the generator to the
connected device.
If the wire is under the generator or in contact with a vibrating part, it may
break and possibly cause a fire, generator burnout, or electric shock hazard.
Replace damaged or worn cords immediately.
Do not operate in rain, in wet or damp conditions, or with wet hands.
The operator may suffer severe electric shock it the generator is wet due to
rain or snow.
If wet, wipe and dry it well before starting. Do not pour water directly over the
generator, nor wash it with water.
Be extremely careful that all necessary electrical grounding procedures are
followed during each and every use. Failure to do so can be fatal.
Do not contact the generator to a commercial power line. Connection to a
commercial power line may short circuit the generator and ruin it or cause
electric shock hazard. Use the transfer switch for connecting to domestic
circuit.
No smoking while handling the battery. The battery emits flammable
hydrogen gas, which can explode if exposed to electric arcing or open flame.
Keep the area well-ventilated and keep open flames/sparks away when
handling the battery.
Engine becomes extremely hot during and for some time after operation.
Keep combustible materials well away from generator area.
Be very careful net to touch any parts of the hot engine especially the
muffler area or serious burns may result.
02

Keep children and all bystanders at a safe distance from work areas.
It is absolutely essential that you know the safe and proper use of the power
tool or appliance that you intend to use. All operators must read, understand
and follow the tool/appliance owners manual. Tool and appliance applications
and limitations must be understood. Follow all directions given on labels and
warnings. Keep all instruction manuals and literature in a safe place for future
reference.
Notes on Installation
1. Always be sure to place the
generator on a level surface, locking
the wheel with the stopper and/or
chocking the wheels.
2. Select a place which allows you to
maintain and inspect the generator,
which is net exposed to contamination
caused by exhaust gas.
If you are planning to install the
generator without its wheels attached,
consider the work efficiency in terms of
an oil change.
3. In ground connection, be sure to use the designated ground terminal.
(A grounding cable is not included in the set of accessories.)
4. During use, be sure not to disconnect the battery.
5. While the power is on, do not unplug the unit or disconnect cables from the
terminals.
03

1. Precautions that involve your safety
2. Start and run the generator outdoors. Do not run the
generator in an enclosed area, even if doors or windows
are open.
3. To reduce the risk of serious injury, avoid attempting to
touch the hot surface.
4. Units should not be operated or stored in wet or damp
conditions or on highly conductive locations such as metal
decking and steel work.
5. Could not use under the rain.
6. Fuel and its vapors are extremely flammable and
explosive. Fire or explosion can cause severe burns
or death.
7. Ear protection.
8. Read carefully and understand operator manual prior to
operation of this product. Follow all warnings and instructions.
Safety symbols
04

2 . SPECIFICATIONS
Specifications are subject to change without notice.
05
Model
Rated AC Output
Rated AC Voltage
Phase
Power Factor
Engine Model
Generator
Engine Type
Displacement 725cc
Maximum output 23.5HP@3600rpm
Ignition System
Starting System Electric
Fuel Unleaded Automobile Gasoline
Capacity Fuel Tank
Lubricating Oil
Capacity
Flywheel Magneto
Alternator Type
Protectin Type
LXWXH
Dry Weight (appr.)
Dime-
nsion
167 kg
910X650X846mm
Voltage regulator AVR
Single Phase
1
Brush
Surge AC Output
120 V/240 V
KOHLER CH730
PM15000ES-R
Run time(appr.)on
One Tankful @3/4 Load
Sound pressure
Level @7m
6.5 h
IP23
12.0 kW@60HZ
15.0 kW@60HZ
79.5 dB(A)
Air cooling,4-stroke,V-twin cylinder,OHV
0.45 US-GAL / 1.6L
10.6 US-GAL / 40L

3. COMPONENTS
ENGINE
06

07
General description of generator
CONTROL
PANEL
FUEL
TANK
TANK CAP
BATTERY
WHEELS
ELECTRIC
STARTER END
COVER
ENGINE
SWITCH
OIL DRAIN PLUG
MUFFLER
SPARK
PLUG
OIL FILLER
CAP

08
4.1 CHECK ENGINE OIL
4. PRE-OPERATION CHECKS
NO To prevent extensive engine wear or damage, never run engine with oil
level below or above operating range indicator on dipstick.
Ensure engine is cool. Clean from oil
Remove dipstick f
Pr einsert dipstick int ess completely down.
or
Thr einsert dipstick int est cap on tube, do
Remove dipstick el. Level should be at
, add oil up to top of indicator
Reinstall dipstick and tighten securely.

Multigrade
Ambient temperature
-20 -10
0
10
20
30
40
-4
14
32
50
68
86
104
5W
10W
20W
#20
#30
#40
10W-30
10W-40
Single grade
C
F
Recommended engine oil:
Use class "SE" (API classification) oilor a higher grade oil according to the
table below. SAE 10W-30 is recommended for general, all-temperature use.
If single viscosity oil is used, select the appropriate viscosity for the average
temperature in your area.
09

Checkfuellevelatfuelgauge.
Do not refuel while smoking or near open flame or other such potential fire hazards.
Otherwise fire accident may occur.
If fuel level is low, refill with unleaded
automotive gasoline.
Fuel tank capacity:
Model
PM15000ES-R.........10.6 US-GAL / 40L
EMPTY FULL
Be sure to use the fuel filter screen on
the fuel filter neck.
4.2 CHECK ENGINE FUEL
WARNING
Recommended fuel:
Unleaded automotive gasoline of
octane rating RON87 or higher
NOTE:
The full level of fuel is the upper surface of the fuel filter.
Refuel through each filler hole alternately for easier operation. In
this case, be sure to add the fuel little by little when the fuel level
approaches to the full level.
10

Continuous operation time in normal use(75%rated load)
PM15000ES-R
WARNING
Make sure you review each warning in order to prevent fire hazard.
Do not refill tank while engine is running or hot.
Close fuel cock before refueling with fuel.
Be careful not to admit dust, dirt, water or other foreign objects into fuel
Wipe off spilt fuel thoroughly before starting engine.
Keep open flames away.
4 3BATTERY INSTALLATION.
Recommended Battery
Lead-acid battery: A capacity of 12V-30A.h or larger.
For the generators used in low temperature (below -5℃),
12 V-40 A.h or larger battery is recommended.
Only after checking that the engine's starter key is in the "OFF" position,
securely connect the cable with a red stripe, to the positive (+) terminal.
And then connect the other cable to the negative (-) terminal.
Cable with red stripe: to the (+) terminal
Cable with no stripe: to the (-) terminal
CABLE
EARTH (GROUND) WIRE
Battery
+
-
Electric starter
terminal
Earth wire
Cable(red)
53.9
6.5mm
6.5mm
Use a proper cable and ground wire to connect battery and key switch
and electric starter.
Approx. 6.5hours
11

12
AOil Pressure Switch BOil Sentry (Green) CSpark Plug(s) DKill
ETrigger FIgnition Module GFlywheel Stator
Assembly H22, 25 HP Smart-
Spark Ignition
IModule Speed
Advance 22, 25 HP JBrown KYellow L
Yellow on Analog
SAMs Pink on Digital
SAMs
MRectifer-Regulator
Connector NRectifer-Regulator OOil Sentry Kill (Green) P
Solenoid Shift Starter
Assembly
QViolet (B+) R
Alternate Ignition Kill
SAccessory Terminal (+) TWhite
UIgnition Kill VSmart-Spark WRed XCarburetor
YSolenoid Lead ZIntake Manifold Screw AA Black AB Oil Sentry Panel
Light/Remote Light
AC Oil Sentry Light AD Connector AE Magneto AF Key Switch
AG Accessory AH Battery AI Starter AJ Ground
AK Key Switch Ground AL Rectifer AM Blue/Red AN Battery Positive
AO Battery Negative AP Blue AQ Fuse AR
Starter Solenoid Stud
AS
Starter Solenoid Tang
AT Black (Ground)
(-)

13
4.5 CHECKING GENERATOR SURROUNDINGS
Make sure you review each warning in order to prevent fire hazard.
Keep area clear of inflammables or other hazardous materials.
Keep generator at least 6 feet (2 meter) away from buildings or other structures.
Only operate generator in a dry, well ventilated area.
Keep exhaust pipe clear of foreign objects.
Keep generator away from open flame.
Keep generator on a stable and level surface.
Do not block generator air vents with paper or other materials.
WARNING
4.4 CHECKING COMPONENTS
Fuel leakage from fuel hose etc.
Bolt sand nuts for looseness.
Components for damage or breakage.
Generator not resting on or against any adjacent wiring.
,
Check following items before starting engine:
WARNING
Death, personal injury and/or property damage may occur unless nstructions
are followed carefully.
i
Turn the Starter switch to the "STOP" position when mounting or
dismounting battery. Connect positive (+) terminal first when mounting
battery, and disconnect negative (-) terminal first when dismounting.
Use battery of specified capacity listed in the owner's manual.
Disconnect battery cables when charging battery.
RED CABLE: To positive (+) terminal
BLACK CABLE: To negative (-) terminal

5.1STARTING THE ENGINE
5. OPERATING PROCEDURES
(a) Make sure the no-fuse circuit breaker is
in the OFF position. The generator may
be hard to start if a load is connected.
(b) Turn the fuel valve lever to the open
position
.
(c) Set the choke lever to thefull"CLOSE"
(arrow mark) .
position
ON
OFF
[CAUTION]
Check the oil level before each operations. (See page 6)
Perform the specified Daily Inspection to see if it is in normal condition
(d) Turn the starter switch to the "START"
position. STOPRUN
START
Do not operate the electric starter
continuously for more than 5 seconds,
even if the engine dose not start.
If the engine won't start, turn the
switch back to "RUN” position and then
wait for approximately 10 seconds to
try it again.
Never turn the key switch to the
“START" position while engine is
running.
OPEN
14
NOTE:
Be sure to pull the choke even if the
engine is warm.
START
Table of contents
Other Promate Portable Generator manuals
Popular Portable Generator manuals by other brands

Kipor
Kipor IG2000 Operation manual

Quipall
Quipall 2200I Operator's manual

Fabco
Fabco Power-Mite 110 installation instructions

Siemens
Siemens SINAMICS S120 Instruction for installation in cabinets for marine drive applications

Generac Power Systems
Generac Power Systems Guardian Ultra Source 004451-1 owner's manual

Fluke
Fluke SimpliFiber Pro user guide
