Promax CG14SPTS-120V User manual
1
SPLIT LID TABLE TOP
TWO SIDED TOASTER
MODEL
CG14SPTS-120V
CG14SPTS-120C
Installation and
Operation
Instructions
2M-Z5634 Rev. C 11/18/09
®
®
®
®
®
22
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions
reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it ready when
you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: (314) 678-6303
Fax: (314) 781-2714
E-mail [email protected]
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
E-mail [email protected]
Mailing Address: Star International Holdings Inc., Company
10 Sunnen Drive
St. Louis, MO 63143
U.S.A
3
GENERAL INSTALLATION DATA
CAUTION
This equipment is designed and sold for commercial use only by personnel trained and
experienced in its operation and is not sold for consumer use in and around the home nor
for use directly by the general public in food service locations.
The unit time and temperature are preset by the factory to the customer requirements. If
adjustments are required, refer to the time or temperature programming sections in this
manual.
INSTALLATION
1. Plug unit into dedicated 120V A.C. line with 20AMP receptacle.
2. DO NOT plug into 220V line. Doing so will damage the unit and void the warranty.
3. Each machine has been properly wired and inspected at the factory for operation on the
voltageandtypeofcurrentspeciedonthenameplate.
WARNING
DO NOT CONNECT TO ANY OTHER TYPE OF CURRENT OR THE
MACHINE WILL BE SERIOUSLY DAMAGED.
4. DO NOT operate without top burn guard in place.
INITIAL START UP
Beforeusingtheunitforthersttime,cleanandheatforapproximately45minutes.
OPERATING INSTRUCTIONS
Make sure unit is plugged into 20AMP receptacle and is on a dedicated 120V A.C. line.
1. Turn unit on by placing switch in "ON" position. The "Heat On" indicator, "START/
STOP"indicatoranddisplaywillashindicatingunitisheating.Whenthepreset
temperature is reached, the "Heat On" light, display and "START/STOP" light indicator
willstopashingfollowedby3beeps.(Initialstart-upheatingtimeisapproximately30
minutes.)
2. Open lid on side where product will be cooked. Place product on bottom cooking
surface of the unit and close the lid.
3. Press the "START/STOP" button on the same side product is being cooked. The display
time will start to count down from the programmed time to "0:00." The countdown may
be stopped at any time by pressing and releasing the same "START/STOP" button. The
display will return to the programmed time.
4.Whenthecountdownends,thedisplaywillread"0:00"andthealarmwillbeepevery
second. To turn off the alarm, press the "START/STOP" button. The display will return to
the programmed time.
5.Raiseliduntilitengagesintotherststoppositionandremovefood.Usingspatula,
scrape residue into grease catcher cup.
Note: Metal utensils may be used, however, using nonmetal utensils will
prolong the life of the cooking surface.
6. Turn the unit off when not in use.
Note: The right and left sides will operate independently of each other. Both
timers can be in operation at the same time. The "0:00" display will show
which side is timed out.
4
TEMPERATURE/TIMER CONTROLLER OPERATION SPECIFICATIONS
Start-up:
1. Thepresettimedisplaywillashuntilpresettemperatureisreached.
2. Whenthecontrolreachespresettemperature,timedisplay,"HeatOn"indicatorand
"START/STOP"indicatorwillstopashingandthealarmwillbeepthreetimes.
Temperature:
1. To view the actual temperature, press and hold "Temp Button". Display will read "Lo F" if
temperatureisbelow273°Fand"HiF"iftemperatureisabove573°F.
To Program Time and Temperature:
Note:Whileprogramming,ifnoinputisreceivedforapproximately15seconds,theunitwill
exit programming mode and revert to operational mode.
1.Pressandhold"Temp"(actualtemperaturedisplays).
2.Whileholding"TEMP",pressandholdthe"START/STOP"buttonontheleftsidefor3
seconds. The display above the "START/STOP" button will change from the time
to "_ _ _ _."
3. Release the "TEMP" and "START/STOP." The display on the left side will continue to
display "_ _ _ _." This indicates the unit is in program mode.
4. Press and release the "TEMP" button. The display will now be the current programmed
time for the "START/STOP" button.
5.Changeandsetthetimebypressingandreleasingorholdingthe"START/STOP"
button on the left side to change the time. The time will scroll forward from the current
programmedtime.Oncethetimereaches9:59,thetimewillchangeto0:00and
continue to go forward. Hold the "START/STOP" button down for faster changing of the
time.
6. Once the time is set, press and release the "TEMP" button.
7. The current programmed temperature will now be displayed.
8. Change and set the temperature by pressing and releasing or holding the "START/
STOP" button on the left side. The temperature will scroll forward from the current
programmed temperature.Oncethedisplayreaches550°F,thedisplaywillchange
to 273°F and continue to go forward. Hold the "START/STOP" button down for faster
changing of the temperature.
9. Once the temperature is set, press and release the "TEMP" button.
THE TIME AND TEMPERATURE ARE NOW SET AND STORED IN MEMORY.
Notes:
The"HEATON"and"START/STOP"indicatoranddisplaywillashuntilthenew
programmed temperature is reached.
Temperature setting is done with the Left Button only. The time setting programmed
on the left button will also be programmed onto the Right Button. See below to make
changes to the Right Button only. Each programming change must be saved by
pressing the "TEMP" button!
5
Right Side (Timer only):
1. To change the time on the right side, press and hold the "TEMP" button and the "START/
STOP" button on the right side for 3 seconds. The display above the "START/STOP"
button will change from the time to "_ _ _ _." Release the "TEMP" and "START/STOP"
buttons.
2. Press the "TEMP" button. The display will now be the current programmed time for the
"START/STOP" button.
3. Change and set the time by pressing and releasing or holding the "START/STOP"
button on the right side to change the time. The time will scroll forward from the current
programmedtime.Oncethetimereaches9:59,itwillchangeto0:00andcontinueto
go forward. Hold the "START/STOP" button down for faster changing of the time.
4. Once the time is set, press and release the "TEMP" button.
THE TIME AND TEMPERATURE ARE NOW SET AND STORED FOR THE RIGHT
SIDE.
MONTHLY INSPECTION
Check all bolts/screws and tighten if necessary.
CLEANING
All surfaces except the cooking grids are stainless steel and can be cleaned with a warm,
damp cloth and detergent.
CAUTION
DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.
DO NOT HOSE DOWN.
KEEP AWAY FROM RUNNING WATER.
To remove burned on grease or food residue use the following mixture:
1 Tablespoon liquid dish detergent
1 Cup of warm water
DAILY CLEANING PROCEDURES
Begin toaster cleaning procedure by using operating procedures within your organization, or
follow the steps below:
1.Turntoasteroff,unplugtheunit,andopenthetoplidstotherststoppositionandletsit
for a minimum of 20 minutes.
2. Scrape toaster with a spatula to remove loose food debris.
3. Pour 1/4 cup of above cleaning solution onto the bottom cooking surface of warm
toaster.
4.Immediatelyspreadcleaningsolutionaroundthetoasterwithcleaningpad.Use
moderatepressuretoscrapeawayburnt-onfood.
5.Applycleaningsolutiontocleaningpad.
6.Usemoderatepressuretoscrapeawayburnt-onfoodontopcookingsurfaces.
7. Drain cleaning solution to grease trap.
8.Wipeoffremainingcleaningsolutionwiththickdampclothuntilclean.
9. Empty and clean grease catcher cup as required using detergent and water after
removing cup from unit.
6
CAUTION
DO NOT SPLASH CONTROL HOUSING!
Do not splash conduit connecting top and bottom of the toaster!
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance. Refer to
the authorized service center listing provided with the unit.
STARServiceHelpDesk:314-678-6303
Please have your serial number and model number for faster service. The serial number
and model number are located on a nameplate situated toward the front on the bottom.
7
2M-4497-2 10/2010
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
*Pop-Up Toasters
*Butter Dispensers
*Pretzel Merchandisers
(Model 16PD-A Only)
*Pastry Display Cabinets
*Nacho Chip Merchandisers
*Accessories of any kind
*Sneeze Guards
*Pizza Ovens
(Model PO12 Only)
*Heat Lamps
*Pumps-Manual
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of
the unit.
LIMITED EQUIPMENT WARRANTY
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
>Star will not assume any responsibility for loss of revenue.
>On all shipments outside the United States and Canada, see International Warranty.
*The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
*The warranty period for the Chrome-Max Griddles is ve (5) years on the griddle surface. See detailed warranty provided with unit.
*The warranty period for Teon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Teon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identiers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
>This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
>This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
>This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
>This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to
the customer.
SERVICES NOT COVERED BY WARRANTY
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
* The Model 510FD Fryer.
* The Model 526TOA Toaster Oven.
* The Model J4R, 4 oz. Popcorn Machine.
*The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
* All Fast Steamer Models except Direct Connect Series.
8
TOP ELEMENT
LEFT
(ELEMENT MAS ALTO)
01
26
8 4
4
8
6 2
1 0
B
115 VAC
A
C
D
10 VAC
CONTROLLER
E11
SENSOR
RIGHT
E2
SENSOR
LEFT
E12 E1 E5
+
HEATER
RELAYS
E7
R
E6
L
E8
B
AC
IN
E3 E4
SENSOR - RIGHT
(SENSORIO)
SENSOR - LEFT
(SENSORIO)
BOTTOM ELEMENT
(ELEMENTO MAS BAJO)
1
1
2
2
3
3
4
4
5
5
6
6
8
8
7
7
9
9
10
10
11
12
12
13
14
14 13
15
15
16
16
FRONT CONTROL PANEL
SWITCH
(INTERRUPTOR)
TOP ELEMENT
RIGHT
(ELEMENT MAS ALTO)
GREEN
(VERDE)
BLACK
(NEGRO)
WHITE
(BLANCO)
20 AMP PLUG
RELAY
(RELE)
RELAY
(RELE)
TERMINAL BLOCK
(BLOQUE TERMINAL)
TRANSFORMER
(TRANSFORMADOR)
REAR PANEL
11
B
B
MODEL:
GR14SPT-120V, 2300 WATT
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
SK1742 Rev B
02/05/2001
9
10
This drawing contains information confidential
to Star Manufacturing International, Inc.
No reproduction or disclosure of its
CERTAIN INSTANCES MAY NOT BE AVAILABLE
ILLUSTRATIVE PURPOSES ONLY AND IN
SOME ITEMS ARE INCLUDED FOR
contents is permitted.
STAR MANUFACTURING INTERNATIONAL, INC.
SK1901 REV. H 9/14/2011
MODEL CG/GR14SPT
60
56
58
59
55
53
54
52
16
10
11
8
11
7
6
17
2
18
4
1
9
9
20
19
18
57
3
78
79
77
76
NAMEPLATE
5
20
22
21 24
3
22
51
49
47
71
72
73
74
75
28.1
= B Style Hinge Units Only
48
61
62
64 63
4“ LEGS ONLY
33
65
66
67
68
GR14SPTIP240
70
38
50
48
41
42
39
43
40
32
46
44 45
34
36
37
35
33
30
69
14
13
15
12
31 25
28
26
29
57
23
27
B Style
Hinge
Counterbalance
11

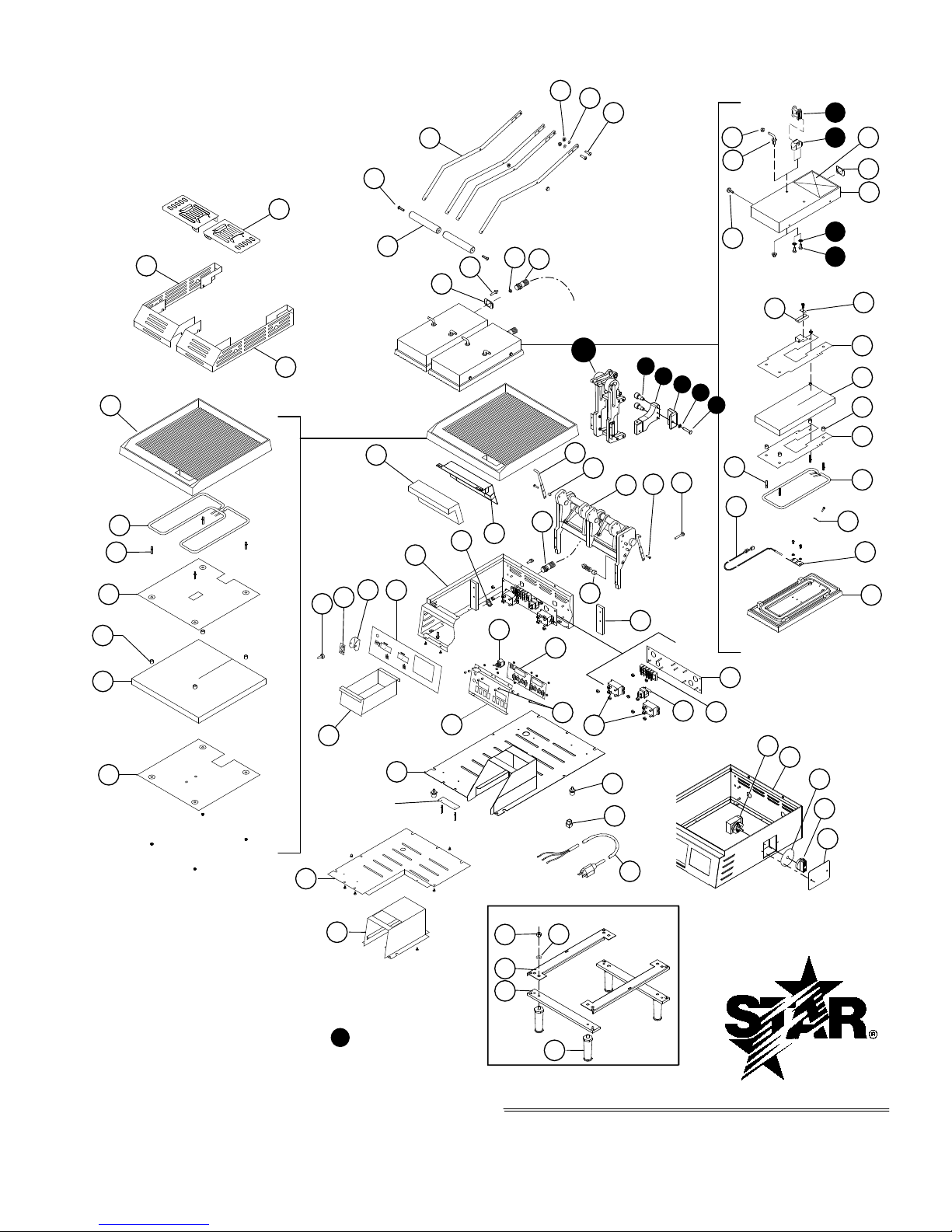

PARTS LIST January 16, 2013, Rev. C
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
1
2
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description
MODEL
Part
Number
Key
Number
Star Manufacturing International, Inc.
CG14SPTS-120VSPLITLID
TABLE TOP CLAM SHELL TOASTER
1 2M-Z2620 2 LABELCAUTION,BI-LINGUAL
2 2C-Z3200 4 PIN-TOPHOUSING
3 2A-Z3827 2 PLATE,STAMPINGCONDUIT
4 D9-GR0181 2 TOPHOUSING&CONDUITAY.
5 2C-Z5883 8 10-24X1/2"FZASCREW,TOPHOUSING
6 B9-04-WB-0046 2 CLAMPWIRESUPPORT
7 D9-GR0182 2 TOPRETAININGPLATEASSEMBLY
8 D9-Z2133 2 INSULATIONFIBERGLASTOP
9 2A-Z6604 12 SPACER,INSULATIONPLATE
10 D9-Z3902 2 PLATE-TOPELEMENTRET.
11 PS-Z9325 2 ELEMENT,HEATING,TOP500W
12 2C-Z3350 2 HALFCLAMP-.188DIA.
13 D9-Z3903 2 BRACKET,PROBEMOUNT
14 2E-Z3278 2 RTDPROBE-48"LONGWIRE
15 PS-GR0355 2 KIT, 2F-Z5615CASTING-TOP,GROOVED
16 2V-Z3152 2 HANDLE
17 2B-Z3336 4 14"GR14SPTARM
18 2C-40637 12 ACCORNNUT,1/4-20CAPMS
19 2C-08-07-0262 8 WASHER1/4INTSTLNP
20 2C-Z2992 12 BOLT1/4-20X1PHPSTLNP
21 2C-Z3917 4 RIVET,POP
22 2E-Z2898 2 CONDUITASSY
23 2E-Z3768 2 LOCKNUTCONDUIT1/2"
24 2C-Z3780 4 RETAINER,CONDUIT
25 2V-Z3252 2 TOPHOUSINGLATCHROD
26 2A-Y6142 4 SLEEVEHANDLE
27 2C-1516 4 SCREW10-24X1"STLRHNP,LATCHROD
28 2R-Z3345 1 COUNTERBALANCE-SPLITTOP
29 2C-Z2593 4 SCREW-10-24X11/2SLHX/WNP
30 D9-Z11677 1 INSULATIONBAFFLE
31 D9-Z3826 1 INSULATION-BAFFLE
32 D9-GR0032 2 TORQUEBOXASSEMBLY
33 D9-GR0152 1 BODYASSEMBLY
34 2M-Z5623 1 OVERLAY
35 Z1-70-07-0343 1 SWITCHGUARD
36 2M-Z18461 1 LABELON&OFF
37 2I-05-07-0013 1 BOOTSWITCH
38 D9-GR0518 1 GREASEDRAWERASSEMBLY
39 2E-Z3808 1 SWITCHTOGGLE
40 2J-Z5635 1 TIME/TEMPERATURECONTROL
41 2K-Z1971 14 SPACER
42 D9-GR0151 1 FACEPLATEASSEMBLY
43 2E-Z3335 2 RELAYDBLPOLE-SNGLTHR
44 2E-05-07-0351 1 TRANSFORMER115/10V6VA
45 2E-Z2894 1 TERMINALBLOCK(304)
46 D9-GR0156 1 REARPLATEASSEMBLY
47 D9-Z3259 1 BASEBOTTOM
48 2A-Z11501 4 FOOT1"SOLIDRUBBER
49 D9-GR0150 1 GREASECABINETASSEMBLY
50 2K-Y6764 1 BUSHING90SR17-2
12
PARTS LIST January 16, 2013, Rev. C
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
2
2
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description
MODEL
Part
Number
Key
Number
Star Manufacturing International, Inc.
CG14SPTS-120VSPLITLID
TABLE TOP CLAM SHELL TOASTER
51 2E-Z4119 1 CORDPOWER
D9-GR0193 1 CORDPOWER 9D-CG14SPTS-120C
52 D9-GR0189 2 TOPBURNGUARDAY.
53 D9-GR0177 1 BURNGUARDASSEMBLY-LEFT
54 D9-GR0176 1 BURNGUARDASSEMBLY-RIGHT
55 PS-GR0362 1 KIT,2F-Z1947CASTING,GROOVEDBOTTOM,ALUMINUM
56 2N-Z9324 1 ELEMENT,HEATING,1300W
57 2C-08-07-0285 12 SCREW10-24X3/4X3/8
58 D9-Z2618 1 BTMELEMENTRET.PLATE
59 D9-Z2888 1 INSULATION-14"
60 D9-Z2619 1 BTMINSULATIONRET.PLATE
This manual suits for next models
1
Table of contents
Other Promax Toaster manuals
