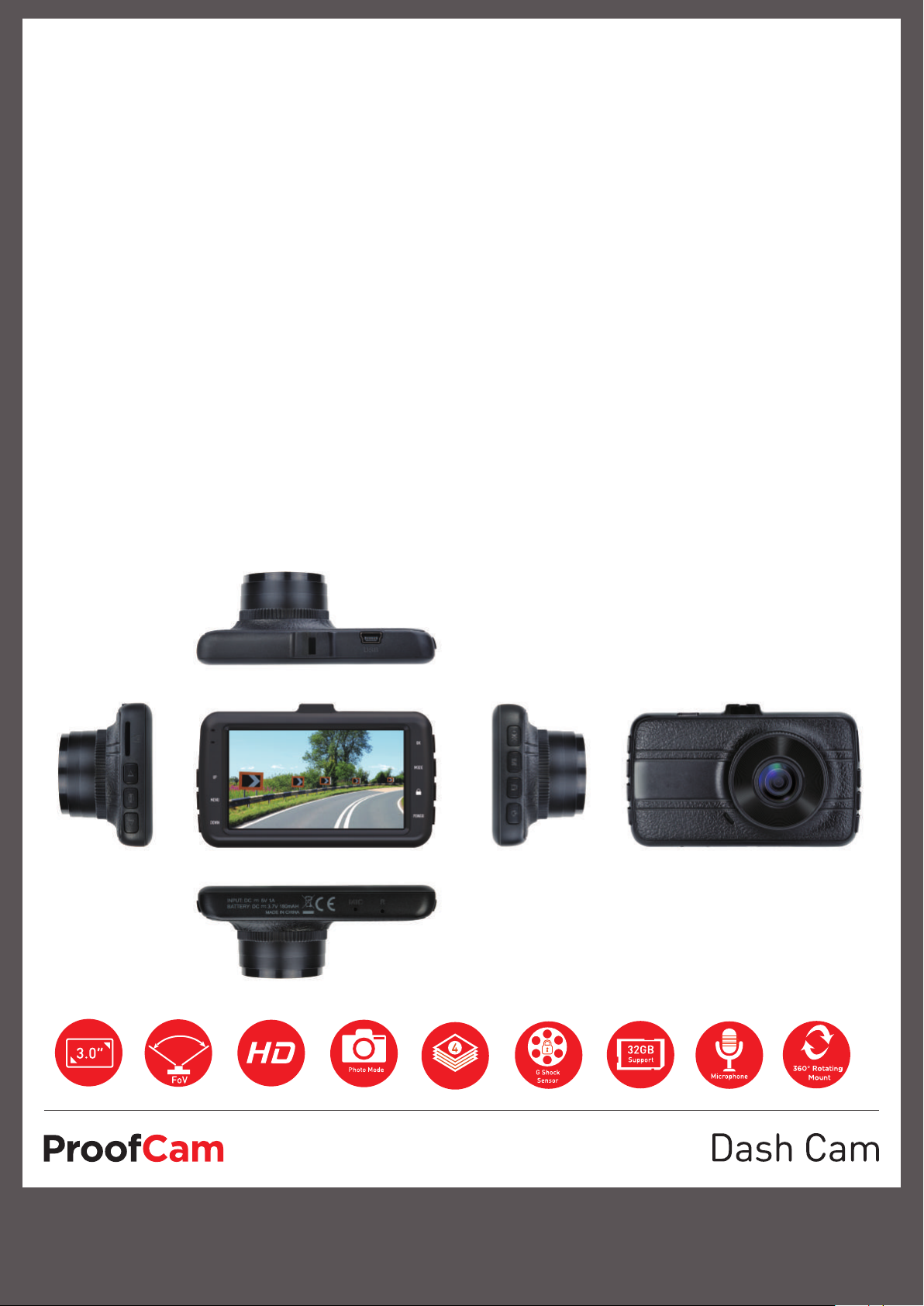

ProofCam PC 106 User manual

Email - [e-mail] for enquiries
www.proofcam.com
PC 106 Forward Facing
HD Dash Cam
How does the PC 106 work?
The PC 106 records video onto a micro SD card which is fitted into a slot on the camera.
The amount of video stored depends on the size of SD card being used, the PC 106 can support SD cards with a capacity of up to
32GB. As a guide, when recording in HD, 9 minutes of video uses about 1GB of space on the SD card.
The PC 106 records in segments, the length of which is pre-set to 3 minutes, but can be adjusted using the simple menu functions
on the camera.
When the SD card is full, the PC 106 operates on a loop recording system, overwriting the oldest recording and continues to record
without the need to erase or download any data.
With a sleek and compact design, the PC 106 is a forward facing entry level dash cam
designed to offer outstanding value for money, security and reassurance whilst driving
during day or night. Suitable for any vehicle, it records in HD quality, ensuring that all
the details of your journey are recorded and available in HD during playback.
120 o
Four glass lens

Email - [e-mail] for enquiries
www.proofcam.com
Product Copy
27 words The PC 106 is a compact forward facing entry level dash cam offering outstanding value for money and convenience
with HD video recording and still photo capability.
61 words
With a sleek and compact design, the PC 106 is a forward facing entry level dash cam designed to offer outstanding value for
money, reassurance and security whilst driving at any time, day or night. Suitable for any vehicle, it records in HD quality
ensuring that all the details of your journey are recorded in high quality and available during playback.
82 words
The PC 106 is supplied with a free 8GB Micro SD card allowing for 9 minutes of video for each 1GB of space on the supplied
card. The PC 106 records in 3 minutes segments, but can be adjusted using the simple menu functions of the camera. When
the SD card is full, the PC 106 operates on a loop recording system, and will overwrite the oldest recording and continue
without the need to erase or download any data.
Inside the Box
1 x PC 106 Camera
1 x Car Charger
1 x Suction Pad
1 x 8GB Micro SD Card
1 x Quick Start Guide
1 x Windows Sticker
Physical & Performance
Unit Dimensions: 89 x 54 x 33.3 mm
Camera Weight: 90g
Battery Life: 10 Minutes
Gift Box Dimensions: 144 x 103 x 70 mm
Gift Box Weight (with Camera): 320g
Master Carton Quantity: 20pcs camera/carton
Master Carton Dimensions: 445 x 330 x 250 mm
Master Carton Weight: 7.3kg
EAN (Camera): 5060364671600
Video Recording – Records your drive in HD video day/night.
Discreet Recording - The camera display screen turns off after a short time so that the driver’s view is not interrupted – in the background the camera
is recording everything on the road ahead.
Photo Mode – Captures still images as well as video, which could be very useful in an accident or incident in the road.
Microphone and Speaker – Sounds and conversations can be recorded, if required. If not, a simple one touch button will mute the microphone.
Emergency Button – When pressed, the current sector of your recording becomes protected, and will not be lost when the camera continues
recording.
360º Revolving Cradle - Position your camera in different directions with the rotating mount enclosed in the box.
The PC 106 can be powered using the supplied power cable connected to a vehicle’s 12 volt power socket or hard-wired.
Key Features

Email - [e-mail] for enquiries
www.proofcam.com
PC 106 Forward Facing HD Dash Cam
Screen Size: 3.0” LCD
Screen Resolution: 960 x 240
Field of Vision: 120˚
Recording Definition: 720P 1280 x 720
Micro SD Included: 8GB
Micro SD Support: Micro SD Card, from
class 10 - Up to 32GB
Photo Mode:
√
Lens: Full 4 Glass
G Sensor:
√
SOS Data Protection:
√
SOS Recording:
√
Motion Detection:
√
360º Revolving Cradle:
√
File Locking:
√
Loop Recording Technology:
√
Sensor: 1.0 megapixels
Video Format: AVI
Auto Screen Saver:
√
Iagtee Resolution:
1M / 2M
Mute Function:
√
Video Resolution: 1080FHD 1920 x 1088
720P 1280 x 720
l
Product Features 1
2
3
4
5
6
7
8
9
10
12
11
USB Port for power adaptor
Power button
Microphone
13 Reset
Lens
SD Card slot
LCD
Menu button
Up button
Down button
OK button
Lock button
Mode button
PC 106 Dash Cam Quick Start Guide:
The PC 106 Dash Cam is designed to be fitted onto the vehicle windscreen,
using the supplied suction pad.
1
2
3
Inside your
package
Suction Pad Car Charger
PC 106 Dash Cam
(SD Card Pre-installed)
The PC 106 should be attached to the vehicle in car powersupply at all times. The
internal battery is for emergency use only, for example, totake still pictures in the
event of an incident.
The PC 106, when connected to the in vehicle power supply, will turn on and off
withthe engine. Once it has been set up, it canbeleft in place without need for
adjustment or furthersetting. The PC 106 records using loop technology, so when
the SD card is full, the PC 106 will automatically overwrite the oldest files and
continue recording indefinitely.
It is recommended that you check the PC 106 at least once a month to make sure
it is operating and recordingproperly. The PC 106 has ascreen saver setting, so
that after ashort time the screen turns off. This settingcan be adjusted by accessing
the relevant menu setting.
4
1
2
3
4
5
PC 106 Dash Cam Set up Guide:
Everything required to set up and use the PC 106 is included in the box.
If you wish to view the footage recorded by thePC 106 youcando this in
three ways:
Connect the suction pad to the PC 106
Insert the USB end of the car charger into the PC 106
Fit the PC 106 with suction pad onto the windscreen.
Insert the charger end of thecar charger into the in vehicle powersocket.
Any excess cable can normally be tucked into the ceiling of thevehicle.
We have a video to advise on how best to fit the PC 106 which is available
at www.proofcam.comand visit “Camera Resources”. You can also search
“How to fit anPC 106” on YouTube.
a) remove the SDcard from the PC 106 and using a SD card reader (not
supplied), insert into a computer. Files can then be viewed in the same way as
a digital camera.
b) connect the camera toa computer using a sync cable (not stupplied).Files can
then be viewed in the sameway as a digital camera.
c) push the REC/OK button to stop recording and then push the MODE button
twice. Files can then be viewedon thedash cam, using the up and down
buttons to scroll between videos.
Image Resolution:

Email - [e-mail] for enquiries
www.proofcam.com
9
8
7
6A protective filmon the lens will affect the video or photographic effect, remove
the protective film before using the dash cam.
Start the engine and the PC 106 will turn on and start recording immediately.
Note - if your vehicle in car power remains on after the car engine has been
turnedoff, you may need to removethe power lead, orturn the PC 106 off using
the power button. This is because if the in car power remains on, the PC 106 will
not know that the engine hasbeen turned off.
If you wish to set the time, or adjust any menu settings, push the OK button,which
will stopthe PC 106 recording, and then push the MENU button to enter the
Menu. There is only one menu level, scroll up and down using the twobuttons in
the left side, and then select the menu items you wish to change by pushingthe
OK button.
You can email [e-mail] call [phone] with any
questions orrequests for information.
THE LITIUM-ION BATTERY CONTAINED IN THE PRODUCT MUST BE
RECYCLED OR DISPOSED OF PROPERLY. USE PROOFCAM DASH
CAM ONLY WITH THE SUPPLIED DC POWER LEAD AND AC ADAPTER
FOR BATTERY CHARGING..
To recycle your PROOFCAM Dash Cam unit, please take it to your local recycling centre.
This product fully satisfies the requirements for CE marking when used in a residential,
commercial or light industrial environment.
This equipment complies with the essential requirements of EU Directive 99/5/EC.
Do not use this product on board aircraft, or in hospitals, without first
obtaining Permission.
›
›
›
›
Battery Warning and Installati
on Notes
›Always charge using the provided in car charger. Improper handling of the battery
may result in explosion.
Never dismantle or pierce the battery or allow the battery to short-circuit.
Batteries may explode if exposed to naked fire. Never dispose of batteries in a fire.
Dispose of used batteries observing local regulations.
Never replace the battery on your own, have the dealer do it for you.
This product should be installed near the rear view-mirror, at the centre of
windshield, if possible, for optimal viewing.
Do not touch the lens with your fingers. Finger grease may be left on the lens and
will result in unclear videos or snapshots. Clean the lens on a regular basis.
Do not attempt to disassemble or alter any part of the device that is not described in
this guide.
›
›
›
Caution
›Due to local laws and vehicles safety considerations, do not operate the dash cam
while driving.
Set up time and date accurately before you use this device.
This product gets warm when in use, this is normal.
Do not place the device near a heat source or directly expose it to flame or heat.
Never place the device in vicinity of equipments generating strong electromagnetic
fields. Exposure to strong magnetic fields may cause malfunctions or data
corruption and loss.
The system is used only for non-commercial use, within the maximum limits
permitted by applicable law. Our company does not accept any responsibility for
any data loss during the operation.
Improper use or operation of the product may result in damage of the product or its
accessories and void the warranty.
Before you start using the system, it is assumed that you agree to the above
statement.
›
›
›
›
›
›
›
This ProofCam Dash Cam is warranted to be free from defects in materials or
workmanship from one year from the date of purchase. Within this period,
ProofCam will repair or replace any part or parts (not include Micro SD card)
that fail provided such failure is not deemed to be as a result of misues or
damage caused. The warranty does not apply to cosmetic damage not to
consumables such as batteries or storage cards. At our option, we will either
repair or replace any camera that are deemed to be eligible under the terms
of this warranty. Any damage or fault caused by accident, misuse, unauthorised
. .
.
Warranty
repair or interference or similar is not covered under this warranty.
