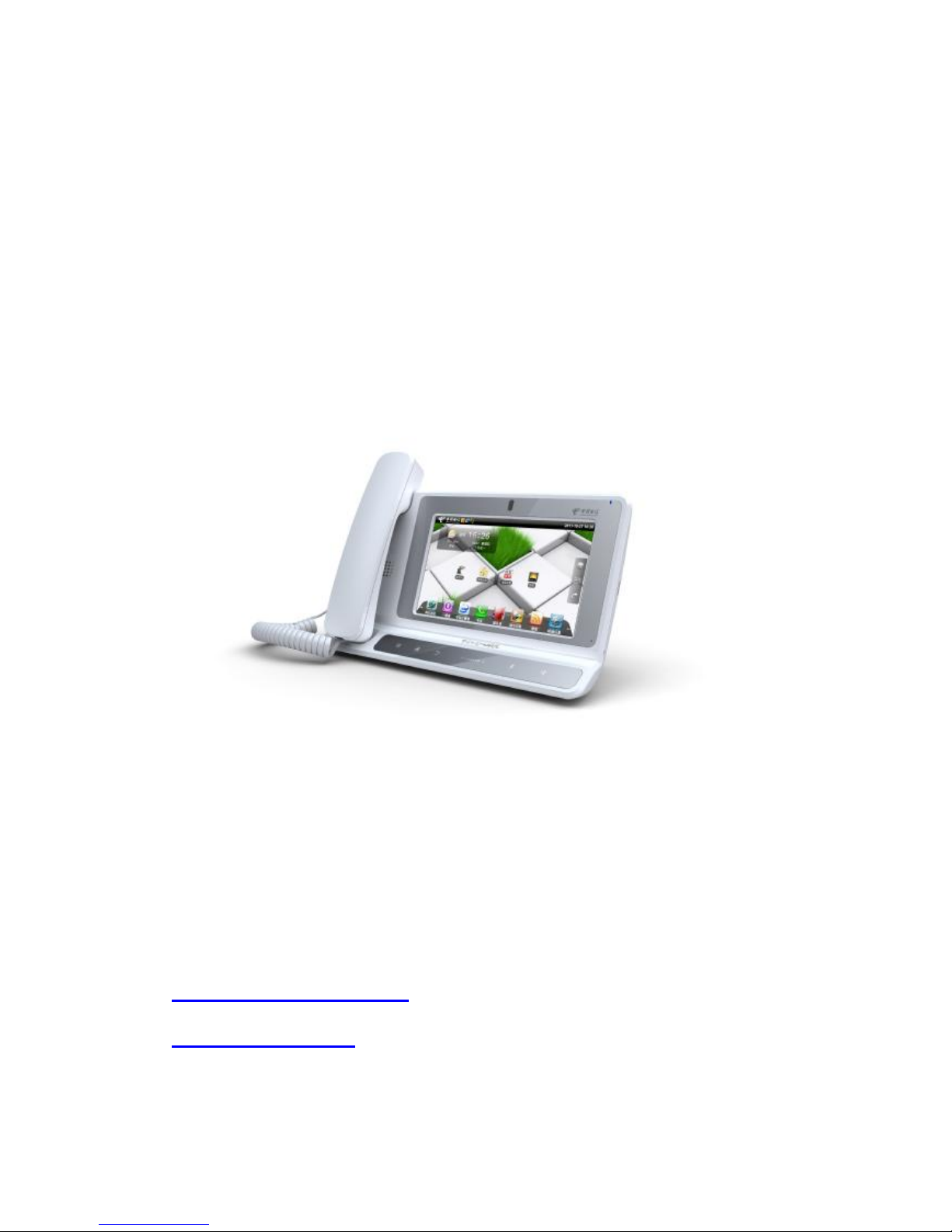

ProoLin Media Phone Instruction manual

MediaPhone
Quick User Guide
Shenzhen ProolinVoIP Tech.Ltd.
http://www.proolin.com
[e-mail]

CONTENTS
MEDIAPHONE................................................................................................................................................1
QUICK USERGUIDE .....................................................................................................................................1
PRODUCTOVERVIEW ................................................................................................. 误！未定义书签。
CONNECTING CABLES ............................................................................................... 误！未定义书签。
CONNECTINGTOAWIFINETWORK (OPTION) ...................................................... 误！未定义书签。
SETTINGNETWORK .................................................................................................... 误！未定义书签。
CALLSETTING.............................................................................................................. 误！未定义书签。
MAKINGACALL ........................................................................................................... 误！未定义书签。
ANSWERINGACALL ................................................................................................... 误！未定义书签。
CREATINGACONTACT ............................................................................................... 误！未定义书签。
EXPORTINGAND IMPORTINGAPHONEBOOK...................................................... 误！未定义书签。
IMPORTINGFILESFROMEUSBDEVICEORSDCARD ........................................ 误！未定义书签。
SETTING TIME AND DATE........................................................................................... 误！未定义书签。
INSTALLING THIRDPARTYAPPLICATIONS............................................................ 误！未定义书签。
UNINSTALLINGTHIRDPARTYAPPLICATIONS ...................................................... 误！未定义书签。
SPECIFICATIONS.........................................................................................................................................13

MediaPhoneQuick UserGuidehttp://www.proolin.com
1
Product Overview
FrontView
S/N Item Description
1 Camera.You canrotatethecameratoadjustthe
angle.
2
PowerLED.
3 Microphone input jack
4 Handsfree Key.
5 MuteKey.Press tomuteaudiotransmission locally
duringcalls.
6 Handset Interface.Volumekey.
7
Back key. Press toreturntothe previousscreen.
8 Homekey. Press todisplaythe homescreen.
9 Menu key. Press toshowthe menu list.
10
Handset Interface.

MediaPhoneQuick UserGuidehttp://www.proolin.com
2
RearView
S/N
Item Description
1 You can rotatethe cameratoadjust the angle.
2
Video output interfaceused toconnect tothe external
equipment (suchasatelevision)and then output videos.
3
Reset port.
4
Poweradapterinterfaceused toconnect toexternalpower.
5
LANinterfaceused toconnect toanetworkaccess device.
6
PCinterfaceusedtoconnect toacomputer. When acomputer
isconnected tothe mediaphone throughthisinterface,the
mediaphone functionsasahubinthe network.
7 PowerButton

MediaPhoneQuick UserGuidehttp://www.proolin.com
3
SideView
S/N Item Description
1
Handset Jack
2 Cardslot foramicroSDCardoran MMC.
3 USB portsused toconnect USB devices.
4 USB portsused toconnect PC.
5 Microphone portEnablesyou toconnectan
externalmicrophone.
6
SpeakerportEnablesyou toconnectan external
microphone.

MediaPhoneQuick UserGuidehttp://www.proolin.com
4
Connecting Cables
The followingfigureshowsthe cableconnections.
Toconnect the cables, do asfollowsbased on the precedingfigure:
Step1 Connect the handset tothe phone withthe handset cord.
Step2 Connect the LANinterfaceon the mediaphone toan externalnetworkinterface(suchas
the networkinterfaceon the rearpanelofthe homegateway)withthe networkcable.
Step3 Connect the powerinterfaceon the mediaphone tothe alternatingcurrent (AC)power
socket withthe poweradapter.
Connecting toaWiFi Network(Option)
The mediaphone supportstwomodesforaccessingabroadband network:throughawired
networkorthroughawireless network.ByusingtheWiFifunction,youcanaccess abroadband
networkthroughawireless network.
Beforeaccessingthe Wi-Finetwork, check the following:
Ø Yournetworkaccess device(suchasahomegateway)supportsthe WiFifunction and allows
access ofwireless devices.
Ø Between the mediaphone andthe wireless access devicetobeconnected,thereisno
obstacleand the distanceiswithinthe coverageofthe WiFisignalsofthe device.
Toconnect the WiFi, do asfollows:
Step1 Inthe ConnectTypedropdownlist select WiFi”and click Set WiFiconfig”.
Step2 Inthe interfacethat displayed tipthe WiFi”select box, and select aWiFi.
Step3 Input username”, password”and click OK”.

MediaPhoneQuick UserGuidehttp://www.proolin.com
5
Afteraccessingthe WiFinetwork,you will see an icon indicatingthe WiFisignalstrengthinthe
statusbaron the topofthe touchscreen.
Setting Network
The connect typesofP7isasfollows:
l DHCP
l STATICIP
l PPPoE
l WiFi
Toset the networkparaments, pleasefollowthe belowsteps:
1.Connectthe LANportofP7andtheportofaavailablerouterusinganetwork
cable.
2.When you poweron P7firsttime,the NetworkSettinginterfacedisplayed.Orclick
Settings”on the desktopand choose Network”.
3.Inthe ConnectType”dropdownlist, selectone itemaccordingtoyournetwork..
l DHCP
Ifyou select thistype, P7getsIPaddress automatically.
l STATICIP
Ifyou selectthistype,you need inputIPaddress,networkmask,
default gatewayand DNScorrectly.
l PPPoE
Ifyou selectthistype,you needinputyouraccountand passwordthat
you get fromISP.
l WiFi
Ifyou select thistype, pleasedo the followingsteps:
Click Set WiFiconfig”,select Open WiFi”->SelectaWiFi->Inputuser
nameand password>Click OK”.
4.Click Save”tosavethe configuration and click Return”back tothe desktop.
5.
Call Setting
Note:
1．Thetimeparameterforthe P7registertotheSIPserveris300s. Pleasemake sure
thetimeparameterontheSIPserverissamewithP7.If theregistertimeon SIP
serverisset to600s, 1000sormore, P7will not beregistered tothe SIPServer.
2．Inordertosavethe configuration successfully,the password cannotshortthansix
characters.

MediaPhoneQuick UserGuidehttp://www.proolin.com
6
Steps
Step1 Click Setting”on the desktopand choose Call Settings”.
Step2 Enterthe passwordsuchas 000000”, and click OK”.
Note:Thedefaultpasswordof call settings”is000000”.
Step3 Set the sipuserregisterparametersaccordingtoyournetwork.
Note:
1.Thepasswordmustbenotshortthansixcharacters.
2.You mustinputtheOutProxy,ifyou don’thaveoutproxy inputthesip
serverIP.
3.Make suretheportissamewiththeporton thesipserver.
Step4 Click Save”.

MediaPhoneQuick UserGuidehttp://www.proolin.com
7
Making aCall
MakingaCall byDialing
Tomakeacall , pleasefollowingthe bellowsteps：

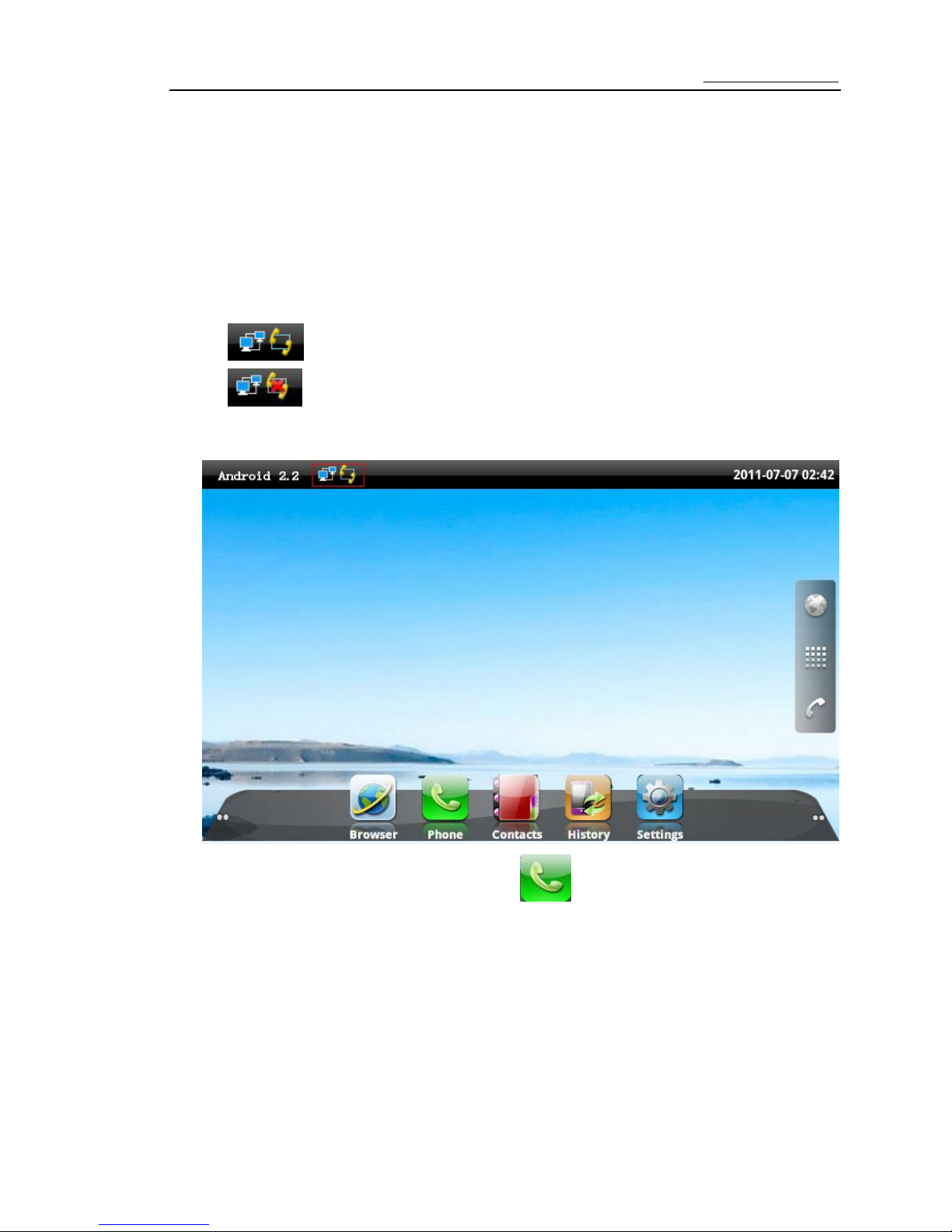

Step1 CheckthenetworkstatusofP7andmakesurethestatusoficon ontheupleft ofdesktopis
normal.
Note:
1. theicon meansthatthestatusofsipand networkisnormal.
2. theicon meansthatthestatusofnetworkisnormalbutthestatusofsip
isunnormal. Please check registerparametersrefertothe Call Setting”step3and
make surethesipserverisrunning.
Step2 Pick upthe handset orclick the phone icon .

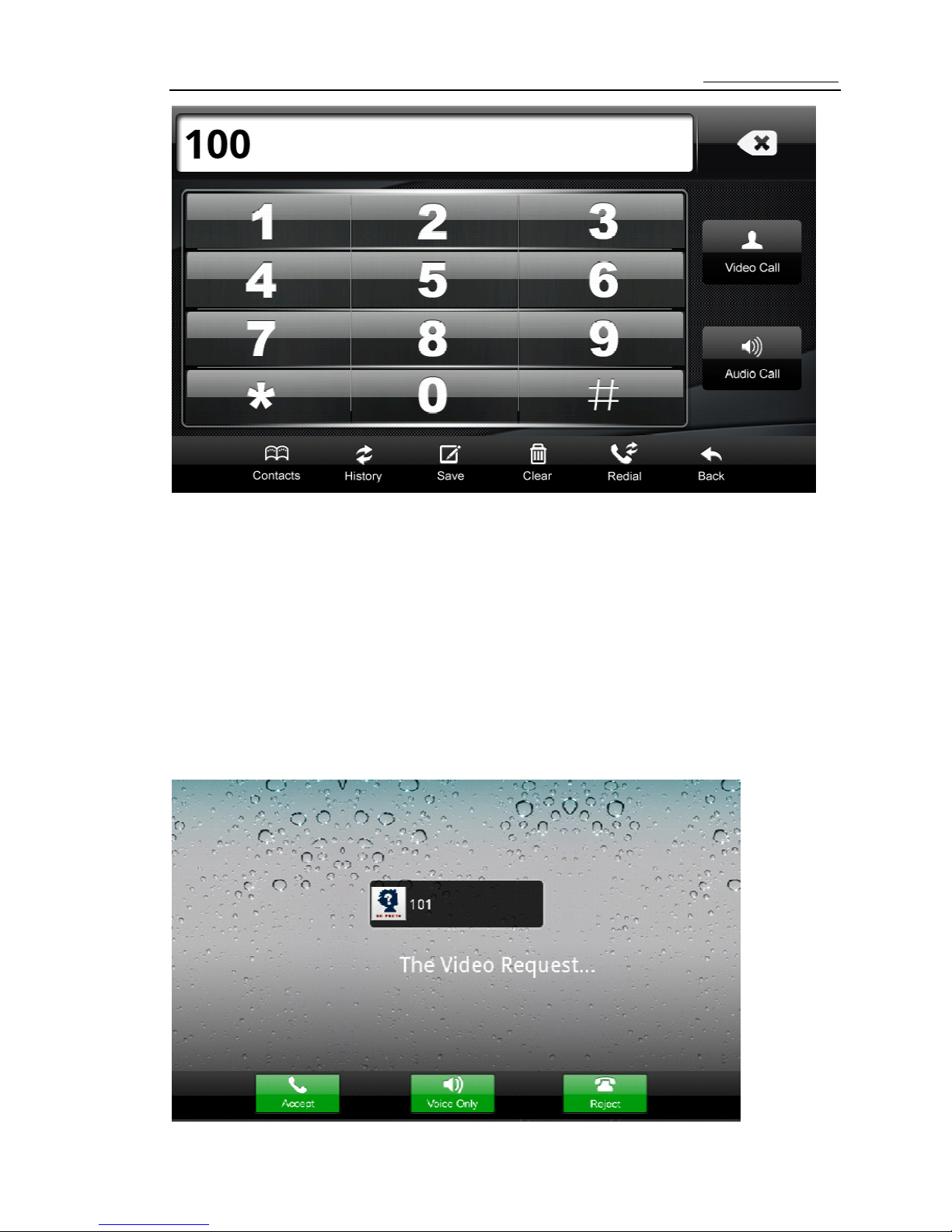

Step3 Inthedial-upinterfacedialthenumberand click Video Call”or AudioCall”tomakeaVoIP
call.

MediaPhoneQuick UserGuidehttp://www.proolin.com
8
Answering aCall
Themediaphoneringswhenacall isreceived.
Ifyouhavesubscribedtothecallingnumberidentificationservice, thecalling numberappearson thescreen. (If the
calling numberissavedtothephonebook, thenameand thenumberof thecalling partyappearon thescreen.)
AnsweringaVideoCall
Step1 Toansweravideocall invideomode, tap Accept on thescreenorpick up thehandset.
Step2 Toansweravideocall inaudiomode, tap Voice Only on thescreen.
Step3 Toreject an incoming call, tap Reject on thescreen.

MediaPhoneQuick UserGuidehttp://www.proolin.com
9
AnsweringanAudioCall
Step1 Toansweran audiocall, tap Accept on thetouchscreenorpick up thehandset.
Step2 Toreject an incoming call, tap Reject on thetouchscreen.
Note:
Ifyou wanttomakeoransweraPSTNcall,you mustmakesuretheLineportconnecttoaPSTNport
correctlyand thesipmustnotberegistered.
Creating aContact
Tocreateacontact, do asfollows:
Step1 Onthedesktop click orindialwindowclick displaycontact interface.
Step2 Click and input Name”, ”Homephone”, Officephone”, Mobilephone”and select groupID, select
imageect.

MediaPhoneQuick UserGuidehttp://www.proolin.com
10
Step3 Click Add”.
Exporting and Importing aPhonebook
Toimport recordstothephonebook, do asfollows:
Step1 Tap on thehomescreentodisplaythelist of functions.
Step2 Tap todisplaythe Import/Export screen.
Step4 Select ExportToSdcard”toexport thephonebookand click OK”.
Step5 Select ImportFromSdcard”toimportedthephonebookand click OK”.
Importing Files fromeUSBDevice or SDcard

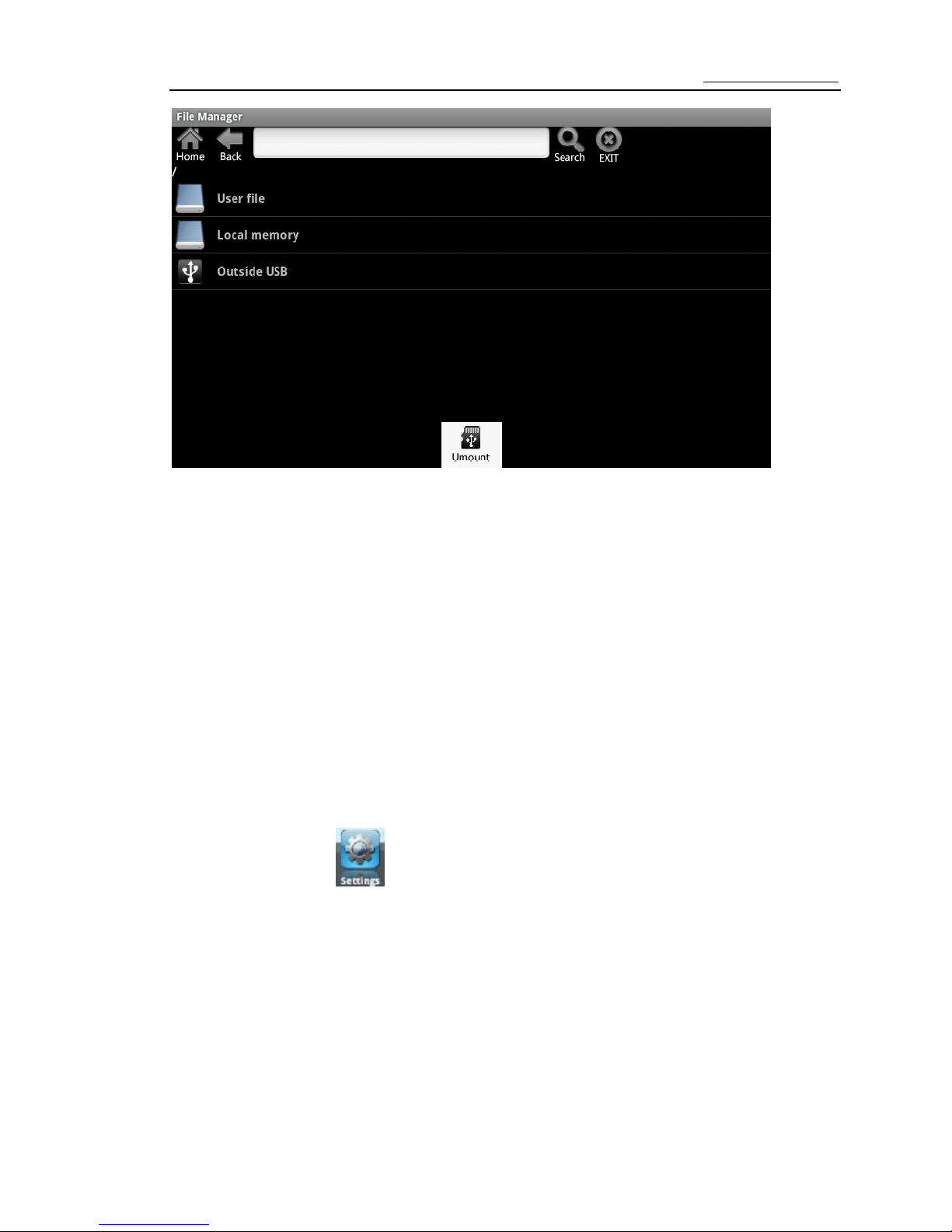

ToimportfilesinUSBdevice orSDcardtothelocalmemory, do asfollows:
Step1 Connect theusbdeviceorSDcardtothemediaphone.
Step2 Inthewindowthat displayedclick OutsideUSB”or OutsideSDcard”.

MediaPhoneQuick UserGuidehttp://www.proolin.com
11
Step3 Inthefilesmanagementwindowselectafilethat youwant,click Import andselect Importlocal memory.
Thefileswill beimportedautomatically.
Note:
Themediaphonesupportthefiles formatas follows:
1．Image
JPEG,GIF,PNG,BMP
2．Audio
mp3,ogg,wav,mid
3．Video
mp4,3gp,avi,flv,mkv,mov
Setting Timeand Date
Toset timeand date, do asfollows:
Step1 Onthedesktop click .
Step2 Inthewindowthat displayedselect Dateand Time.
Step3 Inthewindowthat displayedyou can set thetimeand datebyhandsorclick SyncDate.
Installing Third partyApplications
You can install thethirdpartyapplicationsfromusbdeviceorSDcardon themediaphone.
Step1 Connect theusbdeviceorSDcardtothemediaphone.

MediaPhoneQuick UserGuidehttp://www.proolin.com
12
Step2 Inthewindowthat displayedclick OutsideUSB”or OutsideSDcard”.
Step3 Inthefilesmanagementwindowselectanapplicationinstall filethatyouwant,clickandinstallitfollowing
thetips.
Note:
You mustopensomesettingsas followswhenyou install applicationsforthefirsttime:
4．Click OK”inthealarminterface.
5．Select UnkownResource”toallowinstall thirdpartyapplications.
6．Click OK”.
Step4 Tip ”Install”. Thesystemwill install theapplication automatically.
Uninstalling Third partyApplications
Touninstall thethirdpartyapplications, do asfollows:
Step1 Back tothedesktop.
Step2 Click ” inthebelowof thescreenand select .
Step3 Select Application”-> ManageApplication”inthedisplayscreen.
Step4 Click All”todisplayall theapplicationsthat installed.
Step5 Select an application that you want touninstall. Inthedisplayscreenclick uninstall”.
Step6 Click OK”.

MediaPhoneQuick UserGuidehttp://www.proolin.com
13
Specifications
Item Specifications
OS Android2.2
Memory 512MB
Storage 2G
Screen 7"Resistivetouchscreen, 800 x480
Hardware
Camera 2Mpixel
RJ45 ×210/100MbpsforLANand PC
Internet
WiFi802.11b/g/n
USB 2.0
MiniUSB 2.0
SDcardinterface
Multiplexeswith3.5mm earphone jack
Interface
Others
CVBS Output
Communication
standard SIP2.0
Video standard H.263, H.264
Audiostandard G.711, G.729
Compliant
standards
Networkstandards TCP/IP,DHCP, PPPoE
Adapter Workingvoltage: 110/220VAC, 12 Vand 2ADC
Workingfrequency: 50 Hzto60 Hz
Power Entire-devicepower
consumption <15W
Operatingtemperatur
e 0ºC~40ºC
Humidity 10%~80%
Minimumillumination 10lux
Environmental
parameters
Recommended illumin
ation >300lux
PackagingDetail Mediaphone, PowerAdapter, RJ45, Manual
Colour Black
