prophecy gofanco PRO-HD21Split2P User manual

PRO-HD21Split2P
1x2 4K 120Hz HDMI Splier with Bulit-in & User Adjustable
EDID Management and Audio Extractor
®
Made in Taiwan
User‘s Guide

®
PRO-HD21Split2P
Congratulaons for owning a gofanco product. Our products
aim to meet all your connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit
www.gofanco.com.
For technical support, please email us at
[e-mail].
For drivers/manuals download, please go to
hp://www.gofanco.com/download.

®
PRO-HD21Split2P
• Supports up to 4K @120Hz YUV 4:4:4/4:2:2/4:2:0*
• Supports HDR** at 4K @60Hz YUV 4:2:0 10bits/12bits***
• Supports VRR (Variable Refresh Rate) & ALLM (Auto Low La-
tency Mode)
• Supports CEC pass-through on input & output 2
• HDCP 2.3 and 1.4 compliant
• Wide frequency range: 25MHz~1188MHz
• Video bandwidth: 40G
2. Features
1. Introduction
3
gofanco Prophecy PRO-HD21Split2P is a cost-eective and
state-of-the-art 4K @120Hz HDMI splitter solution in the mar-
ket today, transmitting high-denition video and high-quality
audio from one source to 2 dierent locations without losing
quality. The PRO-HD21Split2P also supports HDR and the true
4K120 video! In addition, this device supports separation of
high-quality digital S/PDIF (Toslink) audio & stereo analog au-
dio from the incoming HDMI signal.
With built-in USB rmware update mechanism, compatibility
among countless HDMI sources and receivers are further gua-
ranteed. With support for 4K @120Hz resolution and high-de-
nition audio, the PRO-HD21Split2P is suitable for high-quali-
ty HDMI broadcasting, e-sports, digital signage and education
applications!

®
PRO-HD21Split2P
i
• 1x PRO-HD21Split2P
• 1x DC 5V power adapter
• 1x User Manual
3. Package Contents
Future 8K upgradable.
HDR = High Dynamic Range.
Video bandwidth of 4K @60Hz YUV 4:2:0 10bits (HDR) is 384MHz, and 4K
@60Hz YUV 4:4:4 8bits is 594MHz.
If the output does not produce video, press and hold the “reset” buon
for about 2 seconds to reset the device
*
**
***
• Supports audio extraction to Toslink & Stereo
• Supports 4K to 1080p resolution downscaling***
• Supports pre-congured EDIDs and EDID learning
• Supports xvYCC, x.v.Color & Deep Color
• Firmware upgradable via Micro-USB for expanded compatibility
• Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
4

®
PRO-HD21Split2P
4. Specications
Item Description
Role of usage 1x2 Distribution Amplier (Splitter)
HDCP compliance HDCP 2.3 / 1.4
Video bandwidth Up to FRL 5 (40G)
Video support Up to 4K2K 120Hz 4:4:4/4:2:2/4:2:0
Audio support DTS-HD Master Audio, Dolby TrueHD Dolby Digital,
DTS, LPCM
ESD protection Human body model — ±15kV [air-gap discharge] &
±8kV [contact discharge]
Firmware update Via Micro-USB port
Input 1x HDMI
Output 2x HDMI + 1x TOSLINK + 1x 3.5mm phone jack
HDMI connector Type A [19-pin female]
Dip switch EDID Mode selection
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 120 x 63 x 23mm[4.7" x 2.5" x 0.9" ]
Package 198 x 137 x 74mm [7.8" x 5.4" x 2.9"]
Carton 420 x 400 x 300mm [1'4"x 1'3" x 11.8"]
Weight Model 194g[6.8 oz]
Package 350g[12.3 oz]
Power supply 5V DC
Power consumption 3 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
5

®
PRO-HD21Split2P

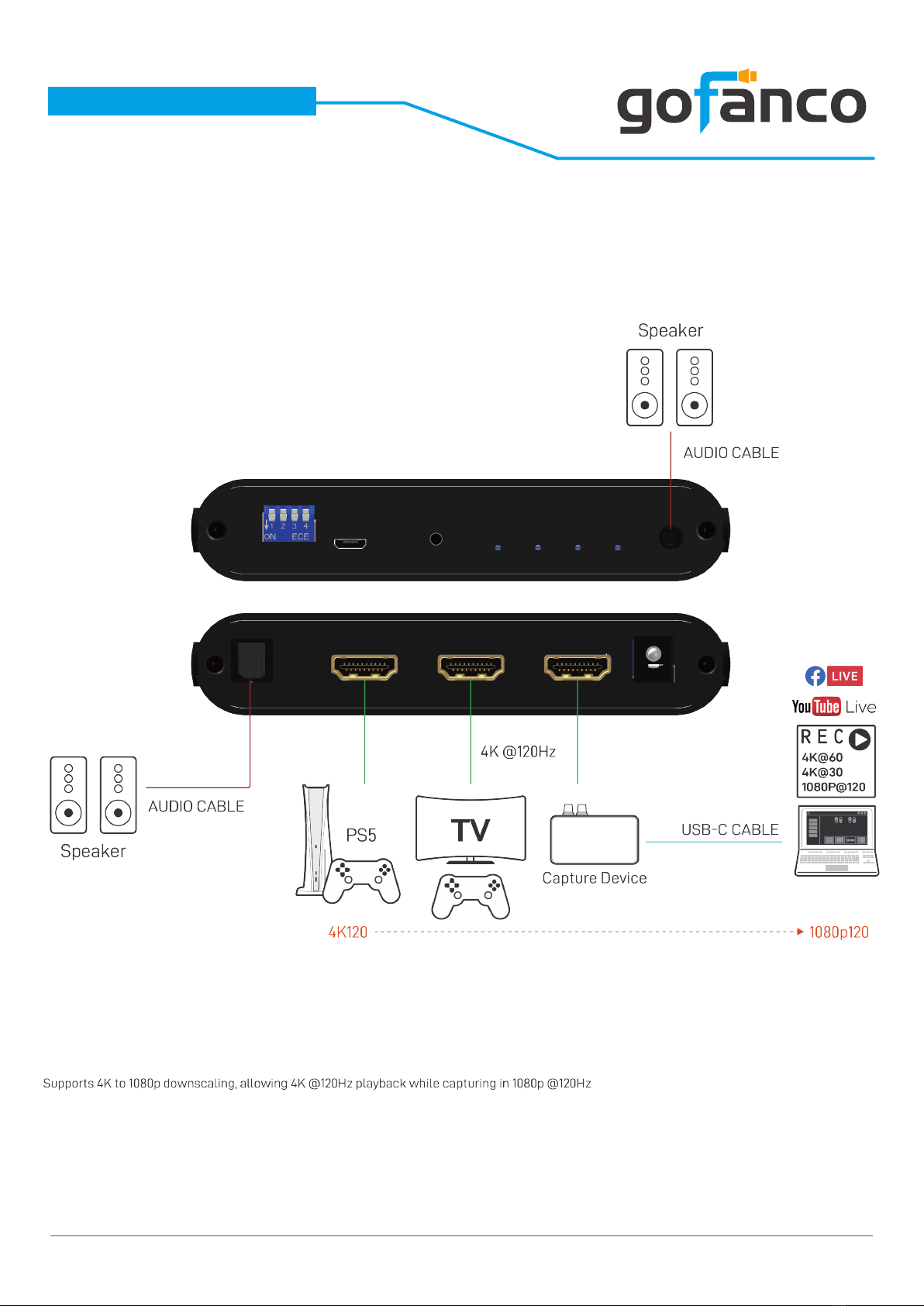

5. Connection Diagram
6

®
PRO-HD21Split2P
6. Panel Description
Front Panel
Rear Panel
1.EDID MODE: See more details in the DIP SWITCH SETTING section
2.Micro-USB Port: Firmware update / Software control
3.Push Button: Reset the device
4.LED Indicators: Input FRL format, Input signal, Output 1 signal,
Output 2 signal (from left to right)
5.Stereo (3.5mm) Out
6.S/PDIF (Toslink) Out
7.HDMI IN: Connect to an HDMI input source
8.HDMI OUTPUTS 1-2: HDMI outputs to HDMI displays
9.+5V DC: Connect to 5V DC power supply unit
7
2
6
43
7
5
8 9
1

®
PRO-HD21Split2P
7. Dip Switch Setting
DIP Switch Position Description
Pin 1 Pin 2 Pin 3 Pin 4
  - - 4K Ultra HD(4K@120 4:4:4 (32G)) 8ch PCM audio
- - 4K Ultra HD(4K@120 4:2:0 (24G)) 2ch audio
- - EDID learning from output 1
  - - User dened EDID
- - -Enable scale up on output 1*
- - -Normal(Bypass)
---Enable scale down on output 2*
---Normal(Bypass)
8
On [] O []
1. EDID learning mode will mask display DSC informaon.
2. For a complete EDID learning, including the display DSC informaon, use
“User dened EDID” mode to learn EDID from the display.
Supported Resolution
Scale up
1080P to 4K2K
2560x1080 to 5K2K
Scale down
4K2K to 1080P
5K2K to 2560x1080
*Notes:

®
PRO-HD21Split2P
8. Installation
• Switch off all devices, including the monitors.
• Connect to the displays.
• Connect an HDMI source (such as a Blu-ray Disc player)
to the HDMI In.
• Plug in 5V DC power supply.
• Power on the HDMI monitors.
• Power on the HDMI source.
Broadcasts HDMI signal to 2 HDMI displays!
9

®
PRO-HD21Split2P
10
9. Software Operation
The included software features the following functions in
Splitter mode: 1) Main: View input/output information; 2)
EDID: Load user-dened EDID & read/download EDID; 3) Sys-
tem: Firmware version/update & FRL (Fixed Rate Link) output
This Windows PC software can be downloaded from our web-
site. Please visit www.gofanco.com/download, search for this
product by its part# PRO-HD21Split2P, and download the
software and save it to your system.
To use the software, connect our device to a Windows PC with
a USB cable (Micro-USB to Type-A USB, not included in the
package).
The following window will pop up when the software is laun-
ched. Click Splitter button to enter the Splitter Control Inter-
face.

®
PRO-HD21Split2P
1. Splitter Control Interface

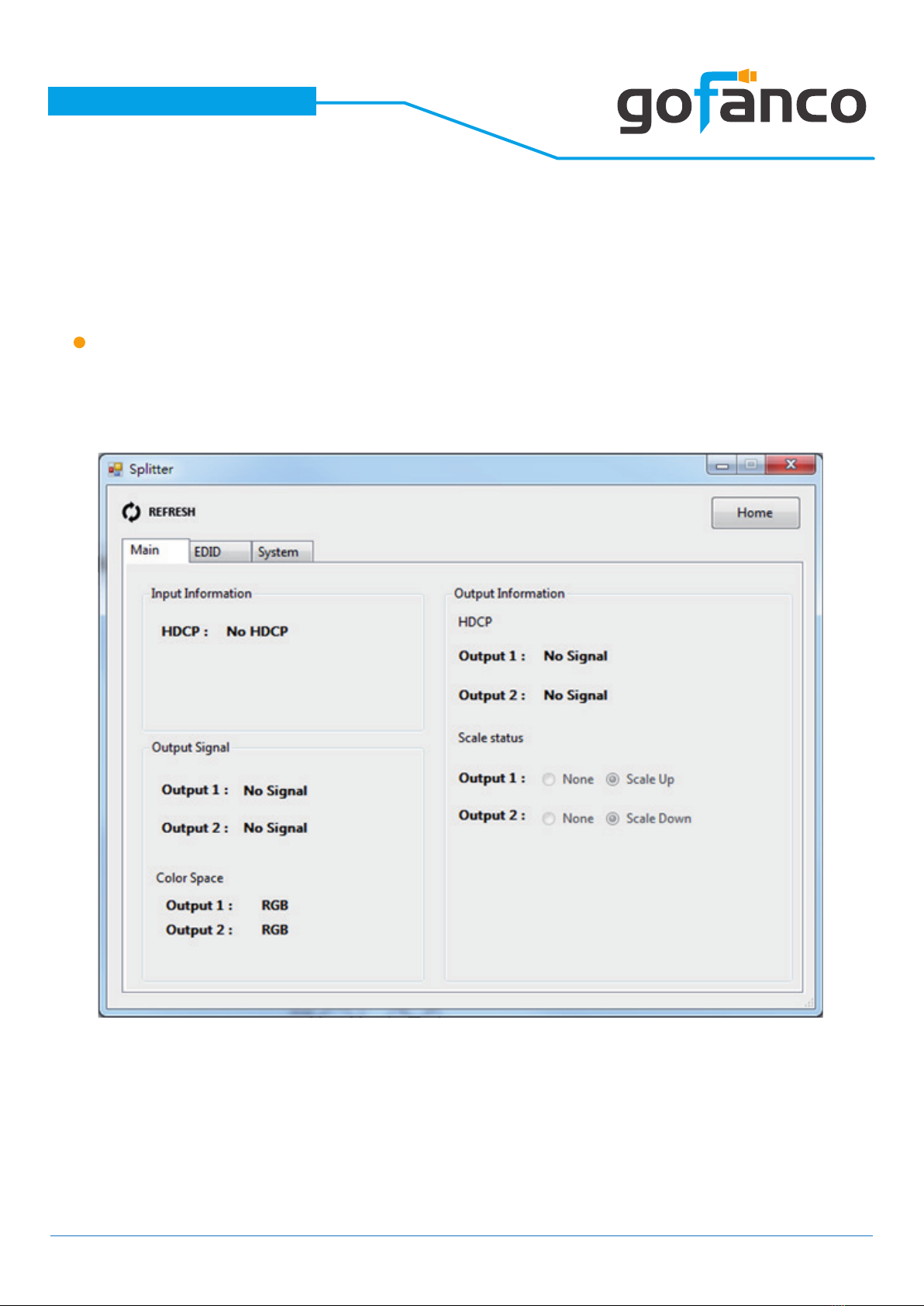

Main Tab
In this section, the software will show the input/output
information.
11

®
PRO-HD21Split2P

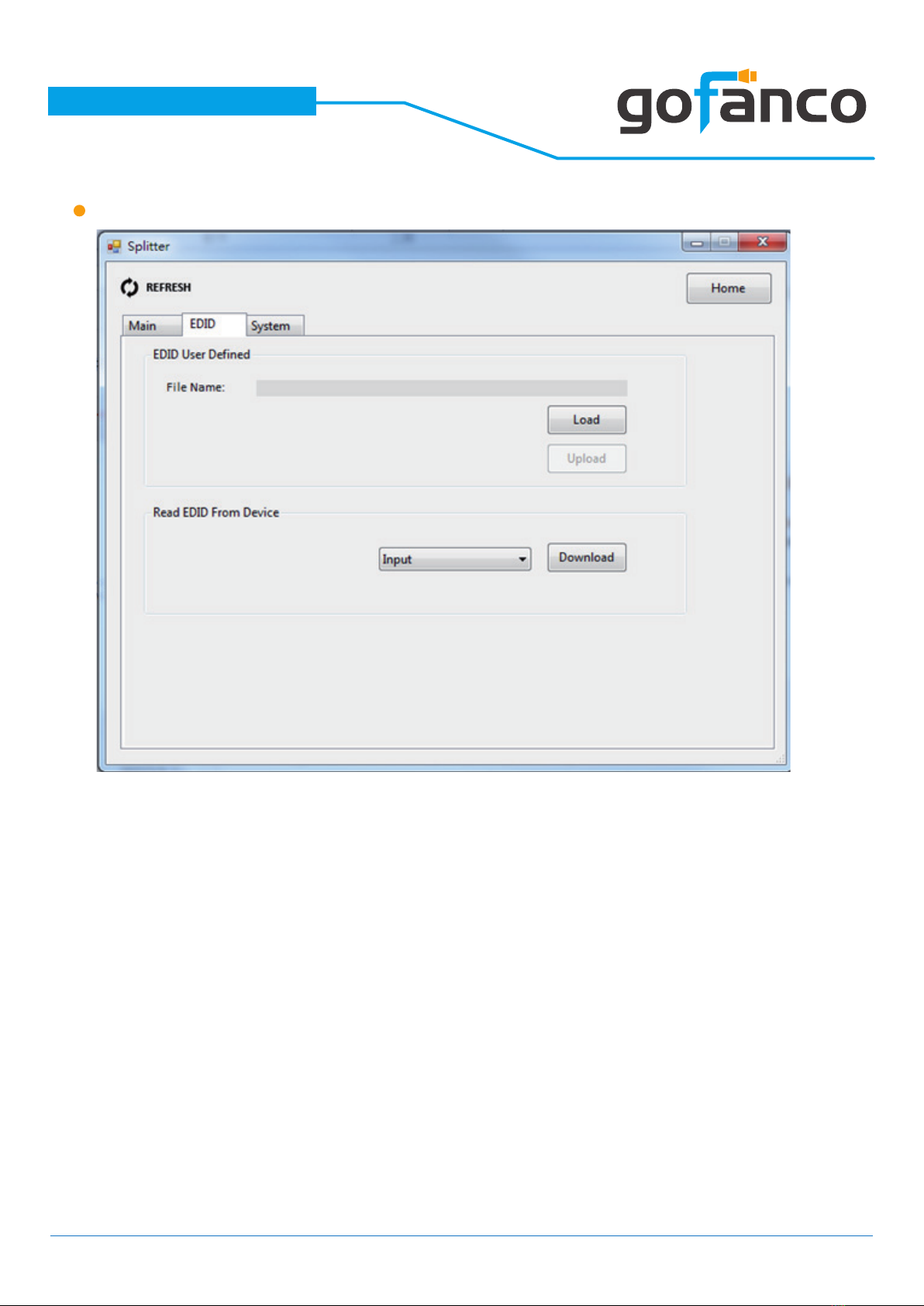

EDID Tab
12
1.) User-defined EDID
• Set the dip switches to [Pin 1/2/3/4] to [---]
• Click Load button to select the user-dened EDID le
from the PC
• Click Upload button to load the user-dened EDID le
• Set the dip switch to [Pin 1/2] to [-] to apply the
user-dened EDID. [Pin 3/4] can be set to any position.
• Select Input , Sink 1 or Sink 2
• Click Download button to save the EDID le to your PC
2.) Read EDID From Device

®
PRO-HD21Split2P
13

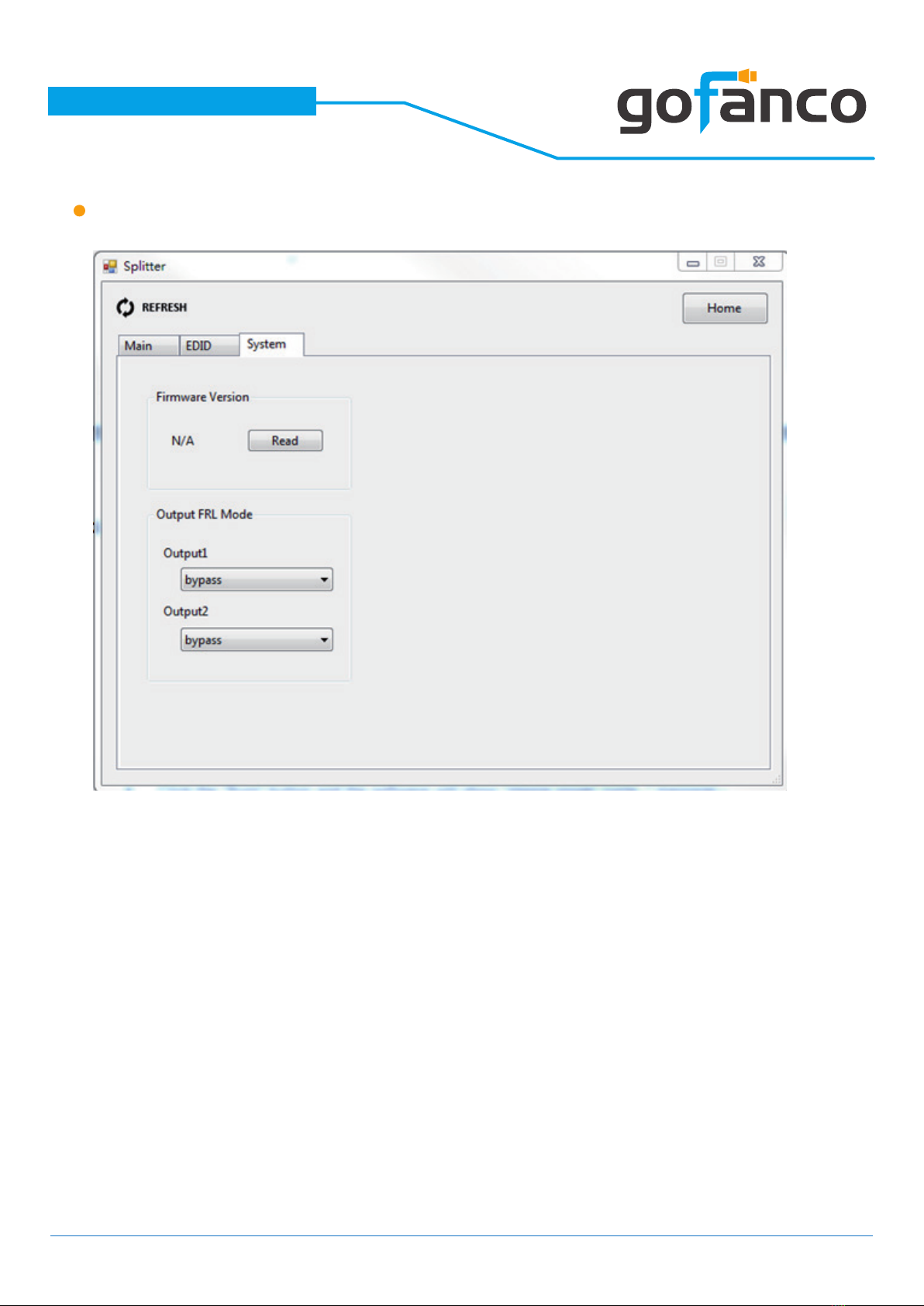

System Tab
1.) Firmware Version
Select bypass, 3Lanes/3G, 3Lanes/6G, 4Lanes/6G,
4Lanes/8G, 4Lanes/10G or 4Lanes/12G on output 1
& output 2
Click Read button to display the device’s current rmware
version
2.) Output FRL Mode

®
PRO-HD21Split2P
14

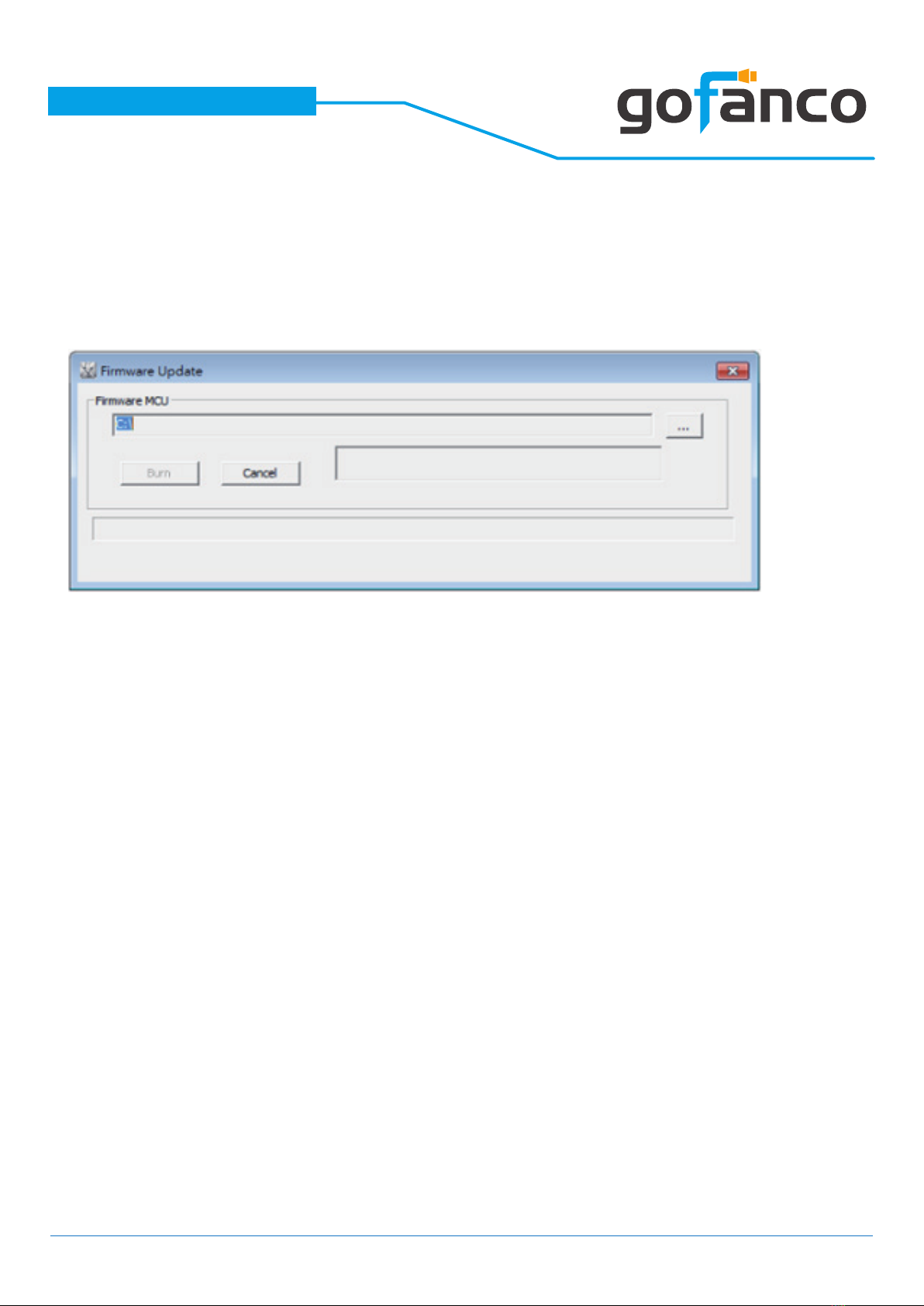

2. Firmware Update
From the main screen, click Firmware Update button to enter the
FW update interface.
• Click the … button to select the le which you want to write
into the device.
• Click the Burn button and a message “Please power cycle …”
will display.
• Unplug the Micro-USB cable and power supply from the split-
ter.
• Now, plug in the Micro-USB cable back into the splitter’s
Micro-USB port, then the power supply to the splitter’s power
jack. The rmware will start to update.
• After a successful rmware update, a “Firmware Update Suc-
cess” message will display.

®
PRO-HD21Split2P
15
10. Limited Warranty
The SELLER warrants the PRO-HD21Split2P 1x2 HDMI 2.1 4K120 Splitter with Built-
in & User Adjustable EDID Management and Audio Extractor free from defects in
the material and workmanship for 1 year from the date of purchase from the SEL-
LER or an authorized dealer. Should this product fail to be in good working order
within 1 year warranty period, The SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modications including static discharge and power surge. This war-
ranty is oered by the SELLER for its BUYER with direct transaction only. This war-
ranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the
current price of parts and labor in eect at the time of repair. Such repairs are war-
ranted for 90 days from the day of reshipment to the BUYER. If the unit is delivered
by mail, customers agree to insure the unit or assume the risk of loss or damage in
transit. Under no circumstances will a unit be accepted without a return authoriza-
tion number.
The warranty is in lieu of all other warranties expressed or implied, including wi-
thout limitations, any other implied warranty or tness or merchantability for any
particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan
are responsible for shipping charges to and from the SELLER. Cables and power
adapters are limited to a 30 day warranty and must be free from any markings,
scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be ac-
curate. However, The SELLER assumes no responsibility for any inaccuracies that
may be contained in this manual. The SELLER will NOT be liable for direct, indirect,
incidental, special, or consequential damages resulting from any defect or omis-
sion in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the PRO-HD21Split2P features
and specications is subject to change without further notice.
The product name and brand name may be registered trademarks of related manufacturers. TM and ®
may be omied on the user‘s guide. The pictures on the user‘s guide are just for reference, and there
may be some slight dierences with the actual products.
We reserve the rights to make changes without prior noce to a product or system described herein to
improve reliability, funcon, or design.
Disclaimer

Thank you for choosing gofanco
®
www.gofanco.com
Jun, 2022 Ver. A Copyright © by gofanco, LLC. All rights reserved.
