Vision HD SP0208-330 User manual

Model No.: SP0208-330
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.

Introduction
signal from HDMI input or dual RJ-45 input to eight HDMI outputs. These eight
outputs are synchronized.
SP0208-330 has the ability of pre-emphasis and equalization. The distance
transmission achieves 30 meters, from signal source to local equipment, when
using the RJ-45 input.
SP0208-330 offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and Projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.
Vision HD’s SP0208-330 is a eight-ways HDMI splitter. It distributes the

Contents
HDMI Splitter .........................................................................................................1
Product Overview..................................................................................................1
Features ................................................................................................................ 1
Package Contents.................................................................................................3
Connections and Operations ................................................................................ 3
Specifications ........................................................................................................3
Panel Descriptions ................................................................................................ 4
Typical Application.................................................................................................6
Maintenance.......................................................................................................... 6
Product Service..................................................................................................... 6
Provided Service ...................................................................................................6
Mail-In Service....................................................................................................... 7
Warranty ................................................................................................................7
Warranty Limits And Exclusions............................................................................ 8

Page 1
HDMI Splitter

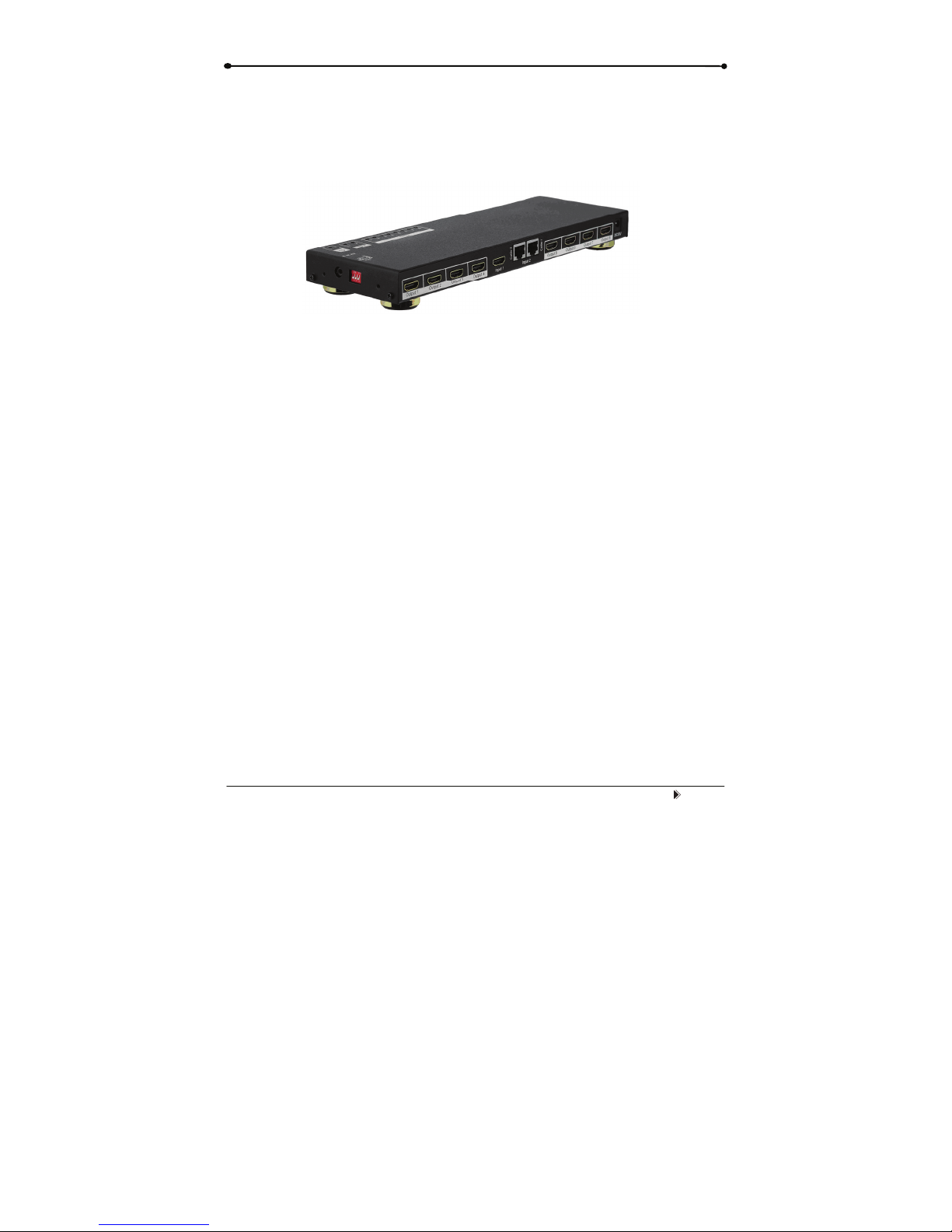

■Product Overview ( Model Number: SP0208-330 )
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
■Features
zEasy to Use: Install in seconds, no need of setting.
zDistribution: One HDMI Input and One dual RJ-45 Input, eight identical
HDMI outputs.
zSupport high definition resolutions 1080p, 1080i, 720p and other standard
video formats.
zOne IR receiver Extension for remote control to the signal source.
zWith one dial switcher to set up the output mode.
zHDCP compliant.
zHDMI 1.3b version.
"Notice
packaging and any accompanying documentation without prior written notice.
Vision HD reserves the right to make changes in the hardware,

Page 2
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
p
lu
g
s.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Page 3
■Package Contents
①Main unit. P/N_SP0208-330
② 5VDC Power Supply.P/N_VDC0503
③ Operating Insrtuctions.P/N_INSSP0208-330
④ 1x IR Receiver.
⑤ 1x Remote Control.(Battery Model:CR2025)
NOTE: Cables are optional.
■Connections and Operations
1) Connect the HDMI input sources into SP0208-330. ( Input cables are
optional)
2) Connect the HDMI output equipments into SP0208-330. ( Output cables
are optional)
3) Insert the DC side of 5V power supply into SP0208-330 and then connect
the AC side of the power supply into the wall outlet.
4) Turn on the power.
Attention: Insert / Extract cables gently.
■Specifications
Operating Temperature Range -5 to +35°C(-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)

Page 4
Signaling Rate 2.25Gbit/s
Video Format Supported DTV/HDTV:1080p/1080i/720p/576p/480p/
576i/480i
Output Video HDMI1.2 and HDMI 1.3
Maximum Transmission
Distance
<15m (If needed, HDMI extender is
optional)
Power Consumption 15wtts (Max.)
Dimensions 290mmL×95mmW×25mmH
Mass (Main Unit) 0.8Kgs
NOTE: Specifications are subject to change without notice. Mass and dimensions are
approximate.
■Panel Descriptions

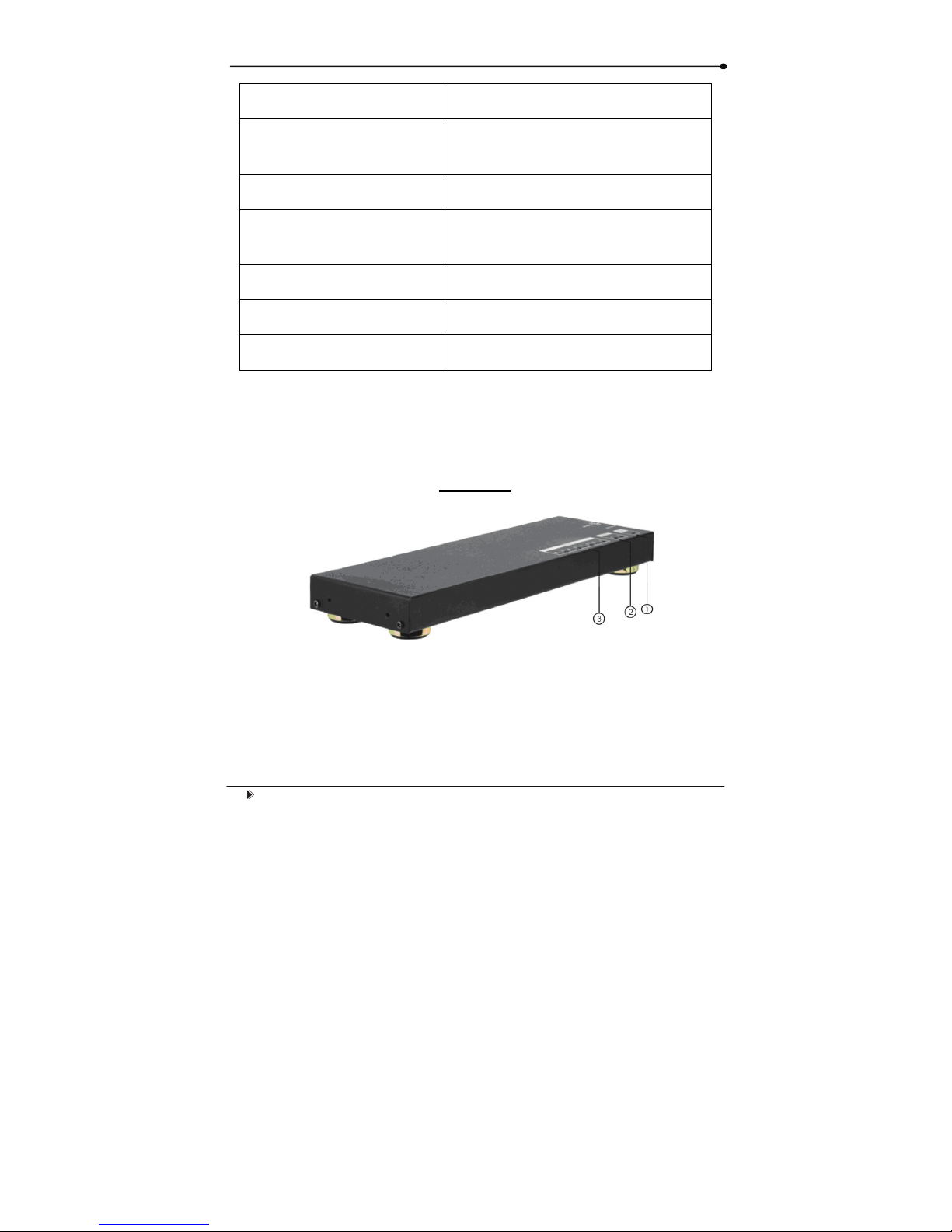

Front Panel
① Indicators of power. When the power is on, the Power status LED will be
light .
② Input LED. When the source is selected, the corresponding LED will be
light.
③Indicator of outputs. When the HDMI equipment is connected, the
corresponding LED will be light.

Page 5

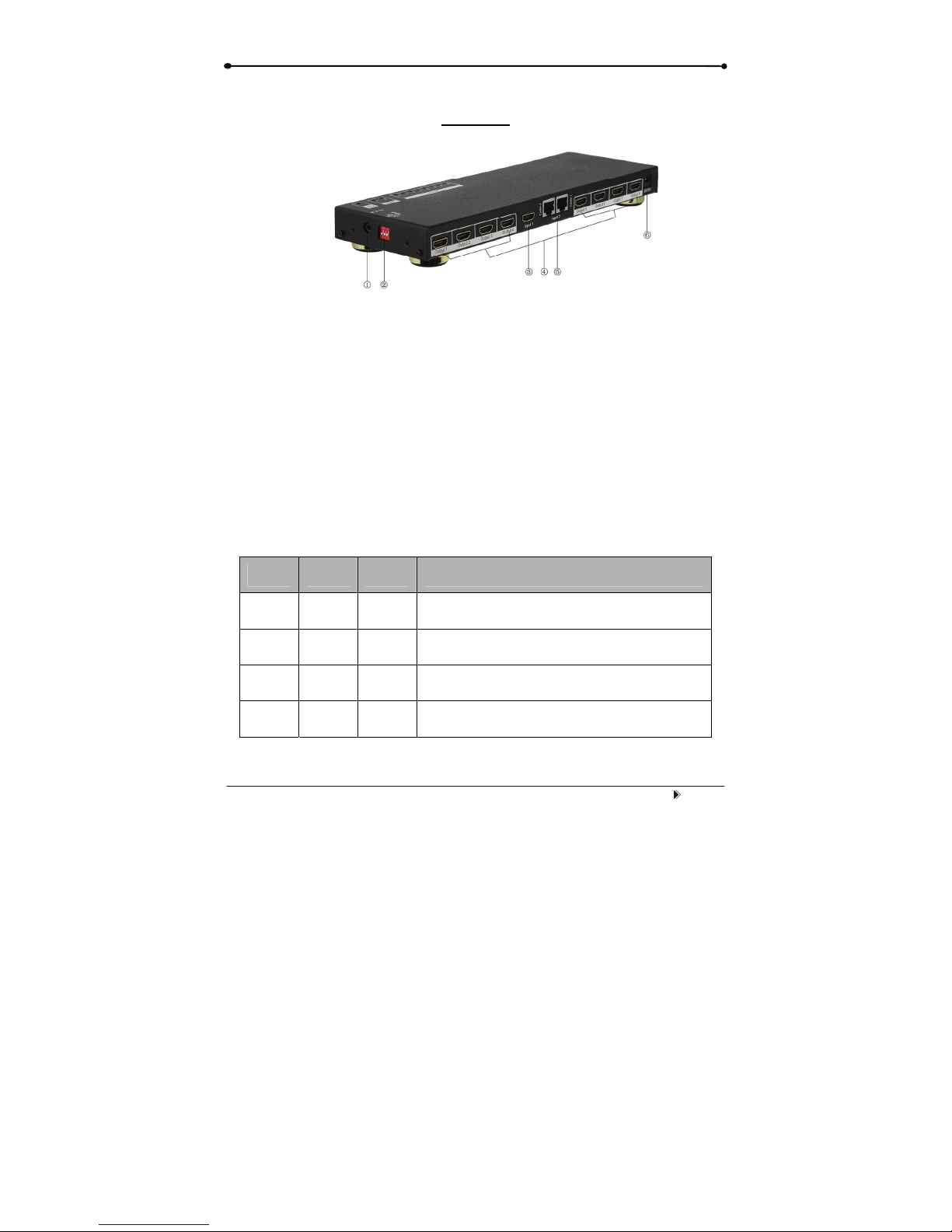

Rear Panel
① IR extension.
② Dial switcher.
③ HDMI input.
④ RJ-45 input.
⑤ HDMI outputs.
⑥Power input.
Function of the dial switcher:
JP1 JP2 JP3 HDCP Repeater MODE
0 0 0 EDID mix.
0 0 1 Copy EDID from first detected output.
0 1 0 HDMI1.2 output.
0 1 1 HDMI1.3 output.

Page 6

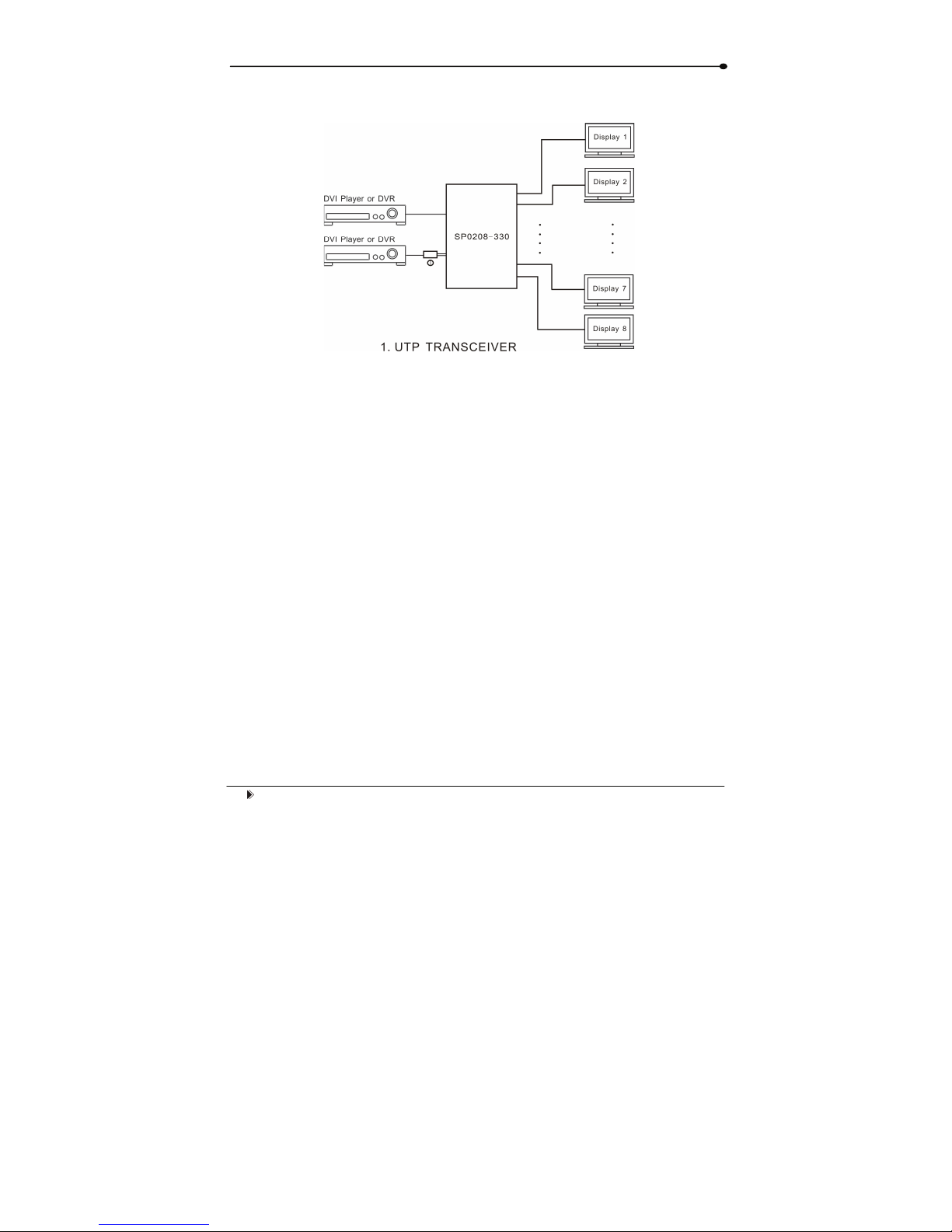

■Typical Application
■Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine
to clean this unit.
■Product Service
●Provided Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
zThe DC power supply cord or AC adaptor has been damaged;
zObjects or liquids have gotten into the unit;
zThe unit has been exposed to rain;
zThe unit does not operate normally or exhibits a marked change in
performance;

Page 7
zThe unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses
parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result
in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety
checks to confirm that the unit is in proper working condition.
●Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
provide a daytime phone and/or email address where you can be reached.
If repair is needed during the limited warranty period the purchaser will be
required to furnish a sales receipt/proof of purchase indicating date of
purchase, amount paid and place of purchase. Customer will be charged for
the repair of any unit received without such proof of purchase.
●Warranty
If your product does not work properly because of a defect in materials or
the length of the period indicated as below, （Parts (1) Year，Labor(90)
Days）which starts with the date of original purchase (“Limited Warranty
period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to
repair or replace will be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
workmanship, Vision HD (referred to as “the warrantor”) will, for

Page 8
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
●Warranty Limits And Exclusions
1) This Limited Warranty ONLY COVERS failures due to defects in
materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage. The Limited Warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result
from accidents, misuse, abuse, neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning
damage, modification, or service by anyone other than a Factory Service
Center or other Authorized Service, or damage that is attributable to acts
of God.
2) There are no express warranties except as listed under “limited
warranty coverage”. The warrantor is not liable for incidental or
consequential damages resulting from the use of this product, or
arising out of any breach of this warranty. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the service location, loss of or
damage to media or images, data or other recorded content. The items
listed are not exclusive, but are for illustration only.)
3) Parts and service, which are not covered by this limited warranty, are
your responsibility.
