thomann 340223 User manual

DMX Splitter Pro 3+5 pin
DMX splitter
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
10.08.2015, ID: 340223

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 14
5 Starting up.................................................................................................................................................. 16
6 Connections and operating elements........................................................................................... 19
7 Technical specifications....................................................................................................................... 22
8 Plug and connection assignment.................................................................................................... 23
9 Protecting the environment.............................................................................................................. 25
Table of contents
DMX Splitter Pro 3+5 pin
3

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
DMX splitter
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
General information
DMX Splitter Pro 3+5 pin
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
References to other locations in this manual are identified by an arrow and the specified page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specified location.
Example: See
Ä ‘Cross-references’ on page 6.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Cross-references
General information
DMX splitter
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
General information
DMX Splitter Pro 3+5 pin
7

Warning signs Type of danger
Warning – danger zone.
General information
DMX splitter
8

2 Safety instructions
This device is intended to be used for the distribution of DMX signals from one to multiple
DMX chains, or to extend a DMX chain. Use the device only as described in this user manual.
Any other use or use under other operating conditions is considered to be improper and may
result in personal injury or property damage. No liability will be assumed for damages resulting
from improper use.
Any other use or use under other operating conditions is considered to be improper and may
result in personal injury or property damage. No liability will be assumed for damages resulting
from improper use.
Intended use
Safety instructions
DMX Splitter Pro 3+5 pin
9

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Safety
Safety instructions
DMX splitter
10

DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
Safety instructions
DMX Splitter Pro 3+5 pin
11

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
DMX splitter
12

3 Features
nProfessional DMX splitter
nBuffering, amplification and distribution of the DMX-512 signal to four DMX chains in
active mode
nLooping the DMX-512 signal in passive mode
n1 × DMX input
n1 × passive DMX output
n4 × active DMX outputs
nEach DMX in and output in three-pin and five-pin design
nActive outputs galvanically isolated from the inputs
nEach passive out and input isolated from each other to over 2000 V
nControl LEDs
npowerCon in and output for optional supply of further devices
Features
DMX Splitter Pro 3+5 pin
13

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
You can install the device standing or hanging. When in use, the device must be mounted at a
solid surface or clamped to an approved truss.
Work from a stable platform whenever you install or move the device or when you perform
any kind of maintenance. Block access under the work area.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
DMX splitter
14

NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
fiers.
The thread holes (M10) are used for secure attachment of flight adapters (Half Coupler, Trigger,
Clamps, C-hooks, etc.). The safety cable must be routed through the safety eyelet on the rear
side (
Ä Chapter 6 ‘Connections and operating elements’ on page 19).
Mounting options
Installation
DMX Splitter Pro 3+5 pin
15

5 Starting up
Establish all connections as long as the unit is switched off. Use the shortest possible high-
quality cables for all connections.
Starting up
DMX splitter
16

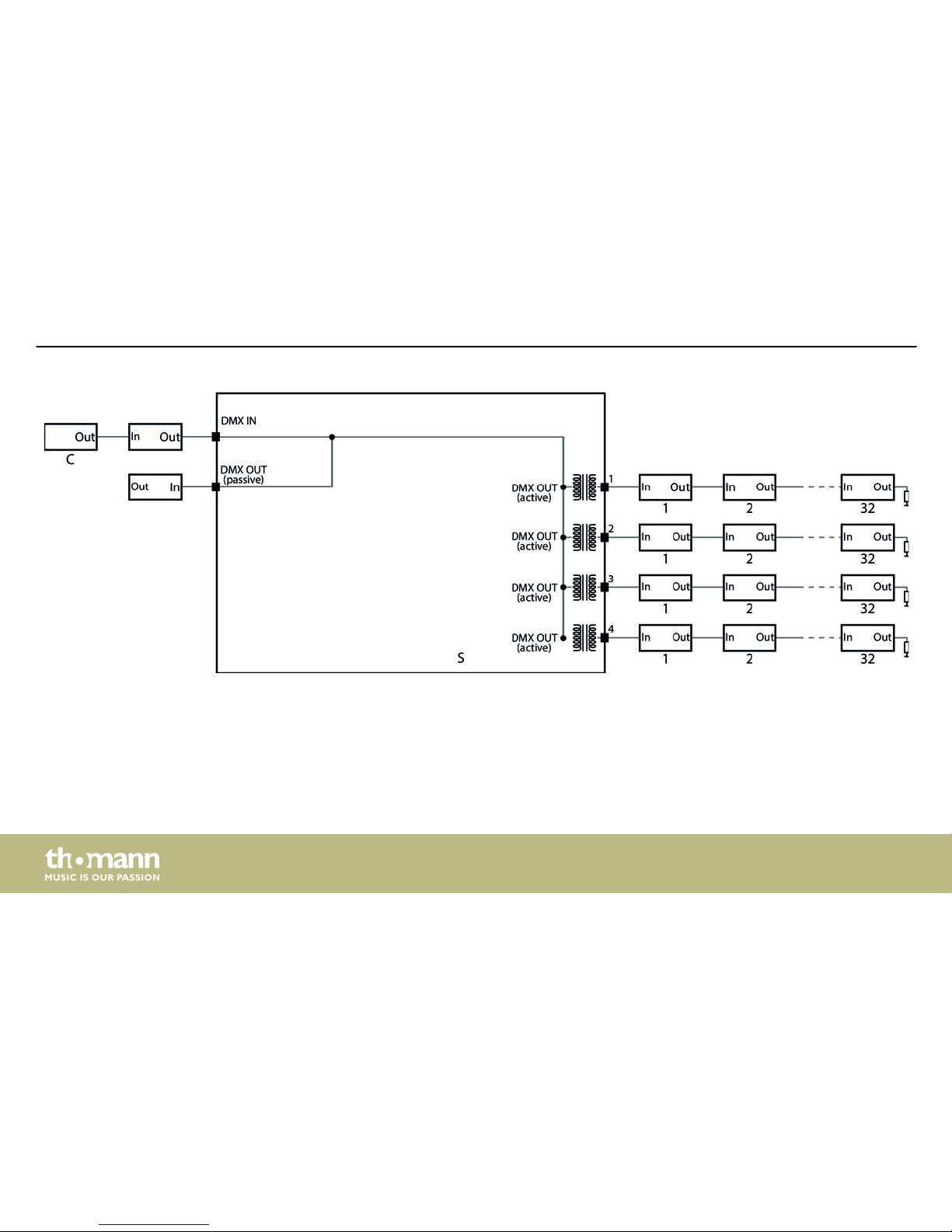

The following graphic illustrates how to integrate the unit into a DMX configuration.
Use the product (S) as the last part of the DMX chain that begins with your DMX controller (C).
Therefore, connect the output of the last device to the input of the DMX splitter.
You can connect one DMX chain to each active DMX output of the device (S) (DMX splitter).
Connect the output of the first DMX device to the input of the second and continue this way
until all devices are connected. Make sure that the output of the last DMX device in the chain is
terminated by a resistor (110 Ω, ¼W). You can even expand the configuration of your DMX
network if you are running additional DMX splitters at the end of the DMX chains. Keep in
mind that the total number of usable DMX addresses in a ‘DMX universe’ is limited to 512.
On the passive DMX output, the signal is looped through to a connected device.
DMX connections
Starting up
DMX Splitter Pro 3+5 pin
17

Starting up
DMX splitter
18

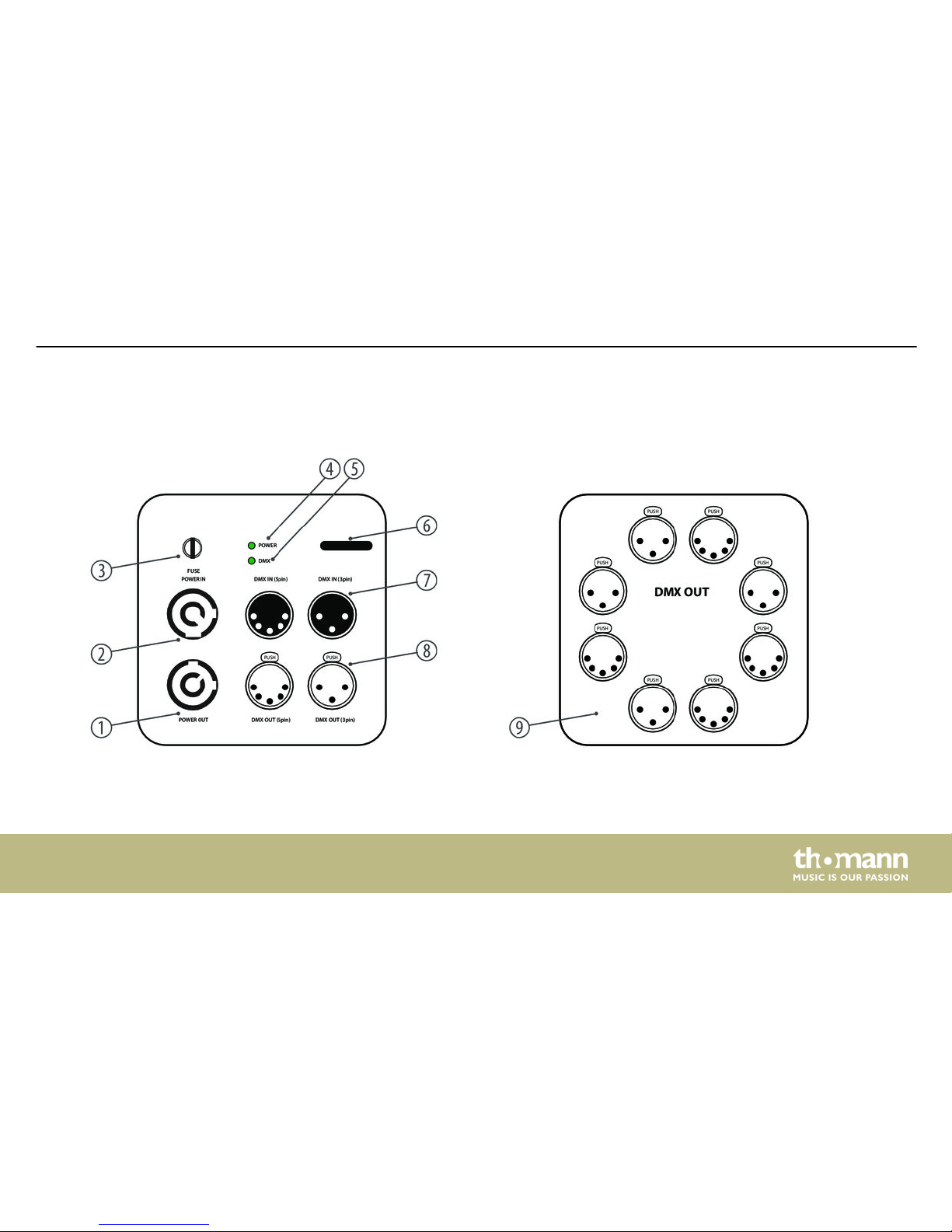

6 Connections and operating elements
Connections and operating elements
DMX Splitter Pro 3+5 pin
19

1[POWER OUT]
powerCON output to supply connected equipment with AC voltage.
2[POWER IN]
powerCON input for the power supply of the device. Once the power plug is connected to an AC outlet, AC voltage is
present and the unit is operational.
3 Fuse holder.
4[POWER]
Indicator LED. This LED lights up green when the device is turned on.
5[DMX]
Indicator LED. This LED lights green when the unit is turned on and receives a DMX signal.
6 Safety eyelet.
7[DMX IN]
DMX input in three-pin and five-pin design.
Connections and operating elements
DMX splitter
20
