Copyright Notice
PC-580 586 / 6x86 Pentium®
EMBEDDED BOARD
WITH VGA / LAN
OPERATION MANUAL
COPYRIGHT NOTICE
This operation manual is meant to assist both Embedded Computer
manufacturers and end users in installing and setting up the system. The
information contained in this document is subject to change without any
prior notice.
This manual is copyrighted December 2000. You may not reproduce or
transmit in any form or by any means, electronic or mechanical,
including photocopying and recording.
ACKNOWLEDGEMENTS
All trademarks and registered trademarks mentioned herein are the
property of their respective owners.

Contents
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION
1-1 About This Manual ....................................................... 1-2
1-2 System Specification ..................................................... 1-3
1-3 Safety Precautions ......................................................... 1-6
CHAPTER 2 HARDWARE CONFIGURATION
2-1 Jumper & Connector Quick Reference Table ............... 2-2
2-2 Component Locations ................................................... 2-3
2-3 How to Set the Jumpers ................................................ 2-4
2-4 CPU Type & CPU Clock Selection .............................. 2-6
2-4-1 Intel 90/100 CPU Type & Clock Jumper Setting ............................... 2-6
2-4-2 Intel 120/133 CPU Type & Clock Jumper Setting ............................. 2-7
2-4-3 Intel 150/166 CPU Type & Clock Jumper Setting ............................. 2-8
2-4-4 Intel 200 CPU Type & Clock Jumper Setting .................................... 2-9
2-4-5 Intel MMX-166/200 CPU type & Clock Jumper Setting ................... 2-10
2-4-6 Intel MMX233 CPU type & Clock Jumper Setting ........................... 2-11
2-4-7 Cyrix P-150+/P-166+ CPU type & Clock Jumper Setting ................. 2-12
2-4-8 Cyrix PR-166/PR-200 CPU type & Clock Jumper Setting ................ 2-13
2-4-9 Cyrix MMX-233/266 CPU type & Clock Jumper Setting ................. 2-14
2-4-10 Cyrix 6x86L-150/166 CPU type & Clock Jumper Setting ................ 2-15
2-4-11 AMD K5-90/100 CPU type & Clock Jumper Setting .......................... 2-16
2-4-12 AMDK5-120/133 CPU type & Clock Jumper Setting ...................... 2-17
2-4-13 AMDK5-166/K6-166 CPU type & Clock Jumper Setting ................ 2-18
2-4-14 AMDK6-200/233 CPU type & Clock Jumper Setting ...................... 2-19
2-4-15 AMDK6-2-266/300 CPU type & Clock Jumper Setting ................... 2-20
2-4-16 AMDK6-2-333/366 CPU type & Clock Jumper Setting ................... 2-21
2-4-17 IDT WinChip C6-180/200 CPU Type & Clock Jumper Setting …….. 2-22
2-4-18 IDT WinChip C6-240 CPU Type & Clock Jumper Setting .………… 2-23
2-5 RS232/422/485 (COM2) Selection ............................... 2-24
2-6 SSD Memory Mapping Selection ................................. 2-25
2-7 COM1 Connector .......................................................... 2-26
2-8 COM2 Connector .......................................................... 2-26
2-9 COM3 Connector .......................................................... 2-27
2-10 COM4 Connector .......................................................... 2-27
2-11 Keyboard Connector ..................................................... 2-28
2-12 PS/2 Mouse Connector ................................................. 2-28

Contents
2-13 Reset Connector ............................................................ 2-29
2-14 External Speaker Connector .......................................... 2-29
2-15 Turbo LED Connector .................................................. 2-29
2-16 CPU Fan Power Connector ........................................... 2-30
2-17 Hard Disk Drive LED Connector .................................. 2-30
2-18 Power LED & KeyLock Connector .............................. 2-30
2-19 VGA CRT Connector ................................................... 2-31
2-20 USB Connector ............................................................. 2-31
2-21 Panel Inverter Delay-power Connector ......................... 2-32
2-22 Panel VCC Selection …………………………………. 2-32
2-23 Power Connector ........................................................... 2-33
2-24 UTP Connector ............................................................. 2-33
2-25 LAN LED Connector .................................................... 2-34
2-26 Reset/NMI/Clear Watchdog ………………………….. 2-34
2-27 LCD Panel Connector ................................................... 2-35
2-28 Solid-State Disk Socket ................................................ 2-36
2-29 Floppy Disk Drive Connector ....................................... 2-37
2-30 Hard Disk Drive Connector .......................................... 2-38
2-31 Printer Connector .......................................................... 2-40
2-32 Memory Installation ...................................................... 2-41
2-33 PCI/Riser Card Selection .............................................. 2-42
CHAPTER 3 SOFTWARE UTILITIES
3-1 Introduction …………................................................... 3-2
3-2 VGA Driver Utility .…….............................................. 3-2
3-3 Flash BIOS Update ....................................................... 3-5
3-4 LAN Driver Utility ..................................................….. 3-7
3-5 Watchdog Timer Configuration .................................... 3-9
CHAPTER 4 GREEN PC FUNCTION
4-1 Power Saving Block Diagram ....................................... 4-2
4-2 CPU Doze Mode ........................................................... 4-2
4-3 System Standby Mode .................................................. 4-2
4-4 System Suspend Mode .................................................. 4-3

Contents
CHAPTER 5 AWARD BIOS SETUP
5-1 Introduction ................................................................... 5-2
5-2 Entering Setup ............................................................... 5-3
5-3 The Standard CMOS Setup Menu ................................ 5-4
5-4 The BIOS Features Setup .............................................. 5-8
5-5 Chipset Feature Setup ................................................... 5-11
5-6 Power Management Setup ............................................ 5-15
5-7 PNP/PCI Configuration ................................................ 5-18
5-8 Load BIOS Defaults ...................................................... 5-20
5-9 Load Setup Defaults ...................................................... 5-20
5-10 Integrated Peripherals ................................................... 5-21
5-11 Password Setting ........................................................... 5-23
5-12 IDE HDD Auto Detection ............................................. 5-25
5-13 HDD Low Level Format ............................................... 5-26
5-14 Save & Exit Setup ......................................................... 5-27
5-15 Exit Without Saving ………………………………….. 5-28
APPENDIX A PCL-01 ADAPTER CARD
PCL-01 Adapter Card .............................................................. A-2
UTP Connector ........................................................................ A-3
LED Lights Indicator ............................................................... A-4
APPENDIX B EXPANSION BUS
PC-104 Connector Pin Assignment .......................................... B-2
PCI Bus Pin Assignment .......................................................... B-3
APPENDIX C TECHNICAL SUMMARY
Block Diagram ......................................................................... C-2
Interrupt Map ............................................................................ C-3
RTC & CMOS RAM Map ....................................................... C-4
Timer & DMA Channels Map .................................................. C-5
I/O & Memory Map ................................................................. C-6
APPENDIX D TROUBLE SHOOTING
Trouble Shooting for Error Messages ...................................... D-2
Trouble Shooting for POST Code ............................................ D-5

Contents

Page:1-1
INTRODUCTION
This chapter gives you the information for PC-580. It also outlines
the System specification.
Section includes:
zAbout This Manual
zSystem Specifications
zSafety precautions
Experienced users can skip to chapter 2 on page 2-1
for a Quick Start.
CHAPTER
1

Chapter 1 Introduction
Page: 1-2 PC-580 USER
′
S MANUAL
1-1. ABOUT THIS MANUAL
Thank you for purchasing our PC-580 586/6x86 Pentium Embedded
Board with VGA/LAN, which is fully PC / AT compatible. The PC-580
provides faster processing speed, greater expandability and can handle
more tasks than before. This manual is designed to assist you how to
install and set up the system. It contains five chapters. The user can
apply this manual for configuration according to the following chapters :
Chapter 1 Introduction
This chapter introduces you the background of this manual, and the
specification for this system. Final in this chapter will indicate you how
to avoid the damages for this board.
Chapter 2 Hardware Configuration
This chapter outlines the component’s location and their function. In the
end of this chapter, you will know how to set jumper and how to
configure this card to meet your own needs.
Chapter 3 Software Utilities
Helpful information that informs you the proper installations of the
VGA driver utilities , LAN Driver and Flash BIOS. It also describes the
Watchdog-timer function.
Chapter 4 Green PC Function
This chapter explains the Green PC functions concisely.
Chapter 5 Award BIOS Setup
This chapter indicates you how to set up the BIOS configurations.
Appendix A PCL-01 Adapter Card
This Appendix gives you a detailed information about our PCL-01
Adapter card enclosed with our PC-580 Embedded Card.
Appendix B Expansion Bus
This Appendix introduces you the expansion bus for PC-104 and PCI
BUS.

Chapter 1 Introduction
PC-580 USER
′
S MANUAL Page: 1-3
Appendix C Technical Summary
This section gives you the information about the Technical maps.
Appendix D Trouble Shooting
This section outlines the errors and offers you the methods to solve the
problems.
1-2. SYSTEM SPECIFICATION
z
zz
zCPU :
Intel, AMD, Cyrix, IDT
54C/55C, K6/K6-2, M1/M2, C6
321pin PGA socket.
75/90/100/120/133/150/166/200/233/266/300/333/366MHz clock
generator.
1.8V/2.0V/2.2V/2.8V/2.9V/3.2V/3.3V/3.5V voltage regulator.
z
zz
zMEMORY :
Up to 256MB, EDO/FPM DRAM
Two 72-pin SIMM sockets on board.
z
zz
zCACHE :
L1 Cache , size depended on CPU type
L2 Cache 512K
z
zz
zREAL-TIME CLOCK / CALENDAR :
CMOS data back up from BIOS set or BIOS default.
Dallas DS 12887 Real Time Clock.
z
zz
zBIOS :
Award, Flash BIOS for plug & play function.
Easy update 128/256KB flash EEPROM.
Support Green Function .
Support S/IO Setup.
z
zz
zKEYBOARD CONNECTOR :
5-pin PC/AT type connector.

Chapter 1 Introduction
Page: 1-4 PC-580 USER
′
S MANUAL
z
zz
zMOUSE CONNECTOR :
PS/2 mouse connector.
z
zz
zBUS SUPPORT :
Internal ISA/PCI Bus, for VGA & IDE.
PC-104 BUS.
One PICMG/PCI optional slot.
z
zz
zDISPLAY :
Support VGA for CRT & panel LCD simultaneously;
Support 32-bit PCI Local Bus;
VGA BIOS combines in 128/256KB flash ROM with system BIOS;
Support 2MB Video Memory;
Support 41-pin connector for flat panel LCD;
Panel support for color STN, TFT, EL modes;
z
zz
zWATCHDOG :
I / O port 0443H to open watchdog;
I / O port 0441H to close watchdog;
Time-out timing select 0 / 8 /16 / 24 / 32 / 40 / 48 / 56 / 64 / 72 / 80 / 88
/ 96 / 104 / 112 / 120 sec +/- 25%;
z
zz
zIDE INTERFACE :
Two IDE port, support UDMA/33, four Enhanced IDE devices.
z
zz
zLAN INTERFACE:
Realtek RTL8139 PCI Fast Ethernet
10/100 Base-T PCI Bus
z
zz
zSSD SOCKET:
32-pin SSD socket on board, supporting Disk-on-chip up to 144 MB
z
zz
zFLOPPY DISK DRIVE INTERFACE :
Support up to two Floppy Disk Drives, 3.5" and 5.25" (360K / 720K /
1.2M / 1.44M / 2.88M).
z
zz
zUNIVERSAL SERIAL BUS :
Universal Serial Bus Connector onboard, support up to two USB port.

Chapter 1 Introduction
PC-580 USER
′
S MANUAL Page: 1-5
z
zz
zSERIAL PORT :
Four high speed 16550 Compatible UARTs with Send / Receive 16
Byte FIFOs; COM1/COM3/COM4: for RS-232; COM2: for RS-
232/422/485
MIDI Compatible.
Programmable Baud Rate Generator.
z
zz
zPARALLEL PORT :
SPP, ECP, EPP Function.
Bi-direction parallel port.
z
zz
zGREEN FUNCTION :
Software support by BIOS setup.
Hardware support by switch control.
z
zz
zLED INDICATOR :
System power.
Hard Disk access.
Turbo and green function mode.
z
zz
zPC-104 BUS EXPANSION & SPEED :
ISA BUS 8MHz
PC-104 8MHz
PCI BUS 33MHz
USB 12Mbit/sec
z
zz
zDMA CONTROLLER :
82C37 x 2
z
zz
zDMA CHANNELS :
7
z
zz
zINTERRUPT CONTROLLERS :
82C59 x 2
z
zz
zINTERRUPT LEVELS :
15
z
zz
zSTORAGE TEMPERATURE :
-40 to 80°C.

Chapter 1 Introduction
Page: 1-6 PC-580 USER
′
S MANUAL
z
zz
zOPERATING TEMPERATURE :
0 to 60°C.
z
zz
zSYSTEM POWER REQUIREMENT :
DC Voltage: +5V, minimum +4.75V, maximum +5.25V.
DC Ampere: 5A.
DC Voltage: +12V, minimum +11.4V, maximum +12.6V.
DC Ampere: 500mA.
z
zz
zBOARD DIMENSION :
146mm x 203mm (5.25 CD-ROM size)
z
zz
zBOARD WEIGHT :
0.32 Kg.
1-3. SAFETY PRECAUTIONS
Follow the messages below to avoid your systems from damage:
1. Avoid your system from static electricity on all occasions.
2. Stay safe from the electric shock. Don’t touch any components of this
card when the card is on. Always disconnect power when the system
is not in use.
3. Disconnect power when you change any hardware devices. For
instance, when you connect a jumper or install any cards, a surge of
power may damage the electronic components or the whole system.

Page 2-1
HARDWARE
CONFIGURATION
** QUICK START **
Helpful information details you the jumper & connector settings, and
component’s location.
Section includes:
zJumper & Connector Quick Reference Table
zComponent’s Location
zConfiguration and Jumper settings
zConnector Pin Assignments
CHAPTER
2

Chapter 2 Hardware Configuration
Page: 2-2 PC-580 USER
′
S MANUAL
2-1 JUMPER & CONNECTOR QUICK REFERENCE TABLE
CPU Type & CPU Clock Selection ....................... SW1, JP2, JP3
RS-232/422/485 (COM2) Selection ...................... JP1
SSD Memory Mapping Selection .......................... JP8, JP9
COM1 Connector ................................................... COM1
COM2 Connector ................................................... COM2
COM3 Connector ................................................... COM3
COM4 Connector ................................................... COM4
Keyboard Connector .............................................. KB1
PS/2 Mouse Connector .......................................... MS1
Reset Connector ..................................................... RST
External Speaker Connector .................................. SPK
Turbo LED ............................................................. TBL
CPU FAN Power Connector .................................. CPUFAN
Hard Disk Drive LED Connector .......................... HDL
Power LED & Keylock Connector ........................ KBL
VGA CRT Connector ............................................ VGA
Universal Serial Bus Connector ............................. USB
Panel Inverter Delay-Power Connector ................. JP7
Panel VCC Selection …………………………….. JP13
Power Connector ................................................... PWR
UTP Connector ...................................................... UTP
LAN LED Indicator ...............................................
............................................... LED1, LED2, LED3
Reset/NMI/Clear Watchdog ……………………... JP11
LCD Panel Connector ............................................ LCD
Solid-State Disk Socket ......................................... SSD
Floppy Disk Drive Connector ................................ FDD
Hard Disk Drive Connector ................................... HDD1, HDD2
Printer Connector ................................................... PRT1, PRT2
Memory Installation …........................................... SIMM1, SIMM2
PCI / Riser Card Selection …….………………… JP4, JP5, JP6
Reserved Pin …………………………………….. JP10

Chapter 2 Hardware Configuration
PC-580 USER
′
S MANUAL Page: 2-3
2-2 COMPONENT LOCATIONS
PWR
BIOS
SIO
MS1
PRT2
VGA
PC104
Pentium
6x86
CPU
HDD1
54C/55C
1
2
1 240
41
D20 C20
C1
D1
JP1
LCD
USB
HDD2
JP10
FDD
KB1
JP11
JP4
TBL
2
7
8
SSD
12887
LAN
BIOS
Flash
BIOS
Flash
BIOS
UTP
LED3
1
219
20
5
A1 B1 A32
B32
16
15
1
PCI
1
1
CPUFAN
1
1
KBL
1
11
RST
11
JP13
JP2
25
6
1 2
1
JP6
JP5
27
8
1
JP3
29
10
1
SW1
COM1
1
610
5
1
1LED1
LED2
11
JP7
1
HDL
1531
1543
BUZ
1
610
5
1
610
5
1
610
5
COM3 COM2
PRT
COM4
1
610
5
1
6
10
1
6
1
JP9
JP8
27
8
1 27
8
1
1
16
17
1
SPK
1
PC-580 Connector, Jumper and Component locations

Chapter 2 Hardware Configuration
Page: 2-4 PC-580 USER
′
S MANUAL
2-3 HOW TO SET THE JUMPERS
You can configure your board by setting jumpers. A jumper consists of
two or three metal pins with a plastic base mounted on the card, and a
small plastic “cap” (with a metal contact inside) to connect the pins. So
you can set up your hardware configuration by “open” or “close” the
pins.
The jumper can be combined into sets, which is called jumper blocks.
When the jumpers are all in the block, you have to put them together to
set up the hardware configuration. The figure below shows how this
looks.

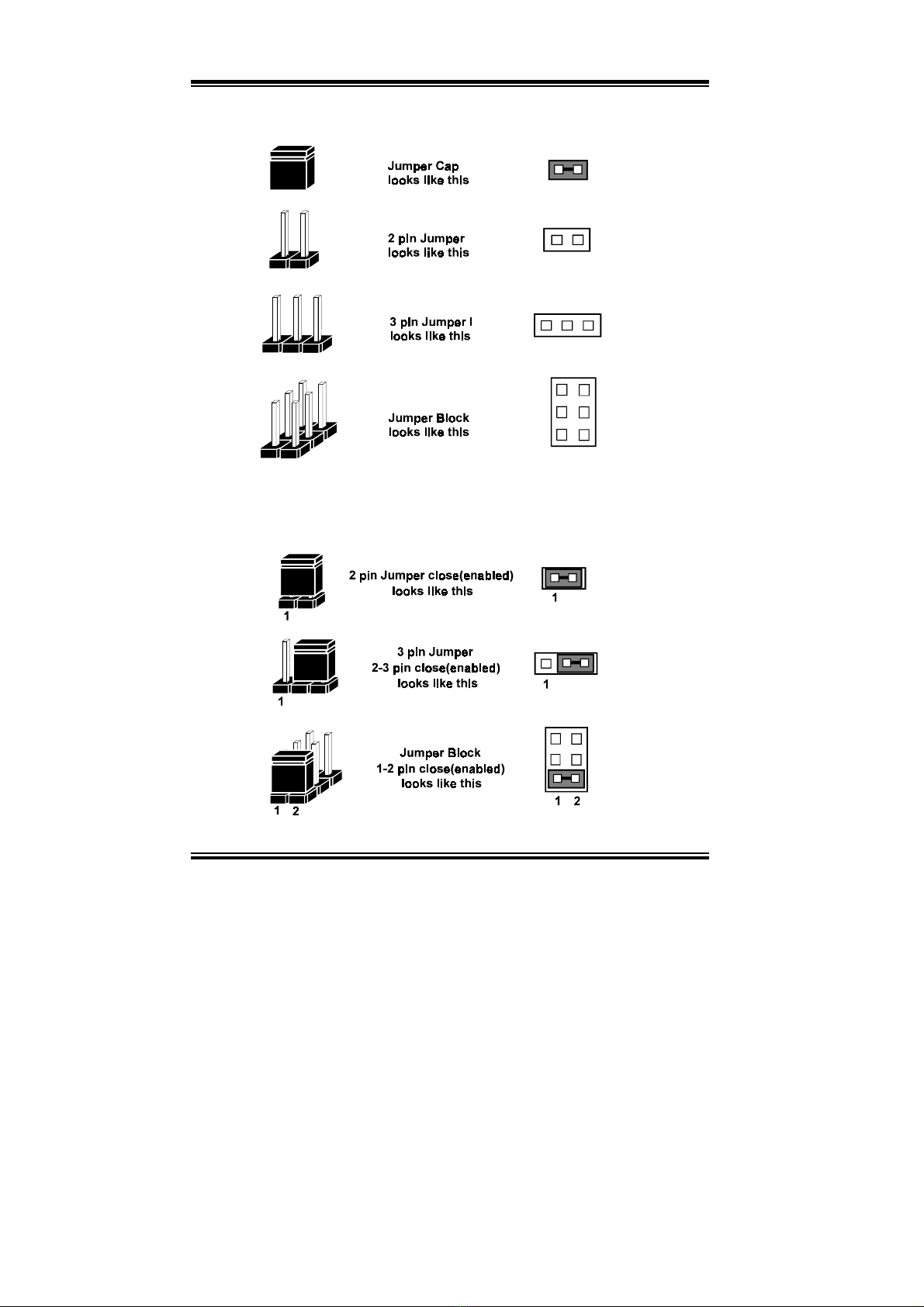

JUMPERS AND CAPS
If a jumper has three pins, for example labelled PIN1, PIN2, and PIN3.
You can connect PIN1 & PIN2 to create one setting and shorting. You
can either connect PIN2 & PIN3 to create another setting. The same
jumper diagrams are applied all through this manual. The figure below
shows what the manual diagram looks like and what they represent.

Chapter 2 Hardware Configuration
PC-580 USER
′
S MANUAL Page: 2-5
JUMPER DIAGRAMS
JUMPER SETTINGS

Chapter 2 Hardware Configuration
Page: 2-6 PC-580 USER
′
S MANUAL
2-4 CPU TYPE & CPU CLOCK SELECTION
SW1 (1-2, 3-4 5-6) : Bus Frequency Ratio Selection
SW1 (7-8, 9-10) : CPU Clock Selection
JP2, JP3 : CPU Voltage Selection
The jumper settings are as follows :
2-4-1 Intel 90/100 CPU type & clock Jumper setting
CPU
TYPE
CPU
CLOCK Jumper setting
(Pin closed)
SW1 JP3 JP2
Jumper
Illustration

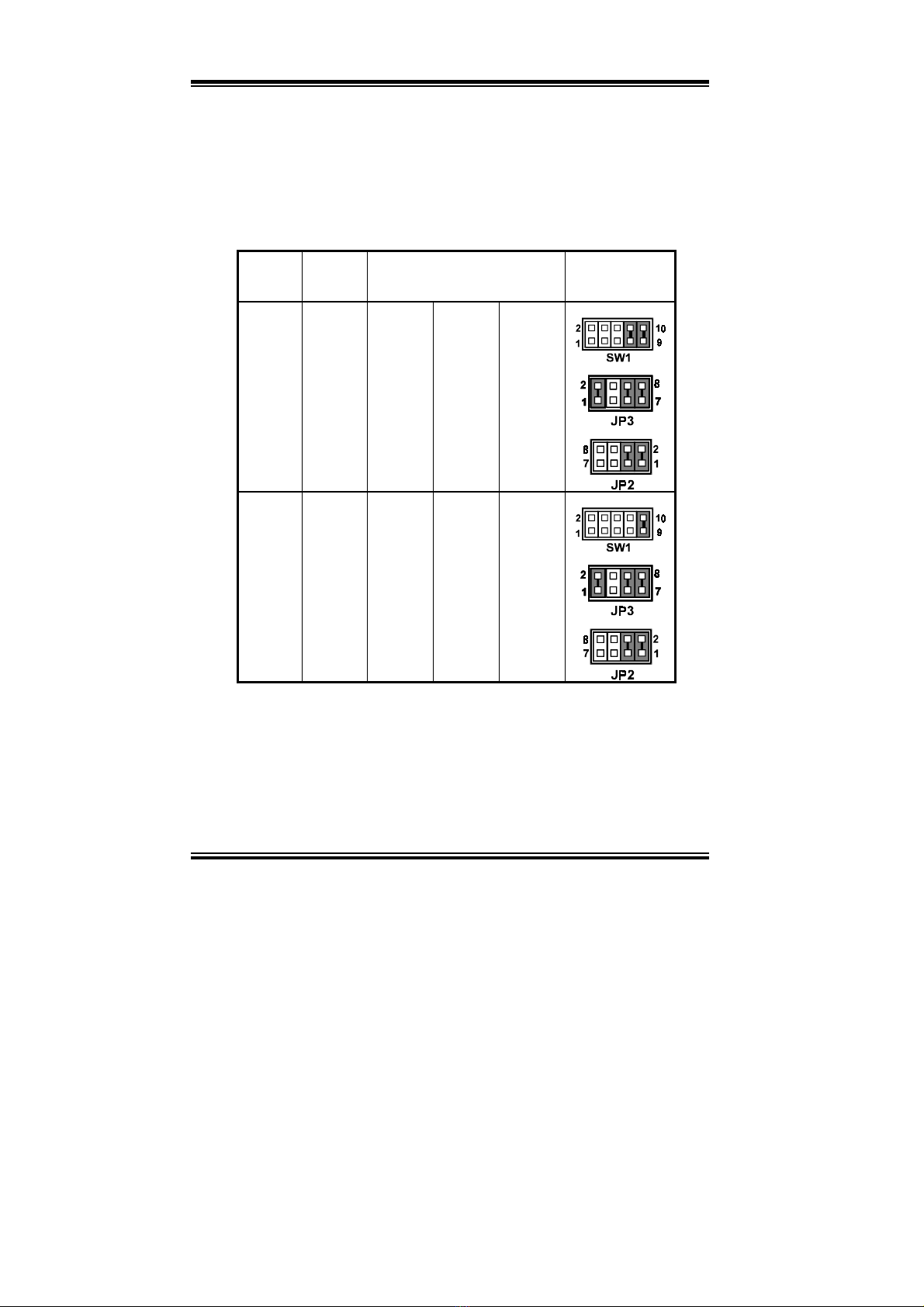

Intel
Pentium
90Mhz
60Mhz 7-8
9-10
1-2
5-6
7-8
1-2
3-4
Intel
Pentium
100Mhz
66Mhz 9-10 1-2
5-6
7-8
1-2
3-4

Chapter 2 Hardware Configuration
PC-580 USER
′
S MANUAL Page: 2-7
2-4-2 Intel 120/133 CPU type & clock Jumper Setting
CPU
TYPE
CPU
CLOCK Jumper setting
(Pin closed)
SW1 JP3 JP2
Jumper
Illustration
Intel
Pentium
120Mhz
60Mhz 1-2
7-8
9-10
1-2
5-6
7-8
1-2
3-4
Intel
Pentium
133Mhz
66Mhz 1-2
9-10
1-2
5-6
7-8
1-2
3-4

Chapter 2 Hardware Configuration
Page: 2-8 PC-580 USER
′
S MANUAL
2-4-3 Intel 150/166 CPU type & clock Jumper Setting
CPU
TYPE
CPU
CLOCK Jumper setting
(Pin closed)
SW1 JP3 JP2
Jumper
Illustration
Intel
Pentium
150Mhz
60Mhz 1-2
3-4
7-8
9-10
1-2
5-6
7-8
1-2
3-4
Intel
Pentium
166Mhz
66Mhz 1-2
3-4
9-10
1-2
5-6
7-8
1-2
3-4
