ProX X-BLITZZFX X2 User manual

Safe Fireworks Simulator
•Indoor / Outdoor Fountain Spark
• Non-Hazardous Eect (No Firework Risks)
• No Explosive Content (Not Pyrotechnic)
• No Gunpowder (No Irritant)
• Environmentally Friendly
X-BLITZZFX X2
Version: 1.4
2X White
Powder Coated
Covers Included

ProX BlitzzFX Operators Manual Page 2 Version: 1.5 (12/15/2022 1:22 PM
1. When the power is disconnected, place the UNITS horizontally, and inspect them for damage on all sides before
eachuse. If damaged, do not operate and immediately contact ProX for service.
2. Unscrew the lid of the powder tank to pour in the ProX BlitzzFX Powder, and then lightly ghten the lid. (Use
ONLYProX branded powder)
3. Before power on, please verify that the supply voltage is in conformity with the rated voltage of the machine.
Atpower on, the indicator light will turn on, and the machine will begin to heat for use. Connect the machine to
yourpreferred controller. Allow up to 30 Minutes for the machine to warm before each use. Once heated for use,
it will remain ready as long as power is connected.
4. The machine must be used only in a well-venlated place. Although this is a COLD effect, it may create a very
smallamount of smoke/haze during operaon.
5. Outdoor powder CANNOT be used indoors due to the 16’ fountain capability! When using outdoor powder
thereshould be no flammable materials in a 16 . radius above, around and under the Blitzz machine.
6. Spark powder should not be exposed to the air. Once a bag of powder is opened it should be used up or placed
inan airght sealed container. Never expose sparkpowder to open flames. Do not discard in fire. Aer each use
besure to empty unused granules from the bin and run a cleaning cycle. Power Clean AFTER WARMUP! (Push
andhold W3 Remote Buon #2 for more than 10 seconds to start clean cycle, it will run 15 seconds or Press #2
againto stop. This ONLY removes granules in the spark tube, not storage tank! Be sure to put the unused
granules inairght storage such as a quality zip-lock bag. Granules le in the machine, or exposed to the air
will tend tooxidize and clump into hard deposits. If le in the machine, they can/may clog the machine and
damage thespark chamber. This is not covered by the warranty.
7. Do not touch the device during operaon as the housing will be hot to touch. Provide a minimum of a 3-foot
safezone with nothing but the power and signal cables for the Blitzz units in that area. Provide a 10-foot
separaonbetween the machines and the audience and any other obstrucon! Mulple machines may be placed
on 4’ centers while maintaining the 10’ area between any machine and the spectators audiece/walls/stages/etc.
8. Keep this device in a dry area at all mes. Do not allow water to enter the unit at any me.
9. The BlitzzFX machines MUST be in the vercal posion at all mes when there is powder in the tank. Removeall
powder prior to transport or risk creang a blockage in the mechanical system.
10. Disconnect all power servicing the unit. No operator serviceable parts inside. Return to ProX for repairs
orrefurbishing.
11. Damage caused from not following the guidelines in this manual are not covered by the warranty and ProX will
notaccept responsibility for any resulng defects or problems.
12. A qualified technician should install and service this device.
13. Do not switch the device on immediately aer it has been exposed to extreme changes in temperature
especiallyvery cold condions. Protect the device against damage by leaving it switched offunl it has
reached roomtemperature.
14. This device falls under NEC Class 1. It is essenal that the device be earth grounded. Do not remove or isolate
thegrounding pin.
15. Make sure that the available voltage does not exceed the voltage stated in the specificaon secon of this manual.
16. Do not crimp the power cord. Protect it against damage. Have an authorized service center replace it if necessary.
17. Disconnect the device from all power to clean it or when it is not in use. Handle the power cord by the plug
endsonly.
18. Note that ANY modificaon to the device is not covered by the product warranty and will VOID the warranty.
19. Keep the device away from children and untrained/unauthorized users.
AD)
a. Do not allow machine to run out of powder. If the machine is allowed to run empty, it may cause the
mechanical system to be damaged.
b. IMPORTANT: Turn off the power before adding effect powder.
IMPORTANT: never pour spark powder into the spark discharge opening, This can be dangerous.
Spark powder must only be added to the storage tank that requires the removal of the protecve cap.
DO NOT OVERFILL – AFTER FILLING REPLACE CAP AND TIGHTEN.

ProX BlitzzFX Operators Manual Page 3 Version: 1.4 (9/6/2019 9:45 AM AD)
USE PROX BRANDED SPARK POWDER ONLY!
• CERTIFIED ADULT OPERATOR USE ONLY
• DO NOT OPERATE WITHOUT SPARK POWDER.
• DO NOT SHOOT TOWARD PEOPLE OR COMBUSTABLES.
• ALLOW MINIMUM 10 FT BETWEEN SPARK PORT
AND SPECTATORS/GUESTS/DECORATIONS.
• KEEP DRY - IP20 – STORE IN A SECURED DRY AREA
• DISCONNECT POWER BEFORE CHANGING FUSE.
• DO NOT OPEN THE CASE, RISK OF ELECTRIC SHOCK!
•NO USER SERVICEABLE PARTS INSIDE.
Details:
1. Spark Output (DO NOT ADD POWDER HERE!)
2. Cap for Powder Loading
3. Lifting Handles
4. Fuse 8 Amp.
5. On/Off Switch
6. USB Connector
(for future firmware updating)
7. DMX-512 Connector In/Out
8. 115V AC Power Out
9. 115V AC Power In
10.Wired Controller Connector
11.Safety Card Scan Area
12.LCD Digital Display
Operation
• Have the device operated by a qualified person, respecting IEC 60598-2-17 and all other applicable codes
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified
technician check the device annually and additionally before placing into service if stored for an extended
period of time.
• Install the device in a secure location that is inaccessible to unauthorized persons.
• Make sure there is no flammable material within a 10ft radius of the device.
• Use a clean and dry rag to remove dust. Metal parts can be cleaned with a damp cleaning rag.
1. Open the transport case and carefully remove each unit.
2. Set the BlitzzFX vertical on a firm flat dry surface. Do not invert or lay ln side!
3. Fill the powder reservoir with our ProX powder only then tighten the cap. Safety card is in powder bag.
4. Scan the safety card AFTER loading powder. Card is SINGLE use!
5. Press MENU button to check remaining time after each use if desired. Remaining time shown as seconds.
6. Firmly attach the remote-control unit to the rear remote-control socket on the unit.
7. Plug the unit in to a proper power source. Wait several minutes for the device to reach normal operating
temperature. When it has reached the operating temperature, and is ready to operate with sparks, the
digital display board at rear will show “READ” and the ready LED on the remote will glow also.
8. You can press wired controller or wireless controller or DMX to emit output.

ProX BlitzzFX Operators Manual Page 4 Version: 1.4 (9/6/2019 9:45 AM AD)
Daisy chain the machines:
You may connect the machines with IN/OUT Series connectors up to 4 machines on a single 15A 115VAC power
outlet. An unlimited number of machines may be daisy chained by DMX cables, but only 4 on each power outlet.
Menu：
Menu：Press ENTER
1. Address DMX512： 1-512
2. Volume Out: Minimum: 1%, Maximum: 100%
3. Tip Over: On/Off Dumping alarm ON or OFF when machine tilt is less than 45deg.
4: Manual Test: Start the machine for manual testing use only
DMX SETTINGS:
Channel Settings
Channel 1
Function
0
Spark effect OFF
1-255
Spark effect ON
Channel 2
Function
0-20
Preheating function OFF, and the channel 1 is
blocked
50-100
Preheating function ON. and the channel 1 is
operational
150-200
Clean up the consumables（maximum 15
seconds run time AND channel 1 is blocked
Specifications:
Rated Voltage: AC120V/60Hz
Rated Current: 4.2 Amp.
Rated Power: 500W
Fuse: 8 Amp.
Preheating: Typically, less than 8 minutes
Recommended Fountain Height: Indoor/Outdoor 0 – 12 feet
Fountain Height Select: Controlled VIA Wireless Remote or DMX programming
Panel Display: LCD Digital Display
Product Net Weight: 16 lbs.
Product Size: 7 1/2” x 7 1/2” x 10 1/4”
MASTER/SLAVE MODES: If you would like to operate a series of machines with a single control function (ie.
Wired/Wireless remote) all machines should be put in MASTER/SLAVE mode and connected with DMX cables daisy chained
between them. Scroll through MENU button to find MASTER/SLAVE mode and use up/down button to select on or off. All
machines must have MASTER/SLAVE turned on. If not turned on, machines will not act as slaves. Any machine can be
designated as MASTER. A wireless or wired remote to the chosen MASTER machine only. Be sure to turn off M/S before
your next use as a stand-alone machine. Master/Slave is not necessary for DMX control.
TIP OVER: Set to ON or OFF If ON & the machine is tilted more than 45 degrees the machine
will stop working and the LCD with flash as a warning. If set to OFF there is NO PROTECTION!

ProX BlitzzFX Operators Manual Page 5 Version: 1.4 (9/6/2019 9:45 AM AD)
W-3 Wireless Controller Wireless RF Controllers:
W-3 Controller Usage Instructions：
#1 - START (Push to Start, Push #2 to Stop)
#2 - STOP (Manual Shut Down) - Power Clean AFTER WARMUP! (Push and hold #2 for
more than 10 seconds to start clean cycle, it will run 15 seconds or Press #2 again to
stop. This ONLY removes granules in the spark tube, not storage tank!
#3 - Duration time 10s (the machine will run continuously 10 seconds)
#4 - Open group-1（wireless ADDR=1） (press down the button— turns on #2 to stop)
#5 - Duration time 20s (the machine will run continuously 20 seconds)
#6 - Open group-2（wireless ADDR=2） (press down the button—turns on #2 to stop)
#7 - Duration time 30s (the machine will run continuously 30 seconds)
#8 - Open group-3（wireless ADDR=3 (press down the button— turns on #2 to stop
W-3 Wireless Receiver

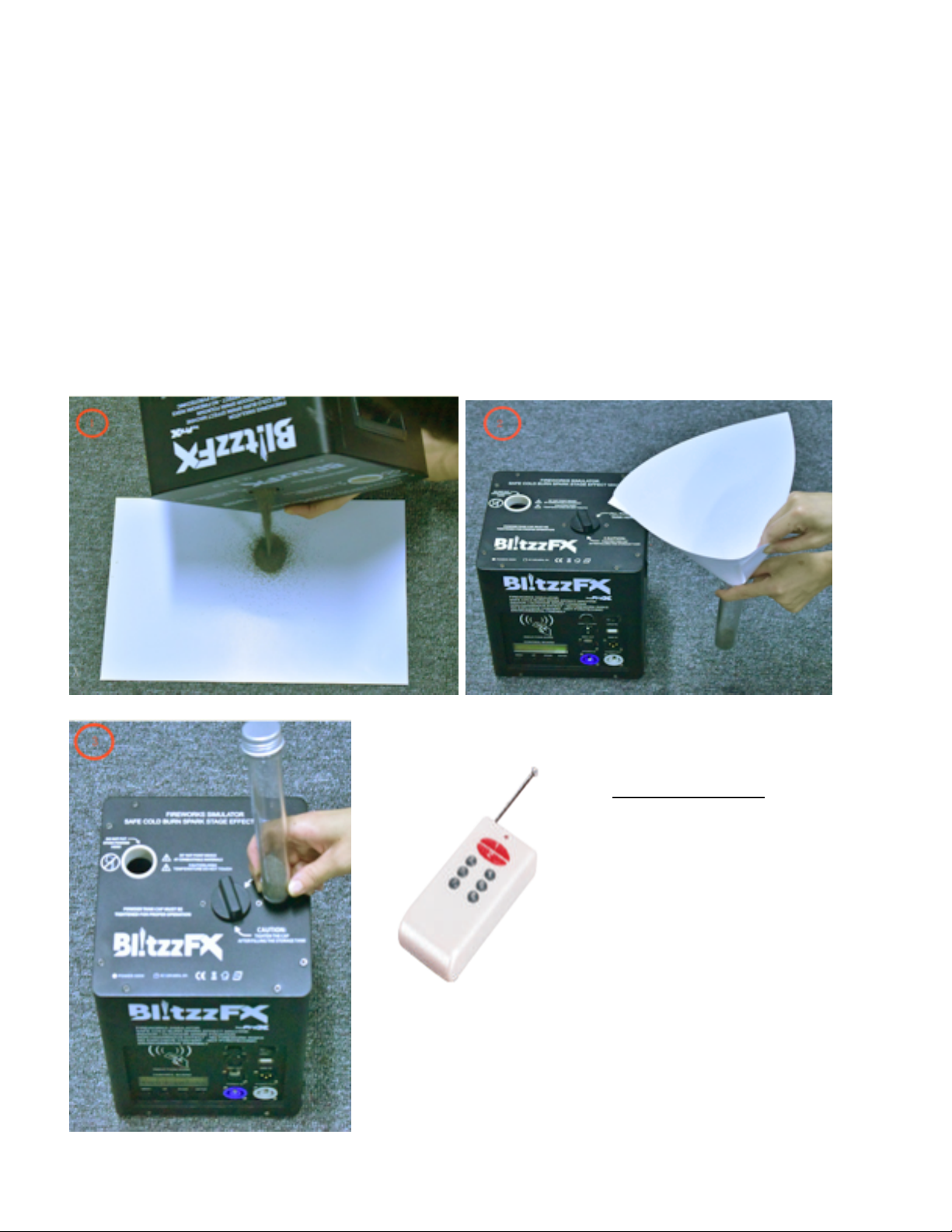

To clear granules from storage tank, allow machine to cool, then remove tank cap
and invert machine to shake granules out of tank. Store or dispose of properly!
W-3 Receiver /Dip Switch Usage Instructions ：
When the machine is ready to spark, the ready LED will glow.
There are 3 Channels (Dip 1-3) CAN SELECT for group-1, group-2, group-3
Instructions are printed on the back of the wireless controllers!
Wired Remote: After pre-heating green light will turn on, Press the button once to start effects:
1. Ensure that the power outlet matches that of the required voltage for your machine.
Do not EVER remove or lift the grounding of the unit.
2. The unit should be used in a well-ventilated area. NEVER COVER THE FOUNTAIN PORT
WITH ANYTHING WHEN IN USE.
a. Before filling powder, you should turn off the power. If any consumables fall into the
interior of the unit, immediately disconnect the power cord.
b. The unit is not waterproof in any manner. If moisture or liquid enters the machine,
unplug the power cord and allow to dry.
c. Under no circumstances should you try to operate the BlitzzFX machines if you do not have the
appropriate qualifications and certification! It may result in personal injury or damage the unit.
d. Only for professional adult use, keep safe distance from spectators and/or guests
e. Keep away from flammable and explosive goods.
f. Maintain a clear, exclusionary, 3-foot radius around the machine when in use and a 10-foot radius
safety area. The fountain nozzle area temperature can become quite hot during operation, do not
touch this area during use or immediately following usage.
g. Allow time for cooling between bursts and after operation is complete.
h. If you experience excessive haze output, little spark, pump noise or no spark output at all,
Disconnect and discontinue use immediately. Check fluid level, powder, the external fuse, remote
connection and be sure the wall outlet is providing proper power. Only use our powder and the
machine can produce a perfect effect.

ProX BlitzzFX Operators Manual Page 6 Version: 1.4 (9/6/2019 9:45 AM AD)
Warranty Instructions
1. Warranty period：One Year (the date and proof of purchase MUST be registered)
2. Register Here: https://www.proxdirect.com/support/warranty
3. F the buyers do not use ProX spark powder, the machine warranty will be voided. The buyer will pay
for the expenses if there are any components damaged due to misuse or use of improper supplies.
4. In the following cases, the product will not be warranted:
a. The product has been incorrectly operated and used inadvertently, for example, over load, over
pressure, and firing too long;
b. The product was broken because of careless handling;
c. Damage due to poor protection from environmental factors and quality problems, such as:
humidity, voltage instability, etc.;
d. Products have been modified by non-factory authorized personnel.
e. Usage of any spark granules/powder not manufactured by ProX
5. Items not covered by the warranty include: packaging, product shell and hanger, remote control
transmitter batteries.
6. Products that are used in compliance with the warranty provisions, ProX will not charge labor or parts
cost. Product must be returned to ProX for servicing. Return for service must be pre-authorized and
shipments not authorized will be refused. After warranty expires, standard repair costs will apply.
7. Under NO CIRCUMSTANCES will any Blitzz machine be accepted for return or replacement. The sole
warranty for the ProX Blitzz devices is for repair ONLY!
8. The owner’s compliance with the warranty will be solely interpreted by ProX.
Traditional pyrotechnic effects burn at 1200 degrees Fahrenheit, and cannot be stopped once they have
been started. This can lead to all kinds of hazards and problems , Not with the BlitzzFX, however!
Safety is always the number one concern when dealing with these types of effects.
The PROX BLITZZFX effect operates at very cool temperatures (60°F to 70°F; (however the discharge
nozzle gets very hot) the sparks themselves are not flammable. The machines are designed to be very
smart and have multiple built-in safety protocols. You can control the start and stop of the effect at any
time. You now can control the time, height, volume this has never been achieved from conventional
pyrotechnics ever. This is beginning of a new technology to the world of stage of effects
Cold Spark Machine
Are you looking forward to experiencing a breath-taking indoor fireworks display? If yes, you need special
effects spark machines to achieve your desired stunning displays. The Cold Spark BlitzzFX Machine, also
known as a cold spark effect, is a safe to use, spark machine as it emits cold sparks which are not subject
to catching fire. This device is not pyrotechnics but a simulated pyrotechnic experience.
The Cold Spark Machine Special Effects
The BlitzzFX Cold Spark Machine allows its user to customize how the sparks should appear. The users
have the luxury of controlling the sparks’ timing, volume as well as how high they rise for whatever
production. You will simply be in control all through.
BlitzzFX Spark Machine Cost
These special effects spark machine’s cost of operation is very favorable despite its stunning abilities. The
ProX BlitzzFX package boasts of the best price tags in the market/ industry. By choosing the ProX BlitzzFX
you are guaranteed of high technology & safety as well as value for your money. The material used for
the special sparks effects is durable as it has a long shelf life. It is therefore advisable for bulk stocking to

ProX BlitzzFX Operators Manual Page 7 Version: 1.4 (9/6/2019 9:45 AM AD)
achieve reduction of operating expenses.
Cold Spark Effect
The safe and convenient special effects spark machine. Safety should be your number one priority. The
Cold Spark Machine as mentioned earlier does not catch fire. The Cold Spark Machine fountain system
allows for safe creation of the stunning desired sparks effects. This machine is fully programmable and
easy to set up. The users of the ProX BlitzzFX Cold Spark Effect Machine, with a standard DMX controller,
are able to simultaneously control multiple units and up to 3 units from a single 15A standard power
supply circuit.
The ProX Cold Spark Machine can be used in any environment setting since its sparks are not flammable
and with an almost zero possibility of abuse or misuse. Its units are high tech and consist of built in safety
protocols hence their operations can be kept under maximum control.
BlitzzFX Cold Spark Safety Requirements
WARNING: A WARNING ALERTS YOU TO HARMFUL OR POTENTIALLY DANGEROUS ACTIVITIES. A DESCRIPTION OF THE
HAZARD IS GIVEN AND THE CONSEQUENCES OF IGNORING THEM.
PLEASE NOTE THAT THE PROX BLITZFX UNITS ARE NOT MEANT TO BE A CONTINUOUS DURATION EFFECT. THE MAXIMUM
RUNNING TIME IS 60-90 SECONDS AND CAN BE REPEATED BUT SHOULD NOT BE DONE TOO RAPIDLY TO NOT ALLOW COOLING TIME BETWEEN
BURSTS!
Eye Protection
THE EYE PROTECTION WARNING ICON IS SHOWN TO INDICATE THAT YOU MUST PROTECT YOUR EYES WHEN CLOSE TO THE MACHINE
DURING MACHINE OPERATION.
Injury Voltages
WARNING: DANGEROUS VOLTAGES ARE PRESENT IN THIS MACHINE AND CONTROLLER WHEN ELECTRICAL POWER IS APPLIED. THERE
IS A DANGER OF INJURY FROM ELECTRIC SHOCK. UNDER NO CIRCUMSTANCES ARE YOU TO ATTEMPT TO OPEN THE MACHINE AND
CONTROLLER OR ATTMPT TO REMOVE OR ADJUST ANY COMPONENTS FITTED WITHIN THE MACHINE AND CONTROLLER. ONLY FULLY
TRAINED PROX SERVICE ENGINEERS ARE QUALIFIED TO OPEN THE MACHINE AND CONTROLLER.
Liquid Cautions
WARNING: USE CAUTION SO THAT ANY LIQUIDS DO NOT WET THE MACHINE. KEEP THE MACHINE AND CONTROLLERS DRY AND DO
NOT USE ON RAINY OR SNOWY DAYS UNLESS COVERED. DO NOT COVER FOUNTAIN PORT DURING OPERATION!
Warning
PLEASE PREVENT ANYTHING FROM ENTERING THE FOUNTAIN DISCHARGE PORT. IF THIS HAPPENS PLEASE CLEAR OBSTRUCTIONS
BEFORE CONTINUING OPERATION. DO NOT DROP THE MACHINES, SERIOUS DAMAGE CAN OCCUR.
Granules
IF THE BAGGED GRANULES ARE INVOLVED IN A FIRE THE SUGGESTED METHOD OF EXTINGUISHING IS BY SAND OR DRY CHEMICAL
EXTINGUISHER. DO NOT TRY TO EMPTY THE MACHINE AS THIS WILL RESULT IN EXPOSING THE GRANULES. USE ONLY THE
GRANULES FROM PROX DESIGNED FOR THE BLITZFX MACHINES. USE OF OTHER SIMILAR GRANULES WILL VOID THE WARRANTY.
Safe Distance
KEEP AUDIENCE AND FLAMMABLE MATERIALS AT A MINIMUM SAFETY DISTANCE OF 10 FEET. KEEP OUT OF REACH OF THE
PUBLIC! MAINTAIN A 3 FOOT EXCLUSION ZONE AROUND EACH MACHINE WITH NOTHING BUT THE POWER AND CONTROL
CABLES IN THIS AREA!

!
!
!
"#$%&'(()"!*"!+,-.!/0123-2024-!&2,3.543162,!
!"#$%&$'()&*+$&,$&+*%$&#-&$./#0&*1*+$2&3%'1*4$+&"%-.&#)$&,51&'12&%*1&'&(4$'1513&(0(4$6&&7%'1*4$+&
4$"#&51&#)$&.'()51$8&-%&$9/-+$2&#-&#)$&'5%&:544&#$12&#-&-9525;$&'12&(4*./&51#-&)'%2&2$/-+5#+6& & <"&4$"#&51&
#)$&.'()51$8&#)$0&('1=.'0&(4-3&#)$&.'()51$&'12&2'.'3$&#)$&+/'%>&()'.,$%6& & ?)5+&5+&1-#&(-@$%$2&
,0&#)$&:'%%'1#0A& & !+&'1&'4#$%1'#5@$&#-&%$.-@513&3%'1*4$+&"%-.&+#-%'3$&#'1>8&5"&-140&'&+.'44&'.-*1#&
%$.'51+8&0-*&('1&%*1&-*#&#)$&%$.'51513&3%'1*4$+&,0&%*11513&#)$&.'()51$&*1#54&$./#06& &
&
!"#$%&$'()&*+$&%*1&'&B-:$%&C4$'16&D$&+*%$&#)'#&.'()51$&5+&:'%.$2&*/6&B*+)&'12&)-42&EF&G$.-#$&
D*##-1&HI&"-%&.-%$&#)'1&JK&+$(-12+&#-&+#'%#&(4$'1&(0(4$8&5#&:544&%*1&JL&+$(-12+&-%&B%$++&HI&'3'51&#-&
+#-/6&?)5+&MNOP&%$.-@$+&3%'1*4$+&51&#)$&+/'%>&#*,$8&1-#&+#-%'3$&#'1>A& & O$#&.'()51$&(--4&'12&#)$1&
%$.-@$&3%'1*4$+&"%-.&#)$&+#-%'3$&#'1>&"-44-:513&#)$&@5+*'4+&,$4-:6&D$&+*%$&#-&/*#&#)$&*1*+$2&
3%'1*4$+&51&'5%#53)#&+#-%'3$&+*()&'+&'&34'++&(-1#'51$%&-%&Q*'45#0&;5/R4-(>&,'36&
! !
!
!"#!$%&'&((#)*+,%*''&%#
HI&R&!"#$%&'($)*& &
-./01#!-1234!!+,-&)*.&
-"(.&/0&1"%&2"%$&3-)*&45&
,$6"*.,&3"&,3)%3&6($)*&676($8&
93&#9((&%+*&4:&,$6"*.,&"%& &
!%$,,&/0&);)9*&3"&,3"<6&
&
?)5+&MNOP&%$.-@$+&3%'1*4$+&51&
#)$&+/'%>&#*,$8&1-#&+#-%'3$&#'1>A
&&&&&&
&
&
.*%#566$,$*+5'#$+7*%85,$*+9#%&7&%#,*#,:&#*;&%5,$*+(#85+<5'#
7*%#,:&#='$,>>.?#*+#*<%#@&A($,&B#@@@C;%*D6$%&E,CE*8#
!

ProX BlitzzFX Operators Manual Page 8 Version: 1.4 (9/6/2019 9:45 AM AD)
In Case of Emergency
IF THE MACHINE NEEDS TO BE STOPPED QUICKLY DUE TO AN EMERGENCY, PRESS THE “PAUSE” / “STOP” KEY ON THE
CONTROLLER TO STOP THE MACHINE AND TURN THE POWER SWITCH ON THE PANEL OF THE MACHINE TO THE “OFF” POSITION.
CALL FOR MEDICAL ASSISTANCE AS REQUIRED.
Noise Emissions
THE NOISE EMISSION LEVEL FROM THIS MACHINE DOES NOT EXCEED 80 DB. THERE IS NO HAZARD TO HEARING AND, THEREFORE,
NO LEGAL REQUIREMENT FOR EAR PROTECTION TO BE WORN WHEN WORKING IN THE VICINITY OF THIS MACHINE.
Cleaning
PLEASE INSPECT FOUNTAIN NOZZLE OF THE BLITZFX MACHINE BEFORE USE AND CONFIRM THERE ARE NO ACCUMULATED
GRANULES. PLEASE CLEAN OUT ANY EXCESS BY INVERTING THE UNIT TO CLEAN OUT PORT. THIS SHOULD BE DONE EACH TIME
BEFORE THE MACHINE IS SETUP AND BE PERFORMED BEFORE RETURING THE UNITS TO THEIR ROAD CASE. THIS WILL HELP TO
PROLONG THE LIFE OF THE BLITZ MACHINE. THE FOUNTAIN PORT CAN BE CLEANED WITH A BOTTLE BRUSH AS NECESSARY. AN
AUTOMATED QUICK CLEAN CAN BE PERFORMED BY PRESSING THE #2 BUTTON ON THE WIRELESS REMOTE AND HOLDING FOR 10 to 15 SECONDS
TO START CLEAN CYCLE, PRESS #2 AGAIN TO STOP.
Power Supply Requirement
POWER REQUIREDMENTS ARE 115VAC 4.2 AMPS EACH. PLEASE NOTE: ONE STANDARD 15 AMP CIRCUIT SHOULD SUPPORT A
MAXIMUM OF 4 PROX BLITZZFX MACHINES IN NORMAL OPERATIONS. EACH MACHINE CAN BE CONNECTED INDIVIDUALLY OR
DAISY CHAINED WITH POWER-CON SERIES CABLES FOR UP TO 4 MACHINES MAXIMUM ON ONE CIRCUIT.
Contact:
ProX Live Performance Gear/Xstatic Pro, Inc.
55 Hook Rd Suite #46, Bayonne, NJ 07002
Office [phone] – Fax [phone]
[email protected]
Register this product at
www.proxdirect.com/support/registration
