Prudent Way PWI-AC75NE User manual

PWI-AC75NE
A Slim Solution
User’s Manual

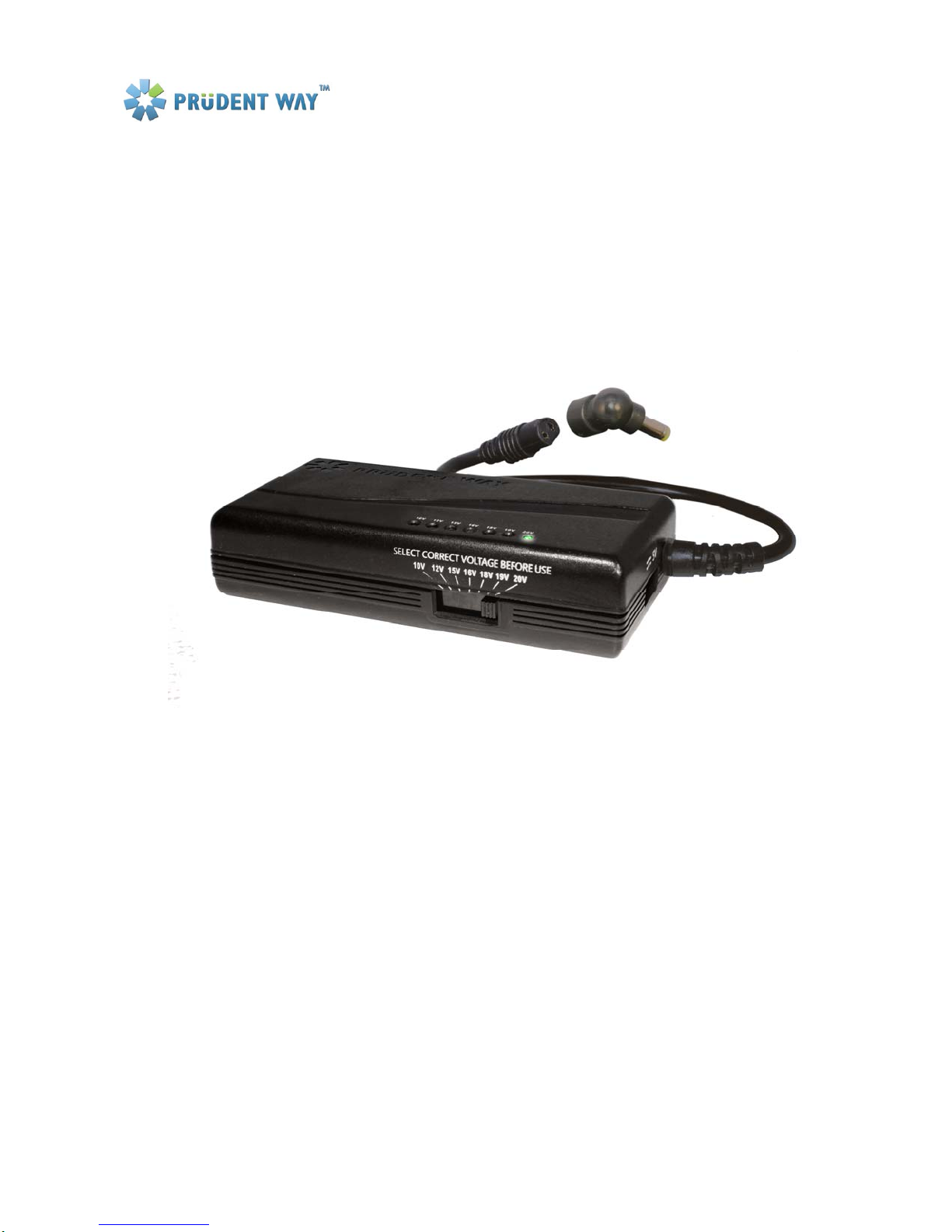

Prudent Way Slim Universal Netbooks/Laptops/LCDs 75 watt AC Adapter
PWI-AC75NE

Prudent Way Slim Universal Netbooks/Laptops/LCDs 75 watt AC Adapter User’s Manual
Model: PWI-AC75NE
- 1 -
Table of Contents
1. Major Features ……….……………………………………………………..2
2. Safety & Warning ……………………………………………………….…..2
3. Contents….……….…………………………………………….…………….2
4. Using Prudent Way Universal Netbooks & Laptops & LCDs AC Adapter……3
5. Product Specification………………………………………………………...4

Prudent Way Slim Universal Netbooks/Laptops/LCDs 75 watt AC Adapter User’s Manual
Model: PWI-AC75NE
- 2 -
Thank you for choosing Prudent Way Universal Netbooks & Laptops AC Power Adapter. Please take the time to read all
instructions in this user manual carefully before using the Adapter. Please note that failure to follow the proper
instructions may cause fire, electric shock, injury, or damage to electronic devices.
We sincerely hope that you find this quality Adapter provides you with many years of good service.
1. Major Features
•100-240V AC input provides worldwide power conversion capability.
•Adjustable 10-20V output design fits specific netbook models and more notebook models.
•9 pieces of tip connector for use with most major netbook brands such as Acer, Asus, Dell, Fujitsu, Gateway,
HP/Compaq, IBM/Lenovo, MSI, Samsung, Sony, Toshiba and More1.
•Extra USB port built in for PDAs, Cell Phones, MP3 Players and more*.
•RoHS compliancy is friendly to environment.
•High efficiency & full power protection.
•Digital LED Light
2. Safety & Warning
Please read the following information carefully before using the power adapter!
! This power adapter is for indoor use only.
! This power adapter is for use with information technology equipment.
8DO NOT disassemble this Adapter. There are HAZARDOUS VOLTAGES inside the power adapter.
Disassembling the Adapter may expose you to high voltage or other risks. Incorrectly reassembly may cause
electronic shock the next time when the device is used. Warranty will be voided by doing so.
8DO NOT expose the Adapter and related information technology equipment to water or moist, dusty or
extreme temperature environment such as direct sunlight, heat sensitive material or any heat generated
sources such as a radiator, stove, or car.
8DO NOT block the ventilation. The ventilation is designed to protect the Adapter from overheating.
8DO NOT place the Adapter in a built-in installation, or on a surface such as a bed, sofa, or rug.
8DO NOT use wet hands to plug or unplug the power cord to avoid electric shock.
9DO follow all warnings and instructions marked on the product.
9DO grab the plug instead of cord when you remove the power cord from the wall outlet.
9DO remove any power sources from this Adapter before attempting any cleaning to avoid electrical shock.
Use a dry cloth only.
9DO place the power cable properly so it will not be steeped on or tripped over.
9DO unplug the Adapter and contact the dealer from which it was purchased when:
oThe Adapter is damaged.
oThe Adapter does not perform properly.
oThe Adapter has been exposed to water.
3. Contents
PWI-AC75NE
AC power adapter 75-watt
9 tip connectors 9
Input and output cables 9
User manual 9
Compatibility list 9

Prudent Way Slim Universal Netbooks/Laptops/LCDs 75 watt AC Adapter User’s Manual
Model: PWI-AC75NE
- 3 -
4. Using your Prudent Way Slim Universal AC Power Adapter For Netbooks and more
For notebook computer: Picture 1
Step 1. Read the Safety and Warning information above.
Step 2. Please refer to your notebook computer user manual
or check on the back of the notebook computer to
find the correct input voltage requirement for
your notebook computer. To select proper input
voltage (10V (9.5/10.5V), 12V, 15V, 16V, 18V
(18/18.5V), 19V (19/19.5V), 20V) on the Adapter to
fit your notebook computer need (Picture 1),
please manually move the voltage selection
switch located on the right bottom of the adapter.
The LED indicator (on the right top of the
adapter) will show the voltage that you have
manually selected.
Picture 2
Step 3. Choose correct tip connector to fit your netbooks or
laptops power socket and connect it to the
Adapter output cable (Picture 2).
For more detail info about tip selections, please
visit http://www.prudentway.com check
UNIVERSAL ADAPTERS.
Warning: DO NOT plug Tip L to HP Laptops.
Note! Each tip connector has a special 2-pin design with
only one pluggable direction to make sure you do not plug
the tip connector to the wrong direction on the adapter
output cable and cause damage to your notebook. If you
experience difficulty to plug the tip connector to the holes
on the output cable, please check if you plug it to the wrong
direction.
Picture 3
Step 4. Connect the tip connector to the power socket of
your notebook (Picture 3).
Step 5. Connect the Adapter input power cable to the AC
socket of the Adapter (Picture 4). Then plug the
other end of AC power cable to the wall outlet
(Picture 5).
Step 6. Turn on and use your notebook.
Picture 4
For devices with USB interfaces such as cell
phones, MP3, and PDAs*:
Step 1. Read the Safety and Warning information above.
Step 2. Please connect the USB Type A cable provided by
your USB device company to the USB port of the
Adapter.
Step 3. Follow Step 5 as stated above.
Step 4. Turn on and use your USB device.
For LCDs: Please follow the same steps as you use for notebook
computer. Most LCDs use 12V.
Picture 5

Prudent Way Slim Universal Netbooks/Laptops/LCDs 75 watt AC Adapter User’s Manual
Model: PWI-AC75NE
- 4 -

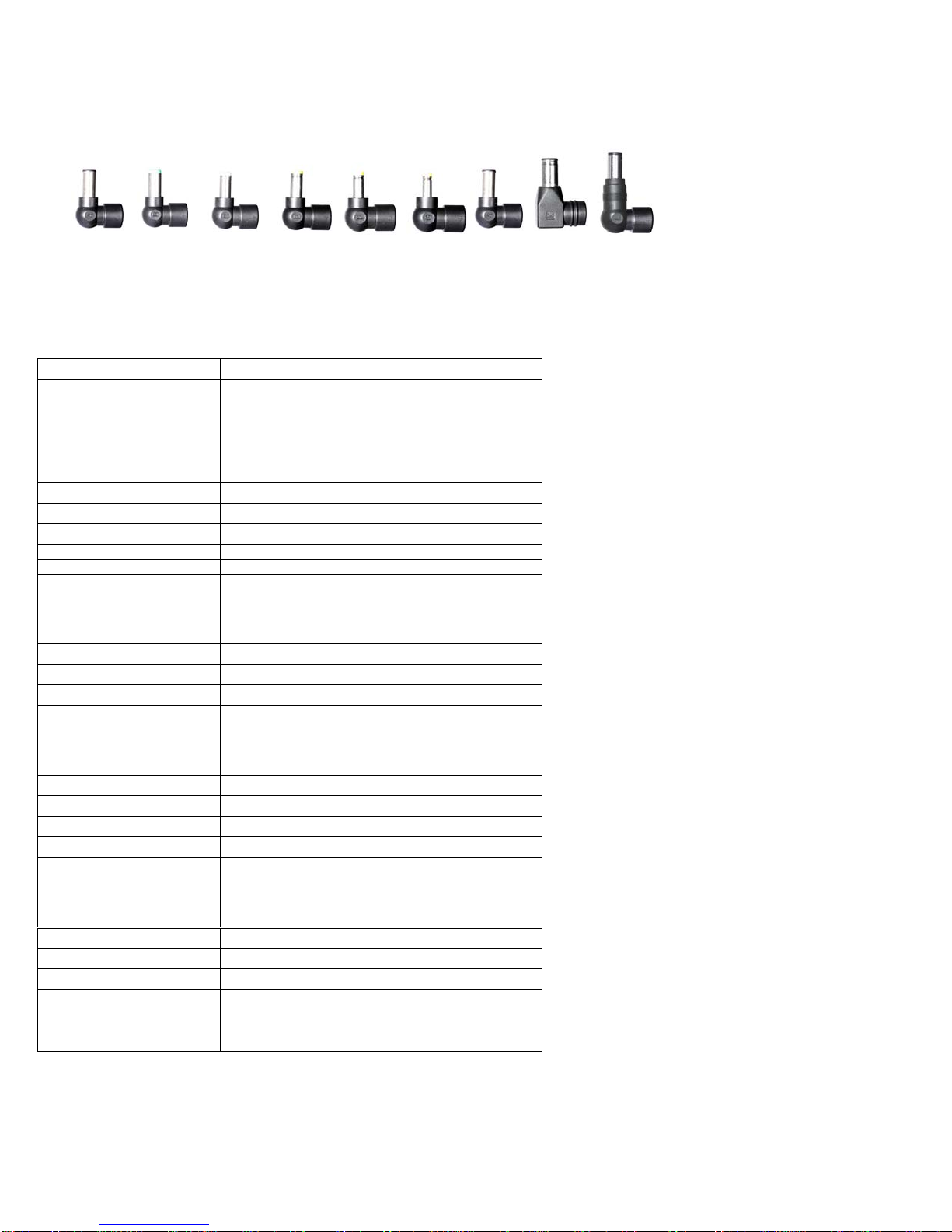

6*4.4
(Pin 1.0) 6.3*3.0 5.5*2.5 5.5*1.7 4.8*1.7 4.0*1.7 Samsung
5.5*3.0
IBM
7.9*5.5
(Pin 0.8)
Dell
7.4*0.5
(Pin 0.6)
ABCEFGHKL
5. Product Specification
PWI-AC75NE
FEATURES
Output Power (Max.) 75W
Overload Protection Yes
Short Circuit Protection Yes
Line Regulation +/- 5%
Load Regulation +/- 5%
Switching Mode Universal switching-mode power adapter for notebooks
Special Connectors 9 pieces tip connector
Efficiency > 80% (TYP)
Fanless yes
DIMMENSIONS
Unit Size 4.33” x2.12 ” x 0.98” (110 x54 x25 mm)
Net Weight 8oz
OUTPUT
Output Voltage (0/0.9V No Load)10V/12V/15V/16V/18V/19V/20V DC10V-20V
USB Port: 5V 800MA
PWI-AC 75NE: Output Voltage
(-0.9/+0.8V @rating load)
10V/12V/15V/16V/18V/19V/20V DC10V-20V
USB Port: 5V 800MA
Output Current 10V/12V/15V/16V/[email protected](max)
19V/20V @ 3.75AMP (max)
USB Port: 5V 800MA
INPUT
Rated Input Voltage (50 - 60 Hz)
A
C120V or AC230V
Vibration Input Voltage Range
(47-63Hz)
A
C100V-240V
Input Rated Current 1.2AMP
Input Power 85VA
ENVIRONMENTAL
Operating Temp. 0 to 40℃
Humidity 20% to 80%
RoHS Compliant Yes

Prudent Way Slim Universal Netbooks/Laptops/LCDs 75 watt AC Adapter User’s Manual
Model: PWI-AC75NE
- 5 -
For feedback about this product, please contact
Prudent Way Inc
Toll Free: [phone]
Email: [e-mail]
For support or general inquiry, please contact
Prudent Way Inc
Toll Free: [phone]
Email: [e-mail]
Made in China
1All listing of brand names are registered trademarks of their respective companies.
2Certification
