PRYME PRYMEBLU BTH-TA5 User manual

3 4
2

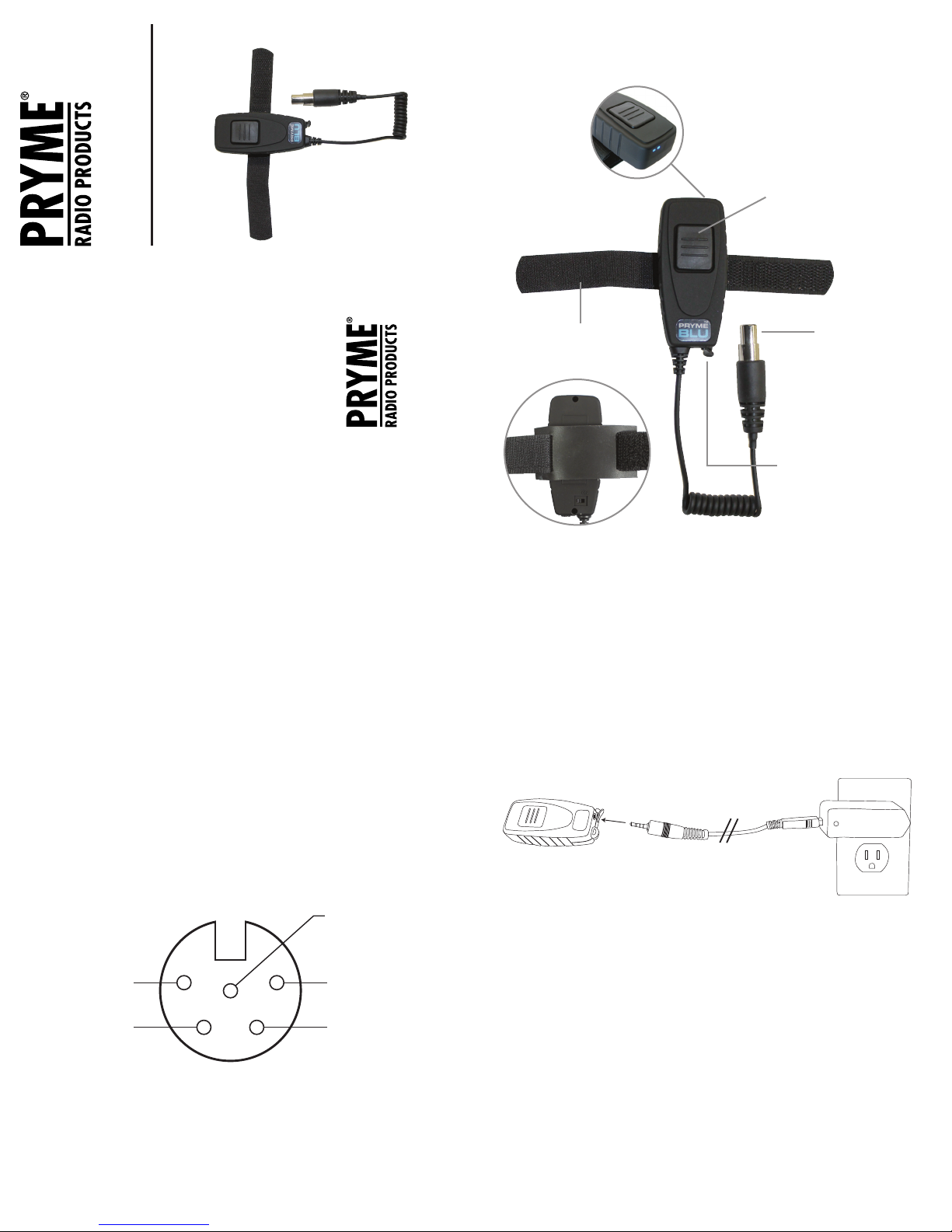

Controls and Connection
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. RF Exposure Warning! Please keep product 20cm away from your body or bystander during the radio operation. The typical handheld two-way radios were certied under mobile usage condition (i.e. keep 20cm away from the user body) and use of such radio closer than 20cm may exceed the US RF exposure limit and shall be avoided.
version 1.0 March 2013
911 Mariner St., Brea, CA 92821
PH: 714.257.0300 FAX: [phone]
TOLL FREE: 800.666.2654
WWW.PRYME.COM
PRYMEBLU®BTH-TA5 USER’S GUIDE Bluetooth Adapter for Muff Headsets
The BTH-TA5 is an adapter that converts a standard wired Muff Headset into a wireless Bluetooth headset (muff headset sold separately). PRYME® and PRYME BLU™ are trademarks owned by PRYME Radio Products, Brea CA. All other product or service names are the property of their respective owners. © 2013 PRYME Radio Products, Brea CA. All Rights Reserved
PRYMEBLU BTH-TA5 Made in Taiwan
Headset Compatibility
The PRYMEBLU BTH-TA5 headset adapter is compatible with many wired mu headsets made by
dierent manufacturers. To be compatible, the headset must use a Switchcraft TA5 connector
with industry standard wiring. The standard pin out for the TA5 is shown below. Contact your
headset manufacturer if you are unsure whether your headset is wired correctly.
Additionally, the headset must use a low-voltage type microphone element such as an
electret-condenser type with a bias voltage requirement of 1.5 VDC or less. Microphone
cartridges with a higher voltage requirement (such as 3 or 5 VDC) are not compatible with the
PRYMEBLU BTH-TA5. Contact your headset manufacturer if you are unsure about the
microphone’s power requirement.
Compatible Models from PRYME: PRYME makes two mu headsets which are compatible with
the BTH-TA5 adapter.
MC-EMAIR: This headset is fully compatible with the BTH-TA5 adapter.
HDS-EM-B/C: This headset is compatible with the BTH-TA5 but the high-gain (electret)
microphone cartridge must be used, not the noise-cancelling (dynamic) microphone.
Headset Connector
Connects the PRYMEBLU
Headset Adapter to a Mu
Headset. The connector is
a Switchcraft TA5 type with
industry standard wiring.
Multifunction Talk Button
Used to place the PRYMEBLU Headset
Adapter in pairing mode. Once paired
with a two-way radio, this switch can be
used to activate the Push-To-Talk function
of the radio.
Velcro Fastener
Used to secure the PRYMEBLU
Headset Adapter to the mu
headset.
Power Switch
Turns the PRYMEBLU Headset
Adapter on and o.
Charge Jack
Used to connect
the supplied
charger in order
to recharge the
PRYMEBLU
Headset
Adapter’s
internal battery
pack.
Charging the PRYMEBLU Headset Adapter
The PRYMEBLU Headset Adapter has an internal Lithium Ion rechargeable battery pack which must
be charged prior to operation, and must be recharged regularly. A fully charged battery will provide
approximately 10 hours (or more) of operation before needing to be recharged. However, operating
time can vary depending on usage and the condition of the battery pack. Recharge the battery
regularly.
STEP ONE: Charging the PRYMEBLU Headset Adapter
To charge the PRYMEBLU Headset Adapter
1. Ensure the PRYMEBLU Headset Adapter is turned o, using the switch located on the back of the
device.
2. Plug the supplied wall charger into a standard 120 volt AC outlet.
3. Plug the charge cable into the AC wall charger and then into the charge jack on the bottom of the
PRYMEBLU Headset Adapter. You will need to remove the protective rubber cover that is inserted
into the charge jack. (To prevent dust and moisture from damaging your lapel microphone, always
ensure this cover is in place when you are not charging the adapter.)
4. Once the charging process has begun, the LED indicator on the side of the PRYMEBLU Headset
Adapter will show a constant red light. When the battery is done charging, the LED light will change
to a green color.
5. Typical charge time is approximately 2-3 hours. Actual charge time will vary depending on several
factors including the battery’s charge state, condition, and age.
6. Disconnect the charger from the adapter when charging is completed.
Charging Cautions:
- Use only the wall charger supplied by the manufacturer. Do not use any other charger.
- Do not use a wall charger that appears to be damaged. (Example: frayed wires, melted plastic, etc.)
Contact PRYME to get a new manufacturer-approved replacement charger.
- Do not tamper with or modify the PRYMEBLU Headset Adapter or charger.
-Always turn the power switch to the o position when charging the PRYMEBLU Headset Adapter.
Switchcraft TA5 Connector
Industry Standard Wiring
GND SPK+
SPK-
PTT MIC+
1
2 3
4
5
Status LED
The LED ashes messages that let the user
know the current status of the PRYMEBLU
Headset Adapter

6
8
5
7

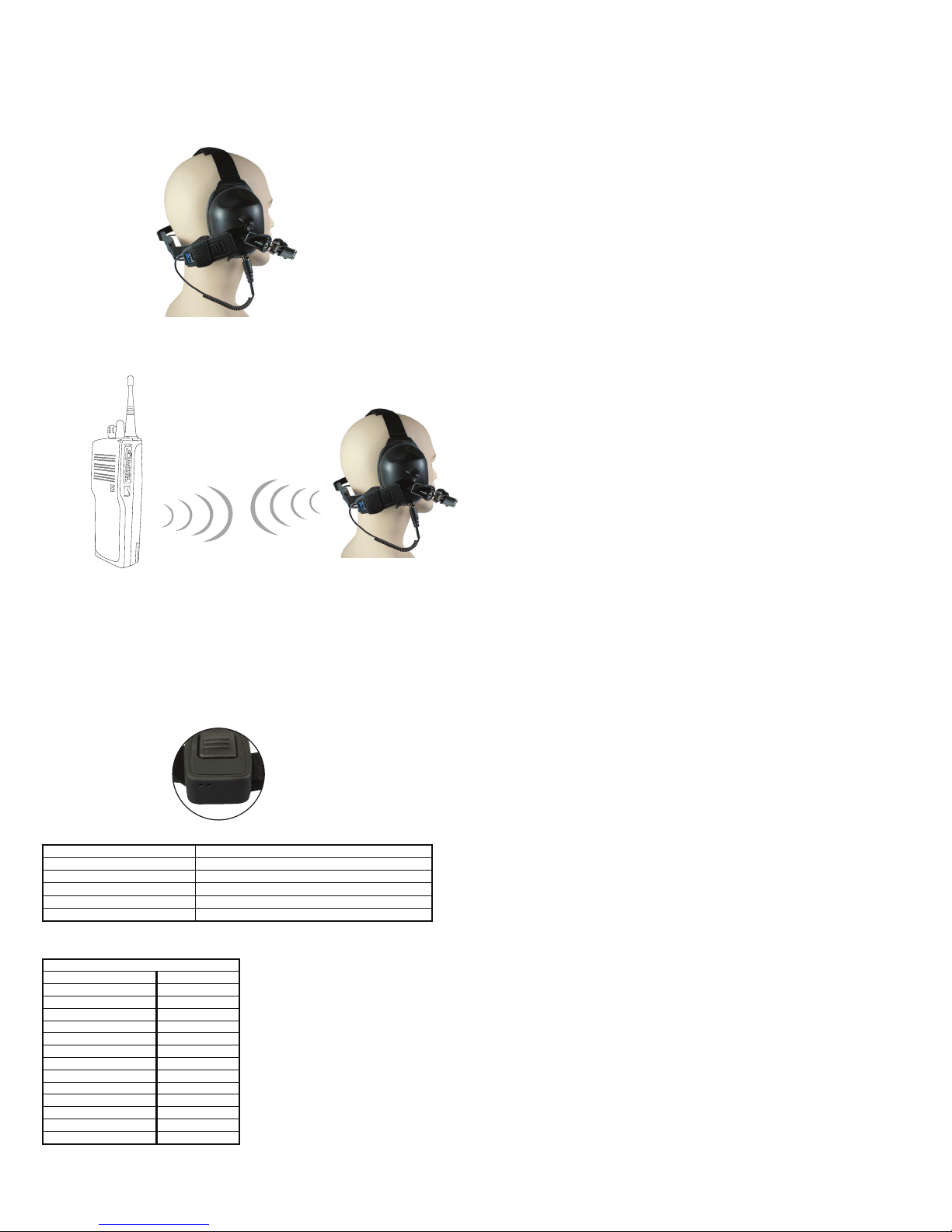

Connecting the Adapter to a Headset
STEP TWO: Connecting the Adapter to a Headset
1. Plug the Adapter’s TA5 Headset Connector into the jack on the mu headset. Ensure that the
connector is pushed all the way into the jack until it locks into place.
2. Secure the adapter to the headset using the Velcro Fastener. On most headsets the best place to
secure the adapter is to the headband that goes over the user’s head (or behind the head depending
on the design of the headset).
Pairing the Headset Adapter with a Phone or Radio
STEP THREE: Pairing the Adapter to a Phone or Radio
When pairing the PRYMEBLU Headset Adapter with a cellular phone, Bluetooth-enabled two-way
radio, or a PRYMEBLU Radio Adapter, rst make sure that the Headset Adapter is powered o.
1. Place the phone or radio into pairing mode following the instructions provided by the
manufacturer. For PRYMEBLU Radio Adapters, hold down the multifunction Talk button on the
PRYMEBLU Adapter while powering the adapter ON. (For PRYMEBLU Adapters which get their
power from the two-way radio, hold down the Talk button while turning the radio on.) Continue to
hold down the Talk button until the LED on the Adapter changes from a single ash to a double
ash, about three seconds.
2. Place the PRYMEBLU Headset Adapter into pairing mode by holding down the multifunction Talk
button while turning the slide Power Switch on the adapter to the ON position. Continue to hold
down the Talk button until the LED on the Adapter ashes in a BLUE-RED-BLUE-RED pattern, about
three seconds.
3. On some phones you may be prompted to enter a passcode for the Bluetooth connection to
complete. If so, enter code: “0000”.
4. Place the phone or radio and Headset Adapter in proximity to one another and wait. After a few
seconds, the two devices should are synch with each other. Once paired with each other, the status
LED on the Headset Adapter will show one blue ash every four seconds.
Reconnecting to a Previously Paired Phone or Radio
Once the PRYMEBLU Headset Adapter has been successfully paired to a phone or radio, both devices
will remember that connection. The adapter and phone/radio will attempt to reestablish their link
whenever the two devices are both turned on and in within range of each other. Re-establishing this
connection can take 10-60 seconds.
Using the PRYMEBLU Headset Adapter
Once your PRYMEBLU Headset Adapter and phone or radio have been paired together:
Received signals will be heard over the earphones in the mu headset. The volume of received calls
can be adjusted using the volume control knob on the two-way radio. Some mu headsets also
feature a built-in volume control knob which can be used.
For Two-Way Radios, Push-to-Talk can be activated one of several dierent ways:
• By pressing and holding the Multifunction button on the PRYMEBLU Headset Adapter.
• By pressing and holding the PTT button located on the muff headset.
• By pressing and holding the Talk button on the radio’s PRYMEBLU Adapter.
• Using an optional wired PTT that is compatible with the PRYMEBLU Adapter.
Status LED Messages
The meanings of the various status LED messages shown by the PRYMEBLU Headset Adapter are
shown on the following table:
Support and Warranty
PRYME Radio Products warrants this product against defects in materials or workmanship for a
period of one year from the date of retail purchase. PRYME will repair or replace a defective unit, at
our option, without charge for parts or labor. The limited warranty is extended only to the original
purchaser and is valid only to consumers in the United States and Canada. It does not cover damage
or failure caused by or attributable to Acts of God, abuse, misuse, improper or abnormal usage, faulty
installation, improper maintenance, lightning, or other incidences of excessive voltage, or any
tampering or repairs by other than a PRYME authorized repair facility. It does not cover replacement
of consumable parts, transportation costs, or damage in transit.
Repair or replacement under the terms of this warranty does not extend the terms of this warranty.
This warranty can only be modied by an ocer of PRYME Radio Products, and then only in writing.
Should this product prove defective in workmanship or material, the consumer’s sole remedies shall
be such repair or replacement as provided by the terms of this warranty. Under no circumstances
shall PRYME Radio Products be liable for any loss or damage, direct, consequential, or incidental,
arising out of the use of or inability to use this product. Some states do not allow limitations on how
long an implied warranty lasts or the exclusions or limitations of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This warranty gives you
specic legal rights. You may also have other rights, which may vary, from state to state.
For support or warranty service on your PRYME product, contact us at 1-800-666-2654 or visit us on
the web at www.PRYME.com.
COPYRIGHT AND TRADEMARK INFO
© 2013 PRYME Radio Products, Brea CA. All rights reserved.
PRYME® and PRYMEBLU™ are trademarks owned by PRYME Radio Products. All other product or
service names are the property of their respective owners.
DISCLAIMER: The Bluetooth wireless link used by PRYME BLU products is an open standard,
unsecured technology. As such, it is not recommended for rst-responder or other mission critical
users.
LED INDICATION
Single BLUE ash every 6 seconds
BLUE-RED-BLUE-RED alternatively
One BLUE ash every 4 seconds
Constant RED
Constant GREEN
MEANING
Adapter is powered on but not paired
Adapter is in pairing mode
Adapter is powered on and paired with a phone/radio
Battery is low or battery is charging
Charging is nished
SPECIFICATIONS
Bluetooth Version:
Modulation Type:
Output Power:
Receiver Sensitivity:
Power Class:
Range:
Display:
Bluetooth Prole:
Operating Voltage:
Battery Capacity:
Talk Time:
Push-to-Talk Function:
Operating Temperature:
Weight:
v2.1+EDR
GFSK, 8DPSK
6 dBm
-82 dBm typical
2
10 meters max
2 color LED
HFP
5 VDC typical
330 mAH
12 hours
Built-in
-20° C to +50° C
140g
