PSI Woodworking PKSPRT Series User manual

Required Accessories:
• 7mm Pen Mandrel
• Drill Bit: PKEXEC-38
• Bushing Set(2 pc): PKSPRTBU
• Barrel Trimming set: PKTRIM38 or
• Squaring Jig with 3/8” sleeve from PKTRIMSET
• Live Tailstock or Mandrel Saver
• 2 part Epoxy or Thick CA (Cyanoacrylate) Glue
• Pen Blank Minimum Size: 3/4” x 2-1/2”
#PKSPRTXX PSI Woodworking Products
Mobile Device Support Kit
Preparing the Blank:
• Cut 1 blank to the to the length of the tube, adding 1/16” for squaring off.
• Drill 3/8” hole lengthwise through the blank.
• Spread glue over the tube, insert the tube into the blank with a twisting motion to spread the glue evenly inside.
• Center the tube lengthwise inside the blank.
• When the glue is dry, square the ends of the blanks, making sure the trimmed ends are 90º to the tube. Use a 3/8”
EDUUHOWULPPHURUDSHQEODQNVTXDULQJMLJZLWKDµVOHHYHRQDGLVFVDQGHU7DNHWKHH[FHVVPDWHULDOGRZQÁXVKWR
the ends of the tubes. Do not trim past the end of the tube since this may interfere with the operation of the
mechanism and assembly. Use a barrel trimmer to clean the inside of the tube.
Kit Features:
• Dual purpose stylus and mobile device stand with hands free viewing
• Device can be mounted horizontally or vertically
• Easy to Turn With Straight Tube
• Minimal Parts--easy to assemble
$YDLODEOHLQPXOWLSOHÀQLVKHV
• Overall Length: 3-7/16”
• Replacement stylus tips available
',$*5$0$3$576/$<287
*Do not press directly on Stylus Holder or Device Holder. See Diagram C
1.384”
Sliding Clamp
Stylus Holder*
Device Holder*
Tube/Barrel
Stylus Tip
Coupler
Top
Side
In Use

#PKSPRTXX PSI Woodworking Products
Assembly
• Layout Parts according to diagram A. Remove stylus tip and coupler from stylus holder (if attached).
• *To prevent damage from pressing see Diagram C, place smaller bushing over the tip of the Stylus
Holder and press into the smaller side of the turned barrel. Keep bushing on stylus holder for the next
step.
,QVHUWH[WHQVLRQRIODUJHUEXVKLQJLQWRWKHRSHQLQJDWWKHWRSRIWKH'HYLFH+ROGHUGRZQWRWKHÁDWUHFHVV
Use the bushing to press the Device Holder into the larger side of the barrel.
• Install Stylus Tip onto Stylus holder and screw on coupler.
,QVHUW6OLGLQJ&ODPSWKUHDGHGVLGHÀUVWLQWRWKH'HYLFH+ROGHU7ZLVW6W\OXV+ROGHUFRXQWHUFORFNZLVHWR
retract clamp into the Device Holder.
To use (see in use), place device in opening in Holder. The angle of the screen can be adjusted by sliding
the device up or down. When desired angle is reached, turn the stylus holder clockwise to lock clamp
DJDLQVWGHYLFH'RQRWRYHUWLJKWHQLWFRXOGGDPDJHGHYLFH3ODFHGHYLFHRQDQ\ÁDWVXUIDFHZLWKKROGHU
located on the side or top of screen. Device will balance for hands-free viewing.
Diagram D / Bushings #PKSPRTBU
© 2016 PSI Woodworking Philadelphia PA 19115 - v04/16
ø .456”
ø .638”
ø .345” ø .345”
Turning the Blank
• Mount the bushings and blanks according to diagram B.
• Thread on the knurled nut and hand tighten to hold all components in place.
• Slide the Tailstock up snugly against the Mandrel shaft, inserting the live center point into the Mandrel
dimple. Lock Tailstock.
• Hand tighten the quill adjustment on the tailstock to steady the mandrel. Do not overtighten, it could dam-
age the mandrel shaft.
• When using Mandrel Saver, there is no need for extra spacer bushings or the knurled nut. Slide tailstock
directly against bushings and tighten until blank and bushings are secure.
• Using sharp tools, turn the blank down close to the bushing diameter. Turn the barrel straight or to a pro-
ÀOHRI\RXUFKRLFH
6DQGWKHEODQNGRZQWREHÁXVKZLWKWKHEXVKLQJVJUDGXDOO\LQFUHDVLQJVDQGSDSHUJULWV
)LQLVKWKHEDUUHOXVLQJ\RXUFKRLFHRISROLVK$OORZ6XIÀFLHQWWLPHIRUWKHSROLVKWRFXUH³UHIHUWRSROLVK
instructions.

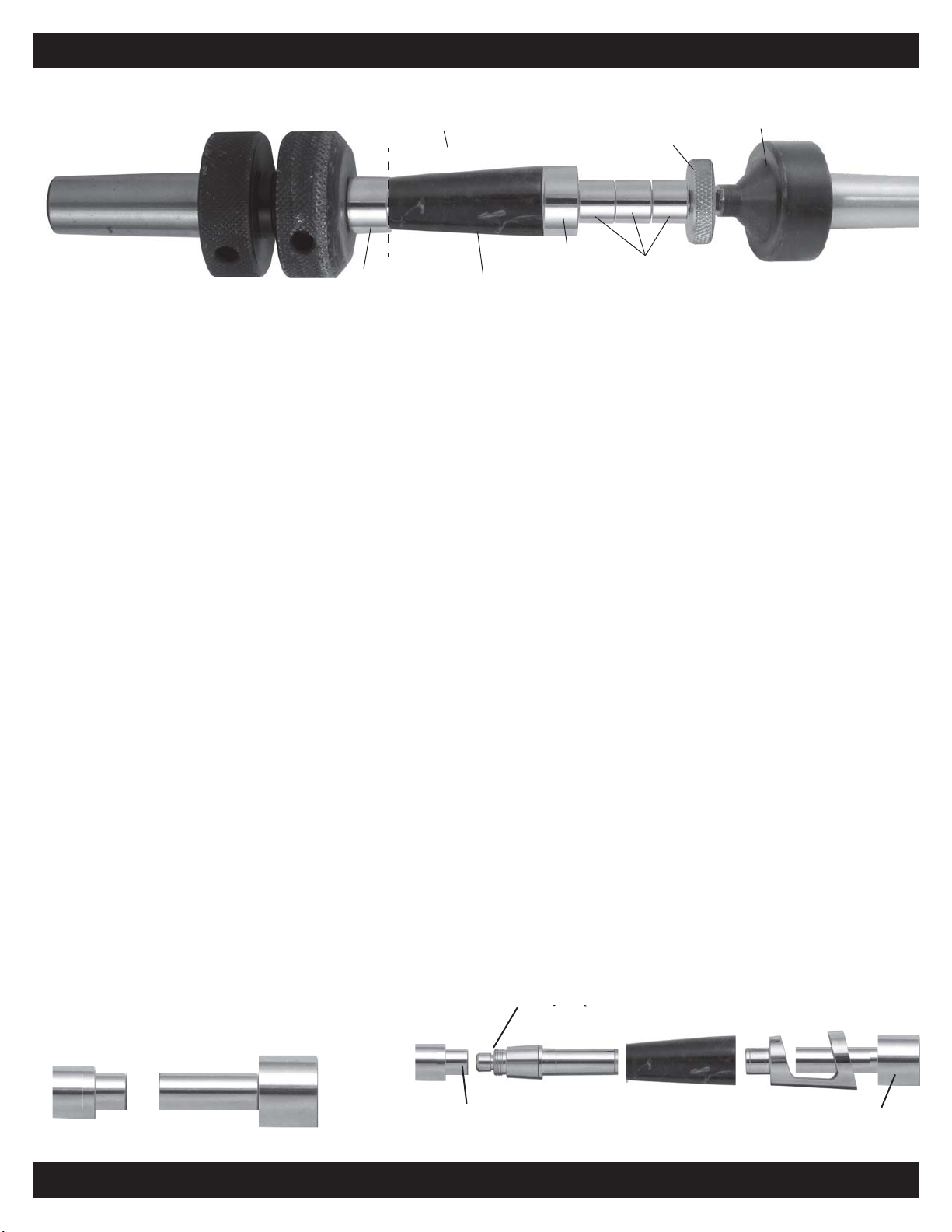

',$*5$0%7851,1*7+(%/$1.6 Mandrel Saver
Or
Live Center
Blank
Finished
3URÀOH
Knurled Nut
Spacer
Bushings
Tip
Bushing
End
Bushing
Short bushing Long bushing
Remove rubber stylus tip Diagram C / Pressing Parts
