Puloon Eagle Eye 7 User manual

Eagle Eye 7
- User Manual
REV. : 0.14
DATE : 2019.02.12

-1-
Contents
Safety Instructions
General Instructions 3
Operation Environment 4
Banknotes To be Avoided 5
Caution for Operators 6
Function & Setting
Function 19
Display 24
Setting 31
Operation
Summary of Operation 14
Currency Selection 15
Reject Reason 16
Add Up 17
Details 18
Installation Guide
Installation 7
Overview 8

-2-
Error & Trouble Shooting
When Errors Occur 56
Error Code List 57
Appendix A
Product Specification 60
Products Contents 61
Daily Maintenance
Maintenance 46
Guidelines for major components 47
Installation of Hopper Guide 52
Count Mode
Count Mode 37
Appendix B
Count Mode for AT type 62

-3-
Safety Instructions
General Instructions
Do not place the product near heat sources such as a stove or a heater.
Do not use gas sprays and etc. which may easily catch fire, for cleaning.
Do not try to disassemble or repair the product if you are not trained and
authorized. Such an unauthorized activity may cause accident or critical
damage to the product and it would not be covered with the warranty.
Do not place heavy objects or liquid containers, such as a beverage can,
on the product.
Do not apply shock on the product.
Do not use the product at the place where water may spill on it.
Do not apply excessive force to the product.
Do not try to open or operate the product by force.
Make sure to apply proper grounding through the plug. Short-circuit may
cause sudden electrical shock.
Before maintenance or repairing activity, make sure to turn its power off
and then start to replace with a fuse or to check the components.
Do not touch the product, and power supply plug and cord with a wet
hand.
Do not pull out the power cord when unplugging. Such action may cause
electric shock or fire.
Outlet must be located near the product and should be easily accessible.

-4-
Operation Environment
Safety Instructions
Do not expose the product to the direct sunlight for normal operation
and life cycle.
Avoid dusty location and place the product on the stable and non-
vibrating desk.
Keep and use the product under the optimal conditions as follows:
-Temperature: 5℃~45℃(41F~113F)
-Humidity: 0%~85%(no condensation)
Do not press the LCD screen or control keys with sharp objects such as a
pen or a pin.
In case of safekeeping for long period, put the cover on the product.

-5-
Banknotes to be avoided
Do not count the following banknotes as it may cause jam or error.
1) Banknotes with a hole or tear
2) Folded or crumpled banknotes
3) Wet banknotes
4) Worn banknotes
5) Banknotes polluted with foreign substance or oil
Damaged Banknotes
Curled Banknotes
Folded or Partial Banknotes
Safety Instructions

-6-
Caution for Operators
During operation, never put anything like clips or any other stuff except
banknotes on the hopper. Surely be careful that the operator’s hair, clothes
or necktie would not be picked and absorbed into machine.
Straighten the folds or corners of banknotes before placing on the hopper.
Banknotes should be properly arranged and then put on the hopper as
shown below for efficient operation.
Safety Instructions

-7-

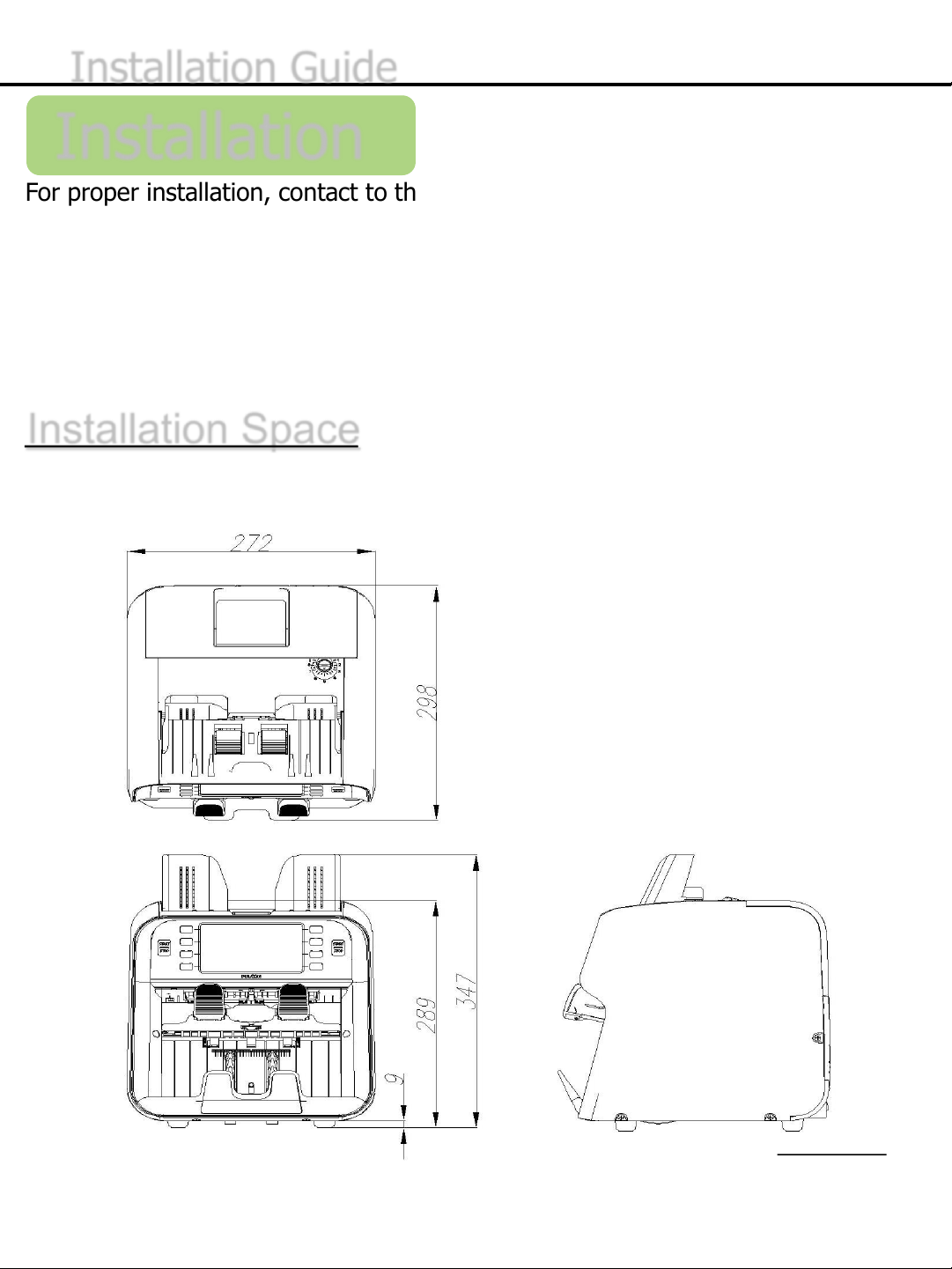

Installation Guide
Installation Space
For proper installation, contact to the designated sales agent near the location
of installation.
· The product is allowed only for indoor use. Do not install outdoors.
· The product should be installed in the stable place enough to endure the
weight and operation. Avoid unstable, slanting or uneven position.
· After installation, daily maintenance and cleaning is strongly recommended
for normal and reliable operation.
The product should be installed at the proper place having enough space for
loading notes and simple maintenance activities.
Installation
Unit : mm

-8-
Name of Each Part (Front View)
1 Hopper
2 Display Panel
3 Stacker
4 Hopper guide
5 Pickup Roller
6 Operation buttons
7 Reject Pocket
Space for Loading Notes
Direct U/I by Full Color Touch Screen
Space for Counted Notes
Adjustable Guides to Note Size
Pick-up Roller to Feed Notes for Counting
Start/Stop Keys for Operation
Space for Rejected Notes
Overview
Installation Guide

-9-
1 Feed GapAdjustment
2 Dust Pocket
3 Hopper Guide
4 Upper Cover Lever
5 Lower Cover Lever
6 Power Switch
7 I/O Port
Adjustment screw for feed gap size
Pocket for Colleting Dusts on Operation
Adjustable Guides to Note Size
Latch Handle to open Upper Cover
Latch Handle to open Lower Cover
Switch for Power On/Off
I/O port (Refer to “I/O port” on page12)
Installation Guide
Name of Each Part (Rear View)

-10-
Adjustment of Hopper Guide & Feed Gap
Installation Guide
182.0
172.0
164.0
156.0
148.0
140.0
132.0
Unit : mm
GAP - GAP +
* For stable operation, it is recommended to adjust the Hopper Guide to leave the space within 5% of the length
of the banknote to be processed.
Ex) To process USD 1 notes (Size: 156 x 66mm), setting the Hopper Guide on 164mm is recommended.
* If the double error occurs frequently, turn the Feed Gap counterclockwise.

-11-

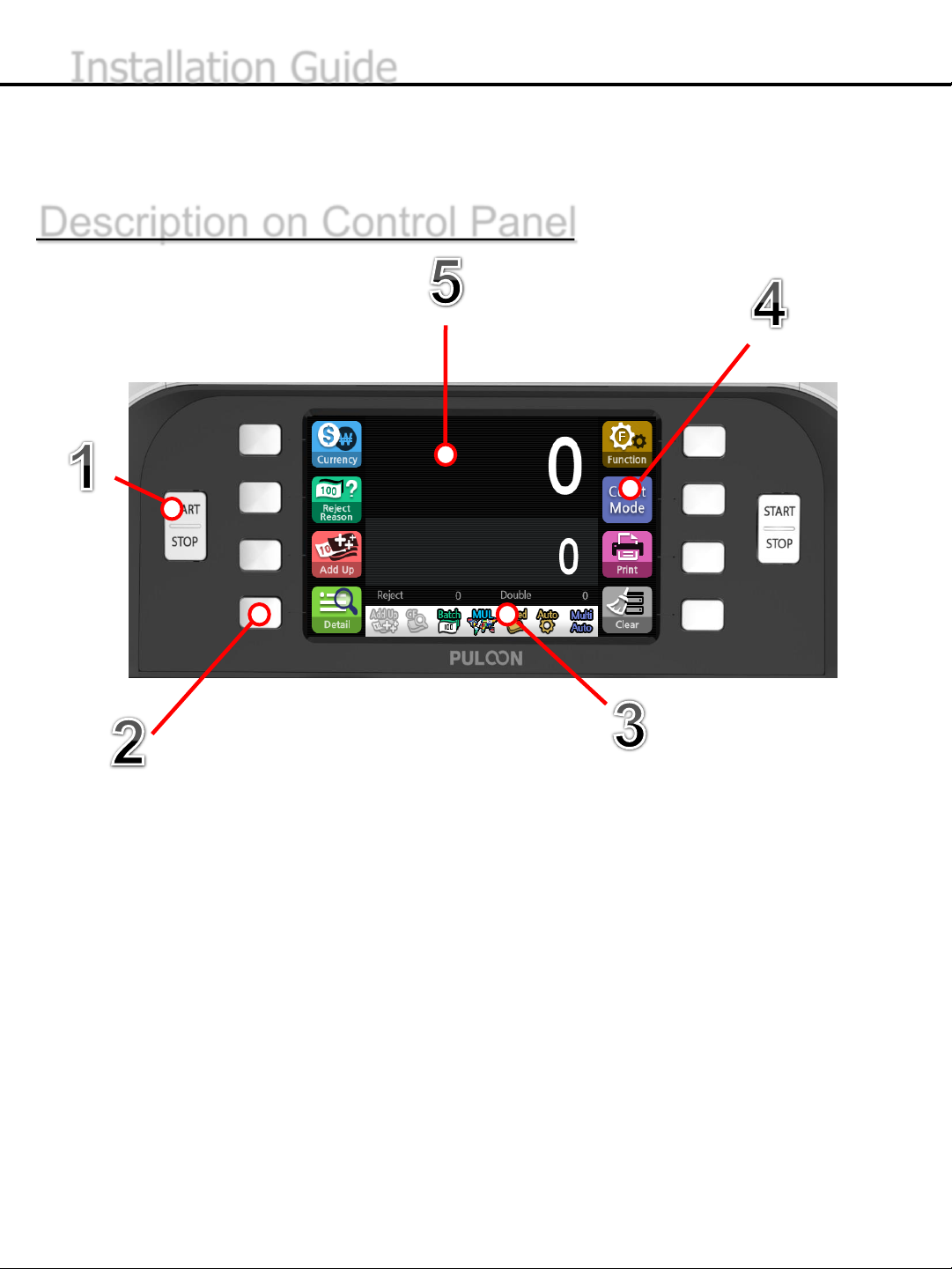

Description on Control Panel
1 Start/Stop Button
2 Function Keys
3 Status Band
4 Menu Icons
5 LCD Screen
To Start/Stop
To select the menu (equal to using
touch key)
To show current settings
To show the menu available
To show the number and the amount of
notes
Installation Guide

-12-
Description on I/O PORT
Port
No.
CON6 CON4 CON5 CON3 CON2 CON1 Input Power
Pin 4 4 8 6 6 8 3
Spec. USB2.0 USB2.0 LAN Serial communication 100~240V AC
USE Device Host Ethernet Printer Display Display2
Installation Guide

-13-

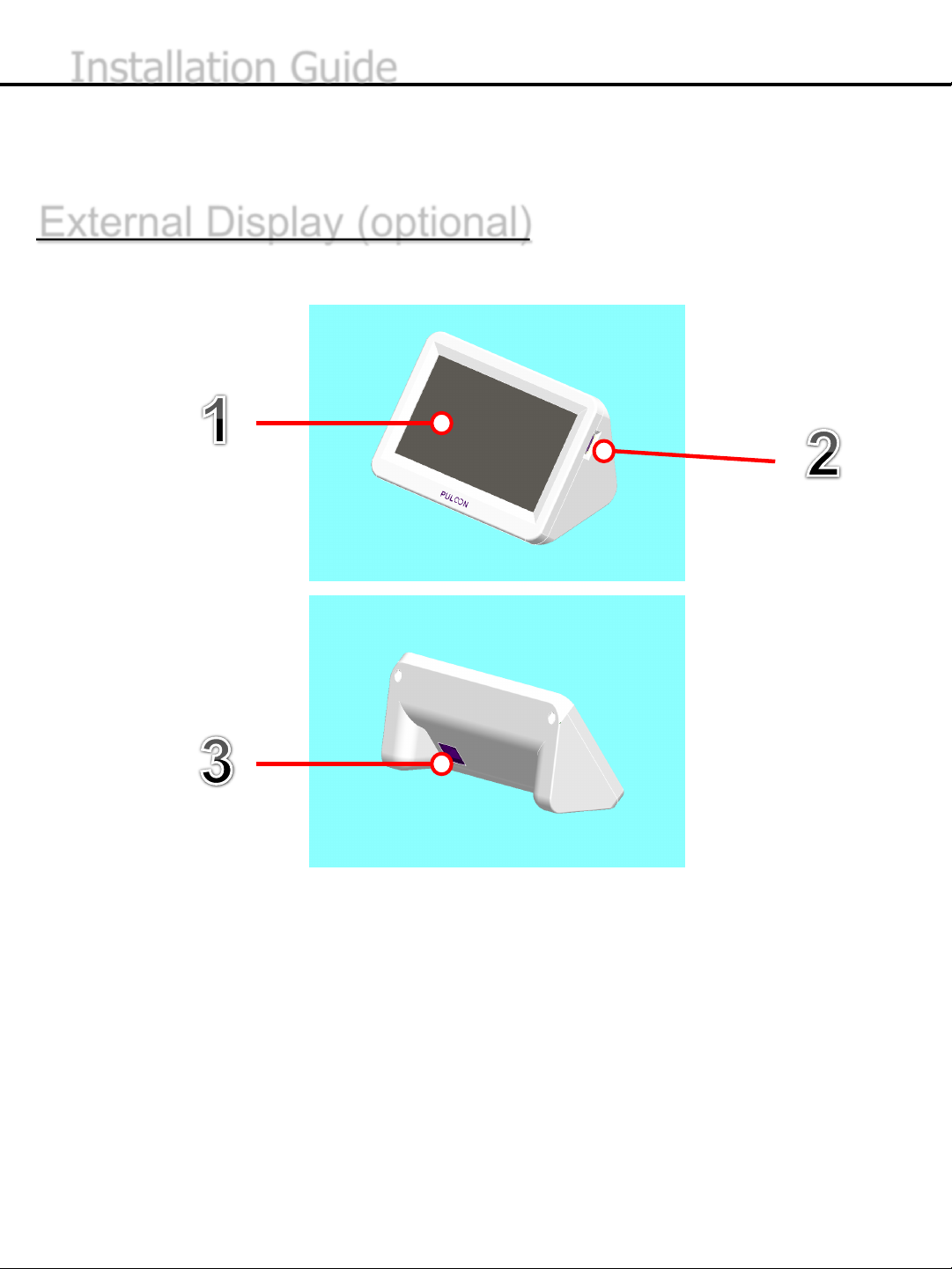

External Display (optional)
1 Display Panel
2 Micro SD port
3 EE7 interface port
Full color graphical display.
Micro SD to save icon & background data
Port to connect with the product(Eagle Eye 7)
Installation Guide

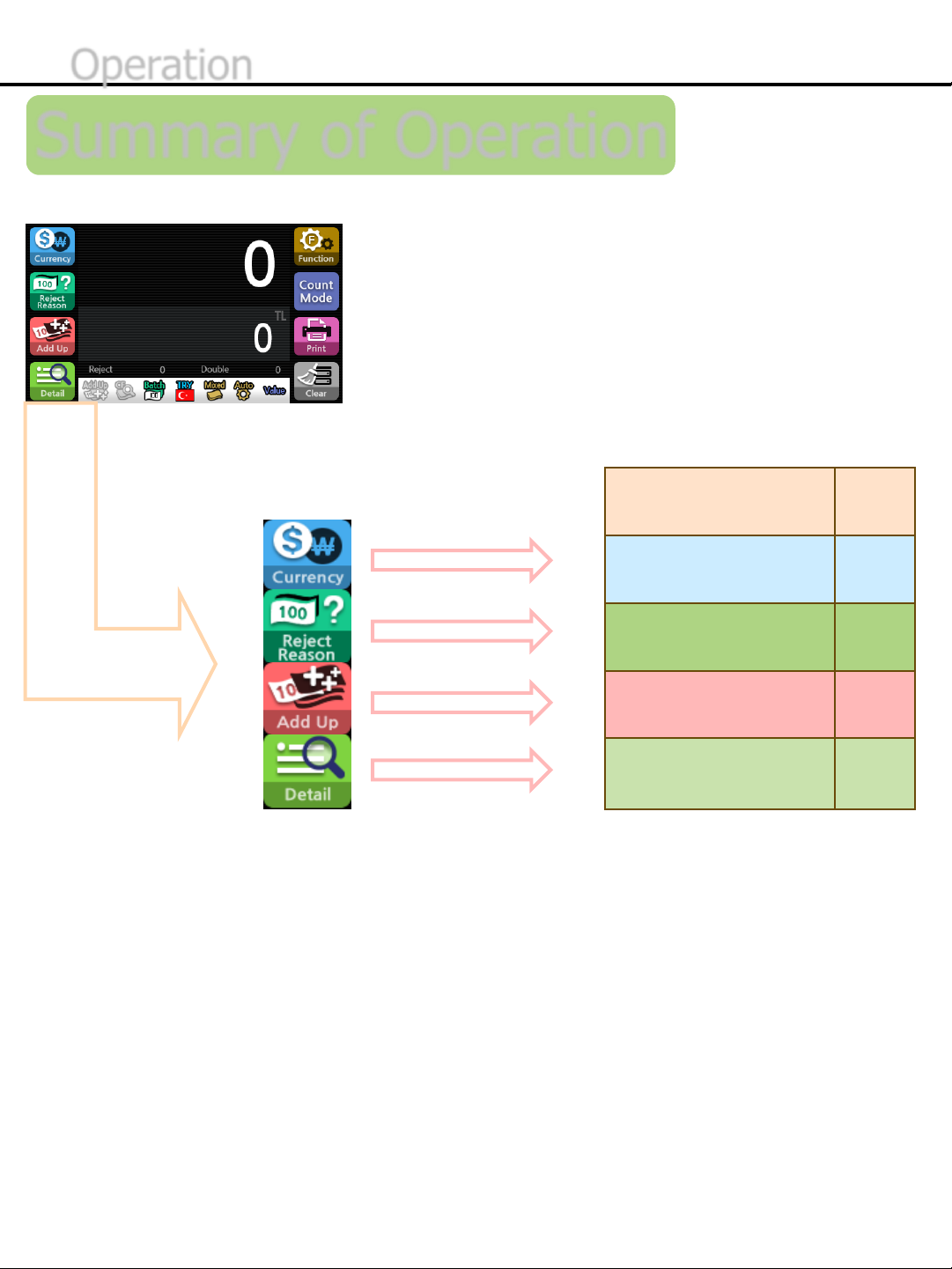

Summary of Operation
Menu
page
Currency
15
Reject
Reason
16
Add
up
17
Detail
18
Operation
-14-
Description of each menu can be found on the following pages

Currency Selection
Selection of Currency for Counting
*The currency name and icon will be shown in the Status Band to indicate the selected currency
*Multi-Currency mode is available when selecting Multi auto or Multi mix in the Count Mode menu.
*Refer to page 40 to operate Multi-Currency mode.
Operation
-15-
2)Press national symbol to select currency.
A range of currencies registered within the EE7 firmware is displayed and
the selected currency will be counted and evaluated.
1)Press the button below to enter the currency selection menu.

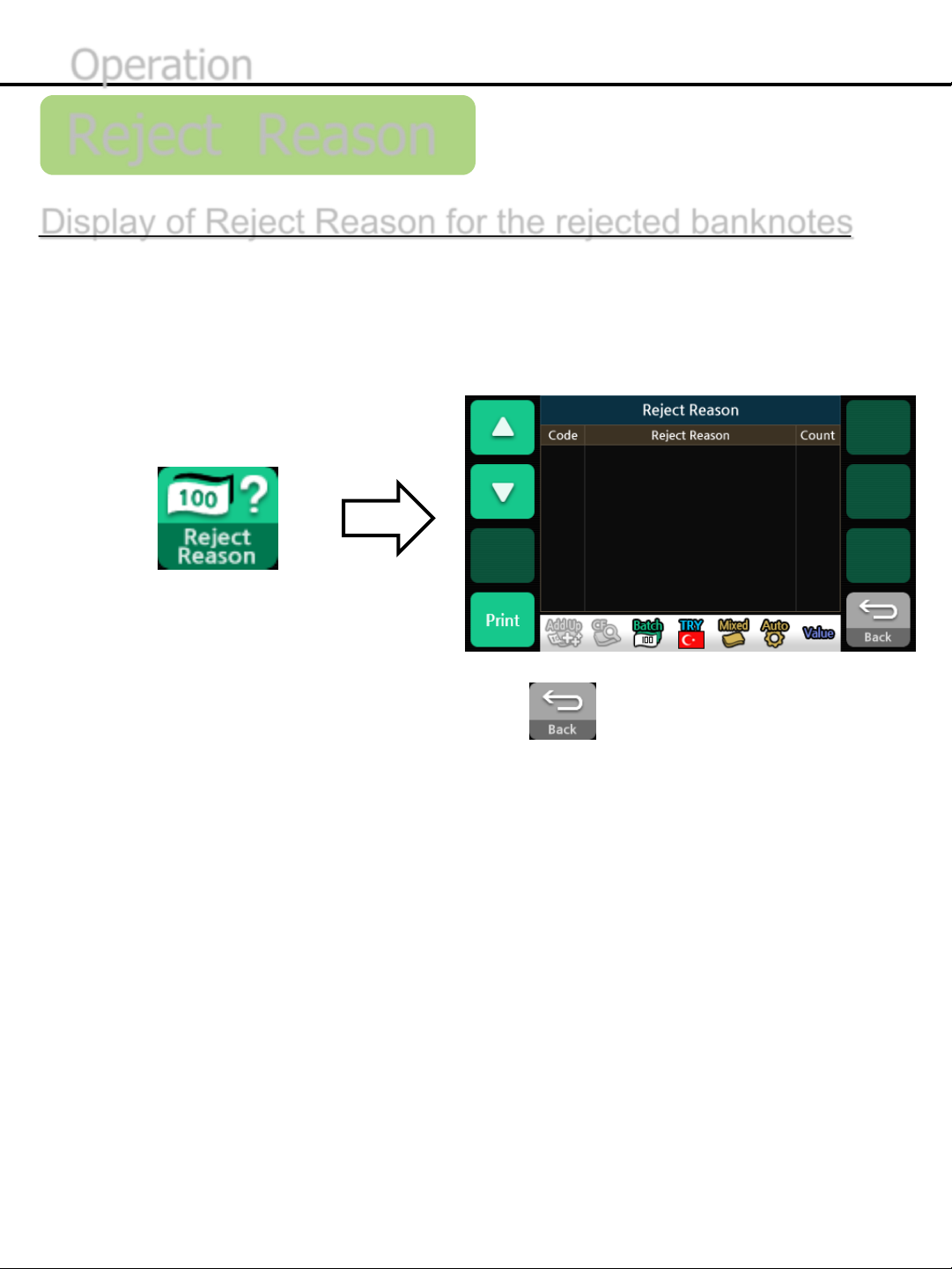

Reject Reason
2) After completion of checking the reject reason, press button to exit.
-16-
Operation
*If an external printer is connected and enabled, pressing Print button will transmit the reject reason data to the
printer
Display of Reject Reason for the rejected banknotes
The information on the rejected banknotes is displayed with the reject codes,
reject reasons, and the number of the rejected notes.
1) Press the button below to enter the reject reason menu.

Add Up
*Add Up icon will be turned on in the Status Band to indicate the activation of Accumulative count mode.
-17-
Operation
When Add Up (Accumulative count mode) is activated, the current amount and
number of banknotes are added up to the total counting. Even though the
banknotes are removed from the pocket, it is still accumulated until the
button is pressed.
1)Press the button below to operate in a accumulative count mode.
Selection of Add Up mode

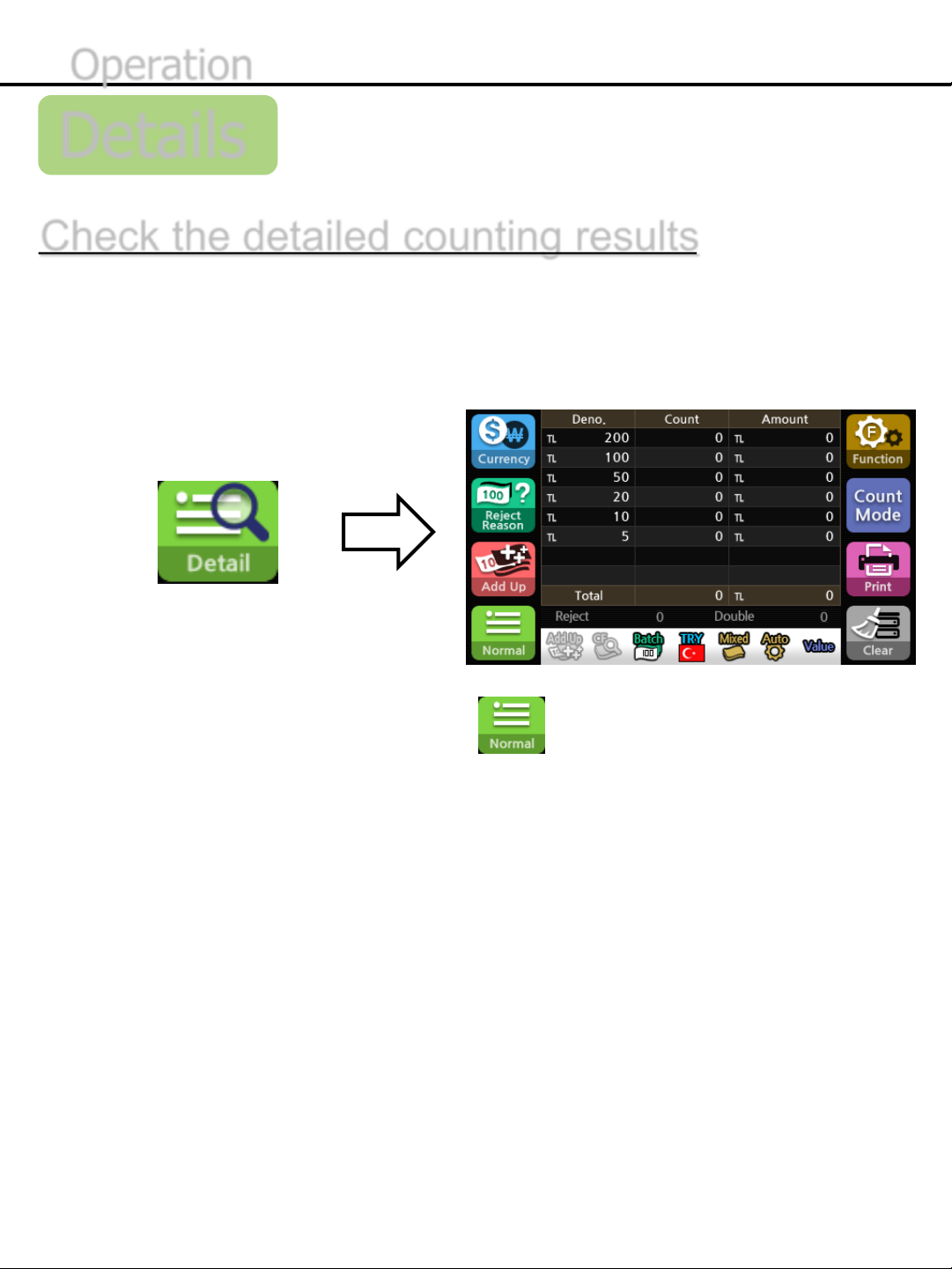

Details
Check the detailed counting results
Operation
-18-
The table shows the denomination, the number of each denominations and the
amount of the summation value of each denominations as well.
1) Press the button below to confirm the detail of counting results.
2) After completion of checking the detail, press the button to exit.
*When you start counting at the detail mode, it automatically switches to normal mode. When the counting is
finished, it returns to the detail mode again.

Function
Menu page
Serial
Number
26
Black
list
27
Count
Log
28
Sort up/down
28
Total
29
Sub
Total
29
Grand
Total
30
Batch
22
Setting
31
Auto/Manual
23
Function & Setting
-19-
Description of each menu can be found on the following pages
