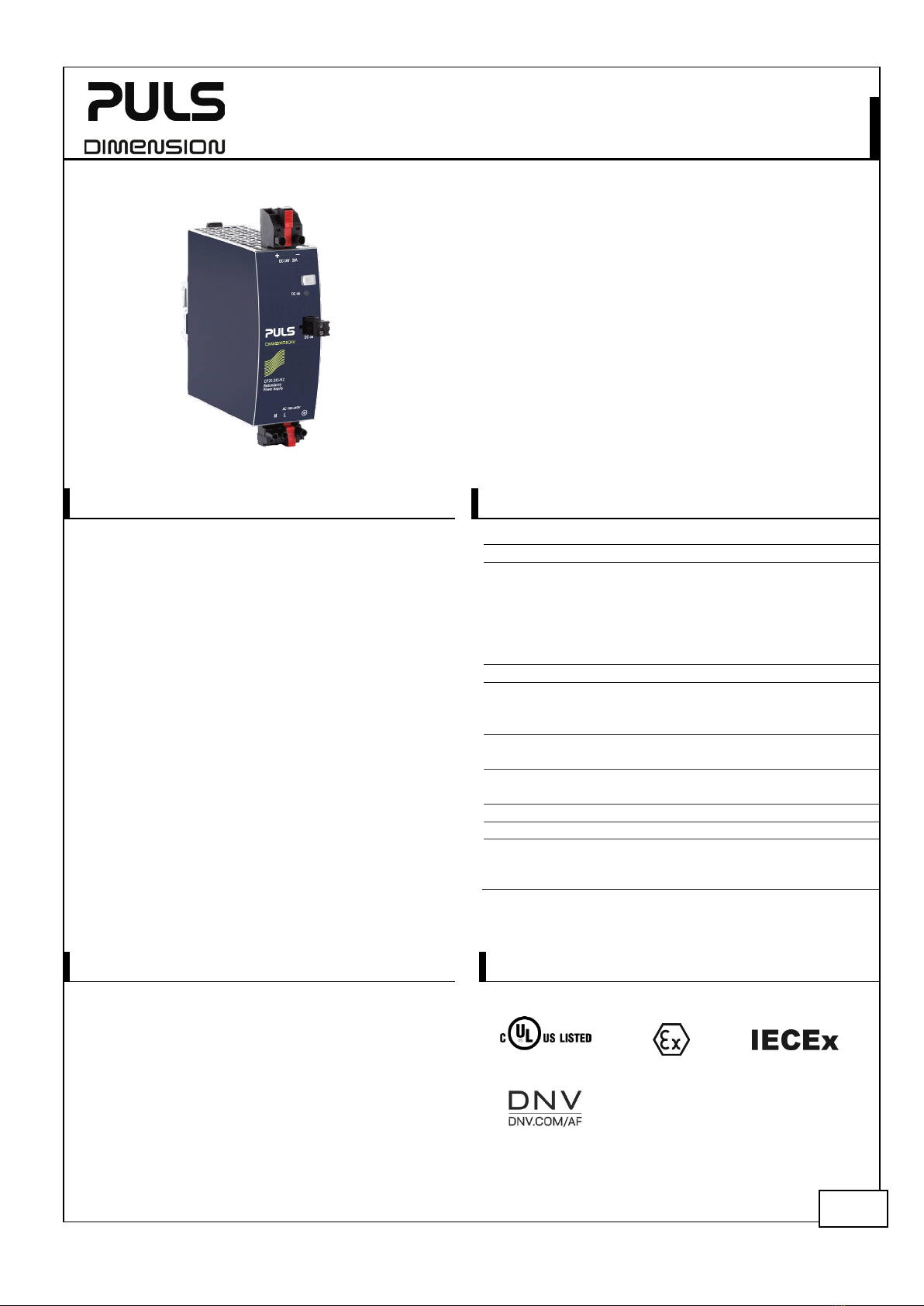

Puls Dimension CP Series User manual

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
1/28
R
EDUNDANCY
P
OWER
S
UPPLY
AC 100-240V Wide-range input
Width only 48mm
Marine approvals, EMC Class B (bridge & deck)
Built-in decoupling MOSFET for 1+1 and N+1
redundancy
Efficiency up to 95.2%
20% Output power reserves (PowerBoost)
Safe HiccupPLUS Overload Mode
Easy Fuse Breaking – 3 times nominal current for 12ms
Active power factor correction (PFC)
Full power between -40°C and +60°C
DC-OK relay contact
Current sharing feature included
3 Year Warranty
PRODUCT DESCRIPTION
The Dimension CP-Series are cost optimized power
supplies without compromising quality, reliability and
performance.
First of all, high immunity to transients and power surges
as well as low electromagnetic emission and Marine
approvals with EMC Class B make the
CP20.245-R2 the best choice for equipment in bridge &
deck zones the same way as for oil, gas and chemical
plants.
This power supply furthermore features a DC-OK signal
contact to remotely monitor error-free operation, a
decoupling MOSFET to set-up redundant power supply
systems, and plug connector terminals to allow device
replacement while the application keeps running. The
CP20.245-R2 covers an extreme wide temperature range
from -40°C up to +60°C providing full output power.
Outstanding features of CP20.245-R2 are its high
efficiency, the electronic inrush current limitation, and an
active PFC. The devices also offer PowerBoost: Power
reserves of 20%, which may even be used continuously at
temperatures up to +45°C. Additionally, the device can
deliver about 3 times the nominal output current for
12ms which helps to trip fuses on faulty output branches.
SHORT-FORM DATA
Output voltage
DC 24V
23.8 - 25.2V
Adjustment range
-
Output current
20A
Up to +60°C ambient
15A
At +70°C ambient
Derate linearly between +60°C and +70°C
PowerBoost
24A
Up to +45°C ambient
Linear decrease to nominal power
between +45°C and +60°C
Output ripple
max. 100mVpp
1
0Hz to 20MHz
AC Input voltage
AC 100-240V
-15%/+10%
Mains frequency
50-60Hz
±6%
AC Input current
4.28 / 2.25A
At 120 / 230Vac
Power factor
0.99 / 0.98
At 120 / 230Vac
AC Inrush current
10.0 / 4.5A
At 120 / 230Vac
Efficiency
93.8 / 95.2%
At 120 / 230Vac
Losses
31.7 / 24.2W
At 120 / 230Vac
Temperature range
-40°C to +70°C
Hold-up time
32ms
Size w x h x d
48x124x127mm
Without DIN-rail and
plug connectors
Weight
850g
O
RDER
N
UMBERS
Power Supply CP20.245-R2
Mechanical Accessory
ZM10.WALL Wall/Panel mount bracket
M
AIN
A
PPROVALS
For details and the complete approval list, see chapter 20.
UL61010-2-201 ATEX IECEx
Marine

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
2/28
INDEX
Page Page
1. Intended Use .......................................................3
2. Installation instructions ......................................3
3. AC-Input...............................................................5
4. DC-Input...............................................................6
5. Input Inrush Current ...........................................6
6. Output .................................................................7
7. Hold-up Time.......................................................8
8. DC-OK Relay Contact ..........................................9
9. Efficiency and Power Losses..............................10
10. Lifetime Expectancy and MTBF.........................11
11. Functional Diagram...........................................11
12. Terminals and Wiring........................................12
13. Replacing Units while the System is Running..13
14. Front Side and User Elements...........................14
15. EMC....................................................................15
16. Environment ......................................................16
17. Protection Features ...........................................17
18. Safety Features ..................................................17
19. Dielectric Strength ............................................18
20. Approved, Fulfilled or Tested Standards......... 19
21. Regulatory Product Compliance ...................... 20
22. Physical Dimensions and Weight ..................... 21
23. Accessories ........................................................ 22
23.1. ZM10.WALL – Wall/Panel Mount Bracket22
24. Application Notes............................................. 23
24.1. Peak Current Capability ...........................23
24.2. Adjustment of the Output Voltage.........24
24.3. Back-feeding Loads ..................................25
24.4. External Input Protection.........................25
24.5. Output Circuit Breakers............................25
24.6. Series Operation .......................................26
24.7. Parallel Use to Increase Output Power....26
24.8. Parallel Use for Redundancy ....................27
24.9. Inductive and Capacitive Loads................28
24.10. Operation on Two Phases ........................28
24.11. Use in a Tightly Sealed Enclosure ............28
24.12. Mounting Orientations ............................29
The information given in this document is correct to the best of our knowledge and experience at the time of
publication. If not expressly agreed otherwise, this information does not represent a warranty in the legal sense of the
word. As the state of our knowledge and experience is constantly changing, the information in this data sheet is
subject to revision. We therefore kindly ask you to always use the latest issue of this document.
No part of this document may be reproduced or utilized in any form without our prior permission in writing.
TERMINOLOGY AND ABREVIATIONS
PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol .
Earth, Ground This document uses the term “earth” which is the same as the U.S. term “ground”.
t.b.d. To be defined, value or description will follow later.
AC 230V A figure displayed with the AC or DC before the value represents a nominal voltage with
standard tolerances (usually ±15%) included.
E.g.: DC 12V describes a 12V battery disregarding whether it is full (13.7V) or flat (10V)
230Vac A figure with the unit (Vac) at the end is a momentary figure without any additional
tolerances included.
50Hz vs. 60Hz As long as not otherwise stated, AC 230V parameters are valid at 50Hz mains frequency.
may A key word indicating flexibility of choice with no implied preference.
shall A key word indicating a mandatory requirement.
should A key word indicating flexibility of choice with a strongly preferred implementation.

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
3/28
1. I
NTENDED
U
SE
This device is designed for installation in an enclosure and is intended for the general professional use such as in industrial
control, office, communication, and instrumentation equipment.
Do not use this device in equipment, where malfunctioning may cause severe personal injury or threaten human life without
additional appropriate safety devices that are suited for the end-application.
If this device is used in a manner outside of its specification, the protection provided by the device may be impaired.
2. I
NSTALLATION INSTRUCTIONS
WARNING
Risk of electrical shock, fire, personal injury or death.
- Turn input power off before working on the device. Protect against inadvertent re-powering.
- Make sure that the wiring is correct by following all local and national codes.
- Do not modify or repair the unit.
- Do not open the unit as high voltages are present inside.
- Use caution to prevent any foreign objects from entering the housing.
- Do not use in wet locations or in areas where moisture or condensation can be expected.
- Do not touch during power-on, and immediately after power-off. Hot surfaces may cause burns.
Obey the following installation instructions:
This device may only be installed and put into operation by qualified personnel.
This device does not contain serviceable parts. The tripping of an internal fuse is caused by an internal defect.
If damage or malfunction should occur during installation or operation, immediately turn power off and send unit to the
factory for inspection.
Install the device in an enclosure providing protection against electrical, mechanical and fire hazards.
Install the device onto a DIN-rail according to EN 60715 with the input terminals on the bottom of the device. Other
mounting orientations require a reduction in output current.
Make sure that the wiring is correct by following all local and national codes. Use appropriate copper cables that are
designed for a minimum operating temperature of 60°C for ambient temperatures up to +45°C, 75°C for ambient
temperatures up to +60°C and 90°C for ambient temperatures up to +70°C. Ensure that all strands of a stranded wire enter
the terminal connection. Unused screw terminals should be securely tightened.
The device is designed for pollution degree 2 areas in controlled environments. No condensation or frost is allowed.
The enclosure of the device provides a degree of ingress protection of IP20. The housing does not provide protection against
spilled liquids.
The isolation of the device is designed to withstand impulse voltages of overvoltage category III according to IEC 61010-2-201.
The device is designed as “Class of Protection I” equipment according to IEC 61140. Do not use without a proper PE
(Protective Earth) connection.
The device is suitable to be supplied from TN, TT or IT mains networks. The continuous voltage between the input terminals
and the PE potential must not exceed 300Vac.
The input can also be powered from a battery or a similar DC source. The continuous voltage between the supply voltage and
the PE/ground potential must not exceed 375Vdc.
A disconnecting means shall be provided for the input of the device.
The device is designed for convection cooling and does not require an external fan. Do not obstruct airflow and do not cover
ventilation grid!
The device is designed for altitudes up to 6000m. Above 2000m a reduction in output current and over voltage category is
required.
Keep the following minimum installation clearances: 40mm on top, 20mm on the bottom, 5mm left and right side. Increase
the 5mm to 15mm in case the adjacent device is a heat source. When the device is permanently loaded with less than 50%,
the 5mm can be reduced to zero.
The device is designed, tested and approved for branch circuits up to 32A (IEC) and 30A (UL) without additional protection
device. If an external fuse is utilized, do not use circuit breakers smaller than 10A B- or C-Characteristic to avoid a nuisance
tripping of the circuit breaker.

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
4/28
The maximum surrounding air temperature is +70°C. The operational temperature is the same as the ambient or surrounding
air temperature and is defined 2cm below the device.
The device is designed to operate in areas between 5% and 95% relative humidity.
Do not unplug the connectors more often than 20 times in total.

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
5/28
3. AC-INPUT
AC input
nom. AC 100-240V Suitable for TN-, TT- and IT mains networks
AC input range
85-264Vac
264-300Vac < 500ms
A
llowed voltage L or N to earth max. 300Vac Continuous, IEC 62477-1
Inpu
t frequency nom. 50–60Hz ±6%
Turn
-on voltage typ. 82Vac Steady-state value, see Fig. 3-1
Shut
-down voltage typ. 72Vac Steady-state value, see Fig. 3-1
External input pr
otection See recommendations in chapter 24.4.
AC 100V AC 120V AC 230V
Input current
typ. 5.17A 4.28A 2.25A At 20A, see Fig. 3-3
Power fa
ctor*) typ. 0.996 0.996 0.980 At 20A, see Fig. 3-4
Cre
st factor**) typ. 1.65 1.63 1.63 At 20A
Start
-up delay typ. 450ms 420ms 440ms See Fig. 3-2
Rise t
ime typ. 145ms 145ms 145ms At 20A const. current load, 0mF
load capacitance, see Fig. 3-2
typ. 160ms 160ms 160ms At 20A const. current load, 20mF
load capacitance, see Fig. 3-2
T
urn-on overshoot max. 1V 1V 1V See Fig. 3-2
*) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
**) The crest factor is the mathematical ratio of the peak value to RMS value of the input current waveform.
Fig. 3-1 Input voltage range Fig. 3-2 Turn-on behavior, definitions
Turn-on
85V
Rated
input range max.
500ms
VIN
POUT
300Vac
264V
Shut-down
Start-up
delay Rise Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
Fig. 3-3 Input current vs. output current Fig. 3-4 Power factor vs. output current
24A
2 4 6 8 10 12 14 16 18
0
1
2
3
4
5
6A
Input Current, typ.
20 22
a) 100Vac
b) 120Vac
c) 230Vac
b
a
c
Output Current
Power Factor, typ.
2 4 6 8 10 12 14 16 18 24A
0.75
0.8
0.85
0.9
0.95
1.0
20 22
a) 100Vac
b) 120Vac
c) 230Vac
a, b
c
Output Current

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
6/28
4. DC-I
NPUT
DC input
nom. DC 110-150V ±20%
DC input rang
e 88-180Vdc
DC input current
typ. 4.64A At 110Vdc, at 20A
Allowed Voltage
L/N to Earth max. 375Vdc Continuous, IEC 62477-1
T
urn-on voltage typ. 80Vdc Steady state value
Shut
-down voltage typ. 70Vdc Steady state value
Fig. 4-1 Wiring for DC Input Instructions for DC use:
+
-
Load
L
PE
+
-
Power Supply
AC
DC
Battery
N
a) Use a battery or a similar DC source. A supply from the
intermediate DC-bus of a frequency converter is not
recommended and can cause a malfunction or damage
the unit.
b) Connect +pole to L and –pole to N.
c) Connect the PE terminal to an earth wire or to the
machine ground.
5. I
NPUT
I
NRUSH
C
URRENT
An active inrush limitation circuit limits the input inrush current after turn-on of the input voltage.
The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on.
AC 100V AC 120V AC 230V
Inrush curr
ent max. 15Apeak 12Apeak 5.5Apeak Temperature independent
typ. 12Apeak 10Apeak 4.5Apeak Temperature independent
Inru
sh energy max. negligible small
Fig. 5-1 Typical input inrush current
behaviour at nominal load and 25°C ambient

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
7/28
6. O
UTPUT
Ou
tput voltage nom. DC 24V 23.8 - 25.2V
The device is featured with a “soft output regulation characteristic” in order to
achieve current share between multiple devices, when they are connected in parallel.
The “soft output regulation characteristic” regulates the output voltage in such a
manner that the voltage at no load is approx. 4% higher than at nominal load.
Adjustment
range See chapter 24.2
Factory se
ttings 24.1V ±0.2%, at 20A, cold unit (results to typ. 23.9V±0.2%
at 24A and typ. 25.1V±0.2% at no load)
Line re
gulation max. 10mV 85-300Vac
Load regulation
typ. 1000mV Static value, 0A 20A; see Fig. 6-1
Ripp
le and noise voltage max. 100mVpp 10Hz to 20MHz, 50Ohm
Output curr
ent nom. 20A Up to 60°C ambient temperature, see Fig. 16-1
nom. 15A At 70°C ambient temperature, see Fig. 16-1
Derate linearly between +60°C to +70°C, see chapter 16
PowerBoost
*) nom. 24A Up to 45°C ambient temperature, see Fig. 16-1
PowerBoost decreases linearly to nominal power between +45°C and +60°C, see
chapter 16
Fu
se breaking current typ. 60A Up to 12ms once every five seconds, see Fig. 6-3
The output voltage stays above 20V. See chapter
24.1 for more peak current measurements.
Overload behaviour
Continuous
current
Output voltage > 13Vdc, see Fig. 6-1
HiccupPLUS®mode**) Output voltage < 13Vdc, see Fig. 6-1
Short
-circuit current min. 26A***) Load impedance <10mOhm, see Fig. 6-1
max. 31A***) Load impedance <10mOhm, see Fig. 6-1
max. 9.8A***) Average (R.M.S.) current, load impedance 50mOhm,
see Fig. 6-2.
min. 55A Up to 12ms, load impedance <10mOhm, see Fig. 6-3
typ. 70A Up to 12ms, load impedance <10mOhm, see Fig. 6-3
Output capacitance
typ. 8 000µF Included inside the power supply
*) PowerBoost
This power/ current is continuously allowed up to an ambient temperature of 45°C.
Above 45°C, do not use this power/ current longer than a duty cycle of 10% and/ or not longer than 1 minute every 10 minutes.
**) HiccupPLUS®Mode
At heavy overloads (when output voltage falls below 13V), the power supply delivers continuous output current for 2s. After this, the
output is switched off for approx. 18s before a new start attempt is automatically performed. This cycle is repeated as long as the
overload exists. If the overload has been cleared, the device will operate normally. See Fig. 6-2.
***) Discharge current of output capacitors is not included.
Fig. 6-1 Output voltage vs. output current, typ. Fig. 6-2 Short-circuit on output, HiccupPLUS mode, typ.
Output Voltage
0
0 25
4
8
12
28V
16
20
24
40A155 10 20 30 35
Output Current
Continuous
current
HiccupPLUS
mode
Output
Current
0
29A
18s 18s
18s 2s 2s
2s
t
Short -circuit Normal
operation
Normal
operation

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
8/28
Fig. 6-3 Dynamic overcurrent capability, typ.
Output Voltage (dynamic behavior, < 12ms)
0
0
4
8
12
28V
16
20
24
70A30
10 40 50
20 60
Output Current
7. HOLD-UP TIME
AC 100V AC 120V AC 230V
Ho
ld-up Time typ. 65ms 65ms 65ms At 10A, see Fig. 7-1
min. 54ms 54ms 54ms At 10A, see Fig. 7-1
typ. 32ms 32ms 32ms At 20A, see Fig. 7-1
min. 24ms 24ms 24ms At 20A, see Fig. 7-1
Fig. 7-1 Hold-up time vs. input voltage Fig. 7-2 Shut-down behavior, definitions
0
10
20
30
40
80ms
85 120 155 190 230Vac
Input Voltage
50
60
Hold-up Time
20A, typ.
10A, min.
10A, typ.
70
20A, min.
- 5%
Hold-up Time
Zero Transition
Output
Voltage
Input
Voltage

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
9/28
8. DC-OK
R
ELAY
C
ONTACT
This feature monitors the output voltage of the power supply in front of the decoupling device (see also chapter 11).
Contact closes
As soon as the output voltage reaches typ. 22Vdc.
Contact opens
As soon as the output voltage dips below 22Vdc.
Short dips will be extended to a signal length of 100ms. Dips shorter than 1ms will be ignored.
Contact ratings
max. 60Vdc 0.3A, 30Vdc 1A, 30Vac 0.5A resistive load
min. 1mA at 5Vdc min. permissible load
Isolation voltag
e See dielectric strength table in chapter 19.
Fig. 8-1 DC-ok relay contact behavior
100ms
22Vdc
<
1ms
open openclosed closed
>
1ms

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
10/28
9. E
FFICIENCY AND
P
OWER
L
OSSES
AC 100V AC 120V AC 230V
Efficien
cy typ. 93.2% 93.8% 95.2% At 20A
typ. 93.1% 93.7% 95.1% At 24A (PowerBoost)
Average efficiency
*) typ. 92.8% 93.4% 94.6% 25% at 5A, 25% at 10A,
25% at 15A. 25% at 20A
Power losses
typ. 3.9W 3.5W 3.3W At 0A
typ. 17.4W 16.4W 13.8W At 10A
typ. 35.0W 31.7W 24.2W At 20A
typ. 42.7W 38.7W 29.7W At 24A (PowerBoost)
*) The average efficiency is an assumption for a typical application where the power supply is loaded with 25% of the nominal load for 25%
of the time, 50% of the nominal load for another 25% of the time, 75% of the nominal load for another 25% of the time and with 100%
of the nominal load for the rest of the time.
Fig. 9-1 Efficiency vs. output current, typ Fig. 9-2 Losses vs. output current, typ.
Efficiency
4 6 8 10 12 14 18 20 24A
87
88
90
91
92
93
94
95
96%
Output Current
16 22
(a)
(b)
(c)
(a) 100Vac
(b) 120Vac
(c) 230Vac
Power Losses
0 2 6 8 12 14 24A
5
0
10
20
30
40W
18 20
410 16
Output Current
22
(a)
(b)
(c)
(a) 100Vac
(b) 120Vac
(c) 230Vac
35
25
15
Fig. 9-3 Efficiency vs. input voltage at 20A,
typ.
Fig. 9-4 Losses vs. input voltage at 20A, typ.
Efficiency
120 180 230 264Vac
90
91
92
93
Input Voltage
94
95
96%
10085
Power Losses
120 180 230 264Vac
10
15
20
25
Input Voltage
30
35
40W
100
85

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
11/28
10. L
IFETIME
E
XPECTANCY AND
MTBF
AC 100V AC 120V AC 230V
Lifetime expectancy
*) 117 000h 136 000h*) 164 000h*) At 10A and 40°C
331 000h*) 386 000h*) 465 000h*) At 10A and 25°C
40 000h 53 000h 90 000h At 20A and 40°C
114 000h 150 000h*) 253 000h*) At 20A and 25°C
16 000h 25 000h 47 000h At 24A and 40°C
44 000h 69 000h 134 000h*) At 24A and 25°C
MTBF
**) SN 29500, IEC 61709 387 000h 412 000h 543 000h At 20A and 40°C
723 000h 768 000h 976 000h At 20A and 25°C
MTBF
**) MIL HDBK 217F 164 000h 169 000h 199 000h At 20A and 40°C;
Ground Benign GB40
224 000h 231 000h 272 000h At 20A and 25°C;
Ground Benign GB25
34 000h 36 000h 42 000h At 20A and 40°C;
Ground Fixed GF40
45 000h 47 000h 56 000h At 20A and 25°C;
Ground Fixed GF25
*) The Lifetime expectancy shown in the table indicates the minimum operating hours (service life) and is determined by the lifetime
expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specified in operational hours and is calculated according to
the capacitor’s manufacturer specification. The manufacturer of the electrolytic capacitors only guarantees a maximum life of up to 15
years (131 400h). Any number exceeding this value is a calculated theoretical lifetime which can be used to compare devices.
**) MTBF stands for Mean Time Between Failure, which is calculated according to statistical device failures, and indicates reliability of a
device. It is the statistical representation of the likelihood of a unit to fail and does not necessarily represent the life of a product.
The MTBF figure is a statistical representation of the likelihood of a device to fail. A MTBF figure of e.g. 1 000 000h means that
statistically one unit will fail every 100 hours if 10 000 units are installed in the field. However, it cannot be determined if the failed
unit has been running for 50 000h or only for 100h.
11. F
UNCTIONAL
D
IAGRAM
Fig. 11-1 Functional diagram
+
-
Output
Over-
Voltage
Protection
PFC
Converter
Power
Converter
Output
Filter
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input Rectifier
Active Inrush Limiter
L
N
Decoupling*)
Output
Voltage
Regulator
Output
Voltage
Monitor
VOUT
DC-ok
Contact
DC-ok
LED
DC-ok
Relay
*) Decoupling utilizes a MOSFET

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
12/28
12. T
ERMINALS AND
W
IRING
The terminals are IP20 Finger safe constructed and suitable for field- and factory wiring.
Input Output DC-OK-Signal
Type
plug connector with
screw termination
plug connector with
screw termination
plug connector with
screw termination
Sol
id wire max. 4mm2max. 6mm2max. 1.5mm2
Stranded wire
max. 2.5mm2max. 6mm2max. 1.5mm2
America
n Wire Gauge AWG 20-12 AWG 24-10 AWG 26-14
Max. wire di
ameter 2.4mm
(including ferrules)
3.2mm
(including ferrules)
1.8mm
(including ferrules)
Recomm
ended tightening torque max. 0.5Nm max. 0.6Nm max. 0.8Nm
Wire stripping le
ngth 7mm 12mm 6mm
Scre
wdriver 3.5mm slotted or cross-
head No 2
3.5mm slotted or cross-
head No 2
3.5mm slotted
In
structions:
a)
Use appropriate copper cables that are designed for minimum operating temperatures of:
60°C for ambient up to 45°C and
75°C for ambient up to 60°C minimum
90°C for ambient up to 70°C minimum.
b)
Follow national installation codes and installation regulations!
c)
Ensure that all strands of a stranded wire enter the terminal connection!
d
) Unused terminal compartments should be securely tightened.
e
) Ferrules are allowed.

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
13/28
13. R
EPLACING
U
NITS WHILE THE
S
YSTEM IS
R
UNNING

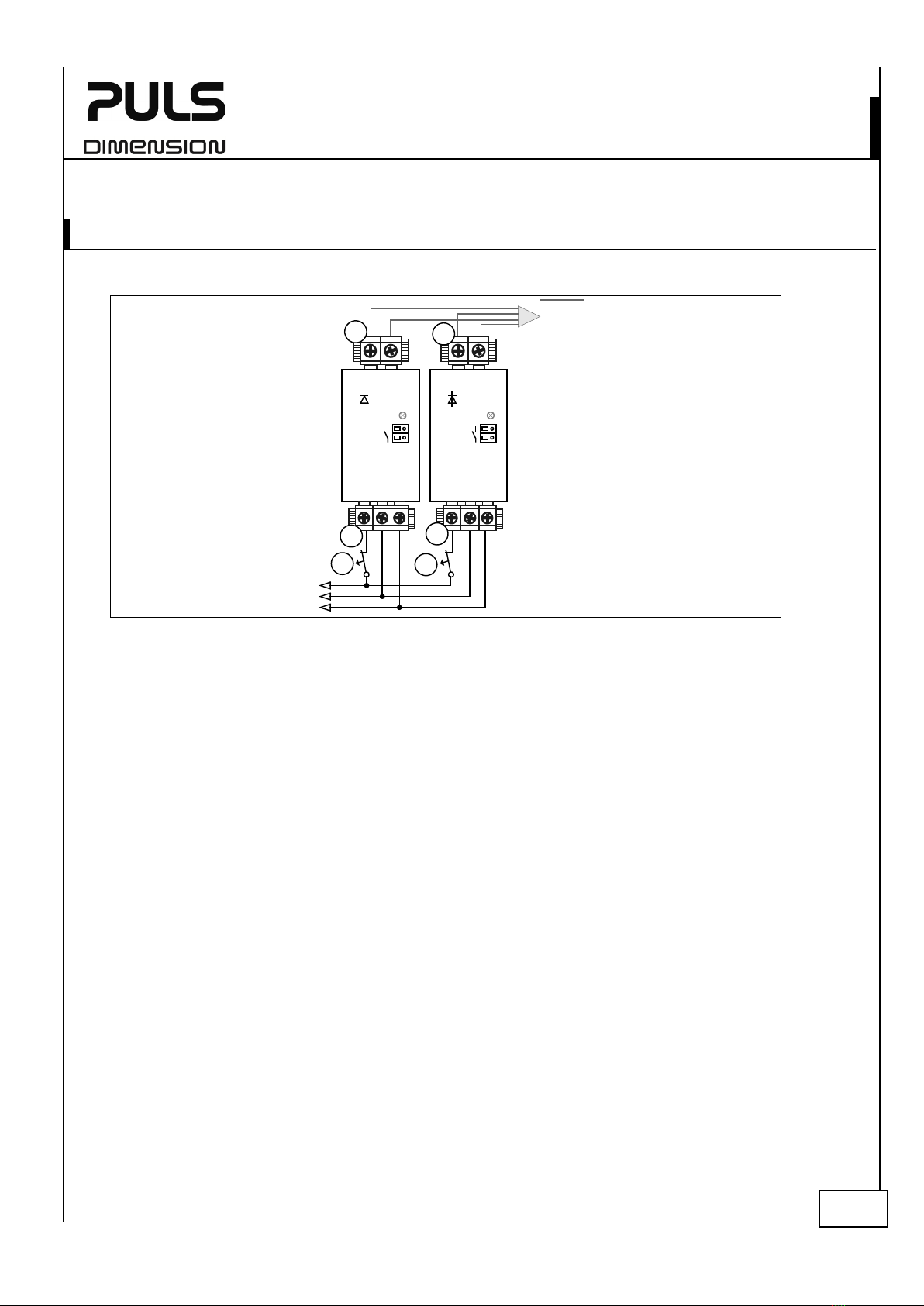

Fig. 13-1 Replacing the power supply or redundancy module while the system is running
Load
II
L
N
PE
1a
L N PE
+-
CP20.241-R2-73
Power Supply
DC-OK
DC-
OK
Output 24V 20A
Input
L N PE
+-
CP20.241-R2-73
Power Supply
DC-OK
DC-
OK
Output 24V 20A
Input
1b
2a
3a 3b
2b
Instructions:
-Switch-off circuit breaker (1a).
-Remove plug (2a).
-Remove plug (3a). The plug prevents the cables from shorting.
-Change power supply.
-Put the plug (3a) back in.
-Put the plug (2a) back in.
-Turn-on the circuit breaker (1a).
-The circuit is redundant again.
To replace the right power supply or redundancy module, use the same procedure but turn off circuit breaker (1b) and
remove plug / plug in (2b) and (3b).

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
14/28
14. F
RONT
S
IDE AND
U
SER
E
LEMENTS

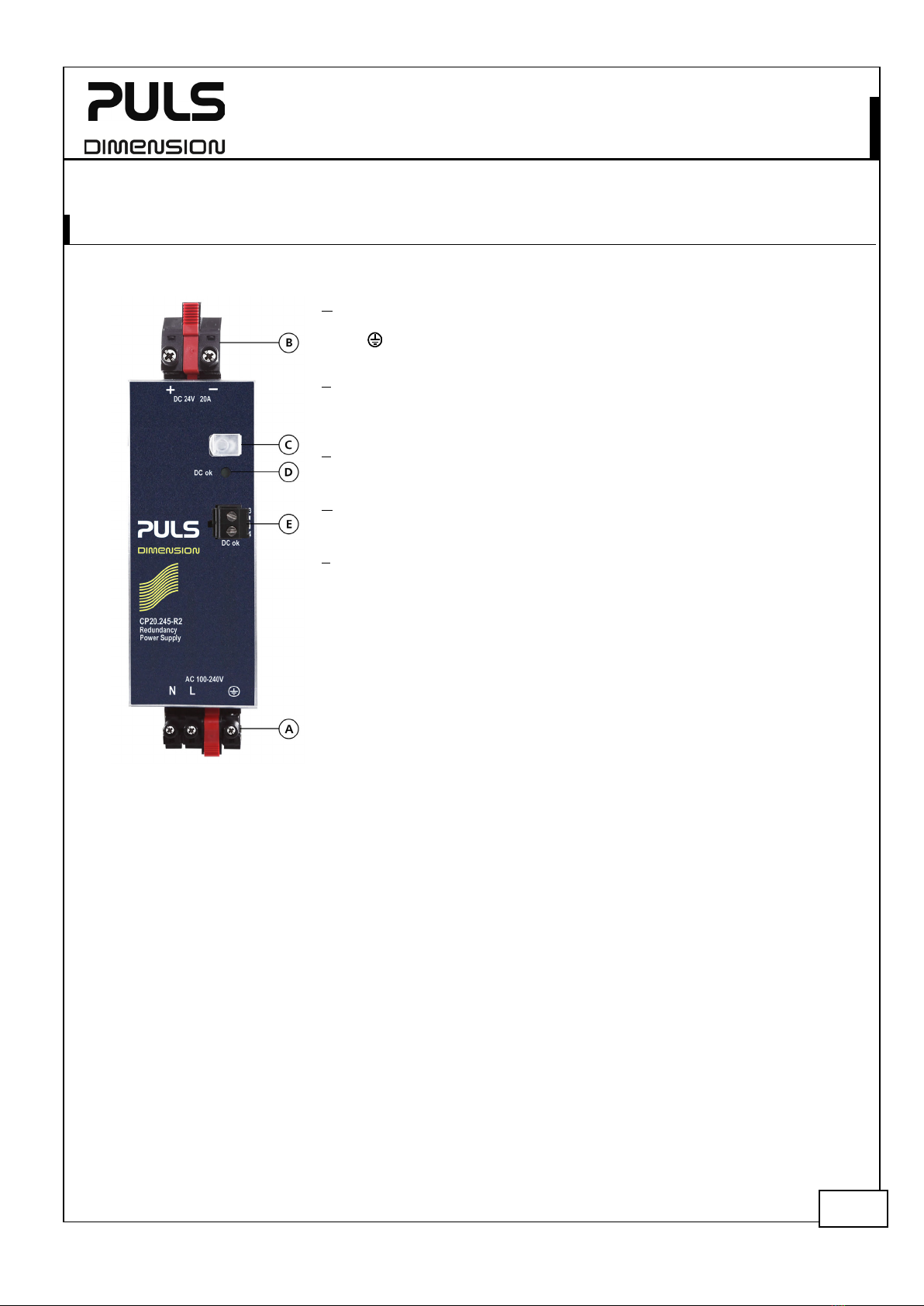

Fig. 14-1 Front side
A Input Terminals (plug connector)
N, L Line input
PE (Protective Earth) input
B Output Terminals (plug connector)
+ Positive output
–Negative (return) output
C Output voltage potentiometer
See chapter 24.2.
D DC-OK LED (green)
On, when the output voltage is above 22V.
E DC-OK Relay Contact (plug connector)
The DC-OK relay contact is synchronized with the DC-OK LED.
See chapter 8 for details.

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
15/28
15. EMC
The power supply is suitable for applications in industrial environment as well as in residential, commercial and light
industry environment without any restrictions.
EMC Immunity
According to generic standards: EN 61000-6-1 and EN 61000-6-2
Electrostatic discharge
EN 61000-4-2 Contact discharge
Air discharge
8kV
15kV
Criterion A
Criterion A
Electromagnetic RF
field EN 61000-4-3 80MHz-2.7GHz 20V/m Criterion A
Fast
transients (Burst) EN 61000-4-4 Input lines
Output lines
DC-OK signal (coupling clamp)
4kV
2kV
2kV
Criterion A
Criterion A
Criterion A
S
urge voltage on input EN 61000-4-5
L

N
L PE, N PE
2kV
3kV
Criterion A
Criterion A
S
urge voltage on output EN 61000-4-5 + -
+ / - PE
1kV
2kV
Criterion A
Criterion A
Surge voltage on DC
-OK EN 61000-4-5 DC-OK signal PE 1kV Criterion A
Condu
cted disturbance EN 61000-4-6 0.15-80MHz 20V Criterion A
Mains vo
ltage dips EN 61000-4-11
0% of 100Vac
40% of 100Vac
70% of 100Vac
0% of 200Vac
40% of 200Vac
70% of 200Vac
0Vac, 20ms
40Vac, 200ms
70Vac, 500ms
0Vac, 20ms
80Vac, 200ms
140Vac, 500ms
Criterion A
Criterion C
Criterion A
Criterion A
Criterion A
Criterion A
Voltage interruptions
EN 61000-4-11 0% of 200Vac (=0V) 5000ms Criterion C
Voltage sags
SEMI F47 0706 Dips on the input voltage according to SEMI F47 standard
80% of 120Vac (96Vac)
70% of 120Vac (84Vac)
50% of 120Vac (60Vac)
1000ms
500ms
200ms
Criterion A
Criterion A
Criterion A
Powerful transients
VDE 0160 Over entire load range 750V, 0.3ms Criterion A
Criterions:
A: Power supply shows normal operation behavior within the defined limits.
C: Temporary loss of function is possible. Power supply may shut-down and restarts by itself. No damage or hazards for the power supply
will occur.
EMC E
mission According to generic standards: EN 61000-6-3 and EN 61000-6-4
Conducted emission
inpu
t lines
EN 55011, EN 55022, FCC Part 15, CISPR 11, CISPR 22 Class B
Conducted emission
out
put lines**)
IEC/CISPR 16-1-2, IEC/CISPR 16-2-1
Limits for DC power port
according EN 61000-6-3 fulfilled
Radiated emissio
n EN 55011, EN 55022 Class B
Harmonic in
put current EN 61000-3-2 Class A equipment: fulfilled
Class C equipment: fulfilled in
the load range from 8 to 24A
Voltage fluctuations, flicker
EN 61000-3-3 Fulfilled*)
This device complies with FCC Part 15 rules
.
Operation
is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this
device mus
t accept any interference received, including interference that may cause undesired operation.
*) tested with constant current loads, no pulsing
**) for information only, not mandatory for EN 61000-6-3

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
16/28
S
witching Frequencies The power supply has two converters with two different switching frequencies included.
Switching fre
quency 1 70kHz to 130kHz PFC converter, input voltage and output power dependent
Switching fre
quency 2 80kHz to 140kHz Main converter, output power dependent
16. E
NVIRONMENT
Operati
onal temperature1) -40°C to +70°CReduce output power according Fig. 16-1
Stor
age temperature -40°C to +85°C For storage and transportation
Output de
rating4) 12W/K+60°C to +70°C
Humidity
2) 5 to 95% r.h. IEC 60068-2-30
Atmospheric pressure
110-80kPa
80-47kPa De-rating requirements of Fig. 16-2 apply
Alt
itude Up to 2000m Without any restrictions
2000 to 6000m Derating4) requirements of Fig. 16-2 apply
Altitude de
rating4) 30W/1000m or 5K/1000m Above 2000m , see Fig. 16-2
Over
-voltage category III acc. IEC 61010-2-201, altitudes up to 2000m
II acc. IEC 61010-2-201, altitudes up to 6000m
and atmospheric pressures from 80-47kPa
Degree of pollution
2
acc. IEC 61010-2-201, not conductive
Vibratio
n sinusoidal3) 2-17.8Hz: ±1.6mm; 17.8-500Hz: 2g
2 hours / axis
IEC 60068-2-6
Shock3) 30g 6ms, 20g 11ms
3 bumps / direction, 18 bumps in total
IEC 60068-2-27
LABS com
patibility The unit does not release any silicone or other LABS-critical substances and is suitable for
use in paint shops.
Audible noise
Some small audible noise will be emitted from the power supply
1)Operational temperature is the same as the ambient or surrounding temperature and is defined as the air temperature 2cm below the unit.
2) Do not energize while condensation is present
3) Tested in combination with DIN-Rails according to EN 60715 with a height of 15mm and a thickness of 1.3mm and standard orientation.
4) The de-rating is not hardware controlled. The customer has to take care by himself to stay below the de-rated current limits in order not to
overload the unit.

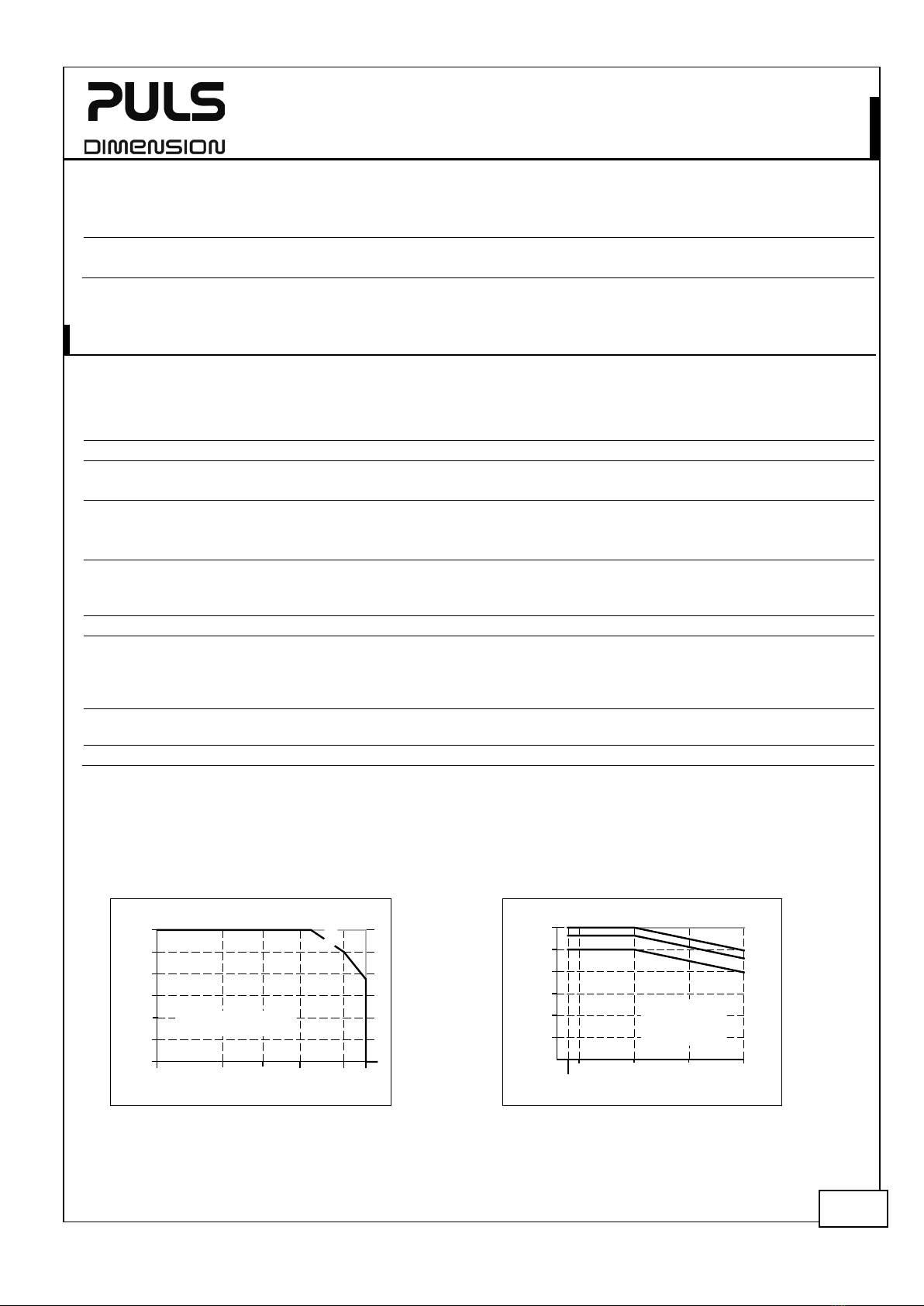

Fig. 16-1 Output current vs. ambient temp.
(Inom = 20A; Iout with PowerBoost = 24A)
Fig. 16-2 Output current vs. altitude
Allowed Output Current
0
-40 0 20 40 70°C
4A
8A
12A
16A
20A
24A
60
B
A
Ambient Temperature
A... continuous
B... short term (max. 5s)
2000m 4000m 6000m
4A
8A
12A
16A
20A
24A
Altitude
Allowed Output Current
B
C
A... Tamb < 60°C
B... Tamb < 50°C
C... Tamb < 45°C
D... Short term
A
D
AP*) 80kPa 62kPa 47kPa110kPa
0m
*) Atmospheric pressure

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
17/28
17. P
ROTECTION
F
EATURES
Output protection
Electronically protected against overload, no-load and short-circuits*)
Output
over-voltage protection typ. 30.5Vdc
max. 32Vdc
In case of an internal power supply defect, a redundant
circuit limits the maximum output voltage. The output
shuts down and performs three restart attempts. If the
failure continues for longer than 1s , the output shuts
down. Cycle input power to reset.
De
gree of protection IP 20 EN/IEC 60529
Penetrat
ion protection > 5mm E.g. screws, small parts
O
ver-temperature protection yes **) Output shut-down with automatic restart
Input transient protection
MOV
(Metal Oxide Varistor)
For protection values see chapter 15 (EMC).
Int
ernal input fuse included Not user replaceable slow-blow high-braking capacity
fuse
*) In case of a protection event, audible noise may occur.
**) The temperature sensor is installed inside the isolating transformer and turns the unit off in safety critical situations (e.g. customer does
not care about de-rating requirements, ambient temperature too high, obstructs the airflow or install the unit in unsuitable mounting
orientation)
There is no correlation between the operating temperature and turn-off temperature since this is dependent on input voltage, load and
installation methods.
18. SAFETY FEATURES
Input /
output separation*) SELV IEC/EN 60950-1
PELV IEC/EN 60204-1, EN 62477-1, IEC 60364-4-41
double or reinforced insulation
Clas
s of protection I PE (Protective Earth) connection required
Isolation resistance
> 500MOhm At delivered condition between input and output,
measured with 500Vdc
> 500MOhm At delivered condition between input and PE,
measured with 500Vdc
> 500MOhm At delivered condition between output and PE,
measured with 500Vdc
> 500MOhm At delivered condition between output and DC-OK
contacts, measured with 500Vdc
PE resistance
< 0.1Ohm Resistance between PE terminal and the housing in the
area of the DIN-rail mounting bracket.
Touch current (
leakage current) typ. 0.32mA / 0.89mA At 100Vac, 50Hz, TN-,TT-mains / IT-mains
typ. 0.46mA / 1.27mA At 120Vac, 60Hz, TN-,TT-mains / IT-mains
typ. 0.73mA / 1.91mA At 230Vac, 50Hz, TN-,TT-mains / IT-mains
max. 0.40mA / 1.07mA At 110Vac, 50Hz, TN-,TT-mains / IT-mains
max. 0.56mA / 1.53mA At 132Vac, 60Hz, TN-,TT-mains / IT-mains
max. 0.90mA / 2.34mA At 264Vac, 50Hz, TN-,TT-mains / IT-mains
*) double or reinforced insulation

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
18/28
19. D
IELECTRIC
S
TRENGTH
The output voltage is floating and has no ohmic connection to the ground. Type and factory tests are conducted by
the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the
voltage with a slow ramp (2s up and 2s down). Connect all input-terminals together as well as all output poles before
conducting the test. When testing, set the cut-off current settings to the value in the table below.

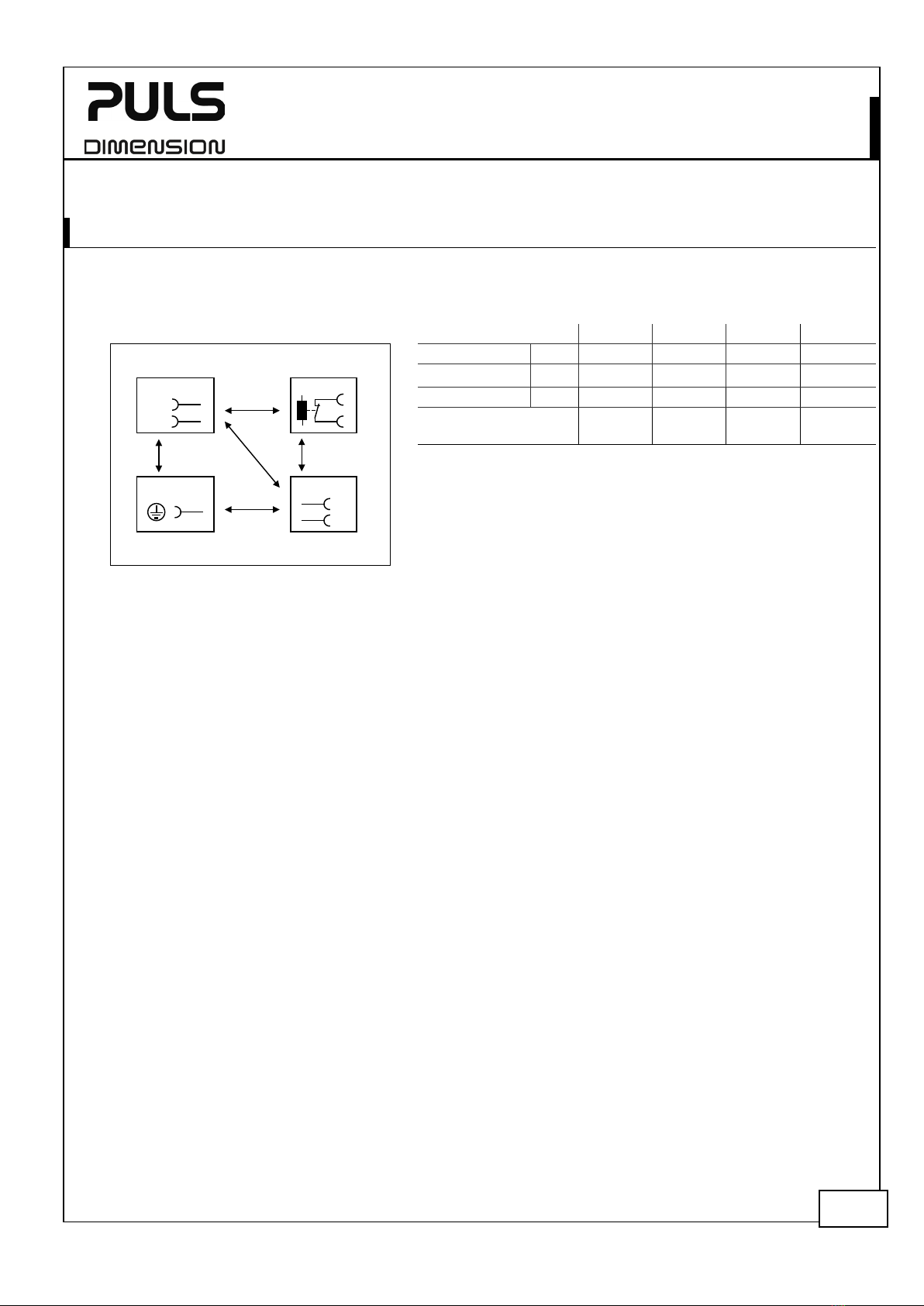

Fig. 19-1 Dielectric strength A B C D
A D
C
B
B
*)
N
L
Input DC-ok
Earth, PE Output
-
+
Type test 60s 2500Vac 3000Vac 1000Vac 500Vac
Factory test 5s 2500Vac 2500Vac 500Vac 500Vac
Field test 5s 2000Vac 2000Vac 500Vac 500Vac
Cut-off current setting
Field test)
>15mA >15mA >20mA >1mA
To fulfil the PELV requirements according to EN60204-1 § 6.4.1, we
recommend that either the + pole, the – pole or any other part of
the output circuit shall be connected to the protective earth
system. This helps to avoid situations in which a load starts
unexpectedly or cannot be switched off when unnoticed earth
faults occur.
B*) When testing input to DC-OK ensure that the max. voltage between DC-OK and the output is not exceeded (column D). We recommend
connecting DC-OK pins and the output pins together when performing the test.

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
19/28
20. A
PPROVED
,
F
ULFILLED OR
T
ESTED
S
TANDARDS
IEC
61010-2-201
CB Scheme Certificate
Electrical Equipment for Measurement, Control and
Laboratory Use - Particular requirements for control
equipment
I
EC 62368-1 CB Scheme Certificate
IEC 62368-1 Audio/video, information and
communication technology equipment - Safety
requirements
Output safety level: ES1
UL
61010-2-201
UL Certificate
Listed equipment for category NMTR - Electrical
Equipment for Measurement, Control and Laboratory Use
- Particular requirements for control equipment
Applicable for US and Canada
E-File: E198865
ATEX
Agency Certificate (Bureau Veritas)
EN 60079-0 Explosive atmospheres - General
requirements
EN 60079-7, EN 60079-15 Equipment protection by type
of protection "e" and "n"
Certificate: EPS 17 ATEX 1 089 X
Temperature Code: T4
Type of Protection: ec nC
IEC
60079 (IECEx)
IECEx Certificate
IEC 60079-0 Explosive atmospheres - General
requirements
IEC 60079-7, IEC 60079-15 Equipment protection by
type of protection "e" and "n"
Certificate: IECEx EPS 17.0046X
Temperature Code: T4
Type of Protection: ec nC
Marine (DNV
)
DNV Certificate
DNV Type approved product
Certificate: TAA00002A7
Temperature: Class D
Humidity: Class B
Vibration: Class C
EMC: Class B
Enclosure: Class A
M
arine (LR)
Loyds Register Certificate
Lloyds Register Type approved product
Certificate: LR2001711TA
Category: ENV3
EMC: for bridge and deck zones
Marine (
BV) Bureau Veritas Marine and Offshore Certificate
BV (Bureau Veritas) type approved product
Certificate: 58507/A0 BV
EC-Code: 31B
EMC: for bridge and deck zones

CP20.245-R2
CP
-Series 24V, 20A, SINGLE PHASE INPUT
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
www.pulspower.com Phone [phone] Germany
20/28
Marine (
ABS)
BS Design Assessment Certificate
ABS (American Bureau of Shipment) assessed product
Certificate: 20-1980458-PDA
Bridge and deck zone
Labs
Paint Wetting Impairment Substances Test (or LABS-Test)
Tested for Zone 2 and test class C1 according to VDMA
24364-C1-L/W for solvents and water-based paints
21. R
EGULATORY
P
RODUCT
C
OMPLIANCE
CE
EU Declaration of Conformity
Trade conformity assessment for Europe
The CE mark indicates conformance with the European
- RoHS directive
- EMC directive,
- Low-voltage directive and the
- ATEX directive
REACH Directive
Manufacturer´s Statement
EU-Regulation regarding the Registration, Evaluation,
Authorisation and Restriction of Chemicals
WEEE Directive
Manufacturer´s Statement
EU-Directive on Waste Electrical and Electronic Equipment
RoHS (China RoHS 2)
Manufacturer´s Statement
Administrative Measures for the Restriction of the use of
hazardous substances in electrical and electronic products
25 years
