Pulsar ZRS2768GD User manual

INSTALLATION GUIDE
ENGLISH
code: ZRS2768GD
Name: RACK cabinet, floor standing, fully assembled 27U/600x800
IM ZRS2768GD
Edition: 1st from 20.11.2012
Supersedes: -------------------- EN*
1. Intended use:
The RACK 19” cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in medium and big
companies. It is intended for devices manufactured in enclosures of the 19'’ standard. Due to the RACK cabinets, the
devices are aesthetically mounted and protected against mechanical damage.
2. Specifications:
SPECIFICATIONS
Mounting dimensions: W=19", H=27U
External dimensions: W=600, H=1388, D=800 [mm, +/-2]
Net/gross weight: 74 / 78,9 [kg]
Materials:
- RACK mounting rails: cold-rolled steel SPCC 2mm RAL 9004 – bolted
- horizontal mounting rails: cold-rolled steel SPCC 1,5mm RAL 9004 - bolted
- frame: cold-rolled steel SPCC 1,2mm RAL 9004 - welded
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004 - hinged
- side panels: cold-rolled steel SPCC 1,2mm RAL 9004 - removable
- rear door: cold-rolled steel SPCC 1,2mm RAL 9004 - hinged
Static load: 800 kg (with leveling feet)
Use: inside, IP20
Notes:
- adjustable distance between front and rear RACK rails
- ventilation holes in the front door, top and bottom panel
- possible mounting of a 4-fan tray in the top panel – RAWP800
- cable ducts in the top and bottom panel
- 4 casters without brakes and 4 leveling feet included
- possible assembly of a 100mm high plinth - RAC168
- lockable front door (2 keys included)
- lockable rear door (2 keys included)
- side panels - lock assembly possible - RAZB16
- fully assembled
Certificates, declarations: RoHS

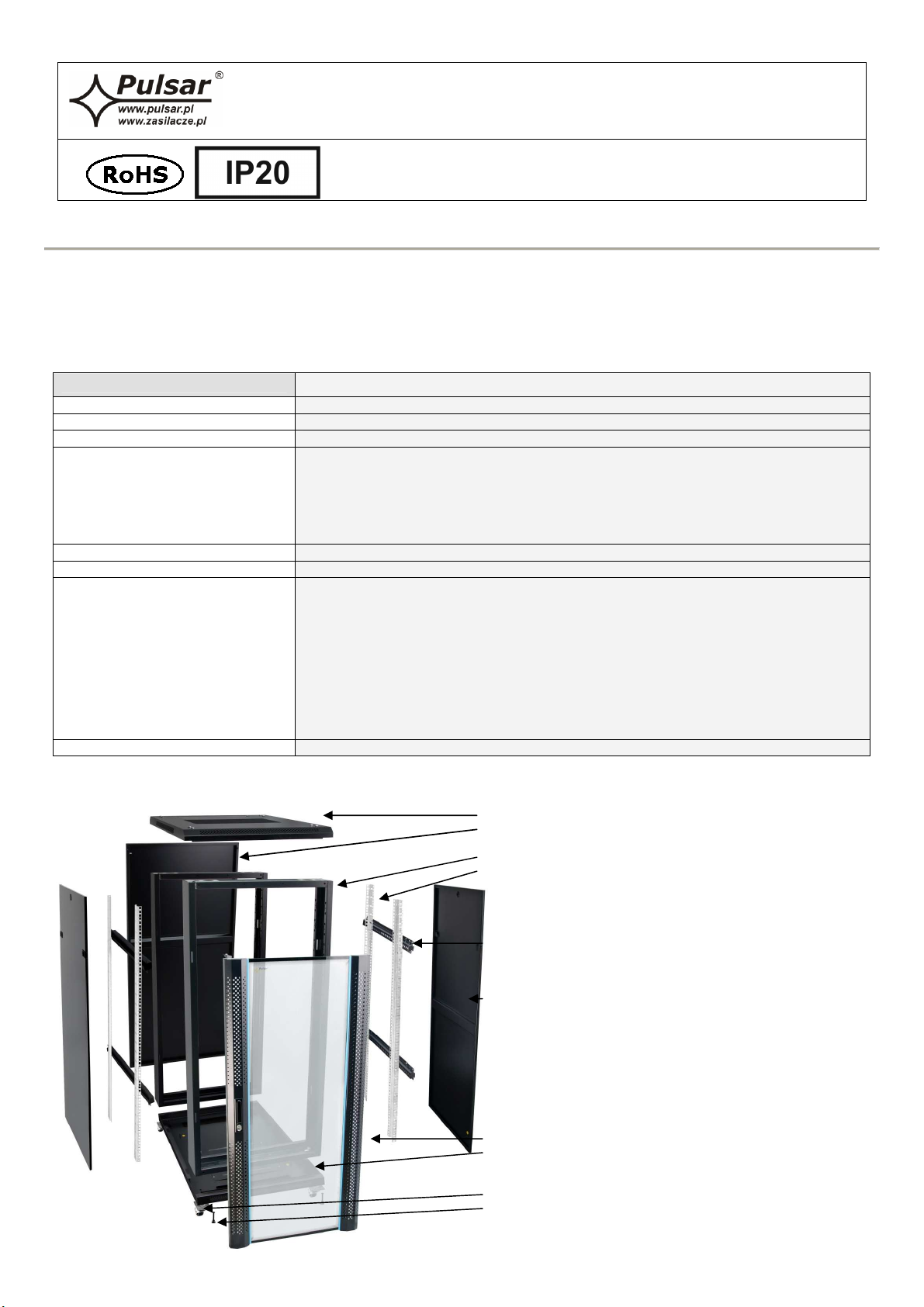

3. Structure of the cabinet.
top panel
rear door
frame
RACK rail
horizontal rail
side panel
front door
bottom panel
2” caster without brake
leveling foot
