Pulsar CHROMA Series User manual

Mains Supply ChromaZone(s)
mains cable
WARNING - THIS APPLIANCE MUST BE EARTHED
For safety we recommend the use of a Residual Current
Circuit Breaker. An RCCB MUST be used when powering
e.g. ChromaFixtures in wet environments.
Electronics On/Off Switch Indicator Neon
Electronics Mains Fuse
- The works correctly on any
mains voltage from 85-277 VAC, 50-60Hz, (self adjusting).
Power consumption: CZ6 - 100 Watts, CZ12 - 200 Watts
depending on the number of fixtures connected and their output
levels. Please see the table shown below for more information.
A with locking IEC female connector attached is
supplied (not supplied with IP Zones). To unlock the IEC
connector, pull/side the red tab towards yourself then pull
connector out. The other end of the cable should be fitted with a
suitably approved and rated mains plug. Note: in some countries
it is a requirement that such a plug be fitted by a qualified
electrician.
with built in .
: 5Amp, HRC, 5x20mm.
Pulsar's Chroma Lighting Fixtures - ChromaStrips ,
ChromaTubes , ChromaPanels , CAR111
ChromaScapes , CBAT17 , ChromaBatten50 ,
ChromaHearts , ChromaInGround , ChromaFlood50 ,
ChromaPoint , ChromaInGroundMR16SS , etc
ChromaFixtures Leaflet
ChromaZone Max Fixture
Loading Data
ChromaZone ,
(User Interface Module)
DMX D M X
CZ6/12
.
TM
TM TM TM
TM TM TM
TM TM TM
TM TM
TM
., contain
state of the art, high brightness, high efficiency Red, Green and
Blue LEDs. These three primary colours can be mixed together
to make an incredible pallet of 16.7 million colours.
Please see the for details of the
luminaires themselves and page 3 -
which will inform you of how many fixtures you may
put on the outputs of different ChromaZones.
The has numerous chases and effects built in
making it possible to achieve fantastic effects without
programming. These internal effects can be selected via the UIM
on the lid of the unit in Stand Alone
mode or from a controller using a digital ( igital ultiple )
signal.
When receiving a signal the can operate in 3, 6, 9, 10, 36,
42 or 46 Channel Modes Please see the lid printing page for
details of these Operating Modes, how to select them, Channel
Listings, and further information.
Each ChromaFixture requires a +24VDC supply and three 0 to
+10V control signals to control the level of Red, Green and Blue.
These control signals and the low voltage power are provided by
the CZ12 and CZ6 controllers which can drive up to 12 or 6
ChromaFixtures respectively.
ChromaZone12 200W - Mk2
TM
CZ12-200
ChromaZone6 100W - Compact
TM
CZ6-100C
ChromaPSU2 PSU
TM
CPSU2
Cable Colours
Green/Yellow =
Brown =
Blue =
Earth / Ground
Live / Phase / Hot
Neutral
ChromaFlex Grey 5 Core Multiway Cable
8075G
8075SUB ChromaFlex Submersible 5 Core Cable
CZ12-200IP ChromaZone12 200W - IP65
TM
Model Outputs Max Load Control 50W 17W CP300 MR16 Link Point Strip 25/X1 Strip X3
CZ12-200(IP) 12 200W DMX 4
12
48 60 96 96 14.4 mts 4.8 mts
CZ6-100C 6 100W DMX 2624 30 48 48 7.2 mts 2.4 mts
CPSU2 235W 0-10V 0 281016
16 2.4 mts 0.6 mts
The CBAT50, CFLD50 and CIG50 require up to 50 Mains Watts
each which will reduce the number of products you can use per
ChromaZone e.g. 4 x CFLD50 = 200W. Do not exceed the max
mains wattage of the zone.
NB - Patents applied for. Trade Marks, Copyright, Registered
and Unregistered Design Rights apply on all Chroma
Products.
CHROMA CHROMARANGE ZONE
CHROMAZONE MAINS SUPPLY
GENERAL INFORMATION
Pulsar Light of Cambridge Limited Tel: Email: Web:, 3 Coldhams Business Park, Cambridge, CB1 3LH, England 44 (0)1223 403500 [email protected] www.pulsarlight.com
7571 PSU12-200IP Instructions

DMX In/Thru 5 Pin XLR Connectors
Digital Control Signals:
DMX SIGNAL
4 PIN XLR Low Voltage and DMX Output Socket
ChromaZone12
ChromaZone12NP
ChromaZone12
ChromaZone12
ChromaMR16 ChromaPoint
ChromaZone12NPs
ChromaZone12
ChromaZoneNPs
ChromaMR16 ChromaZoneNPs
ChromaPoints
ChromaZone12
-+
5 Pole Wago Output sockets:
ChromaFixtures
ChromaFlex cable
ChromaFlex
ChromaZone ChromaFixture
Wiring:
ChromaFlex
Two 5 pin XLR sockets (in/thru) are
provided. The pin connections of the sockets are:
From March 2008 a 4 pin XLR output socket is fitted to the
. This can provide 24VDC Low Voltage Power
and DMX to feed a (No Power) and may be
used when the is not fully loaded to its 200W
limit.
This is the most economical control solution when many low
power fixtures are to be driven with individual DMX control, for
example in Low Resolution Video displays.
The standard can power up to five
fittings per output or up to 12
fixtures, but all the fixtures on one output would do the same thing.
Now, a number of and low power fittings
may be "slaved" from one powered until its
power limit of 200W is reached. E.g. up to 4
and 60 fixtures, or 11 and 144
could be connected to one powered
- all individually controllable.
The pin connections of the 4 Pin XLR socket are as follows:
LV POWER: Pin 1 = 0V / Chassis Earth Pin 4 = +24VDC
DMX SIGNAL: Pin 2 = Signal Pin 3 = Signal
XLR4 "Scroller Cables" are used for interconnection.
6/12 five pole grey connectors
are provided on the side of the zone, these represent the 6/12
output channels. Each connector provides the necessary power
and signal to drive a ChromaFixture.
Two Connectors are supplied with many of the .
is available from Pulsar.
It is recommended that the maximum run of
between the and a is 20m.
Strip back the outer insulation and the insulation from the
cores of the a suitable distance. Insert a flat blade
screwdriver into the cage clamp connector and press it down to
open the terminal. Insert the wire. Release the screwdriver. The
spring loaded cage clamp holds the wire tightly ensuring a long
term, reliable connection.
PIN No. Function ChromaFlex
Core Colour
0V
1
2
3
4
Red 0-10V
Black
Green 0-10V
Blue 0-10V
Red
Green
Blue
White
+24Vdc
5
Failure of the
usually indicates an internal fault requiring servicing by a
qualified engineer.
Each 24VDC output is protected by an internal, resettable solid
state fuse. Switch off the unit, fix the fault and switch on again to
reset the fuse.
The 0-10V signal inputs and outputs are protected against shorts
to 24V, 0V and static damage.
ChromaZone Electronics 5 Amp, HRC, 5x20mm
Fuse,
The may be wall or ceiling mounted using the
2 x mounting plates which are supplied and are located on the
underside of the tray. Remove the 4 x M4 countersunk posipan
screws, rotate the fixing brackets 180 deg and re-fix to the tray
using the same screws.Avoid over tightening the screws when re-
locating them into the tray.

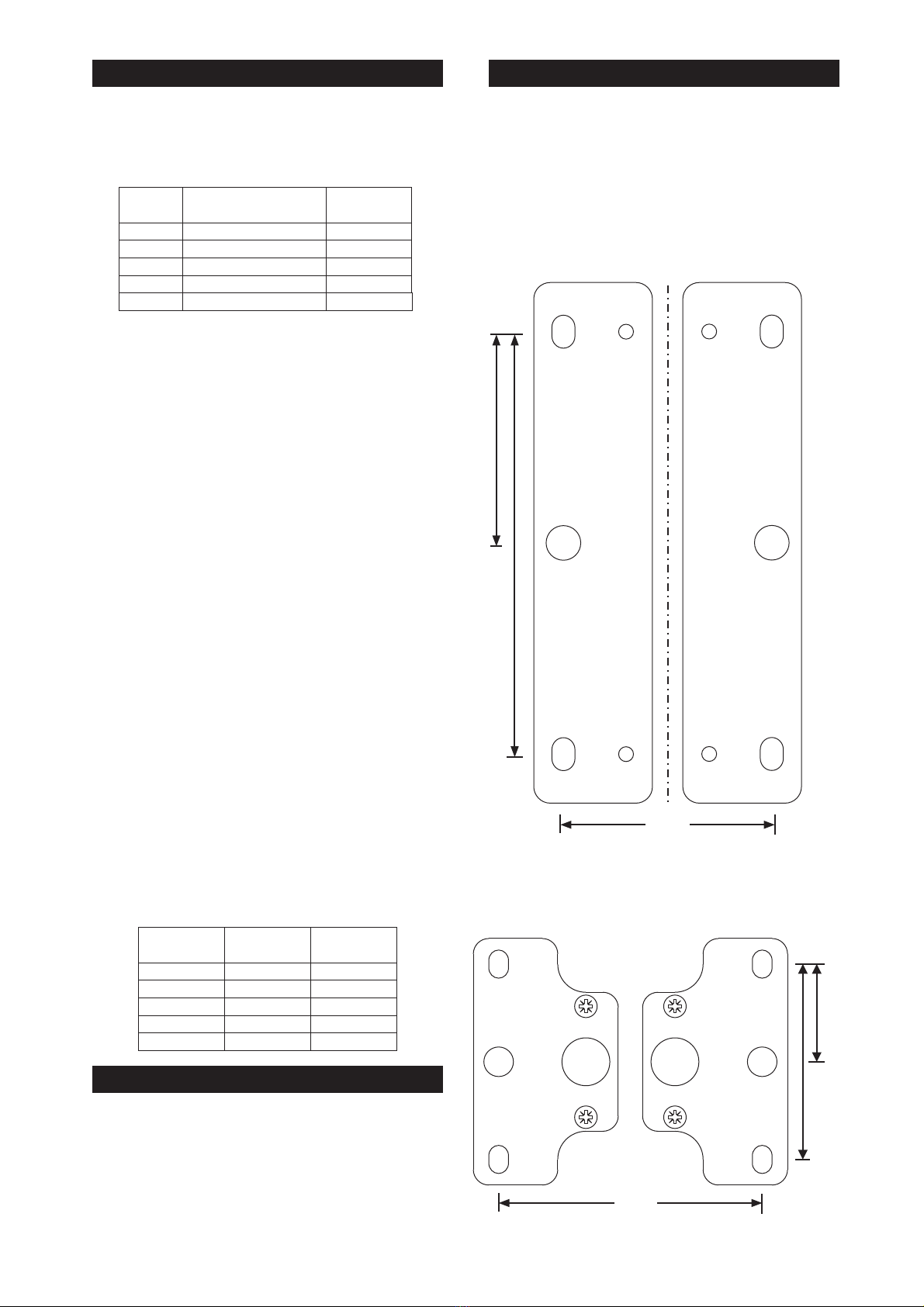

The image shows the fixing brackets with their
dimensions as if they are fitted to the respective tray.
An M6 hexsert can be found near the mains switch, (location also
shown on artwork), this has been installed for use with a Safety
chain.
CZ6/12
CZ6/12
128.0
64.0
304.0
The may also be truss mounted using the M10
nutserts, two are located on the side of the tray and one can be
located on the top of the tray. Ensure you do not over tighten the
fixings in to the tray.
ChromaZone12
250.0
35.0
70.0
The may also be truss mounted using the M10
nutserts, the two M10 Nutserts can be located on the base of the
unit. Ensure you do not over tighten the fixings in to the tray.
ChromaZone6
CZ6 & CZ12 SIGNALS AND CONNECTIONS CZ6 & CZ12 MOUNTING
FUSES AND PRECAUTIONS
PIN No. Function Pulsar DMX
Cable Colours
Screen-Chassis Earth
1
2
3
4
DATA -
Screen
DATA +
no connection
Blue
White
Green
Red
LVS +24VDC (male only)
5

The may be wall or ceiling mounted using the
2 x mounting plates which are supplied and are located on the
underside of the Enclosure. The fixing brackets are not to be
removed from the enclosure.
The image above shows the fixing brackets with
their dimensions as if they are fitted to the respective enclosure.
CZ12-200IP
CZ12-200IP
Mains Wiring:
5 Pole Wago Output Connection Blocks: 6 Double
Orange
ChromaFlex
ChromaZone ChromaFixture
ChromaFlex
DMX SIGNAL:
OUTPUT GLANDS:
A Wago 294 series Mains in / Thru connector is
provided inside the enclosure. Wiring details are shown below.
AMaximum of 2 x 1.5mm cores can be put in to each terminal.
five pole
connectors are provided inside the enclosure, these
represent the 12 output channels. Each connector provides the
necessary power and signal to drive a ChromaFixture.
Shown above are all the output connectors if looking in to the
product from above. The ChromaConnectors will need to be
removed from any ChromaFixture before installing in to the Zone.
It is recommended that the maximum run of
between the and a is 20m.
Strip back the outer insulation and the insulation from the cores of
the a suitable distance. Insert a flat blade
screwdriver into the cage clamp connector and press it down to
open the terminal. Insert the wire. Release the screwdriver. The
spring loaded cage clamp holds the wire tightly ensuring a long
term, reliable connection.
The DMX Digital Control Signals are explained on page 1 & 2.
The DMX connector wiring for an IP Zone is shown below:
16 x M12 Liquid tight Glands are supplied. 12 are for the channel
outputs, 2 are for the Mains In/Thru and 2 for DMX In/Thru. A
Printed legend can be located on the outside of the enclosure.
This is a guide to aid you in the installation of the glands.
Drill a 14.0mm hole and tap to M16x1.5mm. Alternately drill a
hole to the size of 16.0mm and fix using the Gland Nut. When
installing the M12 Glands, ensure the Liquid Tight O-Ring is
placed on the gland before inserting gland in to enclosure.
When replacing the lid, please ensure no debris of any kind is
inside or around the seal of the lid before re-installing.
LN
MAINS IN / THRU
MAX - 2x1.5mm Cables
in each terminal
Cable Colours
Green/Yellow =
Brown =
Blue =
Earth / Ground
Live / Phase / Hot
Neutral

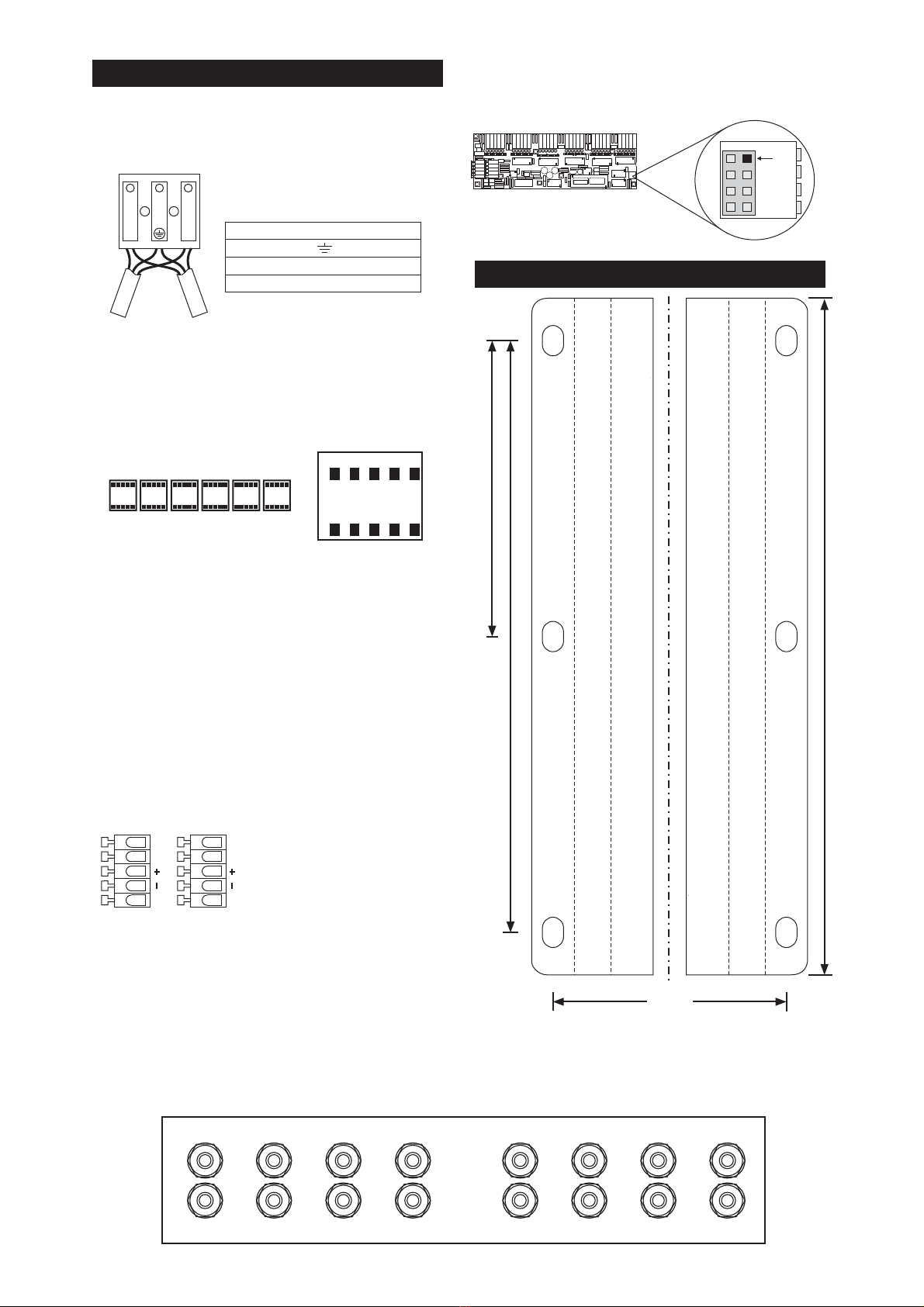

BOTTOM ROW
TOP ROW
13579
11
2468
10 12
BLACK
0V
BGR
+24V
BLUE
GREEN
RED
WHITE
0V
DATA
NC LVS
NC
0V
DATA
NC
DMX IN DMX THRU
(AS VIEWED ON PCB)
The Grey Wago connectors
as viewed on PCB and shown
in the artwork on the inside
of the lid.

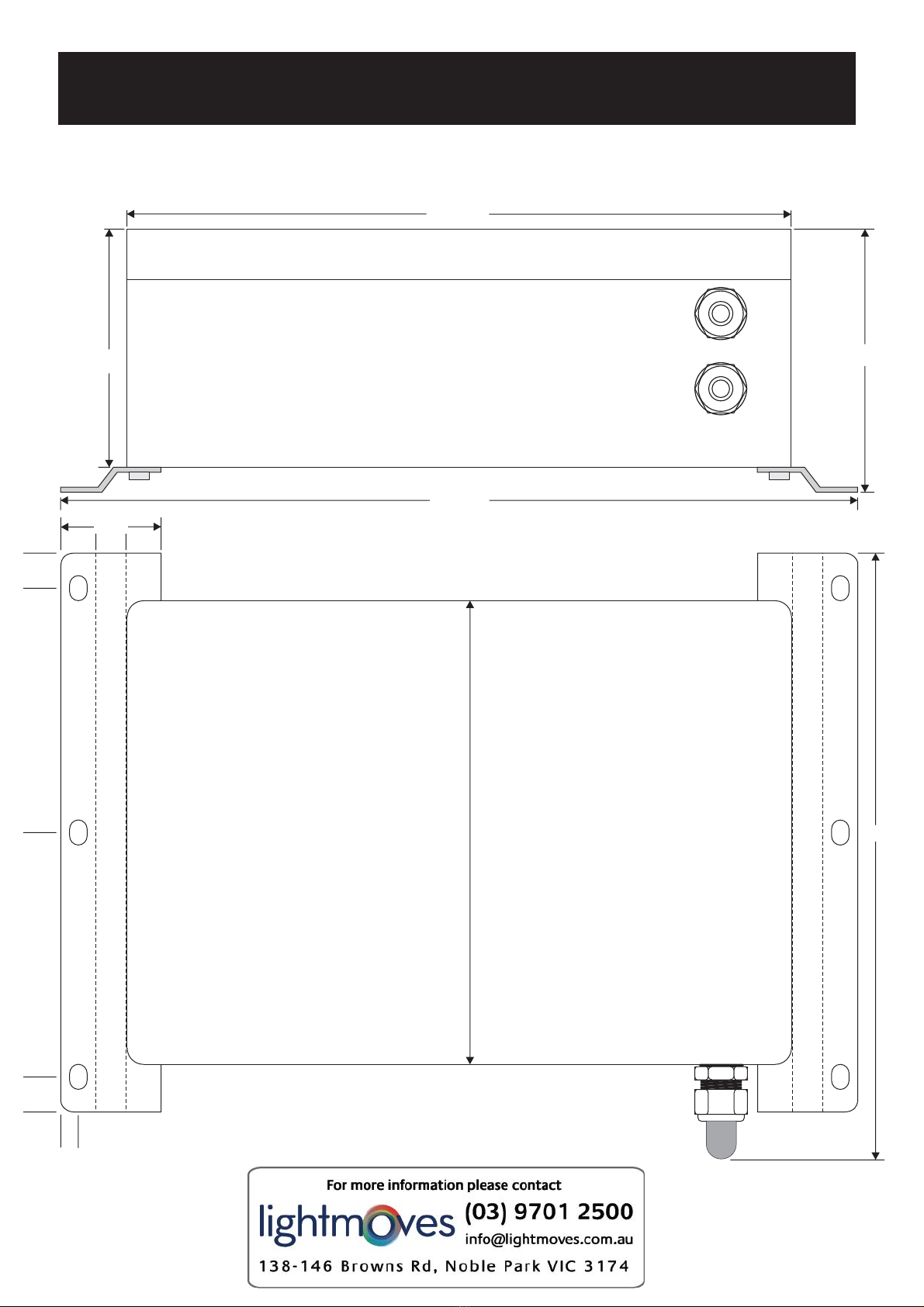

195.0
97.5
304.0
223.0
The can be set up by plugging a UIM Remote (User
Interface Module Remote) in to the PCB mounted header (shown
below). When set up is complete ensure the enclosure lid seal is
seated correctly and the lid screwed down securely.
CZ12-200IP
CZ12 - 200IP MOUNTING
CZ12 - 200 SIGNALS AND CONNECTIONSIP
CABLE GLANDS
GLAND (PULSAR PART 4562)
DRILL HOLE - 14.0MM
TAP HOLE - M16 X 1.5MM
BEFORE INSTALLING
ENSURE LIQUID TIGHT O-RING
IS PLACED ON GLAND
DMX IN 1
DMX THRU 2
MAINS IN
MAINS THRU
3
4
5
6
7
8
9
10
11
12
The top right pin is missing from the
PCB mounted header, this is to ensure
polarity is observed when plugging the
socket in for setup.
+5V
SCL
SDA
0V
Missing
pin

DMX Address: n
Receiving:
(where n=1 to 512)
NO SIGNAL or DMX or PMX or ERROR
LCD DISPLAY:
DMX Address:
ChromaZone Mode:
Channels per Fixture:
Fixture number:
Chase patterns:
A 2 line, 16 character per line, LCD display is
used to set up, and indicate the status of the product.
At switch on, the display shows:
ress the (Up) or (Down) keys to cycle through the Menu
Options (see ).
Press the key on the to change the settings.
Program Mode self cancels after ~30 seconds if no keys
have been pressed.
if, at any time, the display shows , then
there is a problem with the DMX signal. It could be wiring,
termination or poorly implemented DMX.
depending on the operating mode, a block of
3, 6, 9, 10, 36, 42 or 46 channels is received from the DMX signal
see . The is the
number of the first channel in the block.
To set the required , press the or keys on the
until the display shows
Press the key on the , then set the start address
using the or keys. These keys repeat if held down.
When the required number shows in the display,
press the key to save changes or key to restore
the previous settings.
the text (NO SIGNAL / PMX / DMX / ERROR) in
the display is for information only.
The options are 3, 6, 9, 10, 36, 42 and
46 channel modes see .
To set the required , press the or keys on the until
the display shows :
Press the key on the , then select the required
mode using the or keys.d
When the required shows in the display,
press the key to save changes or key to restore
the previous settings.
the CZ12 uses 36 channels per
fixture and the CZ6 uses 18 channels per fixture.
To view the number of , press the or
keys on the until the display shows
Pressing the key on the , followed by the or
keys will have no effect.
Press the key to save changes or key to return
to the previous menu.
36 divided by the
(shown above) gives the number of fixtures available from the
data block.
ACZ12 can only be 1 of 1 fixture.
A CZ6 may therefore be either 1 (or 2) of 2 fixtures.
To set the required , press the or keys on
the until the display shows
Press the key on the , then select the required
number using the or keys.
When the required shows in the display, press
the key to save changes or key to restore the
previous settings.
may be .
To set the required , press the or keys on the
until the display shows :
Press the key on the , then select
using the or keys.
When the required shows in the
display, press the key to save changes or key to
restore the previous settings.
P
LCD Display Sheet
Channel Assignments Tables
Channel Assignments Tables
6 or 12 way
6 or 12 way
X UIM
Note:
Note: Receiving: ERROR
DMX Address
DMX Address
UIM DMX Address:
X (change) UIM
DMX Address
(Yes) X (Back)
Note: Receiving:
Mode UIM
ChromaZone Mode
X (change) UIM
ChromaZone Mode
(Yes) X (Back)
Channels per FIxture
UIM Channels per fixture.
X (change) UIM
(Yes) X (Back)
Channels per fixture
Fixture number
UIM Fixture number.
X (change) UIM
Fixture number
(Yes) X (Back)
chase patterns
UIM Chase patterns
X (change) UIM
chase pattern way number
(Yes) X (Back)
PORTABLE APPLIANCE TESTING -
STANDARDS -
The
may be safely Earth Bond and Insulation Tested.
The complies with the
following International and National Standards:
IEC65, EN60065, BS415
- EN50081-1, EN55022, EN50082-1
- IP20
Pulsar
ChromaZone
Pulsar ChromaZone
Electrical Safety -
EMC
Index of Protection
Marking Directive 93/68/EEC - The
meets both the EMC directive
2004/108/EC and the Low Voltage Directive
2006/95/EC.
Pulsar
ChromaZone
Depth Weight
kgmm
70.0
67.0
2.0
1.0
CZ6-100C
CZ12-200
Code Description
DIMENSIONS AND WEIGHTS
ChromaZone6-100 Compact
ChromaZone12-200 No CFlex
Width Height
mmmm
170.0
98.0
320.0
250.0
CM
US
I
N
T
E
R
T
E
K
L
I
S
T
E
D
3048422
Conforms to:
UL 8750
UL 1598
GUARANTEE - three years from the date of original purchase.
The guarantee covers defects in manufacturing workmanship
and materials. It is limited to parts and labour. The guarantee
becomes void if the product is: a) misused, b) not used in
accordance with the instructions, c) the cable connections are not
made according to our instructions if the unit is used in damp or
wet environments, d) repairs are made by unauthorised persons,
e) the serial number label has been removed or defaced. Pulsar's
maximum liability shall not exceed the price paid for the product.
In the unlikely event of a fault occurring, do not use without repair.
Return the product, with a description of the fault, to your supplier
or direct to Pulsar for immediate attention.
108.0 2.0
CZ12-200IP ChromaZone12-200 IP65 240.0 312.0
USER INTERFACE MODULE AND FUNCTIONSOTHER INFORMATION
CHROMA CHROMARANGE ZONE

To View/Change the StandAlone Settings, press the or keys
on the until the display shows
Press the key on the , then select the channel to
view/change using the or keys. These keys repeat if held
down. When the channel to be viewed/changed is showing in the
display, press the or keys to change the value. These keys
repeat if held down. The display shows both the bit number (0-
255) and percentage (0-100%).
Please see the when modifying chases.
To modify further channels, select the channel to view/change
using the or repeat keys, pressing the or repeat keys
to change the value.
When you have finished modifying channels, press the
key to save changes or key to restore the previous
settings.
VIEW(Sig)/SET(NoSig) Chan Levels
To View the Channel Levels/Change the Stand Alone Settings,
press the or keys on the until the display shows
Press the key on the , then select the channel to
change/view using the or keys. These keys repeat if held
down.
When the channel to be changed/viewed is showing in the
display, press the or keys to change the value. These keys
repeat if held down. The display shows both percentage (0-100%)
and bit number (0-255), and for channels 4 (Chase 1 Select) and
7 (Chase 2 Select) the chases selected.
Please see the when modifying chases.
this menu item is for this session use only, data is never saved.
the values can only be changed if the unit is not receiving data.
pressing the or keys returns to the main menu.
To restore the factory default settings, press the or keys on
the until the display shows
Press the key on the , then press the key
to restore defaults or key to exit.
The factory default settings are:
1
46 Channel
3
1
6Way
Grand Master for the 36 RGBs only
ON
ON
OFF
StandAlone Mode
Ch.1 - 3 = 0 bits / 0%
Ch.4 = Chase 1 Select =Auto Chase
Ch.5 = Chase 1 Speed = 128 bits / 50%
Ch.6 = Chase 1 Level = 255 bits 100%
Ch.7 46 = 0 bits / 0%
UIM Stand Alone Settings
View/Change.
X (change) UIM
Chase Select Table
(Yes)
X (Back)
UIM
VIEW (Sig)/SET(NoSig) Chan Levels
X (change) UIM
Chase Select Table
Notes:
X
UIM Restore Factory Default
Settings.
X (change) UIM (Yes)
X (Back)
DMX Address
ChromaZone Mode
Channels per Fixture
Fixture number
Chase patterns
Channel 10
Input Smoothing
Low Voltage Supply
DMX Line Termination
If No Signal use:
Stand Alone Settings
Restore Factory Default Settings
USER INTERFACE MODULE AND FUNCTIONS
Channel 10:
Low Voltage Supply -
DMX Line Termination
If No Signal use:
Stand Alone Settings View/Change
may be set as a Grand Master for the 36 RGB
channels only, OR as a Global Grand Master for the 36 RGB
channels, the ALL Red, Green and Blue, and the Chase Levels
To set the required mode of operation, press the or
keys on the until the display shows
Press the key on the , then select the required
number using the or keys.
When the required operation shows in the display, press
the key to save changes or key to restore
the previous settings.
or . To disable the input smoothing,
e.g. for fast response to video graphics signals, set to
To turn the ON/OFF, press the or keys on
the until the display shows
Press the key on the , then select the required
state using the or keys.
When the required state shows in the display, press the
key to save changes or key to restore the previous
settings.
or To connect the LVS to
pin 5 of the MALE XLR, set to .
The LVS is used to power some PULSAR controllers, e.g.
Outstation OS1. 24V at up to 250mA d.c. is available.
To turn the ON/OFF, press the or keys
on the until the display shows
Press the key on the , then select the required
state using the or keys.
When the required state shows in the display, press the
key to save changes or key to restore the previous
settings.
or , set the last unit in the
DMX cable run to ON, all others to OFF. Errors can often occur if
the DMX line is not terminated. DMX errors are shown in the
display as:
To turn the ON/OFF, press the or
keys on the until the display shows
Press the key on the , then select the required
state using the or keys.
When the required state shows in the display, press the
key to save changes or key to restore the previous
settings.
In the event the is not
receiving a DMX signal (e.g. controller no longer present), the unit
may either use the user-programmable Stand Alone Settings
(see below) OR continue to
use the Last DMX Packet received.
To select the requirement, press the or
keys on the until the display shows
Press the key on the , then select the requirement
using the or keys.
When your requirement is showing in the display, press the
key to save changes or key to restore the previous
settings.
There are three possibilities depending on:
a) Whether there is an input signal and
b) Whether "If NoSignal use:" is set to "Stand Alone Mode" or set
to "Last DMX Packet".
1. No Signal + Use Stand Alone Mode:
The current Stand Alone Settings may be viewed, changed and
saved as the new StandAlone Settings.
2. No Signal + Use Last DMX Packet:
The channel levels of the Last DMX Packet (if any) may be
viewed, changed and saved as the new StandAlone Settings.
3. Signal present:
The incoming signal overwrites any changes made but these
incoming channel levels may be set at the controller, viewed
and saved as the new StandAlone Settings.
Ch.10
UIM Ch.10…
X (change) UIM
Ch.10
(Yes) X (Back)
Input Smoothing: ON OFF
OFF
Input Smoothing
UIM Input Smoothing:
X (change) UIM
(Yes)
X (Back)
ON OFF.
ON
Low Voltage Supply
UIM Low Voltage Supply is:
X (change) UIM
(Yes)
X (Back)
ON OFF
DMX Line Termination
UIM DMX Line Termination:
X (change) UIM
(Yes)
X (Back)
ChromaZone6/12™
Stand Alone Settings View/Change
If NoSignal use:
UIM If NoSignal use
X (change) UIM
(Yes) X (Back)
DMX Address:
Receiving:
n
ERROR
USER INTERFACE MODULE AND FUNCTIONS USER INTERFACE MODULE AND FUNCTIONS

CZ Mode nn Chan.
X=Back =Yes
t
X=Back =Yes
nWay Patterns
X=Back =Yes
X=Back =Yes
IP Smoothingt
X=Back =Yes
LV Supply is
t
X=Back =Yes
Line Term is
X=Back =Yes
Bits: %
Bits: %
DMX Address n
X=Back =Yes
to view
X to change Information only
Inside air units
now xxx was yyy
Information only
Used by software
UIM Software N.n
(C)Pulsar ddmmyy Information only
MainSoftware N.n
(C)Pulsar ddmmyy
Information only
www.
pulsarlight.com
Information only
Pulsar Light of
Cambridge Ltd UK
Information only
Channels per
Fixture: 3
Fixture number:
1of 12
Chase patterns:
nWay
Ch.10
Input Smoothing:
t
Low Voltage
Supply is: t
DMX Line
Termination:t
VIEW(Sig)/SET(No
Sig) Chan Levels
DMX Address:n
Receiving:t
If NoSignal use:
t
Stand Alone Sett
ings View/Change
ChromaZone Mode:
nn Channels 36910364246
6 Way
12 Way
CH10 = 36xRGB GM
CH10 = Global GM
ON=Gentle,Smooth
OFF=Fast,Video
ON
OFF
ON
OFF
Stand Alone Mode
Last DMX Packet
Channel Assignments Tables
and Chase Select Table
Channel Assignments Tables
and Chase Select Table
n=1to512
t=
DMX / PMX / NO SIG / ERROR
=Save
X=Restore
X= Back
= Back
=Save
=Save
=Save
=Save
=Save
=Save
=Save
=Save
Restore Factory
Default Settings
Restore Defaults
X=Back =Yes =Restore
X=Back
X=View
X=Restore
X=View
X=Restore
X=Change
X=Restore
X=Change
X=Restore
X=Change
X=Change
X=Restore
X=Change
X=Restore
X=Change
X=Change
X=Restore
X=Change
X=Change
X=Restore
Operation
Display Operation
Display Choices
36910182428
CH10 = 18xRGB GM
CHROMAZONE Menu Selection Overview

ChromaZone Software Version 4.0
Pulsar ChromaZone6/12(NP) / ChromaZone6/12RMX3 / ChromaBank / ChromaFlood / ChromaBatten Software
Version No. 4.0 (MAIN micro 4.0 04-12-07 + UIM micro 1.0 07-03-05) has many exciting features. Two built in Chases
allowing superimposition of effects and cross fading between chases. Chase 1 and 2 use the same table of 31 chases but
there are differences to give you more choice - Chase 1 uses the ALL Red, Green and Blue Channels, 1, 2 & 3, to change
the colour of some chases (see table) while Chase 2 stays white and uses them to give a background colour. The chases
have a very wide range of speeds.
7 operating modes: 3, 6, 9, 10, 36, 42 and 46 Channel Modes.
A Master Dimmer Channel (Ch.10) for the 36 individual RGB channels, which may become a Global Grand Master for the
All R/G/B and Chases Levels too.
Input Smoothing may be disabled for fast display of video graphics and video frame rate capability.
Please see the page for details of the Operating Modes and how to select them, Channel
Listings, and further information.
•
•
•
•Channel Assignments Table
%
Chase Bit Chase Notes
Input
No. No. Description
15 Auto Chase
100
95
92
89
86
83
80
77
73
70
67
64
61
58
55
52
48
45
42
39
36
33
30
27
23
20
17
14
11
8
5
0
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
255
244
236
228
220
212
204
196
188
180
172
164
156
148
140
132
124
116
108
100
92
84
76
68
60
52
44
36
28
20
12
0
Green Yellow Red Bar Graph Reverse
Green Yellow Red Bar Graph Forward
Rainbow Strobe
White / Any Colour Strobe
White / Any Colour Crossover
Blue-Yellow Wave Reverse
Blue-Yellow Wave Forward
Green-Magenta Wave Reverse
Green-Magenta Wave Forward
Red-Cyan / AnyCol/Op Colour Wave Forward
Red-Cyan / AnyCol/Op Colour Wave Reverse
Black-White / AnyColour Wave Forward
Black-White / AnyColour Wave Reverse
Random Cols. Chase 1 Crossfade, Chase 2 Snap
Rainbow 2 Crossfade Forward
Rainbow 2 Crossfade Reverse
Rainbow Crossfade Forward
Rainbow Crossfade Reverse
“Follow 3” 18 Contrasting Colours Reverse
“Follow 3” 18 Contrasting Colours Forward
18 Crossfading Colours Reverse
18 Crossfading Colours Forward
White/AnyColour/AutoColour Cascade Reverse
White/AnyColour/AutoColour Cascade Forward
6 Crossfading Pastel Colours
Colour Wipes
6 Crossfading Colours
6 Separate Colours
Red Green Blue Bar Graphs Reverse
Red Green Blue Bar Graphs Forward
No Chase
Use Channel 1
Use Channel 1
Channels 1,2 & 3 set colour
Channels 1,2 & 3 set colour
Channels 1,2 & 3 set colour
All 3 at 0% = Red-Cyan
Wider primary colours to
compensate for extra diffusion
Equal width primary &
secondary colours
Channels 1,2 & 3 set colour
All 3 at 0% = White.
All 3 at 100% = Auto Colour Change
Use Channels 1,2 & 3
Use Channels 1,2 & 3
Channels 1,2 & 3 set colour
All 3 at 0% = White

All Red
All Green
All Blue
Chase 1 Select (see Chase Table)
Chase 1 Speed
Chase 1 Level
Chase 2 Select (see Chase Table)
Chase 2 Speed
Chase 2 Level
Global Grand Master
1
2
3
4
5
6
7
8
9
10
(9) 10 Channel Mode
1
2
3
4
5
6
All Red
All Green
All Blue
Chase Select (see Chase Table)
Chase Speed
Chase Level
(3) 6 Channel Mode
1
2
3
16
17
18
19
20
21
34
35
36
1
2
3
34
35
36
Red 1
Green 1
Blue 1
Red 6
Green 6
Blue 6
Red 1
Green 1
Blue 1
Red 6
Green 6
Blue 6
Fixture 1 Red 1
Fixture 1 Green 1
Fixture 1 Blue 1
Fixture 1 Red 12
Fixture 1 Green 12
Fixture 1 Blue 12
Fixture 1 of 2 Fixture 2 of 2
ChromaZone 6 ChromaZone 12
36 Channel Mode
1-6
7
8
9
22
23
24
1-6
25
26
27
40
41
42
1-6
7
8
9
40
41
42
as 6 Channel Mode
Red 1
Green 1
Blue 1
Red 6
Green 6
Blue 6
as 6 Channel Mode
Red 1
Green 1
Blue 1
Red 6
Green 6
Blue 6
as 6 Channel Mode
Fixture 1 Red 1
Fixture 1 Green 1
Fixture 1 Blue 1
Fixture 1 Red 12
Fixture 1 Green 12
Fixture 1 Blue 12
Fixture 1 of 2 Fixture 2 of 2
ChromaZone 6 ChromaZone 12
42 Channel Mode
1-9
10
11
12
13
26
27
28
1-9
10
29
30
31
44
45
46
1-9
10
11
12
13
44
45
46
as 9 Channel Mode
36 x RGB Grand Master
OR Global Grand Master
Red 1
Green 1
Blue 1
Red 6
Green 6
Blue 6
as 9 Channel Mode
36 x RGB Grand Master
OR Global Grand Master
Red 1
Green 1
Blue 1
Red 6
Green 6
Blue 6
as 9 Channel Mode
36 x RGB Grand Master
OR Global Grand Master
Fixture 1 Red 1
Fixture 1 Green 1
Fixture 1 Blue 1
Fixture 1 Red 12
Fixture 1 Green 12
Fixture 1 Blue 12
Fixture 1 of 2 Fixture 2 of 2
ChromaZone 6 ChromaZone 12
46 Channel Mode
CHROMAZONE Channel Assignment Tables

12345678910 11 12
WHITE
+24V
0V
BLACK
RED
GREEN
BLUE
WHITE
+24V
0V
BLACK
RED
GREEN
BLUE
WHITE
+24V
0V
BLACK
RED
GREEN
BLUE
WHITE
+24V
0V
BLACK
RED
GREEN
BLUE
WHITE
+24V
0V
BLACK
RED
GREEN
BLUE
WHITE
+24V
0V
BLACK
RED
GREEN
BLUE
PULSAR
12Mk2
one
Chroma
ON-1
OFF-0
MAINS SUPPLY
85-240V
50-60Hz
200W Max
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE
SERIAL NO.
PULSAR 2008
XLR4 LV-POWER & SIGNAL TO N.P.ZONE
PINS: 1=0V 2=DATA- 3=DATA+ 4= +24VDC
XLR5 DMX SIGNAL
PINS: 1=SCREEN 2=DATA- 3=DATA+
4=NOT USED 5=LVS OUTPUT +24VDC (MALE ONLY)
EMC DIRECTIVE
89/336/EEC
LOW VOLTAGE
DIRECTIVE
73/23/EEC
CM
CUS
I
N
T
E
R
T
E
K
L
I
S
T
E
D
3048422
Cert. to:
CAN/CSA-
E60065-00
Conforms to:
ANSI/UL
Std. 6500
MADE IN EUROPE BY: PULSAR LIGHT OF CAMBRIDGE LTD.
3 COLDHAMS BUSINESS PARK - NORMAN WAY
CAMBRIDGE - CB1 3LH, UK. WWW.PULSARLIGHT.COM
TEL: [phone] - FAX: [phone]
Rainbow 2 Crossfade Reverse
Rainbow Crossfade Forward
Rainbow Crossfade Reverse
“Follow 3” 18 Contrasting Colours Reverse
“Follow 3” 18 Crossfading Colours Forward
18 Crossfading Colours Reverse
18 Crossfading Colours Forward
White/AnyColour/AutoColour Cascade Reverse
White/AnyColour/AutoColour Cascade Forward
6 Crossfading Pastel Colours
Colour Wipes
6 Crossfading Colours
6 Separate Colours
Red Green Blue Bar Graphs Reverse
Red Green Blue Bar Graphs Forward
No Chase
CHASE DESCRIPTION
124
116
108
100
92
84
76
68
60
52
44
36
28
20
12
0
BIT No.
48
45
42
39
36
33
30
27
23
20
17
14
11
8
5
0
INPUT %
Chase 1 - Channel 4 / Chase 2 - Channel 7
CHASE SELECT TABLE
Auto Chase
Green Yellow Red Bar Graph Reverse
Green Yellow Red Bar Graph Forward
Rainbow Strobe
White / Any Colour Strobe
White / Any Colour Crossover
Blue-Yellow Wave Reverse
Blue-Yellow Wave Forward
Green-Magenta Wave Reverse
Green-Magenta Wave Forward
Red-Cyan / AnyCol/Op.Col Wave Forward
Red-Cyan / AnyCol/Op.Col Wave Reverse
Black-White/Any Colour Wave Forward
Black-White/Any Colour Wave Reverse
Random Cols. Chase1 Crossfade, Chase2 Snap
Rainbow 2 Crossfade Forward
CHASE DESCRIPTION
255
244
236
228
220
212
204
196
188
180
172
164
156
148
140
132
BIT No.
100
95
92
89
86
83
80
77
73
70
67
64
61
58
55
52
INPUT %
Chase 1 - Channel 4 / Chase 2 - Channel 7
CHASE SELECT TABLE
42 CHANNEL MODE
As 6 Channel
Output 1 Red
Output 1 Green
Output 1 Blue
Output 2 Red
Output 2 Green
Output 12 Blue
1-6
7
8
9
10
11
42
46 CHANNEL MODE
As 9 Channel
11- 46 Grand Master OR
Global Grand Master
Output 1 Red
Output 1 Green
Output 1 Blue
Output 2 Red
Output 12 Blue
1-9
10
10
11
12
13
14
46
3 (6) CHANNEL MODE
Output 1 Red
Output 1 Green
Output 1 Blue
Output 2 Red
Output 2 Green
Output 12 Blue
1
2
3
4
5
36
36 CHANNEL MODE
All Red
All Green
All Blue
Chase Select)
Chase Speed)
Chase Level)
1
2
3
(4
(5
(6
All Red
All Green
All Blue
Chase1 Select
Chase1 Speed
Chase1 Level
Chase2 Select
Chase2 Speed
Chase2 Level
Global Grand Master)
1
2
3
4
5
6
7
8
9
(10
9 (10) CHANNEL MODE
M6
SAFETY
CHAIN
FIXING
POINT
FUSE
F5AH
5x20mm
PULSAR
CZ12 - 200W - ChromaZone12 200W
1
0
XLR5 DMX SIGNAL
1= SCREEN 2= DATA- 3= DATA+ 4= NOT USED 5= LVS +24VDC
(MALE ONLY)
PINS:
123456
WHITE
+24V WHITE +24V
WHITE
+24V
BLACK
0V BLACK 0V
BLACK
0V
RRR
GGG
BBB
CM
US
3048422
Conforms to:
UL 8750
UL 1598
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
CAUTION
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE
50-60Hz
100W Max
85-277V
FUSE
F5AH
5x20mm
TM
EMC DIRECTIVE
2004/108/EC
LOW VOLTAGE
DIRECTIVE
2006/95/EC
C6-100C
Auto Chase
Green Yellow Red Bar Graph Reverse
Green Yellow Red Bar Graph Forward
Rainbow Strobe
White / Any Colour Strobe
White / Any Colour Crossover
Blue-Yellow Wave Reverse
Blue-Yellow Wave Forward
Green-Magenta Wave Reverse
Green-Magenta Wave Forward
Red-Cyan / AnyCol/Op.Col Wave Forward
Red-Cyan / AnyCol/Op.Col Wave Reverse
Black-White/Any Colour Wave Forward
Black-White/Any Colour Wave Reverse
Random Cols. Chase1 Crossfade, Chase2 Snap
Rainbow 2 Crossfade Forward
CHASE DESCRIPTION
Chase 1 - Channel 4 / Chase 2 - Channel 7
255
244
236
228
220
212
204
196
188
180
172
164
156
148
140
132
BIT No.
100
95
92
89
86
83
80
77
73
70
67
64
61
58
55
52
INPUT %
CHASE SELECT TABLE -
Rainbow 2 Crossfade Reverse
Rainbow Crossfade Forward
Rainbow Crossfade Reverse
“Follow 3” 18 Contrasting Colours Reverse
“Follow 3” 18 Crossfading Colours Forward
18 Crossfading Colours Reverse
18 Crossfading Colours Forward
White/AnyColour/AutoColour Cascade Reverse
White/AnyColour/AutoColour Cascade Forward
6 Crossfading Pastel Colours
Colour Wipes
6 Crossfading Colours
6 Separate Colours
Red Green Blue Bar Graphs Reverse
Red Green Blue Bar Graphs Forward
No Chase
CHASE DESCRIPTION
124
116
108
100
92
84
76
68
60
52
44
36
28
20
12
0
BIT No.
48
45
42
39
36
33
30
27
23
20
17
14
11
8
5
0
INPUT %
PULSAR LIGHT OF CAMBRIDGE LTD. 3 COLDHAMS BUSINESS PARK, NORMAN WAY, CAMBRIDGE, CB1 3LH, UK
All Red
All Green
All Blue
Chase1 Select
Chase1 Speed
Chase1 Level
Chase2 Select
Chase2 Speed
Chase2 Level
All Red
All Green
All Blue
Chase1 Select)
Chase1 Speed)
Chase1 Level)
1
2
3
4
5
6
7
8
9
(10
1
2
3
(4
(5
(6
9(10)CHANNEL MODE3 (6)CHANNEL MODE
Red 1
Green 1
Blue 1
Blue 6
As 9 Channel Mode
36 x RGB Grand Master
OR Global Grand Master
Red 1
Green 1
Blue 1
Blue 6
As 9 Channel Mode
36 x RGB Grand Master
OR Global Grand Master
Red 1
Green 1
Blue 1
Blue 6
As 6Ch
Green 1
Blue 1
Blue 6
Red 1
Red 1
Green 1
Blue 1
Blue 6
As 6Ch
Red 1
Green 1
Blue 1
Blue 6
1
2
3
18
1-9
10
11
12
13
28
1-9
10
29
30
31
46
1-6
7
8
9
24
19
20
21
36
1-6
25
26
27
36
36 CHANNEL MODE 42 CHANNEL MODE
46 CHANNEL MODE
FIXT1OF2
FIXTURE 1 OF 2
FIXT1OF2FIXT2OF2 FIXT2OF2
FIXTURE2OF2
I
N
T
E
R
T
E
K
L
I
S
T
E
D
Serial No.
RGB/Global Grand Master)
CZ6 - 100C - ChromaZone6 Compact 100W
All Red
All Green
All Blue
Chase1 Select - see Chase Table
Chase1 Speed
Chase1 Level
Chase2 Select - see Chase Table
Chase2 Speed
Chase2 Level
Global Grand Master)
1
2
3
4
5
6
7
8
9
(10
9 (10) CHANNEL MODE
All Red
All Green
All Blue
Chase Select - see Chase Table)
Chase Speed)
Chase Level)
1
2
3
(4
(5
(6
3 (6) CHANNEL MODE
Auto Chase
Green Yellow Red Bar Graph Reverse
Green Yellow Red Bar Graph Forward
Rainbow Strobe
White / Any Colour Strobe
White / Any Colour Crossover
Blue-Yellow Wave Reverse
Blue-Yellow Wave Forward
Green-Magenta Wave Reverse
Green-Magenta Wave Forward
Red-Cyan / AnyCol/Op.Col Wave Forward
Red-Cyan / AnyCol/Op.Col Wave Reverse
Black-White/Any Colour Wave Forward
Black-White/Any Colour Wave Reverse
Random Cols. Chase1 Crossfade, Chase2 Snap
Rainbow 2 Crossfade Forward
Rainbow 2 Crossfade Reverse
Rainbow Crossfade Forward
Rainbow Crossfade Reverse
“Follow 3” 18 Contrasting Colours Reverse
“Follow 3” 18 Crossfading Colours Forward
18 Crossfading Colours Reverse
18 Crossfading Colours Forward
White/AnyColour/AutoColour Cascade Reverse
White/AnyColour/AutoColour Cascade Forward
6 Crossfading Pastel Colours
Colour Wipes
6 Crossfading Colours
6 Separate Colours
Red Green Blue Bar Graphs Reverse
Red Green Blue Bar Graphs Forward
No Chase
CHASE DESCRIPTION TABLE
CHASE SELECT
CHASE 1 - CHANNEL 4 CHASE 2 - CHANNEL 7
255
244
236
228
220
212
204
196
188
180
172
164
156
148
140
132
124
116
108
100
92
84
76
68
60
52
44
36
28
20
12
0
BIT No.
100
95
92
89
86
83
80
77
73
70
67
64
61
58
55
52
48
45
42
39
36
33
30
27
23
20
17
14
11
8
5
0
INPUT %
EMC DIRECTIVE
89/336/EEC
LOW VOLTAGE
DIRECTIVE
73/23/EEC
Conforms to:
UL 8750
UL 1598
CM
US
3048422
I
N
T
E
R
T
E
K
L
I
S
T
E
D
DMX SIGNAL
1= SCREEN
2= DATA-
3= DATA+
4= NOT USED
5= LVS +24VDC
(MALE ONLY)
DMX IN 111
DMX THRU 212
MAINS
100-277V
50-60Hz
200W MAX
MAINS IN
MAINS THRU
0V
DATA
NC LVS
NC
0V
DATA
NC
DMX IN DMX THRU
(AS VIEWED ON PCB)
LN
MAINS IN / THRU
MAX - 2x1.5mm Cables
in each terminal
VENT PLUG
Located on rear
of product
DO NOT OBSTRUCT
36 CHANNEL MODE
1 Red 1
2 Green 1
3Blue1
34 Red 12
35 Green 12
36 Blue 12
PULSAR 2011
SERIAL NO.
PULSAR LIGHT OF CAMBRIDGE LTD
3 COLDHAMS BUSINESS PARK
NORMAN WAY
CAMBRIDGE
CB1 3LH, UK
www.pulsarlight.com
[phone]
[email protected]
CABLE GLANDS
GLAND (PULSAR PART 4562)
DRILL HOLE - 14.0MM
TAP HOLE - M16 X 1.5MM
BEFORE INSTALLING
ENSURE LIQUID TIGHT O-RING
IS PLACED ON GLAND
BOTTOM ROW
TOP ROW
OUTPUT CONNECTION BLOCKS
BLACK
0V
BGR
+24V
BLUE
GREEN
RED
WHITE
13579
11
2468
10 12
46 CHANNEL MODE
10 36 x RGB Grand Master
OR
11 Red 1
12 Green 1
13 Blue 1
44 Red 12
45 Green 12
46 Blue 12
Global Grand Master
1-9 As 9 Channel Mode
42 CHANNEL MODE
1-6 As 6Ch Mode
7 Red 1
8 Green 1
9Blue1
40 Red 12
41 Green 12
42 Blue 12
CZ12 - 200W - ChromaZone12 200W
CHROMAZONE Range Lid Printing

CHROMAZONE 12-200IP Dimensions
265.0
95.0 108.0
318.0
14.0 14.0
40.0
111.5
209.0
14.0
223.0
240.0 Inc
Gland & Cable
7.0
185.0 240.0

IMPORTANT SAFETY INSTRUCTIONS
Read the Product Instruction Leaflet and this Safety Instructions Leaflet before attempting
to install or operate this apparatus.
Keep this leaflet and the Product Instruction Leaflet for future reference.
Observe ALL warnings indicated by the symbol, both in the Product Instruction Leaflet
and on the apparatus.
Follow ALL instructions given in the Product Instruction and this Safety Leaflet. Failure to
do so may result in serious injury or death.
Protect the power cord from being walked on or pinched, particularly at plugs, auxiliary
outputs, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer (Pulsar Light of
Cambridge Ltd. UK).
Use only with the stand/bracket or other mounting arrangement specified in the Product
Instruction Leaflet. In case of doubt, consult with the manufacturer (Pulsar Light of
Cambridge Ltd. UK).
Unplug this apparatus before lightning storms or when unused for long periods.
Refer all servicing to suitably qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Clean only with a DRY cloth.
Protect the apparatus from dripping and splashing.
DO NOT place objects containing liquids on the apparatus.
DO NOT use this apparatus near water or in a condensing atmosphere, unless explicitly
stated in the Product Instruction Leaflet.
DO NOT block any of the ventilation openings. Install the apparatus as specified in the
Instruction Leaflet.
DO NOT defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding-type plug has two blades
and a third grounding prong. The wide blade or the third prong is for YOUR safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete unit.
Mains Supply Cable Colours
Earth / Ground
Live / Phase / Hot
Neutral / Grounded Conductor
Green / Yellow =
Brown =
Blue =
