PulseAudio PABT100 User manual
pulseaudio1.com | vanco1.com | 800.626.6445
DESIGNED TO ADD BLUETOOTH® FUNCTIONALITY TO
AUDIO DEVICES
TRANSMITTER/
RECEIVER
PART NUMBER PABT100
WITH BLUETOOTH® WIRELESS TECHNOLOGY
2
1. Do not install or place this unit
in a built-in cabinet, or other
confined space without adequate
ventilation.
2. To prevent risk of electrical shock
or fire hazard, due to overheating
do not obstruct unit’s ventilation
openings.
3. Do not install near any source of
heat, including other units that
may produce heat.
4. Do not place unit near flames.
5. Only clean unit with a dry cloth.
6. Unplug unit during lightning
storms or when not used for an
extended period of time.
7. Protect the power cord from being
walked on or pinched, particularly
at the plugs.
8. Use unit only with accessories
specified by the manufacturer.
9. Refer all servicing to qualified
personnel.
WARNING
THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE
UNITED STATES TO VERIFY PERFORMANCE PARAMETERS.
Thank you for purchasing this product. For optimum
performance and safety, please read these instructions
carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
DEAR CUSTOMER
The Bluetooth® word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by Vanco International, LLC is
under license. Other trademarks and trade names are those of their respective
owners.
3
The Pulse Audio PABT100 Bluetooth Transmitter & Receiver, is specially
designed for Audio Devices (such as MP3, MP4, TV and PC, etc.) that are
without Bluetooth functionality. As a Bluetooth Transmitter, you can connect
audio devices without Bluetooth using the included 3.5mm Audio Plug,
allowing it work to with Bluetooth-enabled headsets and speakers. As a
Bluetooth Audio Receiver, the PABT100 can be used with car or home audio
systems by allowing Bluetooth-enabled systems to seamlessly pair with
Bluetooth-enabled Smart Phones, laptop, tablet, etc. The integrated fast-
charging battery within the PABT100 even allows for use without a power
supply being connected. The PABT100 transmitter/receiver is a solution for
any of your Bluetooth audio needs!
TRANSMITTER/RECEIVER WITH
BLUETOOTH® WIRELESS TECHNOLOGY
Part # PABT100
• Designed to add Bluetooth functionality to audio devices
• Allows non-Bluetooth-enabled systems and products to seamlessly pair with
Bluetooth-enabled devices
• Automatically searches for devices for connectivity
• Transmits and receives wired or wireless audio
• No APP or driver needed
• Noise reduction and echo cancellation
• Multi-band equalizer configuration
• Supports voice prompts
• Integrated Li-Type battery charger and supports 300 mA fast charge
• Over-discharge/charge protection
• Automatic Connection Memory for faster and easier Bluetooth connections
• Power Supply: 5VDC 1AMP
• Dimensions: 3.8” W x .6” H x 2.3” D
FEATURES
PACKAGE CONTENTS
• Transmitter/Receiver with Bluetooth Wireless Technology
• 3.5mm Audio Cable
• AV Cable
• 5VDC 1AMP Power Supply
• Product Manual
4

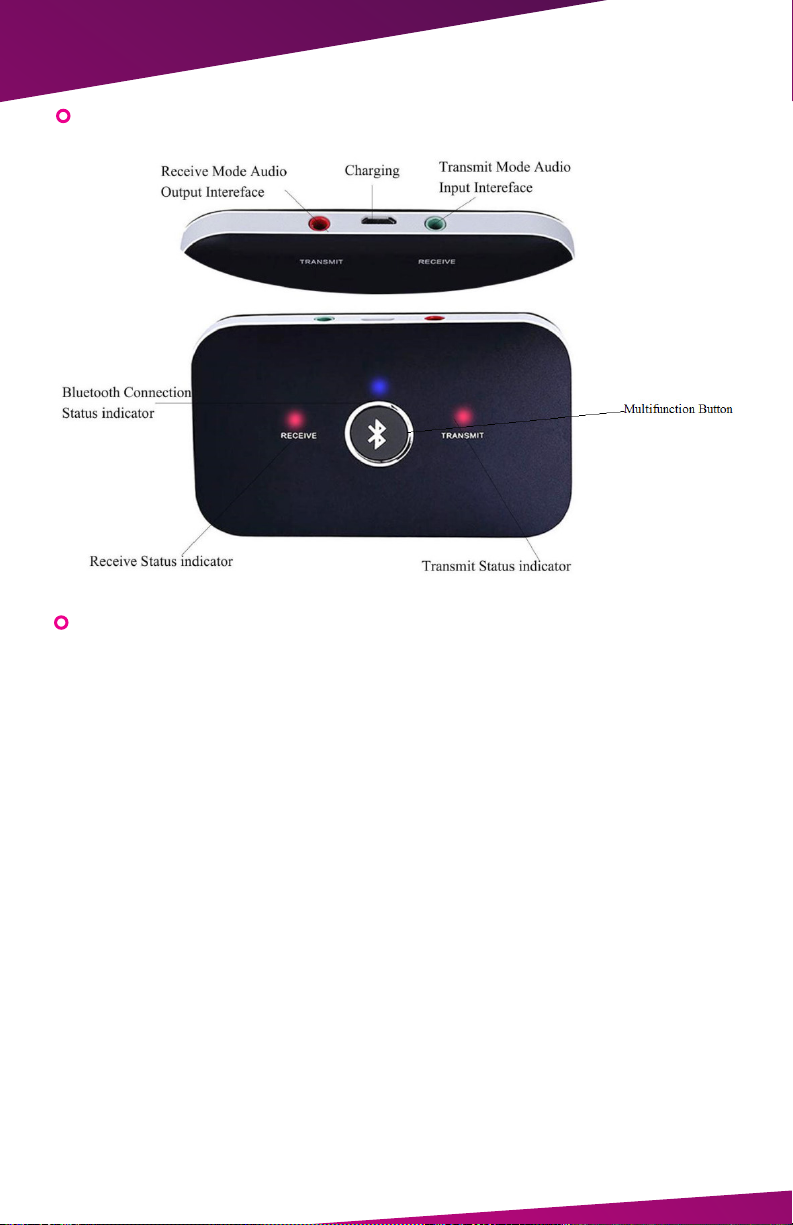

PANEL DESCRIPTIONS
Status of Device ................................................LED Status
In charging...........................................................Red LED turns on
Finish charging...................................................Red LED turns o
Power On..............................................................Blue LED flashes faster
Power O.............................................................LED O
Receiving:
Receive mode............................................................................Receive Indicator LED (Red) Lighting
Low power ..................................................................................Receive Indicator LED (Red) flashes Slowly
Waiting Connection ................................................................Status LED(Blue) flashes faster
Connected ..................................................................................Status LED(Blue) flashes slowly
Transmitting:
Transmitting mode ..................................................................Transmit Indicator LED(Red) Lighting
Low Power ..................................................................................Transmit Indicator LED(Red) flashes Slowly
Searching BT device ...............................................................Status LED(Blue) flashes faster
Connected ..................................................................................Status LED(Blue) flashes slowly
LED DESCRIPTIONS
5
CONNECT AND OPERATE
Receiving Mode:
1. Connect an audio cable into the “RECEIVE” jack on the PABT100 with the other side of the
cable connected to the device that will be receiving the audio (ex: audio power amplifier).
2. Power on the device: If you are utilizing the integrated rechargeable battery, charge first
then once the unit is charge press and hold the multifunction button for 5 seconds to
power the device ON. If you are NOT utilizing the integrated rechargeable battery, connect
the provided USB cable to the power adapter then plug the unit into the wall and press
and hold the multifunction button for 5 seconds to power the unit ON.*
3. The blue indicator light will blink rapidly.
4. For pairing devices, select boothtooth product code: RT-B6
5. After connected, the Bluetooth status indicator light (BLUE) will flash slowly.
6. The unit will shut down automatically after 10 minutes when no Bluetooth is paired.
*PLEASE NOTE: The PABT100 can alternatively be powered by a 5v USB port or source with-
out the power adapter
Transmitting Mode:
1. Connect an audio cable into the “TRANSMIT” jack on the PABT100, with the other side
of the cable connected to the “AUDIO OUT” to your device (ex: TV, DVD player, audio
output…)
2. Power on the device: If you are utilizing the integrated rechargeable battery, charge first
then once the unit is charge press and hold the multifunction button for 5 seconds to
power the device ON. If you are NOT utilizing the integrated rechargeable battery, connect
the provided USB cable to the power adapter then plug the unit into the wall and press
and hold the multifunction button for 5 seconds to power the unit ON.*
3. Blue indicator light will blink rapidly.
4. For pairing devices, select boothtooth product code: RT-B6
5. After connected, the Bluetooth status indicator light (BLUE) will flash slowly. If it is not the
Bluetooth device you want to be paired with, press the multifunction key to switch to the
next Bluetooth device.
6. The unit will shut down automatically after 10 minutes when no Bluetooth is paired.
6
SAFETY AND NOTICE
The PABT100 has been tested for conformance to safety regulations and
requirements, and has been certified for international use. However, like all
electronic equipment, the PABT100 should be used with care. Please read and
follow the safety instructions to protect yourself from possible injury and to
minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this
manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of this
unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed for
this unit.
• Do not use liquid or aerosol cleaners to clean this unit.
• Always unplug the power to the device before cleaning
SPECIFICATIONS
Bluetooth Version .............................................Bluetooth 2.1
Supported protocols .......................................A2DP, AVRCP, HFP, SPP HID
Current Consumption......................................≤43MA (Receiving Mode), ≤60MA
(Transmitting Mode), ﹤18MA (Standby Mode)
Built-in battery...................................................Polymer 400mAH
Charging current and time............................2 Hours, 300mA
Playing Period ....................................................8Hours
Bluetooth distance ...........................................10M
Interface................................................................Micro USB (For Charging) 3.5MM
stereo jack (For Transmitting and Receiving)
Compatibility ......................................................All Bluetooth audio devices.
(smartphone/PC/ Notebook/Bluetooth phone., etc)
BATTERY
Please fully charge the device before using.
1. Insert micro USB plug into the device, and another side to the power adapter.
2. During the charge, the RED light turns on
3. When charging complete (around 2 hours), the RED light turns o.
7
TECHNICAL SUPPORT
In case of problems, please contact Vanco Technical Support by dialing
1-800-626-6445. You can also email technical support issues to techsupport@
vanco1.com. When calling, please have the Model Number, Serial Number
(axed to the bottom of the unit) and Invoice available for reference during
the call. Please read this Instruction Manual prior to calling or installing this
unit, since it will familiarize you with the capabilities of this product and its
proper installation. All active electronic products are 100% inspected and
tested to insure highest product quality and trouble-free installation and
operation. The testing process utilizes the types of high-definition sources and
displays typically installed for entertainment and home theatre applications.
For additional information please visit www.vanco1.com.
LIMITED WARRANTY
With the exceptions noted in the next paragraph, Vanco warrants to the
original purchaser that the equipment it manufactures or sells will be free from
defects in materials and workmanship for a period of two years from the date
of purchase. Should this product, in Vanco’s opinion, prove defective within
this warranty period, Vanco, at its option, will repair or replace this product
without charge. Any defective parts replaced become the property of Vanco.
This warranty does not apply to those products which have been damaged
due to accident, unauthorized alterations, improper repair, modifications,
inadequate maintenance and care, or use in any manner for which the product
was not originally intended. Items integrated into Vanco products that are
made by other manufacturers, notably computer hard drives and liquid
crystal display panels, are limited to the term of the warranty oered by the
respective manufacturers. Such specific warranties are available upon request
to Vanco. A surge protector, power conditioner unit, or an uninterruptible
power supply must be installed in the electrical circuit to protect against
power surges. If repairs are needed during the warranty period the purchaser
will be required to provide a sales receipt/sales invoice or other acceptable
proof of purchase to the seller of this equipment. The seller will then contact
Vanco regarding warranty repair or replacement.
LIABILITY STATEMENT
Every eort has been made to ensure that this product is free of defects. The
manufacturer of this product cannot be held liable for the use of this hardware
or any direct or indirect consequential damages arising from its use. It is
the responsibility of the user and installer of the hardware to check that it is
suitable for their requirements and that it is installed correctly. All rights are
reserved. No parts of this manual may be reproduced or transmitted by any
form or means electronic or mechanical, including photocopying, recording
or by any information storage or retrieval system without the written consent
of the publisher. Manufacturer reserves the right to revise any of its hardware
and software following its policy to modify and/or improve its products where
necessary or desirable. This statement does not aect the legal rights of the
user in any way.
506 Kingsland Drive Batavia, Illinois 60510
call: 800.626.6445 | fax: 630.879.9189
visit: www.vanco1.com
Vanco®International
