PUMATRONIX ITSCAM 400 Series User manual

Review 4.0
Product Manual
ITSCAM 400
1
www.pumatronix.com
Pumatronix Equipamentos Eletrônicos Ltda.
Rua Bartolomeu Lourenço de Gusmão, 1970. Curitiba, Brazil
Copyright 2020 Pumatronix Equipamentos Eletrônicos Ltda.
All rights reserved.
Visit our website http://www.pumatronix.com
Please send feedback on this document to [e-mail]
Information contained in this document is subject to change without notice.
Pumatronix reserves the right to modify or improve this material without obligation to notify
you of changes or improvements.
Pumatronix grants permission to download and print this document, provided that the
electronic or physical copy of this document contains the entire text. Any alteration to this
content is strictly prohibited.
Change History
Date
Review
Content updated
10/17/2017
1.0
Initial Version
02/16/2022
4.0
Updating the format and content of the Manual

Review 4.0
Product Manual
ITSCAM 400
2
www.pumatronix.com
Overview
The continuous increase in population in urban areas implies major challenges in the public management
of cities. Intelligent services that use Information and Communication Technologies (ICTs) have become
increasingly relevant in helping to monitor, control and make efficient and quick decisions to solve problems
inherent to the large concentration of people, such as mobility and security in the traffic, energy efficiency,
public safety, supply control, among others.
The concept called Smart Cities is a global trend that classifies the strategic use of infrastructure and
services from the application of ICT solutions in urban planning and management, bringing results to the
social and economic needs of society. Thus, the use of Information Technology allows cities to develop
economically while improving the quality of life of the inhabitants by generating efficiency in urban
operations.
Examples of these technologies are Intelligent Transport Systems (ITS), in which Pumatronix products are
used, such as the ITSCAM 400 line. The devices of this line capture images of vehicles for traffic
management, enforcement, Smart City Applications, mobility systems and applications that demand capture
of images whose minimum distance from the application is greater than 2 meters, using a sensor of global
shutter image:
Figure 1 - ITSCAM 400 Line with CS Mount Lenses
Figure 2 - ITSCAM 400 Line with Motorized Lenses

Review 4.0
Product Manual
ITSCAM 400
3
www.pumatronix.com
Handling Risks
This equipment must be powered by a source of direct current (DC) with voltage
between 9 to 32 Vdc. Do not connect any of the inputs directly to the mains (AC)!
Risk of Oxidation: The electrical and signal connections made in the ITSCAM 400 bundle
and in the data network cable must be protected in a terminal box or similar structure
to prevent oxidation of the connections and unwanted infiltration of liquids into the
bundle.
This equipment may be accompanied by lenses, which are sensitive to mechanical
impacts such as drops and extreme vibrations.
Installation Location: In cases where it is not possible to meet installation
specifications, it is recommended to consult Pumatronix's Technical Support.

Review 4.0
Product Manual
ITSCAM 400
4
www.pumatronix.com
Models
The ITSCAM 400 image capture and processing devices are available in the ITSCAM 401 and ITSCAM 411
model lines. The composition of each model allows the modification of the sensor, lens and optional items
considering the specific possibilities for each line.
The ITSCAM 401 model has the color sensor that can be combined with a fixed type of lens set (CS Mount
standard), without options.
In the ITSCAM 411 model line, the sensor is combined with a set of lenses, which can be of the fixed type
(CS Mount standard) or motorized, in addition to the optional Digital Signature.
The technical characteristics of the ITSCAM 401 and ITSCAM 411 models can be identified in the designator
in parentheses, indicating the components of the model.
Models available
Resolution
Lens Type
Estimated range (in meters) *
ITSCAM 401 (S01L0)
752x480px
CS Mount Manual
5 to 20m (9-40mm) **
ITSCAM 401 (S01L0A)
ITSCAM 411 (S04L0)
1280x960px
CS Mount Manual
8 to 35m (9-40mm) **
ITSCAM 411 (S04L0A)
ITSCAM 411 (S04L3)
Built-in Motorized
4 to 45m
ITSCAM 411 (S04L3A)
ITSCAM 411 (S05L0)
1280x960px HDR
CS Mount Manual
8 to 35m (9-40mm) **
ITSCAM 411 (S06L0)
1636x1220px HDR
9 to 37m (10-50mm) ***
ITSCAM 411 (S06L0A)
*Estimated range is defined according to the lens selected and identifies at what distance the license plate
characters remain readable for LPR feature. For models with a motorized lens, the lens cannot be modified. For CS
Mount type lenses, the lens models shown are for reference only for the respective range.
**For the model it is recommended to use the Theia SL940A 9-40mm lens.
***For models with S06 sensor, it is recommended to use IDAX VISION 10-50mm lens with a C adapter ring to CS
Mount (included).
Image sensors (ITSCAM 401 and
ITSCAM 411)
Lens
Optional
S01: Colorful CMOS 752x480px
L0: Manual lens, CS Mount type
A: Digital Signature
(TPM1.0)
S04: CCD 1280x960px*
L3: 4,7-47mm
S05: CCD HDR 1280x960px*
S06: CCD HDR 1636X1220px
*The 1280x960 pixel model can generate 1024x768 pixel resolution images.

Review 4.0
Product Manual
ITSCAM 400
5
www.pumatronix.com
Some models of ITSCAM 400 are certified by international standards that regulate the operation of
electronic devices. In these cases, the technical characteristics designator presents two characters CX, with
X indicating the type of certification that the product meets:
Código
Product Certification
C1
CE
C2
FCC
C3
CE e FCC

Review 4.0
Product Manual
ITSCAM 400
6
www.pumatronix.com
Table of Contents
1. Knowing the Product ...................................................................................................... 8
Lenses and Image Sensors ............................................................................................................................... 8
Inputs and Outputs........................................................................................................................................... 8
Data Transmission over the Network................................................................................................................ 8
Format of Transmitted Images ............................................................................................................................................9
Supported Servers............................................................................................................................................ 9
Digital Signature............................................................................................................................................. 10
2. Additional Documentation............................................................................................ 10
3. Generated Information................................................................................................. 11
JPEG Comments.............................................................................................................................................. 12
Automatic License Plate Recognition.............................................................................................................. 13
Sending by RS-232 Compatible com Wiegand 26 ............................................................................................................ 14
License Plate List File ....................................................................................................................................................... 14
Geographic Location - GPS ............................................................................................................................. 15
Vehicle Counting Function.............................................................................................................................. 15
4. Mechanical Specifications ............................................................................................ 16
Sensitivity of Sensors to Light ........................................................................................................................ 18
5. Electrical Specifications ............................................................................................... 19
Electrical Connections .................................................................................................................................... 19
Output Signal Status Selection ......................................................................................................................................... 20
Flash or Illuminator Shot................................................................................................................................................... 20
6. Software Specifications ................................................................................................ 22
Image Capture Architecture ........................................................................................................................... 22
Virtual Trigger ................................................................................................................................................ 23
Motion Detector................................................................................................................................................................ 23
Multiple Exposures ......................................................................................................................................... 23
Majority Vote .................................................................................................................................................. 24
Day or Night Operating Mode ......................................................................................................................... 25
Digital Signature............................................................................................................................................. 26
7. Licensing ...................................................................................................................... 26

Review 4.0
Product Manual
ITSCAM 400
7
www.pumatronix.com
8. Initial Setup .................................................................................................................. 26
Installation Prerequisites ................................................................................................................................ 26
ITSCAM 400 Positioning .................................................................................................................................................... 26
Settings for LPR (License Plate Recognition) .................................................................................................................... 28
Required Installation Conditions ..................................................................................................................... 28
Network Interface Parameterization................................................................................................................................. 28
9. First Access .................................................................................................................. 29
10. Care and Maintenance ................................................................................................. 29
Firmware Upgrading....................................................................................................................................... 29
ITSCAM 400 Update via Web Interface............................................................................................................................. 30
ITSCAM 400 Update with Pumatronix Software (ITSUPDATE)........................................................................................... 30
Preventative Maintenance.............................................................................................................................. 31
11. General Conditions of the Warranty............................................................................. 31
Situations in which the Product Loses the Warranty....................................................................................... 31
Privacy Policy ................................................................................................................................................. 32

Review 4.0
Product Manual
ITSCAM 400
8
www.pumatronix.com
1.Knowing the Product
The ITSCAM 400 line of image capture and processing devices was developed for traffic management,
enforcement, Smart City Applications, mobility systems and applications that require image capture whose
minimum distance from the application is greater than 2 meters.
Lenses and Image Sensors
The ITSCAM 400 device can be selected with an internal motorized lens (with software controllable zoom
and focus), or a standard CS Mount fixed lens. The model of equipment that receives fixed lenses has an
Iris DC control output that allows electronically controlling the iris if the lens supports it. The lenses used
must be compatible with the image sensor sizes used, considering:
Sensor Code
Resolution
Size (in inches)
S01 (CMOS)
752x480px
1/3”
S04 (CCD)
1280x960px
S05 (CCD HDR)
1280x960px
S06 (CCD HDR)
1636X1220px
1/1,8”
The ITSCAM 400's image sensors have high sensitivity to infrared light, ideal for use with flashes and dim
illuminators, with light invisible to the human eye. See Sensitivity of Sensors to Light for sensor
specifications about the supported wavelength range.
The focal length varies according to the lens used and refers to the distance between the optical center of
a lens and the plane of focus, measured in mm (millimeters), with the angle of view being more “open” for
smaller values.
Inputs and Outputs
The ITSCAM 400 hardware has a total of 4 input and output ports (IOs), being 2 input ports for installing
external sensors, which identify the moment of capturing the images (trigger) and 2 output ports that can
control the artificial lighting (flash), usually triggered automatically in low light situations. In situations
where the application of external sensors is unfeasible, the ITSCAM 400 device can be configured to
generate trigger events from image analysis, by enabling software triggering (Virtual Trigger).
Data Transmission over the Network
When the ITSCAM 400 receives an image capture request, either by triggering an external trigger or by
software, the flash synchronism occurs, and the next generated frame will be made available by the
network. The captured images are transmitted digitally (in BMP or JPEG format) through the network
interface, using the TCP/IP protocol. The transmission time of images captured by the ITSCAM 400 varies
depending on the network infrastructure conditions. The transmission capacity of the network to which the
ITSCAM 400 is connected can be affected by the following factors:
•Processing capacity of the equipment that receives the data;
•Quality of the network card of the equipment that receives the data;
•Traffic volume of the network to which the ITSCAM 400 is connected;

Review 4.0
Product Manual
ITSCAM 400
9
www.pumatronix.com
•Quality of peripherals connected to the network (hubs, switches, routers, etc.).
The table below shows typical image transmission rates over the network in JPEG and BMP formats. Upon
receiving a request for image capture (via the network or via I/O), the ITSCAM 400 prepares the image
and stores it in RAM immediately, being transmitted according to the availability of the network.
Table 2 - Typical transmission rates (in frames per second) for images in JPEG and BMP format
Type of JPEG Image
ITSCAM 401
ITSCAM 411
Colorful
35
10
Monochrome
35
10
Type of BMP Image
ITSCAM 401
ITSCAM 411
Colorful
12
3
Monochrome
33
6
The ITSCAM 400's internal image capture rate is constant, with the value corresponding to the sensor
resolution, which have the following speeds:
Table 3 –ITSCAM 400 acquisition rates
Sensor Code
Resolution
Internal acquisition rate
S01 (CMOS)
752x480px
60fps
S05 (CCD HDR)
1280x960px
30fps
S04 (CCD)
1280x960px
24fps
S06 (CCD HDR)
1636X1220px
14,98fps
Format of Transmitted Images
The image can be transmitted, either in Photo or Video mode, in BMP or JPEG formats. In both formats,
the ITSCAM 400 transmits an image that includes the header of the respective format. In the case of JPEG
images, the settings of the ITSCAM 400 at the time of capture and additional data, such as the license plate
of the vehicle in case of embedded OCR, are also attached within the image.
Additionally, the quality of the JPEG image can be selected, setting between 1 (worst quality –highest
compression) and 100 (best quality –least compression).
Supported Servers
The ITSCAM 400 can communicate with different types of servers if they are correctly configured. Each
server has its own characteristics when connecting to the ITSCAM 400:
Server
Interaction with the ITSCAM 400
FTP
The equipment connects via FTP with one of the servers available for sending images
ITSCAMPRO
By configuring the ITSCAM 400 to communicate with the ITSCAMPRO solution, it is possible to
send images and the plates read by the embedded OCR. ITSCAMPRO is an application that
concentrates the images and plates sent by the ITSCAM 400, allowing visualization and

Review 4.0
Product Manual
ITSCAM 400
10
www.pumatronix.com
generation of different types of reports (contact Pumatronix for more information about the
application)
RTSP*
The Real Time Streaming server can receive the images captured by the ITSCAM 400 through the
link rtsp://ITSCAM IP:PORT/mjpeg. If the default port 554 is specified, the link becomes
rtsp://ITSCAM IP/mjpeg
Porta Serial
It creates a TCP server on the ITSCAM 400 on the specified ports and causes all messages that
travel through the ITSCAM 400's serial port to be redirected to the port that has been configured
in the TCP protocol
*ITSCAM 400 implements an MJPEG stream that operates independently of the server that is configured. This
stream can be composed of images not synchronized with the lighting, as well as illuminated images.
Digital Signature
Some ITSCAM 400 models sign the images they transmit digitally. Images are signed when requested in
JPEG format, regardless of whether the request came via network or an external trigger. The hardware
asymmetric encryption mechanism contains a protected internal memory for storing private keys.
2. Additional Documentation
Product
Link
Description
ITSLUX
Product Manual
Manual containing the technical specifications of the ITSLUX product
VIGIA+
Product Manual
Manual containing the technical specifications of the VIGIA+ product
ITSCAM 400
Installation and
Maintenance Guide
Guide containing the information necessary to install and maintain
the ITSCAM 400
ITSCAM 400
Integration Manual
Programming and Integration Manual containing the information
necessary for the integration of ITSCAM 400 with an application

Review 4.0
Product Manual
ITSCAM 400
11
www.pumatronix.com
3. Generated Information

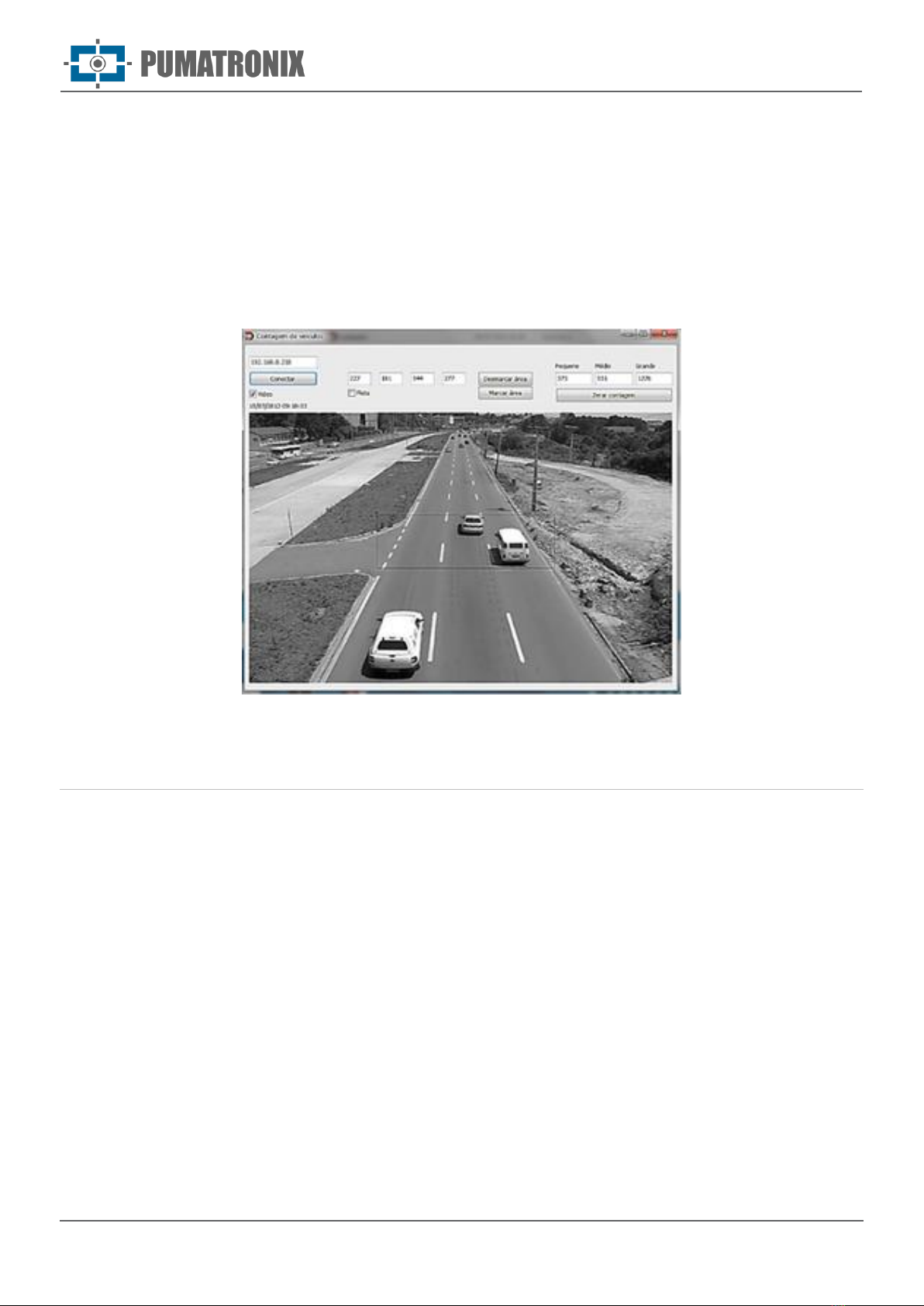

Figure 3 –Example of image generated by ITSCAM 400
The ITSCAM 400 line is composed of image capture and processing devices that are transmitted digitally
(in BMP or JPEG format) through the network interface, through the TCP/IP protocol. Each ITSCAM 400
has an IP address, which allows you to remotely configure all its settings. The network interface also allows
multiple devices to be accessed by the same machine, without overloading or compromising capture,
switching and synchronization time.
The ITSCAM 400's digital technology improves image quality over analog systems. In digital technology,
photons are converted to an analog level and then digitized. These digital values correspond to image pixels
and with fewer conversion steps, image quality losses are reduced.
The ITSCAM 400 series devices use non-interlaced (progressive scan) global shutter image sensors to
capture images. This means that all image pixels are captured at the same instant and it is possible to
capture images with moving objects. Generally, the real resolution of analog images is 640x240 pixels,
while the ITSCAM 400 provides all the resolutions shown in the graphic. This difference in the number of
pixels is sensitive not only to the human eye, but also to automatic license plate recognition (LPR)
algorithms, as illustrated:

Review 4.0
Product Manual
ITSCAM 400
12
www.pumatronix.com

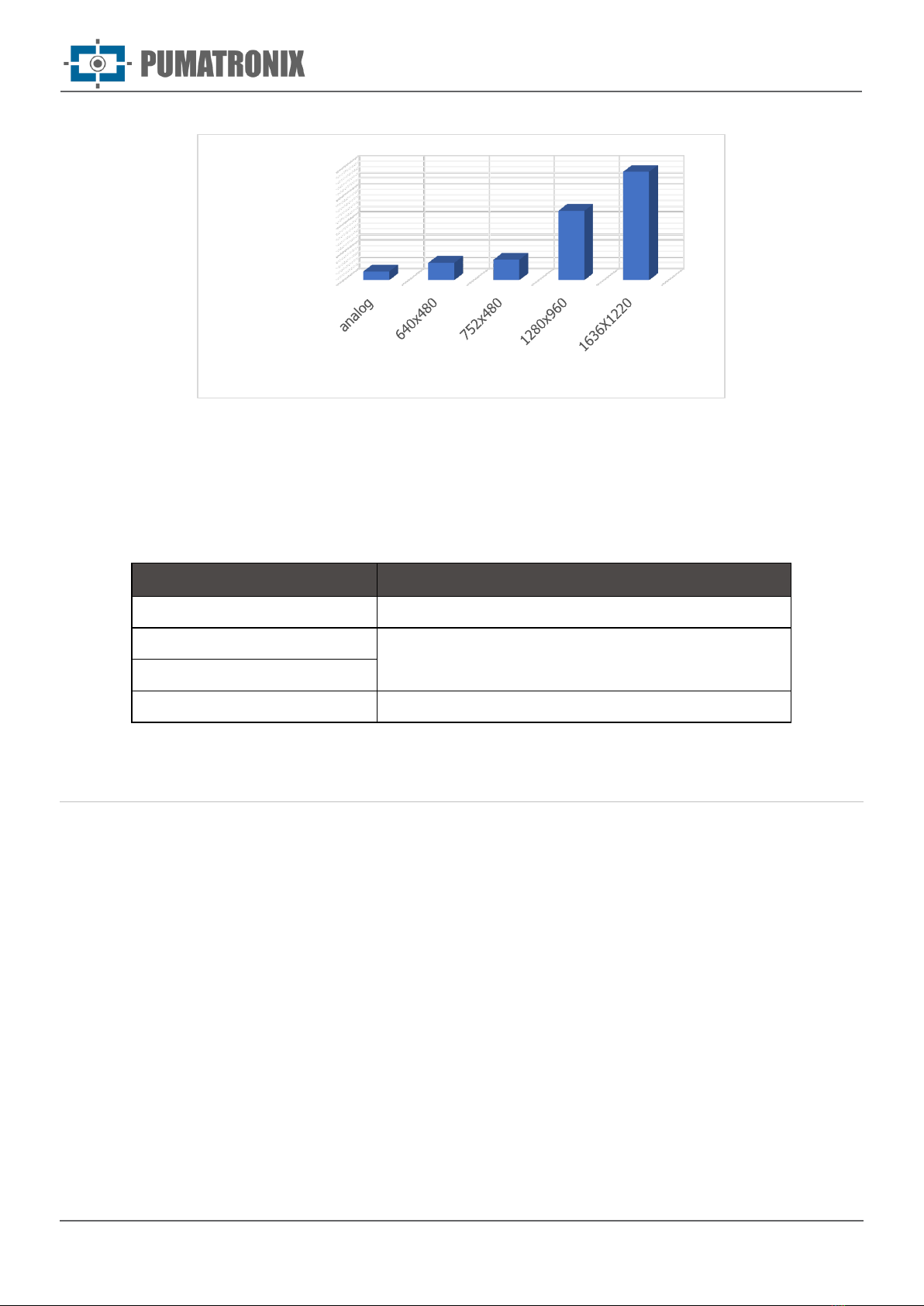

Figure 4 - Comparison between the actual number of pixels of analog and digital images
With the ITSCAM 400, the greater number of pixels available in the width of the image also allows, with
the same zoom used in analog images, a greater field of view of the image can be achieved. Thus,
information loss at the edges, such as vehicles between lanes, is minimized. Starting with firmware version
19, all ITSCAM 400 models can generate cropped images and some other reduced (scaled) resolutions, as
identified in the table:
Sensor and Effective Pixels
Reduced Resolutions
S01: Colorful 752x480px CMOS
640x480, 480x360, 320x240, 240x180, 160x120
S04: CCD 1280x960px
800x600, 640x480, 480x360, 320x240, 240x180, 160x120
S05: CCD HDR 1280x960px
S06: CCD HDR 1636X1220px
800x600, 640x480, 480x360, 320x240
*The 1280x960 pixel model can generate 1024x768 pixel resolution images.
JPEG Comments
The JPEG format is a block-based image storage format. Blocks start with a tag that is always composed
of 0xFF and a second byte. Some examples are:
0xFF 0xD8: Start of image
0xFF 0xD9: End of image
0xFF 0xE8: Image information such as data size and formatting
0xFF 0xDA: Start of compressed image
0xFF 0xFE: Comments in text format
The file is always formatted in such a way that, for example, 0xFFDA only appears once in the file (to
indicate the beginning of the compressed image data). Therefore, Pumatronix uses the image comments
tag to store generated metadata for each capture. This field (commonly referred to as Comments or Image
Comments) can be found in the image by looking for bytes 0xFF and 0xFE. As comments are placed at the
end of the image, it is suggested to search for the marker starting at the end of the file. Then, following
JPEG standards, the data is formatted as follows:
0
500.000
1.000.000
1.500.000
2.000.000
Pixels
Image Resolution

Review 4.0
Product Manual
ITSCAM 400
13
www.pumatronix.com
Comment tag
Size of comments
(counting this field, in Big Endian)
Comment string, ending in 0x00
0xFF
0xFE
LSB
MSB
string [length-2]
As the comments consist of a C string ending '\0', it is possible to use some function like strcpy , 2 bytes
after the tag to extract it. The string is composed of a sequence of "key=value;" (semicolon separating key
and value sets).
JPEG comment example:
DataComp=24/06/202121:14:36;FwV=v19.2.5;FwD=so800x600,LENTE_MOTORIZADA_SENKO,JIDOSHA,JIDOSHA_LIGHT,SENSO
R_BAYER,HW_VIGIA,MEMORIA_EXTENDIDA;FotoColorida=0;Sombra=0;Hdr=0;Gamma=90;TipoShutter=0;ShutterFixo=600;Shu
tterMaximoDay=600;ShutterMaximoNight=600;TipoGanho=0;GanhoFixo=20;GanhoB=0;GanhoC=0;GanhoMaximo=0;ModoTeste
=0;NivelDesejado=20;NivelAutomatico=0;FormatoTrigger=1;QualidadeTrigger=80;NumeroFotosRede=1;NumeroFotosIODay=1;
NumeroFotosIONight=1;DelayFlash=130;ModoFlash=2;ModoFlashAuto=0;flash_out=1;SupervisaoIluminador=0;Revisao=2;Vers
ao=19;TipoSaida=1;Trigger=1;Rotacao=0;TipoGanhoDif=0;ValorGanhoDif=0;TipoGammaDif=0;ValorGammaDif=90;TipoWhiteB
alanceDif=0;ValorWhiteBalanceDif=0;TipoTriggerDif=0;ValorTriggerDif=1;TipoSaturacaoDif=1;ValorSaturacaoDif=6555748;Realc
eBorda=0;Modelo=ITSCAM403_VIGIA;Resolucao=800x600;AutoIris=1;DayNightAlgorithm=0;ModoDayNight=1;PorcentagemPri
meiroDisparo=100;PorcentagemSegundoDisparo=100;DelayCapturaDay=0;DelayCapturaNight=0;Sincronismo=0;SincronismoDt
=4;TodasFotosItscamPro=1;JuntaFotosBMP=0;GPS=0;ModoOCR=0;TipoOcrDif=0;ValorOcrDif=0;MaxLowProbChars=0;MinimaPr
obPorCaracter=80;TipoOCR=3;TimeoutOCR=4000;JidoshaLightVersion=3.9.0;JidoshaLightSHA1=1479289519f1cb1944c73aec22
dc0c9a4a8e887b;OcrAngle=0.000000;OcrSlant=0.000000;OcrMinCharHeight=9;OcrMaxCharHeight=60;OcrAvgCharHeight=17;O
crGoodCharProb=80;LimiarPercentNightDay=90;LimiarPercentDayNight=50;LimiarPercentNightDayMotorizada=30;LimiarPercent
DayNightMotorizada=20;TransicaoMotorizadaIO=0;PlacasSerial=0;PlacasSerialIface=2;enableNtpServer=0;ntpServer=http://ntp.
br;triggerStartVeiculoPaddingNoturno=0;triggerStartMotoPaddingNoturno=0;triggerEndPaddingNoturno=0;triggerStartPaddingAp
roxDiurno=0;triggerEndPaddingAproxDiurno=0;triggerStartPaddingAfastDiurno=0;triggerEndPaddingAfastDiurno=0;statusFirmwa
reRecebido=0;LimTM=0;RoiTM=0,0,0,0,0,0,0,0;RoiTMMode=0;MapHabilitado=0;MapIp=10.9.0.1;MapPorta=51000;MapIp2=0.0.
0.0;MapPorta2=51001;ocrCountry=1;tipoIluminador=0;usarProtecaoIluminador=0;VmEnable=0;ShutterMaximo=600;NumeroFot
osIO=1;QualidadeReal=80;TSinc=-215699032;TSincDT=-215699032;TempoCaptura=-1931784260;TempoLigado=-
1931784199;ShutterAtual=600;GanhoAtual=20;NivelAtual=0;WhiteBalanceAtual=4210752;SituacaoDayNight=1;FocoIR=0;Horari
o=;Entrada1=0;Entrada2=0;EntradaUsada=0;IndiceFoto=1;IOVigia=255;OCRUsado=0;Contagem=1;Cc0=0.0000;PosC0=0x0,0x
0;Cc1=0.0000;PosC1=0x0,0x0;Cc2=0.0000;PosC2=0x0,0x0;Cc3=0.0000;PosC3=0x0,0x0;Cc4=0.0000;PosC4=0x0,0x0;Cc5=0.00
00;PosC5=0x0,0x0;Cc6=0.0000;PosC6=0x0,0x0;Placa=;CorPlaca=0;CoordPlaca=0x0,0x0;OCRTotalTime=0;OCRRem=0;OCRRem
Ret=0;OCRLoc=0;OCRLocRet=0;OCRRemVersion=0.0.0;OCRRemSHA1=;MeanTM=0;StdTM=0;RoiOCR=0,0,0,0,0,0,0,0;Borda=1
JPEG Image Comment
Meaning
Ccx
X character reliability
Placa
Vehicle license plate read
CorPlaca
0: Light plate with dark letters 1: Dark plate with light letters
CoordPlaca
Coordinates of the rectangle that contains the plate
identified in the image
Automatic License Plate Recognition
Vehicle license plate location and recognition functionality is possible through an OCR server (MAP or PC)
that offers better image analysis processing. The main functionality of this OCR server is to recognize
Brazilian and Mercosur license plates from images using a software library. For OCR processing of vehicle
license plates from countries other than Brazil, please contact Pumatronix technical support.

Review 4.0
Product Manual
ITSCAM 400
14
www.pumatronix.com
For a better recognition index, it is recommended to adjust the equipment to capture the license plate of
the vehicles in the center of the images and with the height of the letters and numbers of 20 pixels when
the resolution is up to 752x480px and 25 pixels for higher resolutions, from 1280X720px to 1636X1220px.
Whenever an image in JPEG format is requested via the Photo command or via I/O, the ITSCAM 400
captures the frame, performs license plate recognition, and transmits the image. This functionality is not
performed if the request is made by the Video command or if the requested image is configured for BMP
format.
After capturing the image, the ITSCAM 400 seeks to identify objects like a license plate. When locating each
of these objects, the recognition algorithm seeks to identify letters and numbers. The identification result
depends on the minimum reliability that the character presents. The read license plate is inserted within
the JPEG stream itself, in the comments field.
Sending by RS-232 Compatible com Wiegand 26
The ITSCAM 400 models that have the functionality of locating and recognizing vehicle license plates can
communicate with Wiegand controllers, very common in parking lots. In this type of communication, a
license plate list is used to identify a set of vehicles using only 24 bits. The supported model is Wiegand
26, through a serial converter. For this functionality to work correctly, it is necessary to load the License
Plate List File into the ITSCAM 400's memory and carry out the steps to configure the connections.
As in previous versions of the ITSCAM 400, connecting a user to a serial port, via the Serial Server, interrupts
all messages exchanged through that serial port, including GPS, photo request with or without stripe, and
plate sending. Such functionality will be maintained so as not to disturb the equipment configuration (which
is the purpose of this feature). The transmission of these messages via serial does not interfere with the
reception of messages from other functionalities (GPS, photo with or without a stripe).
License Plate List File
For the RS-232 port to be used in equipment that supports the Wiegand 26 protocol, a file must be created
containing the information on the plates and their respective identifier. This file containing the list is sent
to ITSCAM 400 and with each new vehicle identification, the list is consulted.
Sending the file with the list can be done using the Web interface, which has a content validator, or by cgi
command. This file must be CSV (separated by comma, semicolon, or tab (0x09)), containing one plate per
line, formatted in two columns: plate (ASCII, 1 to 7 alphanumeric characters) and id (ASCII decimal,
between 0 and 16777215). The CSV file pattern follows the example:
ABC1234,321
ZZZ4444,456
XYZ9876,99
To forward plates outside the list, the first row of the table must contain the plate * (just an asterisk) and
the id. This value is sent by the equipment whenever an unlisted plate is recognized. When processing the
web interface, characters are converted to uppercase. The quotes and spaces are removed before
forwarding the list. Other columns and rows with empty columns are ignored. Cases in which importing the
list using the Web Interface will fail:

Review 4.0
Product Manual
ITSCAM 400
15
www.pumatronix.com
•The license plate does not have alphanumeric characters;
•Specified ID out of range;
•Invalid characters exist;
•There are duplicates.
In cases of failure, the interface will point to the wrong line and not load. In cases of success, at the end
of the list loading, the interface will show the number of loaded lines.
If the list is loaded by POST command to api/platelistid.cgi , the file must have only 2 columns, all values
must contain only alphanumeric characters (between 'A' to 'Z' and '0' to '9', except first line), without spaces
and be separated by commas. The lines must be sorted in ascending order, using the plate as a key. The
ASCII character value is used to do this sorting and only 100,000 license plates are supported. The ordering
of the list influences the processing speed, as the algorithm uses the binary search method for the plates
in the list. In addition, partial plates can be identified by selecting at least one low probability character in
the OCR menu, so the search can infer the closest plate in the list.
The verification of the list that is in the equipment can be obtained in the form of a text file, using the
option of Export List. To remove the plate list, use the Remove List button on the web interface or upload
an empty file.
Geographic Location - GPS
Some ITSCAM 400 models can provide images with the location coordinates embedded, requiring only an
external GPS antenna on Serial Port 1. In this case, serial port 1 must be configured to control integrated
GPS and the serial settings must be: speed 4800bps, 8 bits in protocol, no parity and with 1 stop bit or
4800-8N1.
All ITSCAM 400 models that allow the use of integrated GPS will be discontinued.
Vehicle Counting Function
The ITSCAM 400 can be used as a Vehicle Counter. This function allows to select a region of the track to
survey the number of vehicles that circulated during a set period.
To obtain optimal performance from this function, the ITSCAM 400 must be installed above the center of
the road, so that the traffic direction occurs linearly under the coverage of the ITSCAM 400, as shown in
the figure. In this illustration the ITSCAM 400 is installed under a footbridge that crosses the highway.
Figure 5 - Installation of the ITSCAM 400 to maximize the results of using the Vehicle Counter function
The Vehicle Counter function has its own interface (Figure 6), available at www.pumatronix.com, in the
Customer Area > Technical Support . The procedure for using the counter requires connecting to the
ITSCAM 400, demarcating the counting region, and checking or restarting the count:

Review 4.0
Product Manual
ITSCAM 400
16
www.pumatronix.com
1) Run the application and enter the IP address of the ITSCAM 400 which you want to count and
establish the connection;
2) Define an area in the image that should detect the passing of the vehicle and add the total
value of the count. To determine this counting region, simply select a region of the image with
the mouse or enter the coordinates of the area in the image at the top of the screen;
3) Once the selection is made, the outline of the region in dark color will signal the selected area;
4) The result can be visualized by vehicle size, with a breakdown of the types of vehicles accounted
for as small (motorcycles, small vehicles), medium (medium-sized vehicles) and large (trucks,
buses and similar).
Figure 6 - ITSCAM 400 Vehicle Counter Interface
4. Mechanical Specifications
•Material: Aluminum and polycarbonate;
•IP Protection: IP40 (requires enclosure for outdoor use);
•Fixation:

Review 4.0
Product Manual
ITSCAM 400
17
www.pumatronix.com

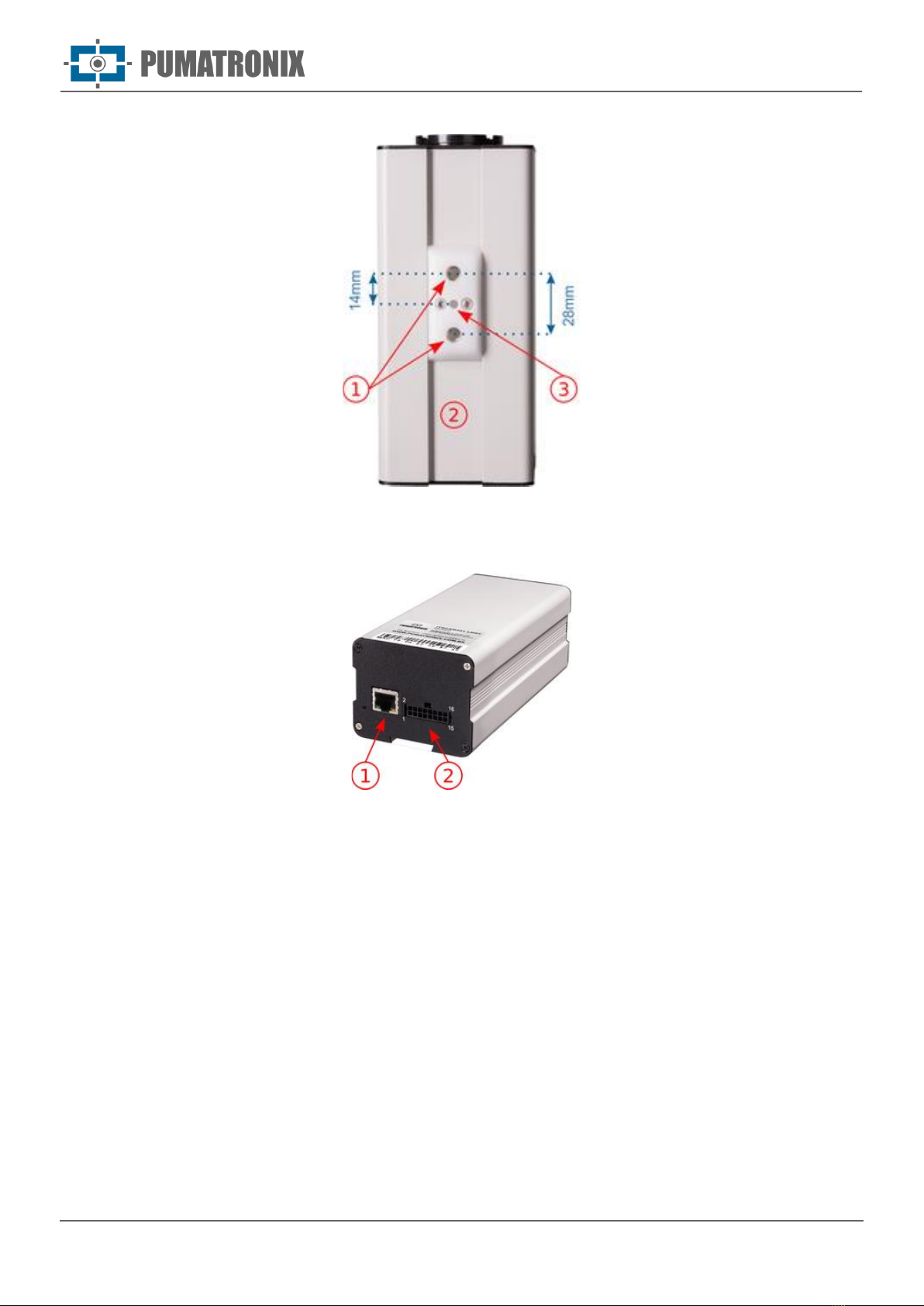

Figure 7 - Fastener specifications: 1) Thread for ¼” screws; 2) Rail for changing the attachment point;
3) Ø4mm hole for fixing guide pin
•Interfaces:
Figure 8 - Connections available on the device: 1) Ethernet; 2) 16-way Microfit (power connector, IOs,
RS-232)
•Temperature: -10 a +70˚C;
•Dimensions and Weight: When the ITSCAM 400 does not have a motorized lens, the lenses used
change the depth and the total weight. The Auto Iris connector is not considered in the dimensions,
which are presented in millimeters:

Review 4.0
Product Manual
ITSCAM 400
18
www.pumatronix.com
Model
A) Height
B) Width
C) Depth
Weight
Manual lens
58*
72**
97 + lens
250g + lens***
Motorized lens
58*
72
141
350g
* Fixing bracket fits on the bottom of the ITSCAM 400 and has an excess height of 7mm.
** The Auto Iris connector, which fits on the side of the ITSCAM 400, is approximately 8mm wide, depending on the
lens manufacturer.
*** Approximate lens weight is 70g and may increase depending on the resolution used.
Sensitivity of Sensors to Light
The ITSCAM 400 has high sensitivity to infrared light, ideal for use with flashes and dim illuminators, with
light invisible to the human eye. Below are the Sensitivity vs. Wavelength graphs for the image sensors of
the monochromatic and Day/Night versions, representing approximate values for all sensor models in force.
Remembering that in the color sensor 50% of the pixels are green, 25% are red and 25% are blue,
according to the Bayer standard. Each color has specific sensitivity, according to the wavelengths. However,
in the infrared region the colors have practically coincident sensitivity curves.
Figure 9 - Sensitivity of the monochrome
sensor
Figure 10 - Sensitivity of red, green, and
blue colors in the color sensor

Review 4.0
Product Manual
ITSCAM 400
19
www.pumatronix.com
5. Electrical Specifications
•Power supply: 12 Vdc or 24 Vdc;
•Maximum power consumed: 6W
•Reverse polarity protection: 28 V;
•Overvoltage protection (maximum): 28 V;
•Overcurrent protection: 0.5 A;
•Inrush current protection: 1.1 A.
Electrical Connections
On the rear panel there are two connectors: Ethernet for data communication and Microfit 16-way Molex
43025-1600 (datasheet available at www.molex.com). Electrical connections are made at the Microfit
connector terminals, according to the specifications:

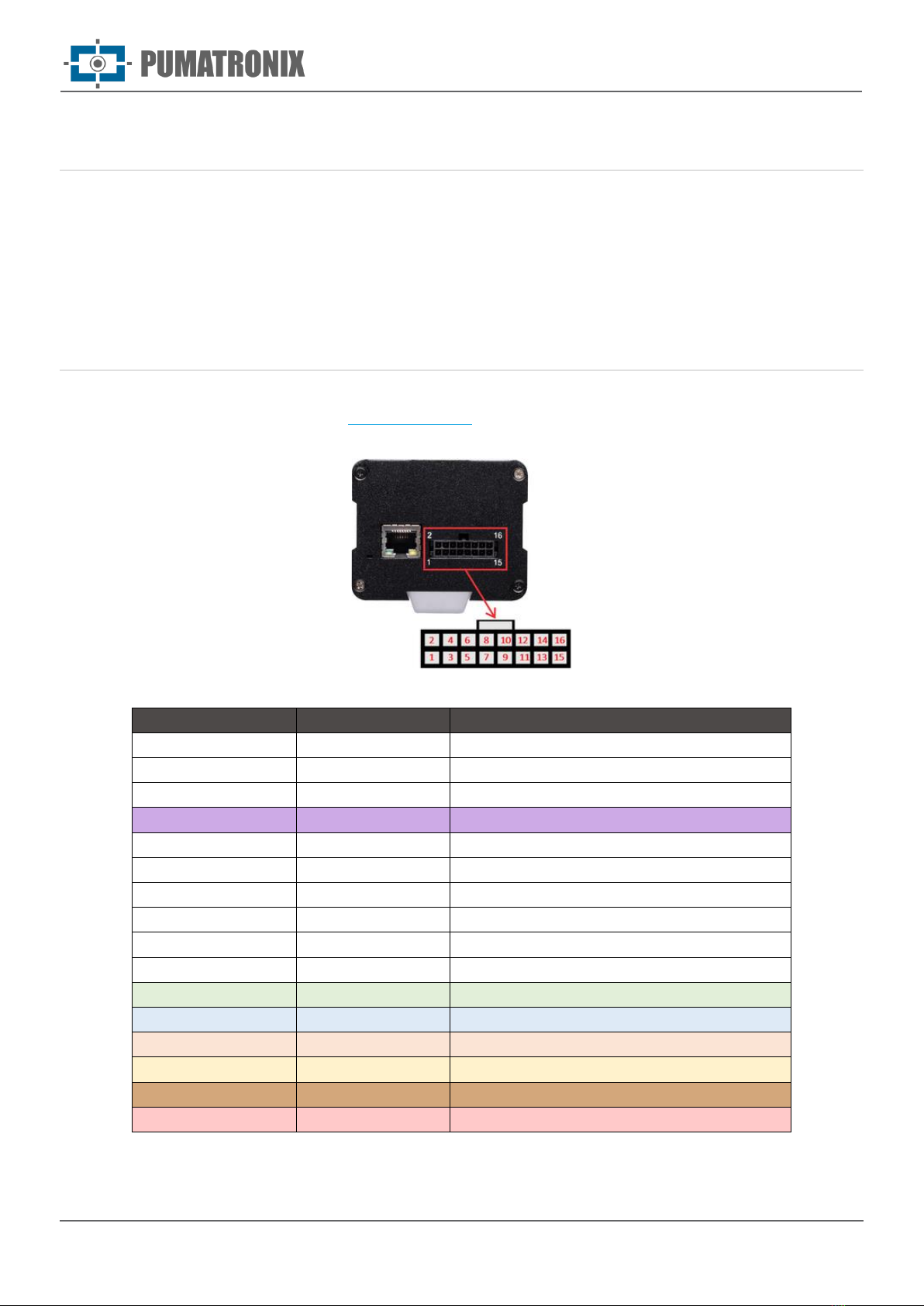

Figure 11 - ITSCAM 400 Power and Signal Connector Terminals (Microfit)
Terminal/Color
Signal
Description
1 –Green + White
RS232_RX1
RX RS232 1*
2 –Purple + White
RS232_TX1
TX RS232 1*
3 –Black + White
GND(RS232_1)
GND RS232 1*
4 –Purple
RS232_TX2
TX RS232 2*
5 –White
RS232_RX2
RX RS232 2*
6 –Brown + White
GND(RS232_2)
GND RS232 2*
7 –Grey
IN2+
Positive Terminal of Isolated Input 2
8 –Black
IN2-
Negative Terminal of Isolated Input 2
9 –Red + White
OUT2+
Positive Terminal of Isolated Output 2
10 –Blue + White
OUT2-
Negative Terminal of Isolated Output 2
11 –Green
IN1+
Positive Terminal of Isolated Input 1
12 –Blue
IN1-
Negative Terminal of Isolated Input 1
13 –Orange
OUT1+
Positive Terminal of Isolated Output 1
14 –Yellow
OUT1-
Negative Terminal of Isolated Output 1
15 –Brown
GND
Ground
16 –Red
Vin
Positive Voltage from 9 to 25 Vdc
