Pumpables Genie Plus Installation instructions

Genie Plus
Full Manual


We really encourage you to check out this full manual to get
lots more information. We've included information on
suggested pump routines, troubleshooting, cleaning and
sterilising and lots more to give you a good grounding in
using your breast pump.

Full Manual
Getting Help
What’s In The Box
Intended Use & Safety
Get To Know Your Genie Plus
Getting Started

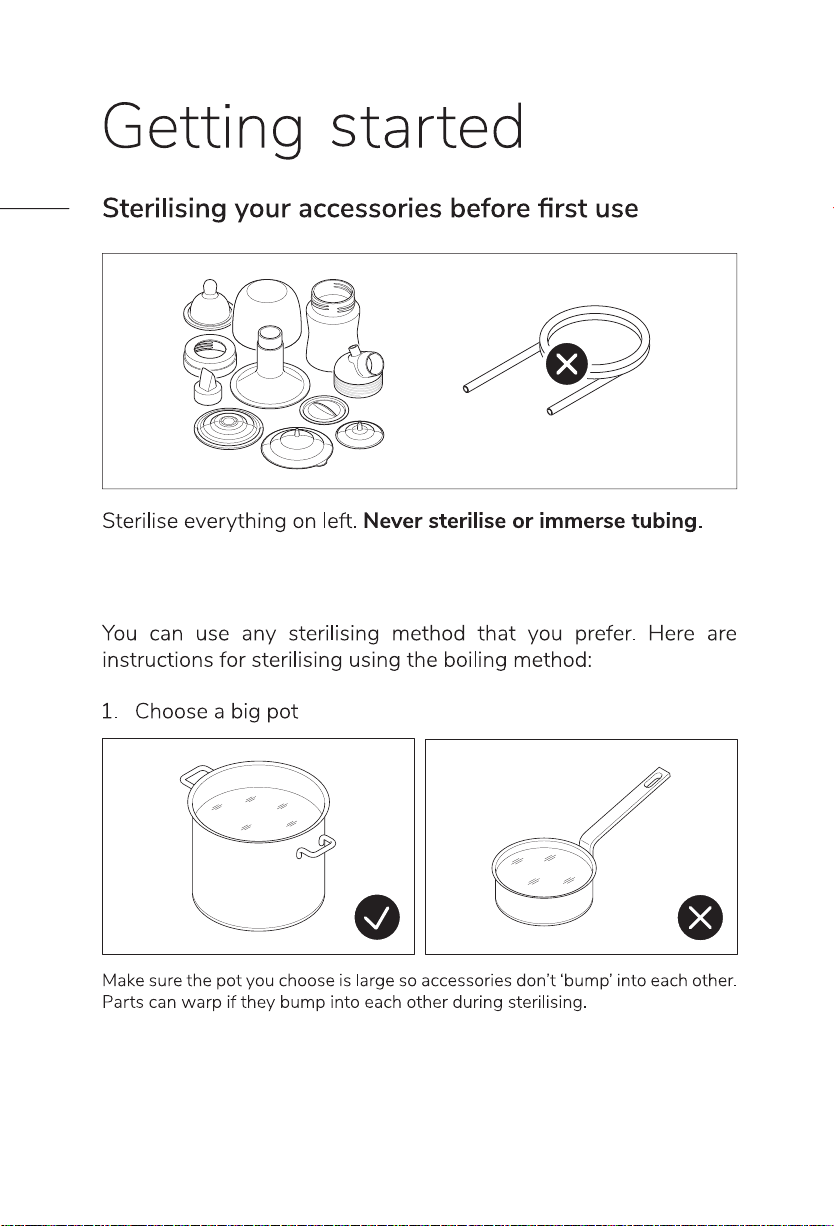

Sterilising Your Kit
Charging Your Pump
Assembling Your Kit
Understanding The Controls
Programs
Replacing Parts
Technical Specification
Warranty
03
04
05
06
08
09
10
11
13
15
16
17
18

2
Getting
h
elp
Y
Email
Community
Facebook Chat
Fitting Room
Warranty/ Faulty Issues

We’ll guide you through getting to know your Genie Plus later in
this manual, but for now, here’s a list of everything that’s included
with your pump.
Pump unit Charger
Breastshield 21mm / 24mm / 27mm
Connector x2
Tubing x2
Membrane x2
Backflow Protector
Top Piece x2
Backflow Protector
Bottom Piece x2
Duck Valve x2 Bottle x2
Bottle Collar x2Teat x2 Bottle Sealing Disc x2
x2
Bottle Cap x2
3

Genie Plus Double Electric Breast Pump is a portable breast pump
to help lactating women express and collect milk.
The Genie Plus is a closed system breast
pump. Your milk collection kit should not be
shared between users.
Clean and sanitise all parts that come in
contact with your breast and breastmilk prior
to first use. Wash all parts that come in
contact with your breast and breast milk
after every use.
Inspect all appropriate pump components
before each use.
If tube becomes mouldy, discontinue use and
replace tube. If breast milk backup occurs,
clean the tube before your next
pumping session.
Always use the backflow protector with
your pump. Failure to use the backflow
protector may result in damage to your
pump motor and void the warranty.
DO NOT use antibacterial or
abrasive cleaners/detergents when
cleaning breast pump or breast pump
parts. Never put breast pump motor in
water or steriliser, as permanent damage
can be caused to the device.
DO NOT attempt to remove the breast
shield from your breast while pumping. Turn
the breast pump off and break the seal
between your breast and breast shield with
your finger, then remove the breast shield
from your breast.
If pumping is uncomfortable or causing pain,
turn the unit off, break the seal between the
breast and the breast shield with your finger
and remove breast shield from your breast.
Plastic bottles and component parts become
brittle when frozen and may break
when dropped. Take appropriate care in
handling bottles and components. Do
not use the breast milk if bottles or
components become damaged.
The power adaptor is a part of the breast
pump. Please always check the power
adaptor before use and if damage is found,
discontinue use. Make sure the voltage of the
power adaptor is compatible with the power
source. Plug the power adaptor into the
breast pump first, then into the power
source.
Do not use outdoors or operate where
aerosol products are being used, or where
oxygen is being administered.
Do not use while bathing, or place device
where it can be submerged in water. If the
device falls into water, do not reach for it and
immediately disconnect from electrical
outlet.
Do not leave device unattended when
plugged into an electrical outlet. Do not
position the breast pump such that it is
difficult to disconnect the adaptor plug from
the main power supply.
Close supervision is necessary when used
near children or people with disabilities.
Do not use attachments not recommended
by the manufacturer.
Keep cord away from heated surface.
Never drop or insert objects into any opening
or tubes.
Use product only four its intended use.
5

Get to know your
Genie Plus
Memory Mode
Record and play your own program
Power
Genie Plus is plugged into power
Battery
Up to 2.5 hours of battery life
Massage Mode
Fast mode to trigger letdown
Expression Mode
Mode with three speed levels to
keep the milkflow going
On / Off Button
Turn Genie Plus on to start pumping
Mode Button
Swap between Expression mode
and Massage mode
Vacuum Level
Genie Plus has 10 vacuum levels
Vacuum and Speed Level Button
Increase and decrease vacuum with the + and - buttons.
In expression mode, you can set the cycle speed for each
vacuum level by holding the + or - button for 1 sec.
08:08
4
5

Breastshield
Choose one of the three
sizes that fits you best
Backflow Protector
Prevents milk from backflowing
down tubing, protecting the
motor and tubing from moisture
Connector
Connects the breastshield and
backflow protector to the bottle
Duck Valve
This part helps create a vacuum.
It’s fragile, handle it carefully!
Bottle
Pumpables wide-neck bottle
Get to know your
Genie kit
6
Always use a backflow
protector with your pump. Use
without may damage the pump
and void warranty
&

7
&
Always use a backflow protector with your Genie Plus, use
without will void warranty of the pump.

8

08:08
4
CLICK
08:08
4
9
You can start using your
pump right away out of the box.
Once it's time to
recharge, charging time is
approximately 90 minutes.
You can use the pump while charging.
When assembling the adaptor,
make sure it clicks into place.
Plug into pump.
Fully charged
75-100% (third bar blinking)
50-75%
25-50%
0-25% (first bar blinking)

10
H
o
w
t
o a
sse
m
ble
a
Ge
ni
e
k
i
t

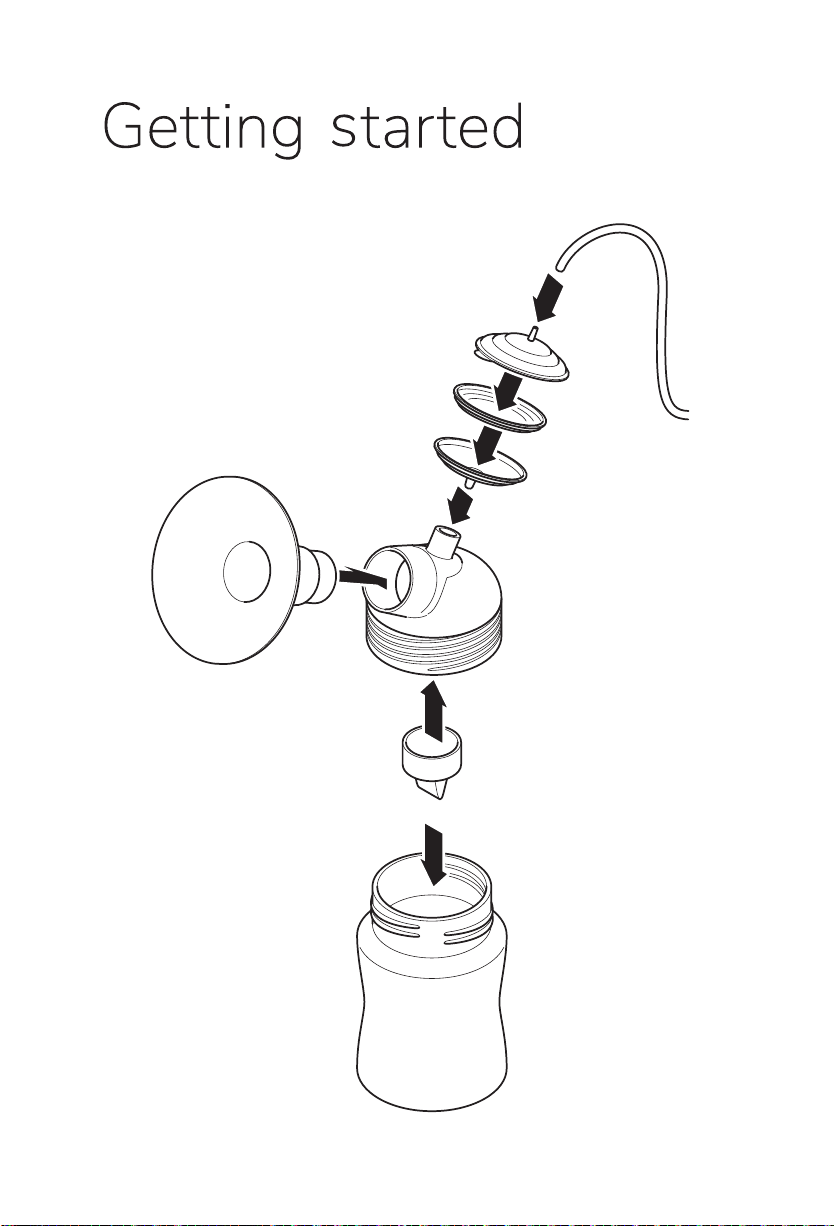

Attach the silicone duck valve to the
underside of the connector
Attach the breastshield to the connector.
Not sure which size you need? Use our
measurement tool at:
pumpables.co/measure
Screw the milk collection bottle into
the connector
Assemble the backflow protector by
attaching the membrane to the bottom
piece and then attach the top piece
Now you can connect the tubing to
the top piece of the backflow
protector and to the Genie Plus.
Don’t forget to cover the unused
airport if you’re single pumping!
Fit the stem of the bottom piece of
the backflow protector into the
connector.
11
0
4
8:08

Understanding the
controls
Press to turn on Genie Plus
and start pumping
Start Genie Plus
Increase the vacuum level with and decrease it with
Change vacuum level
00:10
6
00:10
6
Press to swap between
Expression and Massage mode
Switch between modes
00:08
7
12

14
In expression mode, you can choose
one of three cycle speeds for each
vacuum level.
Hold the + button for 1 sec. and the
speed will appear on the screen. Press
and hold the + button again for 1 sec.
to increase the speed for the current
vacuum level. Press and hold the -
button for 1 sec. to decrease the speed
for the current vacuum level.
Change Cycle Speed in Expression Mode
cy:08
2
cy:08
2
Press the Power button for 2 seconds
to activate the Memory function. The
Memory icon will start flashing, and the
pump will start recording your pump-
ing session.
Adjust the settings during your pump-
ing session as best suits you.
Press the Power button for another 2
seconds to stop recording.
The Memory icon in the screen shows
that your program has been stored.
Create Your Own Program
00:46
3

15
To play your pumping program, press the - button (the same button you press to
decrease vacuum intensity) for 2 seconds.
Start Your Program
01:07
3
Press the Mode button for 2 seconds to delete the stored pump program. After
deleting your stored program, the Memory icon will disappear from the screen.
Erase Your Program
01:24
3
01:24
3

16
Duck Valves
Replacing parts
Some parts of your kit need replacing regularly, depending on how
often you pump. This is important! Worn out parts are the most
common reason for a decrease in output. Here’s an overview of
what to replace when:
Backflow Protectors
Breastshield and
Connector Tubing
Replace if moisture has entered the
tubing, it slips off the pump or parts
from stretching or shows signs of wear
and tear.
Exclusive pumping
i.e. 8 times a day
Occasional pumping
i.e. a few times a week
Check regularly
replace as
needed
Every 6 months
2-3 Months 2-4 Weeks
3-4 Months Every Month

16
Vacuum Range
Cycle Speed (Expression Mode)
Cycle Speed (Massage Mode)
Net Weight
Warranty
Battery Life
Time to Charge
Motor Life
Country of Origin
Certification
Color
Pump Type
Dimensions
Power Supply
Material
Voltage Input
Voltage Output
Battery Type
20 - 300 mmHg
24 - 70 CPM (variable)
71 CPM
220 g (0.49 lbs)
2 Years
2.5 Hours
1.5 Hours
350 Hours
South Korea
, ISO 13485
Blue and White
Single or Double
33mm x 49mm x 95mm (5.24 in x 1.93 in x 3.74 in)
Lithium-Ion Battery or AC Adapter
Plastic
100 ~ 240 Vac 50/60 Hz 0.8A
12 Vdc, 2A
Lithium-Ion Battery
2460
EC Rep : Obelis s.a
Bd. Général Wahis 53
1030 Brussels, BELGIUM
Telephone: + (32) 2. 732.59.54
Fax.: + (32) 2.732.60.03
Milk Genie-ENG-OG-AUS-R01
