Pure Fun 9307TS User manual

PRODUCT MANUAL - MODEL# 9307TS - VERSION 12.18.01
JUMP AND PLAY 7-FOOT
TRAMPOLINE SET
FOR AGES:
3-9 2
X
WEIGHT LIMIT:
120Lbs
54 Kgs
Tools
Provided
TO BUILD: TOOLS NEEDED:
GQBrands.com • [e-mail] • 1-866-498-5269 • 4401 Samuell Blvd, Ste 150, Mesquite, TX 75149
CUSTOMER SERVICE
PATENT PENDING*
Manual en
español ubicado
en GQBrands.com
Spanish Manual located
at GQBrands.com

[e-mail] 1-866-498-5269
CUSTOMER SERVICE INFORMATION
At Global Quality Brands®, we want all of our customers to be
completely satisfied with their purchase. Please take time to review
the contents of the product you have just received to make sure that
all of the parts are included. If you find that any parts are missing or
damaged, we will happily provide replacement parts at no charge
within 30 days of purchase.
Please keep in mind that for select damaged part replacement
requests, we will require a photo for submission.
If you request replacement parts, please be sure to include the
following information in your correspondence:
To order these parts, or if you have any other questions or concerns
about this GQ Brands product, please contact us at
PureFun.net
Global Quality Brands®
Phone: [phone]
Email: CustomerServ[email protected]
4401 Samuell Blvd, Ste 150
Mesquite, TX 75149
Sincerely,
Customer Service
Thank you for purchasing:
JUMP AND PLAY 7-FOOT TRAMPOLINE SET
YOUR NAME: _________________________________________
YOUR MAILING ADDRESS: _______________________________
YOUR EMAIL ADDRESS: ________________________________
PRODUCT NAME: _____________________________________
PRODUCT MODEL#: ___________________________________
PART NUMBER _______________________________________
RETAILER WHERE PURCHASED:__________________________
DATE OF PURCHASE: __________________________________ORDER
NUMBER:
(If Available) ____________________________SERIAL
NUMBER:
(If Available) ____________________________
QUANTITY NEEDED: ___________________________________
PICTURE OF DAMAGED PART
Please be sure to include the following information when you contact Customer Service:
LIMITED WARRANTY
Global Quality Brands® warrants this product to be free from defects in
workmanship and materials under normal use and conditions for a period of
90 DAYS FROM THE DATE OF ORIGINAL PURCHASE. This Limited Warranty is not
transferable and is available only for the original purchaser of the Product. The
Company’s obligation under this warranty is limited to replacing or repairing the
Product, at the discretion of the company.
All warranty coverage extends only to the original retail purchaser from the date
of purchase, GQ Brands obligation under this warranty is limited to replacing or
repairing, at Global Quality Brands® option. All products for which a warranty
claim is made must be received by Global Quality Brands® and accompanied by
sufficient proof of purchase (photocopy of the original store receipt, indicating
the date of purchase). All freight and handling fees are the responsibility of the
consumer to pay, both to and from Global Quality Brands®. All warranty claims
must be preauthorized by Global Quality Brands® pre-authorization can be
obtained by calling 866-498-5269.
This warranty does not cover ordinary wear and tear, weathering, failure to follow
directions, improper installation, improper maintenance, or acts of nature, (such
as damage caused by wind, lightning, snow, water, or ice) weather damage,
damage caused by unauthorized repair work or damage caused by improper
use of the products are not covered by the product warranty. No other warranty
beyond that specifically set forth above is authorized by GQBrands®.
GLOBAL QUALITY BRANDS® IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT,
SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION
WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH
RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE
OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION
OR OTHER CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.
ACCORDINGLY,
THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THE WARRANTY EXTENDED
HEREUNDER IS IN LIEU OF ALL OTHER WARRANTIES AND GLOBAL QUALITY
BRANDS®, SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED
IN ITS SCOPE AND DURATION TO THE TERMS SET FORTH HEREIN. SOME
STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS. ACCORDINGLY, THE ABOVE LIMITATION MAY NO APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE.
WHILE EVERY ATTEMPT IS MADE TO ENSURE THE HIGHEST DEGREE OF
PROTECTION IN ALL EQUIPMENT, WE CANNOT GUARANTEE FREEDOM
OF INJURY. THE USER ASSUMES ALL RISK OF INJURY DUE TO USE. ALL
MERCHANDISE IS SOLD ON THIS CONDITION, WHICH NO REPRESENTATIVE OF
GQBRANDS® CAN WAIVE OR CHANGE.

3
MODEL# 9307TS
ADULT ASSEMBLY REQUIRED
CHOKING HAZARD - Small Parts
NOT for children under 3 years of age.
Please read these warnings and the information in this manual in its entirety.
Failure to comply with the following instructions may increase the risk of serious injury and/or death:
WARNINGS
• DO NOT allow children under the age of 3 to
handle or use chalk pieces. Broken chalk or
chalk remnants present a choking hazard
and serious injury or death may occur.
• This unit must be assembled and
disassembled by ADULTS ONLY.
• This Trampoline is suitable for use by most
children 3-9 YEARS OF AGE.
• DO NOT exceed the MAXIMUM WEIGHT limit
of 120 lbs (54kgs) regardless of age.
• FOR HOME USE ONLY: This Trampoline is
designed for family residential use. It is NOT
intended for use in commercial applications
and/or use in public areas such as schools,
parks, nurseries, day schools, day cares, etc.
• ALWAYS locate this equipment on a stable,
level surface AT LEAST 7 feet away from
any structure, obstruction, or possible
hazard(s) such as walls, pools, power lines,
overhangs, other playground equipment,
driveways, hard surfaces and/or roadways.
• Children must be supervised at all times
when using this equipment. DO NOT leave
children unattended at any time.
• DO NOT attach items to the trampoline
not specifically designed for this purpose.
Especially in the case of jump ropes, chains,
clotheslines, pet leashes and cables. These
may cause a strangulation or physical
hazard.
• This Trampoline is NOT for adult or
adolescent use.
• DO NOT allow more than one child to jump
on the Trampoline at any time.
• DO NOT allow children to wear glasses or
helmets when using the Trampoline.
• DO NOT allow the padding cover of this
trampoline to become wet. If accidental
spillage occurs, immediately blot this with a
damp towel and allow to dry.
• DO NOT place objects on or under the
trampoline, or allow people and pets to
stand or sit on, near or under the unit.
• Remove all hard or sharp objects including
jewelry, eyeglasses, sunglasses or hair clips
before jumping.
• Do not attempt or allow somersaults.
Landing on the head or neck can cause
serious injury, paralysis, or death, even when
landing in the middle of the mat.
• Do not use if in a cast or have previous leg,
arm, head, neck or back injury.
• ALWAYS secure the Trampoline against
unauthorized and unsupervised use.
• Inspect legs for proper attachment or
cracks, netting for tears and sagging, loose
or damaged springs, mat for tears or worn
stitching, and frame for sagging or cracks
before use.
• The product must not be used in windy
conditions as wind can cause unexpected
movement of the product. Wind can cause
the trampoline to be lifted off the ground and
become airborne. This can present a danger
to individuals and to property. Winds can be
especially strong in open areas, foothills,
mountains, locations subject to hurricanes
and tornadoes, areas between homes that
create wind tunnels and anywhere else
where local weather conditions can create
high winds.
• We recommend that you anchor the
trampoline or otherwise secure the
trampoline to prevent it from moving as a
result of the wind.
• If the winds are anticipated to be very strong,
the trampoline should be disassembled
and stored away safely until the weather
conditions improve.
• Only genuine replacement parts sold
through our authorized dealer are
recommended. Replacement parts from
other sources may not have been designed,
tested or manufactured to standards.
Because of this,cannot guarantee the
performance and safety of the product
when non genuine replacement parts are
used. The use of non-genuine r replacement
parts may affect any warranty claim on
the product, as allowed by the law in your
jurisdiction.

[e-mail] 1-866-498-5269
PARTS LIST
2 -
9A -
Top Rail
Curve Frame Tube Foam
4 -
9-
7 -
3 -
8A -
6 -
Vertical Leg Extension
Curve Frame Tube
Galvanized Spring
Corner Top Rail with Socket
Straight Frame Tube Foam
Plastic Horizontal Leg Base
1 -
8 -
5A - 5B -
Jump Mat and Frame Pad
Straight Frame Tube
Plastic Vertical Leg Extension Plastic Vertical Leg Extension-Abacus
x1
x6
x6
x6
x6
x6
x6
x4 x2
x3
x6
x36
10 - 10A -
Horizontal Tube Horizontal Tube Foam
x3 x3

5
MODEL# 9307TS
PARTS LIST
16 - Spring Loading Tool
13 - Chalk Set
19- 20-
21-
22- 23- 25-
24- 26-
12 -
14 -
15 -
11 -
Allen Wrench Nut
Flat Washer
Metal Rod Red Abacus Ball Green Abacus Ball
Blue Abacus Ball Yellow Abacus Ball
Plastic Flat Plate
Wrench
Spring Washer
Enclosure Netting
18 -
17 -
Screw
Arc Washer
x6
x1
x1
x1
x8
x1
x10
x6 x14
x4
x12 x12
x12 x12
x2
x1

[e-mail] 1-866-498-5269
STEP 1
STEP 2
x12 x12
23- 24-Red Abacus Ball Blue Abacus Ball
22
5B
ASSEMBLY INSTRUCTIONS

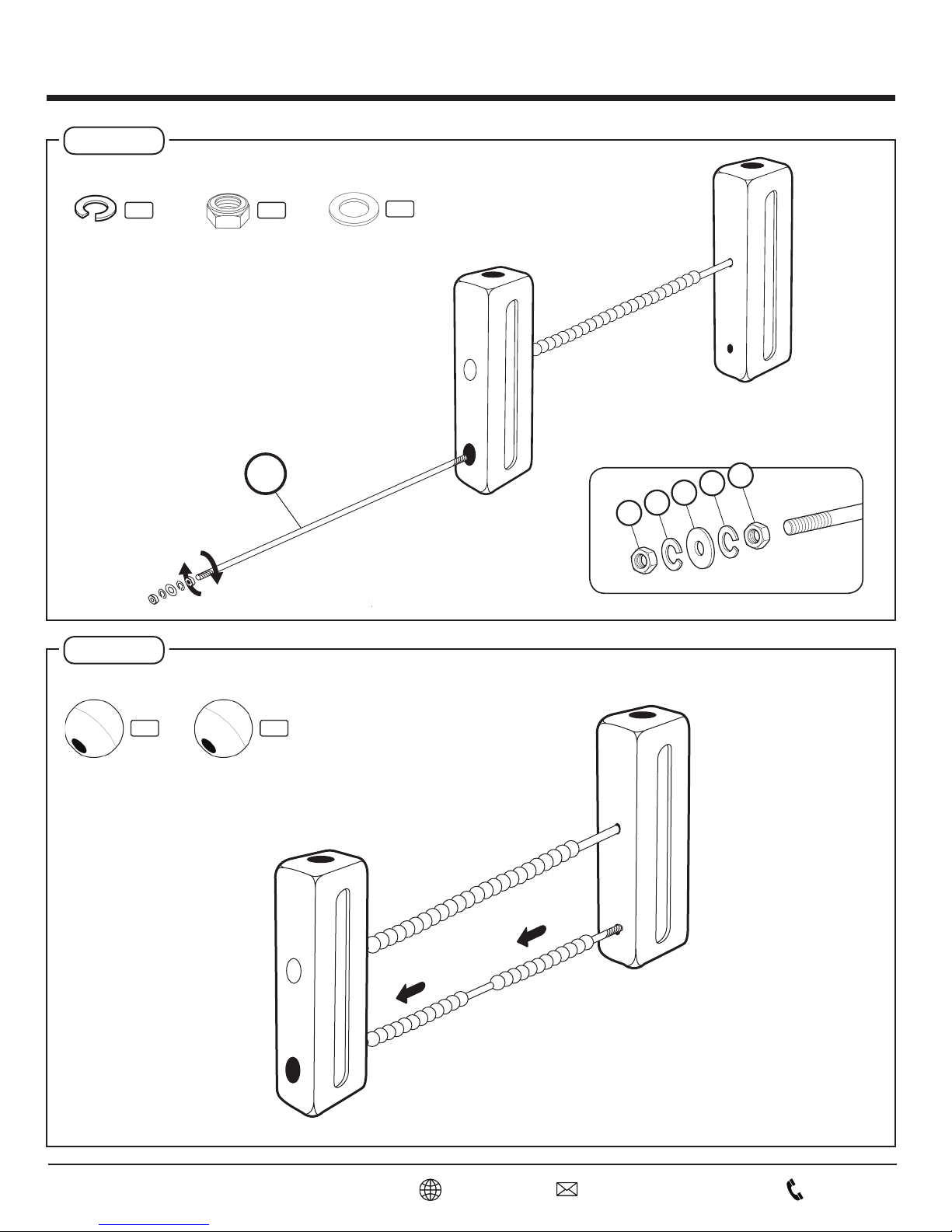

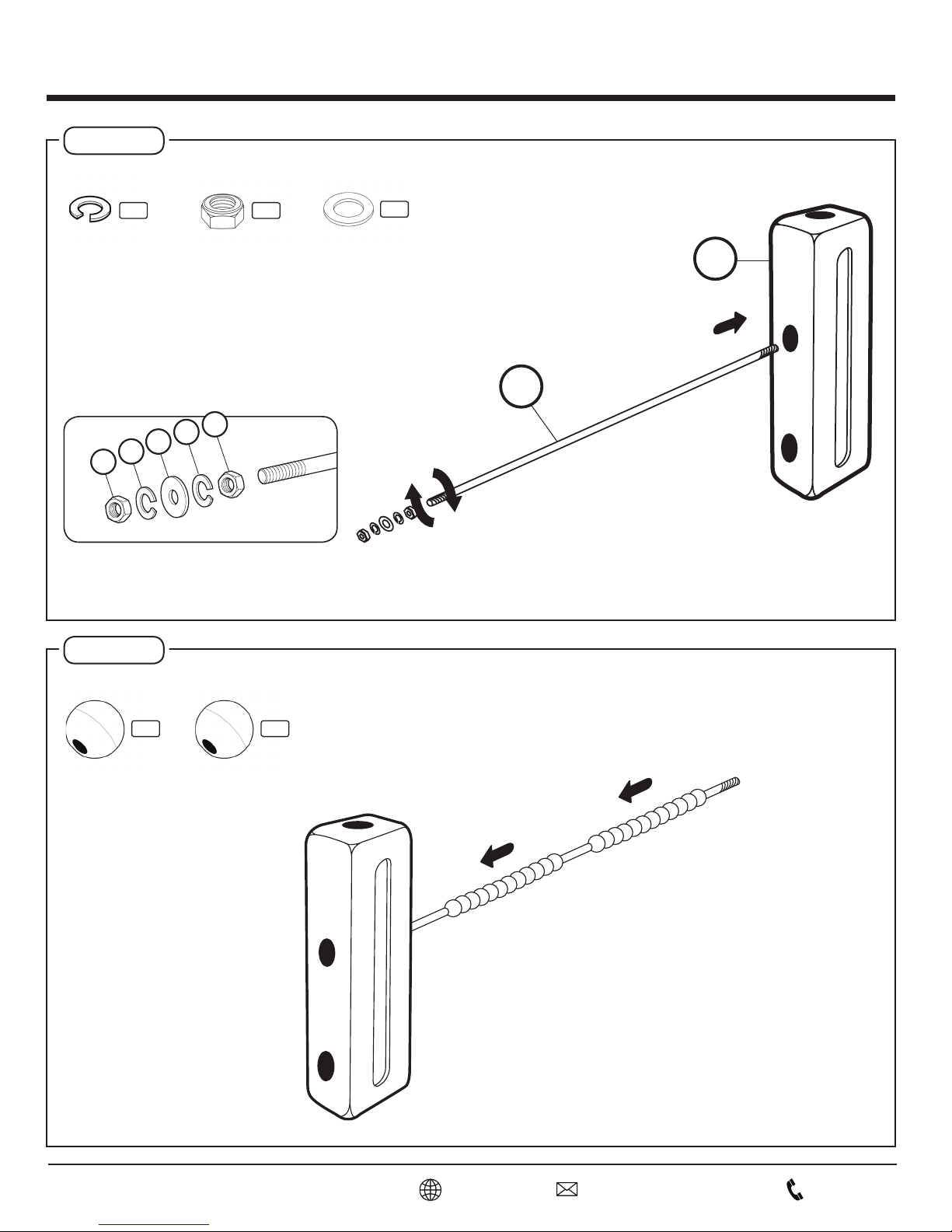

Tighten to the metal rod the
hardware shown to ensure it
doesn’t escape.
Insert the Metal Rod (22) from
the larger TOP opening of he
Plastic Vertical Leg Extension
(5B) for the Abacus.
Slide 12x Red Abacus Balls (23)
through the Metal Rod, and then
slide 12x Blue Abacus Balls (24)
NOTE: You may choose which
colors go first between all 4
colors provided.
x2 x2 x1
21- Flat Washer
20- M8 Spring Washer
15- Spring Washer
20 15 21 15 20

7
MODEL# 9307TS
STEP 3
STEP 4
x2
12- Plastic Flat Plate
5B
ASSEMBLY INSTRUCTIONS

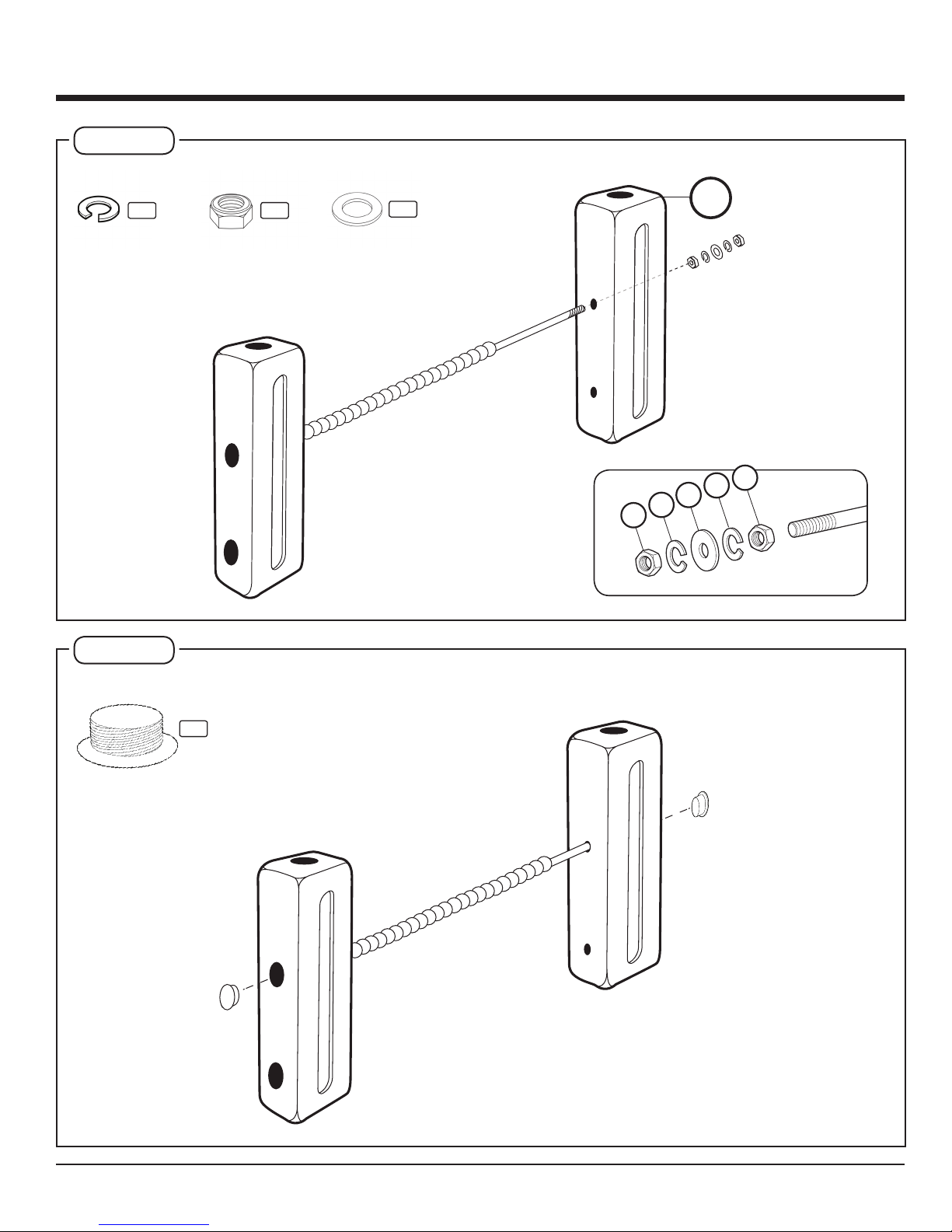

Push the Vertical Leg Extension
towards the Abacus balls to be
able to secure the Metal Rod
using the hardware provided.
Using 2 Abacus Flat Caps (12),
place 1 on each side of the Leg
Extension to avoid the metal rod
from escaping.
x2 x2 x1
21- Flat Washer
20- M8 Spring Washer
15- Spring Washer
20 15 21 15 20

[e-mail] 1-866-498-5269
STEP 5
STEP 6
x2 x2 x1
21- Flat Washer
20- M8 Spring Washer
15- Spring Washer
ASSEMBLY INSTRUCTIONS
x12 x12
25- 26-Green Abacus Ball Yellow Abacus Ball
22
Tighten to the metal rod the
hardware shown to ensure it
doesn’t escape.
Insert the Metal Rod (22) from
the larger BOTTOM opening
of he Plastic Vertical Leg
Extension (5B) for the Abacus.
Slide 12x Green Abacus Balls
(25)through the Metal Rod, and
then slide 12x Yellow Abacus
Balls (26)
NOTE: You may choose which
colors go first between all 4
colors provided.
20 15 21 15 20

9
MODEL# 9307TS
x2 x2 x1
21- Flat Washer
20- M8 Spring Washer
15- Spring Washer
STEP 7
STEP 8
ASSEMBLY INSTRUCTIONS
Push the Vertical Leg
Extension towards the
Abacus balls to be able
to secure the Metal Rod
using the hardware
provided.
Using 2 Abacus Flat Caps
(12), place 1 on each side
of the Leg Extension to
avoid the metal rod from
escaping.
x2
12- Plastic Flat Plate
20 15 21 15 20

10 [e-mail] 1-866-498-5269
ASSEMBLY INSTRUCTIONS

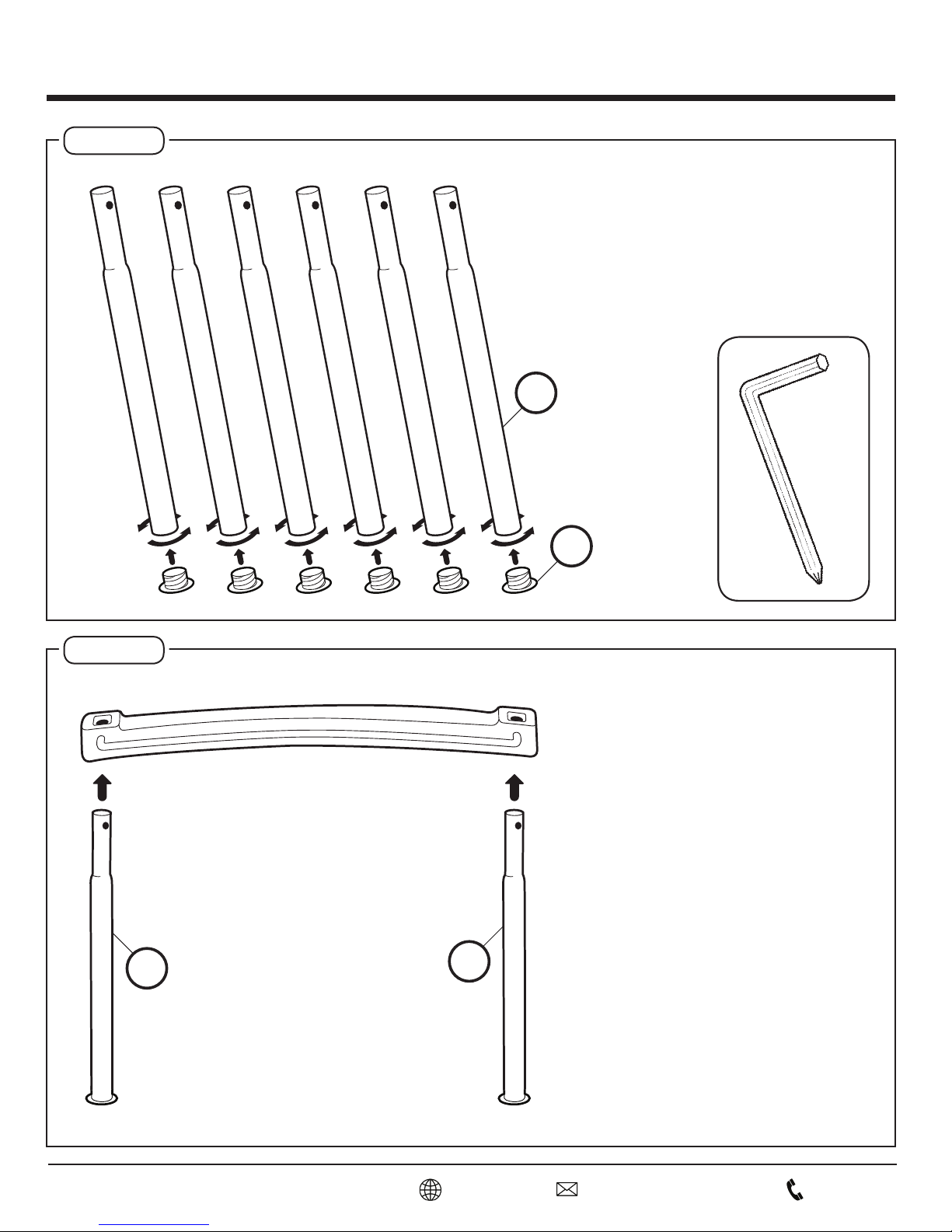

Locate all the Vertical Leg Extensions (4)
and twist the Plastic Flat Plates (12) until
snug.
To make sure they are secure and properly
tightened, use the Allen wrench provided.
Insert the 2x Vertical Leg Extensions at both
openings of the Plastic Horizontal Leg Base
(6).
The flat area of the Horizontal Base must
face the floor. Both indents in the Base must
be facing upwards.
STEP 9
STEP 10
4
12
4
4

11
MODEL# 9307TS
ASSEMBLY INSTRUCTIONS

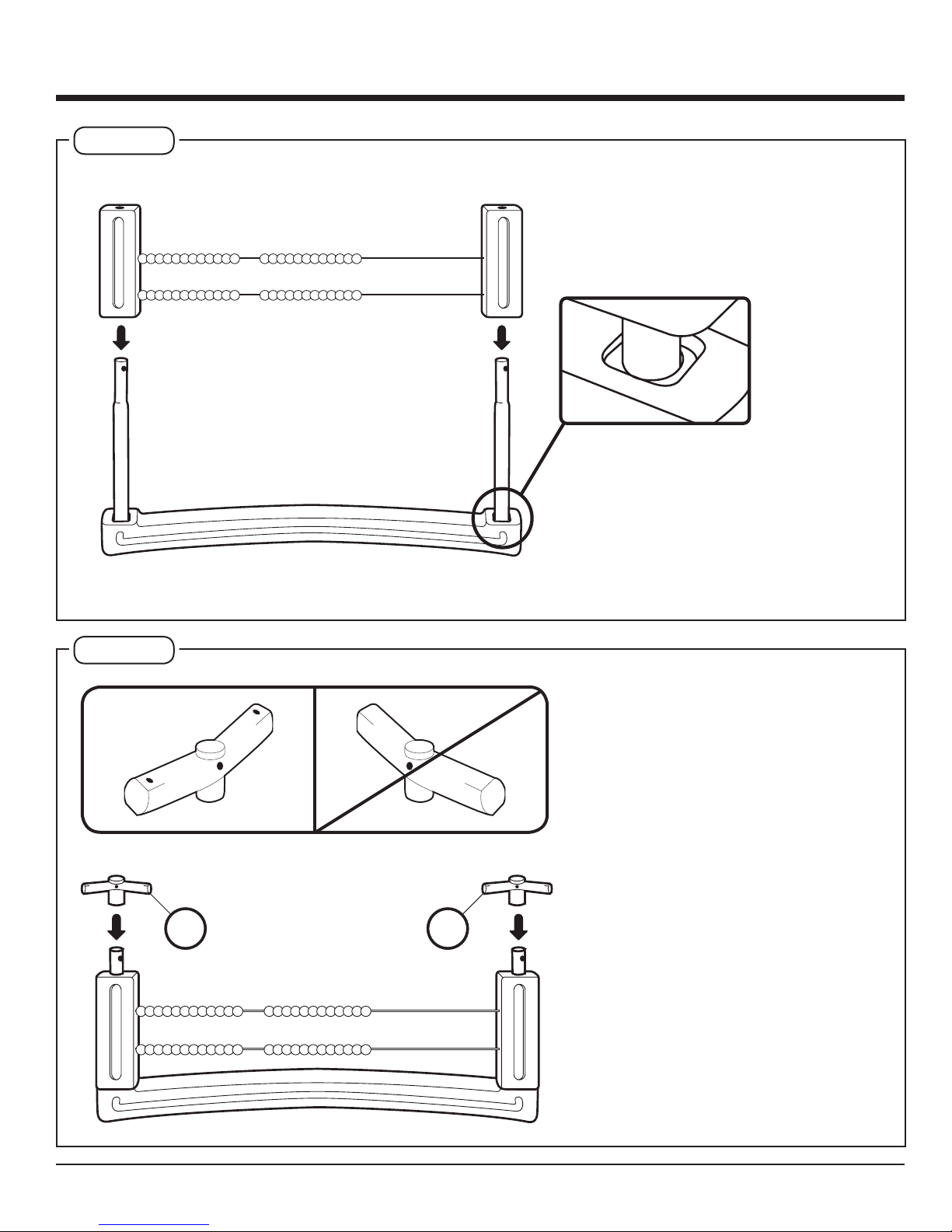

Slide the completed Abacus into the
Vertical Leg Extensions with the bottom
portion closest to the Horizontal Leg Base
The emboss indent at he bottom of the legs
will align to the openings of the Horizontal
Leg Base.
Slide 2x Corner Top Rail with Socket (Part
3) and align to the upper opening of the
Vertical Leg Extensions.
NOTE: Make sure that you locate the upper
openings of the corner arms and they are
facing upwards.
STEP 11
STEP 12
3 3
Spring holes must
be facing upward

12 [e-mail] 1-866-498-5269
ASSEMBLY INSTRUCTIONS
8
2
8
17
20
STEP 13
STEP 14

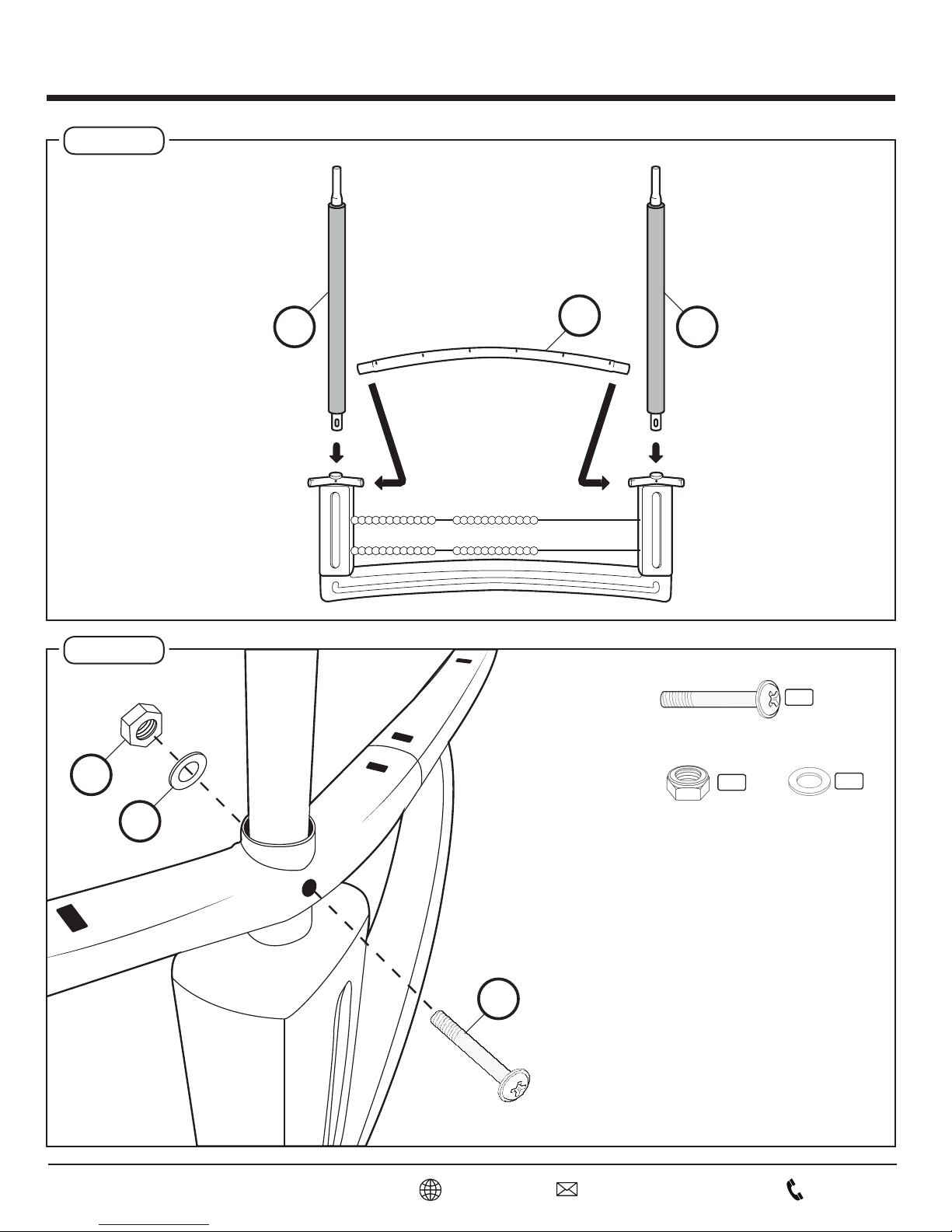

The Straight Frame Tubes
should have Foam (8A)
already pre-installed.
Slide into the corner Top
Rails from the upper
opening, and slide the
Top Rail to the arms of the
corners.
NOTE: Just like the
Corners, the openings
of the Top Rails must be
facing upwards for the
springs to be installed
Align all the openings, and
with the Screw (18) facing the
outside, tighten all hardware
shown using the Phillips
Screwdriver from the Allen
Wrench (19)
x2
x2 x2
17- Arc Washer
20- M8 Spring Washer
18- Screw
18

13
MODEL# 9307TS
ASSEMBLY INSTRUCTIONS
STEP 15
STEP 16
6 6
4
5A 5A5A 5A
4
4 4

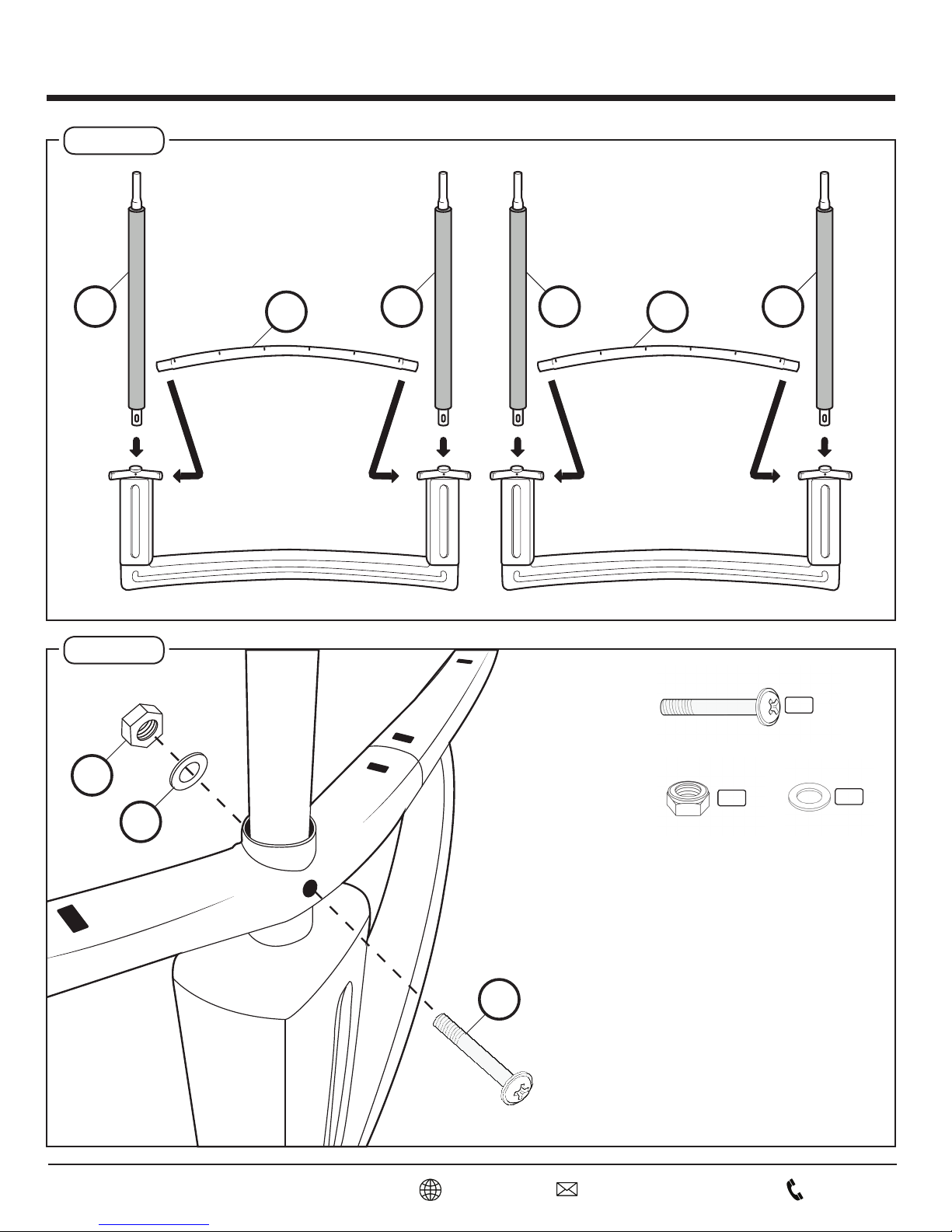

Complete two more
assembled legs

14 [e-mail] 1-866-498-5269
17
20
STEP 17
STEP 18
ASSEMBLY INSTRUCTIONS
2 2
88 88
x4
x4 x4
17- Arc Washer
20- M8 Spring Washer
18- Screw
Align all the openings, and
with the Screw (18) facing the
outside, tighten all hardware
shown using the Phillips
Screwdriver from the Allen
Wrench (19)
18

15
MODEL# 9307TS
Once you have 3 completed sections,
slide the remainder of the Top Rails facing
upwards to the legs of the trampoline.
2
2 2
STEP 19
STEP 20
ASSEMBLY INSTRUCTIONS
3 Completed Legs

16 [e-mail] 1-866-498-5269
ASSEMBLY INSTRUCTIONS
Place the Jump Mat and Frame Pad (1) with
the Logo and Tic-Tac-Toe facing upwards.
Each corner of the Jump Mat and Frame
Pad will have an opening. Slide the Straight
Frame Tubes through these openings. The
loop is elastic giving you enough give to
stretch and insert.
Dont push the Mat all the way down, make
sure to leave yourself a little room to install
the springs to the mat.
“R”
Hook
“R” Hook
Spring ends
facing down
“C” Hook
(16)
“C”
Hook
Locate the R-Hook side of the Galvanized
Spring (Part 7).
At the bottom of the trampoline there will
be V-rings assigned to an opening of the
Top Rail based on the proximity of each one.
Attach the Spring to the V-Ring using
the “R”-Hook. Make sure the ends of the
Springs are facing downwards to avoid
punctures to the mat or injury while
jumping on the trampoline.
Using the Spring Loading Tool (Part 16) pull
on the “C” Hook of the Galvanized Spring
and hook to the closest Spring Opening of
the Top Rail.
STEP 21
STEP 22
1
7

17
MODEL# 9307TS
25
6
7
8
912
10 11
1
13
14
15
16
17
18
3
4
ASSEMBLY INSTRUCTIONS
To ensure that Jump Mat and Frame Pad
won’t suffer from any excessive tension that
will cause ripping or tearing on the Mat, the
springs must be installed in a specific order.
Follow the Spring order shown for the best
way to properly install and secure the Jump
Mat and Frame Pad to the Top Rails.
Once the first 16 Springs have been
installed on the Top Rail, install the
remaining 20 Springs.
NOTE: Failure to install the springs to the
correct V-Ring and Top Rail openings and/
or not follow the Spring Order Installation
as shown, may result in tearing or injury
while in use.
STEP 23

18 [e-mail] 1-866-498-5269
STEP 24
STEP 25
All ribbons must be
attached and secured to the
Top Rail to make sure no
skipping, tearing, or loose
jumping occurs
9 9
10
Assemble 3 Upper Arcs
ASSEMBLY INSTRUCTIONS

19
MODEL# 9307TS
STEP 26
STEP 27
Slide all 3 completed upper
arcs to the top section of
the Straight Frame Tubes
NOTE: Make sure arcs
are placed away from
horizontal bases as shown.
3 Completed Upper Arcs
ASSEMBLY INSTRUCTIONS

20 [e-mail] 1-866-498-5269
ASSEMBLY INSTRUCTIONS
STEP 28
Place the Enclosure
Netting (11) on top of
the trampoline making
sure all arcs are inside.
The zipper and safety
buckle must be facing
the outside of the
trampoline.
