Pure Fun 9308TS User manual

DURA-BOUNCE 8FT TRAMPOLINE SET
MODEL# 9308TS
PRODUCT MANUAL  VERSION 06.17.01
FOR AGES:
6+ 1
X
WEIGHT LIMIT:
250Lbs
113 Kgs
TO BUILD: TOOLS NEEDED:
CUSTOMER SERVICE
[e-mail] 1-866-498-5269 GQBrands.com 4401 Samuell Blvd, Ste 150, Mesquite, TX 75149

[e-mail] 1-866-498-5269
CUSTOMER SERVICE INFORMATION
Thank you for purchasing:
DURABOUNCE 8FT TRAMPOLINE SET
MODEL# 9308TS  TRAMPOLINE
YOUR NAME: _________________________________________
YOUR MAILING ADDRESS: _______________________________
YOUR EMAIL ADDRESS: ________________________________
PRODUCT NAME: _____________________________________
PRODUCT MODEL#: ___________________________________
PART NUMBER _______________________________________
RETAILER WHERE PURCHASED:__________________________
DATE OF PURCHASE: __________________________________
ORDER NUMBER:
(If Available) ____________________________
SERIAL NUMBER:
(If Available) ____________________________
QUANTITY NEEDED: ___________________________________
PICTURE OF DAMAGED PART
At GQBrands®, we want all of our customers to be completely
satisfied with their purchase. Take time to review the contents of the
product you have just received to make sure that all of the parts are
included. If you find that any parts are missing or damaged, we will
provide replacement parts at no charge within 30 days of purchase.
Please keep in mind that for select damaged part replacement
requests, we will require a photo for submission.
To order these parts, or if you have any other questions or concerns
about this GQBrands product, please contact us at
PureFun.Net
GQBrands®
Phone: [phone]
Email: CustomerServic[email protected]
4401 Samuell Blvd, Ste 150,
Mesquite, TX 75149
Please be sure to include the following information when you contact Customer Service:
LIMITED WARRANTY
Global Quality Brands® warrants this product to be free from defects in
workmanship and materials under normal use and conditions for a period of
1 YEAR FROM THE DATE OF ORIGINAL PURCHASE. This Limited Warranty is not
transferable and is available only for the original purchaser of the Product. The
Company’s obligation under this warranty is limited to replacing or repairing the
Product, at the discretion of the company.
All warranty coverage extends only to the original retail purchaser from the date
of purchase, GQ Brands obligation under this warranty is limited to replacing or
repairing, at Global Quality Brands® option. All products for which a warranty
claim is made must be received by Global Quality Brands® and accompanied by
sufficient proof of purchase (photocopy of the original store receipt, indicating
the date of purchase). All freight and handling fees are the responsibility of the
consumer to pay, both to and from Global Quality Brands®. All warranty claims
must be preauthorized by Global Quality Brands® pre-authorization can be
obtained by calling 866-498-5269.
This warranty does not cover ordinary wear and tear, weathering, failure to follow
directions, improper installation, improper maintenance, or acts of nature, (such
as damage caused by wind, lightning, snow, water, or ice) weather damage,
damage caused by unauthorized repair work or damage caused by improper use
of the products are not covered by the product warranty. No other warranty beyond
that specifically set forth above is authorized by GQBrands®.
GLOBAL QUALITY BRANDS® IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT,
SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION
WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH
RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE
OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION
OR OTHER CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.
ACCORDINGLY,
THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THE WARRANTY EXTENDED
HEREUNDER IS IN LIEU OF ALL OTHER WARRANTIES AND GLOBAL QUALITY
BRANDS®, SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN
ITS SCOPE AND DURATION TO THE TERMS SET FORTH HEREIN. SOME STATES
DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS.
ACCORDINGLY, THE ABOVE LIMITATION MAY NO APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS,
WHICH VARY FROM STATE TO STATE.
WHILE EVERY ATTEMPT IS MADE TO ENSURE THE HIGHEST DEGREE OF
PROTECTION IN ALL EQUIPMENT, WE CANNOT GUARANTEE FREEDOM
OF INJURY. THE USER ASSUMES ALL RISK OF INJURY DUE TO USE. ALL
MERCHANDISE IS SOLD ON THIS CONDITION, WHICH NO REPRESENTATIVE OF
GQBRANDS® CAN WAIVE OR CHANGE.

3
MODEL# 9308TS
• It is essential that the intended site for this
trampoline is completely flat and level. If the
ground is not level this will cause movement in
the frame and could cause stress on the joined
sections.
• Before each use of this product, inspect the
entire assembly and replace any worn, defective
or missing parts.
• It is only recommended for use by children 6+
years of age.
• DO NOT exceed the recommended MAXIMUM
WEIGHT limit of 250lbs (113kgs).
• DO NOT wear glasses or helmets when using the
trampoline.
• DO NOT use the trampoline in wet, windy or
other adverse weather conditions. Use only when
the trampoline mat is clean, dry, and safe of
obstructions.
• ALWAYS jump in the center of the trampoline
mat.
• DO NOT use the trampoline as a springboard
to or from other objects. NEVER jump from
or attempt to jump to other objects, bodies of
water, buildings or surfaces, or into or over the
trampoline enclosure.
• DO NOT allow other persons to go under, sit,
stand or lie on the trampoline or the frame pads
while the trampoline is in use.
• DO NOT use the trampoline set when under
the influence of alcohol, drugs or medication
which may impair the jumper’s judgment and
coordination.
• ALWAYS remove jewelry, belt buckles or any
other sharp objects before using the trampoline.
• ALWAYS secure the trampoline against
unauthorized and unsupervised use.
• NEVER wear footwear (e.g. shoes) when using
the trampoline. ALWAYS wear socks when using
the trampoline.
• Children MUST NEVER use the trampoline
unless supervised by a responsible adult with
knowledge of trampoline use.
• Ensure the trampoline set is on level ground
with a minimum of 8 feet (2.5M) clear space
around the sides, 26 feet (8M) clear height space
above and that no obstructions are under the
trampoline.
• ALWAYS watch for hazards or obstructions
above, around and below the location where
you are installing your trampoline set. Failure
to do so can result in serious injury, death, and
property damage.
• Children should be assisted when entering
and exiting the trampoline to reduce the risk of
falling.
• The frame of your trampoline set is made of
steel and it will conduct electricity. No electrical
equipment (lights, heaters, etc.) should be
permitted on or around the trampoline under
any circumstance.
• DO NOT allow more than one (1) person on the
trampoline at a time. Jumpers may collide with
one another, fall off the trampoline, fall on or
through the springs or land incorrectly on the
mat. Multiple jumpers increase the chances of
loss of control, collision and falling off. This can
result in severe injury or death.
• Always secure the trampoline against
unauthorized and unsupervised use.
IMPORTANT:
• You must not use the trampoline if you have
a medical history of neck or back injuries or
certain mental or physical conditions – an
existing condition dramatically increases the risk
of serious injury or death.
• No modification should be carried out to the
trampoline or any of its components. Any
modification could lead to damage to the product
or result in a personal injury.
• Should there be any missing parts, the
trampoline must not be used until replacement
parts have been fitted.
• The frame pad should always be fitted properly,
fully covering the trampoline frame and springs.
• The use of gloves to protect your hands from
pinch points during assembly is also strongly
recommended.
WEATHER CONDITIONS:
• Special care should be taken as weather
conditions change. In particular, a wet
trampoline mat (bed) is too slippery for safe
jumping.
Gusty or severe winds can cause jumpers to
lose control. To reduce the chance of injury, use
the trampoline only under appropriate weather
conditions.
In cold weather, tongues and lips can stick to
metal at sub zero temperatures. In warmer and
sunnier weather, parts can become extremely
hot, and the temperature should be regularly
checked during play, especially metal parts.
HIGH WINDS:
• If you anticipate high winds, the Trampoline
must be moved to a sheltered location, or be
disassembled. GQBrands is not responsible for
any damage to property or product resulting
from wind or extreme weather.
ADULT ASSEMBLY REQUIRED
CHOKING HAZARD - Small Parts
NOT for children under 3 years of age.
Please read these warnings and the information in this manual in its entirety.
Failure to comply with the following instructions may increase the risk of serious injury and/or death:
WARNINGS

[e-mail] 1-866-498-5269
TRAMPOLINE - PARTS LIST
3-
2-
6- 7-
1-
4-
5- 8-
x6
x6 x1x48 x6
x1
x1
x3
Curved Frame with T-Section
Frame Pad
Spring Screw
Trampoline Mat
“U” Shaped Leg
Leg Extension Spring Tool

5
MODEL# 9308TS
ENCLOSURE - PARTS LIST
9- 11-
10-
12- 13-
14-
15-
16-
x6x6 x12
x12
x1
x12
x12
x12
Lower Pole Pole CoverUpper Pole with Cap
Enclosure Net M8 Bolt
M8 Nut
Plastic Washer
Washer

[e-mail] 1-866-498-5269
ASSEMBLY INSTRUCTIONS
STEP 1:
Parts:
Part 3 (x6) - Curved Frame with T-Section
Lay out the Curved Frames (3) in the
ground as shown in the picture with the
spring openings facing the floor.
Slide all six Curved Frames onto each other
to complete a full circled frame.
STEP 2:
Parts:
Part 5 (x6) - Extension Leg
Part 4 (x3) - “U” Shaped Leg
Attach the Leg Extensions (3) to all T-
Section with the horizontal opening facing
the inside of the frame.
Place the “U” Shaped Legs (5) with the
openings aligning to the horizontal opening
from the Extension Leg.
STEP 3:
Parts:
Part 7 (x6) -Screw
With the openings aligned, use a
screwdriver to unite the Leg Extensions and
the “U” Shaped Leg.
3
3
3
3
3
4
5
7
5
3

7
MODEL# 9308TS

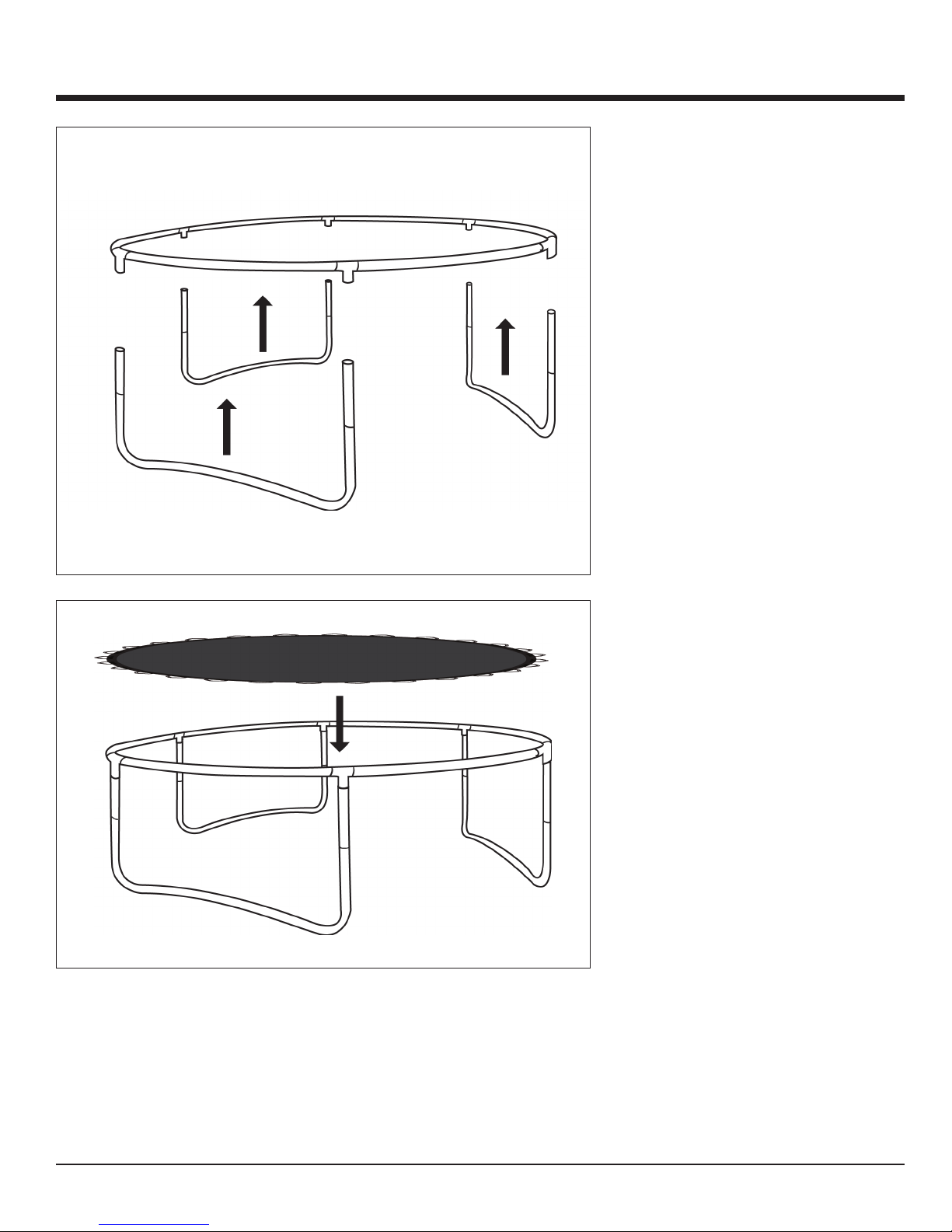

STEP 4:
Once all x3 “U” Shaped Legs have been
installed, allign the T-Sections from the
Frame and slide until all have 3 assembled
legs are secure.
STEP 5:
Parts:
Part 1 (x1) - Trampoline Mat
Place the Trampoline Mat (1) in the middle
of the frame, with the logo facing upwards
and the stitching facing the floor.
ASSEMBLY INSTRUCTIONS

[e-mail] 1-866-498-5269
1
5
6
7
8
9
10 11
12
13
14
15
16
3 4
2
ASSEMBLY INSTRUCTIONS

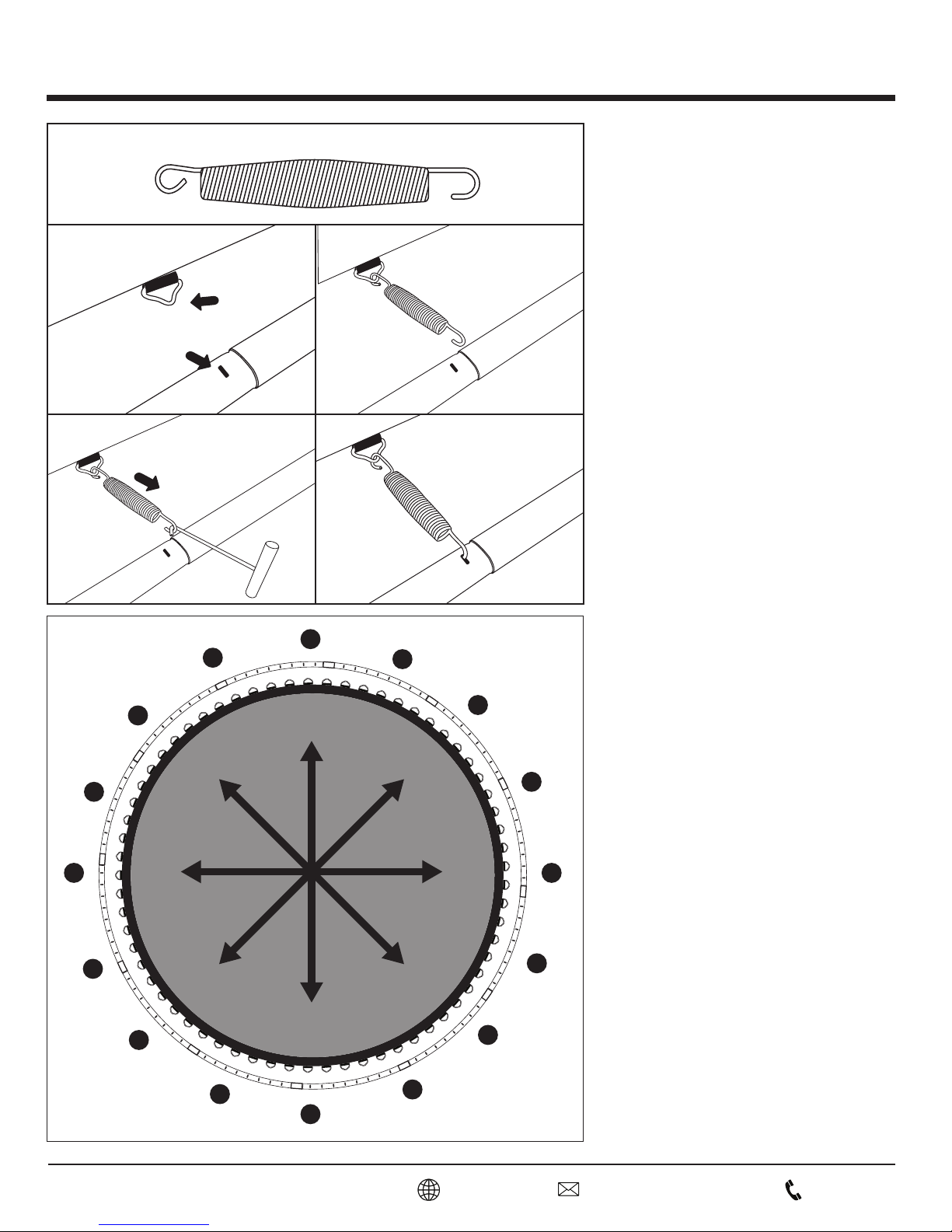

LEARNING TO INSTALL SPRINGS
Install the Spring (6) by placing the “R”
Hook on the V-Ring of the Trampoline Mat.
Using the Spring Tool (8), pull the “C” Hook
until it reaches the opening in the frame.
STEP 6:
Parts:
Part 6 (x48) - Spring
Part 8 (x1) - Spring Tool
To ensure that Jump Mat and Frame Pad
won’t suffer from any excessive tension that
will cause ripping or tearing on the Mat,
the springs must be installed in a specific
order.
Follow the Spring order shown for the best
way to properly install and secure the Jump
Mat and Frame Pad to the Top Rails.
Once the first 16 Springs have been
installed on the Frame, install the
remaining 32 Springs.
NOTE: Failure to install the springs to the
correct V-Ring and Top Rail openings and/
or not follow the Spring Order Installation
as shown, may result in tearing or injury
while in use.
“R”
Hook
“R” Hook
Spring ends
facing down
“C” Hook
(8)
“C”
Hook
(6)

9
MODEL# 9308TS
ASSEMBLY INSTRUCTIONS
Tighten straps to
the top rail
2
STEP 7:
Parts:
Part 2 (x1) - Frame Pad
Unfold the Frame Pad (2) and place it on
top of the Top Rail and springs. The Frame
Pad must cover the Top Rails completely to
avoid injury.
STEP 8:
Tighten the Elastic Straps at the bottom of
the Frame to the top rail to secure to the
trampoline.

10 [e-mail] 1-866-498-5269
ASSEMBLY INSTRUCTIONS
9
STEP 9:
Parts:
Part 9 (x6) - Lower Pole
Align the opening Lowe Poles (9) to the
horizontal opening of the T-Section and the
middle opening of the Leg extension.
STEP 10:
Following the instructions on Page 11,
install all Lower Poles to all t-Section from
the Top Rail
Lower Pole
Locations

11
MODEL# 9308TS
ASSEMBLY INSTRUCTIONS
1513 16
14
M8 Bolt M8 Nut Plastic Washer Washer
13
13
14
14
15
15
16
16

12 [e-mail] 1-866-498-5269
ASSEMBLY INSTRUCTIONS
11
11
11 11
11
11
11
x6
10
STEP 11:
Parts:
Part 11 (x6) - Pole Cover
Slide x6 Pole Covers (11) once all Lower
Poles have been installed.
STEP 12:
Parts:
Part 10 (x6) - Upper Pole with Cap
Part 11 (x6) - Pole Cover
Slide x6 Pole Covers (11) to an Upper Pole
with Cap (10) to have x6 completed pieces
NOTE:
If the Upper Pole is missing a Cap or
became detached, simply install back into
the Pole to make sure the Cover doesn’t
slide out.

13
MODEL# 9308TS
ASSEMBLY INSTRUCTIONS
STEP 13:
Parts:
Part 12 (x1) - Enclosure Net
Slide all x6 completed upper poles into
the enclosure pole covers in the Enclosure
Netting.
NOTE:
Leaving the zipper open will make it easier
to install the enclosure netting.
12

14 [e-mail] 1-866-498-5269
1
2
3
4
5
6
ASSEMBLY INSTRUCTIONS
STEP 14:
Insert each Upper Pole and slide down to
the Lower Pole attached to the trampoline,
one at a time to distribute the tension of the
enclosure netting evenly.
Once placed, slide the net and the covers
until they complete cover the lower poles,

15
MODEL# 9308TS
ASSEMBLY INSTRUCTIONS

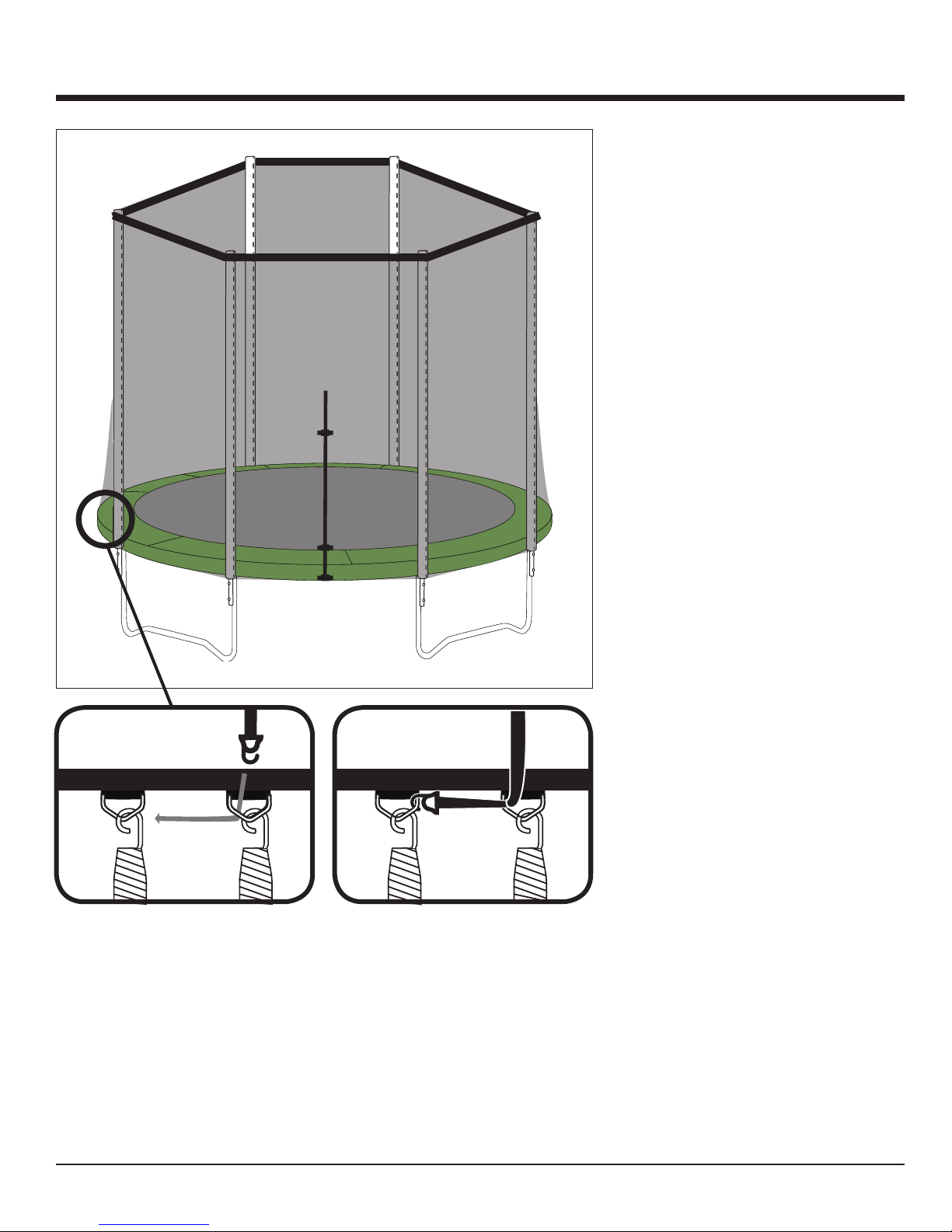

STEP 15:
Close the zipper of the enclosure netting
and secure with all x3 Click and Snap
Hooks.
Make sure that the Enclosure Netting is
stretched to the outside of the Trampoline
Frame Pad.
STEP 16:
At the bottom of the Enclosure netting
there are hooks that need to be attached to
the V-Rings of the trampoline.
Secure all Hooks to tighten the Enclosure
netting to the trampoline as shown.

16 [e-mail] 1-866-498-5269
GQBrands®
1-866-498-5269
CustomerServic[email protected]
4401 Samuell Blvd, Ste 150,
Mesquite, TX 75149
NOTES CUSTOMER SERVICE
