Pure Lighting rl Series User manual

Operation Manual
Directional Speakers RL 110 Series

Important Safety Information
CAUTION!
Service and repair work must only be carried out by qualified personnel. Do not open the case as there is
a risk of electric shock. There are no controls or components inside the device that require you to open
the case. If the case has to be opened by qualified personnel, make sure that the device is completely
disconnected from the power supply.
The operating voltage must match the local power supply.
The device should be shielded from moisture and wet conditions. It must not be operated in rain or close to
water, baths, washbasins, sinks, swimming pools or in damp environments. Do not place any objects filled
with water such as vases, glasses or bottles on the device.
Avoid direct sunlight and do not install it in the direct vicinity of radiators or other heat sources. Upon
sudden change of climatic conditions (e. g. transfer from a cold place to a warm room) water may condense
inside the device, which may lead to malfunction or damage. Before switch-on wait until the amplifiers
have reached room temperature.
Unplug the mains plug to protect the device during a thunderstorm or if it is going to be left unsupervised
or unused for a longer period of time. This prevents the device being damaged by lightning strikes or
voltage surges in the mains grid. Do not touch the case when the device is in use as it may heat up during
operation. Make sure that the device is ventilated suciently.
Improper use will invalidate the warranty!
Disclaimer
LB is not liable for damage to speakers or other equipment caused by negligence or in cases where the
product has been used for something other than its intended purpose. In particular, LB is not liable for lost
earnings or other financial losses incurred by the purchaser. This limitation also applies to the personal
liability of employees, representatives and agents.
These products meet the requirements of European Directive 2002/96/EC (WEEE) and 2002/95/EC (RoHS).
THIS UNIT MUST
BE EARTHED!
Fuse 0,5 A
slow
THIS UNIT MUST
BE EARTHED!
Fuse 0,5 A
slow
2

Directional Speakers – RL 110 Series
RL 110 | RL 110 A | RL 110 A-MP3 | RL 110 AX | RL 110 AX-MP3 | RL 110 PerZonic®
Content
Models ........................................................................................... 4
Accessories .................................................................................... 4
Positioning and Assembly ............................................................... 5
Dimensions RL 110 Series .............................................................. 6
RL 110 ........................................................................................... 7
• Technical Data / Back View ......................................................... 7
RL 110 A / RL 110 A-MP3 .............................................................. 8
• Technical Data / Block Diagram ................................................... 8
• Controls and Functions ............................................................... 9
RL 110 AX .................................................................................... 10
• Technical Data / Block Diagram ................................................. 10
• Controls and Functions ............................................................. 11
RL 110 AX-MP3............................................................................ 12
• Technical Data / Block Diagram ................................................. 12
• Controls and Functions ............................................................. 13
RL 110 Perzonic®.......................................................................... 14
• Technical Data / Block Diagram ................................................. 14
• Controls and Functions ............................................................. 15
3
Further technical informations can be found
in the datasheets and on our website:
www.lb-lautsprecher.de/en/Directional-Speakers

Model Version
Accessories
4
RL 110 White RAL 9016 Full-range directional speaker
RL 110 Black RAL 9005 Passive, 8 ohms
RL 110 T White RAL 9016 100 V version,
RL 110 T Black RAL 9005 Power 2.5/5/10 watts
RL 110 A White RAL 9016 Active directional speaker
RL 110 A Black RAL 9005
RL 110 A-MP3 White RAL 9016 Active directional speaker with
RL 110 A-MP3 Black RAL 9005 integrated MP3 player
RL 110 AX White RAL 9016 Active directional speaker with
RL 110 AX Black RAL 9005 integrated motion sensor
RL 110 AX-MP3 White RAL 9016 Active directional speaker with
RL 110 AX-MP3 Black RAL 9005 integrated motion sensor and MP3 player
RL 110 PerZonic®White RAL 9016 Active directional speaker with patented
RL 110 PerZonic®Black RAL 9005 automatic volume control (depending on
the ambient noise)
Other colors and
versions on request.
WH 110 White L-bracket for RL 110, with assembly plate, rotatable/pivotable,
incl. savety rope
WH 110 Black L-bracket for RL 110, with assembly plate, rotatable/pivotable,
incl. savety rope
SR 300 Stainless steel rope for pendant mounting, lenght 3 m,
thickness 1 mm, one side with loop

Positioning and Assembly of the Speakers
5

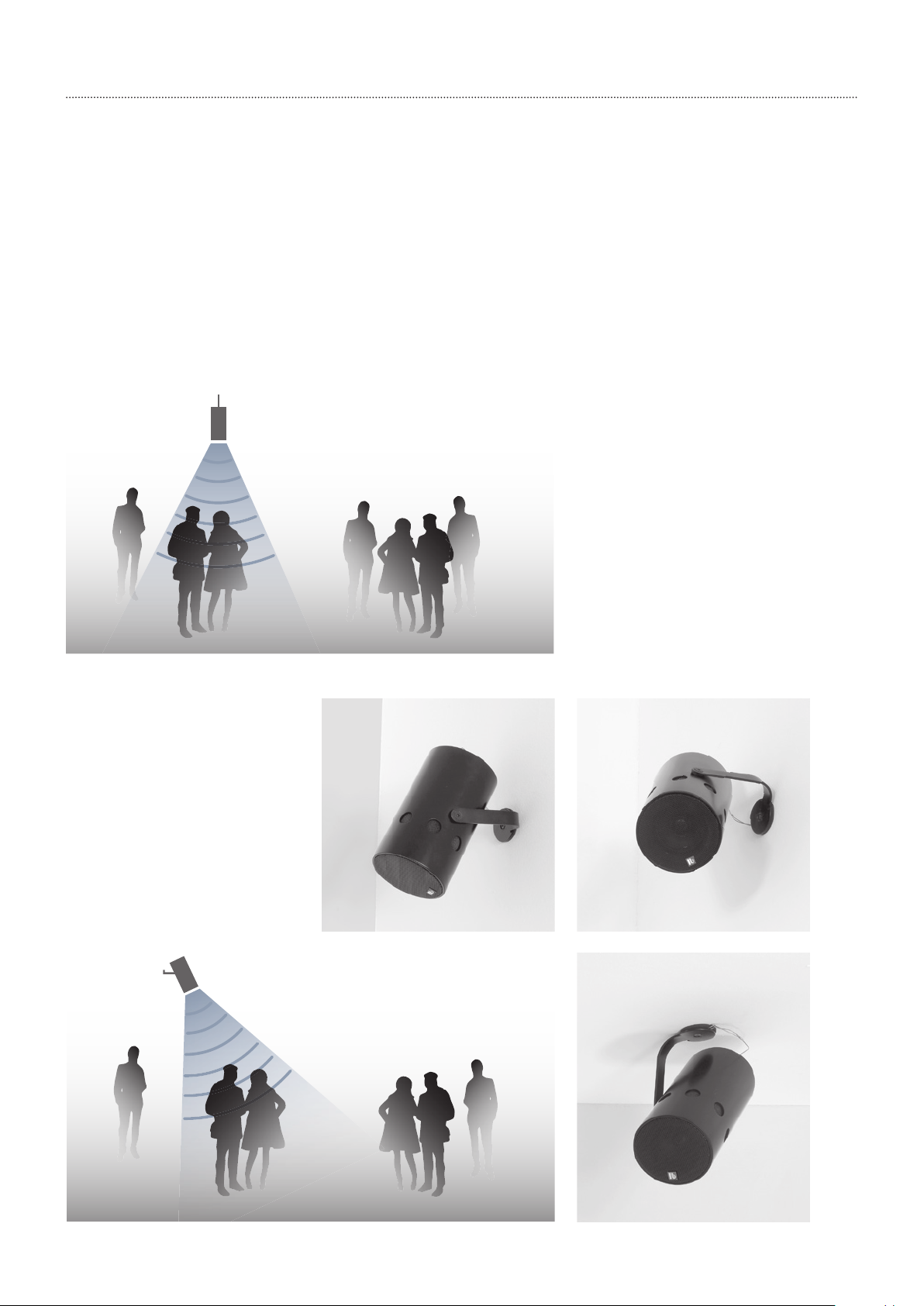

HANGING SPEAKERS FROM CEILINGS
To focus the sound as intensely as possible on listening zones, directional
speakers should be hung in such a way that the lower edge of the cylinder is
approximately 2.5 m from the floor. The SR 300 stainless steel rope can be used
for this. (Please order seperately).
The directional speakers are usually mounted at a short distance from visitors in the listening zone. The models in the RL 110
series can either be hung from ceilings using a steel wire (e. g. the SR 300) or attached to walls or ceilings using the WH 110
bracket.
ATTACHING SPEAKERS TO WALLS
OR CEILINGS
The WH 110 bracket can be used to
mount and adjust the position of
directional speakers on walls and
ceilings. To do this, first attach the
assembly plate and then screw in
the L-shaped bracket. A safety wire
is secured to the assembly plate and
the speaker.
INFORMATION
On the basis of statutory provisions
(BGV-C1 §7 „protection against
falling objects”) the speakers should
be saved in addition to the assembly
with a wall-mount e. g. a steel rope
securing against falling.
80°
80°

Dimensions RL Series
6
RL 110
d=110
190
M6
d=110
Thread M4 with
eye bolt for ceiling
suspension
RL 110
d=110
190
M6
d=110
Thread M4 with
eye bolt for ceiling
suspension
Front Side
RL 110 A
d=110
190
M6
d=110
Thread M4 with
eye bolt for ceiling
suspension
RL 110 A MP3
d=110
190
M6
d=110
Thread M4 with
eye bolt for ceiling
suspension
RL 110
d=110
190
M6
d=110
Thread M4 with
eye bolt for ceiling
suspension
190
M6
RL 110 AX
d=110
d=110
60
Thread M4
with eye
bolt for
ceiling
suspension
RL 110 AX MP3
d=110
190
M6
d=110
60
Thread M4 with
eye bolt for ceiling
suspension
RL 110 PerZonic
d=110
190
M6
d=110
Thread M4 with
eye bolt for ceiling
suspension
RL 110 A Back Side RL 110 A-MP3 Back Side
RL 110 Back Side
RL 110 AX Back Side RL 110 AX-MP3 Back Side RL 110 PerZonic Back Side
L-Bracket
M6 × 16
M6 × 8
131
56
87
56
Assembly Plate
LB 110 L-Bracket
WH 110 Wall-Mount

RL 110 Directional Speaker
7
RL 110 A-MP3 Back Side
RL 110 PerZonic Back Side
The model RL 110 is a passive Speaker with an 8 ohms
impedance.
The model RL 110 T is a version with 2.5/5/10 watts
power for 100 V systems.
Principle Full-range directional speaker with
supercardioid pattern, electronically
corrected
Components 3” full-range driver
Frequency range 190 Hz – 19 kHz
Impedance 8 ohms
Power capacity 20 watts RMS, 40 watts program
100 V version 10/5/2.5 watts
• Directional speaker with supercardioid pattern
• 80° nominal dispersion
• 3” full-range driver
• 8 ohm or 100 V versions
• Standard version: white/black
Sound pressure 83 dB (1W/1m), max. 96 dB,
100 V version: max. 93 dB
Nominal dispersion 80°
Connectors Screw-type terminals, pluggable
Dimensions d = 110 mm, l = 190 mm
Weight 1.0 kg
Fastening points Suspension point at the rear, threaded
insert M 6 for L-bracket on side
Technical Data

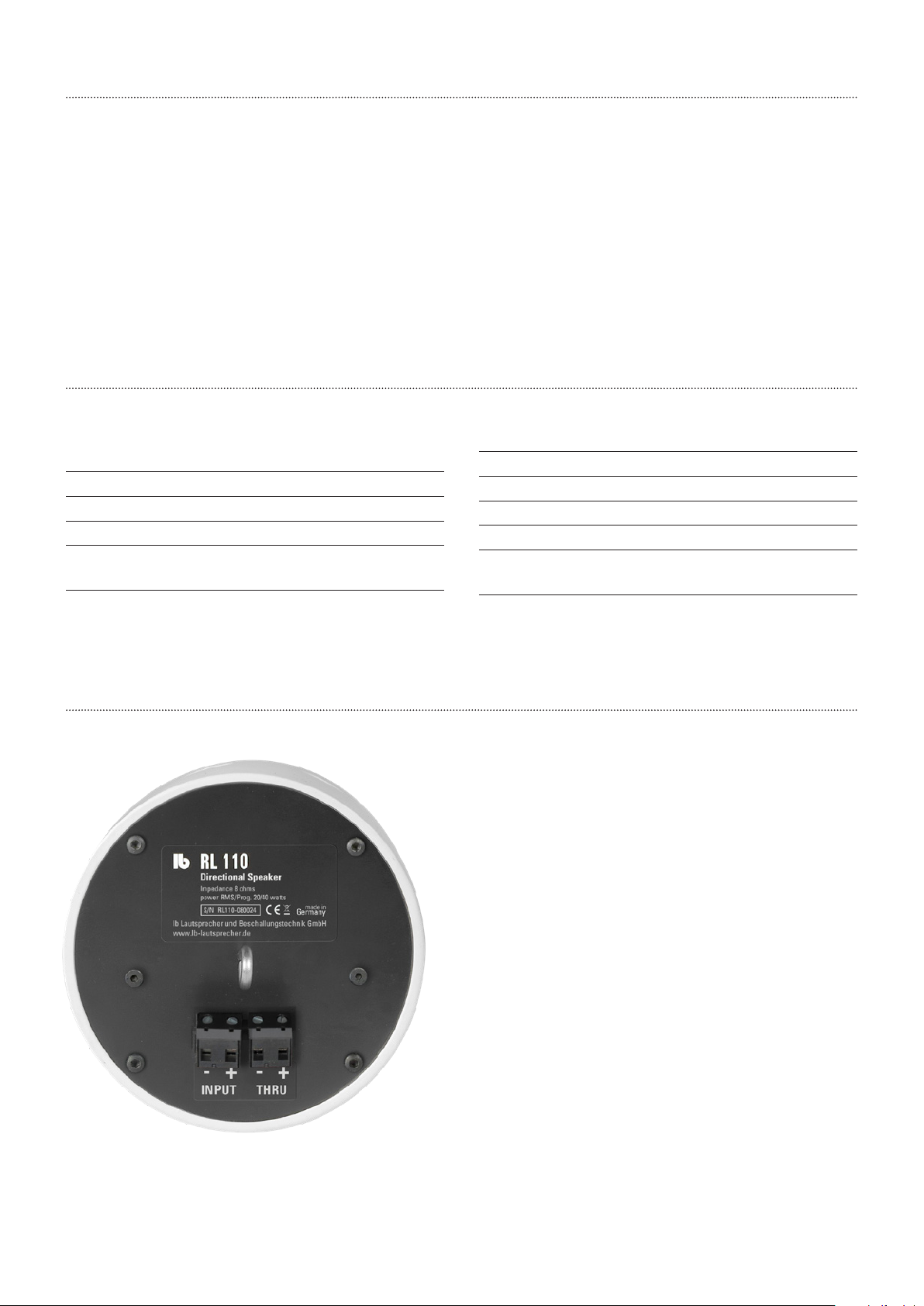

Back View

RL 110 A / RL 110 A-MP3 Active Directional Speaker
8
Technical Data
The directional speaker RL 110 A is an active speaker with 20 watts power and automatic switch-on. A stereo-cinch input,
Dip-switches for AUTO ON/STEADY ON and 150 Hz HP (high-pass filter), volume control, LED POWER ON and a connection
for the external power supply are located on the rear. MP3 players and computers can be directly connected thanks to the
high input sensitivity.
Additional the model RL 110 A-MP3 features an integrated MP3 player. The integrated MP3 player reports audio files from
Micro SD Cards (Priority 1) or USB-Sticks (Priority 2). It automatically switches the signal sources. External MP3 players and
computers can also directly connected thanks to the high input sensitivity.
Principle Active full-range directional speaker
with supercardioid pattern
Components 3” full-range driver
Frequency range 190 Hz – 19 kHz
Amplifier output 20 watts
Maximum SPL 95 dB ( 1 W @ 1m)
Nominal dispersion 80°
Connectors Input cinch stereo
RL 110 A-MP3 Operation parallel to the internal player
Input sensitivity - 6 dBU for full modulation,
input-impedance 10 kohms
Operational controls Volume control, Dip-switches for
AUTO ON/STEADY ON and 150 Hz HP,
LED POWER ON

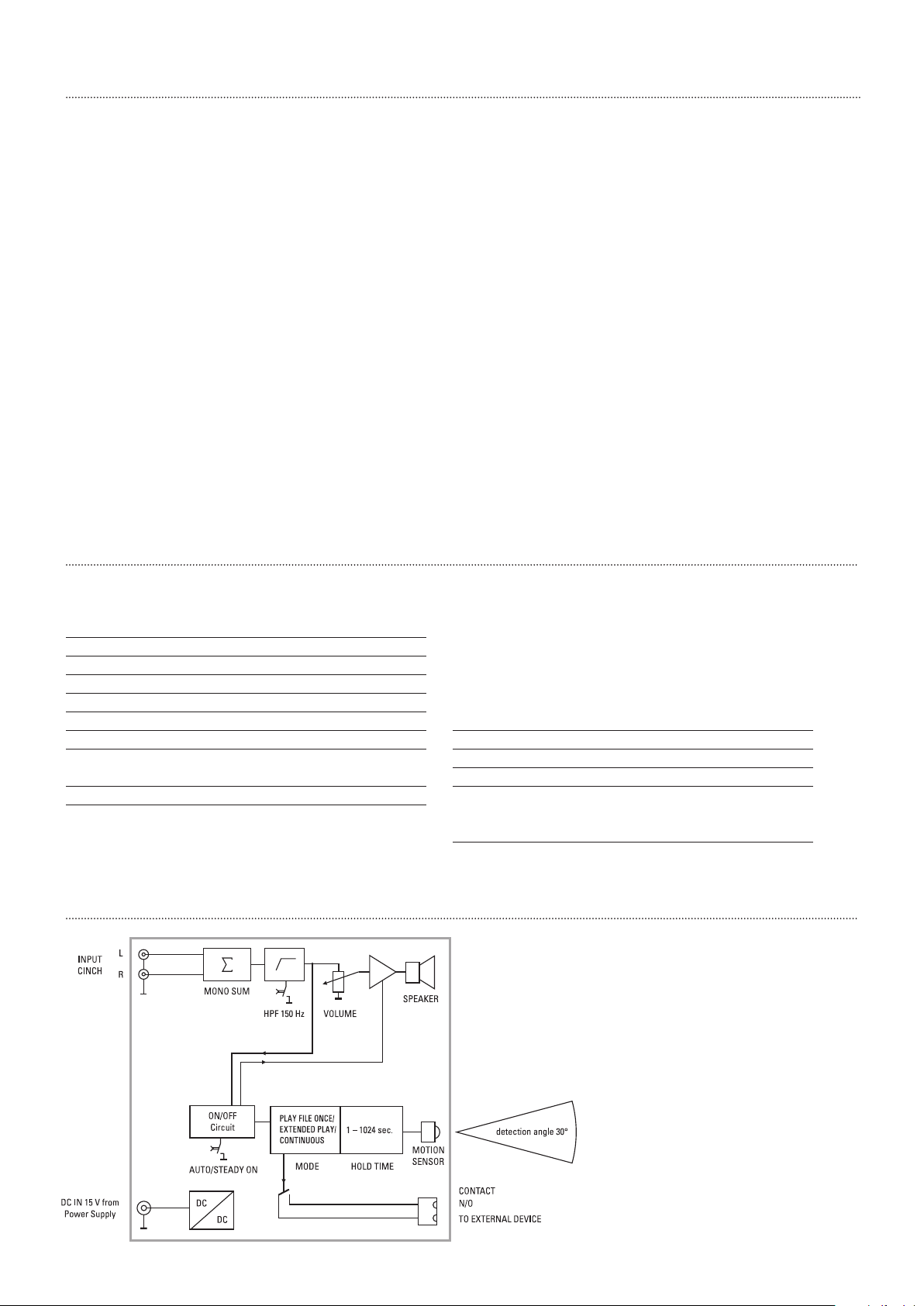

Block Diagram
Power supply 230 V AC with plug-switch power
supply (included in delivery)
Supply voltage 90 – 240 V AC
Dimensions d = 110 mm, l = 190 mm
Weight 1.4 kg
Fastening points Suspension point at the rear,
threaded insert M 6 for l-bracket on
the side
Additional for RL 110 A-MP3
MP3-Player reports MP3- or WAV files from
Micro-SD or USB
Priority 1 = Micro-SD
Priority 2 = USB
• Active directional speaker
• Supercardioid pattern
• 80° nominal dispersion
Additional for RL 110 A-MP3
• Integrated MP3-Player
• Switchable high-pass filter (HPF)
• Auto ON/OFF
• Standard version: white/black
• 3” full-range driver
• 20 watts amplifier power
• Stereo-cinch input

Controls and Functions
RL 110 A
RL 110 A-MP3
9

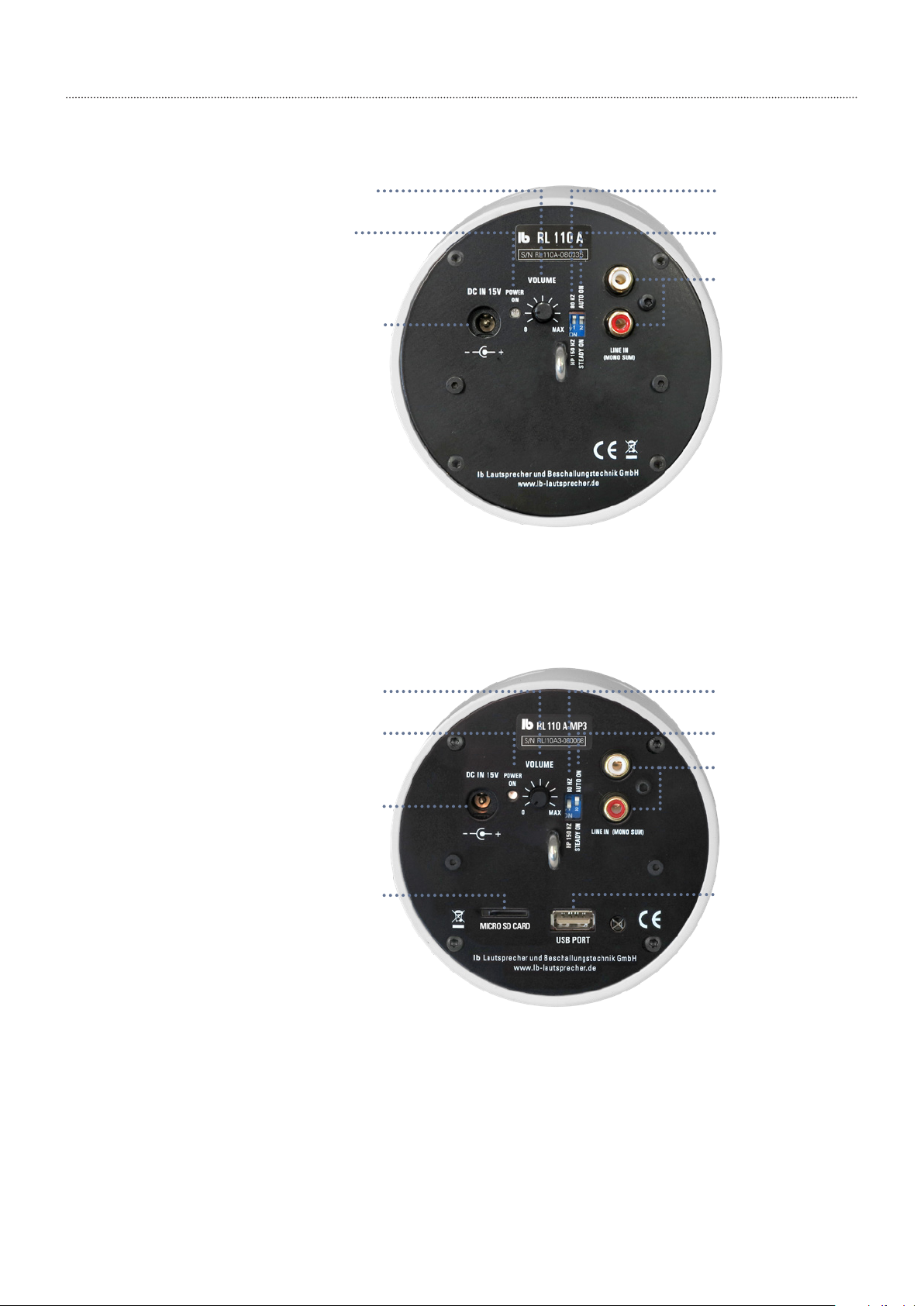

1 VOLUME
Volume control
2 POWER ON
The LED lights up, when the
speaker is switched on.
3 DC IN 15 V
Connect the enclosed plug-switch
power supply. If using another
power supply please observe
polarity and voltage.
4 Dip-switch for HP and AUTO ON
4.1 High-pass filter (80 Hz/150 Hz).
We recommend 150 Hz for speech
intelligibility.
4.2 AUTO ON / STEADY ON
The setting „AUTO ON” will start
the speaker as soon as the input
gets an audiosignal. The speaker
automatically switches to stand-by
mode after 3 minutes without an
signal. When the setting „STEADY
ON” is swichted, the speaker is
permanently on.
5 LINE IN (MONO SUM)
Audio input for external signal
sources: A stereo signal is added
up internally.
The model RL 110 A-MP3 features
an integrated MP3 player:
Befor using an SD card or USB
stick, the speaker has to be
swichted on, to read the medium
at the first time. The player
then starts automatically as soon
as the speaker is connected.
6 MICRO SD CARD
Card reader for sound files
(Priority 1)
7 USB PORT
Port for USB sticks
(Priority 2)
5 LINE IN (MONO SUM)
4.2 DIP-Switch –
AUTO ON / STEADY ON
3 DC IN 15 V
2 LED
POWER ON
4.1 DIP-Switch –
80 HZ/150 HZ HP
1 VOLUME
5 LINE IN (MONO SUM)
4.2 DIP-Switch –
AUTO ON /STEADY ON
7 USB PORT
4.1 DIP-Switch –
80 HZ /150 HZ HP
3 DC IN 15 V
6 Micro SD
CARD
2 LED
POWER ON
1 VOLUME

RL 110 AX Active Directional Speaker with Motion Sensor
10

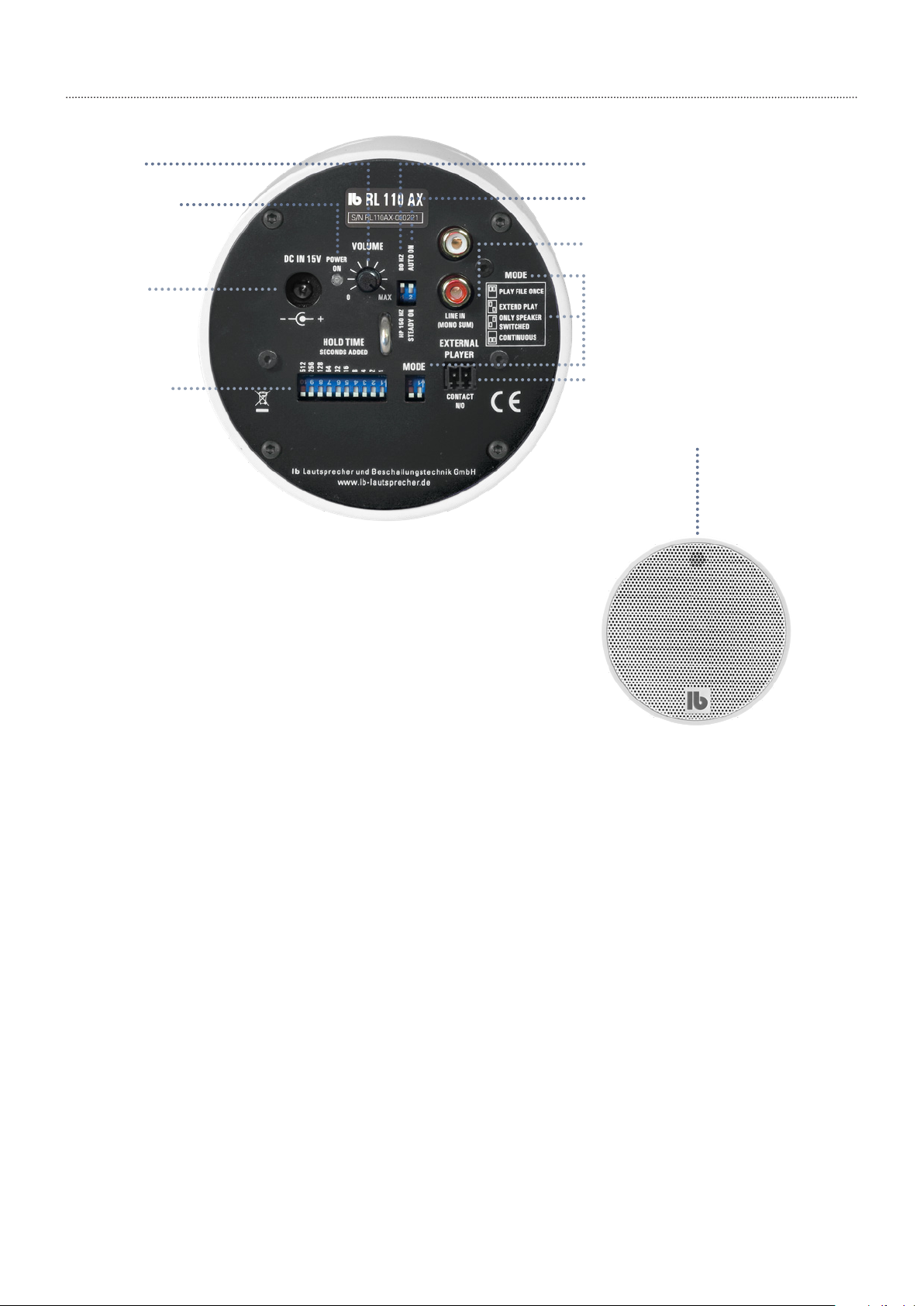

The RL 110 AX model features an integrated motion sensor.
It switches on automatically as soon as a person approa-
ches it from the front, playing a sound file from an external
source. An isolated contact is available for connecting an
external media player. Four operating modes are availa-
ble and playback time can be set between one and 1,024
seconds.
The RL 110 AX has four operating modes:
• PLAY FILE ONCE: The entire audio file is played and can only
be restarted once it is finished.
• EXTEND PLAY: Speaker activity is extended every time
movement is detected.
• ONLY SPEAKER SWITCHED: Speaker operating time is
controlled by the sensor; the isolated contact is permanently
closed.
• CONTINUOUS: Permanent operation
The integrated amplifier has 20 watts power and an
automatic switch-on (AUTO ON/OFF). A stereo-cinch input,
Dip-switches for AUTO ON/STEADY ON and 150 Hz HP
(high-pass filter), volume control, LED POWER ON and a
connection for the external power supply are located on
the rear.
• Active directional speaker
• 30° motion sensor
• Switch for external media player
• Supercardioid pattern
• 3” full-range driver
• 80° nominal dispersion
• Stereo-cinch input
• 20 watts amplifier power
• Switchable high-pass filter
• Auto-ON/OFF
• Standard version: white/black
Principle Active directional speaker with
integrated motion sensor and
supercardioid pattern
Components 3” full-range driver
Frequency range 190 Hz – 19 kHz
Amplifier output 20 watts
Maximum SPL 95 dB (1W@1m)
Nominal dispersion 80°
Connectors Input cinch stereo
Input sensitivity -6 dBU for full modulation,
input-impedance 10 kohms
Main connections 15 V DC (included in delivery)
Operational controls Volume control, switch auto ON/
steady ON, switchable high-pass
filter, LED power ON, Dip-switch for
operating modes: PLAY FILE ONCE,
EXTEND PLAY, ONLY SPEAKER
SWITCHED, CONTINUOUS;
Dip-switch to adjust delay
(1 – 1024 sec.)
Power supply 90 – 240 V AC
Dimensions d = 110 mm, l = 190 mm
Weight 1.4 kg
Fastening points Suspension point at the rear,
threaded inserts M 6 for L-bracket
on the side
Technical Data
Block Diagram

Controls and Functions
11
1 VOLUME
Volume control
2 POWER ON
The LED lights up, when the speaker is
switched on.
3 DC IN 15 V
Connect the enclosed plug-switch power
supply. If using another power supply
please observe polarity and voltage.
4 Dip-switch for HP and AUTO ON
4.1 High-pass fi lter (80 Hz/150 Hz)
We recommend 150 Hz for speech
intelligibility.
4.2 AUTO ON / STEADY ON
The setting ”AUTO ON” will start the
speaker as soon as the input gets an
audiosignal. The speaker automatically
switches to stand-by mode after 3 minutes
without an signal. When the setting
”STEADY ON” is swichted, the speaker
is permanently on.
The automatic switch-on function is
irrelevant when using operating modes
with motion sensor, the Dip-switch can be
set to the ”STEADY ON” position.
5 LINE IN (MONO SUM)
Audio input for external signal sources:
A stereo signal is added up internally.
6 MODE – Setting of four operating
modes
6.1 PLAY FILE ONCE
In the ‚PLAY FILE ONCE‘ mode the speaker
is activated by motion sensor and remains
switched ‚ON‘ until the setted hold time is
completely expired. The speaker then can
only get started again by motion sensor.
The switch contact ‚EXTERNAL PLAYER‘(8)
is closed as long as the speaker is active.
6.2 EXTEND PLAY
In the ”EXTEND PLAY” mode the speaker
is activated by motion sensor and remains
switched ‚ON‘ until the setted hold time is
expired after the last detected movement.
The switch contact ‚EXTERNAL PLAYER‘(8)
is closed as long as the speaker is active.
6.3 ONLY SPEAKER SWITCHED
In the ”ONLY SPEAKER SWITCHED” mode
the speaker is activated by motion sensor
and remains switched ‚ON‘ until the setted
hold time is expired after the last detected
movement. The switch contact ‚EXTERNAL
PLAYER‘ is permanently closed.
6.4 CONTINUOUS
In the ”CONTINUOUS” mode the motion
sensor is disabled. The speaker plays the
audio file continuosusly and the switch
contact ‚EXTERNAL PLAYER‘ (8) is closed.
The automatic switch-on remains active.
7 HOLD TIME (SECONDS)
The playback time can be set with the
dip-switches „HOLD TIME“. The speaker
switches back to stand-by mode when
the setted hold time is expired. Every dip-
switch has a fixed time and will be added
to the constant ground time of 1 sec.
Example: in order to recieve a hold time of
25 sec., activate (ON) the dip-switches
4 (8 sec.) and 5 (16 sec). The maximum play-
back time of 1,024 seconds can be set.
8 EXTERNAL PLAYER
With the potential-free switch contact
„EXTERNAL PLAYER” an external media
device can be controlled. The switch
contact is a (N/O) contact, e. g. the external
device should be programmed to playback
at closed contact.
The operating modes of the switch contact
comply with the internal player (6).
The models RL 110 AX
and RL 110 AX-MP3 (S.12)
are equipped with an
motion sensor behind
the grille.
5 LINE IN (MONO SUM)
4.2 DIP-Switch –
AUTO ON / STEADY ON
8 EXTERNAL PLAYER
4.1 DIP-Switch –
HP 80 Hz /150 Hz
3 DC IN 15 V
7 DIP-Switch –
HOLD TIME
2 LED POWER ON
1 VOLUME
6 MODE
6.1 PLAY FILE ONCE
6.2 EXTEND PLAY
6.3 ONLY SPEAKER SWITCHED
6.4 CONTINUOUS

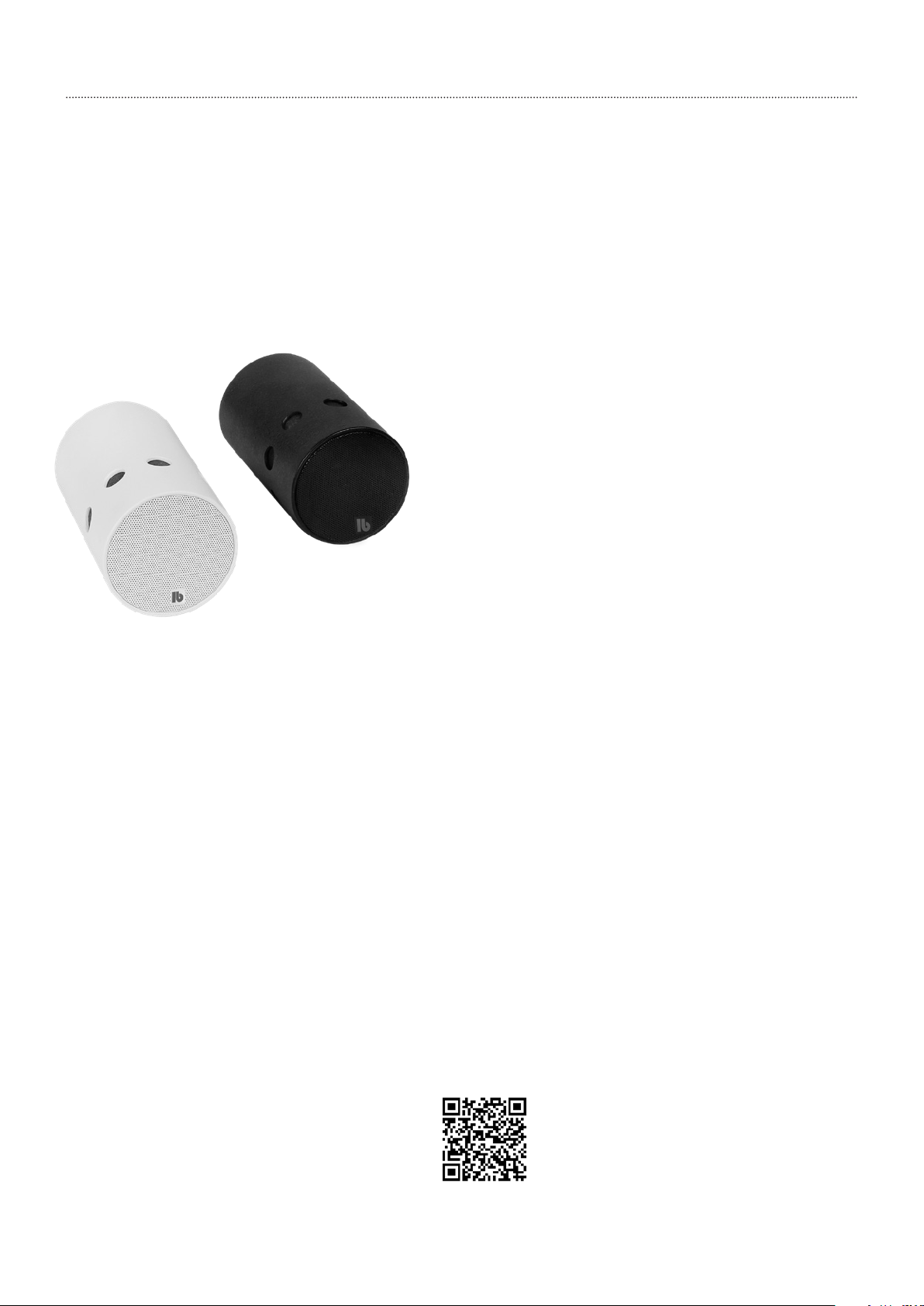

RL 110 AX-MP3 Active Directional Speaker with integrated Motion Sensor
and MP3 Player
The RL 110 AX-MP3 model features an integrated motion
sensor. It switches on automatically as soon as a person
approaches it from the front, playing a sound file either from
an external source or an internal MP3 player. An isolated
contact is available for connecting an external media player.
Four operating modes are available and playback time can
be set between one and 1,024 seconds.
The RL 110 AX has four operating modes:
• PLAY FILE ONCE: The entire audio file is played and can only
be restarted once it is finished.
• EXTEND PLAY: Speaker activity is extended every time
movement is detected.
• ONLY SPEAKER SWITCHED: Speaker operating time is
controlled by the sensor; the isolated contact is permanently
closed.
• CONTINUOUS: Permanent operation
Principle Active directional speaker with
integrated motion sensor, MP3 player
and supercardioid pattern
Components 3”-full-range driver
Frequency range 190 Hz – 19 kHz
Amplifier output 20 watts
Sensitivity max. 95 dB
Nominal dispersion 80°
Connectors Input cinch-stereo, switch for external
player
Input sensitivity -6 dBU for full modulation,
input sensitivity 10 kohms
Operational controls Volume control, switch auto ON/
steady ON, switchable high-pass
filter, LED power ON, Dip-switch for
operating modes: PLAY FILE ONCE,
EXTEND PLAY, ONLY SPEAKER
SWITCHED, CONTINUOUS; Dip-switch
to adjust delay (1 – 1024 sec.)
MP3-Player plays MP3 or Wave files from Micro-SD
or USB;
Priority 1 = Micro-SD
Priority 2 = USB
Power supply 15 V DC (included in delivery)
Supply voltage 90 – 240 V AC
Dimensions d = 110 mm, l = 190 mm
Weight 1.4 kg
Fastening points Suspension point at the rear,
threaded insert M 6 for L-bracket on
the side
The integrated amplifier has 20 watts power and an automa-
tic switch-on (auto ON/OFF). A stereo-cinch input, Dip-swit-
ches for AUTO ON/STEADY ON and 150 Hz HP (high-pass
filter), volume control, LED POWER ON and a connection for
the external power supply are located on the rear. External
MP3 players and computers can be also directly connected
in addition to the internal MP3-Player.
• Active directional speaker
• 30° motion sensor
• MP3 player integrated
• Switch for external Player
• Supercardioid pattern
• 3” full-range driver
• 80° dispersion angle
• Stereo-cinch input
• 20 watts power
• Switchable high-pass filter
• Auto-ON/OFF
• Standard version: White/Black
Technical Data

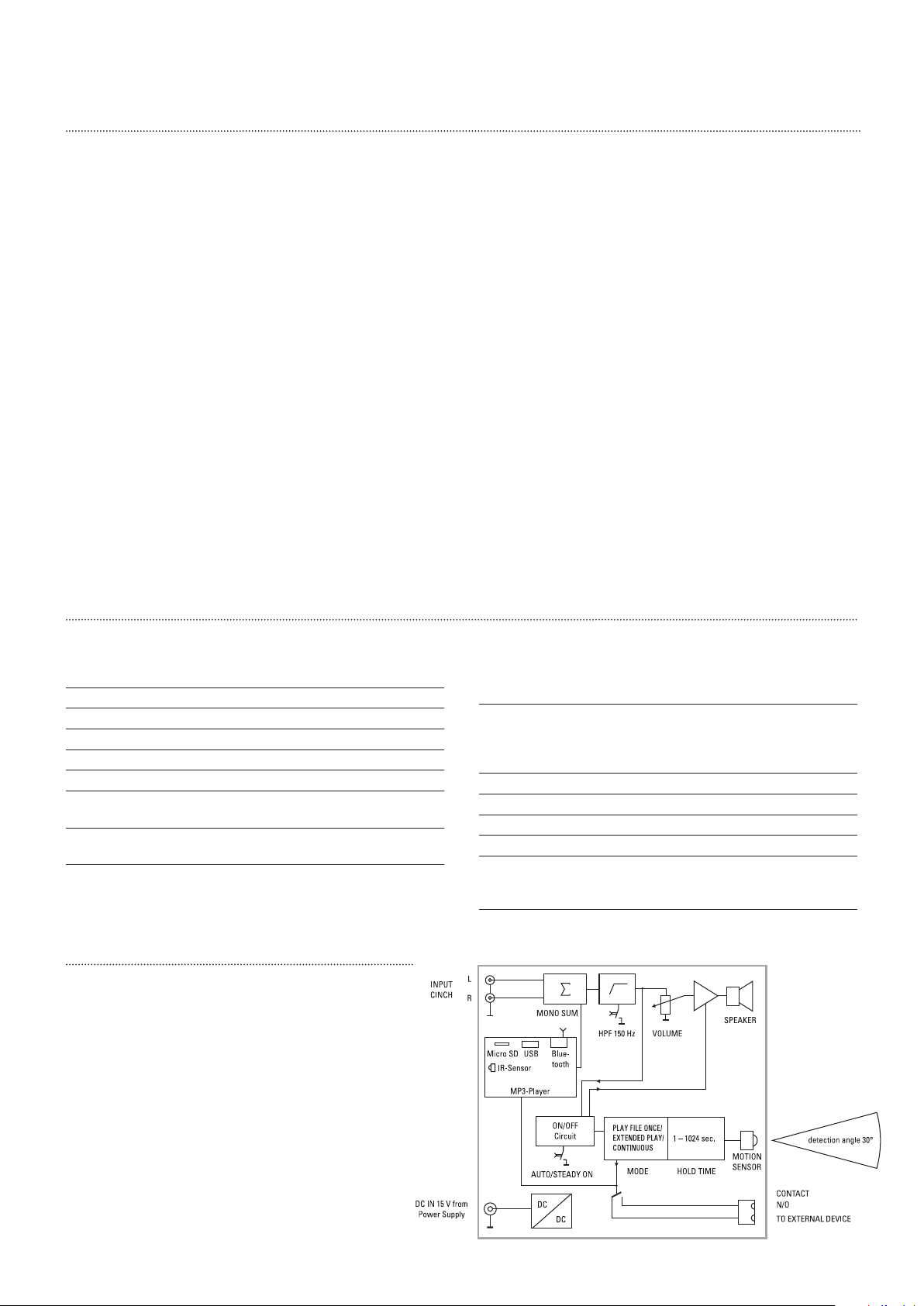

Block Diagram
12

RL 110 AX-MP3 Active Directional Speaker with integrated Motion Sensor
and MP3 Player
Controls and Functions
13
Integrarted MP3-Player:
Befor using an SD card or USB stick, the
speaker has to be swichted on, to read the
medium.
Switch to ’CONTINUOUS’ mode temporarily.
As soon as the player detected the medium,
it starts automatically, and you can switch
in any other desired mode.
The playback of the audio file from micro-
SD card or USB device starts with 2 sec.
delay. The audio file or files will played back
in a infinite loop. The audio playback always
starts at the beginning when activating
the MP3 player, except at „ONLY SPEAKER
SWITCHED” mode.
1 VOLUME
Volume control
2 POWER ON
The LED lights up, when the speaker is
switched on.
3 DC IN 15 V
Connect the enclosed plug-switch power
supply. If using another power supply please
observe polarity and voltage.
4 Dip-switch for HP and AUTO ON
4.1 High-pass fi lter (80 Hz/150 Hz).
We recommend 150 Hz for speech intelligibi-
lity.
4.2 AUTO ON / STEADY ON
The setting ”AUTO ON” will start the
speaker as soon as the input gets an audiosig-
nal. The speaker automatically switches
to stand-by mode after 3 minutes without an
signal. When the setting ”STEADY ON” is
switched, the speaker is permanently on.
The automatic switch-on function is irrelevant
when using operating modes with motion sen-
sor, the Dip-switch can be set to the ”STEADY
ON” position.
5 LINE IN (MONO SUM)
Audio input for external signal sources:
A stereo signal is added up internally.
6 MODE
Setting of four operating modes
6.1 PLAY FILE ONCE
In the ‚PLAY FILE ONCE‘ mode the speaker
is activated by motion sensor and remains
switched ‚ON‘ until the setted hold time is
completely expired. The speaker then can
only get started again by motion sensor.
The switch contact ‚EXTERNAL PLAYER‘(8) is
closed as long as the speaker is active.
6.2 EXTEND PLAY
In the ”EXTEND PLAY” mode the speaker
is activated by motion sensor and remains
switched ‚ON‘ until the setted hold time is
expired after the last detected movement.
The switch contact ‚EXTERNAL PLAYER‘(8)
is closed as long as the speaker is active.
6.3 ONLY SPEAKER SWITCHED
In the ”ONLY SPEAKER SWITCHED” mode
the speaker is activated by motion sensor
and remains switched ‚ON‘ until the setted
hold time is expired after the last detected
movement. The switch contact ‚EXTERNAL
PLAYER‘ is permanently closed.
6.4 CONTINUOUS
In the ”CONTINUOUS” mode the motion
sensor is disabled. The speaker plays the
audio file continuosusly and the switch
contact ‚EXTERNAL PLAYER‘ (8) is closed.
The automatic switch-on remains active.
7 HOLD TIME (SECONDS)
The playback time can be set with the
dip-switches „HOLD TIME“. The speaker
switches back to stand-by mode when
the setted hold time is expired. Every dip-
switch has a fixed time and will be added
to the constant ground time of 1 sec.
Example: in order to a hold time of
25 sec., activate (ON) the dip-switches
4 (8 sec.) and 5 (16 sec). The maximum play-
back time of 1,024 seconds can be set.
8 Micro SD CARD
Card reader for sound files (Priority 1)
9 USB Port
Port for USB sticks (Priority 2)
10 EXTERNAL PLAYER
With the potential-free switch contact
„EXTERNAL PLAYER” an external media
device can be controlled. The switch
contact is a (N/O) contact, e. g. the external
device should be programmed to playback
at closed contact.
The operating modes of the switch contact
comply with the internal player (6).
10 EXTERNAL PLAYER
9 USB PORT
8 Micro SD CARD
5 LINE IN (MONO SUM)
4.2 DIP-Switch –
AUTO ON / STEADY ON
4.1 DIP-Switch –
HP 80 Hz /150 Hz
6 MODE
6.1 PLAY FILE ONCE
6.2 EXTEND PLAY
6.3 ONLY SPEAKER SWITCHED
6.4 CONTINUOUS
3 DC IN 15 V
7 DIP-Switch –
HOLD TIME
2 LED POWER ON
1 VOLUME

RL 110 PerZonic® Active Directional Speaker with automatic Volume Control
14
The actively controlled directional speaker RL 110 perZonic
is a patented speaker system that has been developed for
the targeted acoustic irradiation of confined listening areas
with minimum sound escaping into the wider environment.
The RL 110 perZonic is equipped with automatic volume
control that adjusts the level of the signal to the ambient
noise. This enables the speaker to reach the required volume
in the listening zone even under dierent conditions and
with fluctuating audience numbers. At the same time, it also
ensures the level does not disrupt the quieter surroundings.
This means that people in the listening zone can clearly
hear the sound without causing disruption to personnel and
visitors nearby. The RL 110 perZonic achieves this directed
dispersion through a supercardioid pattern across the entire
frequency range. The regulation can be set anywhere bet-
ween 0 and 100 %, as can the attack and release times.
The controls are located at the rear along with the mono-
cinch input, volume control, the power LED and the connec-
tor for the external power supply.
Note
For optimum results, the distance between the speaker
and listener should be as short as possible. The distance
between the speaker and reflecting walls or ceilings
should be as long as possible.
Principle Active full-range directional speaker
with automatic volume control
according to ambient noise and
supercardioid pattern
Components 3“ full-range driver
Frequency range 190 Hz – 19 kHz
Amplifier output 20 watts
Maximum SPL 95 dB (1 W @ 1 m)
Nominal dispersion 80°
Connectors Input mono cinch
Input sensitivity - 6 dBU for full modulation
Operational controls Volume control, regulation 0 – 100 %,
attack, release, LED power ON
Power supply 230 V AC with plug-switch power
supply (included in delivery)
Dimensions d = 110 mm, l = 190 mm
Weight 1.4 kg
Fastening points Suspension point at the rear,
threaded inserts M 6 on the side for
balljoint wall mount
• Active directional speaker with automatic volume
control according to the ambient noise
• Supercardioid pattern
• 180° nominal dispersion
• 3“ full-range driver
• 20 watts amplifier power
• Input mono cinch
• Standard version: White/Black
Technische Daten
Block Diagram

RL 110 PerZonic® Active Directional Speaker with automatic Volume Control Controls and Functions
15
1 VOLUME
Volume control
2 LED POWER ON
The LED lights up, when the speaker is
switched on.
3 DC IN 15 V
Connect the enclosed plug-switch power
supply. If using another power supply please
observe polarity and voltage.
4 LINE IN (MONO)
Audio input Impedance 10 kohm.
5 CALIBRATION
This trimmer is used to adjust the discrimina-
tion threshold of the automatic volume
control. The trimmer is pre-set at the
factory. However, the position of the speaker,
the room acoustics and the audio file
being played all have an impact on volume
regulation.
To ensure you can set the optimum sensitivity
level for volume regulation, you can adjust
the trimmer using a small screwdriver.
If the sensitivity is set too high, the volume
may increase even if there is no ambient
noise. If this happens, the sensitivity must be
reduced until the volume is stable again.
Default setting: Between 50 and 70%
Left (-) low sensitivity
Right (+) high sensitivity
6 REGULATION
This control is used to regulate the volume
from 0 (fixed volume) to 100%.
Default setting: Approx. 80%
Left (0) = fixed volume
Right (MAX) = maximum volume
7 ATTACK
This control is used to regulate how
quick the RL 110 Perzonic react to the am-
bient noise.
FAST: ~ 1 sec.
SLOW: ~ 30 sec.
8 RELEASE
This control is used to regulate how quick
the volume fall to its minimum level.
FAST: ~ 1 sec.
SLOW: ~ 30 sec.
9 CAL. OUT
This is used to control the volume control
activity with a voltmeter or oscilloscope
(the regulation generates a negative
DC voltage of 0–1 V). If the sensitivity is set
too high, the RL 110 perZonic® generates the
regulating voltage from the speaker signal
and increases the volume. If this happens,
use the CALIBRATION trimmer to reduce
the sensitivity.
10 MICROPHONE
To measure the ambient noise.
The microphone should not be covered!
10 MICROPHONE
5 CALIBRATION
6 REGULATION
8 RELEASE
7 ATTACK
3 DC IN 15 V
4 LINE IN
9 CAL. OUT
2 LED POWER ON
1 VOLUME

Rear Page: Exhibition, Stiftung Haus der Geschichte der
Bundesrepublik Deutschland
Cover: ZKM Karlsruhe, id3d-berlin themengestaltung 2010
LB Lautsprecher
und Beschallungstechnik GmbH
info@lb-lautsprecher.de
www.lb-lautsprecher.de
www.feiner-hoeren.de
@LB_Audio_Components
Tel +49 89 1893109-0 · Fax -29
Kapellenstr. 10
85622 Feldkirchen by Munich
8/2023
Changes and errors excepted
© LB Lautsprecher und Beschallungstechnik GmbH
Further technical informations can be found
in the datasheets and on our website:
www.lb-lautsprecher.de/en/Directional-Speakers
This manual suits for next models
7
Table of contents
