Pure Power Tools PUREANGGRINDER18 User manual

18V Li-Ion
Angle Grinder
(PUREANGGRINDER18V)
Original
Instructions
Read instructions before operating this tool.
WARNING! The angle grinder is to be used for grinding only.
Under no circumstances must a cutting disc be tted to this machine.

2
PURE 18V Angle Grinder
TABLE OF CONTENTS
EC - Declaration of Conformity
Important Information
12 Month Limited Warranty
General Safety Rules
Additional Specic Safety Rules
Labels and Symbols
Angle Grinder Overview
Specication
Operating Instructions
Maintenance
Environmental Protection
EC - DECLARATION OF CONFORMITY
We, the importer
Evolution Power Tools Ltd.
Venture One
Longacre Close
Shefeld
S20 3FR
Declare that the product
Part numbers: PUREANGGRINDER18
Evolution: Pure Battery Angle Grinder
Complies with the essential requirements
of the following European Directives:
2006/42/EC – Machine Directive
2006/95/EC – Low Voltage Directive
2004/108/EC – EMC Directive
2002/95/EC – Restriction of the use of
Certain Hazardous Substances in Electrical
and Electric Equipment
Standards and Technical specications
referred to:-
EN 5 5014 -1/A1: 20 0 9
EN 55014-2/A2:2008
EN 6 074 5 -1/A11:2 010
EN 60745-2-3:2011
All documentation is held on le at
the above address and is available,
on request for review.
Authorized Signatory
Date: 20/11/11
Name: Mr Matthew J Gavins
Position: Managing Director
02
03
03
03
05
07
07
08
08
10
10

3
IMPORTANT
Please read these operating and safety
instructions carefully and completely.
For your own safety, before using this
equipment check that the voltage is correct
and that all handles and parts are rmly
secured. If you are uncertain about any
aspect of using this equipment, please
contact our Technical Helpline.
UK 0870 609 2297
PURE 115 mm 18V Angle Grinder
Congratulations on your purchase of an
Evolution Power Tools Pure 18V Angle
Grinder. Please complete your product
registration online to validate your machine’s
warranty period and ensure prompt service if
needed. We sincerely thank you for selecting
a product from Evolution Power Tools.
12 MONTH LIMITED WARRANTY.
Evolution power tools reserves the right
to make improvements and modications
to design without prior notice.
Evolution Power Tools will, within twelve (12)
months from the original date of purchase,
repair or replace any goods found to be
defective in materials or workmanship.
This warranty is void if the tool being
returned has been used beyond the
recommendations in the
Instruction Manual or if the machine has been
damaged by accident, neglect, or improper
service. This warranty does not apply to
machines and / or components which have
been altered, changed, or modied in any way,
or subjected to use beyond recommended
capacities and specications. Electrical
components are subject to respective
manufacturers’ warranties. All goods returned
defective shall be returned prepaid freight to
Evolution Power Tools. Evolution Power Tools
reserves the right to optionally repair or replace
it with the same or equivalent item. There is
no warranty – written or verbal – for Grinding
Discs. In no event shall Evolution Power Tools
be liable for loss or damage resulting directly
or indirectly from the use of our merchandise or
from any other cause. Evolution Power Tools
is not liable for any costs incurred on such
goods or consequential damages. No ofcer,
employee or agent of Evolution Power Tools
is authorized to make oral representations of
tness or to waive any of the foregoing terms
of sale and none shall be binding on Evolution
Power Tools. Questions relating to this limited
warranty should be directed to the company’s
head ofce, or call the appropriate Helpline
number.
GENERAL SAFETY RULES
WARNING: When using electric tools,
basic safety precautions should always be
followed to reduce the risk of re, electric
shock and personal injury.
Please read all of these instructions before
attempting to operate this machine. Save this
manual for future reference.
1. Keep work area clear. Cluttered work
areas invite accidents.
2. Consider work area environment. Do
not expose tools to rain. Do not use tools
in damp or wet locations. Keep work area
well lit. Do not use tools in the presence of
ammable liquids or gases.
3. Guard against electric shock. Avoid
body contact with earthed or grounded
surfaces (e.g. pipes, radiators, ranges,
refrigerators).
4. Keep other people away. Do not let
others, especially children, come close to
the work, and touch the tool or the extension
lead. Keep them away from
the work area.
18V Li-Ion
Angle Grinder

4
5. Store idle tools. When not in use, tools
should be stored in a dry locked-up place,
out of reach of children.
6. Do not force the tool. It will do the job
better and safer at the rate for which it was
intended.
7. Use the right tool. Do not force small
tools to do the job of a heavy duty tool. Do
not use tools for purposes not intended; for
example do not use circular saws to cut tree
limbs or logs.
8. Dress properly. Do not wear loose
clothing or jewellery, they can be caught
in moving parts. Non-skid footwear is
recommended when working outdoors.
Wear protective hair covering to contain
long hair.
9. Use protective equipment. Use safety
glasses. Use face or dust mask if working
operations create dust.
10. Connect dust extraction equipment.
If the tool is provided for the connection of
dust extraction and collection equipment,
ensure these are connected and
properly used.
11. Do not abuse the cord. Never yank
the cord to disconnect it from the socket.
Keep the cord away from heat, oil and sharp
edges.
12. Secure work. Where possible, use
clamps or a vice to hold the work. It’s much
safer than using your hand.
13. Don’t over reach. Keep proper footing
and balance at all times.
14. Maintain tools with care. Keep
cutting tools sharp and clean for better
and safer performance. Follow instructions
for lubricating and changing accessories.
Inspect tool cords periodically and, if
damaged, have them repaired by an
authorised service facility. Inspect extension
cord periodically and replace immediately if
damaged. Keep handles dry, clean and free
from oil and grease.
15. Disconnect tools. When not in use,
before any servicing and when changing
accessories such as blades, bits, cutters,
disconnect tool from the power source.
16. Remove adjusting keys and spanners.
Form the habit of checking to see the keys
and adjusting spanners are removed from
the tool before turning it on.
17. Avoid unintentional starting. Ensure
switch is in “off” position when plugging in.
18. Use outdoor extension leads. When
the tool is used outdoors, use only extension
cords intended for outdoor use and so
marked.
19. Stay alert. Watch what you are doing,
use common sense and do not operate the
tool when you are tired.
20. Check damaged parts. Before further
use of tool, it should be carefully checked
to determine that it will operate properly
and perform the intended function. Check
for alignment of moving parts, mountings
and any other components that may affect
its operation. A guard or other part that is
damaged should be properly repaired or
replaced by an authorised service centre
unless otherwise indicated in this instruction
manual. Have defective switches replaced
by an authorised service centre. Do not use
the tool if the switch does not turn it on and
off.
21. WARNING. The use of any accessory or
attachment other than one recommended in
this instruction manual may present a risk of
personal injury.
22. Have your tool repaired by a qualied
person. This electric tool complies with
relevant safety rules. Repairs should only
be carried out by qualied persons using
original spare parts. Otherwise this may
result in considerable danger to the user.
HEALTH ADVICE
WARNING: When drilling, sanding, sawing
or grinding, dust particles will be produced.
In some instances, depending on the
materials you are working with, this dust can
be particularly harmful to you (e.g. lead from
old gloss paint).You are advised to consider
the risks associated with the materials you
are working with and to reduce the risk of
exposure.

5
You should:
• Work in a well-ventilated area.
• Work with approved safety equipment,
such as dust masks that are specially
designed to lter microscopic particles.
ADDITIONAL SAFETY RULES FOR YOUR
PURE 18V ANGLE GRINDER
WARNING: The use of a hand held Angle
Grinder poses intrinsic risks to the operator.
You should rst consider if a different
machine is more appropriate
for the task at hand. Observation of all of
the following rules is essential for the safe
operation of this machine. This machine
must not be used for cutting operations;
it is a grinding machine only.
1. Do not expose to rain or water.
2. Do not drop, shake or strike the battery.
3. Wear hearing protection when
necessary. Exposure to noise can cause
hearing loss.
4. Cutting/Grinding discs and
accessories can become very hot.
Take care when changing or handling
any discs or accessories.
3. Recharge the battery only with the
charger specied by the manufacturer.
A charger that is suitable for one type of
battery pack may create a risk of re when
used with another battery pack.
4. Use this power tool only with specially
designated battery packs. Use of any
other battery packs may create a risk of
injury and re.
5. When the battery pack is not in use,
keep it away from other metal objects
like paper clips, coins, keys, nails, screws
or other small metal objects that can
make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a re.
6. Under extreme conditions electrolyte
may be leak from the battery. If contact
accidentally occurs, ush your skin with
water. If electrolyte contacts your eyes,
additionally seek medical help. Electrolyte
from the battery may cause irritation or burns.
7. Hold the tool by the insulated gripping
surfaces, especially when performing an
operation where the Disc may contact
hidden wiring. If the Disc contacts a ‘live’
wire, exposed metal parts of the power tool
could become ‘live’ and give the operator
an electric shock.
8. If possible, use clamps or a vice
to hold your work.
9. When cutting into walls, oors or
similar areas, make sure, as far as
possible, that there are no services
(gas or water pipes, electric cables etc)
in the path of the blade. Striking hidden
services could cause injury to the user and
damage to the property.
10. Always remove the Grinder battery
before changing the disc. Never use
damaged or distorted discs. Only use discs
that comply with EN12413 or EN13236, and
ensure that the disc used is suitable for the
no load speed of the Angle Grinder. Only
discs that are specically designed for use
in hand held Angle Grinders should be
used. Check the date on the disc to ensure
that the disc is not ‘time expired’.
11. Always allow the disc to come to a
complete halt before putting it down.
A running tool may bounce uncontrollably if
the disc contacts any surface.
12. Always consider the work environment
and wear the appropriate PPE (Personal
Protection Equipment). This could include
dust masks, eye protection, aprons, gloves,
safety footwear and knee pads if working at
oor level etc.
18V Li-Ion
Angle Grinder

6
13. This is a two handed machine.
Never try to use this machine with one hand,
and never use this grinder whilst sitting on
the oor.
14. Sparks, dust and waste particles
may be ejected during grinding
operations. Use safety screens, if
necessary, to protect and keep bystanders
at a safe distance from operations.
ADDITIONAL SAFETY RULES FOR
GRINDING DISCS
WARNING: Always read the Safety
Instructions and advice printed on
the Disc.
1. Speed. Check that the speed rating
of the disc is compatible with the no load
speed of the machine. Never use a disc with
a speed rating less than the speed rating of
the machine.
2. Always inspect the disc. Never use a
disc that is chipped, cracked or damaged in
any way. Disintegration of a damaged disc
in use can cause serious injury. Defective
discs MUST be destroyed.
3. Mounting and Handling. Bonded
abrasive products are breakable and must
be handled with great care. The use of
damaged or incorrectly mounted abrasive
discs is potentially very dangerous.
Fragments from a disintegrating disc can
cause serious injury.
4. Usage. Read the disc label for specic
applications and user instructions, and
observe any safety information. Do not use
for any non-specied tasks. Wet grinding
procedures must not be attempted with this
machine.
5. Do not force the disc. Allow the speed of
the disc to do the work. Never push or force
the disc onto the workpiece as this could
lead to disc damage and potential operator
danger. Allow the disc to glide over the work
surface, returning again and again until the
desired nish is achieved. Trying to grind
away too much of the work surface in one
pass could lead the disc jamming and cause
signicant ‘kickback’ to occur.
6. Do not use reducing rings or bushes
with this machine. Only use discs which
are specially designed for this machine. It is
not permissible to adapt discs not designed
for use in this machine.
7. Handling and Storage. Bonded abrasive
products must be handled, transported
and stored with great care. Discs should
be stored in a secure cupboard or
similar where they will not be subjected
to mechanical shock and any adverse
environmental inuences (freezing or
very high temperatures, moisture ingress,
sunlight damage etc). If possible store each
disc in its own dedicated storage carton or
box.
WARNING
This machine is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning the safe use of the
machine by a person responsible for their
safety.
Children should be supervised to ensure
that they do not have access to, and are not
allowed to play with, this machine.

7
SAFETY LABELS & SYMBOLS
WARNING: Do not operate machine if
warning and / or instruction labels are
missing or damaged. Contact Evolution
Power Tools for replacement labels.
18V Li-Ion
Angle Grinder
1. SWITCH SAFETY LOCK
SLIDE LEVER
2. On/Off TRIGGER SWITCH
3. DISC GUARD
4. DISC
5. ROTATION DIRECTION ARROW
6. ARBOR LOCK BUTTON
7. AUXILIARY SIDE HANDLE
8. REAR HANDLE
9. INSERTED BATTERY PACK
10. BATTERY PACK LOCKING TAB
ANGLE GRINDER OVERVIEW
Symbol Description
V Volts
A Amperes
Hz Hertz
Min-1 Speed
~ Alternating Current
noNo Load Speed
Double Insulated
Wear Safety Goggles
Wear Ear Protection
2
4
1
6
5
7
10
8
9
3

SPECIFICATION
PURE 115 mm ANGLE GRINDER
Voltage: 18V-DC
No Load Speed: 7000 Min-1
Disc ø115
Items Supplied
Instruction Manual 1pc
Auxiliary Side Handle 1pc
‘C’ Spanner (Disc Change) 1pc
Disc Guard 1pc
Grinding Disc 1pc
OPERATING INSTRUCTIONS
WARNING: Before using this tool, read the
Instruction Manual carefully.
Note: Some minor assembly is required
to prepare this machine for use. Do not
attach the Battery until assembly has been
completed and a safety check carried out.
BEFORE USE
A Battery Pack must be inserted into the
tool as detailed below. It is important that
the Battery Pack is of the designated type
recommended for this machine.
Newly purchased Battery Packs do not
come fully charged. Please refer to the PURE
CHARGER MANUAL for full details on how to
charge the Battery Pack for this machine.
1. INSTALLING OR REMOVING THE
BATTERY PACK
Check that the Battery Pack is of the
designated type for this machine. We
recommend that the Trigger Switch is locked
in the OFF position when removing or
inserting the Battery Pack. Refer to section
5 below.
a. Slide the Battery Pack into the base of the
tools handle. The Battery can only t one way
round.
b. Gently push the Battery Pack fully into the
tools handle to engage the locking tabs. The
electrical connections inside the handle will
be made automatically.
c. To remove the Battery Pack, simply press
the two locking tabs with your nger and
thumb and withdraw the Battery Pack from
the handle.
8

9
2. AUXILIARY SIDE HANDLE
The Auxiliary Side Handle can be tted
at either side of the machine. The Handle
simply screws into one or other of the
threaded holes on either side of the
machines head.
Attach the Auxiliary Side Handle to the side
of the machine most convenient for operator
comfort etc., and ensure that it is fully
tightened into the machine. The Auxiliary
Handle provides enhanced operator comfort
and control, and is therefore an important
safety feature
of this Angle Grinder.
3. DISC GUARD
WARNING: Never use the Angle Grinder
without the Disc Guard attached.
The position of the Disc Guard should
be adjusted so that it provides maximum
protection to the operator according to the
task at hand.
To reposition the Disc Guard:
• Open the Disc Guard Clamping Lever.
• Turn the Disc Guard to the required
operational position.
• Close the Disc Guard Clamping Lever.
• Check the security of the Disc Guard. It
must be clamped tightly to the machine.
Note: The clamping pressure of the Disc
Guard can be adjusted by turning the small
clamping pressure adjustment nut in the
required direction.
4. INSTALLING/REMOVING A DISC
WARNING: Only use Discs that are
specically designed for use in this machine.
Note: When installing a Disc, ensure that the
Disc Guard is in place.
• Engage the arbor lock by pressing the
Arbor Lock Button.
Note: You may need to rotate the arbor
slightly by hand to fully engage the
arbor lock.
• Use the supplied ‘C’ spanner to unscrew
and remove the Outer Disc Flange.
• Ensure that the Inner Disc Flange is
correctly located on the machine arbor.
The two (2) segment shaped lugs must
engage with the two ats machined on the
arbor.
• Place the Disc over the arbor and seat it
correctly on the Inner Disc Flange.
• Replace the Outer Disc Flange.
18V Li-Ion
Angle Grinder
ADJUSTMENT
NUT

10
• Engage the arbor lock.
• Tighten the Outer Disc Flange using the ‘C’
spanner.
Note: For standard Discs ensure that the
raised collar on the Outer Disc Flange is
pointing inwards so that it engages positively
in the bore of the Disc.
5. ON/OFF TRIGGER SWITCH AND
SAFETY LOCK
The Trigger Switch can only be operated
once the Safety Lock has been disengaged.
1. To disengage the Safety Lock press the
Safety Lock Slide Button on either the RH or
LH side of the handle.
2. Press the Trigger Switch to start the
machine.
Note: The Safety Lock will automatically reset
to the ‘Safe’ position when the Trigger Switch is
released and the machine has stopped.
6. USER ADVICE
WARNING: Using any Angle Grinder poses
intrinsic safety risks to the operator. Only
persons who have read and understood this
Instruction Manual should be allowed to use
this machine.
Extra Safety Advice
• Always wear the appropriate PPE
(Personal Protection Equipment) for the
task at hand. If you are not sure what PPE
is necessary for a particular task seek
expert advice.
• Carefully check the integrity of a Disc
before beginning operations. Fragments
from a disintegrating Disc can cause
serious injury.
• Ensure that the operators working position
and stance do not cause fatigue which
could cause loss of control of the machine.
Never work above head height.
• Do not force the machine or the Disc. Allow
the speed of the Disc to do the work.
• Ensure that the intended machining path
is clear of obstructions and with sufcient
clearance between surrounding objects to
allow for complete operator control of the
machine.
• When machining operations are concluded,
allow the Disc to come to a complete stop
before putting the machine down.
7. MAINTENANCE
Your Angle Grinder requires no additional
lubrication or maintenance. There are no user
serviceable parts in your power tool.
Keep the tool clean, but do not use chemical
cleaners which may damage the plastic
parts. Clean with a dry cloth. Ensure that the
motor ventilation slots are kept clean.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.

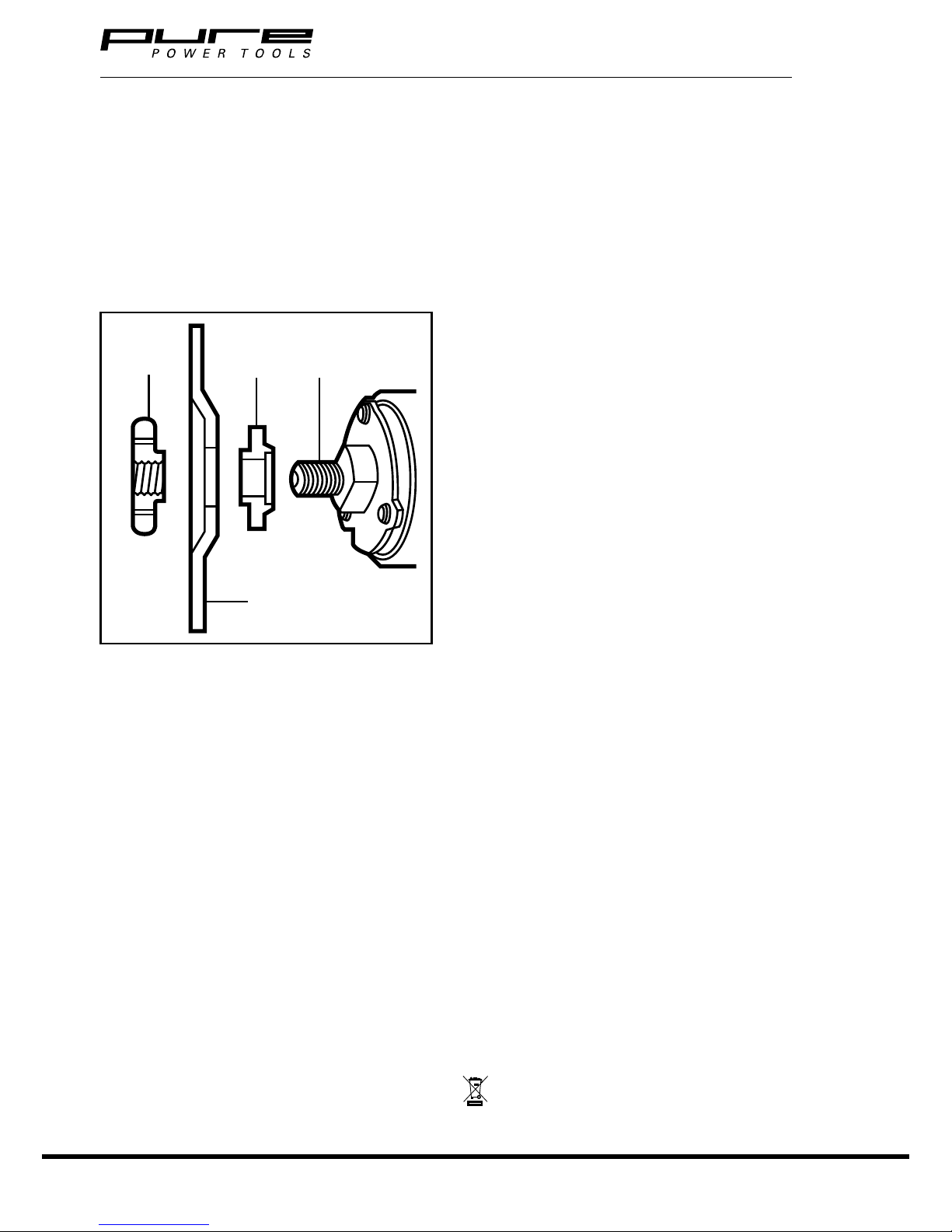

OUTER
DISC
FLANGE
INNER
DISC
FLANGE ARBOR
GRINDING DISC

11
18V Li-Ion
Angle Grinder
Notes
