Pure-Pro ASTROBOY User manual

ASTROBOY
PRO
P
URE
DRINKING WATER SYSTEM
01 Introduction ofASTROBOY
02 What isreverse osmosis
03 Components &Selections
04 Inline cartridgefilters
05 The parts ofASTROBOY
07 Microprocessor controlsystem
08 Tubingconnection diagram
09 Installation diagram
10 Work with smart cap
11 Operation regulation
12 Change filtersand membrane
13 FAQ
14 Maintenance checkinglist
15 Memo
REVERSE OSMOSIS SYSTEM
ASTROBOY
ASTROBOY
USER'S MANUAL
Thank you verymuch for selectingPure-Pro WaterCorp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.

01
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
Introduction of ASTROBOY
¨ASTROBOY
As a smart countertop RO system, Astroboy is especially designed for homes,
offices, restaurants, and shops use. It is the most delightful RO system
invention of 21 century. Astroboy not only brings you 100% pure clean water,
but with amulti-function tank, you can enjoy pureclean water whereveryou are
anytime you wantit.
With built-in the automatic flushing and self-cleaning procedure, its membrane
always remains clean. Water never stands still fora long timeto avoid bacteria
growing. You can always get the best quality of water. LCD display shows the
service life of filter, and tells you if filters need to be replaced. It even knows
which filter isexpired.
Build-in Smart microprocessorcontrol system.
Complete 5 stagereverse osmosis waterfilter system.
Build-in high capacitybooster pump.
Extremely versatile ROsystem.
Easy installation, justplug & drink.
LCD display toshow the servicelife of filters.
LCD display totell which filterneeds to bereplaced.
Warning ifthe filter wasexpired or outof use.
Auto shut-off when no feedwater comes in.
Self-cleaning procedure toautomatic flushing membrane.(every 8hrs)
Quick-connect fitting foreasy maintenance.
Versatile /Portablewater storage tankfits any bottlewater dispenser.
Best TravelCompanion.
Wide Application:Countertop / Outdoor/ Motor home/ Boat
¨Specifications
¨Features:
Production
Water storagetank
Transformer
Output
Wattage
Operation pressure
Dimensions
Weight
Max. inlet watertemperature
80 GPD /300 LPD
4.5gallons / 17liters
220Volt or240Volt (50/60Hz)
DC24V
30W
10 -100 PSI
(cm)36 (L) x46(H) x 25(W)
12.5 kg
0
46 C

02
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly itwill remove allmicroorganisms from tapwater and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow isreversed, water fromthe salt solutionis forced topass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening outthe salts andother contaminants.

03
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
TDS meter
T.D.S
Deliver-valve Water supplyconnector
Components & Selections
¨Selections
¨Components
Faucet Smart cap
Transformer
8mm over-flow tubewhite x 1
6mm feed watertube white x1
6mm drain outtube orange x1
Tubes
Drain saddle

04
PURE-PRO REVERSE OSMOSIS SYSTEM
Service life varieswith consumption andquality of water.
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System

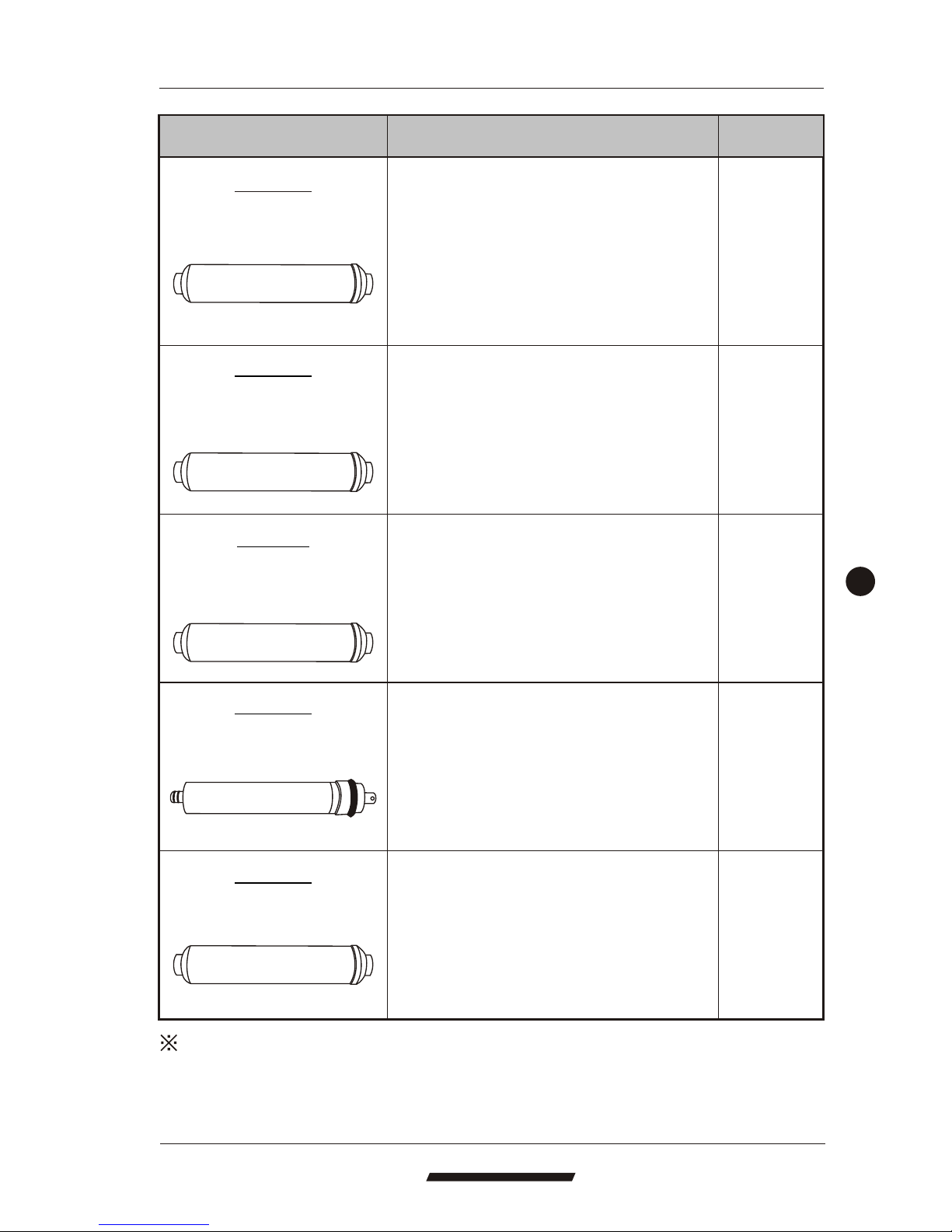

Inline cartridge filters
Service life
Cartridge Filters Filter Description
Stage 1
Stage3
Stage 2
Stage 4
Filmtec Membrane
Stage 5
Post Carbon Filter
Inline 1 Micron
Sediment Filter
1 Year
6 Months
2 Years
6 Months
6 Months
This 1micron sediment filter is made by
Dupont Anti-Bacteria. High capacity filter
removes dusts, particles and rusts, 99.70%
anti-bacterial, comply with FDA test standard.
Use 100% pure PP fine fiber. Product series
have been passed the test in accordance with
the filtering effect test of ANSI-NSF standard
42 - particulatereduction class II-Vof U.S.A.
Service Life:1500GAL
This granular activated carbon filter is
composed of high-performance activated
carbon that removes free chlorine, odor,
organic contaminants, pesticides, and
chemicals that contributedto taste andodor.
Service Life:1500GAL
This granular activated carbon filter is
composed of high-performance activated
carbon that removes free chlorine, odor,
organic contaminants, pesticides, and
chemicals that contributedto taste andodor.
Service Life:1500GAL
This post carbon filter is designed to improve
taste. It removes any residual impurities and
odors and providesa finer conditioningof pure
water.
Service Life:3000GAL
Inline Granular
Activated Carbon Filter
Inline Granular
Activated Carbon Filter
Membranes are made in USA. (material are
from Dow Chemical), the maker of the world's
most advanced reverse osmosis membranes.
High rejection membrane with the capacity of
producing 80 gallons per day. Eliminates up to
99.9% of most chemicals, dissolved solids,
metals, bacteria, andviruses.
Service Life:10000GAL

05
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
ASTROBOY
ASTROBOY
Each part of main body
Tankcap
Holder
Microprocessor
control system
Multi-fuction tank
Faucet
The front
Tube joint
Over-flow / drainout hole
In the back
Power switch Transformer plug
From the side

PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
06
PURE-PRO REVERSE OSMOSIS SYSTEM
Each part of main body
Tube joint
Drain out tube
Low pressure switch
Solenoid valve Booster pump
Feed water tube
Auto flushing
solenoid valve
Over-flow tube
View from the top
Drain out tube
Auto flushing
solenoid valve
Booster pump
Over-flow tube
1st stage filter
2nd stage filter
3rd stage filter
4th stage filter
5th stage filter
View from the side

Check the remainingservice life ofeach cartridge filter.
Reset this systemafter your havedone the replacement.
Showing life ofservice for filters.
Example : 1st 1500GAL 1499.....0
2st 1500GAL 1499.....0
3st 3000GAL 2999.....0
4st 9999GAL 9998.....0
5st 6000GAL 5999.....0
Flashing which filterneeds to bereplaced.
Showing the waterdrop when thesystem is makingthe water.
Showing different functions as follows:
TANK FULL !
FLUSHING :Automatic flushing membrane(per 8hrs).
NO INLET WATER: No feedwater!
CALL SERVICE: Flashing whenthe filter needsto be replaced(filter expired).
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
Query Reset
TANK FULL
FLUSHING
NO INLET WATER
CALL SERVICE
PUMP REMAINING CAPACITY
GAL
DAYS
1 2 3 4 5 FILTER
3000
365
1
2
3
4
5
6
PURE-PRO REVERSE OSMOSIS SYSTEM
07
3
5
1
4
2
6
Microprocessor control system

08
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
Simply leave thedrain out tubeand over flowtube in thesink!
Tubing connection diagram
6mm feed watertube white
Kitchen sink
6mm drain outtube orange
8mm over-flow tubewhite

ToASTROBOY
Deliver valve
Towater supply pipe
PRO
P
URE
DRINKING WATER SYSTEM
09
PURE-PRO REVERSE OSMOSIS SYSTEM
Tube jointis the combinationof :
1.Pure water supply
2.Over flow protector
3.Auto shut-off switch
ASTROBOY Countertop Smart RO System
Installation diagram
Connect 6mm feedwater tube white
Connect 6mm drainout tube orange Connect 8mm over-flow
tube white
Input water
Connect tube joint

10
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
ASTROBOY
ASTROBOY
1.Fasten the smartcap clockwise togetherwith water tank.
2.Takeoff the cover sticker fromthe smart cap.Turn thetank upside downand
hook up withany counter topdrink water systems/ coolers.
It's normal thata plastic stoppershall be floatingafter turning thewater tank upsidedown.
Work with smart cap

11
PURE-PRO REVERSE OSMOSIS SYSTEM
ASTROBOY
ASTROBOY
ASTROBOY

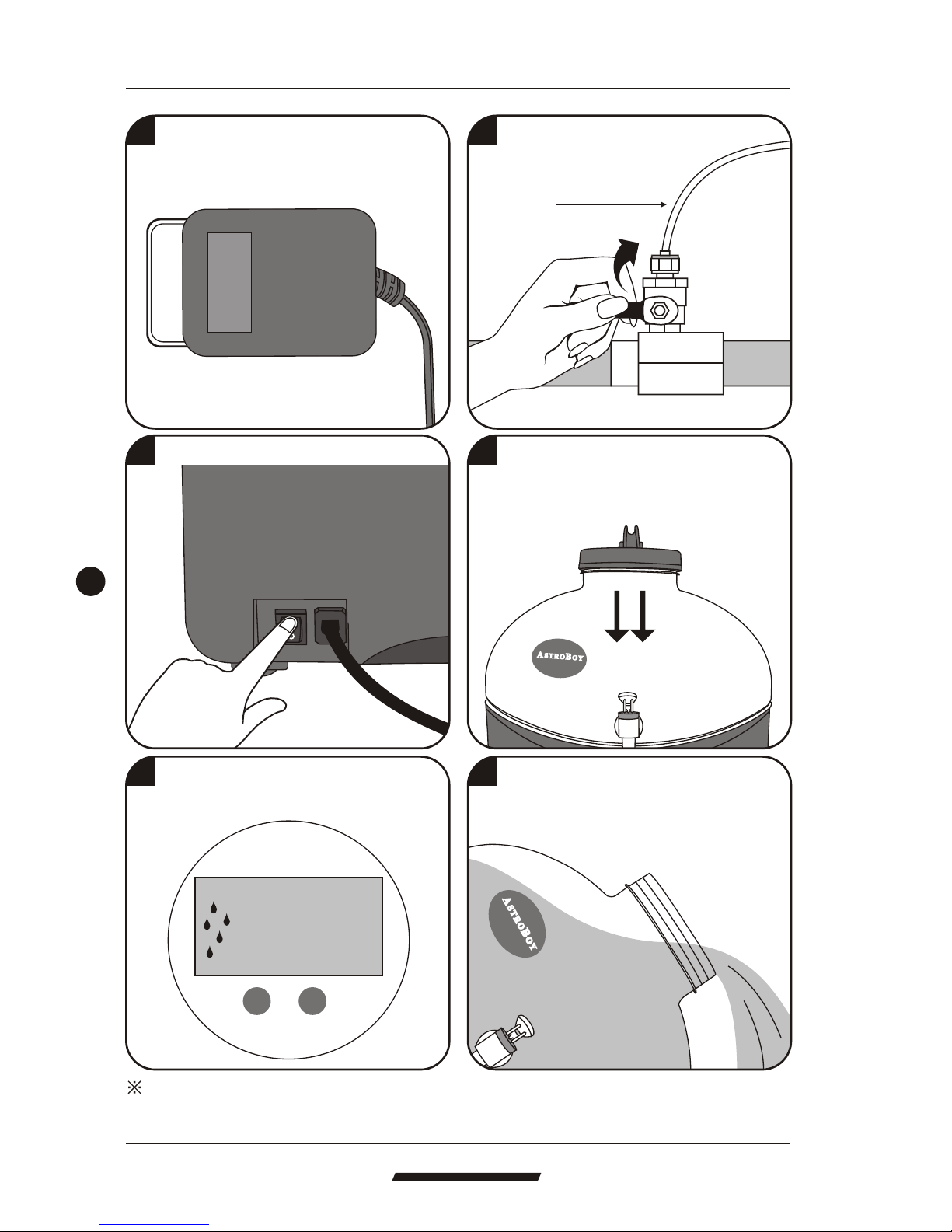

4 The system beginsto produce
water 30 secondsafter filters are
being flushed.
5 Microprocessor control system
functions as shownon the picture.
1 Plug in electricity. 2 Switch on watersource.
3 Turn onsystem power switch.
PRO
P
URE
DRINKING WATER SYSTEM
6 Dain out the firsttank of water to
flush filters and carbon fines.
Drink from the second tankof water.
ASTROBOY Countertop Smart RO System
Query Reset
TANK FULL
FLUSHING
NO INLET WATER
CALL SERVICE
PUMP REMAINING CAPACITY
GAL
DAYS
1 2 3 4 5 FILTER
3000
365
When under productionof water,it's normal thatthe drain outtube comes withdrain out water.
Do not stuffthe drain outtube to preventthe system frombreaking down.
Operation regulation
ToASTROBOY

12
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
ASTROBOY
ASTROBOY

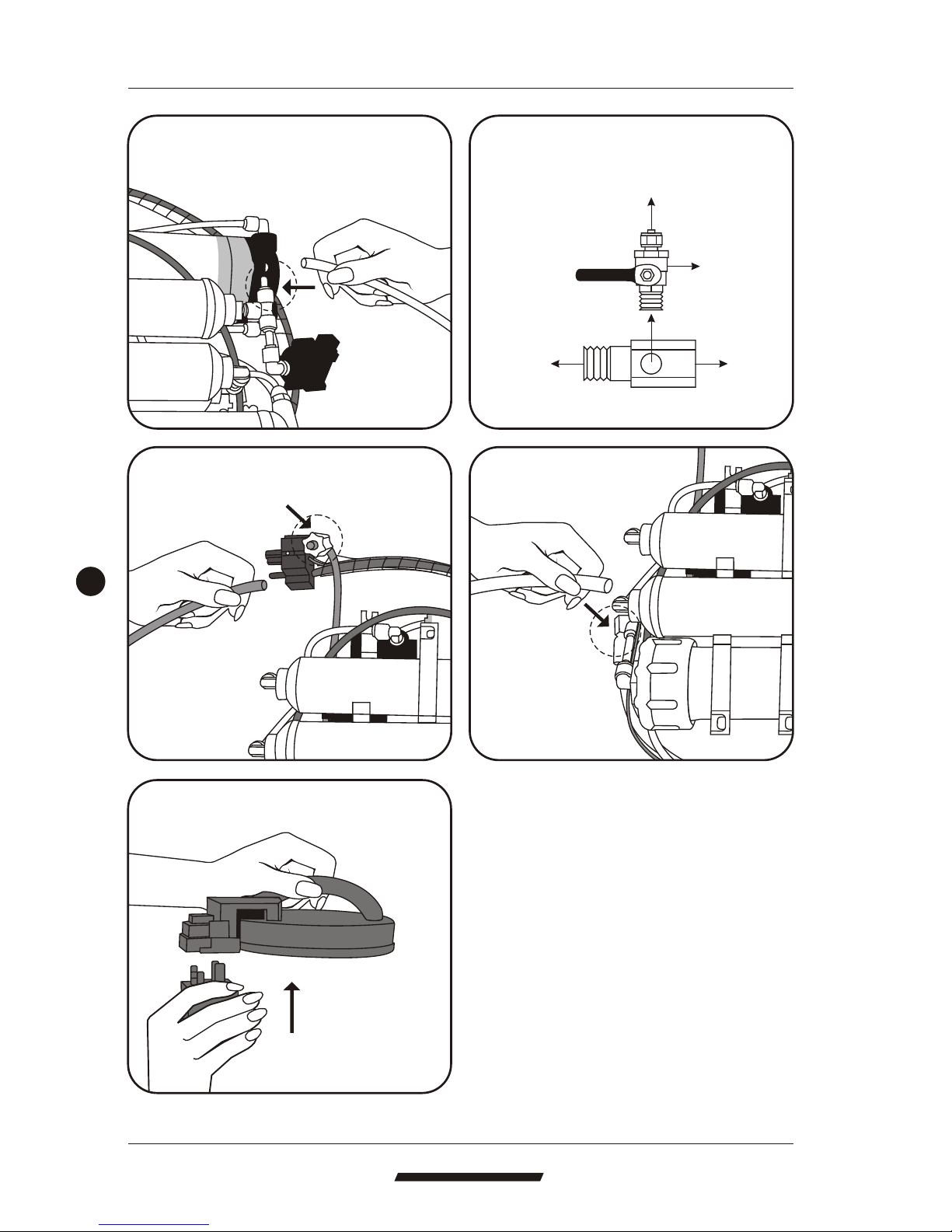

1Switch off water source
and electricity.
2Turn off system power
switch
4 Remove water tankand holder. 5 Takeout the 4fixed screws. Then
remove filters andconnectors.
6 Coil the connectorswith Teflon
tape and connectto a newfilter.
Then connect to its tube.
7 Put back thetube joint tothe tank
cap. switch onwater source and
electricity.
3Take out tubejoint.
Check carefully tosee if thereis a leaking.If so, repeatthe procedures describedabove.
Change filters and membrane
ToASTROBOY
Withe Teflon tape

13
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
FAQ
Q: Why is the testingresult of my TDS higherthan 40ppm?
We suggest you stop drinking water from the system if TDS testing result is
higher than 40ppm. And change the RO membrane right away. Do remember to
change filters regularly.
Q: Can the water tankbe used for similar coolers?
Yes, this is a multi-function tank for which you can easily use for any similar
coolers.
Q: How does the over-flowtube function?
It acts as a protectorwhen the over-flow ball valveis malfunction.
Q: What should I doif the water productivity isshrinking?
Please change the filters. If the problem remains the same, please contact a
nearest distributor for solutions.
Q: What are the importanceto change filters regularly?
1.Toensure the quality of drinkingwater
2.Tomake the best use andextend the life of systems.
3.Filters have an expired lifeof service and must bechanged regularly.

14
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 5th stage Other items

15
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
Type ofproduct
Date of purchase
Name Tel
Address
Memo
ASTROBOY
