Pure-Pro LUX-106A-P User manual

PRO
P
URE
DRINKING WATER SYSTEM
REVERSE OSMOSIS SYSTEM
Thank you verymuch for selectingPure-Pro WaterCorp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
USER'S MANUAL
01 Introduction ofLUX-106A-P
02 What isreverse osmosis
03 Components &Selected filters
04 The parts of LUX-106A-P
05 Cartridge filters
06
07 Tubingconnection diagram
08 Installation diagram
09 Change filters
10 Change membrane
11 Operation regulation
13 FAQ
14 Maintenance checkinglist
15 Memo
The functions ofalkaline filter
LUX-106A-P

01
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Membrane: 100 GPD/ 378 LPD
With a transformer, available in110Volt, 220Voltor 240Volt(50/60Hz)
Operation pressure: 5-80 psi
Dimensions: (cm) 37(L) x 20(W) x 45(H) - System
(cm) 28 (L)x 28 (W)x 35 (H)-Tank
Weight: 8 kg - system
4 kg -tank
¨Specifications
Luxury pump RO system
Introduction of LUX-106A-P
¨Alkaline Water ForBetter Health
The only filtration in the world today that will reduce acidity in the body and it will
produce natural calcium, magnesium, sodium and potassium ions that can be
absorbed 100% inthe human body.
®
PurePro Luxury LUX-106A is a super quality 6 stage filter system comes with
®
PurePro USA Alkaline Filter, to offer the very best in water filtration and
balanced pH waterfor drinking. Usingreverse osmosis technologieswith alkaline
filter can actually remove 99.99% of contaminants and provide people with
healthy alkaline drinkingwater.
¨Features
100GPD membrane. (Madein USA)
3.2 Gallons NSFStandards WaterStorage Tank.
FDAApproved Polypropylene MadeFlat Cap Housing(double o'ring).
Automatic Shut-off Valve, Flow Restrictor,Stainless Steel CheckValve.
New Euro-Luxury faucet- supreme qualitywith elegant design.
Feed water connector.
Drain Saddle Valve.
Four Color Coded1/4 inch Tubing forSystem Connection.
Completely Assembled.
PurePro label withUSA Flag.
100% Factory Testedand Sterilized Readyfor Installation.
Installation Instruction.

Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly itwill remove allmicroorganisms from tapwater and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow isreversed, water fromthe salt solutionis forced topass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening outthe salts andother contaminants.
02
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Luxury pump RO system

03
PURE-PRO REVERSE OSMOSIS SYSTEM
UVC-LIGHTING
ULTRAVIOLETWATER STERILIZER
PRO
P
URE
DRINKING WATE R SYSTEM
Components & Selected filters
3.2G water storagetank Housing wrench
Deliver-valve Water supplyconnector Drain saddle
¨Selected filters
¨Components
UV water sterilizer
Mineral filter
Tankball shut-off valve Tubing
Mineral
Infra-red cartridge filter
Infra-Red
Luxury pump RO system
New Euro-Luxury faucet

04
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Luxury pump RO system
Top view
The parts of LUX-106A-P
High pressure protector
Transformer
Pump
Flow restrictor
Todrain out tube
Auto shut-off valve
RO membrane housing
Post carbon filter
Pump
IN
OUT
IN
The 1st stage housing
The 2nd stage housing
The 3rd stage housing
To the tank
To the faucet
Input water
Front view
Alkaline filter

05
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Service Life
6 Months
2 Years
1 Year
Cartridge filters
Stage 1
Stage3
Stage 2
Stage 4
TFC Membrane
Stage 5
Post Carbon Filter
Cartridge Filters Filter Description
6 Months
6 Months
This 5micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particlesand rusts.
This 1micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particlesand rusts.
Made in USA. High rejection TFC type membrane
with the capacityof producing 100gallons per day.
This membrane removes the following hard water
contaminants that may be present in your water:
lead, cooper,barium, chromium, mercury, sodium,
cadmium, fluoride, nitrite,nitrate, and selenium.
NSF approved. Thispost carbon filteris designed
to improve taste. It removes any residual
impurities and odorsfrom the tankand provides a
finer conditioning ofpure water.
5 Micron
Sediment Filter
1 Micron
Sediment Filter
Stage 6 1 Year
Block Carbon Filter
This block carbon filter is composed of high-
performance carbon that removes free chlorine,
odor, organic contaminants, pesticides and
chemicals that contributedto taste andodor.
Luxury pump RO system
Alkaline Filter
The Alkaline filter changes the acidic RO water into
a perfect Natural Alkali Calcium Ionized Water. The
Alkaline filter simply gives back minerals such as
ionized calcium, magnesium, sodium, potassium
ion, which were taken away while purifying the
water.

06
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Luxury pump RO system
The functions of Alkaline filter
The Alkalinefilter changes theacidic RO waterinto a perfectNatural AlkaliCalcium
®
Ionized Water. The PurePro Alkaline filtersimply gives backminerals such asionized
calcium, magnesium, sodium,potassium ion, whichwere taken awaywhile purifying
®
the water.The PurePro Alkaline filteris effective andgive the waterpH value of
8.00~9.50
Produces perfectly ph-balancedalkaline water,helps minimize thefluctuations of
your body's pH.
Turn acidicdrinking water intoalkali calcium ionwater.
This natural calcium,magnesium, sodium, potassium ions can beabsorbed 100%
by the body.
It is easilyabsorbed in thebody because ithas structurally smallermolecules which
help the bodytake in morewater and replenishquickly lost water.
Makes the watercleaner and healthier.
This filter improvesthe qualities ofclean water byadding necessary forproper
human development andhealth minerals, suchas Calcium, Magnesium,Sodium,
Potassium and othersreadily found inmany natural mineralwaters.
Mainly installed withRO systems to complement their absolutefiltration qualities.
Technical Specifications:
Diameter: 53mm
Length: 254mm
Max. flow rate:250 l/24h
Max. pressure: 6bar
0
Max. temperature: 51 C
Balance pH: pH8.00~9.50
Capacity: 3000 liters
Cations in filteredwater:
2+
Ca : 55mg/l
2+
Mg : 18mg/l
+
Na : 22mg/l
+
K : 8.5mg/l
Anions in filteredwater:
2-
CO : 8mg/l
3
2-
SO : 0.2mg/l
4
-
Cl : 0.6mg/l
-
F : 0.03mg/l
The alkaline waterafter the PurePro alkaline filter hasperfectly balanced proportions
of minerals necessaryfor healthy developmentof the humanbody. The Alkalinefilter
changes the acidicRO water intoa perfect naturalalkaline water.It will reduceacidity
in the bodyand it willproduce natural calcium,magnesium, sodium andpotassium ions
that can beabsorbed 100% inthe human body.
®

PURE-PRO REVERSE OSMOSIS SYSTEM
07
PRO
P
URE
DRINKING WATE R SYSTEM

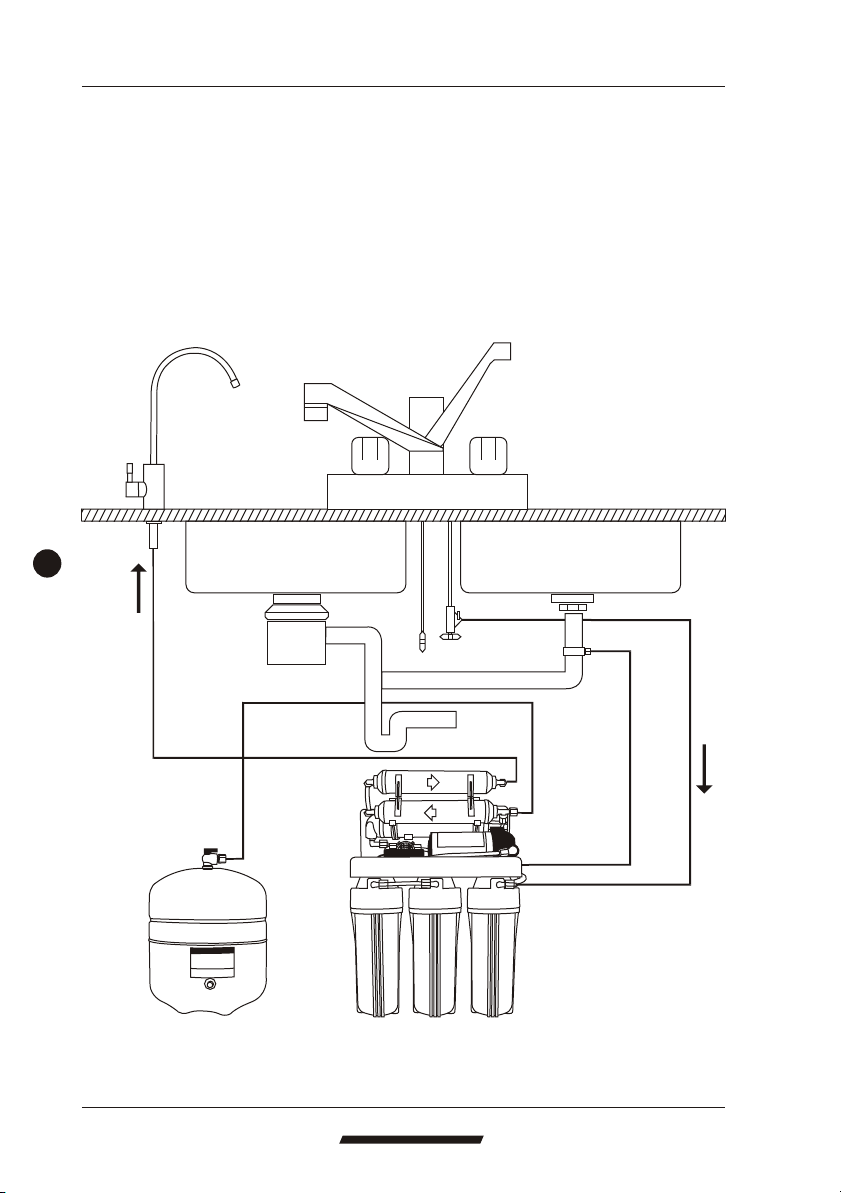

Tubing connection diagram
CONNECTING THE COLORTUBING:
A. Connect theWHITE tubing tothe water supplyconnector.
B. Connect theBLUE tubing tothe sink topfaucet.
C. Connect theBLACK tubing tothe drain saddle.
D. Connect theRED tubing tothe storage tank.
Luxury pump RO system
Faucet
Tank
Drain
Input water
A
B
C
D

08
PURE-PRO REVERSE OSMOSIS SYSTEM
Input water : Install water tank:
Install drain saddle:
Assemble membrane :
Drill a 1/4"hole into
the drain pipe.
Mount drain
saddle aligning
holes.
Installation diagram
PRO
P
URE
DRINKING WATE R SYSTEM
Faucet
Kitchenware table
Twisted plasticlocker
Rubber gasket
Flat metal piece
Screw locker
Tubing
Cutting ring
Concave type screw
Install faucet :
Luxury pump RO system
PRO
P
URE
DRINKINGWATERSYSTEM
Loose the Jacofitting anticlockwise.
Jaco
Remove the membranehousing cap.
Install the membraneby carefully
pushing the spigotend into the
socket at thefar end ofthe housing
until completely in.
Hand tighten
plastic shut-off
valve to tank.
Then connect
color tubing.
ToRO system
Tankball shut-
off valve
ToRO system
Deliver valve
Water supply connector
Towater
source pipe

09
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Micro Computer Controller
POWER
SOURCEPROCESSFLUSH
FULL
ToRO system
1 Prepare a housing
wrench.
2 Turn offwater
source.
4 Unplug electricity.
6 Put the replacementfilters in the
housings and doubleO' ring.
7 Drain out 1Gallon of waterto
purify replacement filters.
3Switch off water tank.

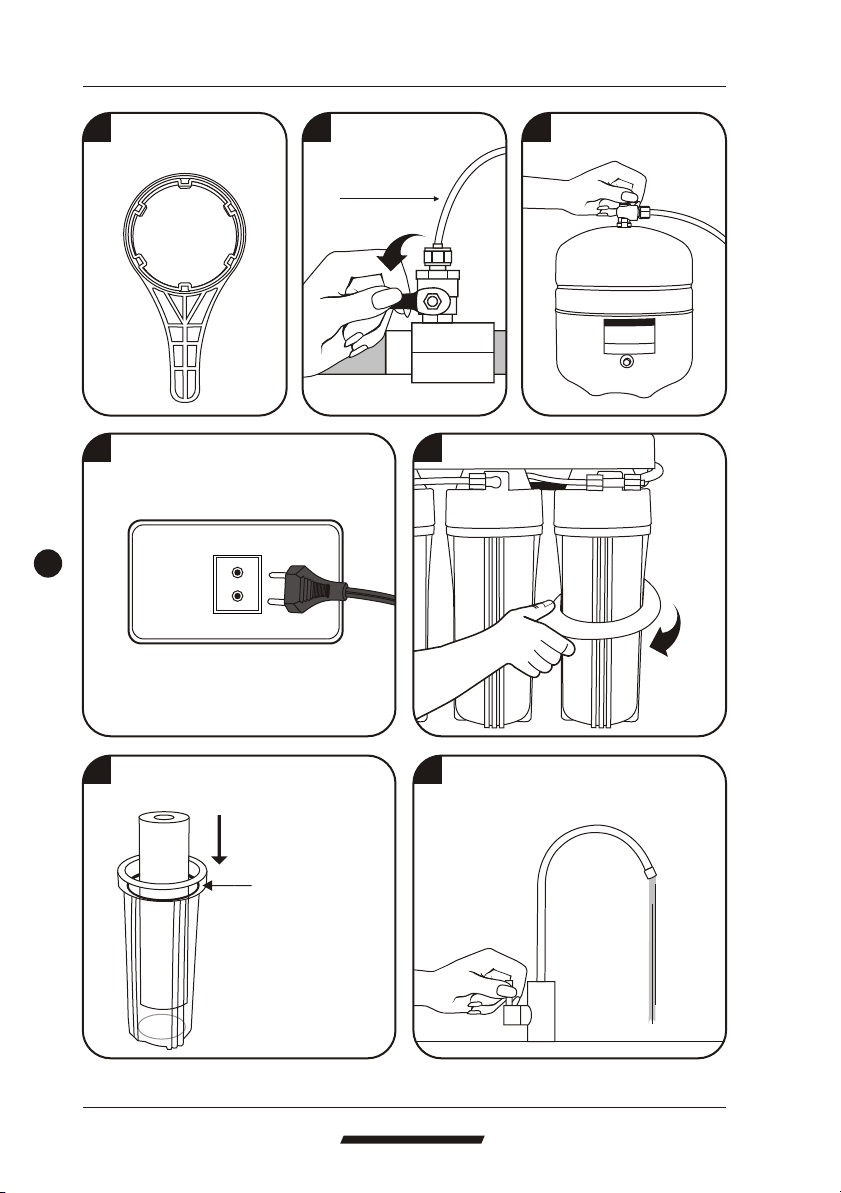

Change filters
Be sure tightenwith
O-ring to prevent
from leaking.
5 Open housings clockwise with a wrench.
Luxury pump RO system

10
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
PRO
P
URE
DRINKINGWATERSYSTEM
5Remove the membranehousing
cap anticlockwise.
PRO
P
URE
DRINKINGWATERSYSTEM
6Remove the membrane by a pincer. 7Install the membraneby carefully
pushing the spigotend into the
socket at thefar end ofthe housing
until completely in.
ToRO system
1Unplug electricity. 2Turn off water source. 3Switch off water tank.
Change membrane
Luxury pump RO system
Jaco
4Loose the Jaco fitting anticlockwise.

11
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
5 Let the waterrun for atleast 30
minutes. This flushes the carbon
filters on firsttime use.
1 Plug in electricity. 2 Turn onwater source.
3 Switch on watertank.
Operation regulation
ToRO system
Luxury pump RO system
4 Pump starts tofunction.
Pump

12
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
A.With everything connected,turn on thewater check forleaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on firsttime use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink topfaucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOTUSE FIRST TANKOF WATER.***
G.Close the sinktop faucet. The system isnow ready foruse.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
0
1.Do not usehot water (over45 C)!
2.Do not freezethe machine!
3.Switch off electricity and water source if away for more than5 days,
and drain outpure water.
Operation regulation
Luxury pump RO system

13
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
FAQ
Q: What is the guaranteeon the PurePro system ?
The PurePro system (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect thequantity and the quality of the water production?
There are four major variablesto consider:
1.Pressure-The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
00
2.Temperature-76 F is the ideal water temperature for R.O. 40 F water will
0
cause the production of R.O. water to fall to half of that at 76 F. The maximum
0
water temperature recommended is 85 F.
3.Total Dissolved Solids (TDS)-The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4.Membrane-Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes TW30-1812-100 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
Q: What is the maintenanceschedule for the PurePro system ?
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine to destroy themembrane.
Q: What does the PureProseries drinking water taste like?
The taste of the PurePro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water(moderate mineral content).
Luxury pump RO system

14
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 5th stage 6th stage
Luxury pump RO system

15
PURE-PRO REVERSE OSMOSIS SYSTEM
Type ofproduct
Date of purchase
Name Tel
Address
PRO
P
URE
DRINKING WATE R SYSTEM
Memo
Luxury pump RO system
