USER'S MANUAL
01 Introduction of S800-UV
02 What is reverse osmosis
03 Components &
04 Cartridge filters
05 The parts of
06
07
09
10
12
14
15
Selected filters
S800-UV
Tubing connection diagram
Installation diagram
08 Change filters
Change membrane
Operation regulation
FAQ
Maintenance checking list
Memo
Thank you very much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Memo
S800-UV
S800-UV Reverse Osmosis Drinking Water Systems

01 14
Introduction of S800-UV


S800-UV-S800 with UV
Specifications
PurePro S800-UV system is a modern kitchen appliance that has been carefully
designed with health consciousness, efficiency, high performance and
convenience in mind. S800 are the world's most elegant water systems are also
the world's most attractive water systems.
PurePro S800-UV system uses reverse osmosis (RO) technology - which is
recognized as the most effective at significantly reducing a large number of
contaminants that may be in your water - no other home water treatment system
offers you as much protection and reliability.
Maintenance checking list
‧
‧
‧
‧
‧
‧
Production: 50 GPD / 189 LPD
Water storage tank: 2.2gallons / 8.3 liters
With a booster pump (optional): Input in AC 110Volt, 220Volt or 240Volt (50/60Hz)
Operation pressure: 10 - 100 psi
Dimensions: (cm)47 (L) x 40(H) x 27 (W)
Weight: 11.5 kg
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 5th stage 6th stage
S800-UV Reverse Osmosis Drinking Water Systems S800-UV Reverse Osmosis Drinking Water Systems

Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly it will remove all microorganisms from tap water and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow is reversed, water from the salt solution is forced to pass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening out the salts and other contaminants.
13 02
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
FAQ
Q: What is the maintenance schedule for the Pure-Pro System ?
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine to destroy the membrane.
1. Take out the UV sterilizer from the box as shown in the picture.
2. Connect the wire to both ends of UV lamp.
3. Tight up the UV cap.
Install UV lamp :
S800-UV Reverse Osmosis Drinking Water Systems S800-UV Reverse Osmosis Drinking Water Systems

03 12

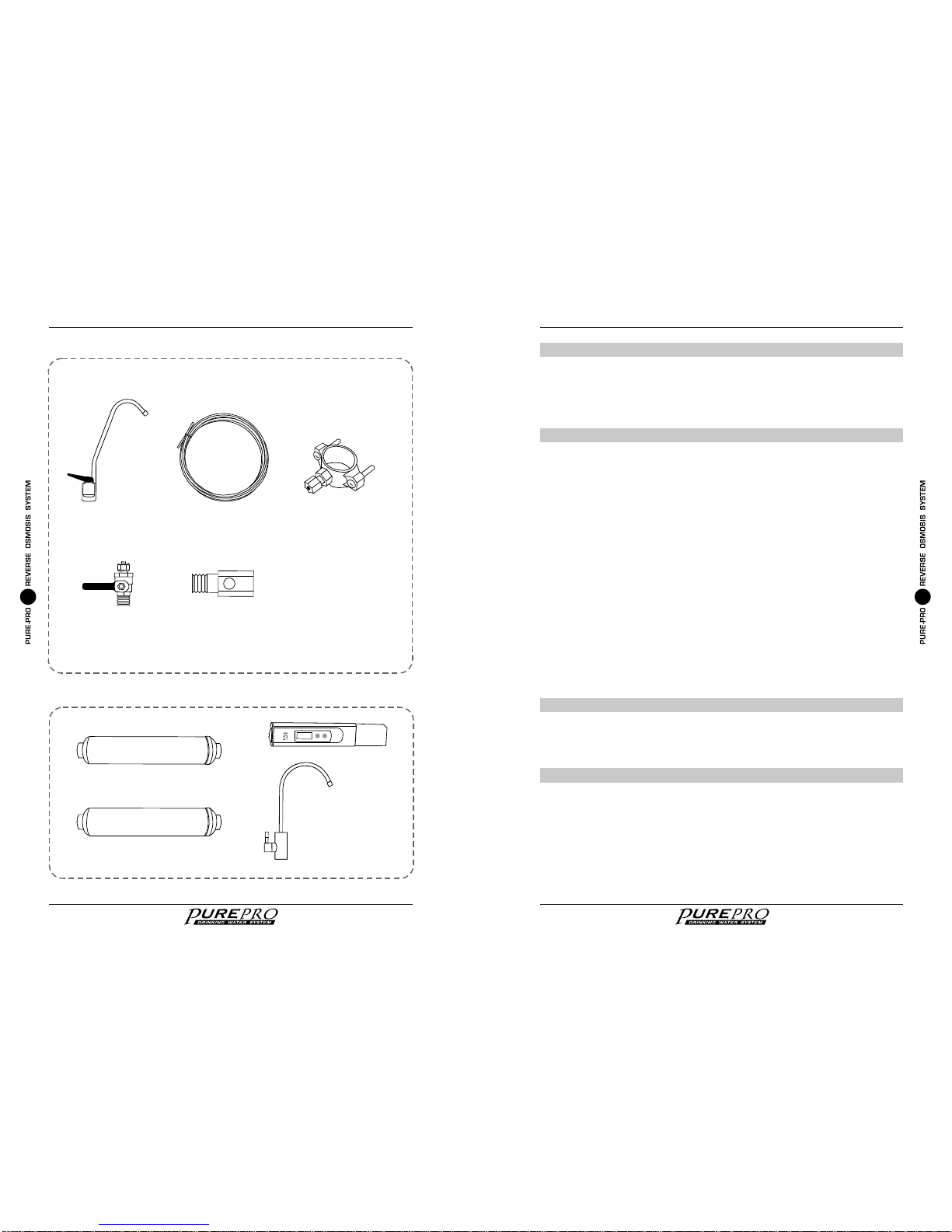

Components & Selected filters
Deliver-valve Water supply connector
Drain saddleTubing
Selected filters
Components Q: What is the guarantee on the Pure-Pro system ?
Q: What factors affect the quantity and the quality of the water production?
Pressure
Temperature
Total Dissolved Solids (TDS)
Membrane
Q: Can the Pure-Pro system be connected to an extra faucet?
Q: What does the Pure-Pro series drinking water taste like?
The Pure-Pro System (excluding filters) is guaranteed for 1 year for material
and workmanship. All defective parts will be replaced free within the first year
under natural breakdown. The membrane has one year pro-rated guarantee.
There are four major variables to consider:
1. -The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
2. -76 F is the ideal water temperature for R.O. 40 F water will
cause the production of R.O. water to fall to half of that at 76 F. The maximum
water temperature recommended is 85 F.
3. -The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4. -Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
Pure-Pro system includes RE1812-50 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some families run Pure-Pro system to all of their bathrooms.
The taste of the Pure-Pro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water (moderate mineral content).
0 0
0
0
FAQ
Faucet
S800-UV Reverse Osmosis Drinking Water Systems S800-UV Reverse Osmosis Drinking Water Systems
Infra-red cartridge filter
Mineral cartridge filter
TDS meter
Upgraded european
ceramic faucet
Infra-Red
Mineral

11 04
6 Months
2 Years
1 Year
Cartridge Filters
Stage 1
Stage3
Stage 2
GAC Carbon Filter
Stage 4
TFC Membrane
Stage 5
Post Carbon Filter

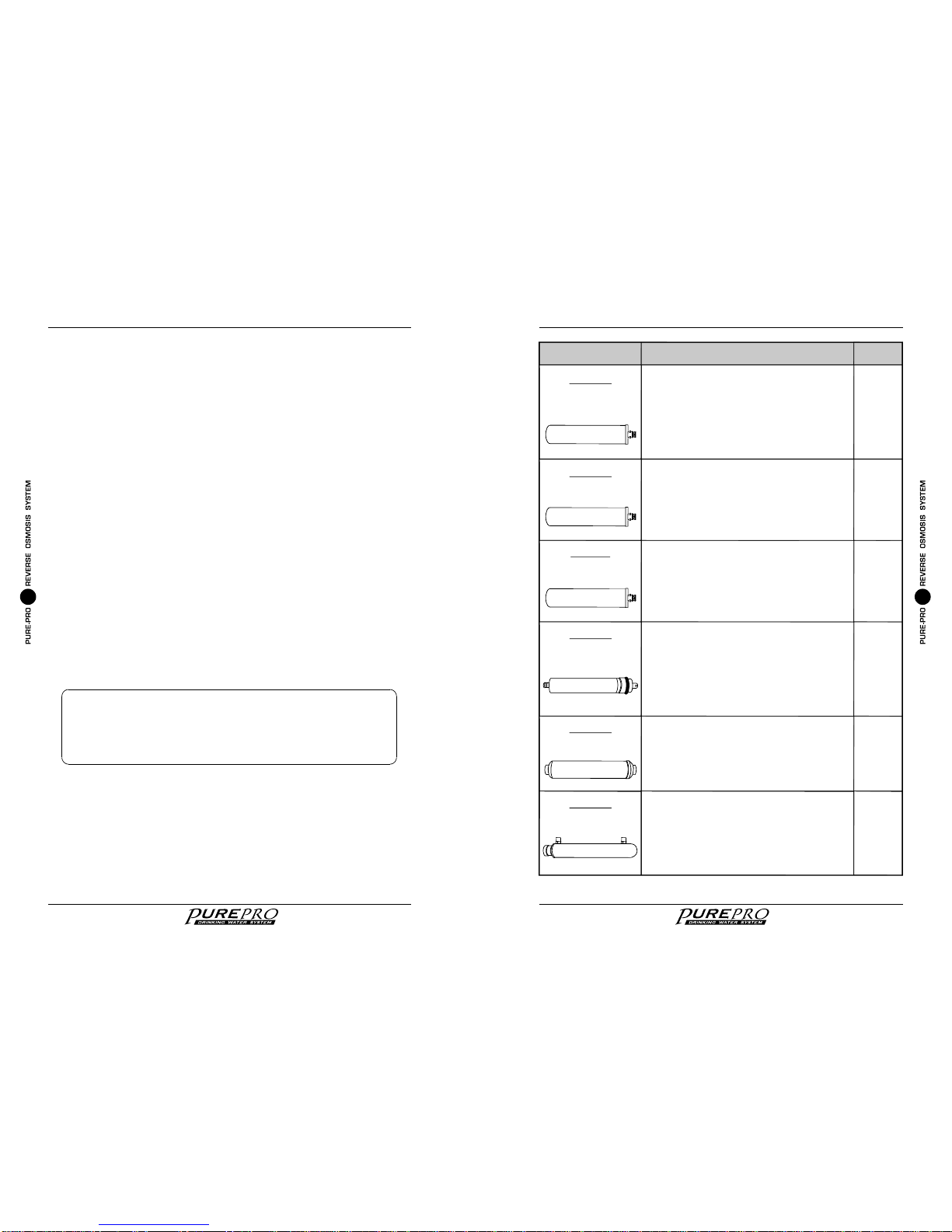

Cartridge Filters Filter Description
6 Months
6 Months
S300ST
With only five micron rating. It is effective in
removing dirt, rust and sand particles.
S300ND
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor, and color.
A thin fi lm co mposit e (TFC) high quality
membrane that processes 50 gallons per day. It
remove the following hard water contaminants
that may be present in your water: lead, cooper,
barium, chromium, mercury, sodium, cadmium,
fluoride, nitrite, nitrate, and selenium.
This carbon post filter removes objectionable
tastes and odors to enhance the quality of your
drinking water. We are using NSF approved post
carbon to guarantee the taste of water.
5 Micron
Sediment Filter
A.With everything connected, turn on the water check for leaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on first time use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink top faucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOT USE FIRST TANK OF WATER.***
G.Close the sink top faucet. The system is now ready for use.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
1.Do not use hot water (over 45 C)!
2.Do not freeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drain out pure water.
0
Operation regulation
Service Life
CTO Carbon Filter
S300RD
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor, and color.
1 YearStage 6 1GPM Heavy duty stainless steel 304 pressure
vessel. Heavy duty quartz sleeve. High output,
hard glass UV lamps for maximum efficiency. CE
ballast with lamp failure indicator and warning
buzzer.
UVC-LIGHTING
ULTR AVIOLE T WATER S TERIL IZER
UV Water Sterilizer
S800-UV Reverse Osmosis Drinking Water Systems S800-UV Reverse Osmosis Drinking Water Systems

05 10
Tank ball
shut-off valve
3Switch on water tank.

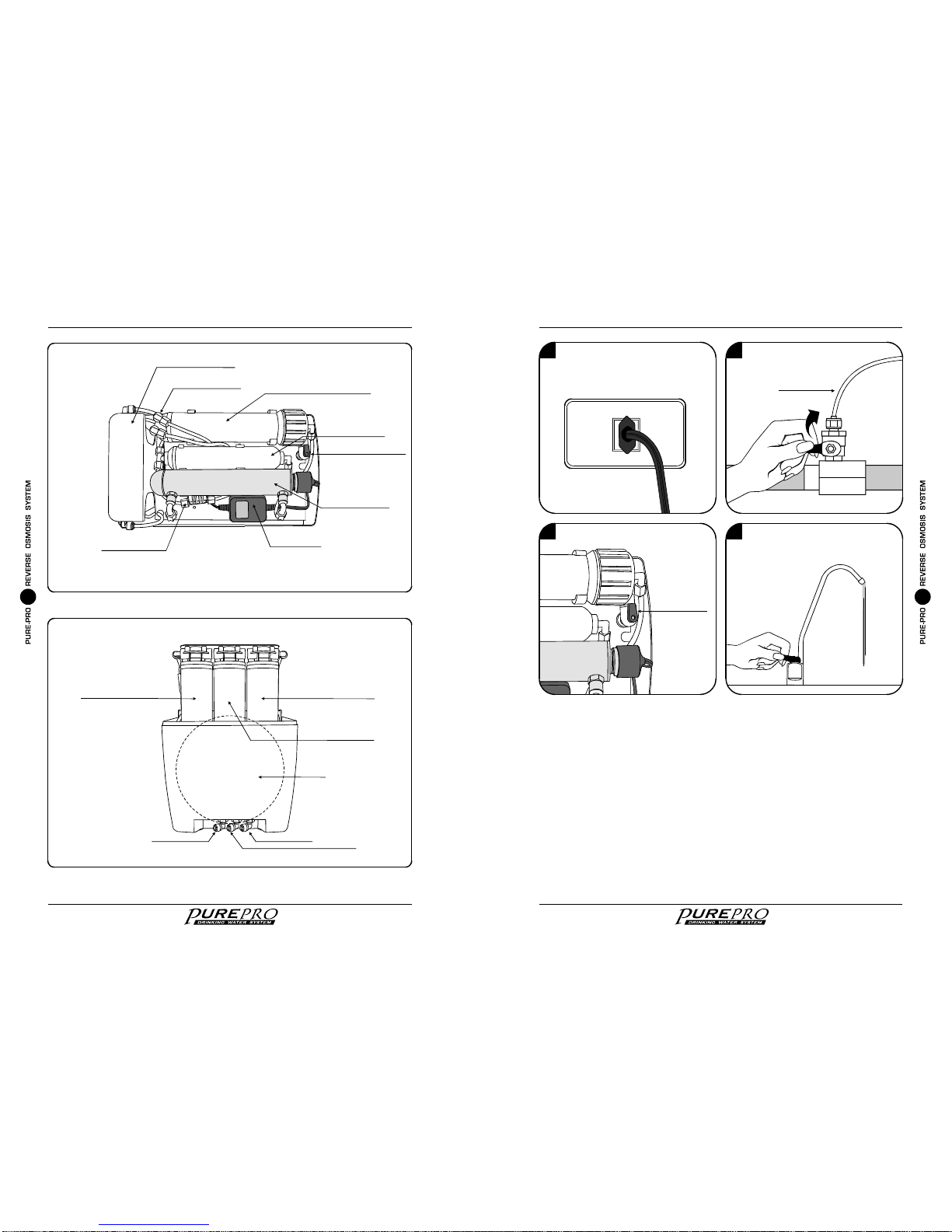

Operation regulationThe parts of S800-UV
The 1st stage filter
DRAIN OUTLET INLET
S300STS300NDS300RD
The 3rd stage filter
The 2nd stage filter
Tank
Tank ball shut-off valve
In LetDrain Out Let
1Plug in electricity. 2Turn on water source.
To RO system
RO membrane housing
Post carbon filter
Housing bracket white
Mini flow restrictor
Transformer
UV water sterilizer
Auto shut-off valve
S800-UV Reverse Osmosis Drinking Water Systems S800-UV Reverse Osmosis Drinking Water Systems
4Let the water run for at least 30
minutes. This flushes the carbon
filters on first time use.

Jaco
09

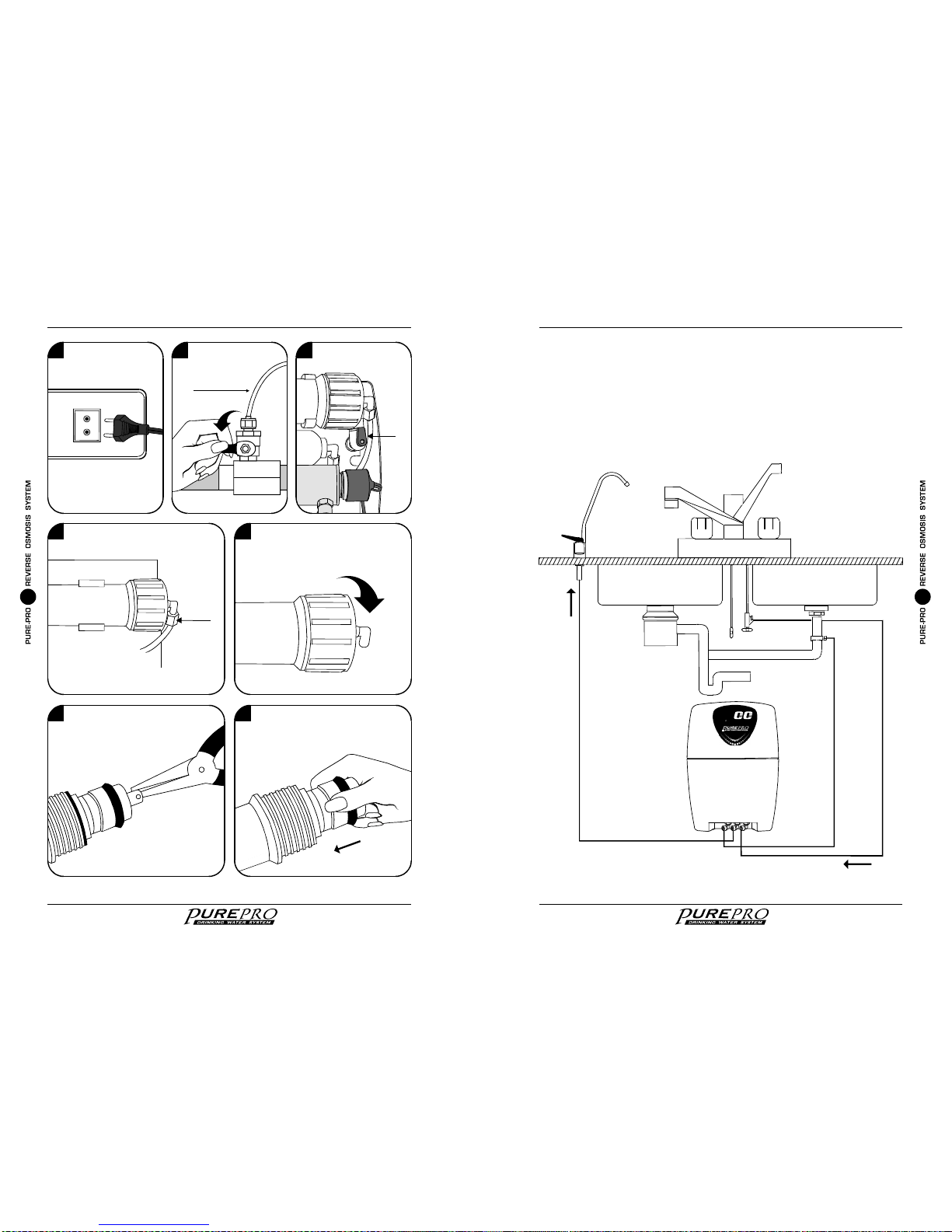

4Loose the Jaco fitting anticlockwise. 5Remove the membrane housing
cap anticlockwise.
6Remove the membrane by a pincer. 7Install the membrane by carefully
pushing the spigot end into the
socket at the far end of the housing
until completely in.
Change membrane
To RO system
1Unplug electricity. 2Turn off water source. 3Switch off water tank.
06
Tubing connection diagram
CONNECTING THE COLOR TUBING:
A. Connect the WHITE tubing to the water supply connector.
B. Connect the BLUE tubing to the sink top faucet.
C. Connect the BLACK tubing to the drain saddle.
Faucet
Drain
Input water
A
B
C
DRAIN OUTLET I NLET
S300 STS300 NDS300RD
cPUREPRO USA CORP., ILL INOIS, U.S.A.
S8
S800-UV Reverse Osmosis Drinking Water Systems S800-UV Reverse Osmosis Drinking Water Systems

Tank ball
shut-off valve
07 08
Install drain saddle :
Drill a 1/4" hole into
the drain pipe.
Mount drain
saddle aligning
holes.
Installation diagram Change filters
2Turn off water source.
To RO system
Assemble membrane :
1.Remove the membrane housing cap.
2.Replace the membrane.
Input water :
To RO system
Deliver valve
To faucet
To water source pipe
S300STS300 NDS300RD
S300ST
4Loose the used pre-filter clockwise
and remove it.
S300STS300NDS300RD
S300ST
5Screw in and install the new filter
anticlockwise.
3Switch off water tank.
1Unplug electricity.
S800-UV Reverse Osmosis Drinking Water Systems S800-UV Reverse Osmosis Drinking Water Systems
Install European ceramic faucet :
6Drain out 1 Gallon of water to
purify replacement filters.
