Pure-Pro LUX-105 User manual

PRO
P
URE
DRINKING WATER SYSTEM
REVERSE OSMOSIS SYSTEM
Thank you verymuch for selectingPure-Pro WaterCorp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
USER'S MANUAL
01 Introduction ofLUX-105
02 What isreverse osmosis
03 Components &Selected filters
04 The parts of LUX-105
05 Cartridge filters
06 Tubingconnection diagram
07 Installation diagram
08 Change filters
09 Change membrane
10 Operation regulation
12 FAQ
14 Maintenance checkinglist
15 Memo
LUX-105

01
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
¨Features
100GPD membrane. (Madein USA)
3.2 Gallons NSFStandards WaterStorage Tank.
FDAApproved Polypropylene MadeFlat Cap Housing(double o'ring).
Automatic Shut-off Valve, Flow Restrictor,Stainless Steel CheckValve.
New Euro-Luxury faucet- supreme qualitywith elegant design.
Feed water connector.
Drain Saddle Valve.
Four Color Coded1/4 inch Tubing forSystem Connection.
Completely Assembled.
PurePro label withUSA Flag.
100% Factory Testedand Sterilized Readyfor Installation.
Installation Instruction.
¨Specifications
Luxury RO system
Introduction of LUX-105
¨Supreme Quality, Luxury RO System
®
PurePro Luxury RO system is a modern kitchen appliance that has been
carefully designed with health consciousness, efficiency, high performance and
®
convenience in mind. PurePro Luxury RO system uses 100GPD membrane
which is powerful,fast and excellentefficiency.
100GPD membrane increase the daily production capacity and the speed of RO
water production. This allows for better assurance that there is adequate water
available when desired,even during heavyuse times of the day. PurePro Luxury
RO with its supreme quality ensures a great water flow rate with absolutely the
least wasting ofwater.
Membrane: 100 GPD/ 378 LPD
Operation pressure: 50-100 psi
Dimensions: (cm) 37(L) x 20(W) x 45(H) - System
(cm) 28 (L)x 28 (W)x 35 (H)-Tank
Weight: 8 kg - system
4 kg -tank

Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly itwill remove allmicroorganisms from tapwater and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow isreversed, water fromthe salt solutionis forced topass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening outthe salts andother contaminants.
02
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Luxury RO system

03
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Components & Selected filters
3.2G water storagetank Housing wrench
Deliver-valve Water supplyconnector Drain saddle
¨Selected filters
¨Components
Tankball shut-off valve Tubing
New Euro-Luxury faucet
Alkaline filter
Alkaline
Mineral filter
Mineral
Infra-Red filter
Infra-Red UVC-LIGHTING
ULTRAVIOLETWATER STERILIZER
UV water sterilizer
Luxury RO system

04
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
The parts of LUX-105
Front view
Top view
Flow restrictor
Todrain out tube
Auto shut-off valve
RO membrane housing
Post carbon filter
IN
OUT
IN
The 1st stage housing
The 2nd stage housing
The 3rd stage housing
To the tank
To the faucet
Input water
Luxury RO system

05
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Cartridge filters
Service Life
6 Months
2 Years
1 Year
Stage 1
Stage3
Stage 2
Stage 4
TFC Membrane
Stage 5
Post Carbon Filter
Cartridge Filters Filter Description
6 Months
6 Months
This 5micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particlesand rusts.
This 1micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particlesand rusts.
Made in USA. High rejection TFCtype membrane
with the capacityof producing 100gallons per day.
This membrane removes the following hard water
contaminants that may be present in your water:
lead, cooper,barium, chromium, mercury, sodium,
cadmium, fluoride, nitrite,nitrate, and selenium.
NSF approved. Thispost carbon filteris designed
to improve taste. It removes any residual
impurities and odorsfrom the tankand provides a
finer conditioning ofpure water.
5 Micron
Sediment Filter
1 Micron
Sediment Filter
Block Carbon Filter
This block carbon filter is composed of high-
performance carbon that removes free chlorine,
odor, organic contaminants, pesticides and
chemicals that contributedto taste andodor.
Luxury RO system

06
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM

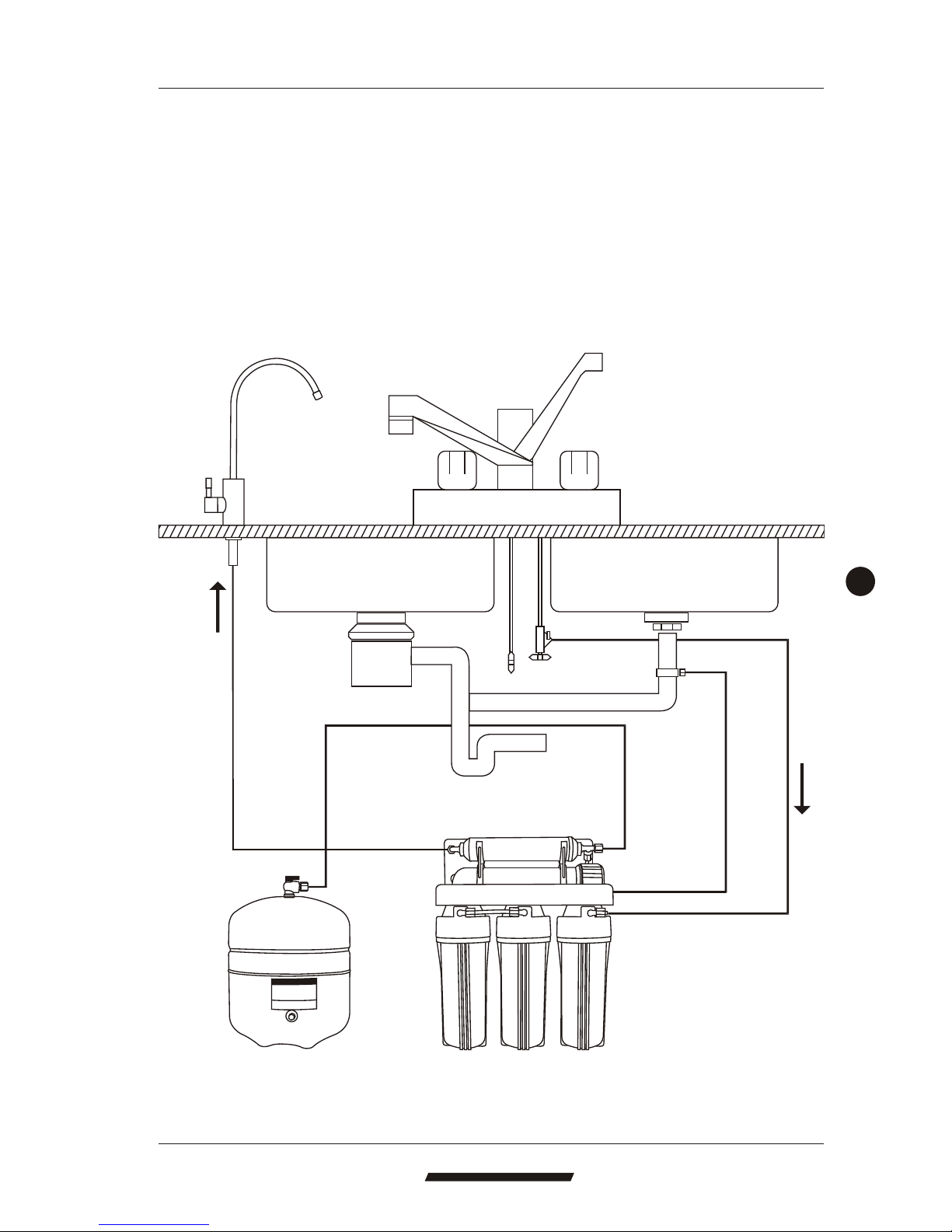

Tubing connection diagram
CONNECTING THE COLORTUBING:
A. Connect theWHITE tubing tothe water supplyconnector.
B. Connect theBLUE tubing tothe sink topfaucet.
C. Connect theBLACK tubing tothe drain saddle.
D. Connect theRED tubing tothe storage tank.
Faucet
Tank
Drain
Input water
A
B
C
D
Luxury RO system

PURE-PRO REVERSE OSMOSIS SYSTEM
07
PRO
P
URE
DRINKING WATER SYSTEM
Input water : Install water tank:
Install drain saddle:
Assemble membrane :
Drill a 1/4"hole into
the drain pipe.
Mount drain
saddle aligning
holes.
Installation diagram
Faucet
Kitchenware table
Twisted plasticlocker
Rubber gasket
Flat metal piece
Screw locker
Tubing
Cutting ring
Concave type screw
Install faucet :
PRO
P
URE
DRINKINGWATERSYSTEM
Loose the Jacofitting anticlockwise.
Jaco
Remove the membranehousing cap.
Install the membraneby carefully
pushing the spigotend into the
socket at thefar end ofthe housing
until completely in.
Hand tighten
plastic shut-off
valve to tank.
Then connect
color tubing.
ToRO system
Tankball shut-
off valve
ToRO system
Deliver valve
Water supply connector
Towater
source pipe
Luxury RO system

08
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Change filters
Micro Computer Controller
POWER
SOURCEPROCESSFLUSH
FULL
1 Prepare a housingwrench.
5 Put the replacementfilters in the
housings and doubleO' ring.
6 Drain out 1Gallon of waterto
purify replacement filters.
Be sure tightenwith
O-ring to prevent
from leaking.
4 Open housings clockwise with a wrench.
3Switch off water tank.
2Turn off water source.
ToRO system
Luxury RO system

09
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Change membrane
Jaco
PRO
P
URE
DRINKINGWATERSYSTEM
3Loose the Jaco fitting anticlockwise. 4Remove the membranehousing
cap anticlockwise.
PRO
P
URE
DRINKINGWATERSYSTEM
5Remove the membrane by a pincer. 6Install the membraneby carefully
pushing the spigotend into the
socket at thefar end ofthe housing
until completely in.
1Turn off water source. 2Switch off water tank.
ToRO system
Luxury RO system

10
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Operation regulation
2 Switch on watertank.
1 Turn onwater source.
ToRO system
3 Let the waterrun for atleast 30
minutes. This flushes the carbon
filters on firsttime use.
Luxury RO system

11
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
A.With everything connected,turn on thewater check forleaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on firsttime use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink topfaucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOTUSE FIRST TANK OF WATER.***
G.Close the sinktop faucet. The system isnow ready foruse.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
0
1.Do not usehot water (over45 C)!
2.Do not freezethe machine!
3.Switch off electricity and watersource if awayfor more than 5 days,
and drain outpure water.
Operation regulation
Luxury RO system

12
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Q: What is the guaranteeon the PurePro system ?
The PurePro system (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect thequantity and the quality ofthe water production?
There are four major variablesto consider:
1.Pressure-The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
00
2.Temperature-76 F is the ideal water temperature for R.O. 40 F water will
0
cause the production of R.O. water to fall to half of that at 76 F. The maximum
0
water temperature recommended is 85 F.
3.Total Dissolved Solids (TDS)-The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4.Membrane-Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes TW30-1812-100 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
Q: Can the PurePro systembe connected to an extrafaucet?
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some families run PureProsystem to all of theirbathrooms.
Q: What does the PureProseries drinking water taste like?
The taste of the PurePro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water(moderate mineral content).
FAQ
Luxury RO system

13
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
FAQ
Q: How will the PureProseries water affect mixed beverages?
Because reverse osmosis removes invisible contaminants that mask flavor, it
allows the natural taste of your beverages to come through. You will be able to
use less coffee and still get the full flavor. Concentrated beverages like orange
juice will taste tangier. You will probably be drinking a lot more water as well,
since many people drink soda, Kool-Aid, concentrated juices, and beer as an
alternative to bad-tasting tap water. Also, PurePro eliminates most of the lime
build up on drip coffee makers, preventing the need for frequent cleaning. No
longer will you find thewhite scum on the insideof pans after boiling water.
Q: How much water doesthe PurePro system produce ?
Under ideal conditions, the TW30-1812-100 TFC membrane is rated at 100
gallons of production per day. Under the average conditions, the consumer can
expect 100 gallons of product water per day. But that's still a lot of water for the
average household's drinking and cookingrequirements.
Q: Don't people need mineralsremoved from the water ?
Most of the minerals that we receive are from the foods we eat. Only a very
small percentage comes from thewater we drink.
Q: What is the maintenanceschedule for the PurePro system?
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine to destroy themembrane.
Luxury RO system

14
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 5th stage 6th stage
Luxury RO system

15
PURE-PRO REVERSE OSMOSIS SYSTEM
Type ofproduct
Date of purchase
Name Tel
Address
PRO
P
URE
DRINKING WATER SYSTEM
Memo
Luxury RO system
