PureAiro Sentinel HEPA 650
Sentinel HEPA 650 is small and light. It is specially designed to remove even
the smallest airborne debris up to 0.3 microns. The device can remove pet
dander, mold spores and plant spores. The device is equipped with a stack filter
and activated carbon filter, so that it can even suck and capture the smallest
particles. The device consumes less power and can clean the air vertically and
horizontally. At peak, the device can produce 750 CFM of airflow. This is
enough to make it absorb harmful particles in the air.
Compared with other products of competitors, Sentinel HEPA 650 is more
effective.

KEY FEATURES
02 03
INTRODUCTION
Congratulations on purchasing a Sentinel HEPA 650 air scrubber. In order to take advantage
of the wranty plan, be sure to note the serial number and date of purchase.
SERIAL NUMBER: DATE OF PURCHASE:
WARNING!

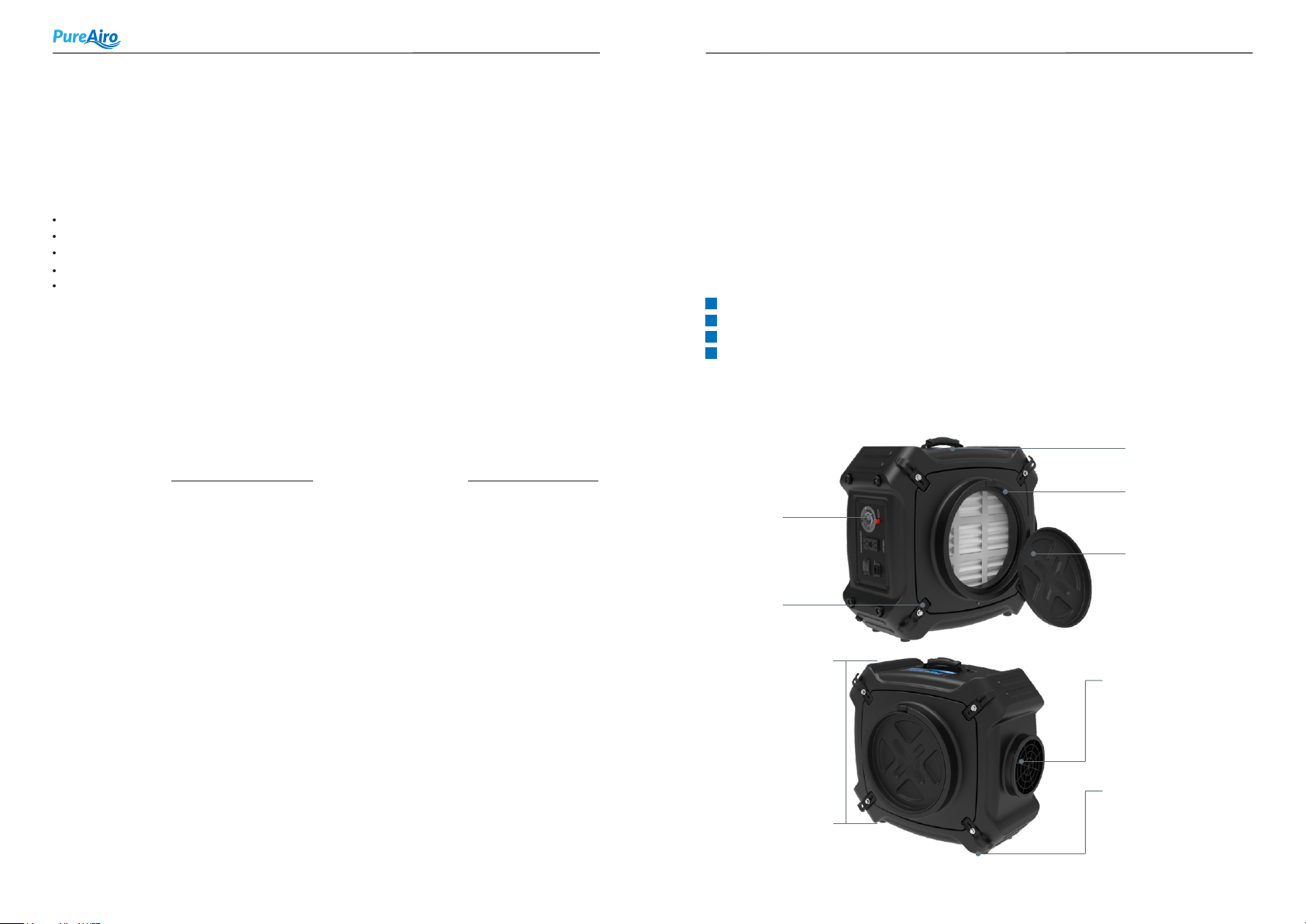

HOW IT WORKS
HANDLE
Inlet
(ductable,356mm)
Control
Panel
Winding Clamp
(4 total)
Outlet
(ductable, 8")
Please note that the Sentinel HEPA 650 should only be used with parts approved by PureAiro.
The use of unauthorized parts or alterations to the machine could void your warranty.
Contact an approved distributor for further assistance.
Unit must be electrically grounded.
Insert 3-prong plug directly into outlet with Ground Fault Circuit Interrupting device.
Do not use an adapter with this unit.
Do not use the unit in standing water.
If electrical parts get wet, they must be dried prior to use.
To Avoid the Risk of Fire or Electric Shock:
REMOVABLE INTAKE PANEL
The Sentinel HEPA 650 is equipped with a removable panel on the intake side of the machine.
The removable panel is quite useful in remediation applications, so you can draw air out the
room and create more negative pressure (use a manometer to monitor air pressure).
To use panel:
1
22
3
24
VERTICAL,
UPRIGHT
POSITION
PureAiro Sentinel HEPA 650
The Sentinel HEPA 650 is a convenient filtration system that cleans the air. The
Sentinel HEPA 650 uses an effective blend of air flow and advanced filtration to expel airborne particles
like mold spores, dust, pollen, and pet dander. The Sentinel HEPA 650 is ideal for for restoration jobs,
including water, sewage, and fire.
When set to maximum airflow, the scrubber draws air through two types of filters- a pre-filter
and a HEPA/Activated Carbon Filter.
1. Pre-Filter
The first phase of filtration, the prefilter, Captures initial dust and allergen particles.
2. HEPA/Activated Carbon Filter
The second phase of filtration, the HEPA/Activated Carbon Filter, catches smaller particles,
down to 0.3 microns. Contributes to the control and prevention of the growth of bacteria,
germs, and mold. Captures 99.99% of dust and allergens.
3. UV-C Light
UV-C light technology works with filters to enhance the elimination of airborne germs Titanium
Dioxide is activated by the UV-C light to decompose remaining odor molecules caused by
smoking, cooking, and pets.
SPECIAL FEATURES
DAISY-CHAIN CAPABILITY
Using the auxillary outlet on the control panel, you can link up to 3 units together. You can
also daisy-chain the machines when they are stacked vertically (limit of 2 units).
MULTI-POSITIONAL
The Sentinel HEPA 650 can be operated in the vertical postion, as well as, when stacked
vertically (up to 2 units). When storing, the machines can be stacked horizontally to
save space.
Retaining Clips
(4 on base)
Remove the panel.
Install the machine outside the containment area to draw air out.
Cut a hole in the containment plastic that is the size of the unit's inlet.
Insert the inlet into plastic and seal the circumference tightly with duct tape.
Removable foam cap
(with cap leash)

04 05
INSTRUCTIONS
1
SETUP
THE CONTROL PANEL
Variable Speed Control
Place the Sentinel HEPA 650 so that it is in the upright, vertical position.
Plug the machine into a standard 115 volt outlet. Note: Each unit needs 3 amps to operate.
Power the unit on and adjust the speed by turning the variable speed control. The
maximum speed is 750 CFM and the minimum speed is 350 CFM.
The Sentinel HEPA 650 can be operated in the vertical or horizontal postion, depending
on the exact situation. At this point, adjust the machine to the optimal position.
2
3
4
Auxiliary Outlet
Circuit Breaker Switch
The Circuit Breaker Switch protects the unit if there are more than 12 amps of electricity
passing the circuit. If this occurs, the switch will cut off the power to the unit.
CHANGING TH E FILTERS
Loosen the 4 locks that hold the filter board in place.
Slide out the filter panel board.
Remove the used filters and replace with new filters.
1
1
2
2
3
3
WARNING
APPLICATIONS
Water Damage
Odor Control
Other Uses
In this application, the Sentinel HEPA 650 should be placed in the center of the affected area.
The air scrubber will draw in the air, filter it, then blow out the newly cleaned air. To begin the
process,simply turn on the scrubber and it will start cleaning the air. Keep in mind that if you
are working in a large area or one divided by walls, you may need several air scrubbers to
effectively clean the air.
The Sentinel HEPA 650, when used with the optional activated carbon filter (P/N:), is
excellent at odor control, as well. Simply place the carbon filter in the pre-filter slot and it will
capture a wide variety of odor-causing gas molecules, such as volatile organic compounds
(VOC's), smoke,soot, and paint fumes.
The Sentinel HEPA 650 is also useful in many other applications including mold remediation,
fire damage, dust control, and sewage remediation.
WARNING!
Breathing Hazard
1
2
Tipping Hazard
Use caution when stacking units,
Do not stack more than 2 units on top of each other.
Falling equipment could cause bodily harm.
1
2
3
PureAiro Sentinel HEPA 650
The Variable Speed Control is used to adjust the power of the machine. Turn the knob in a
clockwise dlirection, to increase the speed from maximum to minimum .The minimum speed
setting is located immediately under the OFF button.
If more air filtration is necessary for a space, you can“daisy chain" or link up to 3 Sentinel
HEPA 650's to the same outlet. There is a maximum amperage of 12 when the units are
turned off, a maxium of 9 amps when the units are turned on. Other equipment can be
plugged into the same outlet as the Sentinel HEPA 650 as long as it doesn't go above
the max amperage.
Us ed t o ti me t he r un ni ng t im e of t he d e v i c e . St ar t ti mi ng w he n th e de vi ce i s ru nn in g, a nd
pa us e ti mi ng w he n th e de vi ce i s st o p p e d .
Timer
Always wear approved protective gear when changing the filters.
Filters should be changed after each remediation job.
If the indicator light is on, always change the HEPA/Activated Carbon Filter.
When using the Sentinel HEPA 650 in a containment area, always turn off power to open
combustion appliances, such as firelaces, furnaces, water heaters, and HVAC systems, to
avoid the risk of backdrafting carbon monoxide fumes.
If the Filter Change Light iluminates during the remediation process, immediately change
the HEPA/Activated Carbon Filter.

06 07
SAFETY NOTES
1Always unplug the unit prior to performing any maintenance.
Check the power cord for damage (fraying, cuts, etc) before use.
Verify that the GFCI outlet is working by powering on the machine and pressing the red
GFCI test button. If the outlet is working, the“reset" button will pop up. To operate, press
the reset button again.
To avoid electric shock, never use a water hose or pressure washer to clean the electrical
components.
Check the pre-filter prior to operating the machine to ensure it is not clogged. If there is
any sign of air flow restriction change the filter.
Make sure the unit is dry prior to installing clean filters.
When using the Sentinel HEPA 650 for remediation purposes, replace both filters at the
same time and always clean machine in between jobs. This will help prevent cross
contamination.
2
3
4
5
6
7
WARRANTY
All warranty benefits apply to the original owner only. Warranty cannot be transferred or
assigned.
1 Year (from date of purchase): PureAiro warrants the machine will operate free of defects
in workmanship and materials. At it's discretion, PureAiro will repair or replace any
malfunctioning components, free of charge (excluding transportation costs)
Customer Responsibilities: In order to take advantage of the warranty service, the
customer must do the following:
Customer must provide normal care and maintenance (including, but not limited to
cleaning filters)
Removal and re-installation of unit is the sole responsibility of owner.
If customer cannot return unit to certified repair center, all costs associated with
shipment are borne by the customer.
In addition, all ancillary charges related to freight shipments, including but not limited to
palletizing, wrapping, labeling,
and pickup are associated with customer.
If shipped, customer is responsible for all risk of loss or damage.
1
2
3
4
PureAiro Warranty Steps:
Once receive the goods, customers must log in www.PureAiro.com to fill out the warranty
registration form and submit to PureAiro company. We will receive your purchasing and
installation information and save it. If no warranty registration is sent to us, warranty
period will begin the day the shipment left the warehouse. Please be sure to record serial
# and date of installation. You will need this information to receive the RA number.
If warranty service is necessary, customers must contact PureAiro Tech Support by
[e-mail] or local technical service phone to receive a Return Authorization
(RA number). Once an RA has been issued, customers should bring the unit to a certified
repair center. Sentinel HEPA 650 will arrange the shipping to bring the unit back to the PureAiro
warehouse (at the expense of the customers) if customers are not available.
After the unit has been received by PureAiro (whether at a repair center or the
warehouse), PureAiro will have an initial inspection. If it is determined to be invalid
warranty claim (see exclusions below), customers have to pay for all associated repair
costs and shipping costs for units repair.
Customers can pick up the unit after repair at their own expense for shipping. Units will
have a rigorous testing before sending it back to customers.
If the unit can no longer be fixed , and it is in the warranty period and determined to be
valid claim, we will ship the customer a new unit within the same year warranty from the
date of replacement.
After parts are repaired or replaced by PureAiro, the original warranty period continues
to applies until meet its deadline. No extensions to the original warranty period.
1
2
3
4
5
6
ACTS OF NATURE- INCLUDING BUT NOT LIMITED TO:
Flooding
Fire
Water damage
Hurricane / storm damage
IMPROPER USAGE- INCLUDING BUT NOT LIMITED TO:
Pool / spa / tub applications
Misuse, abuse, or tampering whether intentional or accidental
Improper install ation or design
Improper voltage
Lack of normal care
Failure to follow instructions
CORROSION
FREEZING
ANY ADDITIONAL COSTS DUE TO CHANGES IN LAWS OR BUILDING CODES
FREIGHT CHARGES
ANY COSTS DUE TO LOST PROFIT OR DELAY
DAMAGE TO PROPERTY
CAUSE BEYOND CONTROL
1
2
3
4
5
6
7
8
9
WARRANTY EXCLUSIONS
PureAiro Sentinel HEPA 650

08 09
PureAiro Sentinel HEPA 650
CONSUMABLE PARTS, INCLUDING BUT NOT LIMITED TO:
Filters
Batteries
Power cords
Valves
Switches
Rubber parts
DIRECT, INDIRECT, COLLATERAL OR INCONSEQUENTIAL DAMAGES OF
ANY KIND
THE WARRANTIES AND LIABILITIES SET FORTH ARE IN LIEU OF ALL OTHER WARRANTIES
EXPRESSED OR IMPLIED, IN LAW OR IN FACT, INCL UDING IMPL IED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE. PureAiro's total liability, regardless
of nature of claim shall not exceed original purchase price of the product if a product or component is
replaced while under warranty, the applicable warranty period shall not be extended beyond the original
warranty time period.
10
11
The foregoing shall constitute the total liability of seller in the case of defective performance of all or any
of the equipment or services provided to buyer. buyer agrees to accept and hereby accepts the foregoing
as the sole and exclusive remedy for any breach or alleged breach of warranty by seller.
Any dishonesty or fraud in connection with PureAiro warranty thoroughly voids all warranty policies.
PureAiro expressly reserves the right to pursue legal action in the event of dishonesty, fraud, or
attempted fraud.
WIRING DIAGRAM
