Pureal PU:ON HYDROGEN User manual

www.pureal.co.kr
www.pureal.co.kr
USER MANUAL
Compact & Slim design
Easy filter replacement system
Optimum filter solution
Exchangeable tap
Removable tray
Hydrogen Water & Ambient Water Modes
Exchanging Filters Alarm Function with LED
Power Saving Mode
Direct
Purifying
System
Instant
Hydrogen
Extraction

ALARM
Exchanging Filters Alarm Function with LED
Exchanging Filters Alarm Function with LED
ECO Power Saving Mode
LED turns off if the product is not used for 10 minutes.
02
Feature
SLIM 115mm Compact & Slim design
Can be harmonized with any place by Luxury & Slim design
EASY Easy filter replacement system
Everyone can replace filters by easy & quick filter replacement system
BEST Optimum filter solution
High quality filter system with best performance
CLEAN
Changeable tap
Sanitary parts by self-wash of changeable tap
H2
Hydrogen Water Extraction
for Anti Oxidation, Anti Inflammatory,
Anti Allergic Recation and Improve Blood Circulation
03
CONTENTS
Introduction
Safety Precaution
Safety Warning
The names of each part
04
08
09
Installation
Water flow diagram / Water Purification system
Check before installation
How to install
Check before use
How to use
How to clean
How to clean, How to replace filters
Subject of recommendation / Filter composition
10
11
12
13
14
15
16
17
What to know
Check before reporting the failure,
Product standard
18

04
Safety Precaution
In order to protect the users safety, please read carefully and follow the below
instructions & signs to prevent accidents and avoid dangers.

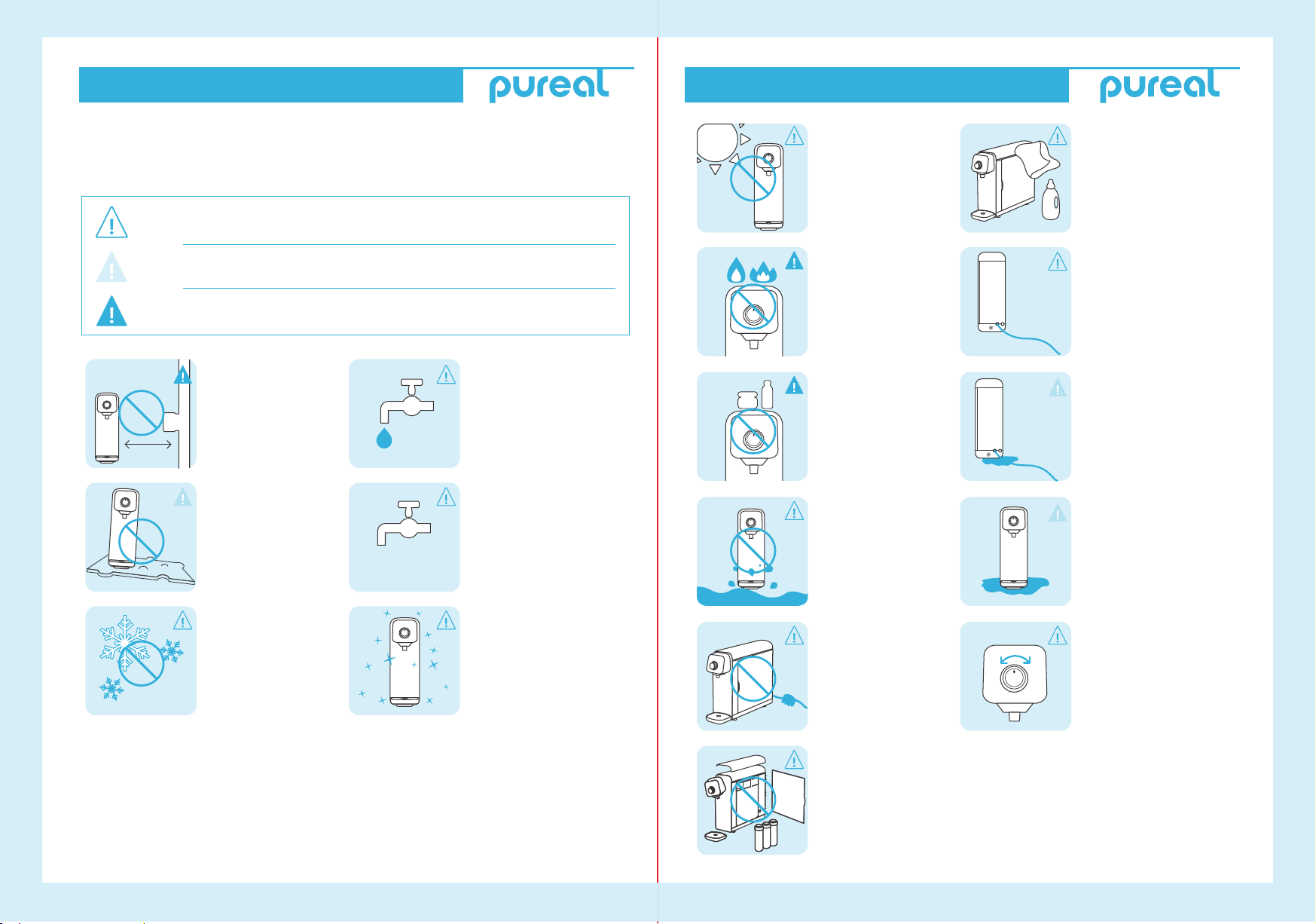

Do not install close to
place where combustible
gas can leak or electric
heating instrument.
Gas may leak around the
water purifier and explosion
or fire may occur.
Use only tap water for inlet.
Do not use ground water,
rain water, river, and sea
water.
It can cause to shorten product
life and breakdown.
Use cold water tap.
The hot water can cause
damage to the water filter
and the product.
Install in clean area.
For preventing water pollution.
COOL
Do not install on uneven
or inclined floor and do
not put on sitting
cushion, carpet, pallet
and floor pad.
It can cause not only damage
and noise, but also injury to
the user.
0℃
Do not install or place
at the area with below
zero temperatures.
It can cause product
damage by ice formation
inside of product.
CLEAN
Warning
Caution
If not followed correctly, the user may sustain a serious injury or may lose properties.
Danger If not followed correctly, the user may sustain a serious injury or may die.
If not followed correctly, the user may sustain minor injury or lose properties.
05
Safety Precaution
Clean the product periodically.
For preventing product damage and
noise.
Do not let children touch the
lever often.
It can cause product damage
and water leak.
Do not let the length of the
water supply hose be more
than 5m to the water supply
valve.
It can cause low product
performance.
5M
In case of water leak,
please turn off the tap water
valve and contact to
The customer service center
Check water leak at the tube
and connecting area of
in & outlet.
It can cause property damage
by water leak.
Do not let water get
inside of the water
purifier.
It can cause product
damage.
Do not disassemble and
modify the product except
designated engineer.
In case of product problems,
please contact your local agent.
Do not place electric
heating instrument,
electric heater and
inflammable substance
near the product.
It may cause fire or accident.
Do not pull out hose
while you move
product to other place.
It can cause product
damage and water leak.
Avoid place with high
temperature and direct
sunlight area when
installing.
It can cause product
discoloration.
Do not put metalloid,
chemical and water
bottle on the product.
It can cause product
damage.

Warning
Caution
If not followed correctly, the user may sustain a serious injury or may lose properties.
Danger If not followed correctly, the user may sustain a serious injury or may die.
If not followed correctly, the user may sustain minor injury or lose properties.
06
Safety Precaution

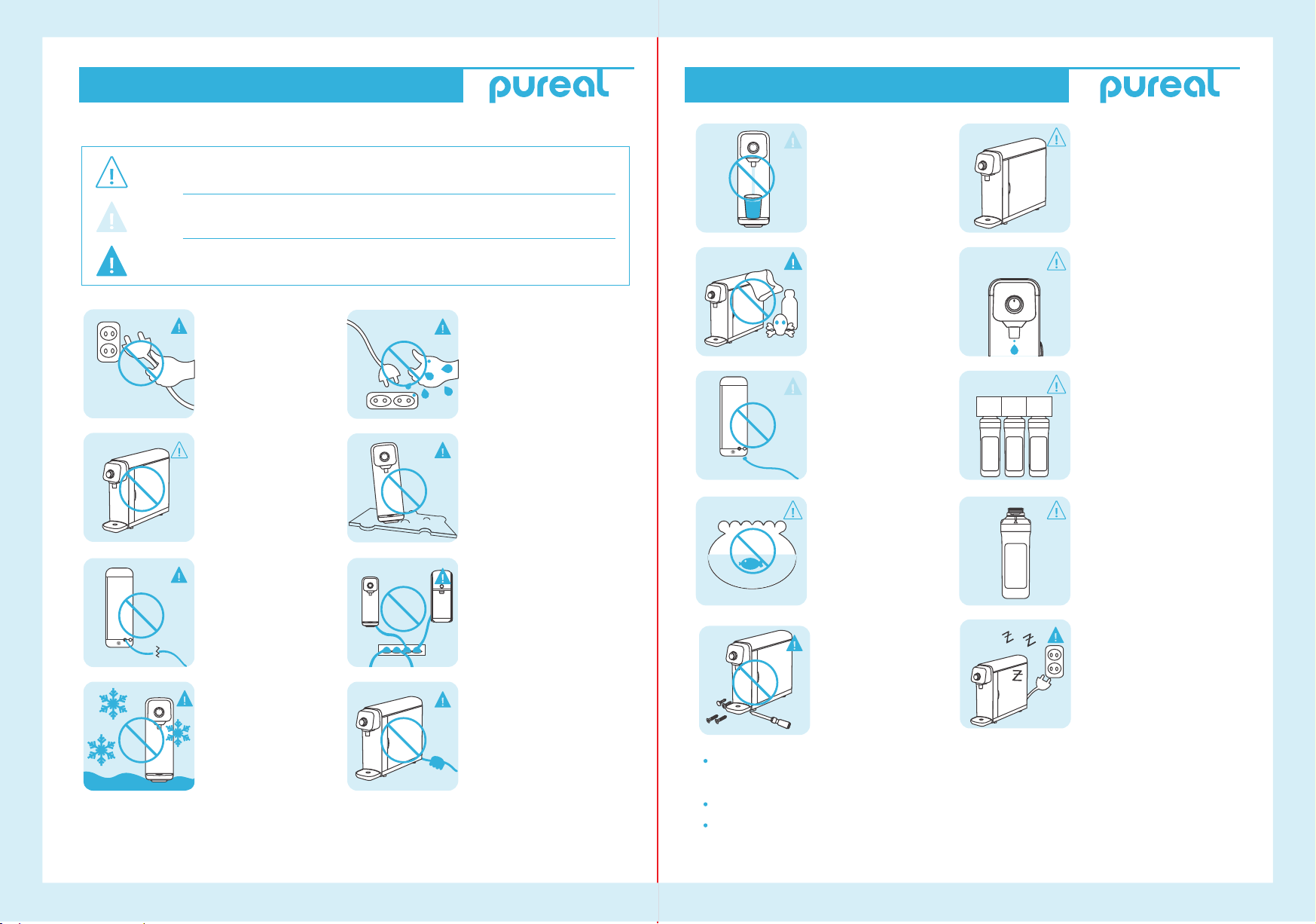

Do not handle the plug
with wet hands.
It may cause electric shock.
Do not give excessive
impact to the product.
It may cause electric shock or
damage to the product.
Do not use the power
cord if it is damaged
or shaken.
It may cause an electric
shock or fire.
Do not plug or unplug
the power cord or connect
the power cord arbitrarily
at the time of installation.
It may cause electric shock,
fire or damage to the product.
Do not let children hang
on or lean against the
product.
The product may fall over and
cause injury.
Do not pull the power cord
by force or bend or tie the
cord.
It may cause electric shock or fire.
Do not install the product
where high humidity
exists or the product is
exposed to rain or snow.
It may cause safety accident
or fire.
Do not use several electrical
appliances on 1 power socket.
It may cause a fire due to abnormal
heating of the socket. Use a single
power supply with 15A or more as
for the multi tap current.
07
Safety Precaution
If any unusual sound,
burning smell or smoke
comes from the product,
immediately shut off the
water valve and unplug it.
It may cause electric shock or fire.
5 minutes
Keep the door closed
during product usage.
Foreign substance or insect can
come inside of product body and
it can cause breakdown.
After long unused time.
use the product after
Flushing(make the product
run) more than 5 minutes.
The water in the pipe may be
contaminated.
Replace filters regularly
according to the replacement
period.
(If do not change the filter in time,
it can cause bad water smell
from outlet and filter performance
degradation. Please refer P 13 for
filter replacement.
Use PICOGRAM standard
filter only.
If the filter from other company or
nonstandard product is used, it may
cause breakdown, bad smell,
changed water taste, water leak
and not purify well.
When cleaning the
product, do not use
benzene, thinner,
alcohol and other
chemical substance.
Product exterior can be
damaged.
Do not remove hose
when water purifier is
running.
It can cause product
damage or water leak by
hose disconnection.
Do not use purified
water for fish in
aquarium.
Purified water can NOT be
suitable for fish and cause
death.
Do not let water get
inside of the water
purifier.
It can cause product
damage.
Do not insert sharp wire
or screwdriver inside the
product.
It may cause electric shock or
damage to the product.
This appliance is not intendednd for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instr uction concerning use of
the appliance by a person responsible for their safety.
children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replacred by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.

Not to damage the power
code, do not put the heavy
materials on the power
code.
It may cause an electric shock
or fire. Close
If it is not used for a long
time, close the inlet valve
and disconnect the power
cord.
It may cause an electric shock
or fire.
Do not use purified
water for humidifier.
Do not put a cup on the
tray when not in use.
The cup may fall over and
cause injury.
Clean the plug before
using.
It may cause electric shock
or fire.
Do not unplug while
replacing the filters.
It may cause product
damage.
Place the product on
enough space.
It may cause product damage.
Warning
Caution
If not followed correctly, the user may sustain a serious injury or may lose properties.
Danger If not followed correctly, the user may sustain a serious injury or may die.
If not followed correctly, the user may sustain minor injury or lose properties.
08
Safety Warning
09
The names of each part
Parts list
Parts name
USER MANUAL
Front Back
INLET
(Feed Water)
Wire and plug
Filter door
Filter
Valve
Head Connector
Reset button
(Exchanging filters LED alarm)
Water tray & Water tray cover
Outlet connected
to faucet

Warning
Caution
If not followed correctly, the user may sustain a serious injury or may lose properties.
Danger If not followed correctly, the user may sustain a serious injury or may die.
If not followed correctly, the user may sustain minor injury or lose properties.
11
Check points before installation
Installation place
Use cold water tap.
The hot water connection may cause damage to the water filter and the product.
Tubing connection
CLEAN
0℃
Avoid place with high
temperature and direct
sunlight area during
installation.
It can cause product
discoloration.
The back and sides of the
product needs more than 20cm
spaces apart from the wall for
convenience of filter replacement.
And do make distance between
tap water and inlet of product
NO more than 5m to connect
water hose.
Avoid place with moist,
dust and place where
water may splash directly
to water purifier.
It can cause breakdown.
Do not install on uneven or
inclined floor.
It can cause breakdown.
Do not install or put on
the area with below zero
temperatures.
It can cause product
damage by ice formation
inside the product.
Install in clean area.
For preventing water pollution.
20cm
10
Flow diagram / Purification system
Water flow diagram
Head connector
Feed
water
Pressure
reducing
valve
NCS
valve
1 stage 2 stage 3 stage
Flow sensor
Hydrogen
water
inlet valve
Faucet valve
Hydrogen
module
Tap
(Ambient water /
Hydrogen Water)

13
Check points before use
Open the Tap water
valve before using.
Check tap water still running
first and then open the Tap
water valve.
Check the door is keep
closing.
If the door opens, the water will
not pass into the water purifier.
After long unused time.
use the product after
Flushing(make the product
run) more than 5 minutes.
The water in the pipe may be
contaminated.
Caution : Close the tap water valve in case of long time no usage.
OPEN
5 minutes
12
How to install
Water flow diagram
Installation
01 Install Tap water valve at cold tap water supply.
valve should be closed before installation.
It can cause water filter and product damage with hot water connection.
If using the tap instead of FAUCET line, leakage problem may be occurred.
02 Connect hose from Tap water valve to inlet of water purifier.
03 Open the Tap water valve.
04 Close the filter door, and extract ambient water to FAUCET line for 5 minutes.
05 After the installation, make sure the hose's joint and Tap water valve do not leak.
Inlet
Connecter
Feed water
supply valve
Feed water tubing
Feed water
supply
Close Open
※Use only tap water. Do not use underground water or others
※The new hose-sets have to be used for the installation.
Do Not use or reuse the old hose-set for your safety.

02
03
01 04
0201
Close
01 Pull out the tray and disassemble.
02 Pull out tray cover and disassemble.
03 Throw away water and clean the tray by soft cloth.
04 Assemble the tray and tray cover by opposite way of above.
01 Close the Feed water valve.
02 Use neutral detergent to clean the body and Use a soft & dry cloth to clean lastly.
15
How to clean Water purifier body
How to clean water tray
14
How to use
정수
Water
Close
수소
Hydrogen
Water
Turn the lever to clockwise to extract
ambient water (Green LED)
Turn the lever to middle side to
stop extraction (Blue LED)
Turn the lever to counterclockwise to
extract hydrogen water (Red LED)
※*Power Saving Mode : If the product is not used for 10 minutes, Power saving mode turns on.
- LED turns off
- Filter Alarm still turns on while Power saving mode.
- When Extracting, Power saving mode turns off autometically.
When extracting hydrogen water for
the first time, the prep action is
executed for around 5 seconds.
(Red LED blinks.)
Hydrogen Water can be extracted for
5 minutes consecutively.
After 5 minutes' consecutive extraction,
the hydrogen water extraction will be
deactivated for 10 minutes for the
stable performance.
!

90˚
01 02
03 04
05
extract ambient
water to FAUCET line
for 5 minutes
INLET
faucet
06
02 0301
Effective purification capacity
It is calculated based on Chloroform removal rate of filter.
Filter replacement period
It is calculated based on 10L use a day. If the amount of daily water using is higher than
10L, the period can be shorter than standard.
Filter composition
Recommendation
1 stage 2 stage 3 stage
17
Recommendation / Filter composition
01 Turn Water tap by turning it clockwise.
02 Clean the tap.
03 Put it back by turning it counterclockwise.
01 Open the filter door.
When door opens, it will automatically shutoff water flow.
Damage may occur when attempting to open the door
more than 90°.
03 Lift the filter and turn it to the left for filter removing.
02 Please remove remained water in the machine by
turning the lever to clockwise. Then close the lever
to counterclockwise.
When disassembling filter, some water can be out from filter.
It is not water leak.
If remained water in the machine is not removed,
the ‘pop’ sound can be occurred during filter replacement.
04 Place the new filter to the connector and turn it
to the right for new filter connecting.
05 Press "Reset button" for 3 seconds.
It’s easy to manage filter life time.
06 Close the filter door, and extract ambient water to
FAUCET line for 5 minutes.
* Exchanging Filters Alarm
- From turning on the product, 4 months later : Red LED. exchanging 1st filter signal.
12 months later : Green LED. exchanging all filters signal.
- After exchanging the filter, please press 'Reset' button.
16
How to clean the tap
Filter Replacement
open
close
connector connector
Reset button

19
Error Message
If not followed by these instructions the product may not work properly. In case of product malfunction,
please check below chart. Please contact us if you still have same problem.
The taste of
water is
strange.
Water is not
coming.
-Is the water- purifier used for too long ?
-Is not it the time for changing filter?
-Is tap water supply is well?
-Make water purifier keep running for
10 mins.
-Replace to new filter. (Use standard filter)
-Open Tap water valve.
-Check the hose is not folded.
-Check the tap water is working properly.
The amount
of filtered
water reduced
suddenly.
-Is not it the time for changing filter?
-Is the Tap water valve closed?
-Replace to new filter. (Use standard filter)
-Open the Tap water valve.
Water Purifier
has big strange
sound. (Noise)
-The floor under water purifier is flat?
-Water purifier has touched with any
other things?
-It has noisy sound after water come
out from cock?
-Install water purifier on flatted floor.
Do not make any other things are touched
with water purifier.
-This water purifier is tankless model. So when
water is used, the water comes through the
water purifier from the tap instantly and it
can make some sound. (It is normal)
There are some
substances
inside of
purified water.
-Is not it the time for changing filter? -Replace to new filter. (Use standard filter)
There is water
leak.
-The place where the water purifier
installed is moist?
-There may have condensation between
cold area inside of water purifier and
outside humidity. It is normal.
Check- up SolutionSymptom
While extracting, LED blinks
(Except for first
Hydrogen Water (p.14))
While not extracting,
red or green LED blinks
Inlet water error
Exchanging Filters Alarm
Please check the inlet velve is closed or filter(s)
is(are) connected correctly.(page.12)
Please exchange filter(s) (page.16)
LED turns off Power Saving Mode When Extracting, Power saving mode turns off
autometically. (page.14)
Reason Solution
Error Message
18
Check before reporting the failure
Product name
Manufacturer
Installation place
Weight
Size
Working pressure
Temperature
PUREAL Direct Hydrogen Water Purifier
PICOGRAM CO.,LTD. / KOREA
Household / Office
6 kg
W115 × D436 × H341 mm
1.5 ~ 7 ㎏f / ㎠(147.1~686.5 kPa)
5 ~ 30 ℃
Product standard
