PureAudio Lotus DAC5 SE User manual

Lotus DAC5 SE User’s Manual V1.0

FCC Notice - Declaration of Conformity Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING : Only peripherals complying with the FCC class B limits may be attached to this equipment.
Changes or modi cations made to this equipment, not expressly approved by us or parties authorized by us could void
the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
01

EU Declaration of Conformity
Hereby, PureAudio, Inc. declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 2004/108/EC.
The manufacturer of this product is PureAudio, Inc., No. 33, Cukengkou Rd., Ruifang Dist., New Taipei City 224, Taiwan .
The Authorized Representative for EMC and product safety is PureAudio, Inc., No. 33, Cukengkou Rd., Ruifang Dist.,
New Taipei City 224, Taiwan .
For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
For customers in Europe
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European
countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve
natural resources. For more detailed information about recycling of this product, please contact your local
Civic Oce, your household waste disposal service or the shop where you purchased the product.
02

SAFETY INSTRUCTIONS
There are two categories of Safety Instructions included in this manual :
Product Warnings, (i.e., what must never be done to assure avoiding those hazards that could cause bodily
injury or property damage); and
User Directions (i.e., what must always be done to assure the safe use of your device).
The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the
potential hazards through the use of Signal Words. Those Signal Words, and their intended meanings, are as follows:
DANGER : Indicates that a failure to observe the Safety Instructions could result in death or catastrophic bodily injury.
WARNING : Indicates that a failure to observe the Safety Instructions could result in serious bodily injury.
CAUTION : Indicates that a failure to observe the Safety Instructions could result in minor bodily injury or property
damage.
NOTE : Designates important information that relates to activities and/or conditions that might result in loss of data
and/or damage to your device.
Safe Use and Operation of Your Device
This equipment emits stray RF energy and will interfere with the reception of signals by airborne electronic
navigational devices or medical devices. Do not operate this equipment near any sensitive medical devices.
•
•
03

WARNING : Use only grounded AC power cords.
Always immediately disconnect the power to the equipment in the event the device emits an unusual odor or sound
or generates smoke.
WARNING : Never attempt to disassemble, repair or make any modi cation to your device. Disassembly, modi cation
or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself.
WARNING : Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling
of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual.
In addition, always keep all accessories and components out of the reach of small children as small parts might present
a choking hazard. Seek immediate medical attention if choking occurs or if any small part has been swallowed.
CAUTION : Never raise the sound volume level too high when using your device with earphones. An excessive sound
volume level could cause damage to your hearing.
WARNING : To reduce the risk of re or electric shock, do not expose the unit to moisture or water.
Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the
enclosure, immediately disconnect the power cord from the wall. Take the unit to a quali ed service person for inspection
and necessary repairs.
Read all the instructions before connecting or operating the component.
Keep this manual so you can refer to these safety instructions.
Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions.
04

Do not use this unit near water.
You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed,
sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabinet, there
must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers,
stoves, or any other appliance that produces heat.
•
The unit must be connected to a power supply only of the type and voltage speci ed on the rear panel. Connect the
component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the
supplied cable.
Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or damaged in any way. Pay
particular attention to the power cord at the plug and where the cord exits the back of the unit.
The power cord should be unplugged from the wall outlet during a lightning storm or if the unit is to be left unused for
a long period of time.
Immediately stop using the component and have it inspected and/or serviced by a quali ed service agency if:
The power supply cord or plug has been damaged.
Objects have fallen or liquid has been spilled into the unit.
The unit has been exposed to rain.
The unit shows signs of improper operation.
The unit has been dropped or damaged in any way
•
•
•
05

Quick Start Guide
1. Front Panel View
SOURCE and POWER :
In menu mode, turn the knob to switch menu item.
Briey press to ON/Standby mode.
MUTE, MENU and VOLUME :
Brief press to Mute/Unmute.
Long press for more than 3 seconds to enter the Menu/exit the Menu.
In menu mode, turn the knob to switch item value.
Turn the knob to switch between inputs.
Turn the knob to adjust volume.
◄► SOURCE ●POWER ◄►VOLUME ●MUTE ●MENU
Lotus DAC5 SE
STANDBY
DISPLAY OFF
STANDBY LED :
The LED lights up, indicating that the DAC5 SE is in the standby state.
DISPLAY OFF LED :
The LED lights up to indicate that the power to the display is turned o.
06
06

2. Rear Panel View
USB : USB slot is for connecting with the B Type to A Type USB 2.0 version cable to PC's USB port which is able to
send digital audio up to PCM 768KHz / DSD 512 and MQA.
IIS/DSD : With HDMI cable to transfer IIS and DSD data from source devices, Accept up to PCM 384KHz / DSD256 and MQA.
Do not connect to the HDMI output of Set Top Box or BD / DVD player.
Coaxial Inputs: Accept up to PCM 384KHz, DOP up to DSD 128 and MQA.
Optical Inputs: Accept up to PCM 192KHz, DOP DSD 64 and MQA.
AES/EBU Input: Professional digital input accepts up to PCM 192KHz, DOP DSD 64 and MQA.
Digital Inputs :
Analog Outputs :
1x Balanced Stereo Audio Output ( XLR MALE )
1x Stereo Audio Output ( RCA )
COAX1 COAX2 OPT1 OPT2
Loutus DAC5 SE D/A Converters
USB
POWER AC
IIS/DSD AES/EBU XLR - R RCA - RXLR - L RCA - L
GROUND
07
07

Note : Due to various brands and custom specications, we do not guarantee that all IIS/DSD sources are compatible.
3. IIS / DSD Pin dene
PIN14 : NC
PIN13 : NC
PIN12 : NC
PIN11 : GND
PIN10 : NC
PIN9 : LRCK + / DSD R +
PIN8 : GND
PIN15 : NC
PIN16 : NC
PIN17 : GND
PIN18 : NC
PIN19 : NC
PIN3 : SDATA + / DSD L+
PIN1 : SDATA - / DSD L-
PIN2 : GND
PIN4 : BCK + / DSD CLK +
PIN5 : GND
PIN6 : BCK - / DSD CLK -
PIN7 : LRCK - / DSD R -
4. AES / EBU ( XLR FEMALE ) Pin dene
CASE
2
3
1
Pin 1 : Ground
Pin 2 : Positive (+)
Pin 3 : Negative (-)
5. Analog XLR ( MALE ) Pin dene :
Output Phase: Postive
Pin 1 : Ground
Pin 2 : Positive (+)
Pin 3 : Negative (-)
CASE
1
3
2
Output Phase: Negative
Pin 1 : Ground
Pin 2 : Negative (-)
Pin 3 : Positive (+)
08

7. Ground terminal : Chassis ground.
6. AC Inlet : Connect the supplied mains lead to the AC IN (115V or 230 V) terminal on the rear panel.
230
AC Voltage Selector : Make sure that the AC voltage selector switch at the bottom of the unit is switched
to the appropriate voltage for your country. All Lotus DAC5 SE are shipped with the switch set to 230V AC
in order to prevent accidental damage.
1
2
3
Pin 1 : Live Conductor : L
Pin 2 : Ground Conductor : PE
Pin 3 : Neutral Conductor : N
09

8. Remote Control
ON / STBY :Press to put the unit into standby mode or turn it on.
DISPLAY : Turn o / on display.
MENU : Press to enter setting mode or return to the previous screen.
SOURCE : Select the playback source, or navigate menu items in menu mode.
MUTE : Mute / Unmute audio.
VOL : Increase / Decrease volume, or navigate item value in menu mode.
Battery Replacement:
To change the battery, please remove the 4 screws and the bottom cover to reveal
the battery casing.
▲▼
DAC5 SE
ON / STBY DISPLAY
MENU MUTE
VOL ▲
VOL ▼
SOURCE ▲
SOURCE ▼▲▼
10

Turn on the DAC5 SE display will rst show PureAudio and Lotus DAC5 SE.
9. Start Up
Next, the usage status when the power was last turned o will be displayed. For example, the input is COAX 1,
the volume is 50, and the sampling rate is PCM 44.1KHz or other formats as shown below.
PCM sample rate
DSD sample rate
MQA original sample rate
C O A X 1 V O L 5 0
P C M 4 4 . 1 K
C O A X 1 V O L 5 0
D S D 2 . 8 M
C O A X 1 V O L 5 0
M Q A 4 4 . 1 K
Volume valueInput source
sample rate
11
11

10. Setup menu
MQA Studio original sample rate
Pressing the MENU button will display the set value when you left the menu last time, For example entering
the menu will rst display as follows.
C O A X 1 V O L 5 0
M Q A S T U D I O 4 4 . 1 K
S A M P L E R A T E A D J U S T
O F F
Menu item
Item value
Menu item : Turn the left knob on the front panel to switch menu items.
Item Value : Turn the right knob on the front panel to switch item value.
12
12

11. Menu structure
The menu items appear in the following order
11- 1. SAMPLE RATE ADJUST
Use to activate the up or down conversion circuit when receiving PCM or DSD signals.
OFF ( default )
The original input signal is sent directly to the D/A converter without conversion.
SAMPLE RATE ADJUST
DIGITAL FILTER
LINE OUT LEVEL
LINE OUT PHASE
LINE OUT SETTING
RCA OUTPUT
XLR OUTPUT
DIMMER
13

PCM 384K or DSD 11.2M
This means that the input source is converted to PCM or DSD and then sent to the D/A converter.
11- 2. DIGITAL FILTER
The Digital Filter function primarily changes characteristics outside the audible frequency, They cannot aect
changes within the audible frequency, You can choose the following digital lter.
LINEAR PHASE FAST ( Linear phase fast roll-o lter ) ( default )
MINIMUM PHASE FAST ( Minimum phase fast roll-o lter )
MINIMUM PHASE SLOW ( Minimum phase slow roll-o lter )
APODIZING FAST ( Apodizing fast roll-o lter )
HYBRID FAST ( hybrid, fast roll-o, minimum phase lter )
BRICK WALL ( Brick wall lter )
LINEAR PHASE SLOW ( Linear phase slow roll-o lter )
11- 3. LINE OUT LEVEL
The volume can be set to variable or xed output.
VARIABLE ( default )
FIXED 0dB
FIXED -6dB
11- 4. LINE OUT PHASE
POSTIVE ( default )
The sound output phase adjustment, please adjust according to the amplier you use.
NEGATIVE
14

You can choose to have the left and right channel outputs swapped or work in single channel mode.
OUTPUT : L - R ( default )
OUTPUT : R - L
OUTPUT : L - L
OUTPUT : R - R
11- 5. LINE OUT SETTING
BRIGHT ( default )
DARK
11- 8. DIMM
Two-level display brightness adjustment.
11- 6. RCA OUTPUT
Used to enable or disable RCA connector output analog audio.
ENABLED ( default )
DISABLED
11- 7. XLR OUTPUT
Used to enable or disable XLR connector output analog audio.
ENABLED ( default )
DISABLED
15

12. Windows Driver install
12 - 1. System requirements
Please connect the DAC5 SE to the computer before installing the Windows driver.
12 - 3. Driver install
2). Open the driver folder and click setup.exe the driver will installer, connect the unit along with the source device.
Win 7 / 8 / 8.1 / 10 ( 32/64-bit )
12 - 2. Windows Installation Process
3). Follow the onscreen directions, Please allow 3 ~ 5 minutes for the installer to complete. On older computers, it may
take longer.
Note : During the setup the hardware device must be connect to your PC source device and when the message
appear to ask for disconnect and reconnect, follow the instruction and when nish doing so click on “OK”. The source
device should recognize the Pureaudio USB device and a message will show on the bottom.
1). Open the control panel from START and double click on the control panel then select add or remove pograms.
2). Select Pureaudio USB USBAudio Driver and click remove.
3). Click Yes to conrm the removal.
13. Uninstall Windows Driver
14. Mac Installation Process
There is no installation require for Mac system however, a simple setting is require in order to allow the USB HD
Audio to be active.
1). Please visit https://www.pureaudiolab.com and download the latest driver.
1616

• USB : Type B 2.0 Hi-Speed, Windows / Supports PCM 44.1KHz ~ 768KHz / DSD 512 and MQA.
• IIS/DSD : Supports PCM 44.1KHz ~ 384KHz and DSD 256 data streams.
• OPTICAL : Supports PCM 44.1KHz ~ 192KHz / DOP 64 and MQA.
• COAXIAL : Supports PCM 44.1KHz ~ 384KHz / DOP 64, 128 and MQA.
Type B 2.0 Hi-Speed, Mac / Supports PCM 44.1KHz ~ 768KHz/24Bit and DOP 256.
• AES/EBU : Supports PCM 44.1KHz ~ 192KHz / DOP 64 and MQA.
NOTE : DOP ( DSD over PCM ).
15. MQA - Master Quality Authenticated
The DAC5 SE includes MQA technology,which enables you to play back MQA audio les and streams, delivering the
sound of the original master recording. The front panel display indicates if the MQA stream is detected.‘MQA’ or
‘MQA Studio’ indicates that the product is decoding and playing an MQA stream or le, and denotes provenance to
ensure that the sound is identical to that of the source material.‘‘MQA Studio’ indicates it is playing an MQA Studio le,
which has either been approved in the studio by the artist/producer or has been veried by the copyright owner. For
more about MQA please visit: http://www.mqa.co.uk/
‘MQA and the Sound Wave Device are registered trade marks of MQA Limited.© 2016’
Note: During MQA playback, the Sample rate conversion function will be disabled and force to o mode also digital
lter function will be disabled and force to MQA custom lter mode.
16. Technical Specications
16 - 1 Inputs : Rear panel
17
17

• XLR balanced outputs : 8 Vrms.
• RCA unbalanced outputs : 4 Vrms.
• Output Impedance: < 50 Ohm.
16 - 2. Outputs : Rear panel
• Frequency response: 20 Hz - 20 KHz / ±0.3 dB.
• SNR: > 110 dB.
• THD+N: < 0.0005%.
17. GENERAL
• Power Supply: AC voltage selector switch at the bottom of the unit, 115V or 230V.
• Dimensions [W x H x D]: 430 mm x 55 mm x 315 mm ( Including foot pad height 69 mm ).
• Weight: 6.2 Kg
• Power consumption: Standby under 0.9W
18. Package content
• The Lotus DAC5 SE DAC (Silver or Black).
• Aluminum remote ( Silver ).
• Power cord.
Note
• Design and specications are subject to change without notice.
• Illustrations in this manual might dier slightly from production models.
18

Pureaudio Limited Warranty and Limitation of Liabilities
ADDITIONAL RIGHTS
For consumers, who are covered by consumer protection laws or regulations in their country of purchase or, If dierent,
Their country of residence, The bennets conferred by thid warranty are in addition to all rights and remedies converyed
by such consumer protection laws and regulations. This warranty does not exclude, Limit or suspend any rights of
consumers arising out of nonconformity with a sales contract. Some countries, States and provinces do not allow the
exclusion or limitation of incidental or consequential damages or allow limitations on how long an implied warranty or
condition may last, So the limitations or exclusions described below may not apply to you. This warranty gives you
specic legal rights, And you may also have other rights that vary by country, State or province. This limited warranty is
governed by and construed under the laws of the country in which the product purchase took place.
LIMITED WARRANTY
For a period of ONE (1) Year from the date of retail purchase by the original end-user purchaser (“Warranty Period”),
Pureaudio warrants (in) this product against defects in materials and workmanship, and (ii) that each product,
unmodied and under normal use and conditions, will substantially comply with Pureaudio ’ applicable written technical
documentation for the product. Pureaudio reserves the right to make substitutions and modications from time to time
in the specications of products sold by Pureaudio, provided that such substitutions or modications do not materially
aect overall product performance.
If a hardware defect exists and a valid claim is received within the Warranty Period, at its option and to the extent
permitted by law, Pureaudio will (1) repair the hardware defect at no charge, using new or refurbished replacement
parts, (2) exchange the product with a product that is new or which has been manufactured from new or serviceable
used parts and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product.
Pureaudio may request that you replace defective parts with user-installable new or refurbished parts that Pureaudio
provides in fulllment of its warranty obligation. A replacement product/part assumes the remaining warranty of the
original product or ninety (90) days from the date of replacement or repair, whichever provides longer coverage for you.
When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes
Pureaudio's property. When a refund is given, your product becomes Pureaudio's property.
19
Table of contents
Popular Media Converter manuals by other brands

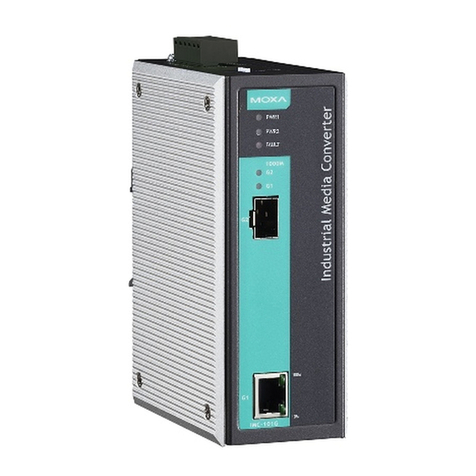

Moxa Technologies
Moxa Technologies IMC-101G Series Quick installation guide

Harman
Harman AMX NMX-DEC-N2622S quick start guide

Cross Technologies
Cross Technologies 2015-7075 instruction manual

Bowers & Wilkins
Bowers & Wilkins Zeppelin Air quick start

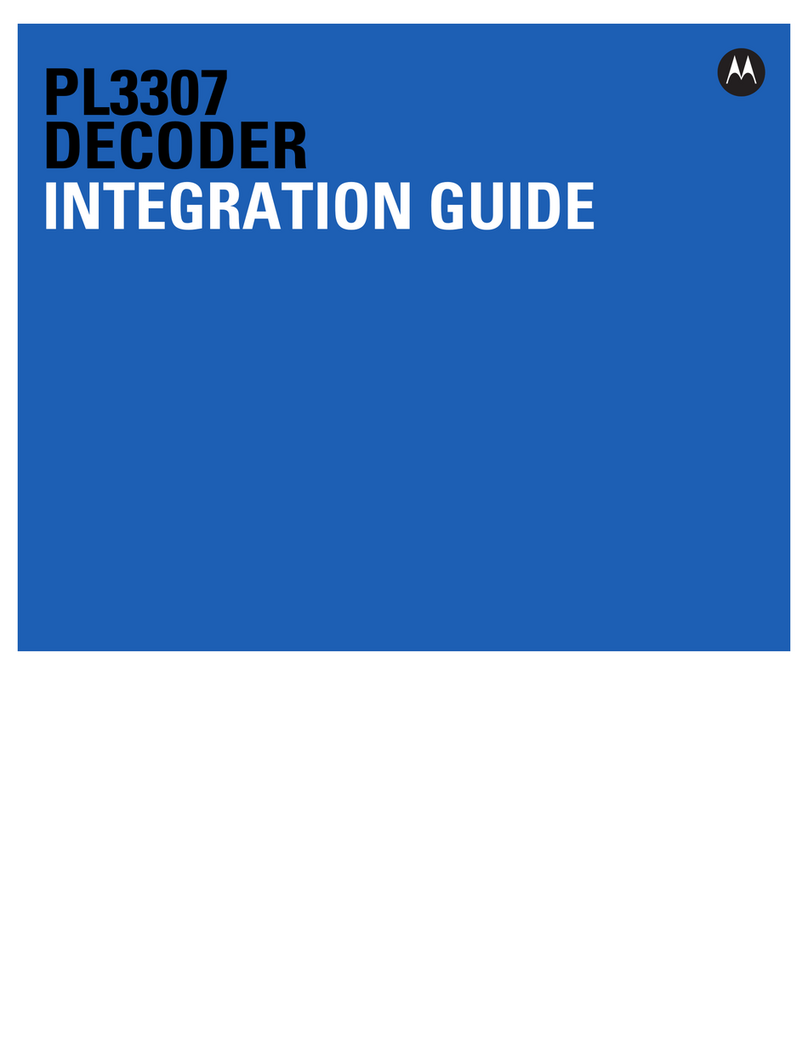

Motorola
Motorola PL3307 Integration guide

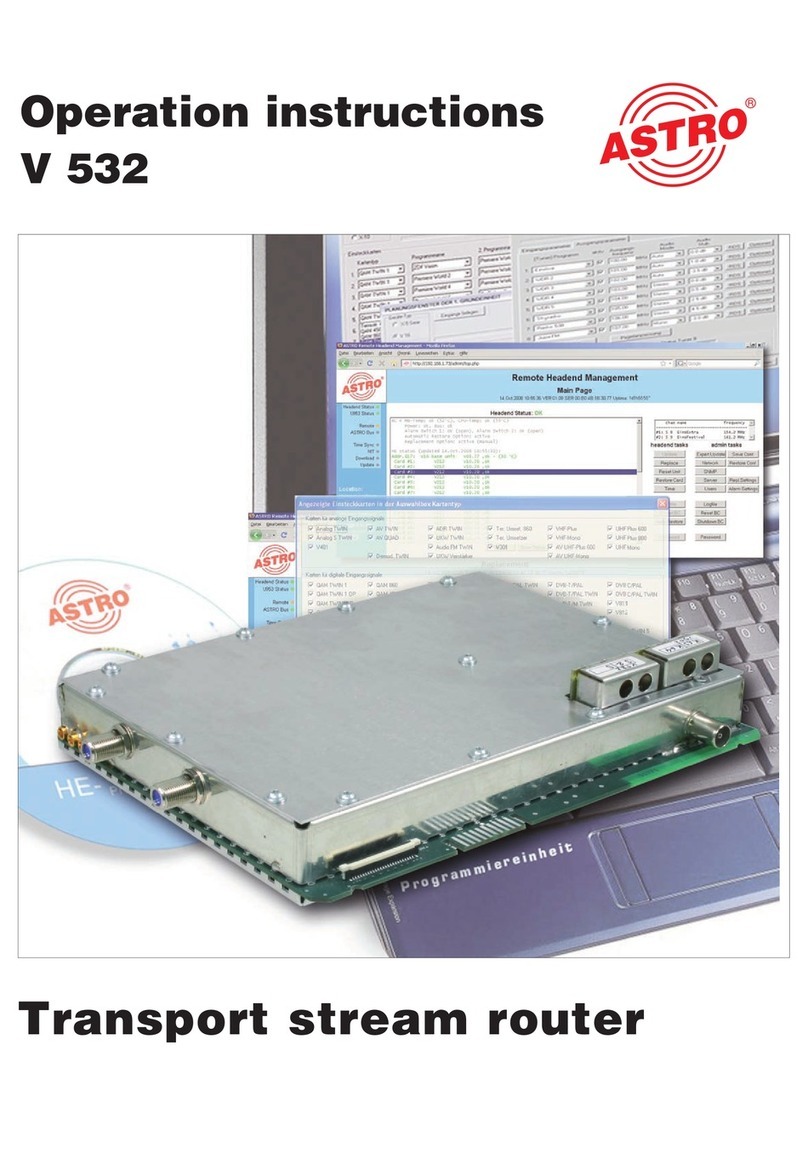

ASTRO
ASTRO V 532 Operation instructions
