Vertiv eSure C48/58-1000B User manual

eSure™
Power Extend Converter
Installation and User Manual (UM565050), Revision D
Specification Number: 1C48581000B
Model Number: C48/58-1000B
Note: P/N 565050 includes Power Extend Converter Spec. No. 1C48581000B and associated
components.

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
2
This document may contain confidential and/or proprietary information of
Vertiv Group Corp., and its receipt or possession does not convey any right
to reproduce, disclose its contents, or to manufacture or sell anything that it
may describe. Reproduction, disclosure, or use without specific
authorization from Vertiv Group Corp. is strictly prohibited.
© 2020 Vertiv Group Corp. All rights reserved. Vertiv™ and the Vertiv logo
are trademarks or registered trademarks of Vertiv Group Corp. All other
names and logos referred to are trade names, trademarks or registered
trademarks of their respective owners. While every precaution has been
taken to ensure accuracy and completeness herein, Vertiv Group Corp.
assumes no responsibility, and disclaims all liability, for damages resulting
from use of this information or for any errors or omissions. Specifications
are subject to change without notice.

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
3
TABLE OF CONTENTS
Admonishments Used in this Document ........................................................... 5
Important Safety Instructions.............................................................................. 6
Safety Admonishments Definitions..................................................................................................... 6
General Safety.......................................................................................................................................................... 6
Voltages.......................................................................................................................................................................... 6
AC Input Voltages........................................................................................................................................................6
DC Input Voltages........................................................................................................................................................6
DC Output and Battery Voltages .................................................................................................................. 7
Personal Protective Equipment (PPE)..............................................................................................7
Hazardous Voltage...............................................................................................................................................7
Handling Equipment Containing Static Sensitive Components .............................7
Static Warning .......................................................................................................... 8
Introduction............................................................................................................... 9
Overview......................................................................................................................................................................... 9
What is in the Box................................................................................................................................................. 9
Support Mounting Bracket Kits ............................................................................................................10
Application .................................................................................................................................................................10
Specifications.......................................................................................................... 16
DC Output Ratings.............................................................................................................................................16
DC Input Ratings..................................................................................................................................................19
Environmental Ratings................................................................................................................................... 21
Compliance Information ............................................................................................................................... 21
Standard Features..............................................................................................................................................22
Mechanical Specifications.........................................................................................................................24
Installation ...............................................................................................................24
General Requirements...................................................................................................................................24
Installing the Power Extend Converter.........................................................................................24
Making Electrical Connections............................................................................31
Important Safety Instructions ................................................................................................................. 31
Wiring Considerations..................................................................................................................................... 31
Electrical Connections ................................................................................................................................... 31
Initially Starting and Checking Power Extend Converter Operation.......32

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
4
Initially Starting the Power Extend Converter........................................................................32
Checking Power Extend Converter Status ...............................................................................32
Operation ................................................................................................................. 33
Local Indicator, Test Points, and Switch......................................................................................33
Power Extend Converter High Voltage Shutdown and Lockout
Restart and Power Extend Converter Overcurrent Shutdown and
Lockout Restart....................................................................................................................................................33
Troubleshooting and Repair ............................................................................... 35
Important Safety Instructions.................................................................................................................35
Contact Information .........................................................................................................................................35
Troubleshooting...................................................................................................................................................36
Power Extend Converter Fault Symptoms and Troubleshooting.............................. 36
Repair..............................................................................................................................................................................37
Power Extend Converter Replacement........................................................................................37
General.................................................................................................................................................................................37
Important Safety Instructions........................................................................................................................37

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
5
ADMONISHMENTS USED IN THIS DOCUMENT
DANGER
! Warns of a hazard the reader will be exposed to
that will
likely
result in death or serious injury if not avoided.
(ANSI, OSHA)
WARNING
! Warns of a potential hazard the reader may be
exposed to that
could result in death or serious injury if not
avoided. This admonition is not used for situations that pose
a risk only to equipment, software, data, or service. (ANSI)
CAUTION
! Warns of a potential hazard the reader may be
exposed to that
could result in minor or moderate injury if
not avoided. (ANSI, OSHA) This admonition is not used for
situations that pose a risk only to equipment, data, or
service, even if such use appears to be permitted in some of
the applicable standards. (OSHA)
ALERT
! Alerts the reader to an action that must be
avoided
in order to protect equipment, software, data, or
service. (ISO)
ALERT
! Alerts the reader to an action that must be
performed
in order to prevent equipment damage, software
corruption, data loss, o
r service interruption. (ISO)
FIRE SAFETY
!
Informs the reader of fire safety information,
reminders, precautions, or policies, or of the locations of fire
-
fighting and fire
-safety equipment. (ISO)
SAFETY
! Informs the reader of general safety information,
reminders, precautions, or policies not related to a particular
source of hazard or to fire safety. (ISO, ANSI, OSHA)

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
6
IMPORTANT SAFETY INSTRUCTIONS
Safety Admonishments Definitions
Definitions of the safety admonishments used in this document are listed
under “Admonishments Used in this Document” on page 5.
General Safety
DANGER! YOU MUST FOLLOW APPROVED SAFETY PROCEDURES.
Performing the following procedures may expose you to hazards.
These procedures should be performed by qualified technicians
familiar with the hazards associated with this type of equipment.
These hazards may include shock, energy, and/or burns. To avoid
these hazards:
a) The tasks should be performed in the order indicated.
b) Remove watches, rings, and other metal objects.
c) Prior to contacting any uninsulated surface or termination, use a
voltmeter to verify that no voltage or the expected voltage is
present. Check for voltage with both AC and DC voltmeters prior
to making contact.
d) Wear eye protection.
e) Use certified and well maintained insulated tools. Use double
insulated tools appropriately rated for the work to be performed.
Voltages
AC Input Voltages
DANGER! The system the power extend converter is installed in
operates from AC input voltage capable of producing fatal electrical
shock.
DC Input Voltages
DANGER! The power extend converter operates from DC input
voltage. Although the DC voltage is not hazardously high, the input
power can deliver large amounts of current.

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
7
DC Output and Battery Voltages
DANGER! The system the power extend converter is installed in
produces DC power and may have a battery source connected to it.
Although the DC voltage is not hazardously high, the rectifiers and/or
battery can deliver large amounts of current.
Personal Protective Equipment (PPE)
DANGER! ARC FLASH AND SHOCK HAZARD.
Appropriate PPE and tools required when working on this equipment.
An appropriate flash protection boundary analysis should be done to
determine the “hazard/risk” category, and to select proper PPE.
Only authorized and properly trained personnel should be allowed to
install, inspect, operate, or maintain the equipment.
Do not work on LIVE parts. If required to work or operate live parts,
obtain appropriate Energized Work Permits as required by the local
authority, per NFPA 70E “Standard for Electrical Safety in the
Workplace”.
Hazardous Voltage
DANGER! HAZARD OF ELECTRICAL SHOCK.
More than one disconnect may be required to de-energize the
system before servicing.
Handling Equipment Containing Static Sensitive Components
ALERT! Installation or removal of equipment containing static
sensitive components requires careful handling. Before handling any
equipment containing static sensitive components, read and follow
the instructions contained on the Static Warning Page.

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
8
STATIC WARNING
This equipment contains static sensitive components. The warnings
listed below must be observed to prevent damage to these
components. Disregarding any of these warnings may result in
personal injury or damage to the equipment.
1. Strictly adhere to the procedures provided in this document.
2. Before touching any equipment containing static sensitive
components, discharge all static electricity from yourself by
wearing a wrist strap grounded through a one megohm resistor.
Some wrist straps have a built-in one megohm resistor; no
external resistor is necessary. Read and follow wrist strap
manufacturer’s instructions outlining use of a specific wrist strap.
3. Do not touch traces or components on equipment containing
static sensitive components. Handle equipment containing static
sensitive components only by the edges that do not have
connector pads.
4. After removing equipment containing static sensitive
components, place the equipment only on static dissipative
surfaces such as conductive foam or ESD bag. Do not use
ordinary Styrofoam or ordinary plastic.
5. Store and ship equipment containing static sensitive
components only in static shielding containers.
6. If necessary to repair equipment containing static sensitive
components, wear an appropriately grounded wrist strap, work
on a conductive surface, use a grounded soldering iron, and use
grounded test equipment.

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
9
INTRODUCTION
Overview
The eSure™ Power Extend Converter (Model C48/58-1000B, Spec. No.
1C48581000B) is a compact DC/DC converter unit which offers efficient
power conversion. It operates from a nominal -48 VDC source to provide
regulated -58 VDC to the load for continuous operation to end of battery
discharge.
The C48/58-1000B simply plugs into a load position on the system’s
distribution panel which accepts a bullet device. The bullet terminals
provide connections for DC input and the regulated DC output. The
supplied return lead is installed from the device to the panel's return bar.
The power extend converter provides several functions.
1. Boosts the input voltage to provide a regulated -58.0 VDC to the
load.
2. Provides overload protection with a resettable electronic over-
current switch.
3. Contains a mechanical switch to enable and disable the output. This
switch also resets the electronic over-current protection switch.
4. Internal fuse for fail-safe output circuit overload protection. This fuse
will blow only in the event of a failure of the device coupled with an
external fault.
5. By-pass mode. The device will feed the input voltage directly to the
output in the following cases:
a) Failure of the boost converter circuitry.
b) Input voltage exceeds output voltage set point.
What is in the Box
Kit P/N 565050 includes the items listed in Table 1.

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
10
Table 1: Items in Kit P/N 565050
Part Number Description Qty
1C48581000B
Power Extend Converter
1
565990
Return Wire Faston Tab
1
564330 Return Wire (6-inch long) 1
565752
(See Note 1)
Return Wire Jumper
Extension (4-inch long) 1
566207
(See Note 1)
Return Wire Jumper
Extension (8-inch long) 1
UM565050
These Instructions
1
Note 1: The return wire jumper extension may or may not be required
for each mounting bracket kit. Refer to the instructions furnished with
the mounting bracket kits.
Support Mounting Bracket Kits
Support mounting bracket kits have been designed to easily install the
C48/58-1000B Power Extend Converter into the power systems listed in
Table 2.A support mounting bracket kit must be used for grounding and
mechanical support. The various support mounting bracket kits available
are listed in Table 3.Each kit comes with specific installation instructions.
Refer to Figure 1for an illustration of the C48/58-1000B.
Application
Applications of this product include, but are not limited to the following:
•This product could be used in applications in which the DC power is
delivered over long distances to the end load.
•The power extend converter, with its output voltage regulated at a
higher level than its input, allows the end load to be sustained for a
longer period of time during a battery discharge condition.

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
11
Table 2: Associated Power Systems
Spec. No. Description
581125000
+24 VDC Vortex Power System
(with -48 VDC converter option installed)
581126000
NetSure™ 700 +24 VDC Power System
(with -48 VDC converter option installed)
581127000 NetSure™ 710 +24 VDC Power System
(with -48 VDC converter option installed)
582125000 -48 VDC Vortex Power System
582126000
NetSure™ 701 -48 VDC Power System
582127000
NetSure™ 7100 -48 VDC Power System
(formerly NetSure 721)
582127000100,
582127000101,
582127000102,
582127000103,
582127000203
NetSure™ 7100 -48 VDC Power System,
Pre-Configured Models
582136800
NetSure™ 502 -48 VDC Power System
582137000
NetSure™ 512 -48 VDC Power System (List 27)
582137100 NetSure™ 5100 -48 VDC Power System
545277 and
520276 -48 VDC Stand-Alone Distribution Panel, 20-position
548066
-48 VDC Stand-Alone Distribution Panel, 19-inch wide
548067 -48 VDC Stand-Alone Distribution Panel, 23-inch wide

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
12
Table 3: Power System Mounting Bracket Kits (cont’d on next page)
Mounting
Bracket Kit
P/N
Description
565391
For use with a List AA (24-position bullet) distribution
panel installed in a Spec. No. 582127000 power system.
For use with a List DA, DB, DC, DD (21-position bullet dual
voltage) distribution panel installed in a Spec. No.
581127000 or 582127000 power system.
(Kit Instructions, see IM565391.)
565459
For use with a List AL (26-position bullet) distribution
panel installed in a Spec. No. 582127000, 582127000100,
582127000101, 582127000102, 582127000103,
582127000203 power system.
For use with a List DE, DF, DG, DH, DJ, DK (26-position
bullet dual voltage) distribution panel installed in a Spec.
No. 581127000 or 582127000 power system.
(Kit Instructions, see IM565391.)
565601
For use with a List AA, AM, AN (24-position bullet)
distribution panel installed in a Spec. No. 582126000 or
582125000 power system.
For use with a List JA, JB, JC (20-position bullet dual
voltage) or List JD (22-position bullet dual voltage)
distribution panel installed in a Spec. No. 581126000,
581125000, 582126000, 582125000 power system.
(Kit Instructions, see IM565391.)
565649
For use with a Spec. No. 582136800, 23-inch wide power
system as follows:
a) 1-row version. 1-row distribution cabinet front door
must be removed to install kit. If door is required,
see kit P/N 10010670.
b) 2-row version, row-1 only.
(Kit Instructions, see IM565649.)

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
13
Table 3: Power System Mounting Bracket Kits (cont’d from previous page,
cont’d on next page)
Mounting
Bracket Kit
P/N
Description
565926
For use with a Spec. No. 582136800, 19-inch wide power
system as follows:
a) 1-row version. 1-row distribution cabinet front door
must be removed to install kit. If door is required,
see kit P/N 60018725.
b) 2-row version, row-1 only.
(Kit Instructions, see IM565649.)
10010670
For use with a P/N 548067 stand-alone distribution panel.
Includes mounting bracket and door kits. Also used with
a Spec. No. 582136800, 23-inch wide, 1-row cabinet when
a front door is required.
(Kit Instructions, see IM565649.)
60018725
For use with a P/N 548066 stand-alone distribution panel.
Includes mounting bracket and door kits. Also used with
a Spec. No. 582136800, 19-inch wide, 1-row cabinet when
a front door is required.
(Kit Instructions, see IM565649.)
565460
For use with a Spec. No. 582137000 List 27 power system.
(Kit Instructions, see IM565460.)
565939
For use with a Spec. No. 582137100 List 20 power system.
(Kit Instructions, see IM565939.)
60011929
For use with a Spec. No. 582137100 List 21 power system.
(Kit Instructions, see IM565939.)
565997
For use with a Spec. No. 582137100 List 25 power system.
(Kit Instructions, see IM565939.)
60011928
For use with a Spec. No. 582137100 List 26 power system.
(Kit Instructions, see IM565391.)
60011930
For use with a Spec. No. 582137100 List 27 power system.
(Kit Instructions, see IM565391.)

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
14
Table 3: Power System Mounting Bracket Kits (cont’d from previous page)
60017372
For use with a P/N 545277 and 520276 stand-alone
distribution panel.Includes mounting bracket and door
kits.
(Kit Instructions, see IM60017372.)
60019000
For use with a Spec. No. 582137100 List 102, 104, and 106
power system.
(Kit Instructions, see IM60019000.)
Table 4: Additional Material for Systems to be Equipped with Power Extend
Converter
P/N Description
565788 21-position return bus bar for use with Spec. No.
582137100 List 20 installed prior to January, 2020.
565789
26-position return bus bar for use with Spec. No.
582137100 List 25 installed prior to January, 2020.
60016097 2-position load bus bar adapter for use with two power
extend converters in parallel.
545346
3-position load bus bar adapter for use with three power
extend converters in parallel.
566026
Toggle breaker guard kit (included with each Power
Extend Converter bracket kit)

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
15

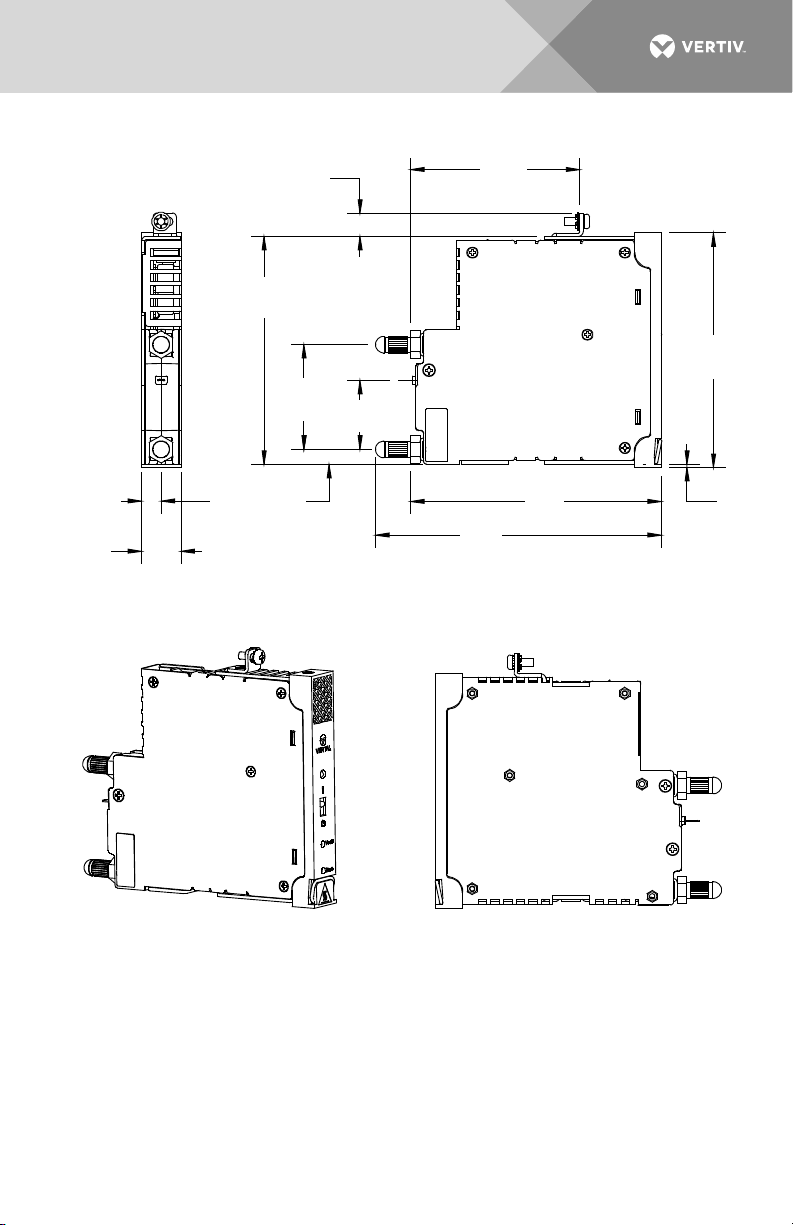

Figure 1: C48/58-1000B Illustration
Notes:
1. All dimensions are in inches [mm].
0.28
[7,0]
1.94
[49,3] 1.28
[32,4]
3.13
[79,6]
0.73
[18,5]
0.365
[9,27]
(3X)
4.22
[107,2]
0.43
[11,0]
4.64
[117,9]
5.30
[134,5]
0.06
[1,6]
4.35
[110,4]
Vin
Alarm
Vout

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
16
SPECIFICATIONS
DC Output Ratings
1. Nameplate Rating: -58 VDC / 17.2 A, 1000 W maximum.
2. Output Voltage: Nominal -58 VDC, positive ground. Output voltage
is non-adjustable.
3. Output Current:
a) Boost Mode: 17.2 amps maximum.
b) Bypass Mode: 24.0 amps maximum.
NOTE! The power extend converter will operate in bypass mode due
to 1) a failure of the boost conversion circuitry, (2) input voltage
exceeds 58.0 VDC, or 3) output current exceeds the boost mode
rating.
4. Output Power: See Table 5.
NOTE! These values are for a single unit and may be reduced in the
end use application. Refer to the specific mounting bracket kit
instructions (see Table 3 ) for spacing and power restrictions. Use
the calculator tool that can be obtained at https://www.vertiv.com/en-
us/products-catalog/critical-power/dc-power-systems/esure-power-
extend-converter-c4858-1000/#/downloads to determine the
necessity, quantity and spacing requirement of the Power Extend
Converter based on the RRU type (or peak load), use application
(host power system), trunk and jumper cable size and length,
minimum source voltage and minimum RRU operating voltage.
5. Regulation:
a) Output Voltage Tolerance: ±0.35 VDC (at nominal input voltage
[52V to 56.5V] and 0% to 100% load).
b) Dynamic Response: Step changes in load, from 50% to 25% or
50% to 75% at 2 A / microsecond does not cause the voltage
measured at the power extend converter output to overshoot or

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
17
undershoot more than 5% of the regulated output level. The
output voltage returns and stays within the ±1% regulation band
within 4 milliseconds.(Telcordia GR-947-CORE.)
c) Overshoot/Undershoot: 1.0% maximum output voltage overshoot
at turn-on (high voltage shutdown does not activate). No
voltage undershoots at turn-off.
d) Output Voltage Accuracy: ±0.15 V (at -58 VDC and 50% load
and nominal input voltage [52V to 56.5V]).

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
18
Table 5: Output Power Ratings
Input
Voltage
Ambient Temperature
40 °C 55°C 65°C
Air FlowLFM Air FlowLFM Air FlowLFM
0 60 120 0 60 120 1200 60
Watts Watts Watts
42VDC 1000 1000 1000 800 850 1000 600 650 800
54VDC 1000 1000 1000 1000 1000 1000 750 850 1000
58VDC 1000 1000 1000 1000 1000 1000 1000 1000 1000

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
19
6. Filtering:
a) Peak to Peak Noise: 250 mV up to 100 MHz.
b) Psophometric Noise: Less than 2 mv at nominal input (54 V) and
load (5% to 100%) conditions (16.66 Hz to 6000 Hz).
c) Wideband Noise:
<20 mV between 25 Hz to 20 kHz according to ETS EN 300
132-2.
<250 mV peak to peak, 0 to 100 MHz.
<50 mV rms in any 3 kHz band 10 KHz to 20 MHz for all line, load
and environmental conditions according to GR-947-Core section
3.24.
d) Narrow Band Noise: -21 dBm (20 mV) at 25 Hz to 200 Hz, -40
dBm (2.24 mV) at 500 Hz to 3000 Hz and linear in between; -35
dBm (4 mV) at 3 kHz to 20 kHz according to ETSI EN 300 132-2
V2_1_2 2003-09 4.9.1
e) Voice Frequency Output Noise (System Noise): Output noise
less than 38 dBrnc at nominal input (54 V) and load (5% to 100%)
conditions (16.66 Hz to 6000 Hz).
DC Input Ratings
1. Nameplate Rating: -42 VDC / 23.8 A; -54 VDC / 19.0 A; -58 VDC /
17.8 A.
2. Input Voltage:
a) -42.0 VDC to -58.0 VDC with 100% maximum output.
b) If input voltage exceeds output voltage setpoint, input will pass
through the power extend converter.
3. Maximum Input Current: 24.35 A at 42 Vin.
4. Inrush Current: The peak value of the input inrush current shall not
exceed 2.0 times the peak value of the maximum steady-state input
current at 25 °C and shall not trigger the power extend converter’s

Vertiv |eSure™ Power Extend Converter Installation and User Manual (UM565050)|Rev. D
20
internal input fault protection device(s). No damage to connection
points when inserted into a live bus.
5. Typical Input Data: See Table 6.
Table 6: Typical Input Data
Vin (VDC) % load Iin (ADC) Vo (VDC) Io (ADC) Eff Wloss (W) BTU/hour
42
42.04 0 0.04 58.27 0.00 na 1.68 5.74
42.03 25.16% 6.22 58.11 4.33 0.9625 9.81 33.47
42.08 49.96% 12.22 57.96 8.62 0.9716 14.60 49.83
42.02 75.13% 18.33 57.79 13.00 0.9754 18.96 64.68
42.02 100.09% 24.42 57.62 17.37 0.9754 25.27 86.22
48
48.1 0.00% 0.07 58.29 0.00 0.00 3.37 11.49
48.19 20.24% 4.34 58.16 3.48 0.9677 6.75 23.02
48.15 30.55% 6.52 58.08 5.26 0.9731 8.44 28.79
47.99 50.01% 10.65 57.95 8.63 0.9785 10.99 37.48
48 70.84% 15.05 57.83 12.25 0.9806 13.98 47.71
47.96 80.81% 17.18 57.76 13.99 0.9807 15.89 54.22
48.01 99.89% 21.21 57.64 17.33 0.9810 19.39 66.16
54.5
54.44 0.00% 0.08 58.27 0.00 0.00 4.36 14.86
54.59 20.35% 3.82 58.13 3.50 0.9756 5.08 17.33
54.47 30.43% 5.70 58.07 5.24 0.9801 6.19 21.13
54.51 50.03% 9.32 57.97 8.63 0.9847 7.78 26.55
54.54 70.70% 13.15 57.81 12.23 0.9858 10.18 34.75
54.5 80.78% 15.04 57.74 13.99 0.9855 11.90 40.60
54.5 99.89% 18.60 57.64 17.33 0.9854 14.80 50.50
58
58.87 0 0.03 58.27 0 0 1.7661 6.03
57.74 20.35% 3.61 58.13 3.50 0.9761 4.99 17.01
57.7 30.43% 5.37 58.07 5.24 0.9820 5.56 18.98
57.77 50.03% 8.79 57.97 8.63 0.9852 7.52 25.65
57.81 70.70% 12.40 57.81 12.23 0.9863 9.83 33.53
57.83 80.76% 14.16 57.73 13.99 0.9863 11.23 38.32
57.82 99.91% 17.50 57.65 17.33 0.9874 12.78 43.59
